NISSAN NOTE 2016 Service User Guide

AV-6
< PRECAUTION >[BASE AUDIO]
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint Syst
em (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000012432858
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.
Precaution for WorkINFOID:0000000012432859
• When removing or disassembling each component, be careful not to damage or deform it. If a component may be subject to interference, be sure to protect it with a shop cloth.
• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component with a shop cloth or vinyl tape to protect it.
• Protect the removed parts with a shop cloth and prevent them from being dropped.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusable part, always replace it with a new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After installation is complete, be sure to check that each part works properly.
• Follow the steps below to clean components:
- Water soluble dirt:
• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.
• Then rub with a soft, dry cloth.
- Oily dirt:
• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty area.
• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.
• Then rub with a soft, dry cloth.
- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.
- For genuine leather seats, use a genuine leather seat cleaner.
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
PREPARATIONAV-7
< PREPARATION > [BASE AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P
PREPARATION
PREPARATION
Special Service ToolsINFOID:0000000012432860
The actual shape of the tools may di ffer from those illustrated here.
Commercial Service ToolsINFOID:0000000012432861
Tool number
(TechMate No.)
Tool name Description
—
(J-46534)
Trim Tool Set Removing trim components
AWJIA0483ZZ
Tool name
Description
Power tool Loosening nuts, screws and bolts
PIIB1407E
Revision: August 2015 2016 Versa Note

cardiagn.com

AV-8
< SYSTEM DESCRIPTION >[BASE AUDIO]
COMPONENT PARTS
SYSTEM DESCRIPTION
COMPONENT PARTS
Component Parts LocationINFOID:0000000012432862
Audio unitINFOID:0000000012432863
DESCRIPTION
A. Luggage side lower finisher (RH) re-
moved B. Front of headliner
AWNIA3646ZZ
No.
Component Function
1. Rod antenna Refer to AV- 1 0 , "
Rod Antenna, Antenna Amp. and Antenna Feeder".
2. Antenna base (antenna amp.)
3. Rear door speaker RH
Refer to AV- 9 , "
Sp ea ke r".
4. Front door speaker RH
5. Front door speaker LH
6. Rear door speaker LH
7. Steering wheel audio control switches Refer to
AV- 1 0 , "
Steering Wheel Audio Control Switches".
8. Audio unit Refer to AV- 8 , "
Audio unit".
9. Bluetooth
® control unit Refer to AV- 9 , "Bluetooth® Control Unit".
10. Bluetooth
® antenna Refer to AV- 1 0 , "Bluetooth® Antenna".
11. Microphone Refer to AV- 1 0 , "
Microphone".
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
COMPONENT PARTSAV-9
< SYSTEM DESCRIPTION > [BASE AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P
• AM/FM electronic tuner radio, CD player, and auxiliary input jack are integrated into the audio unit.
• The audio unit supports CD-R/CD-RW and provides the playback
of MP3/WMA music files.
SpeakerINFOID:0000000012432864
FRONT DOOR SPEAKER
• 16.5 cm (6.5 in) speakers are instal led in the bottom of the front doors.
• Sound signals are input from the audio unit to output high, mid and low range sounds.
REAR DOOR SPEAKER
• 16.5 cm (6.5 in) speakers are installed in the bottom of the rear doors.
• Sound signals are input from the audio unit to output high, mid and
low range sounds.
Bluetooth® Control UnitINFOID:0000000012432865
• Inputs the TEL voice signal from Bluetooth® antenna and outputs it
to the audio unit
• Connected to the audio unit via AV communication.
JSNIA5416ZZ
JPNIA1454ZZ
JPNIA1454ZZ
JSNIA4236ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

AV-10
< SYSTEM DESCRIPTION >[BASE AUDIO]
COMPONENT PARTS
Bluetooth® Antenna
INFOID:0000000012432866
Receives the TEL voice signal from cellular phone and outputs it to
the Bluetooth
® control unit.
Steering Wheel Audio Control SwitchesINFOID:0000000012432867
• Operations for audio and hands-free phone are possible.
• Switch is connected to the Bluetooth
® control unit.
MicrophoneINFOID:0000000012432868
• The microphone is installed in the roof in front of the map lamp assembly.
• Power is supplied from the Bluetooth
® control unit.
Rod Antenna, Antenna Amp. and Antenna FeederINFOID:0000000012432869
RADIO ANTENNA
AM/FM radio rod antenna and antenna base is located on the rear of the roof. The antenna amp. is built into
the antenna base.
ANTENNA FEEDER LAYOUT
JSNIA4237ZZ
AWNIA4137ZZ
JPNIA1448ZZ
AWNIA3059GB
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
COMPONENT PARTSAV-11
< SYSTEM DESCRIPTION > [BASE AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P
1. Antenna base (antenna amp.) 2. Rod Antenna 3. M351
4. M67, M350 5. M107
AWNIA3114ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

AV-12
< SYSTEM DESCRIPTION >[BASE AUDIO]
SYSTEM
SYSTEM
System DescriptionINFOID:0000000012432870
SYSTEM DIAGRAM
AUDIO SYSTEM
The audio system consists of the following components
• Audio unit
• Front door speakers
• Rear door speakers
• Steering wheel audio control switches
• Antenna base (antenna amp.)
• Rod antenna
When the audio system is on, AM/FM signals received
by the rod antenna are amplified by the antenna amp.
and sent to the audio unit. The audio unit then sends audio signals to the front door speakers and rear door
speakers.
Refer to Owner's Manual for audio system operating instructions.
HANDS-FREE PHONE SYSTEM
System Operation
NOTE:
Cellular telephones must have their wireless connec tion set up (paired) before using the Bluetooth
® telephone
system.
The Bluetooth
® telephone system allows users who have a Bluetooth® cellular telephone to make a wireless
connection between their cellular telephone and the Bluetooth
® control unit. Hands-free cellular telephone
calls can be sent and received. Some Bluetooth
® cellular telephones may not be recognized by the Bluetooth®
control unit. When a cellular telephone or the Bluetooth® control unit is replaced, the telephone must be paired
with the Bluetooth
® control unit. Different cellular telephones may have different pairing procedures, refer to
the cellular telephone operating manual.
Refer to the Owner's Manual for Bluetooth
® telephone system operating instructions.
Bluetooth® Control Unit
When the ignition switch is turned to ACC or ON, the Bluetooth® control unit will power up. During power up,
the Bluetooth
® control unit is initialized and performs various self-checks. Initialization may take up to 20 sec-
onds.
Steering Wheel Audio Control Switches
When buttons on the steering wheel audio control switches are pushed, the resistance in steering wheel audio
control switch circuit changes, depending on which button is pushed.
The following functions can be performed using the steering wheel audio control switches:
• Initiate self-diagnosis of the Bluetooth
® telephone system
• Answer and end telephone calls
AWNIA4134GB
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
SYSTEMAV-13
< SYSTEM DESCRIPTION > [BASE AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P
• Adjust the volume of calls
Microphone
The microphone is located in the roof console asse mbly. The microphone sends a signal to the Bluetooth®
control unit. The microphone can be actively tested during self-diagnosis.
Audio Unit
The audio unit receives signals from the Bluetooth® control unit and sends audio signals to the speakers.
SPEED SENSITIVE VOLUME SYSTEM
Volume level of this system goes up and down automatica lly in proportion to the vehicle speed. The control
level can be selected by the customer. Refer to Owner's Manual for operating instructions.
Revision: August 2015 2016 Versa Note

cardiagn.com

AV-14
< SYSTEM DESCRIPTION >[BASE AUDIO]
DIAGNOSIS SYSTEM (AUDIO UNIT)
DIAGNOSIS SYSTEM (AUDIO UNIT)
Diagnosis DescriptionINFOID:0000000012432871
The audio unit on board diagnosis performs the functions listed in the table below:
On Board Diagn
osis FunctionINFOID:0000000012432872
METHOD OF STARTING
Hardware/Software Versions and Speaker Channel Check
1. Turn the ignition ON.
2. Turn the audio system OFF.
3. While pressing the preset 1 butt on, turn the volume control dial
clockwise or counterclockwise 30 clicks or more.
4. Initially, all display segments will be illuminated.
5. To exit hardware/software versions and speaker channel check, turn the ignition OFF.
Communication Diagnosis
1. Turn the ignition ON.
2. Turn the audio system OFF.
Mode Description
Hardware/Software Versions The following information is available for the audio unit:
• hardware version.
• software version.
• EQ pin info.
Speaker Channel Check The connection of the speakers to the audio unit can be confirmed.
Communication Diagnosis The AV communication (M-CAN) message history can be monitored.
AWNIA3042ZZ
ALNIA1382GB
Revision: August 2015 2016 Versa Note

cardiagn.com

AV
DIAGNOSIS SYSTEM (AUDIO UNIT)AV-15
< SYSTEM DESCRIPTION > [BASE AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P

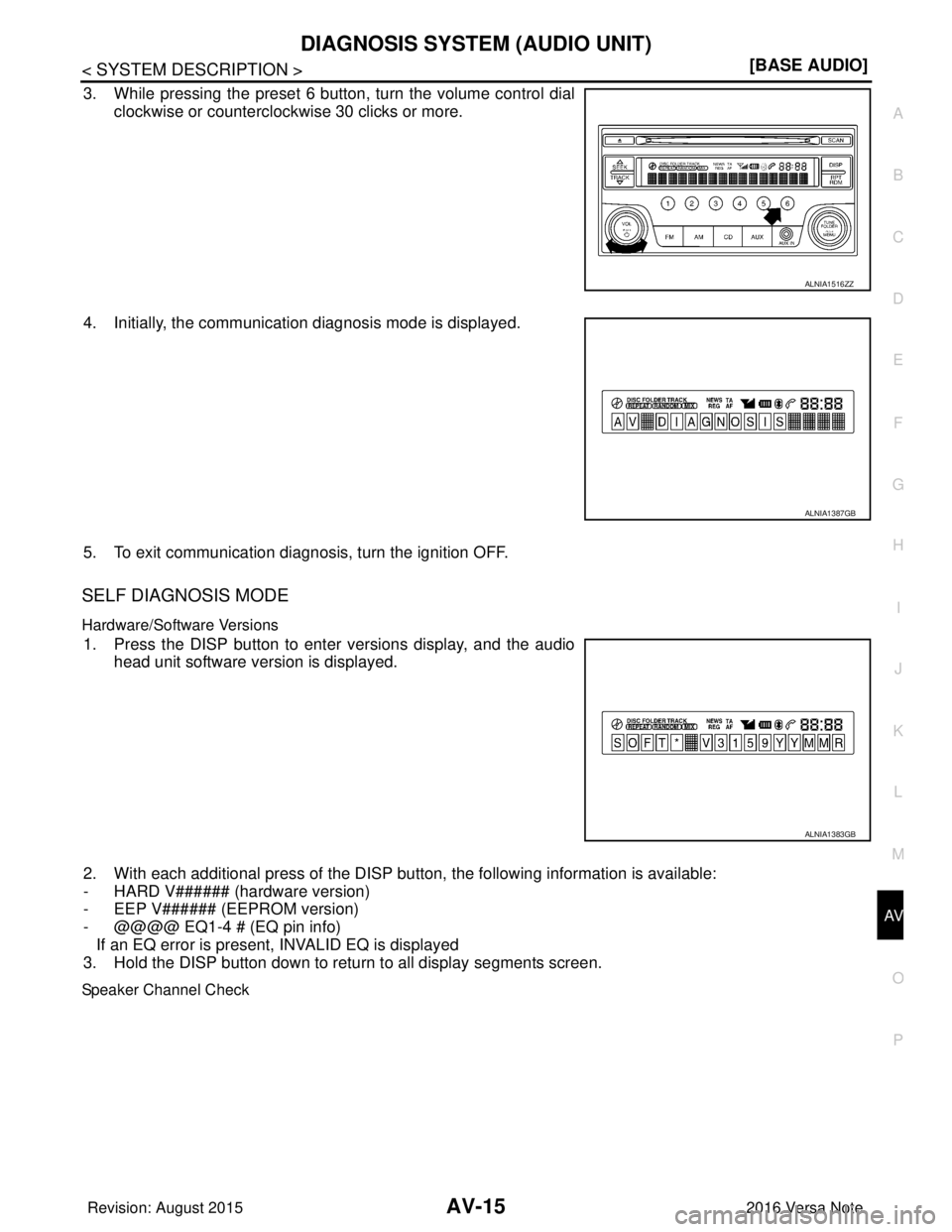

3. While pressing the preset 6 button, turn the volume control dial clockwise or counterclockwise 30 clicks or more.
4. Initially, the communication diagnosis mode is displayed.
5. To exit communication diagnosis, turn the ignition OFF.
SELF DIAGNOSIS MODE
Hardware/Software Versions
1. Press the DISP button to enter versions display, and the audio head unit software version is displayed.
2. With each additional press of the DISP button, the following information is available:
- HARD V###### (hardware version)
- EEP V###### (EEPROM version)
- @@@@ EQ1-4 # (EQ pin info) If an EQ error is present, INVALID EQ is displayed
3. Hold the DISP button down to return to all display segments screen.
Speaker Channel Check
ALNIA1516ZZ
ALNIA1387GB
ALNIA1383GB
