NISSAN NOTE 2016 Service Owner's Guide
Manufacturer: NISSAN, Model Year: 2016, Model line: NOTE, Model: NISSAN NOTE 2016Pages: 3641, PDF Size: 28.72 MB
Page 31 of 3641
AV-26
< WIRING DIAGRAM >[BASE AUDIO]
BASE AUDIO

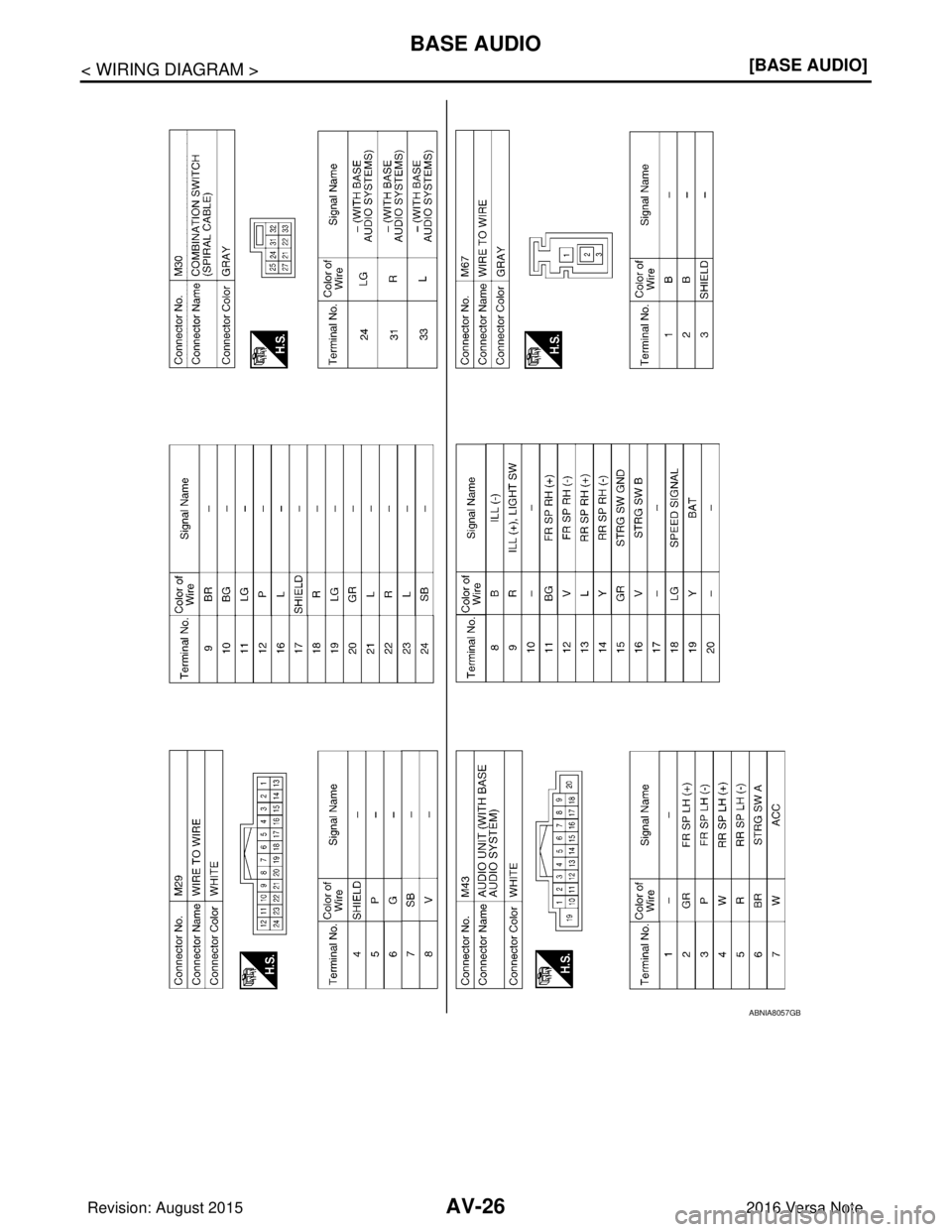

ABNIA8057GB
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 32 of 3641
AV
BASE AUDIOAV-27
< WIRING DIAGRAM > [BASE AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P

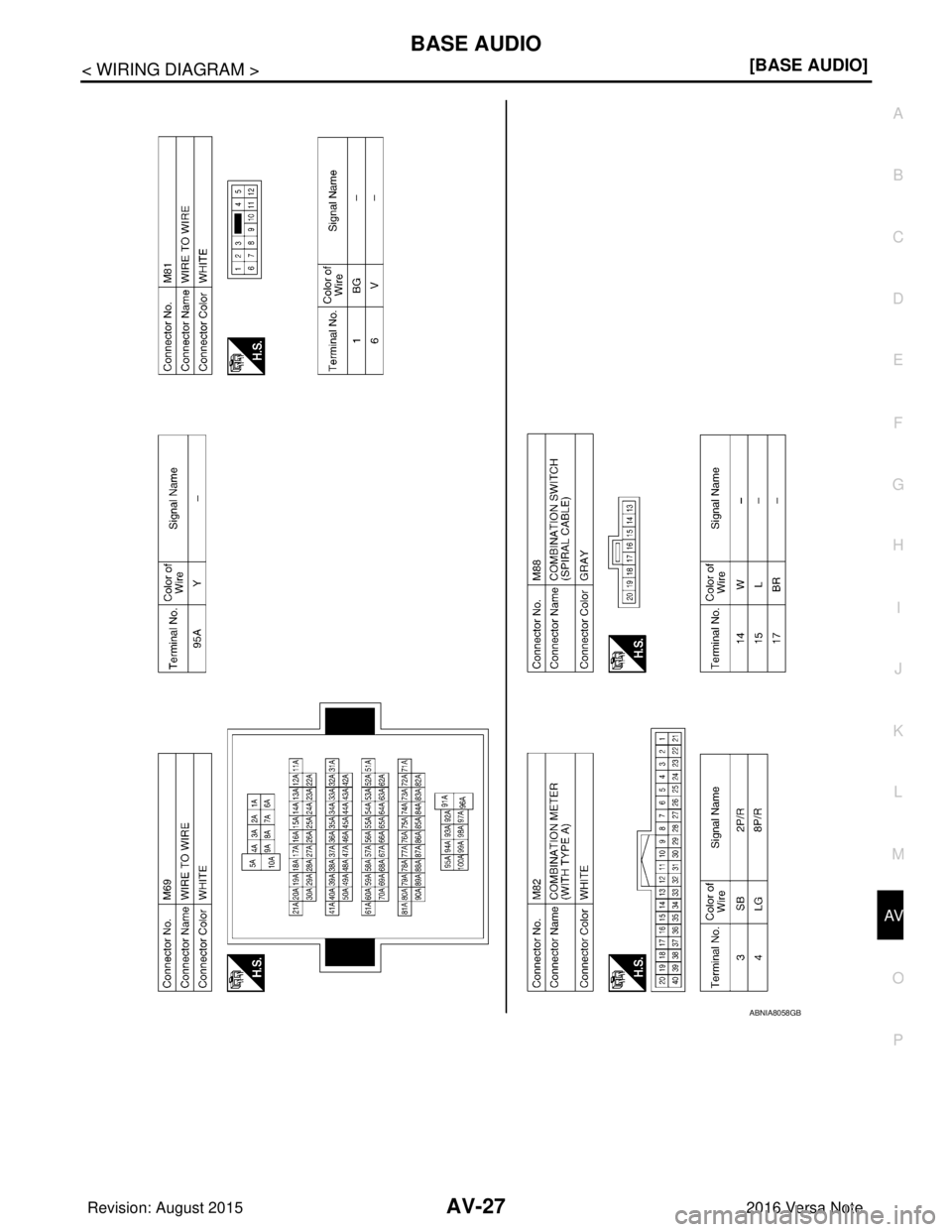

ABNIA8058GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 33 of 3641
AV-28
< WIRING DIAGRAM >[BASE AUDIO]
BASE AUDIO

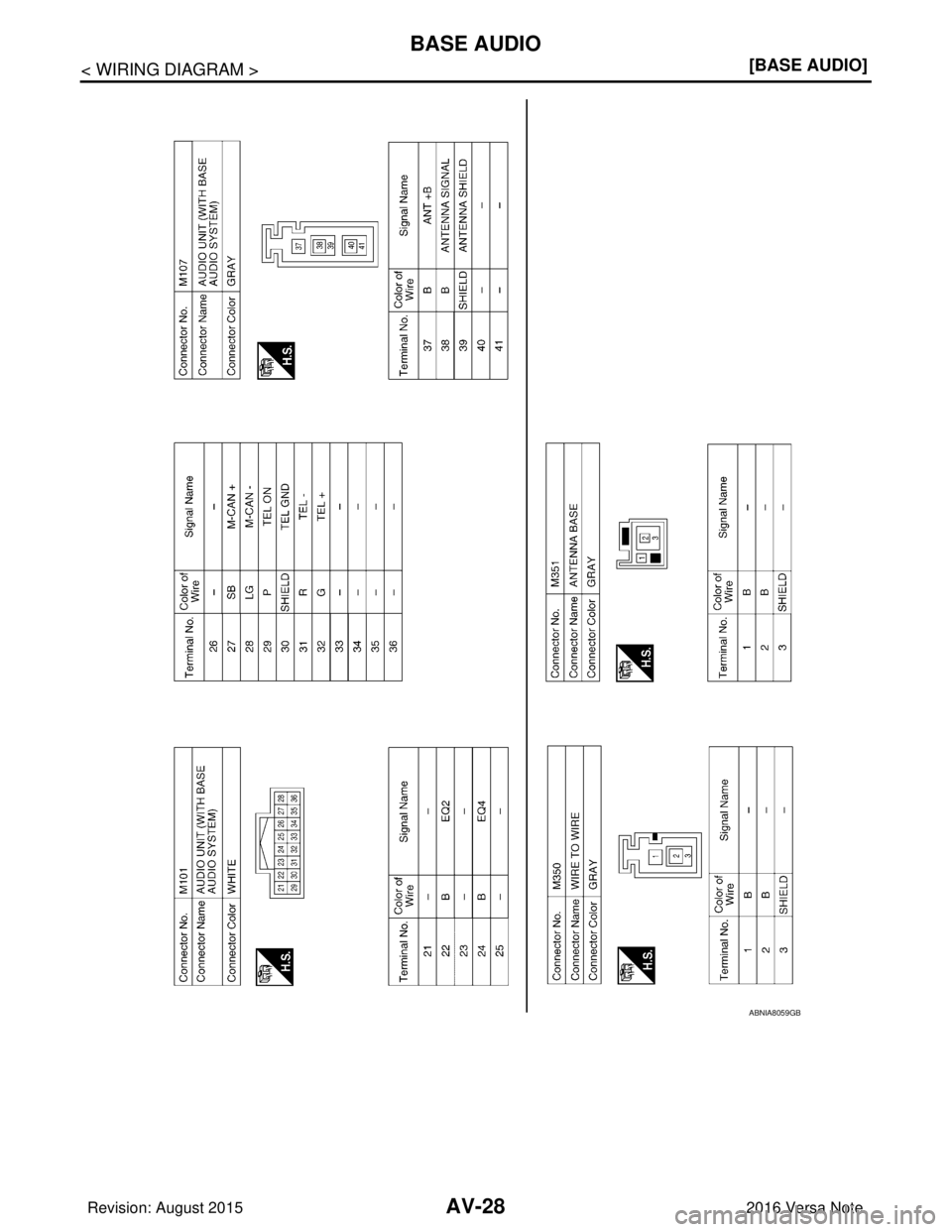

ABNIA8059GB
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 34 of 3641
AV
BASE AUDIOAV-29
< WIRING DIAGRAM > [BASE AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P

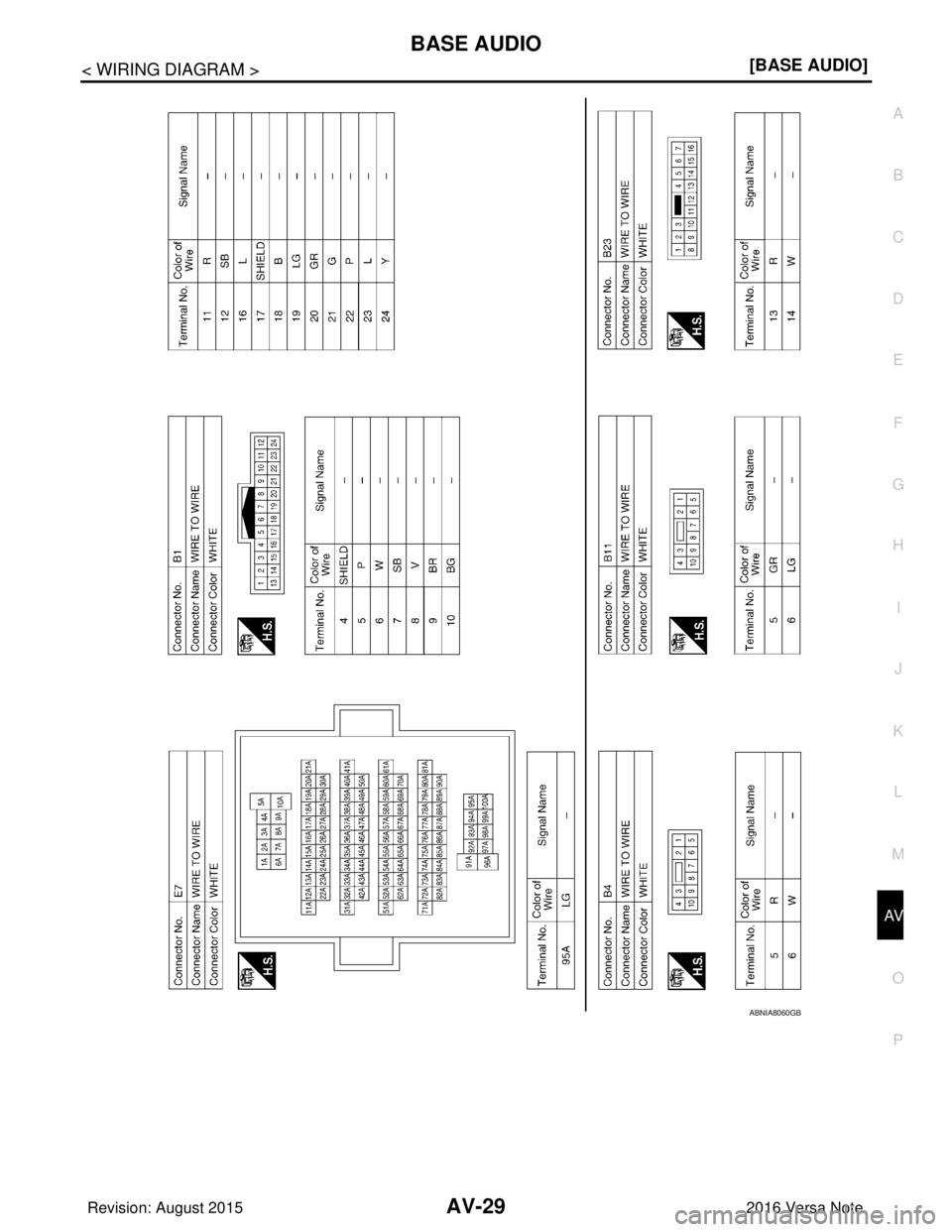

ABNIA8060GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 35 of 3641
AV-30
< WIRING DIAGRAM >[BASE AUDIO]
BASE AUDIO

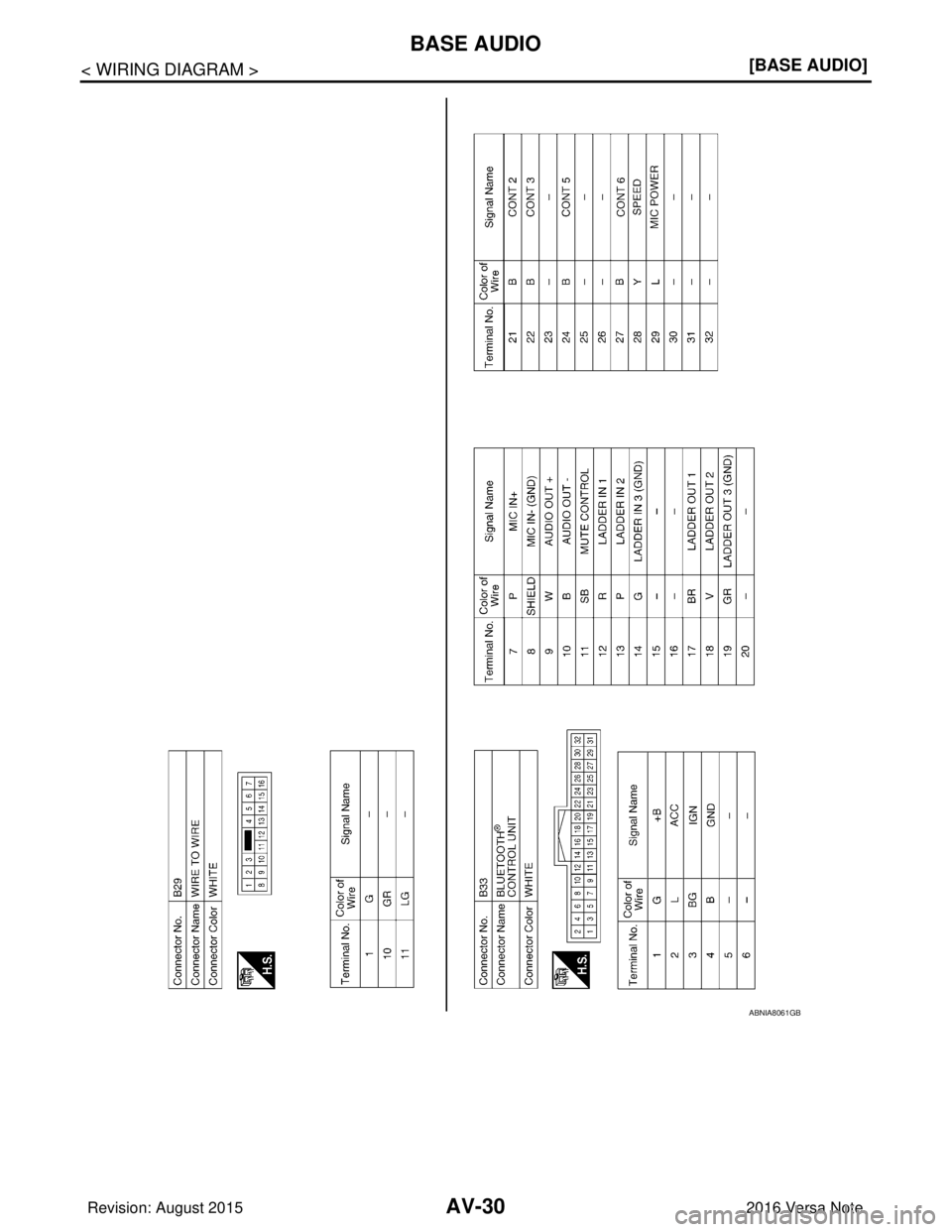

ABNIA8061GB
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 36 of 3641
AV
BASE AUDIOAV-31
< WIRING DIAGRAM > [BASE AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P

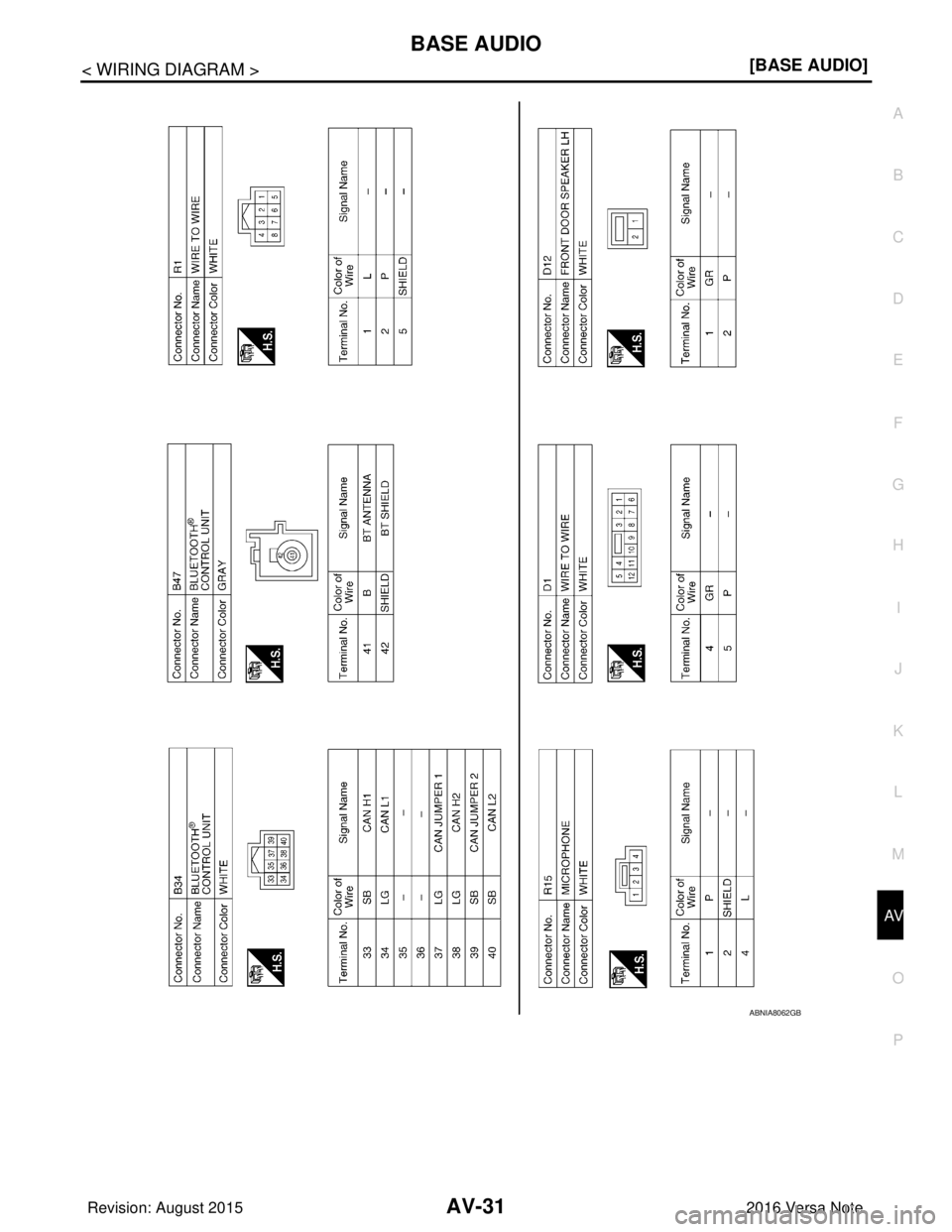

ABNIA8062GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 37 of 3641
AV-32
< WIRING DIAGRAM >[BASE AUDIO]
BASE AUDIO

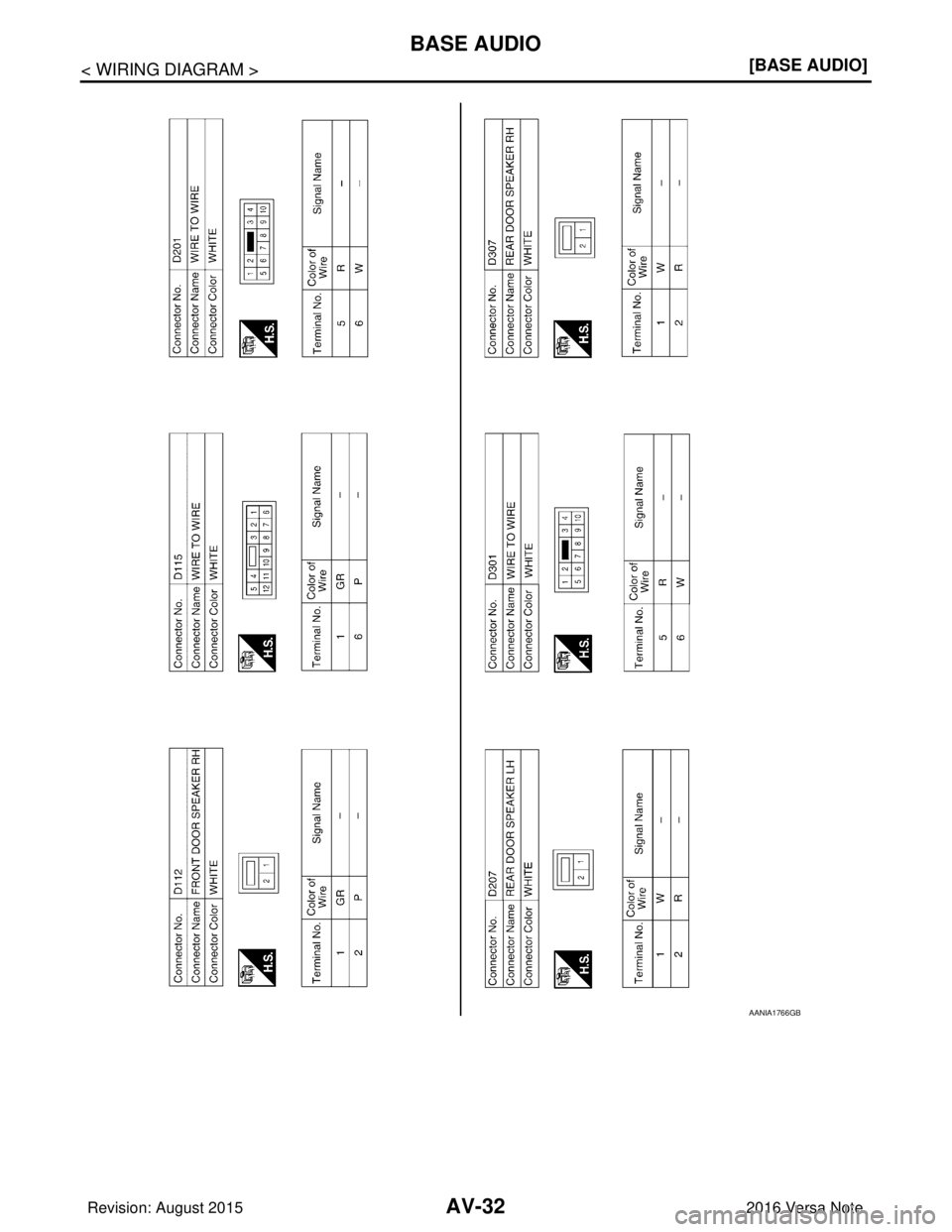

AANIA1766GB
Revision: August 2015
2016 Versa Note
cardiagn.com
Page 38 of 3641
AV
DIAGNOSIS AND REPAIR WORKFLOWAV-33
< BASIC INSPECTION > [BASE AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000012432878
OVERALL SEQUENCE
DETAILED FLOW
1.GET INFORMATION FOR SYMPTOM
Get detailed information from the customer about t he symptom (the condition and the environment when the
incident/malfunction occurred).
>> GO TO 2.
2.CONFIRM THE SYMPTOM
Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition
when the symptom is detected. Refer to AV-48, "
Symptom Table".
>> GO TO 3.
3.DETECT MALFUNCTIONING PA RT BY DIAGNOSTIC PROCEDURE
Inspect according to Diagnostic Procedure of the system.
AWNIA2404GB
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 39 of 3641
AV-34
< BASIC INSPECTION >[BASE AUDIO]
DIAGNOSIS AND REPAIR WORKFLOW
Is malfunctioning part detected?
YES >> GO TO 4.
NO >> GO TO 2.
4.REPAIR OR REPLACE THE MALFUNCTIONING PART
1. Repair or replace the malfunctioning part.
2. Reconnect parts or connectors di sconnected during Diagnostic Procedure.
>> GO TO 5.
5.FINAL CHECK
Refer to confirmed symptom in step 2, and ma ke sure that the symptom is not detected.
Was the repair confirmed?
YES >> Inspection End.
NO >> GO TO 2.
Revision: August 2015 2016 Versa Note
cardiagn.com
Page 40 of 3641
AV
POWER SUPPLY AND GROUND CIRCUITAV-35
< DTC/CIRCUIT DIAGNOSIS > [BASE AUDIO]
C
D
E
F
G H
I
J
K L
M B A
O P
DTC/CIRCUIT DIAGNOSIS
POWER SUPPLY AND GROUND CIRCUIT
AUDIO UNIT
AUDIO UNIT : Diagnosis ProcedureINFOID:0000000012432879
Regarding Wiring Diagram information, refer to AV-24, "Wiring Diagram".
1.CHECK FUSE
Check that the following fuses are not blown.
Are the fuses blown?
YES >> Replace the blown fuse after repairing the affected circuit.
NO >> GO TO 2.
2.CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect audio unit connector M43.
3. Check voltage between audio unit connector M43 and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace harness or connectors.
3.CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect audio unit connector M101.
3. Check continuity between audio unit connector M101 and ground.
Is the inspection result normal?
YES >> Inspection End.
NO >> Repair or replace harness or connectors.
BLUETOOTH® CONTROL UNIT
BLUETOOTH® CONTROL UNI T : Diagnosis ProcedureINFOID:0000000012432880
Regarding Wiring Diagram information, refer to AV-24, "Wiring Diagram".
Terminal No.Signal name Fuse No.
7 ACC power supply 18 (10A)
19 Battery power supply 29 (15A)
Audio unit
GroundCondition Vo l ta g e
(Approx.)
Connector Terminal
M43 7
—Ignition switch: ON
Battery voltage
19 Ignition switch: OFF
Audio unit
GroundContinuity
Connector Terminal
M101 22
—Y es
24
Revision: August 2015 2016 Versa Note
