NISSAN NOTE 2016 Service Repair Manual

SEC-134
< WIRING DIAGRAM >[WITHOUT INTELLIGENT KEY SYSTEM]
NVIS (NISSAN VEHICLE I
MMOBILIZER SYSTEM-NATS)
ABKIA7108GB
Revision: August 2015 2016 Versa Note

cardiagn.com

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)
SEC-135
< WIRING DIAGRAM > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P

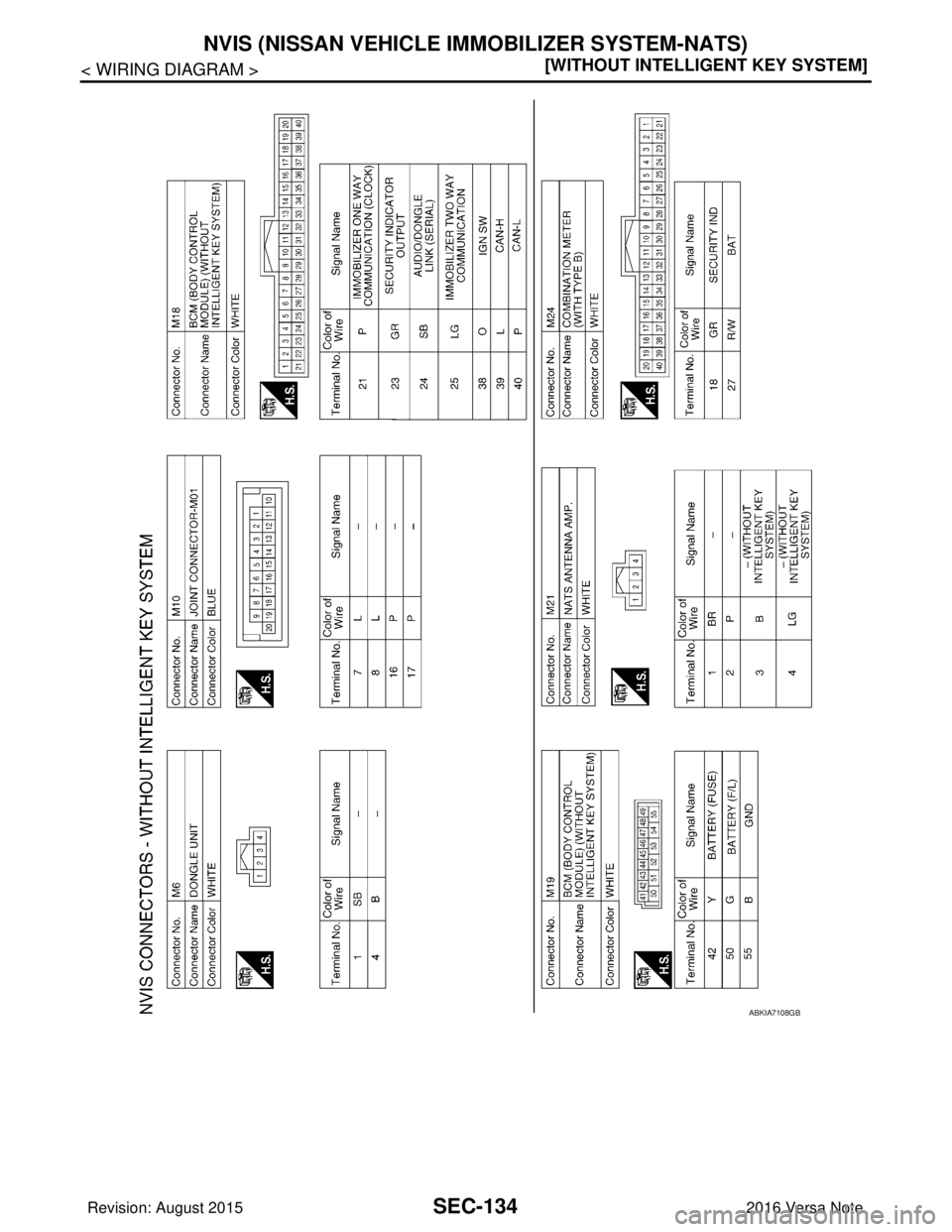

ABKIA7109GB
Revision: August 2015 2016 Versa Note

cardiagn.com

SEC-136
< WIRING DIAGRAM >[WITHOUT INTELLIGENT KEY SYSTEM]
NVIS (NISSAN VEHICLE I
MMOBILIZER SYSTEM-NATS)

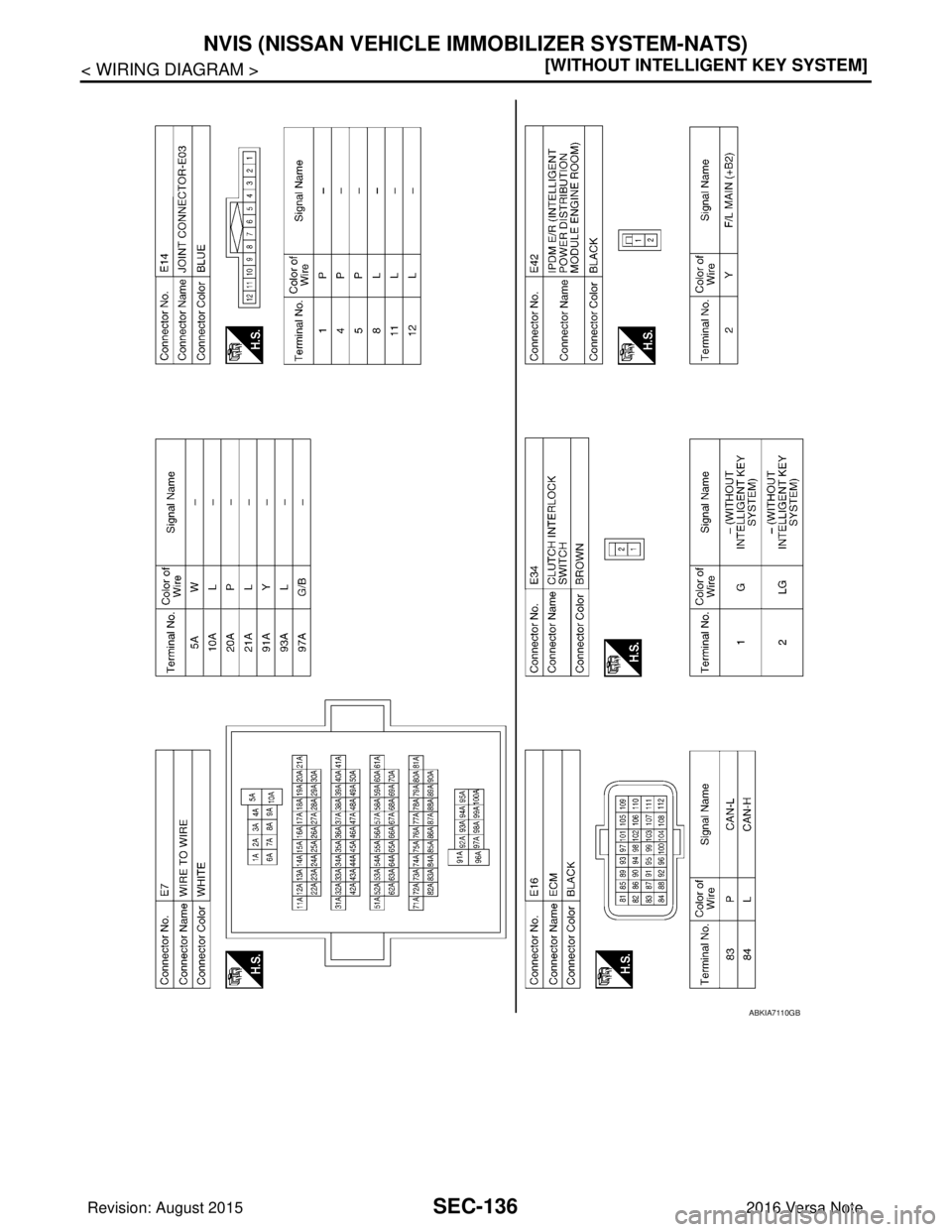

ABKIA7110GB
Revision: August 2015 2016 Versa Note

cardiagn.com

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)
SEC-137
< WIRING DIAGRAM > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P

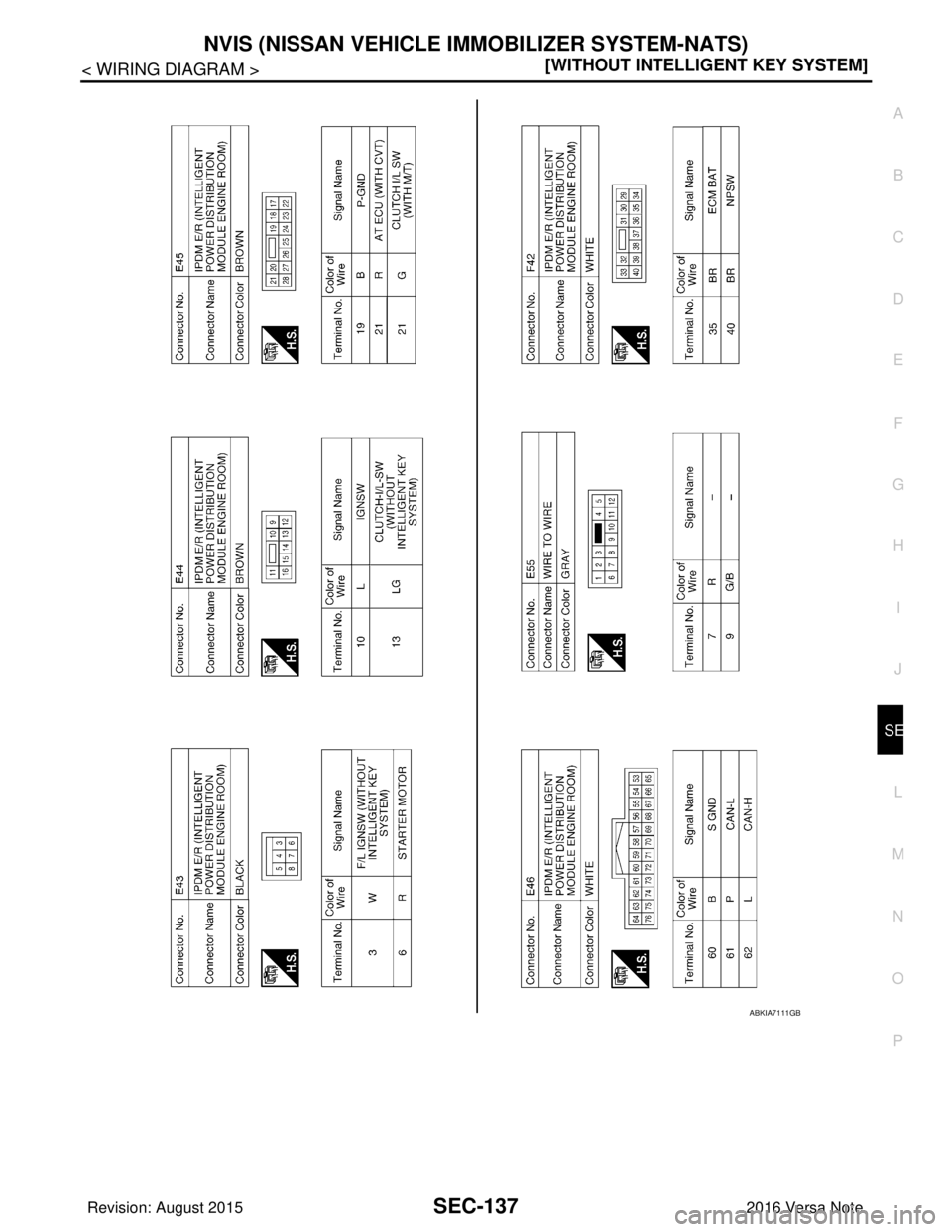

ABKIA7111GB
Revision: August 2015 2016 Versa Note

cardiagn.com

SEC-138
< WIRING DIAGRAM >[WITHOUT INTELLIGENT KEY SYSTEM]
NVIS (NISSAN VEHICLE I
MMOBILIZER SYSTEM-NATS)

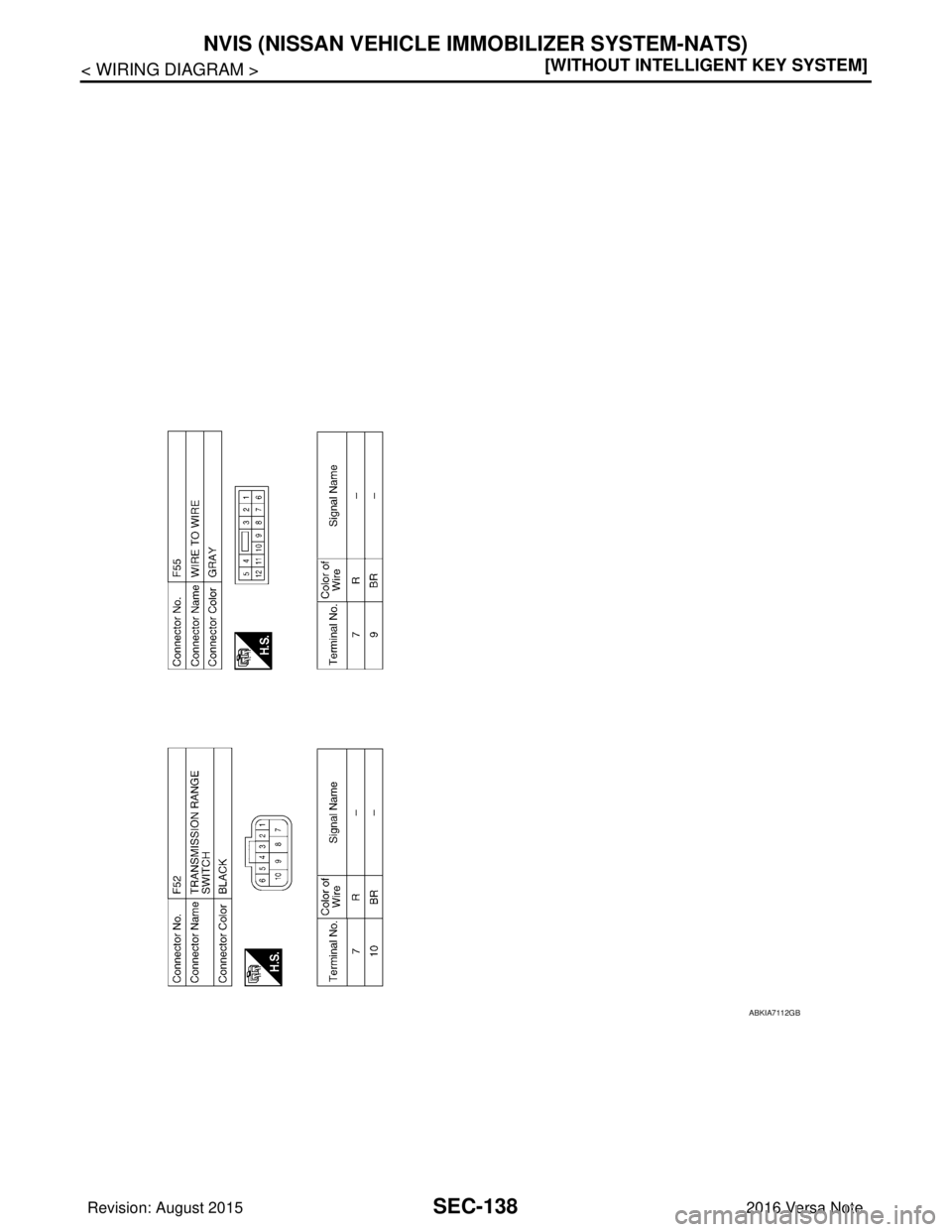

ABKIA7112GB
Revision: August 2015 2016 Versa Note

cardiagn.com

DIAGNOSIS AND REPAIR WORKFLOWSEC-139
< BASIC INSPECTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000012430462

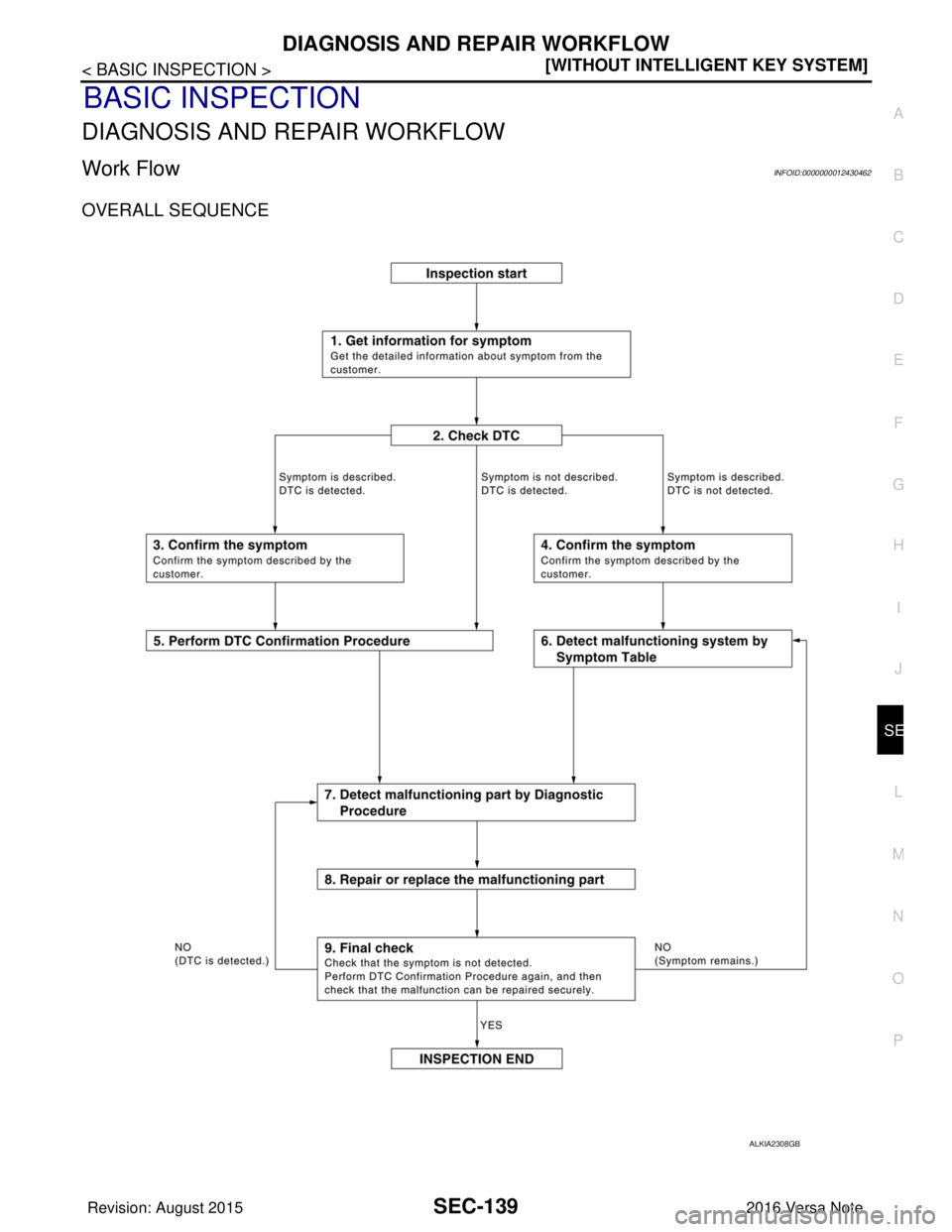

OVERALL SEQUENCE
ALKIA2308GB
Revision: August 2015 2016 Versa Note

cardiagn.com

SEC-140
< BASIC INSPECTION >[WITHOUT INTELLIGENT KEY SYSTEM]
DIAGNOSIS AND REPAIR WORKFLOW
DETAILED FLOW
1.GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred).
>> GO TO 2.
2.CHECK DTC
1. Check DTC for BCM.
2. Perform the following procedure if DTC is displayed.
- Erase DTC.
- Study the relationship between the cause detected by DTC and the symptom described by the customer.
3. Check related service bulletins for information.
Is any symptom described and any DTC detected?
Symptom is described, DTC is displayed>>GO TO 3.
Symptom is described, DTC is not displayed>>GO TO 4.
Symptom is not described, DTC is displayed>>GO TO 5.
3.CONFIRM THE SYMPTOM
Confirm the symptom described by the customer.
Connect CONSULT to the vehicle in “Data Monitor” and check real-time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 5.
4.CONFIRM THE SYMPTOM
Confirm the symptom described by the customer.
Connect CONSULT to the vehicle in “Data Monitor” and check real-time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.
>> GO TO 6.
5.PERFORM DTC CONFIRMATION PROCEDURE
Perform DTC Confirmation Procedure for the display ed DTC, and then check that DTC is detected again.
If two or more DTCs are detected, refer to BCS-115, "
DTCInspectionPriorityChart" (BCM) and determine
trouble diagnosis order.
Is DTC detected?
YES >> GO TO 7.
NO >> Refer to GI-42, "
Intermittent Incident".
6.DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE
Detect malfunctioning system according to Symptom Table based on the confirmed symptom in step 4.
>> GO TO 7.
7.DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE
Inspect according to Diagnostic Procedure of the system.
NOTE:
The Diagnostic Procedure is described based on open circuit inspection. A short circuit inspection is also
required for the circuit check in the Diagnostic Procedure.
>> GO TO 8.
8.REPAIR OR REPLACE THE MALFUNCTIONING PART
1. Repair or replace the malfunctioning part.
2. Reconnect parts or connectors disconnected during Diagnostic Procedure again after repair and replace- ment.
Revision: August 2015 2016 Versa Note

cardiagn.com

DIAGNOSIS AND REPAIR WORKFLOWSEC-141
< BASIC INSPECTION > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
3. Check DTC. If DTC is displayed, erase it. >> GO TO 9.
9.FINAL CHECK
When DTC was detected in step 8, perform DTC Confirmation Procedure or Component Function Check
again, and then check that the malfunctions have been fully repaired.
When symptom was described by the customer, refer to the confirmed symptom in step 3 or 4, and check that
the symptom is not detected.
Does the symptom reappear?
YES (DTC is detected)>>GO TO 7.
YES (Symptom remains)>>GO TO 6.
NO >> Inspection End.
Revision: August 2015 2016 Versa Note

cardiagn.com

SEC-142
< BASIC INSPECTION >[WITHOUT INTELLIGENT KEY SYSTEM]
INSPECTION AND ADJUSTMENT
INSPECTION AND ADJUSTMENT
ECM RE-COMMUNICATING FUNCTION
ECM RE-COMMUNICATING FUNCTION : DescriptionINFOID:0000000012430463
Performing following procedure can automatically per
form re-communication of ECM and BCM, but only when
the ECM has been replaced with a new one (*1).
*1: New one means an ECM which has never been energized on-board.
(In this step, initialization procedure by CONSULT is not necessary)
NOTE:
• When registering new Key IDs or replacing the ECM that is not brand new, refer to CONSULT Immo-
bilizer mode and follow th e on-screen instructions.
• If multiple keys are attached to the key holder, separate them before work.
• Distinguish keys with unregistered key ID from those with registered ID.
ECM RE-COMMUNICATING FUNCTION : Special Repair RequirementINFOID:0000000012430464
1.PERFORM ECM RE-COMMUNICATING FUNCTION
1. Install ECM.
2. Using a registered key (*2), turn ignition switch to “ON”. *2: To perform this step, use the key that has been used before performing ECM replacement.
3. Maintain ignition switch in “ON” position for at least 5 seconds.
4. Turn ignition switch to “OFF”.
5. Start engine.
Can engine be started?
YES >> Procedure is completed.
NO >> Initialize control unit. Refer to CONSULT Immobilizer mode and follow the on-screen instructions.
Revision: August 2015 2016 Versa Note

cardiagn.com

P1610 LOCK MODESEC-143
< DTC/CIRCUIT DIAGNOSIS > [WITHOUT INTELLIGENT KEY SYSTEM]
C
D
E
F
G H
I
J
L
M A
B
SEC
N
O P
DTC/CIRCUIT DIAGNOSIS
P1610 LOCK MODE
DescriptionINFOID:0000000012430465
When the starting operation is carried more than five times consecutively under the following conditions, NATS
will shift to the mode which prevents the engine from being started.
• Unregistered mechanical key is used.
• BCM or ECM's malfunctioning.
DTC LogicINFOID:0000000012430466
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Check “Self Diagnostic Result” using CONSULT.
Is DTC detected?
YES >> Refer to SEC-143, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000012430467
1.CHECK ENGINE START FUNCTION
1. Perform the check for DTC except DTC P1610.
2. Use CONSULT to erase DTC after fixing.
3. Check that engine can start with registered mechanical key.
Does the engine start?
YES >> Inspection End.
NO >> GO TO 2.
2.CHECK INTERMITTENT INCIDENT
Refer to GI-42, "
Intermittent Incident".
>> Inspection End.
DTC No. Trouble diagnosis
name DTC detecting condition
Possible cause
P1610 LOCK MODE When the starting operation is carried out
five or more times consecutively under the
following conditions:
• Unregistered mechanical key
• BCM or ECM's malfunctioning. • Mechanical key
•BCM
•ECM
Revision: August 2015
2016 Versa Note
