NISSAN NOTE 2016 Service Repair Manual

WW-66
< REMOVAL AND INSTALLATION >
FRONT WIPER DRIVE ASSEMBLY
FRONT WIPER DRIVE ASSEMBLY
Exploded ViewINFOID:0000000012433247
Removal and InstallationINFOID:0000000012433248
REMOVAL
1. Remove cowl top cover. Refer to EXT-37, "Removal and Installation".
2. Disconnect the harness connector from front wiper motor.
3. Remove bolts and front wiper drive assembly.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Tighten front wiper drive assembly bo lts to specification. Refer to WW-66, "
Exploded View".
1. Wiper arm cap (LH/RH) 2. Wiper arm (LH)3. Wiper blade (LH)
4. Wiper arm (RH) 5. Wiper blade (RH) 6. Front wiper drive assembly
ALLIA1310ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

FRONT WIPER DRIVE ASSEMBLYWW-67
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P
Exploded ViewINFOID:0000000012433249
Disassembly and AssemblyINFOID:0000000012433250
DISASSEMBLY
1. Remove front wiper drive assembly. Refer to WW-66, "Removal and Installation".
2. Remove wiper linkage 1 and 2 from the front wiper drive. CAUTION:
Do not bend the linkage or damage the plastic part of the ball jo int when removing the wiper link-
age.
3. Remove screws and wiper motor from front wiper drive.
ASSEMBLY
1. Install wiper motor screws and wiper motor to front wiper drive.
2. Install wiper linkage 2 to the front wiper drive. CAUTION:
• Do not drop wiper motor or cause it to come into contact with other parts.
• Be careful of the grease condition at the wiper mo tor and wiper linkage joint (retainer). Apply a
suitable multi −purpose grease if necessary.
3. Install wiper linkage 1 to the wiper motor and the front wiper drive.
4. Install front wiper drive assembly. Refer to WW-66, "
Removal and Installation".
1. Wiper linkage 22. Wiper linkage 1 3. Front wiper motor
4. Front wiper drive
ALLIA1311ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

WW-68
< REMOVAL AND INSTALLATION >
WIPER AND WASHER SWITCH
WIPER AND WASHER SWITCH
Removal and InstallationINFOID:0000000012433251
The wiper and washer switch is part of the combination switch. Refer to EXL-107, "Removal and Installation".
Revision: August 2015 2016 Versa Note

cardiagn.com

REAR WIPER ARMWW-69
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P

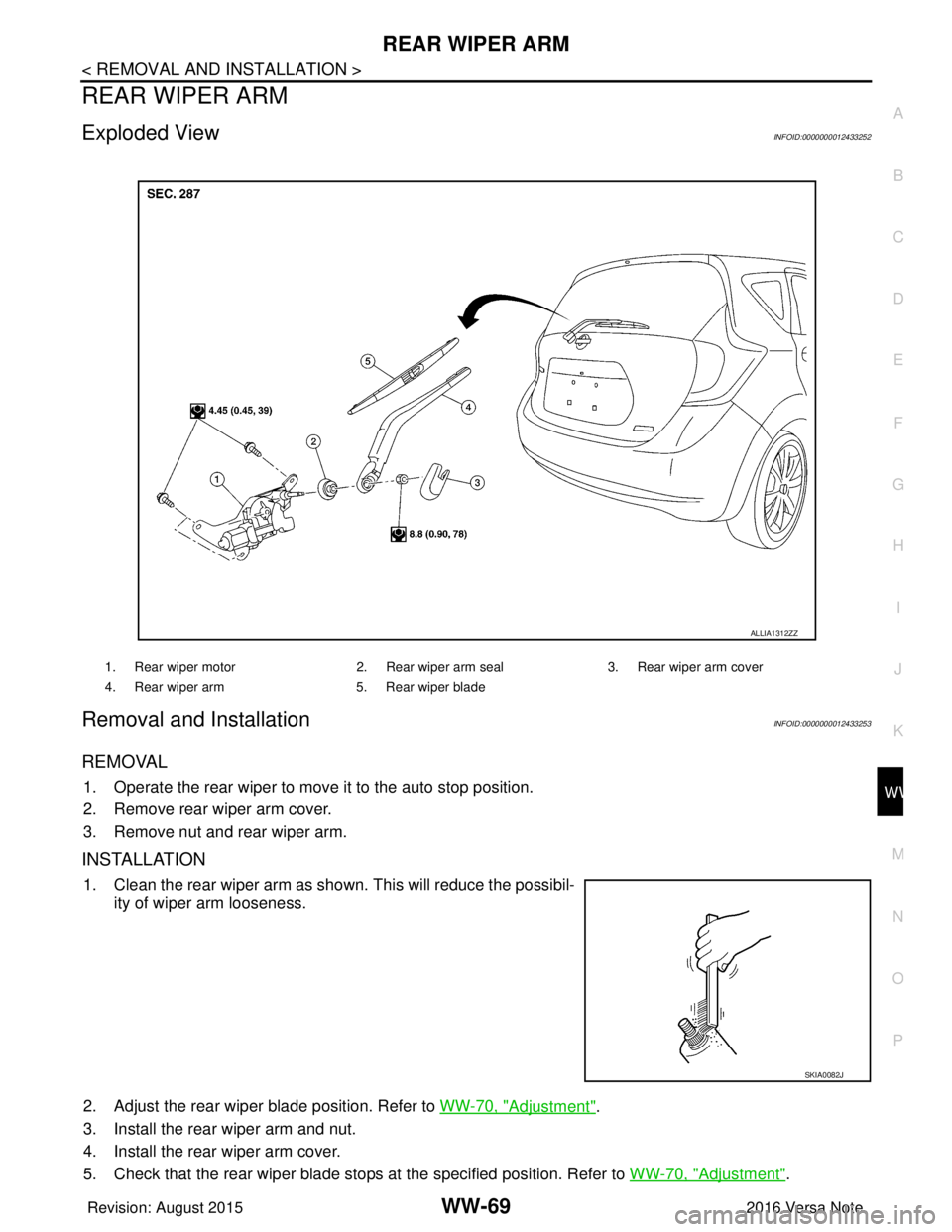

REAR WIPER ARM
Exploded ViewINFOID:0000000012433252
Removal and InstallationINFOID:0000000012433253
REMOVAL
1. Operate the rear wiper to move it to the auto stop position.
2. Remove rear wiper arm cover.
3. Remove nut and rear wiper arm.
INSTALLATION
1. Clean the rear wiper arm as shown. This will reduce the possibil- ity of wiper arm looseness.
2. Adjust the rear wiper blade position. Refer to WW-70, "
Adjustment".
3. Install the rear wiper arm and nut.
4. Install the rear wiper arm cover.
5. Check that the rear wiper blade stops at the specified position. Refer to WW-70, "
Adjustment".
1. Rear wiper motor 2. Rear wiper arm seal3. Rear wiper arm cover
4. Rear wiper arm 5. Rear wiper blade
ALLIA1312ZZ
SKIA0082J
Revision: August 2015 2016 Versa Note

cardiagn.com

WW-70
< REMOVAL AND INSTALLATION >
REAR WIPER ARM

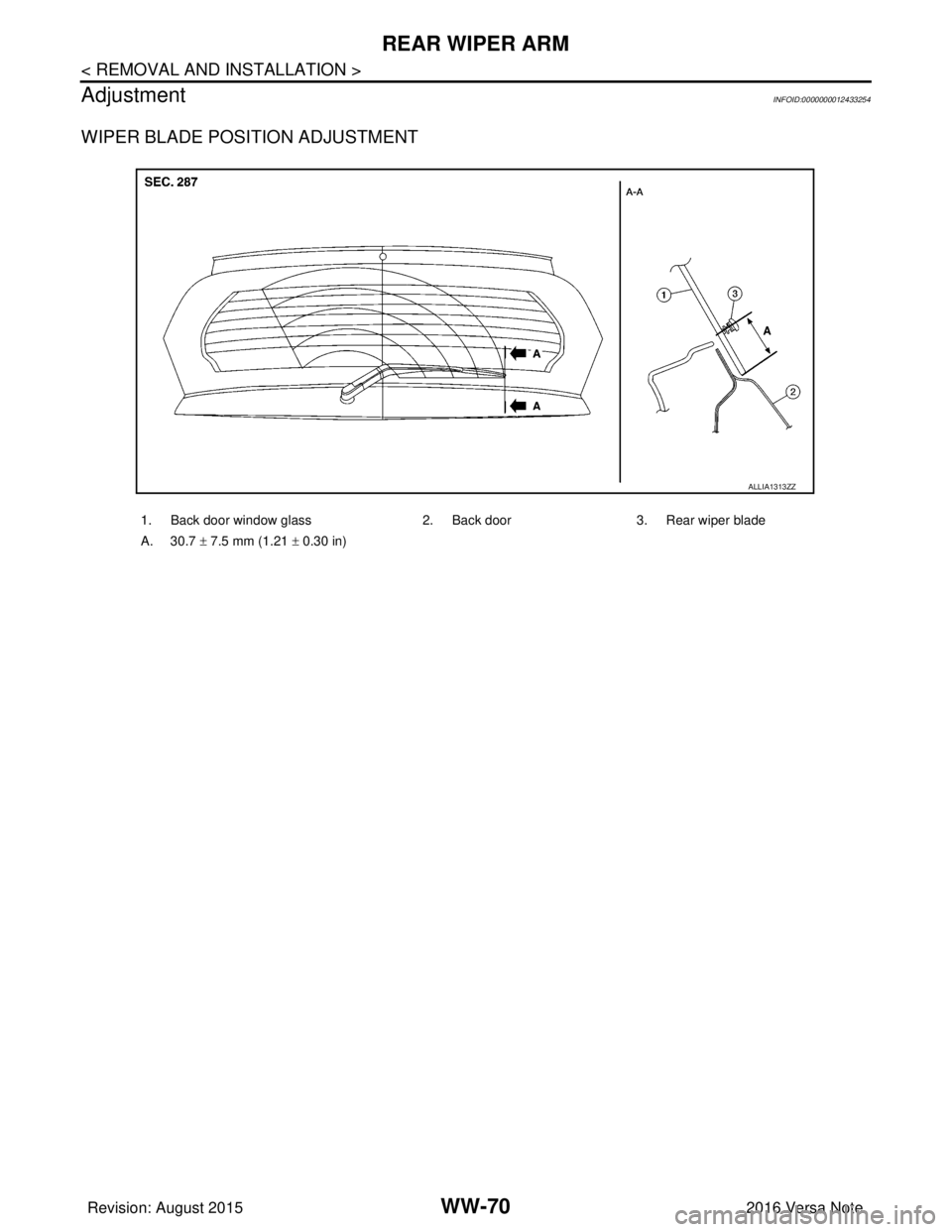

Adjustment
INFOID:0000000012433254
WIPER BLADE POSITION ADJUSTMENT
1. Back door window glass 2. Back door3. Rear wiper blade
A. 30.7 ± 7.5 mm (1.21 ± 0.30 in)
ALLIA1313ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

REAR WIPER BLADEWW-71
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P
REAR WIPER BLADE
Removal and InstallationINFOID:0000000012433255
REMOVAL
1. Lift the rear wiper arm and blade assembly away from the back window glass.
2. Push the release tab (A) of the rear wiper blade (1), then move the rear wiper blade down the rear wiper arm (2) to remove.
INSTALLATION
1. Insert the rear wiper blade onto the rear wiper arm until it clicks into place.
JMLIA1044ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

WW-72
< REMOVAL AND INSTALLATION >

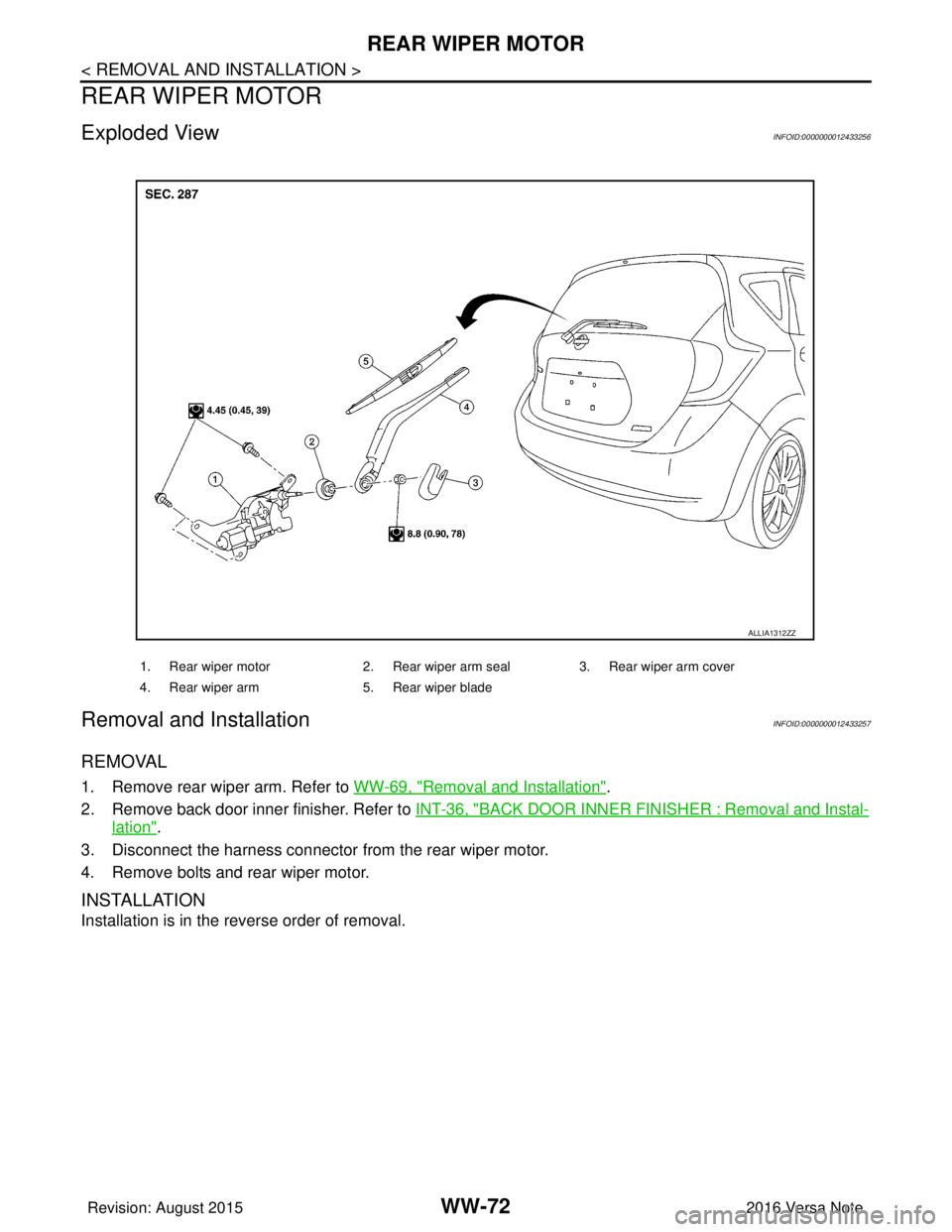

REAR WIPER MOTOR
REAR WIPER MOTOR
Exploded ViewINFOID:0000000012433256
Removal and InstallationINFOID:0000000012433257
REMOVAL
1. Remove rear wiper arm. Refer to WW-69, "Removal and Installation".
2. Remove back door inner finisher. Refer to INT-36, "
BACK DOOR INNER FINISHER : Removal and Instal-
lation".
3. Disconnect the harness connector from the rear wiper motor.
4. Remove bolts and rear wiper motor.
INSTALLATION
Installation is in the reverse order of removal.
1. Rear wiper motor 2. Rear wiper arm seal3. Rear wiper arm cover
4. Rear wiper arm 5. Rear wiper blade
ALLIA1312ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

REAR WASHER NOZZLE AND TUBEWW-73
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P

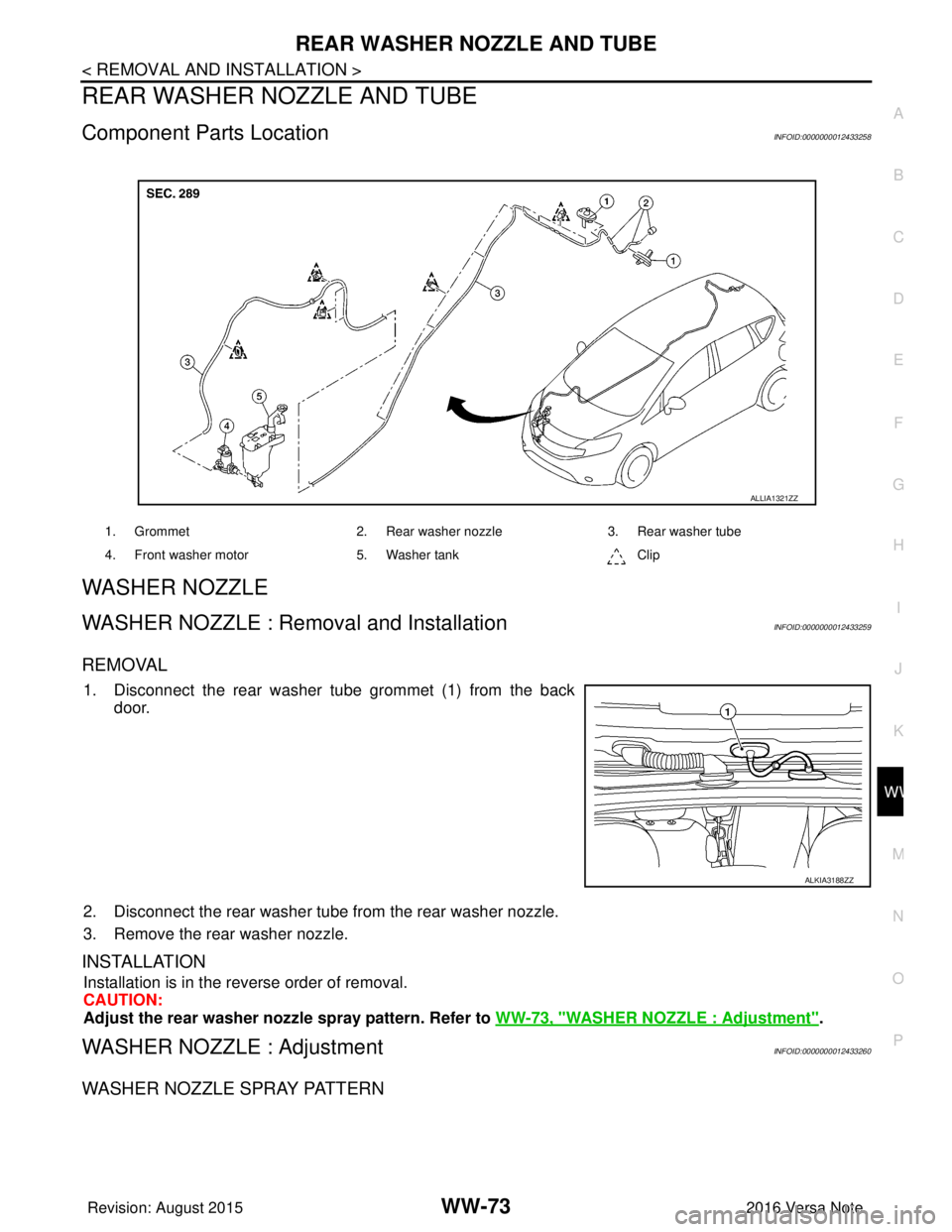

REAR WASHER NOZZLE AND TUBE
Component Parts LocationINFOID:0000000012433258
WASHER NOZZLE
WASHER NOZZLE : Removal and InstallationINFOID:0000000012433259
REMOVAL
1. Disconnect the rear washer tube grommet (1) from the back door.
2. Disconnect the rear washer tube from the rear washer nozzle.
3. Remove the rear washer nozzle.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Adjust the rear washer nozz le spray pattern. Refer to WW-73, "
WASHER NOZZLE : Adjustment".
WASHER NOZZLE : AdjustmentINFOID:0000000012433260
WASHER NOZZLE SPRAY PATTERN
1. Grommet 2. Rear washer nozzle3. Rear washer tube
4. Front washer motor 5. Washer tank Clip
ALLIA1321ZZ
ALKIA3188ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

WW-74
< REMOVAL AND INSTALLATION >
REAR WASHER NOZZLE AND TUBE

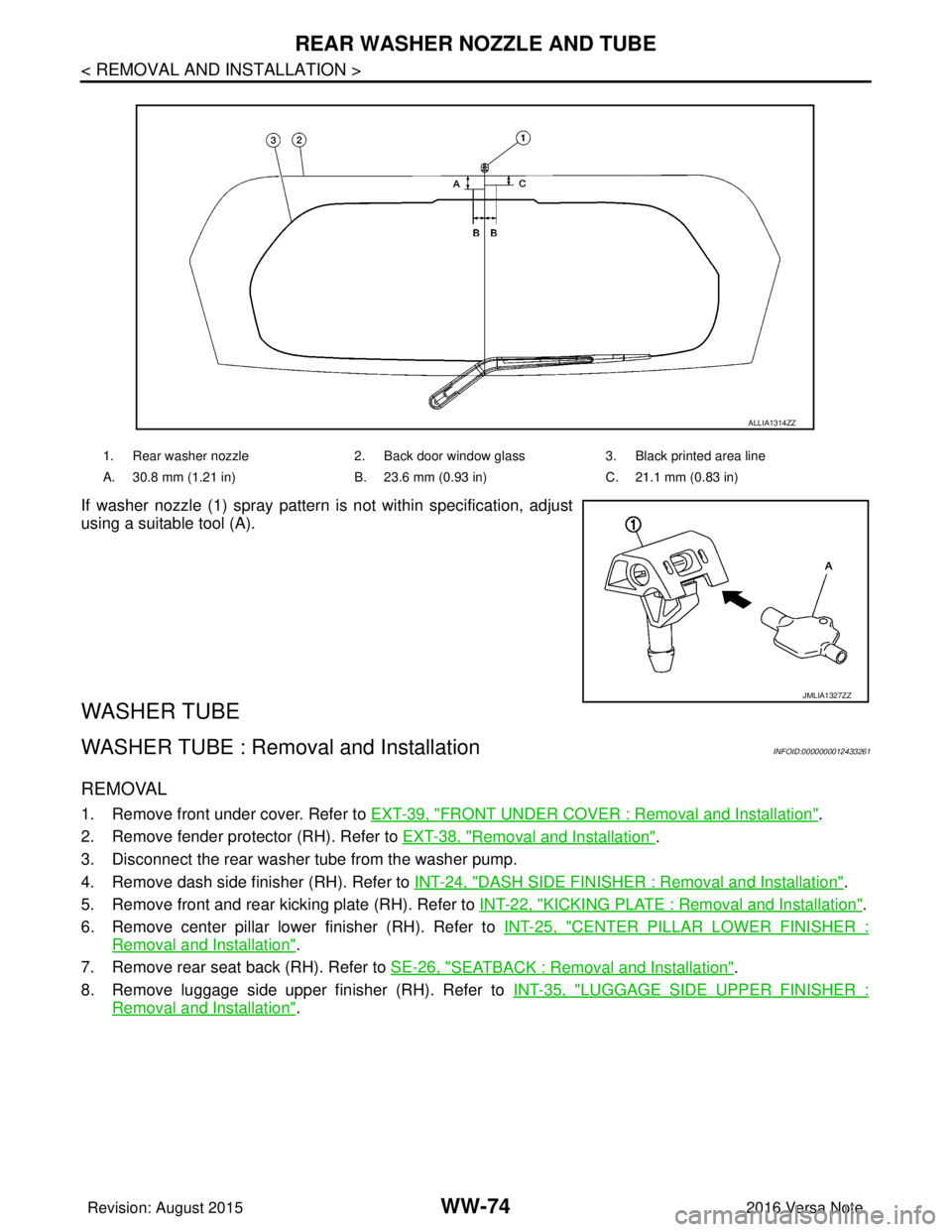

If washer nozzle (1) spray pattern is not within specification, adjust
using a suitable tool (A).
WASHER TUBE
WASHER TUBE : Removal and InstallationINFOID:0000000012433261
REMOVAL
1. Remove front under cover. Refer to EXT-39, "FRONT UNDER COVER : Removal and Installation".
2. Remove fender protector (RH). Refer to EXT-38, "
Removal and Installation".
3. Disconnect the rear washer tube from the washer pump.
4. Remove dash side finisher (RH). Refer to INT-24, "
DASH SIDE FINISHER : Removal and Installation".
5. Remove front and rear kicking plate (RH). Refer to INT-22, "
KICKING PLATE : Removal and Installation".
6. Remove center pillar lower finisher (RH). Refer to INT-25, "
CENTER PILLAR LOWER FINISHER :
Removal and Installation".
7. Remove rear seat back (RH). Refer to SE-26, "
SEATBACK : Removal and Installation".
8. Remove luggage side upper finisher (RH). Refer to INT-35, "
LUGGAGE SIDE UPPER FINISHER :
Removal and Installation".
1. Rear washer nozzle2. Back door window glass3. Black printed area line
A. 30.8 mm (1.21 in) B. 23.6 mm (0.93 in)C. 21.1 mm (0.83 in)
ALLIA1314ZZ
JMLIA1327ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

REAR WASHER NOZZLE AND TUBEWW-75
< REMOVAL AND INSTALLATION >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P

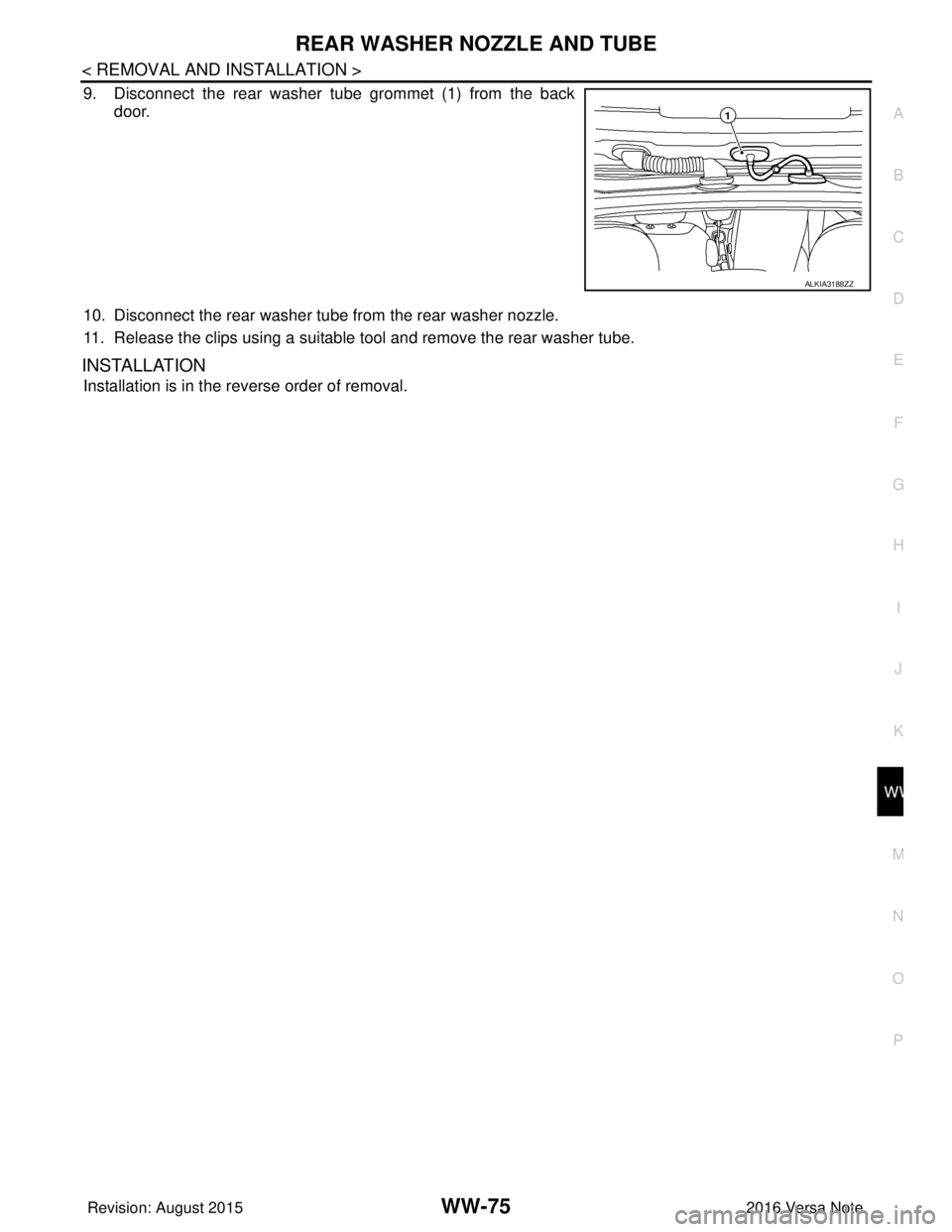

9. Disconnect the rear washer tube grommet (1) from the back door.
10. Disconnect the rear washer tube from the rear washer nozzle.
11. Release the clips using a suitable tool and remove the rear washer tube.
INSTALLATION
Installation is in the reverse order of removal.
ALKIA3188ZZ
