NISSAN NOTE 2016 Service Repair Manual

WW-26
< WIRING DIAGRAM >
FRONT WIPER AND WASHER SYSTEM
ABLIA8113GB
Revision: August 20152016 Versa Note

cardiagn.com

FRONT WIPER AND WASHER SYSTEMWW-27
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P

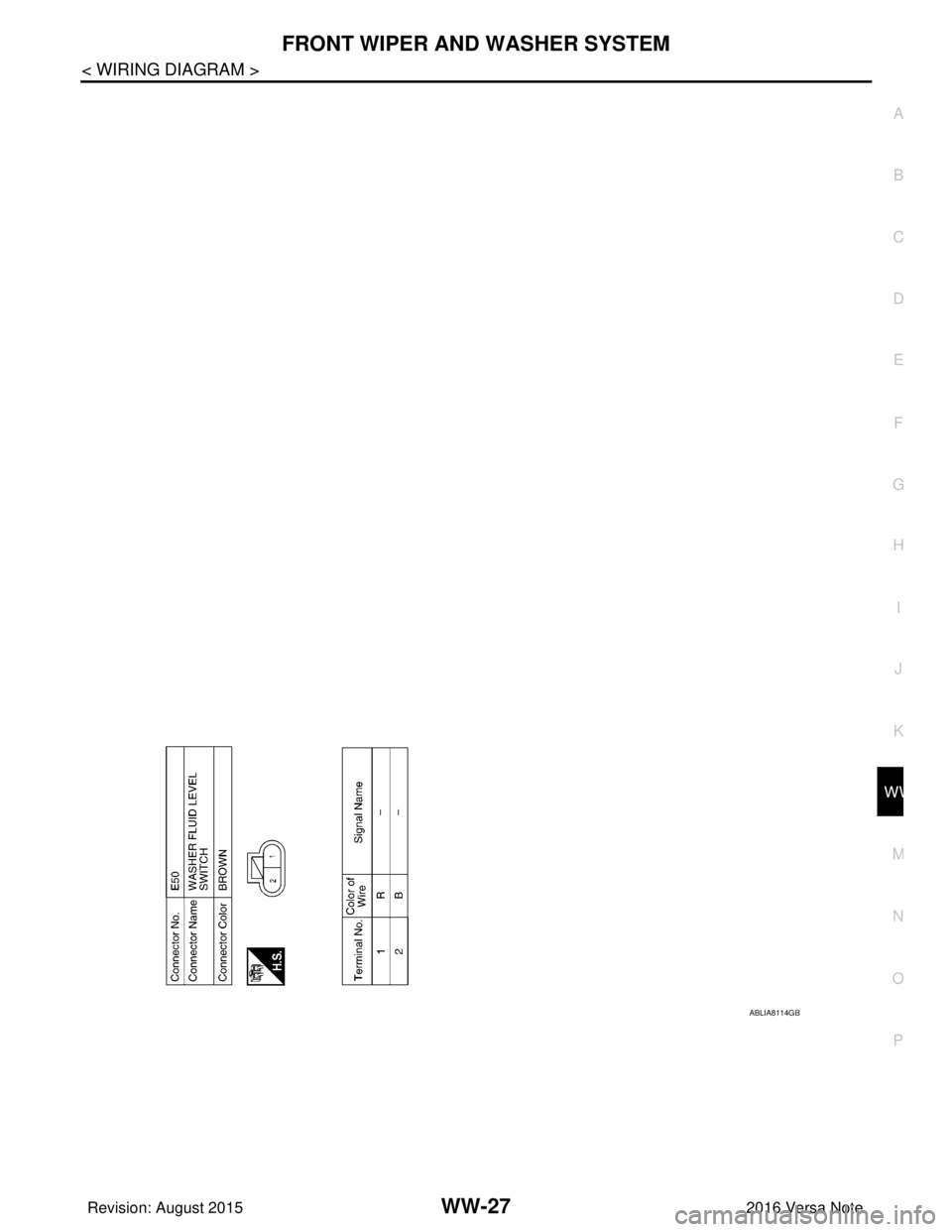

ABLIA8114GB
Revision: August 2015 2016 Versa Note

cardiagn.com

WW-28
< WIRING DIAGRAM >

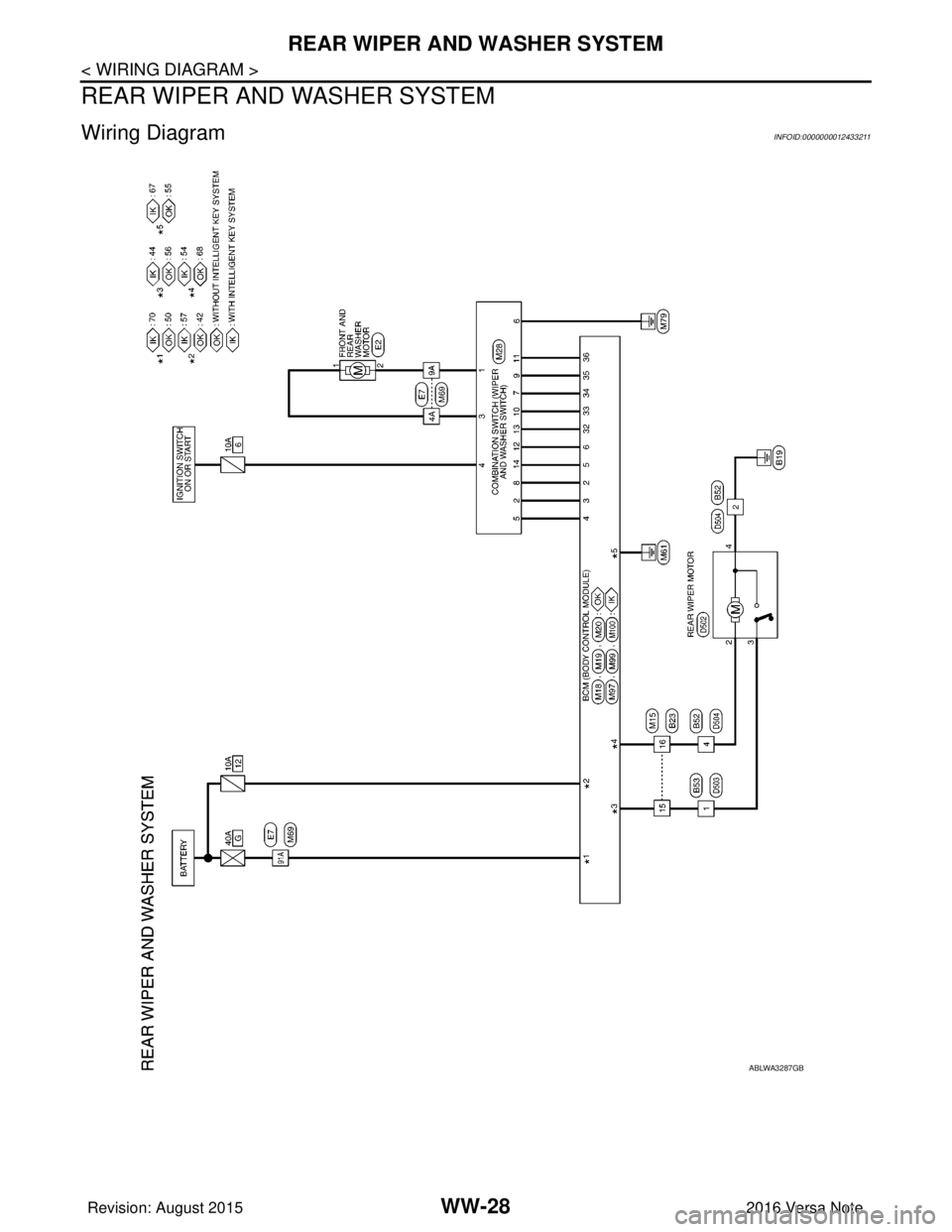

REAR WIPER AND WASHER SYSTEM
REAR WIPER AND WASHER SYSTEM
Wiring DiagramINFOID:0000000012433211
ABLWA3287GB
Revision: August 20152016 Versa Note

cardiagn.com

REAR WIPER AND WASHER SYSTEMWW-29
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P

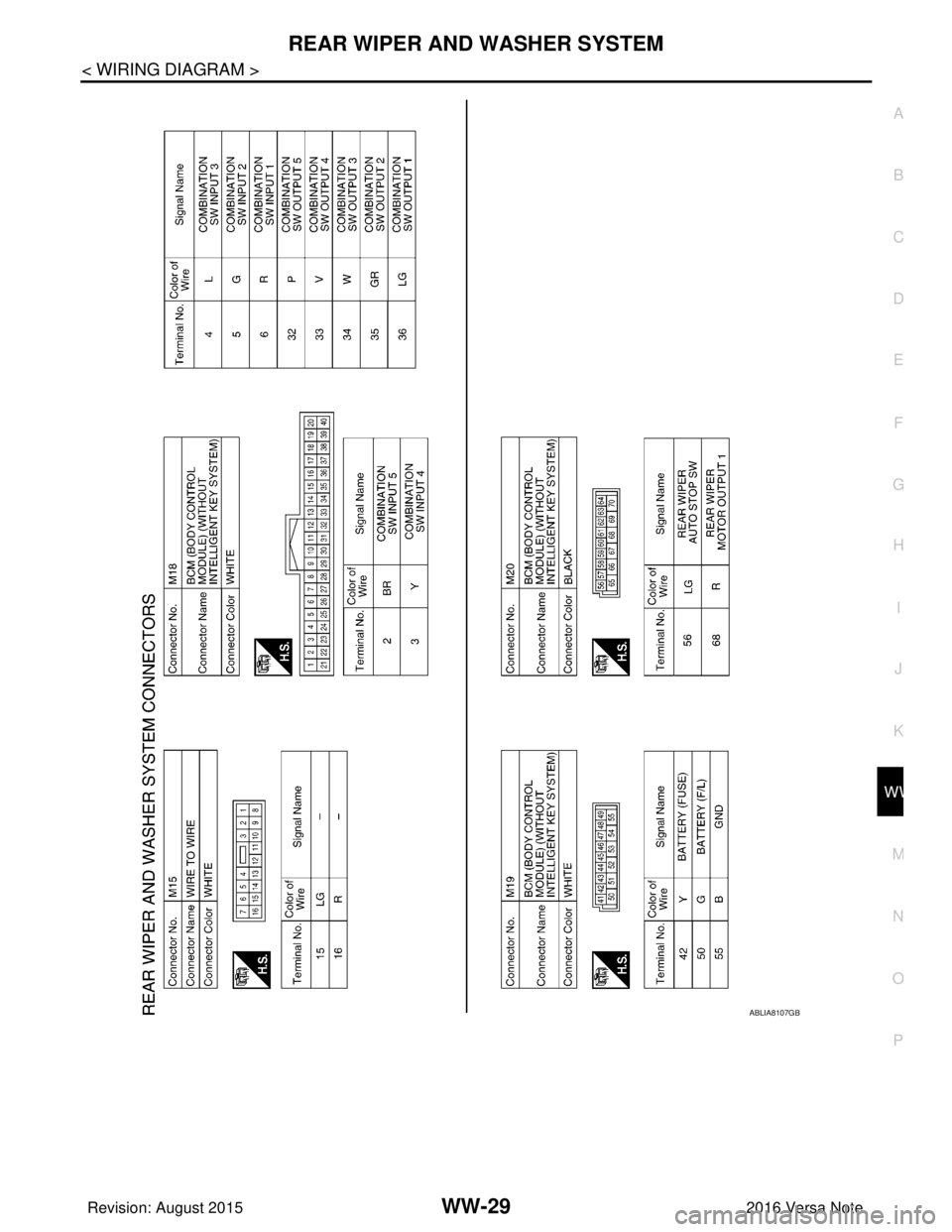

ABLIA8107GB
Revision: August 2015 2016 Versa Note

cardiagn.com

WW-30
< WIRING DIAGRAM >
REAR WIPER AND WASHER SYSTEM

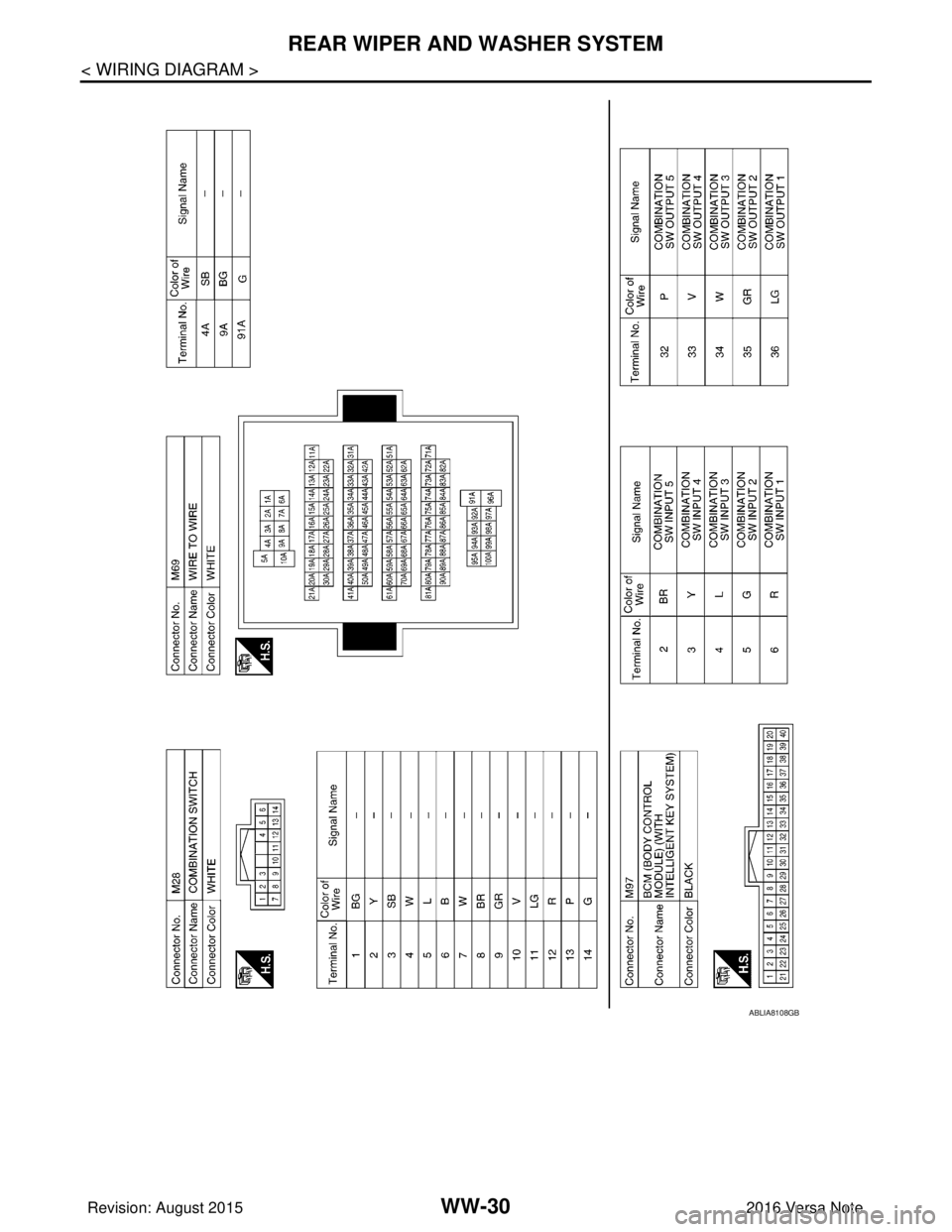

ABLIA8108GB
Revision: August 20152016 Versa Note

cardiagn.com

REAR WIPER AND WASHER SYSTEMWW-31
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P

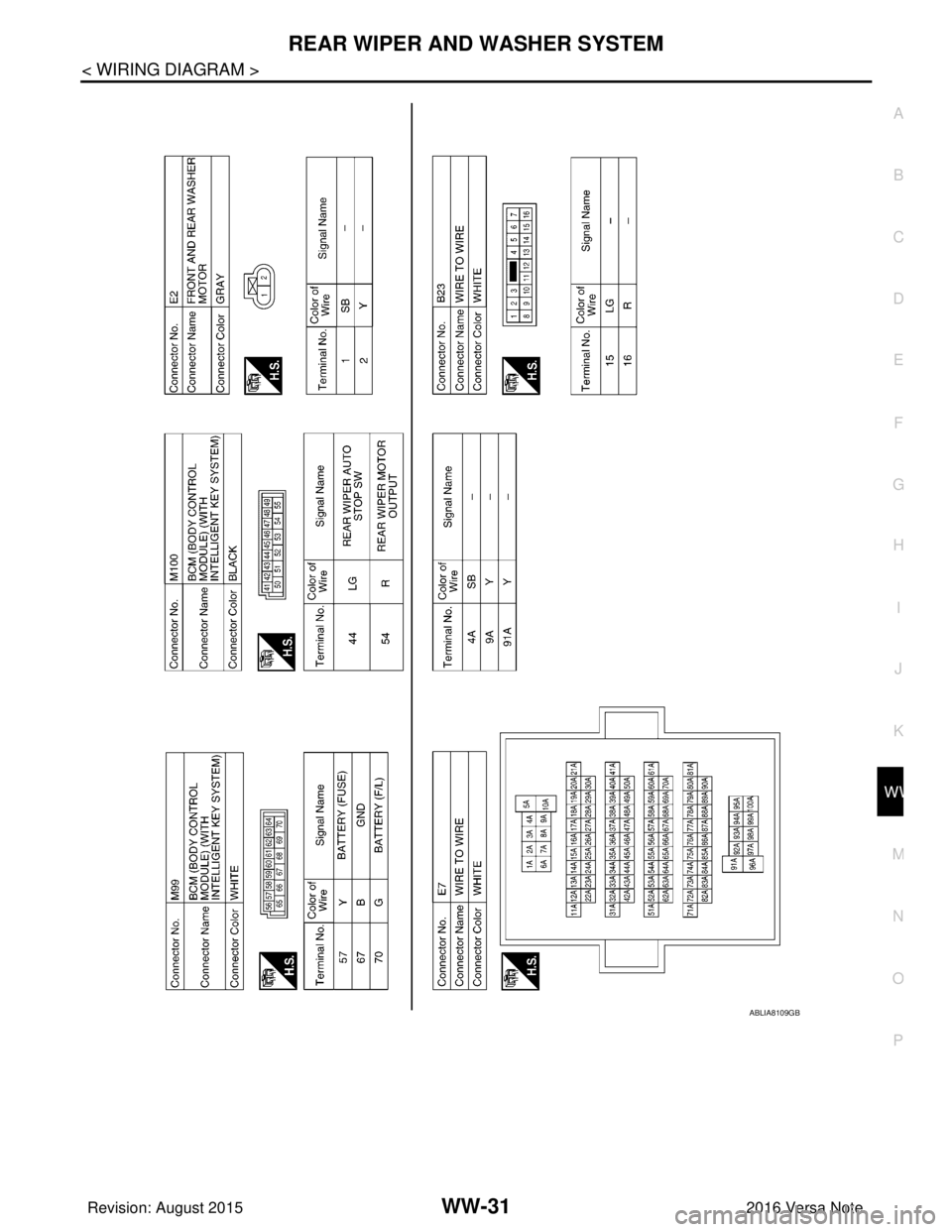

ABLIA8109GB
Revision: August 2015 2016 Versa Note

cardiagn.com

WW-32
< WIRING DIAGRAM >
REAR WIPER AND WASHER SYSTEM

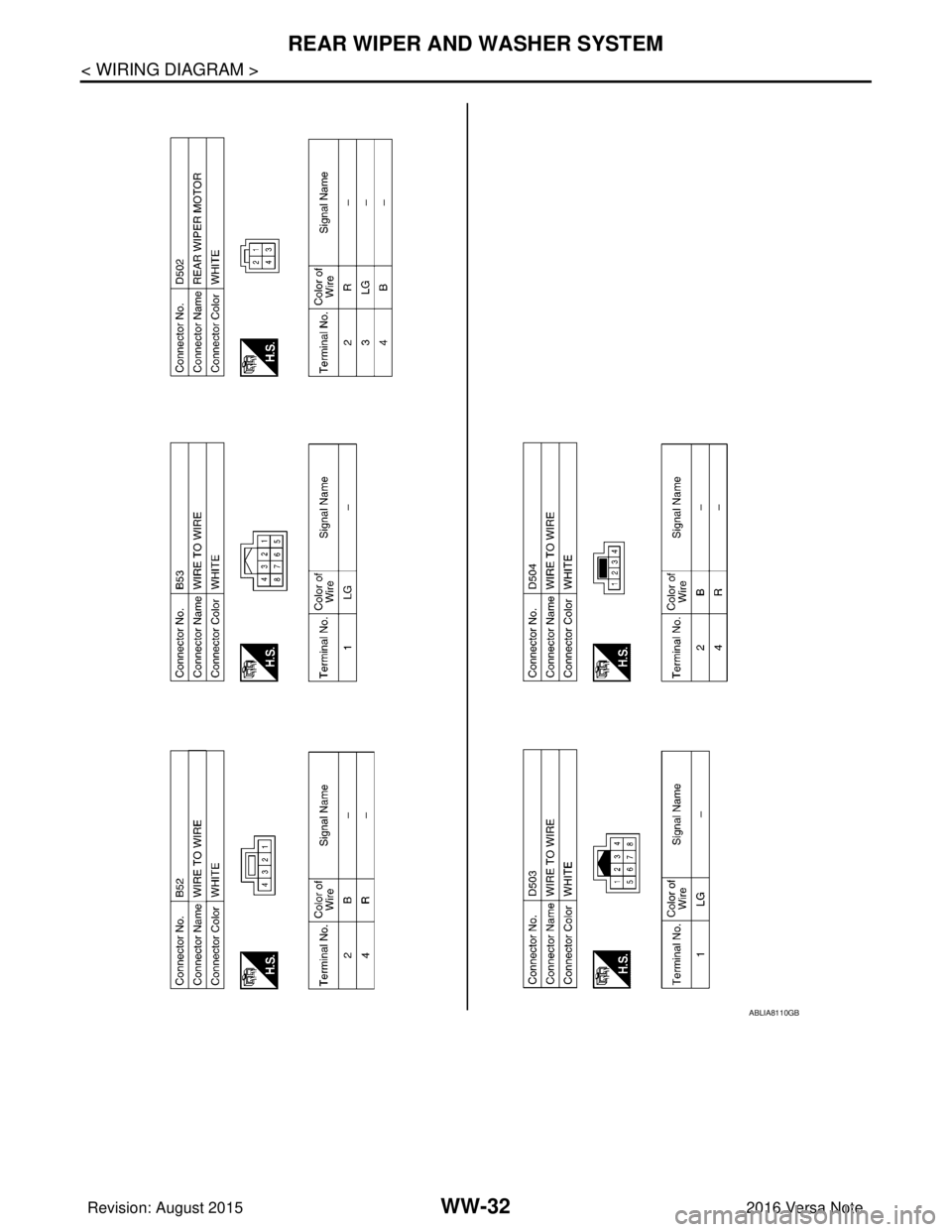

ABLIA8110GB
Revision: August 20152016 Versa Note

cardiagn.com

DIAGNOSIS AND REPAIR WORKFLOWWW-33
< BASIC INSPECTION >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P

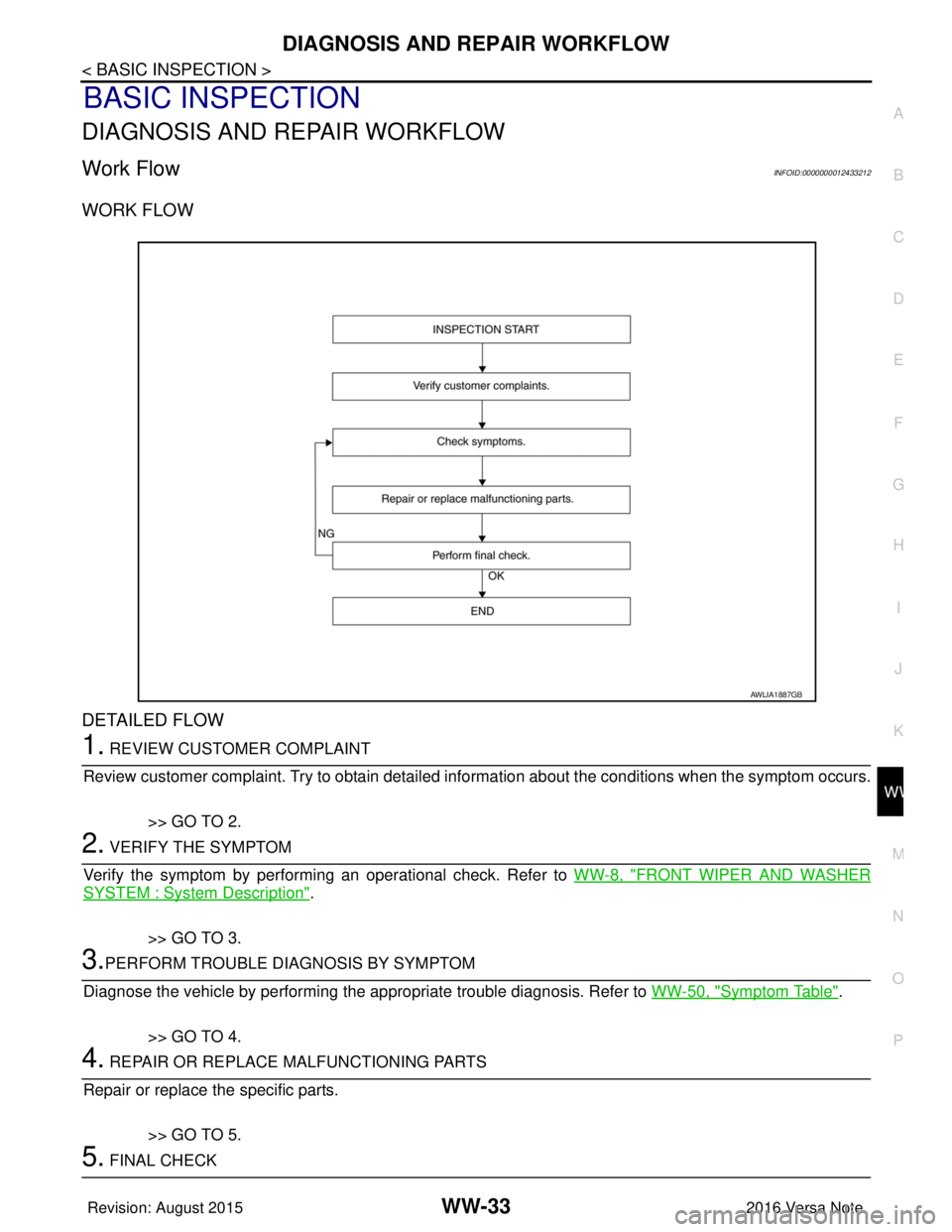

BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW
Work FlowINFOID:0000000012433212
WORK FLOW
DETAILED FLOW
1. REVIEW CUSTOMER COMPLAINT
Review customer complaint. Try to obtain detailed information about the conditions when the symptom occurs.
>> GO TO 2.
2. VERIFY THE SYMPTOM
Verify the symptom by performing an operational check. Refer to WW-8, "
FRONT WIPER AND WASHER
SYSTEM : System Description".
>> GO TO 3.
3.PERFORM TROUBLE DIAGNOSIS BY SYMPTOM
Diagnose the vehicle by performing the appropriate trouble diagnosis. Refer to WW-50, "
Symptom Table".
>> GO TO 4.
4. REPAIR OR REPLACE MALFUNCTIONING PARTS
Repair or replace the specific parts.
>> GO TO 5.
5. FINAL CHECK
AWLIA1887GB
Revision: August 2015 2016 Versa Note

cardiagn.com

WW-34
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORKFLOW
Perform a final inspection of the system.
Is the inspection result normal?
YES >> Inspection End.
NO >> GO TO 3.
Revision: August 20152016 Versa Note

cardiagn.com

WIPER AND WASHER FUSEWW-35
< DTC/CIRCUIT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P
DTC/CIRCUIT DIAGNOSIS
WIPER AND WASHER FUSE
DescriptionINFOID:0000000012433213
Diagnosis ProcedureINFOID:0000000012433214
1. CHECK FUSES
Check that the following fuses are not blown.
Is the fuse blown?
YES >> Replace the fuse after repairing the affected circuit.
NO >> Inspection End.
Component CapacityFuse No. Location
Front wiper motor 30A39IPDM E/R
Front and rear washer motor 10A6Fuse block (J/B)
Component CapacityFuse No. Location
Front wiper motor 30A39IPDM E/R
Front and rear washer motor 10A6Fuse block (J/B)
Revision: August 2015 2016 Versa Note
