Page 11 of 55

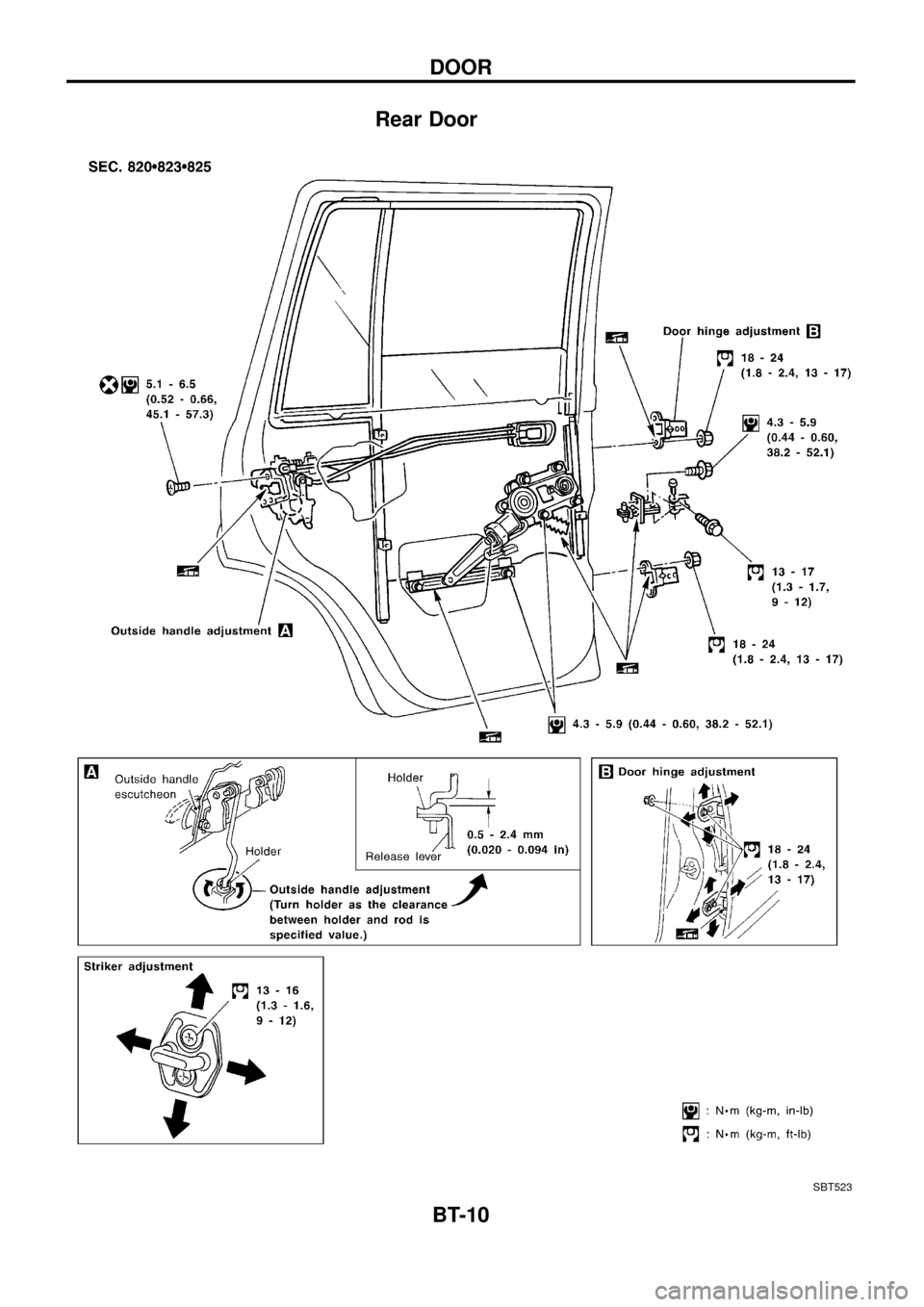

Rear Door
SBT523
DOOR
BT-10
Page 12 of 55
CAUTION:
+Disconnect both battery cables in advance.
+Disconnect air bag system line in advance.
+Never tamper with or force air bag lid open, as this may adversely affect air bag performance.
+Be careful not to scratch pad and other parts.
REMOVAL Ð Instrument panel assembly
Instrument panel assemblyCombination meterAudio & A/C controlConsole box
Remove air bag module (driver) and steering wheel.
Refer to ``SUPPLEMENTAL RESTRAINT SYSTEM'' in RS section for details.
Remove dash side lower ®nishers.
Refer to ``Side and Floor Trim'' in ``INTERIOR TRIM'' for
details, BT-14.
V1Steering column cover and combination switch
+Remove screws.
V2Lower instrument panel on driver side
+Remove bolts and screws.
V3Cluster lid A
+Remove screws then disconnect harness connectors.
V4Combination meter
+Remove screws then disconnect harness connectors.
V5Cluster lid C
+Pull out then disconnect harness connectors.
+Remove screws then remove in-vehicle sensor.
V6Audio
+Remove screws then disconnect harness connectors.
V7A/C control unit
+Remove screws then disconnect harness connectors.
V8Console M/T or A/T ®nisher
+Remove screws then disconnect harness connectors.
V9Console box assembly
+Remove screws then disconnect harness connectors.
V10Instrument panel stay cover
+Remove screws then disconnect harness con-
nectors.
V11Glove box assembly and lower instrument panel on
passenger side
+Remove screws.
V12Passenger air bag module
+Refer to ``SUPPLEMENTAL RESTRAINT SYS-
TEM'' in RS section.
V13Mirror control switch
+Disconnect harness connector.
Remove front pillar garnish.
Refer to ``Side and Floor Trim'' in ``INTERIOR TRIM'' for
details, BT-14.
V14Mask instrument LH/RH or sensors.
+Disconnect harness connectors (models with
sensors).
V15Instrument panel and pads
+Remove bolts and nuts then disconnect harness
connectors.
INSTRUMENT PANEL
BT-11
Page 13 of 55
SBT524
INSTRUMENT PANEL
BT-12
Page 14 of 55
SBT525
INSTRUMENT PANEL
BT-13
Page 15 of 55
Side and Floor Trim
CAUTION:
Wrap the tip of ¯at-bladed screwdriver with a cloth when removing metal clips from garnishes.
REMOVAL Ð Body side trim (WAGON)
V1Remove front, rear and 3rd seats. Refer to ``SEAT'' for details, BT-32.
V2Remove front, rear and 3rd seat belts. Refer to ``SEAT BELTS'' in RS section for details.
V3Remove front and rear kicking plates.
V4Remove front and rear body side welts.
V5Remove dash side lower ®nishers.
V6Remove assist grips.
V7Remove front pillar garnishes.
V8Remove center pillar lower garnishes.
V9Remove assist grips.
V10Remove center pillar upper garnishes.
V11Remove luggage ¯oor retainer.
V12Remove back door welt.
V13Remove assist grips or clips.
V14Remove luggage side upper ®nishers.
V15Remove luggage side lower ®nishers. (On vehicles equipped with power supply sockets, remove connec-
tor from luggage side lower ®nisher LH.)
V16Remove console box assembly. Refer to ``INSTRUMENT PANEL'' for details, BT-11.
V17Remove clips and luggage ¯oor rope hooks, then remove luggage ¯oor trim.
V18Remove screws and clips, then remove rear ¯oor trim.
V19Remove clips, footrest and accel stopper, then remove front ¯oor trim.
SBT526
INTERIOR TRIM
BT-14
Page 16 of 55

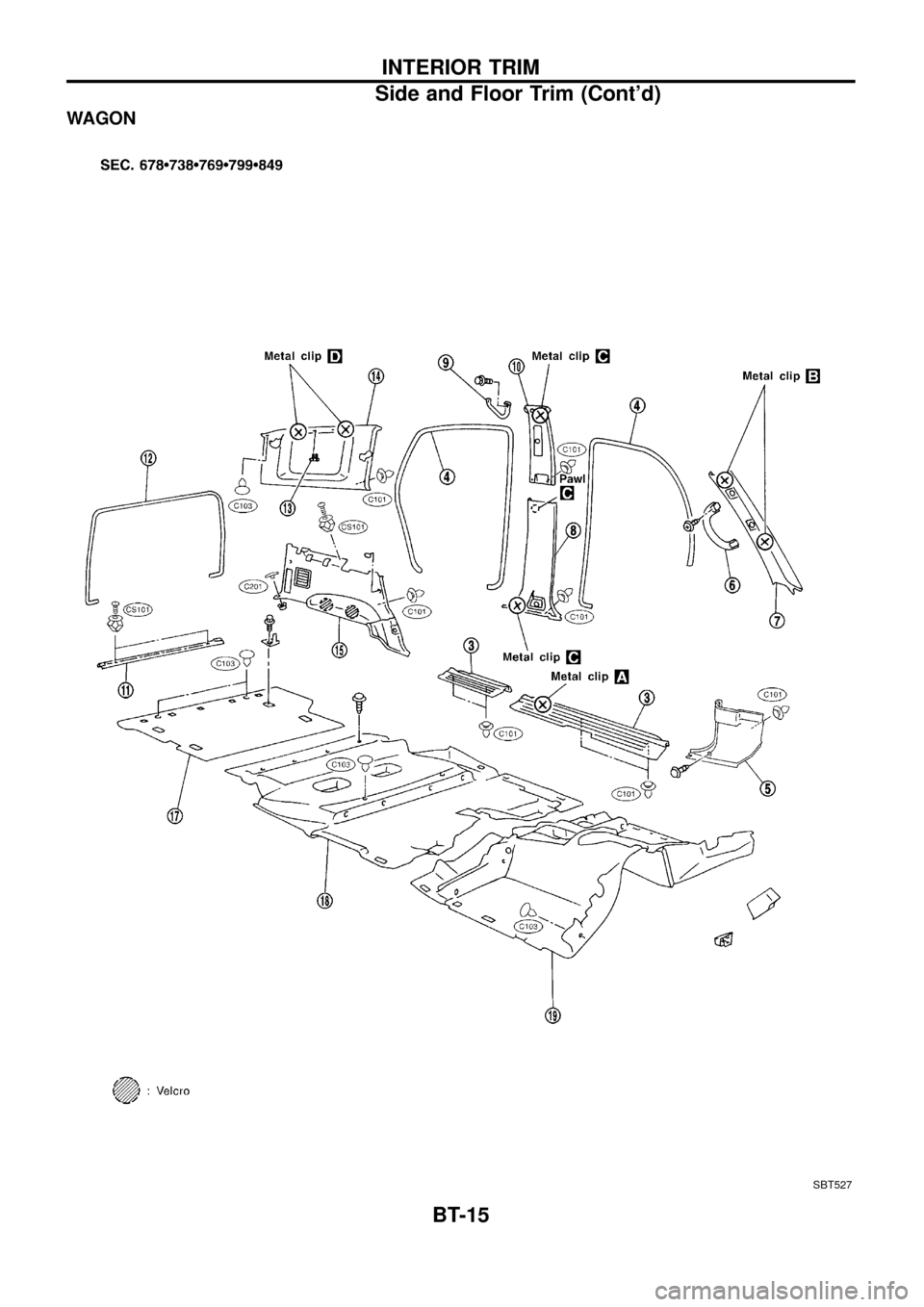

WAGON
SBT527
INTERIOR TRIM
Side and Floor Trim (Cont'd)
BT-15
Page 17 of 55
CAUTION:
Wrap the tip of ¯at-bladed screwdriver with a cloth when removing metal clips from garnishes.
REMOVAL Ð Body side trim (HARDTOP)
V1Remove tonneau cover.
V2Remove front and rear seats. Refer to ``SEAT'' for details, BT-32.
V3Remove kicking plates.
V4Remove body side welts.
V5Remove dash side lower ®nishers.
V6Remove assist grips.
V7Remove front pillar garnishes.
V8Remove luggage ¯oor retainer.
V9Remove back door welt.
V10Remove assist grips.
V11Remove lap outer covers.
V12Remove anchor bolt of seat belts. Refer to ``SEAT BELTS'' in RS section for details.
V13Remove seat belt escutcheons.
V14Remove rear parcel shelf holders.
V15Remove luggage side upper ®nishers.
V16Remove clips securing luggage side lower ®nishers. (On vehicles equipped with power supply sockets,
remove connector from luggage side lower ®nisher LH.)
V17Remove console box assembly. Refer to ``INSTRUMENT PANEL'' for details, BT-11.
V18Remove clips and luggage ¯oor rope hooks, then remove luggage ¯oor trim.
V19Remove screws, then remove rear ¯oor trim.
V20Remove clips, footrest and accel stopper, then remove front ¯oor trim.
SBT528
INTERIOR TRIM
Side and Floor Trim (Cont'd)
BT-16
Page 18 of 55

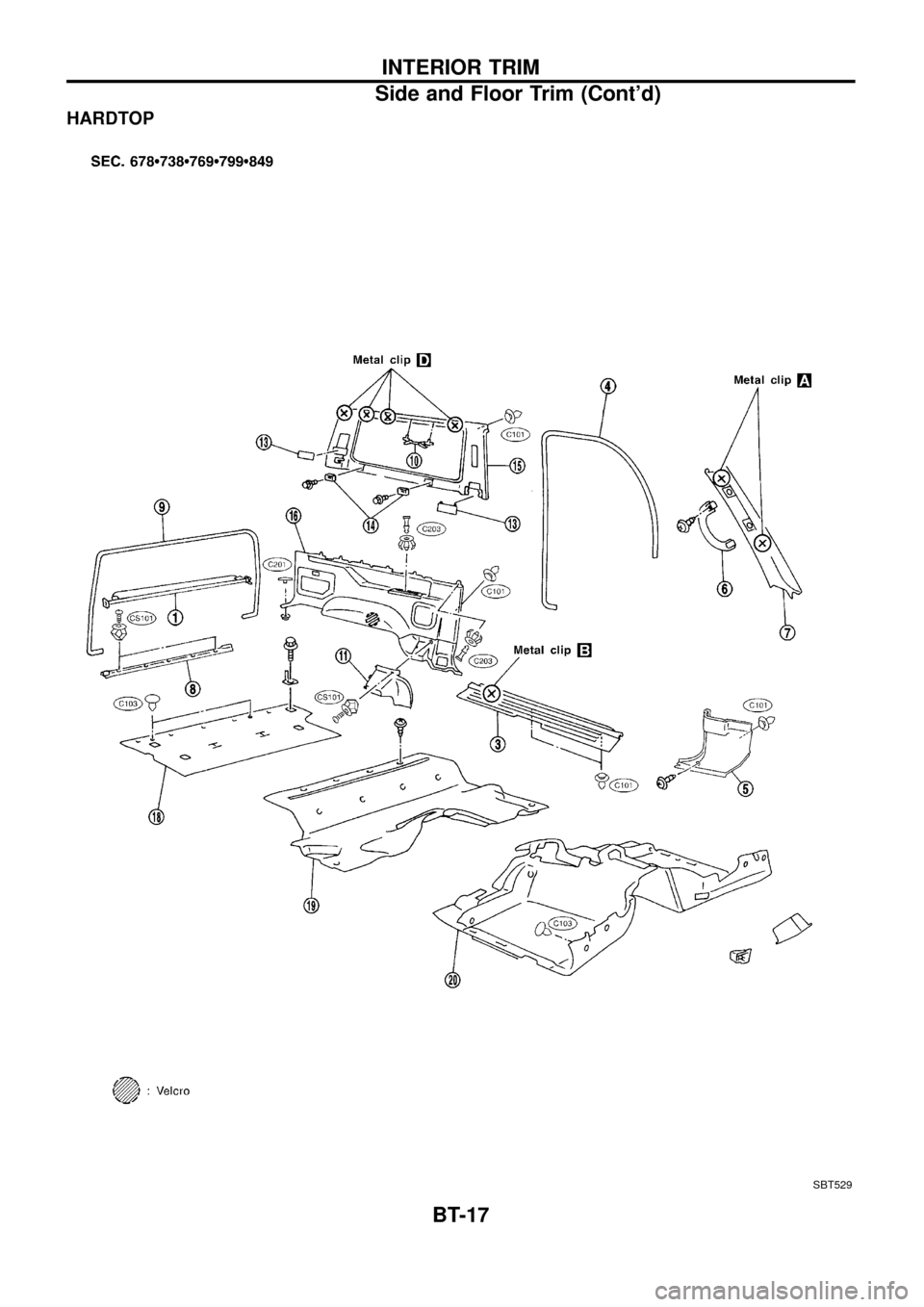

HARDTOP
SBT529
INTERIOR TRIM
Side and Floor Trim (Cont'd)
BT-17
Page 19 of 55
Door Trim
REMOVAL Ð Door trim
V1Remove inside handle escutcheon.
V2Remove door armrest.
V3Remove screw securing power window switches, then disconnect the connector.
V4Remove screw securing door trim.
V5Remove clips securing door trim.
V6Lift out door trim.
SBT530
INTERIOR TRIM
BT-18
Page 20 of 55

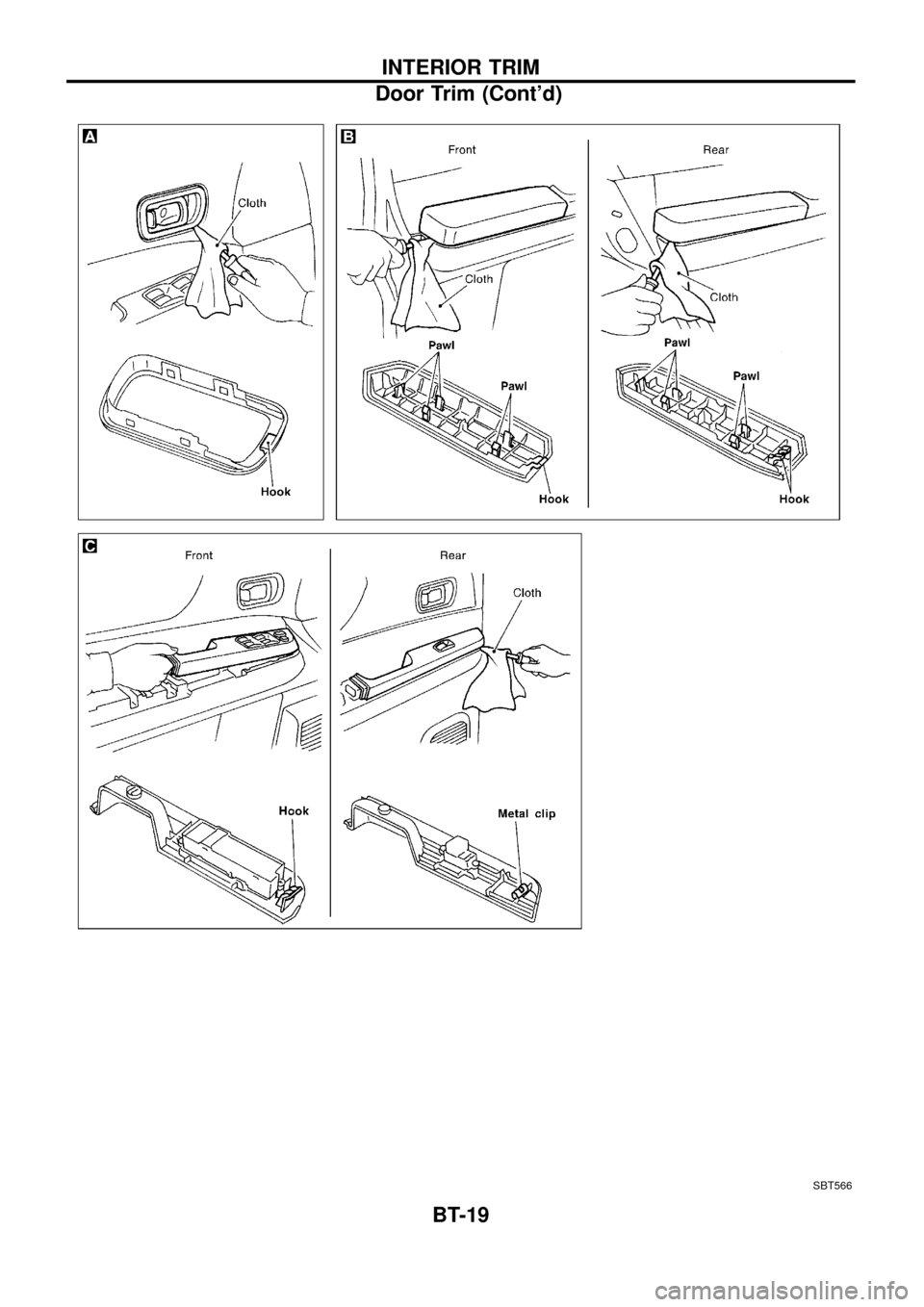

SBT566
INTERIOR TRIM
Door Trim (Cont'd)
BT-19
