Page 51 of 55

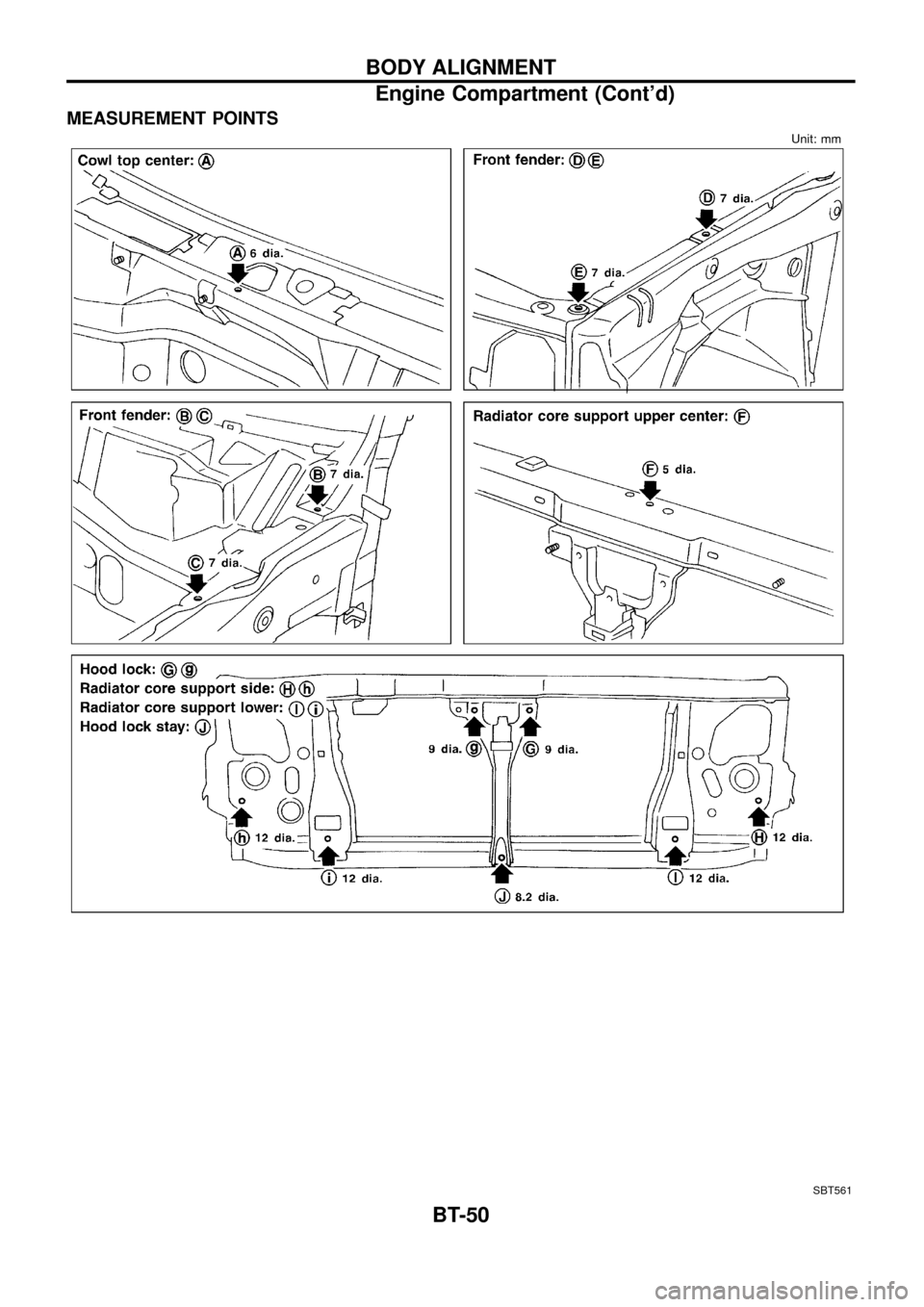

NISSAN PATROL 1998 Y61 / 5.G Body Repair Manual MEASUREMENT POINTS Unit: mm SBT561 BODY ALIGNMENT Engine Compartment (Contd) BT-50

Page 52 of 55

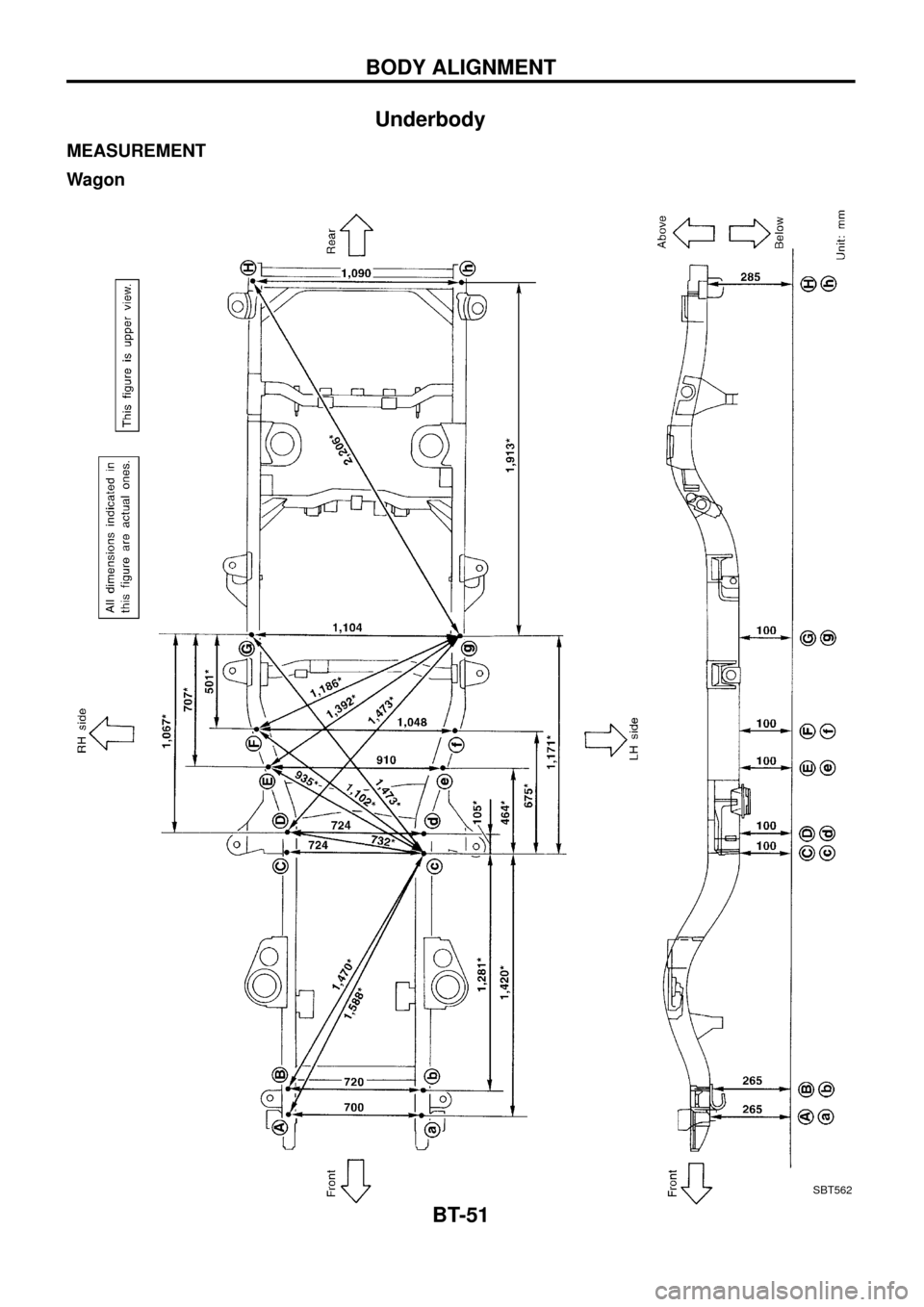

NISSAN PATROL 1998 Y61 / 5.G Body Repair Manual Underbody MEASUREMENT Wagon SBT562 BODY ALIGNMENT BT-51

Page 53 of 55

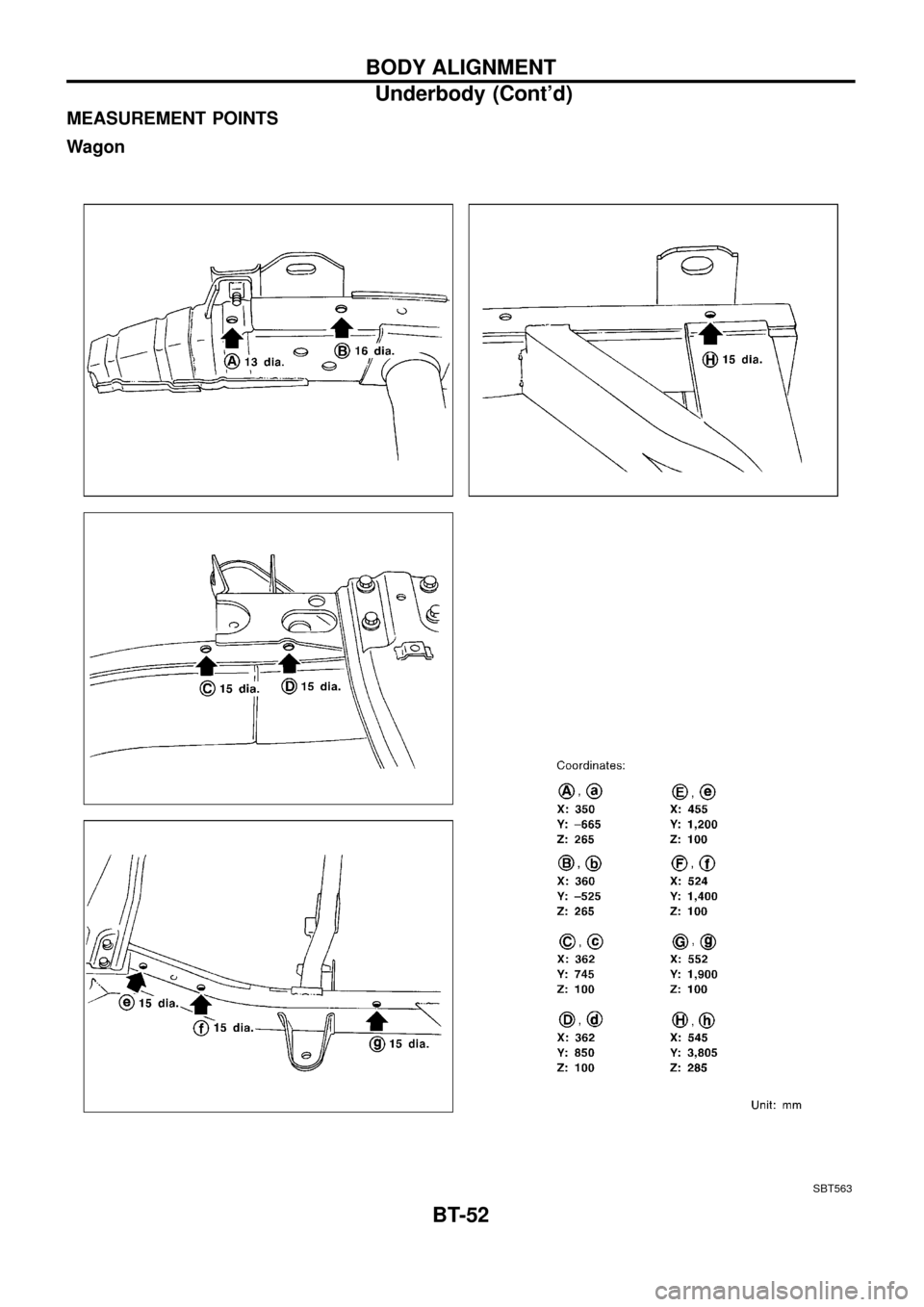

NISSAN PATROL 1998 Y61 / 5.G Body Repair Manual MEASUREMENT POINTS Wagon SBT563 BODY ALIGNMENT Underbody (Contd) BT-52

Page 54 of 55

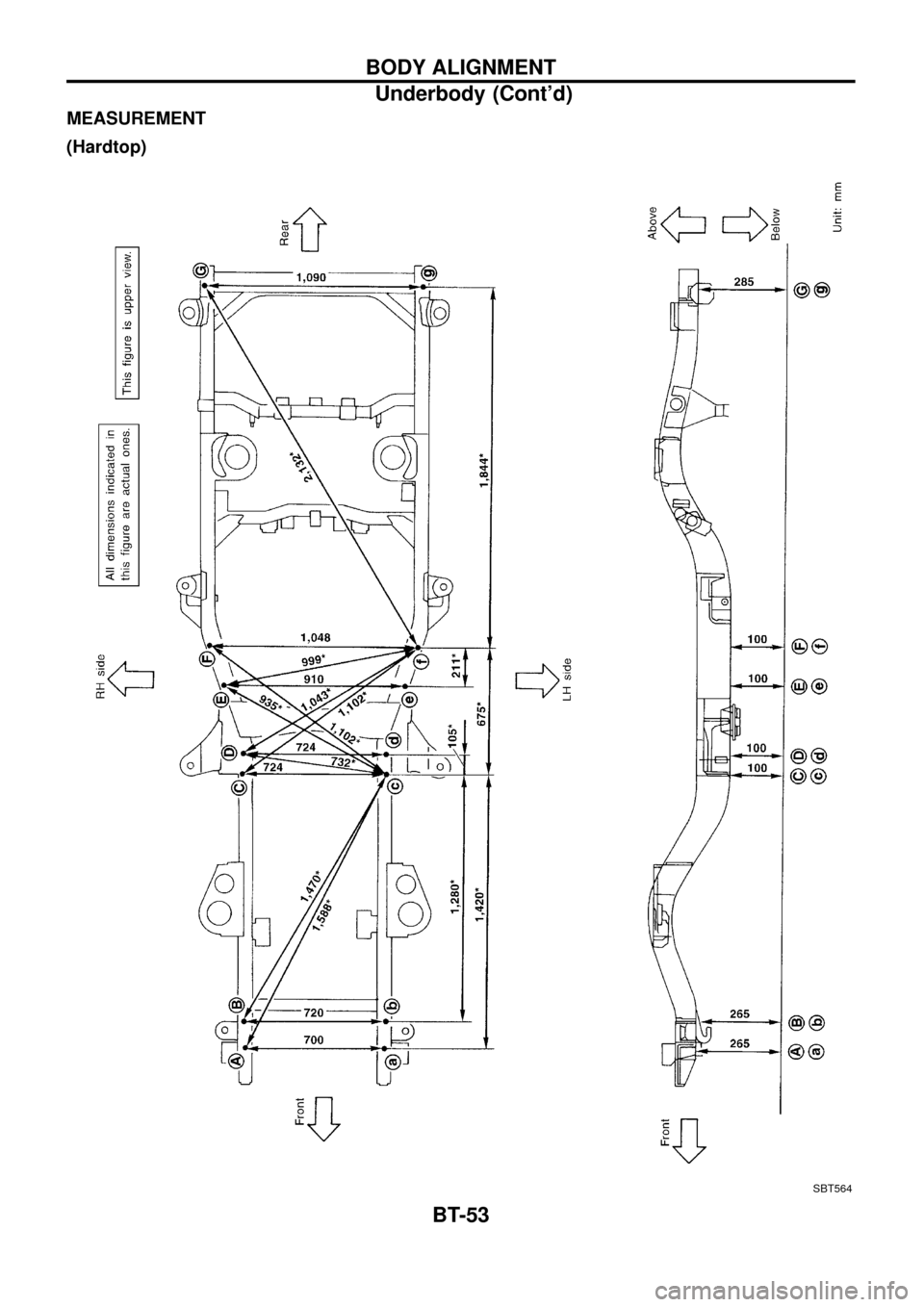

NISSAN PATROL 1998 Y61 / 5.G Body Repair Manual MEASUREMENT (Hardtop) SBT564 BODY ALIGNMENT Underbody (Contd) BT-53

Page 55 of 55

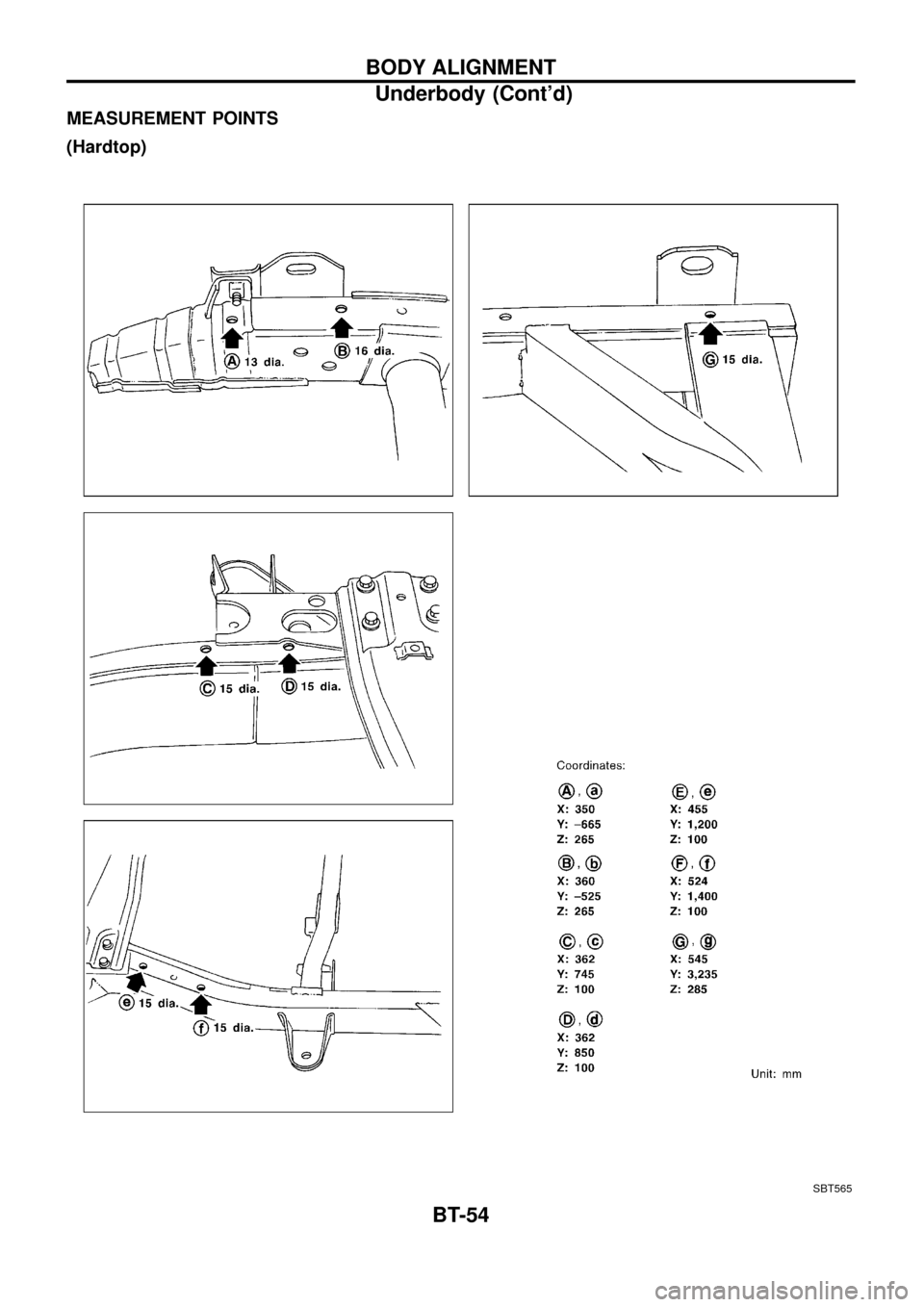

NISSAN PATROL 1998 Y61 / 5.G Body Repair Manual MEASUREMENT POINTS (Hardtop) SBT565 BODY ALIGNMENT Underbody (Contd) BT-54
