NISSAN PATROL 1998 Y61 / 5.G Body Owners Manual Roof Trim
REMOVAL Ð Headlining (WAGON)
V1Remove front, rear and 3rd seats. Refer to ``SEAT for details, BT-32.
V2Remove front, rear and 3rd seat belts. Refer to ``SEAT BELTS in RS section for det

Page 22 of 55

NISSAN PATROL 1998 Y61 / 5.G Body Owners Manual SBT569
INTERIOR TRIM
Roof Trim (Contd)
BT-21

Page 23 of 55

NISSAN PATROL 1998 Y61 / 5.G Body Owners Manual REMOVAL Ð Headlining (HARDTOP)
V1Remove front and rear seats. Refer to ``SEAT for details, BT-32.
V2Remove front and rear seat belts. Refer to ``SEAT BELTS in RS section for details.
V3Remove bod

Page 24 of 55

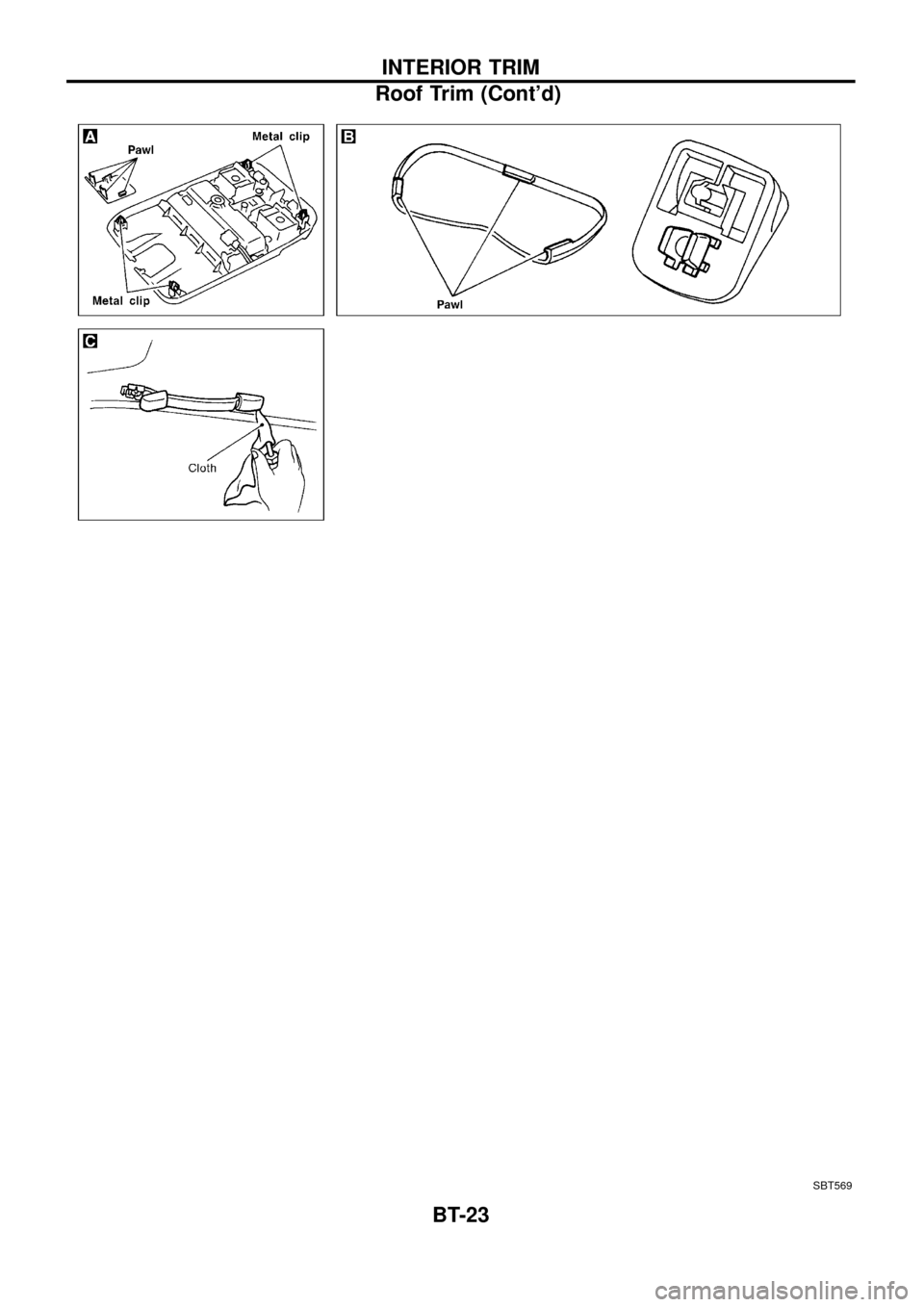

NISSAN PATROL 1998 Y61 / 5.G Body Owners Manual SBT569
INTERIOR TRIM
Roof Trim (Contd)
BT-23

Page 25 of 55

NISSAN PATROL 1998 Y61 / 5.G Body Owners Manual Back Door Trim
REMOVAL Ð Back door trim
V1Remove bolts securing pull handle (LH only).
V2Remove inside handle escutcheon (LH only).
V3Remove clip securing high-mounted stop lamp cover (RH only).
V4Re

Page 26 of 55

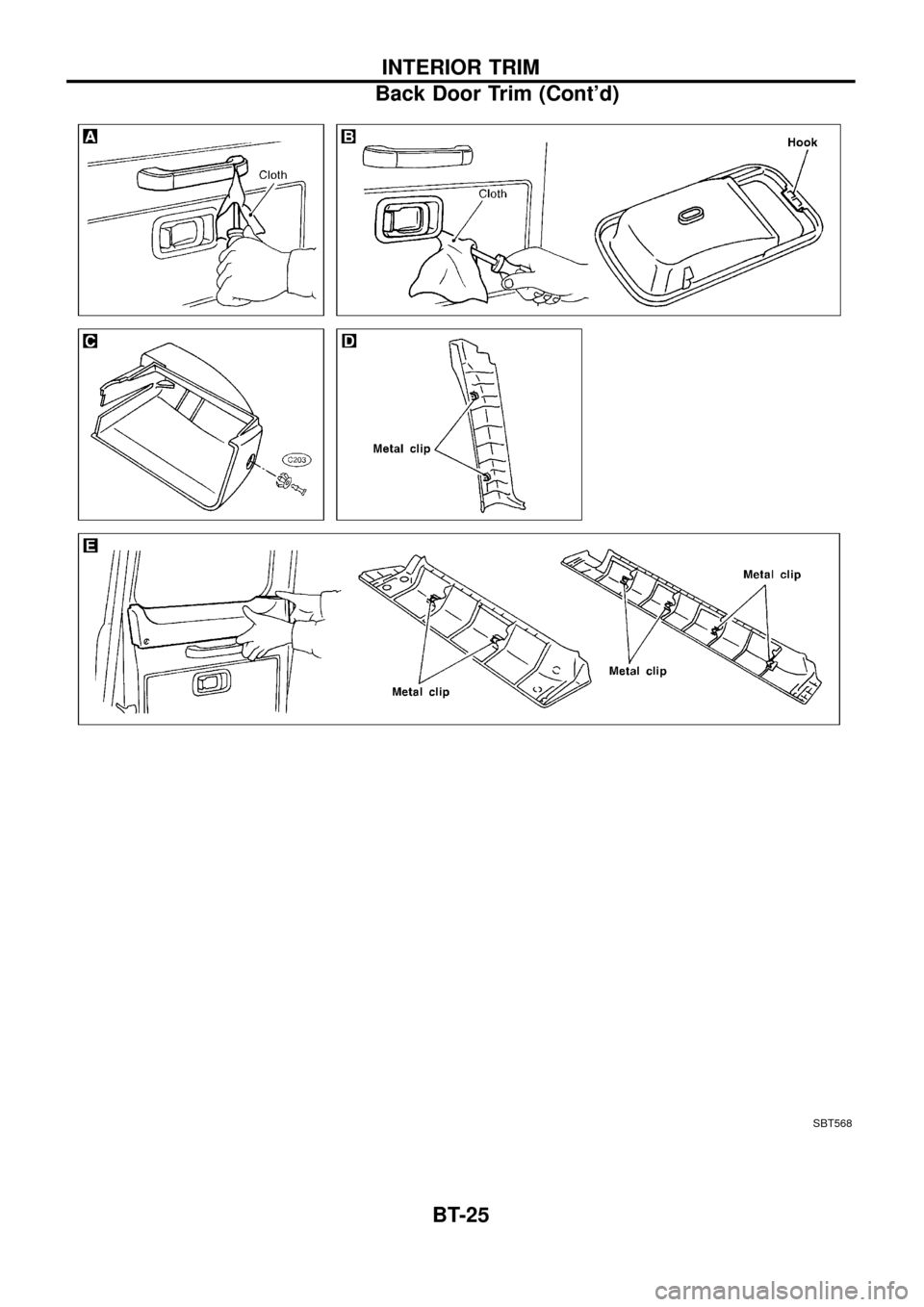

NISSAN PATROL 1998 Y61 / 5.G Body Owners Manual SBT568
INTERIOR TRIM
Back Door Trim (Contd)
BT-25

Page 27 of 55

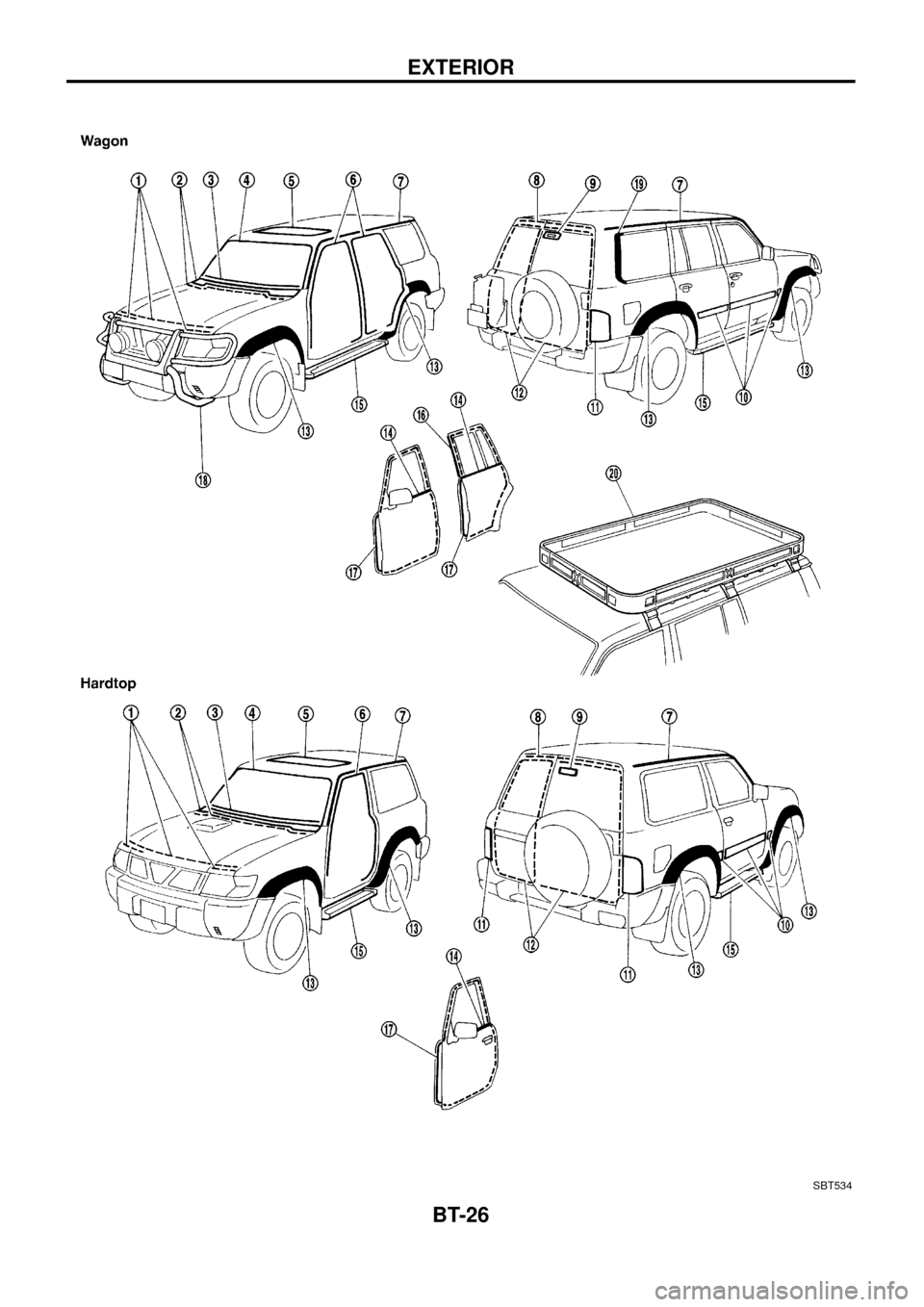

NISSAN PATROL 1998 Y61 / 5.G Body Owners Manual SBT534
EXTERIOR
BT-26

Page 28 of 55

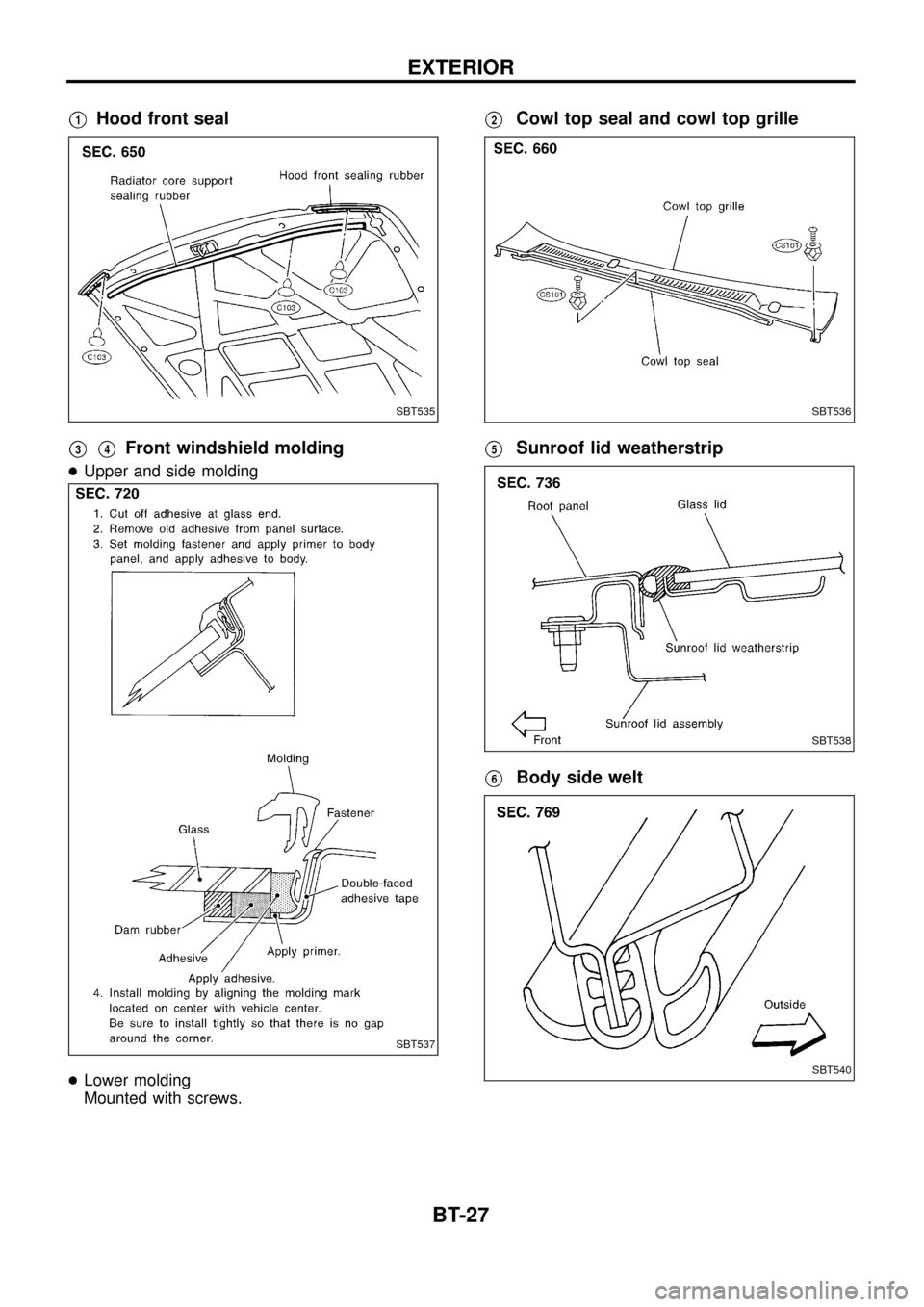

NISSAN PATROL 1998 Y61 / 5.G Body Owners Manual V1Hood front seal
V3V4Front windshield molding
+Upper and side molding
+Lower molding
Mounted with screws.
V2Cowl top seal and cowl top grille
V5Sunroof lid weatherstrip
V6Body side welt
SBT535
SBT537

Page 29 of 55

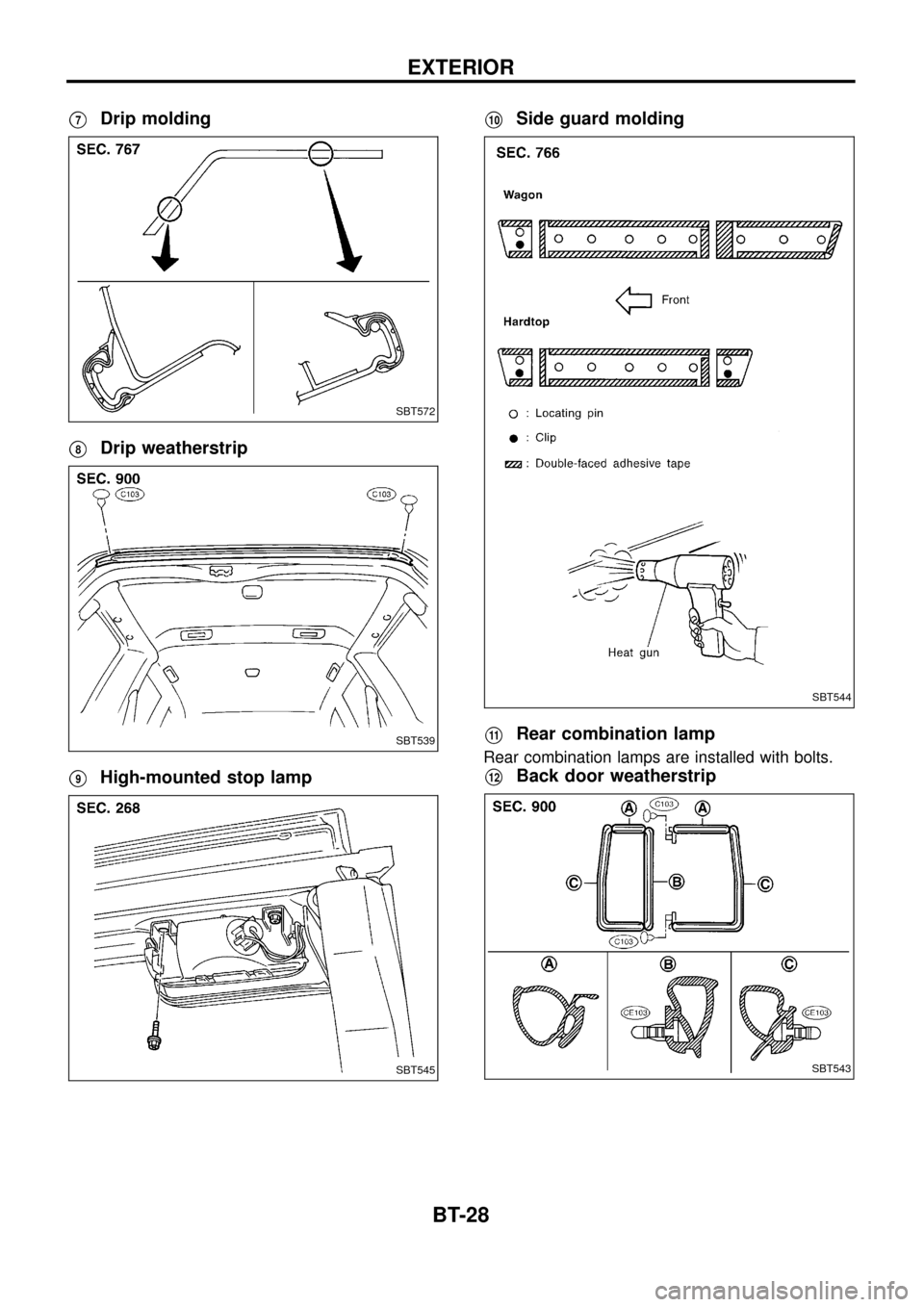

NISSAN PATROL 1998 Y61 / 5.G Body Owners Manual V7Drip molding
V8Drip weatherstrip
V9High-mounted stop lamp
V10Side guard molding
V11Rear combination lamp
Rear combination lamps are installed with bolts.
V12Back door weatherstrip
SBT572
SBT539
SBT5

Page 30 of 55

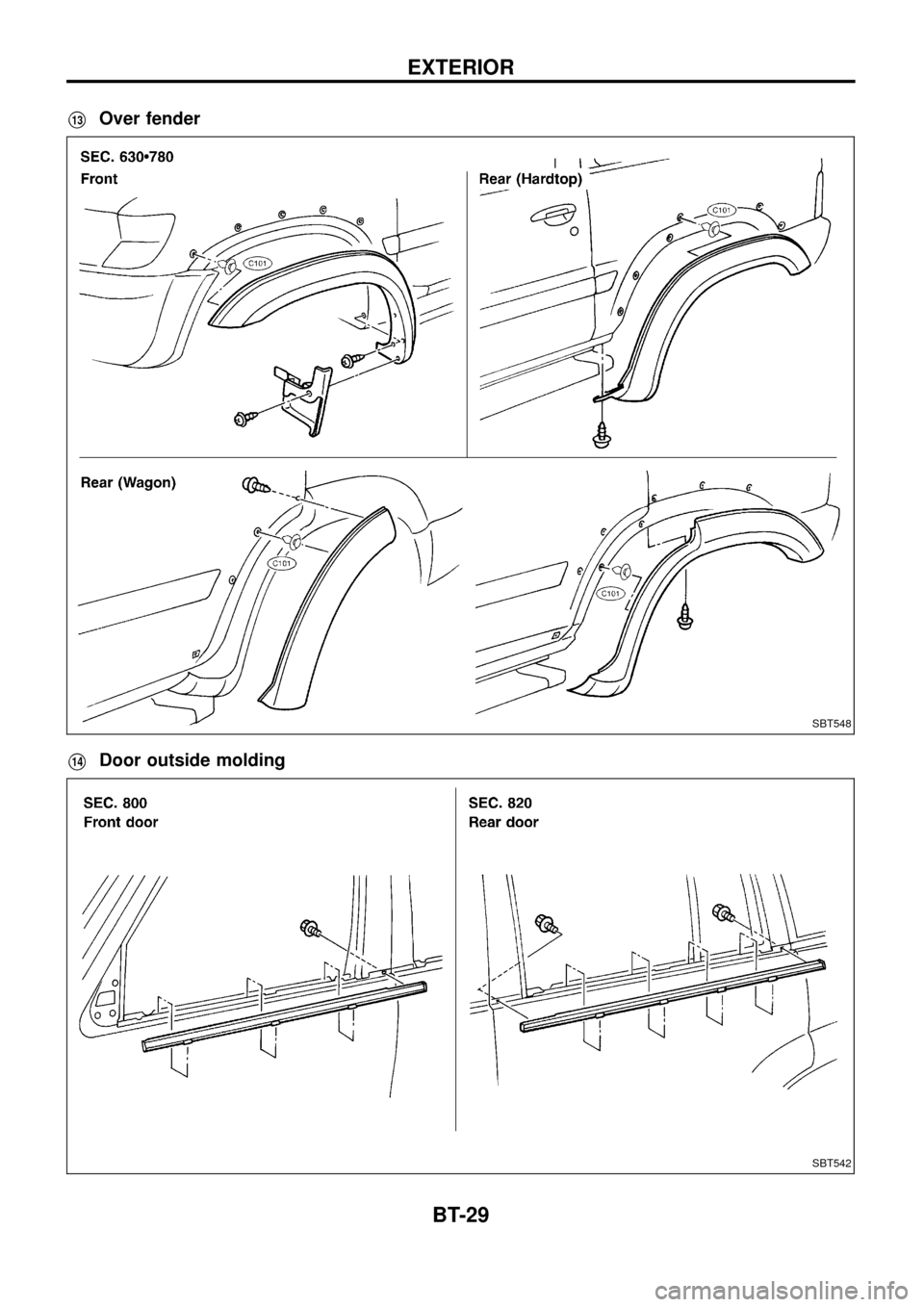

NISSAN PATROL 1998 Y61 / 5.G Body Owners Manual V13Over fender
V14Door outside molding
SBT548
SBT542
EXTERIOR
BT-29
