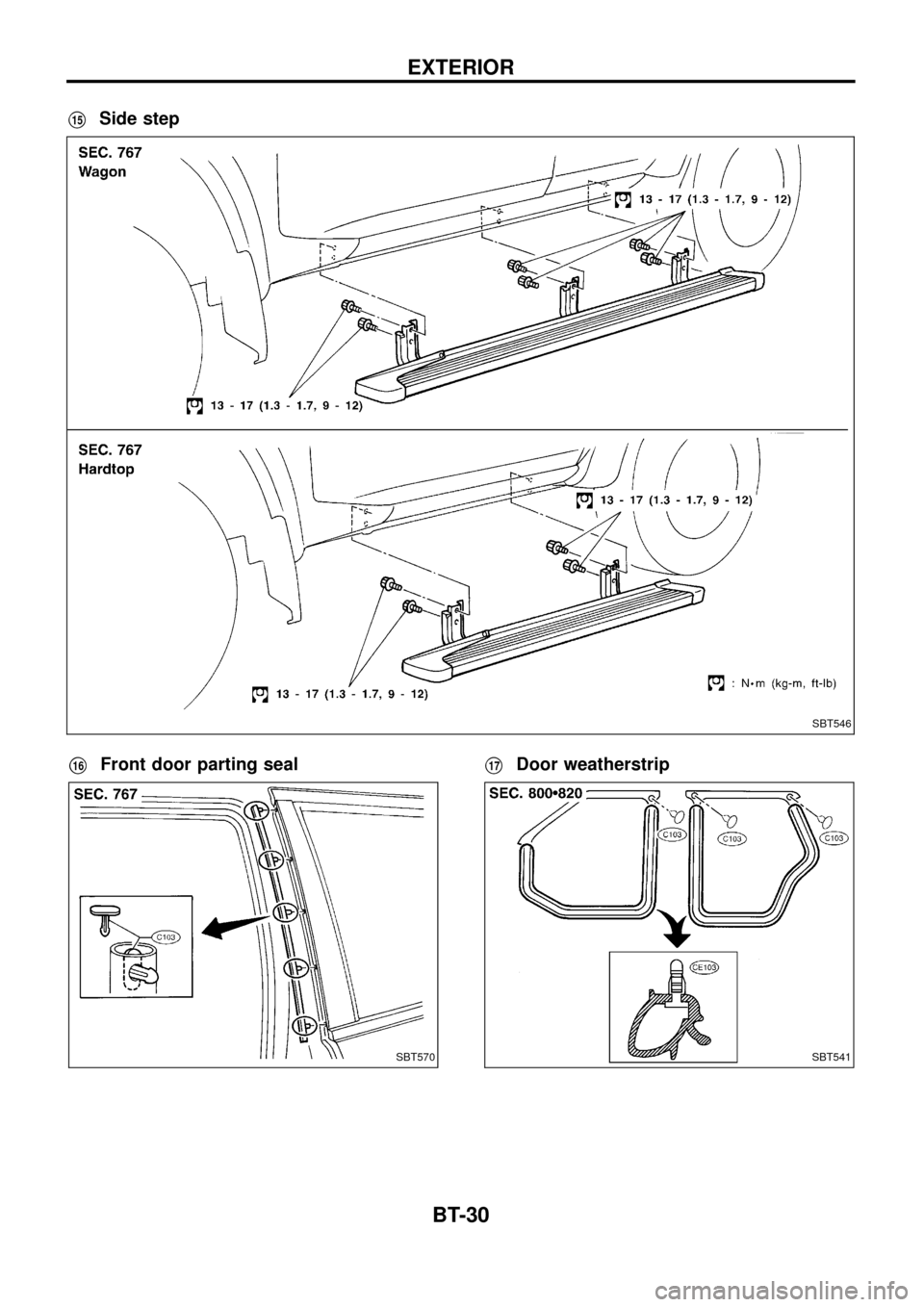

NISSAN PATROL 1998 Y61 / 5.G Body Owners Guide V15Side step
V16Front door parting sealV17Door weatherstrip
SBT546
SBT570SBT541
EXTERIOR
BT-30

Page 32 of 55

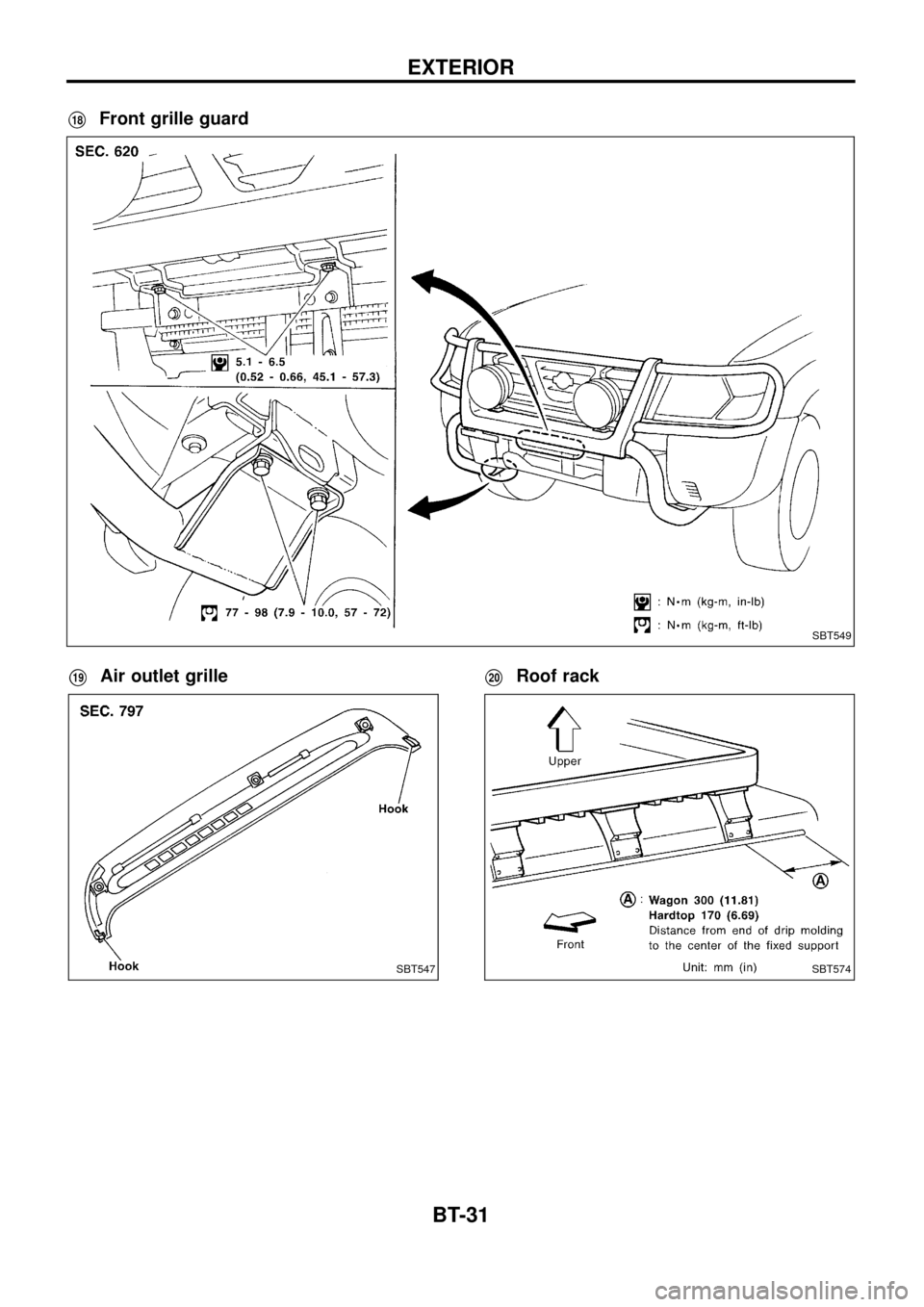

NISSAN PATROL 1998 Y61 / 5.G Body Owners Guide V18Front grille guard
V19Air outlet grilleV20Roof rack
SBT549
SBT547SBT574
EXTERIOR
BT-31

Page 33 of 55

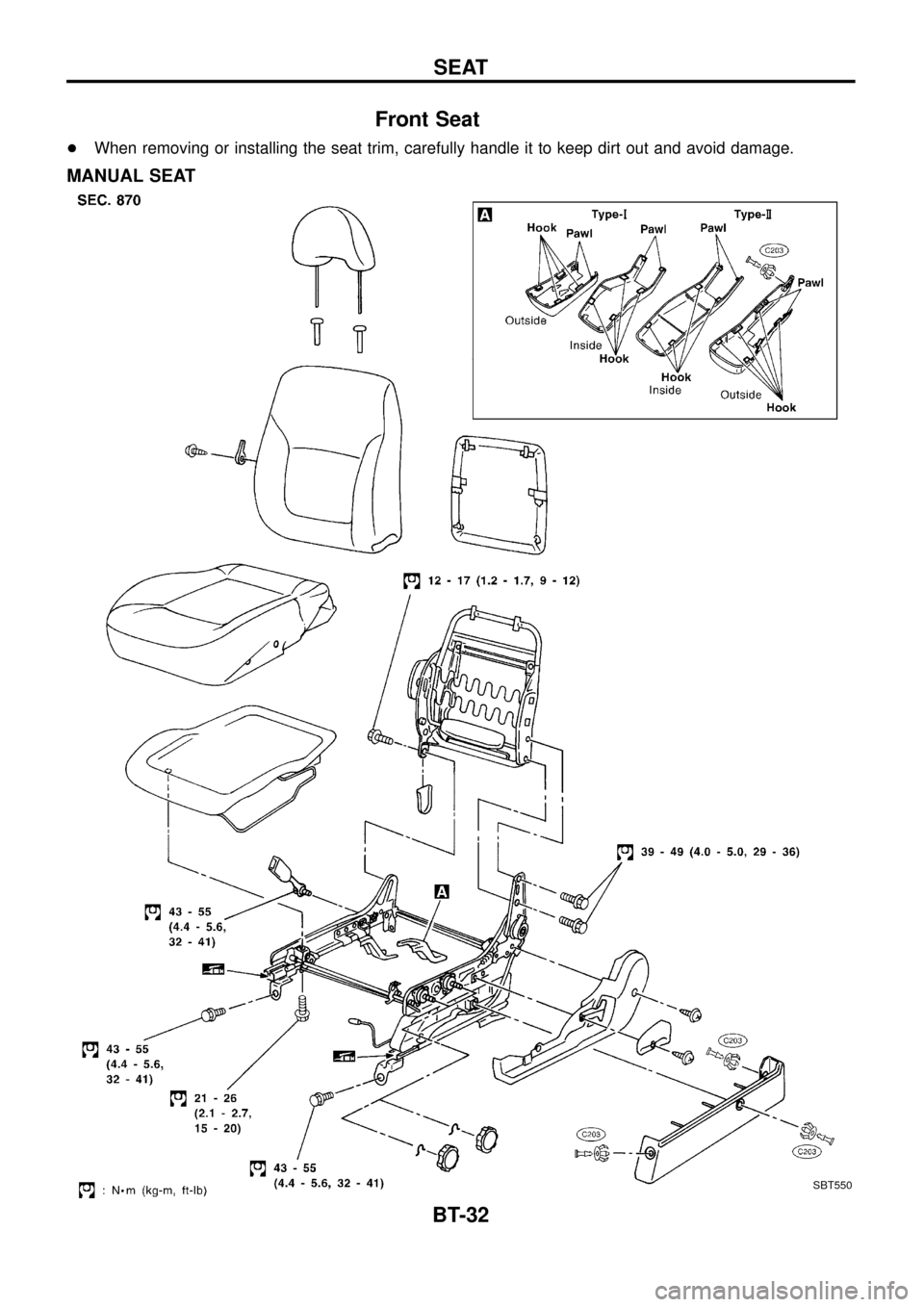

NISSAN PATROL 1998 Y61 / 5.G Body Owners Guide Front Seat
+When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.
MANUAL SEAT
SBT550
SEAT
BT-32

Page 34 of 55

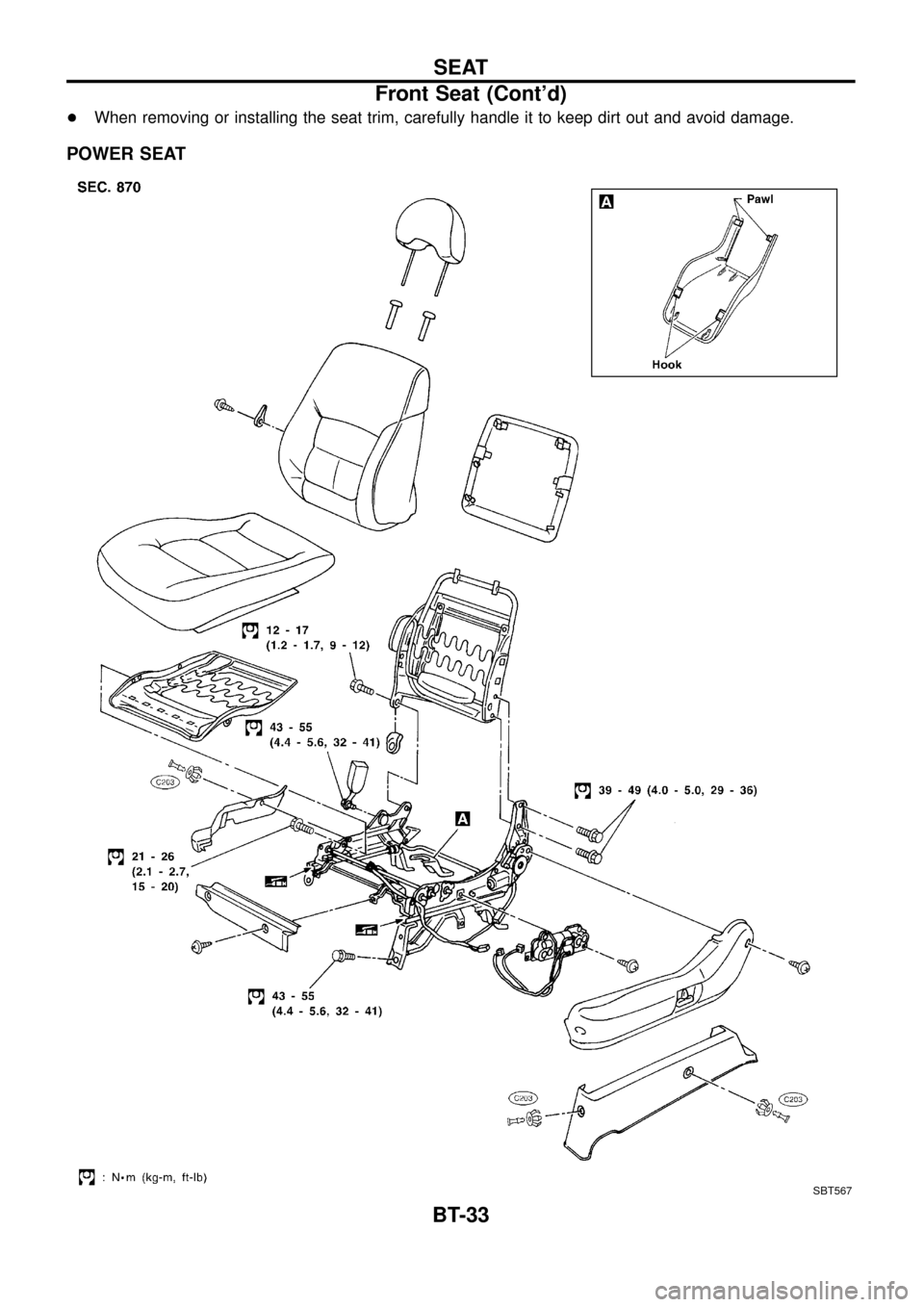

NISSAN PATROL 1998 Y61 / 5.G Body Owners Guide +When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.
POWER SEAT
SBT567
SEAT
Front Seat (Contd)
BT-33

Page 35 of 55

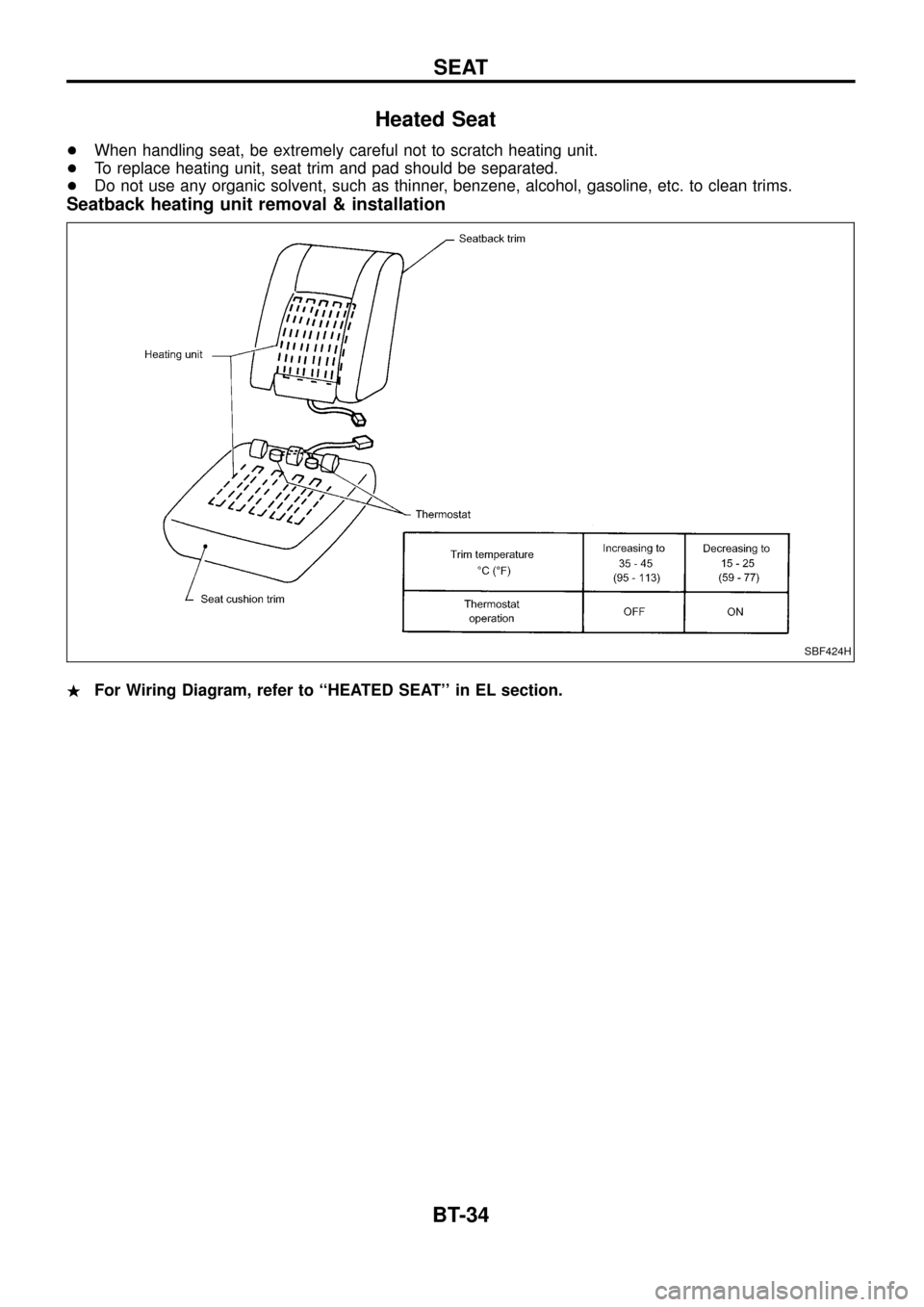

NISSAN PATROL 1998 Y61 / 5.G Body Owners Guide Heated Seat
+When handling seat, be extremely careful not to scratch heating unit.
+To replace heating unit, seat trim and pad should be separated.
+Do not use any organic solvent, such as thinner, be

Page 36 of 55

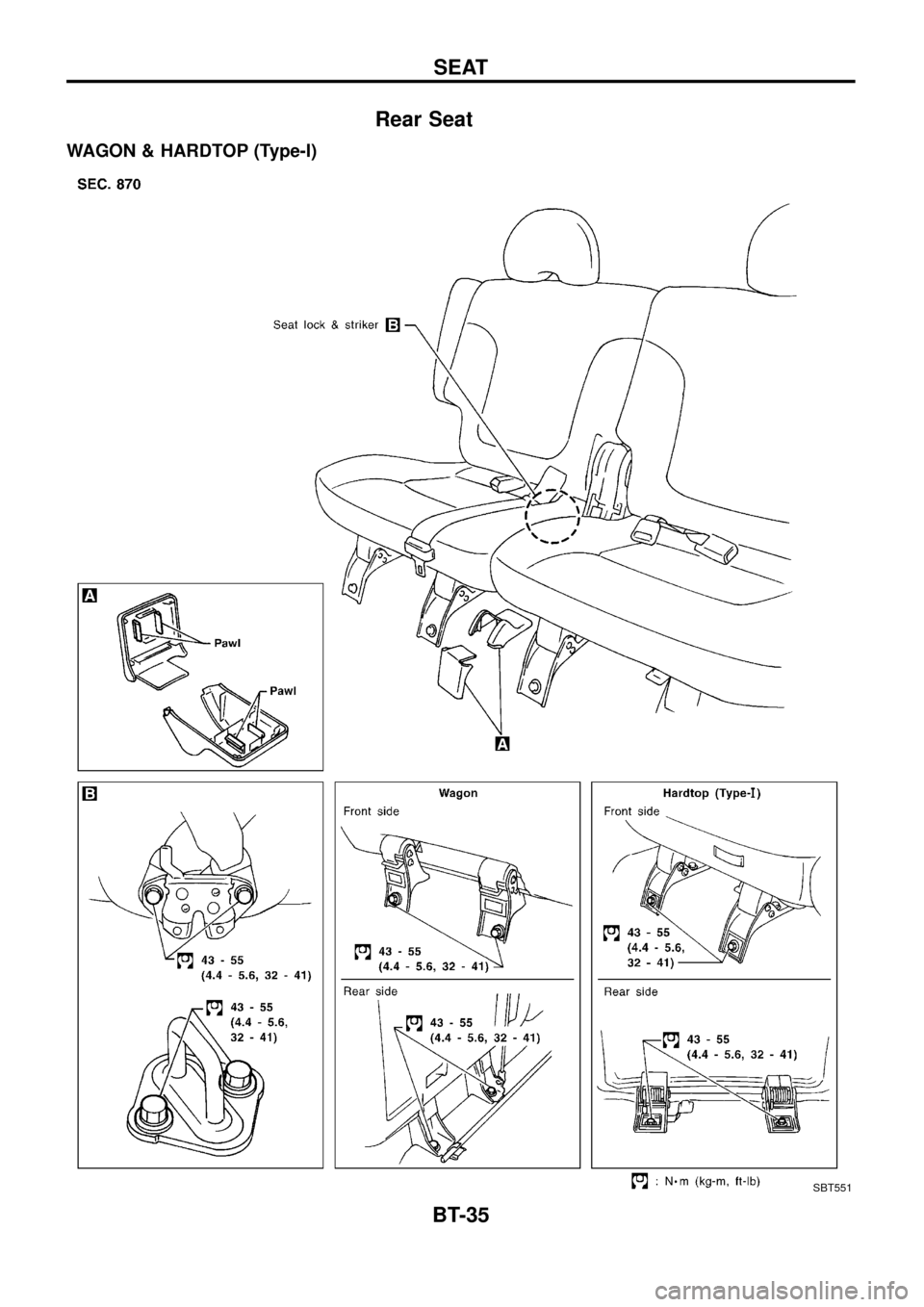

NISSAN PATROL 1998 Y61 / 5.G Body Owners Guide Rear Seat
WAGON & HARDTOP (Type-I)
SBT551
SEAT
BT-35

Page 37 of 55

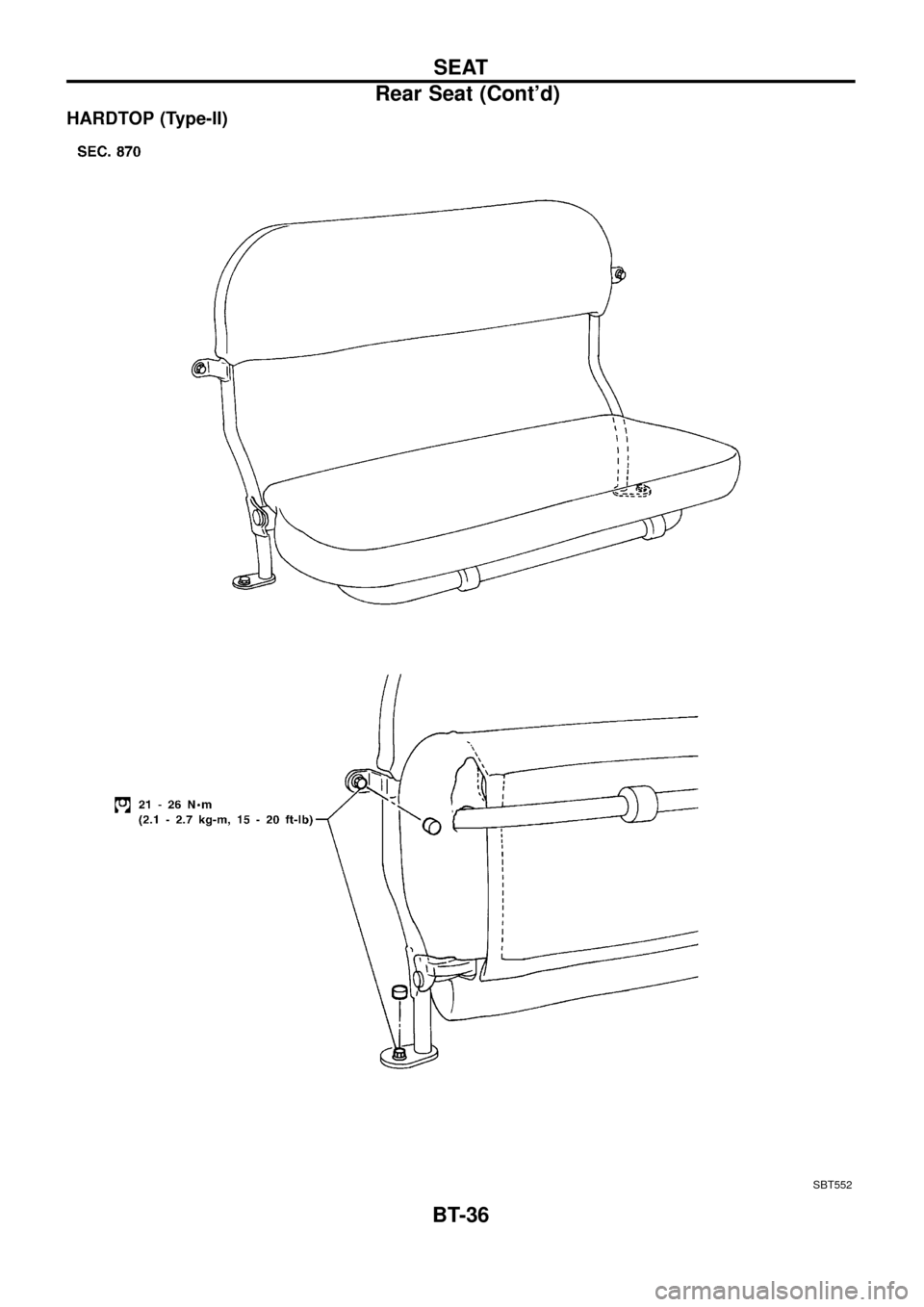

NISSAN PATROL 1998 Y61 / 5.G Body Owners Guide HARDTOP (Type-II)
SBT552
SEAT
Rear Seat (Contd)
BT-36

Page 38 of 55

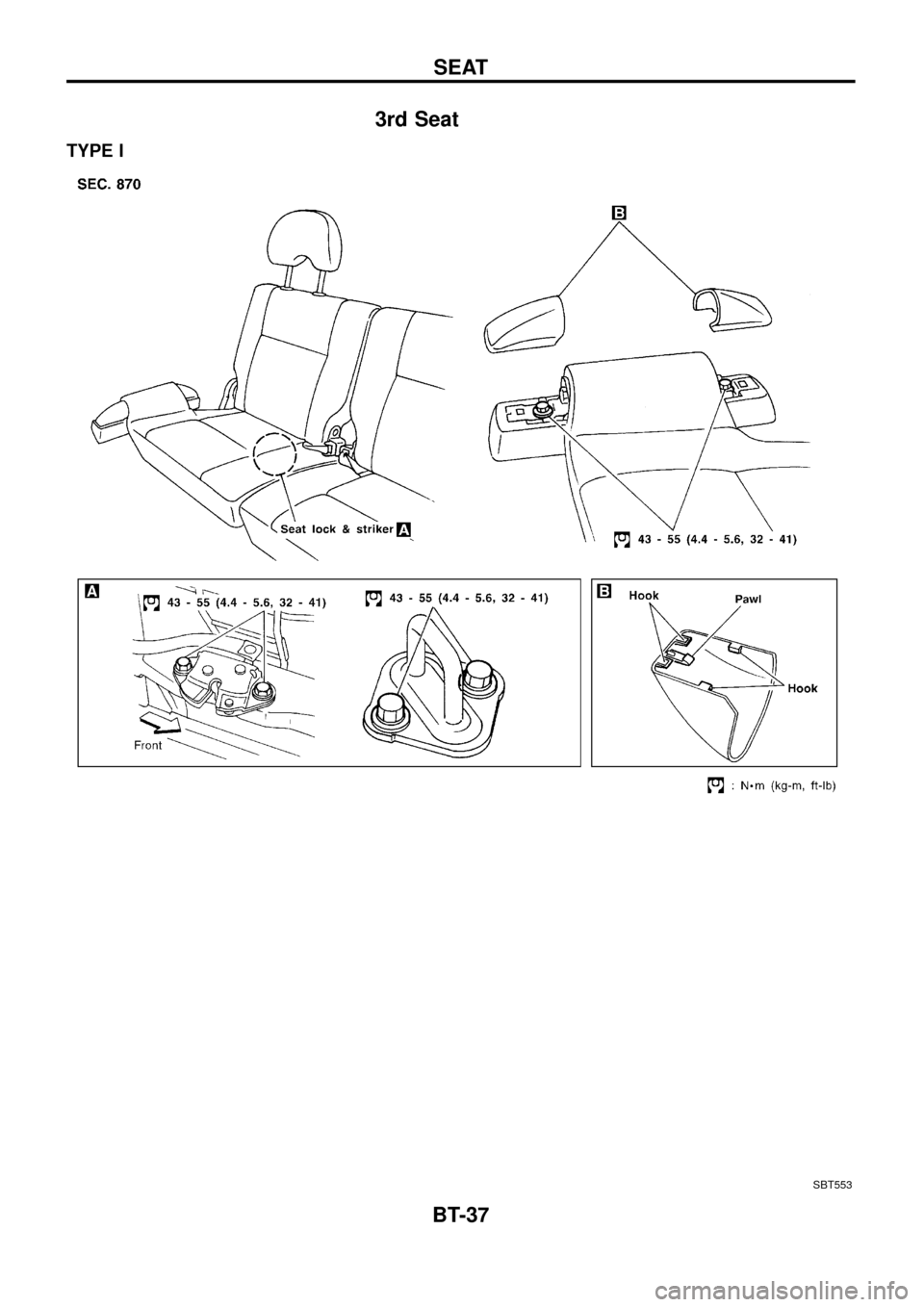

NISSAN PATROL 1998 Y61 / 5.G Body Owners Guide 3rd Seat
TYPE I
SBT553
SEAT
BT-37

Page 39 of 55

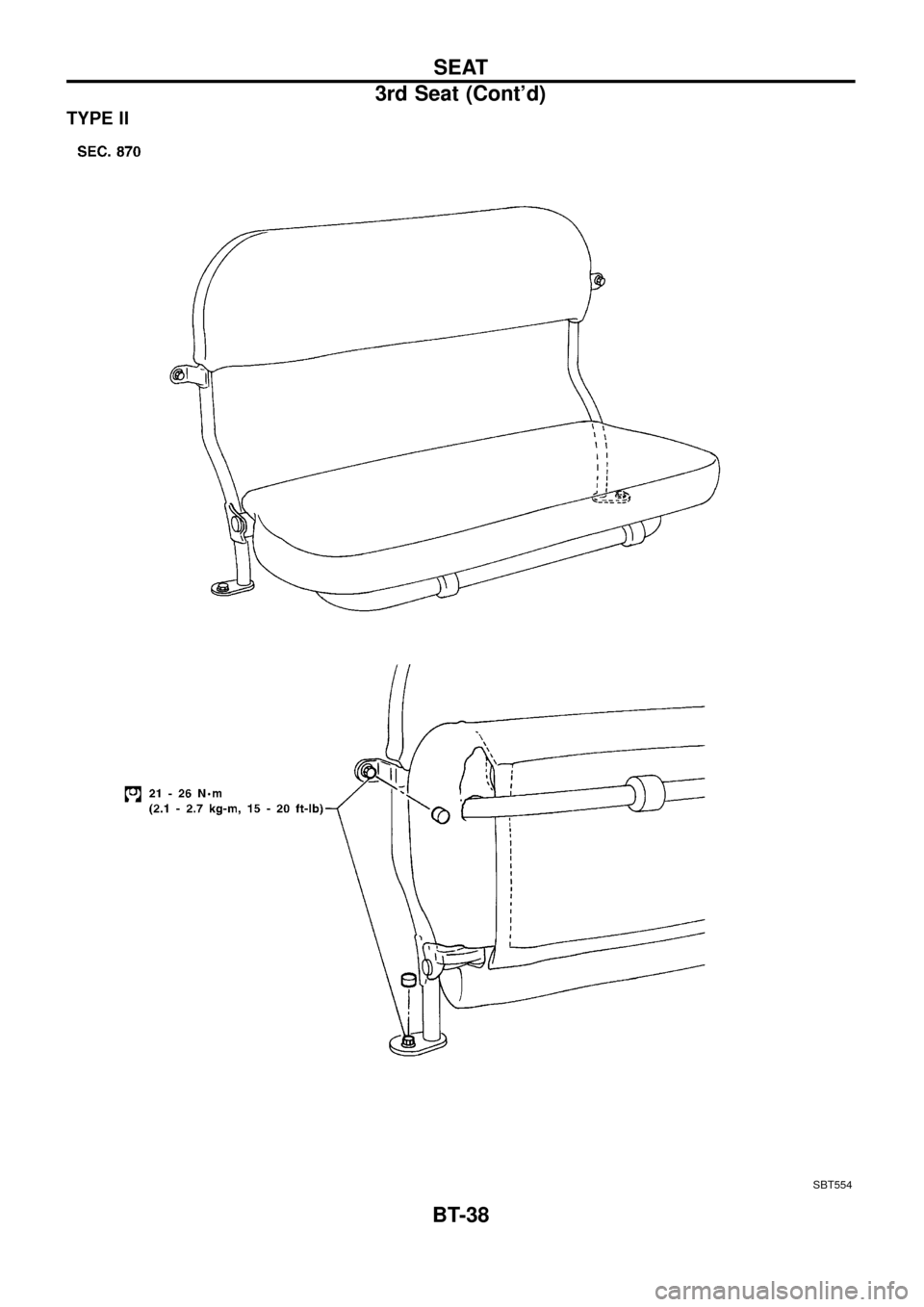

NISSAN PATROL 1998 Y61 / 5.G Body Owners Guide TYPE II
SBT554
SEAT
3rd Seat (Contd)
BT-38

Page 40 of 55

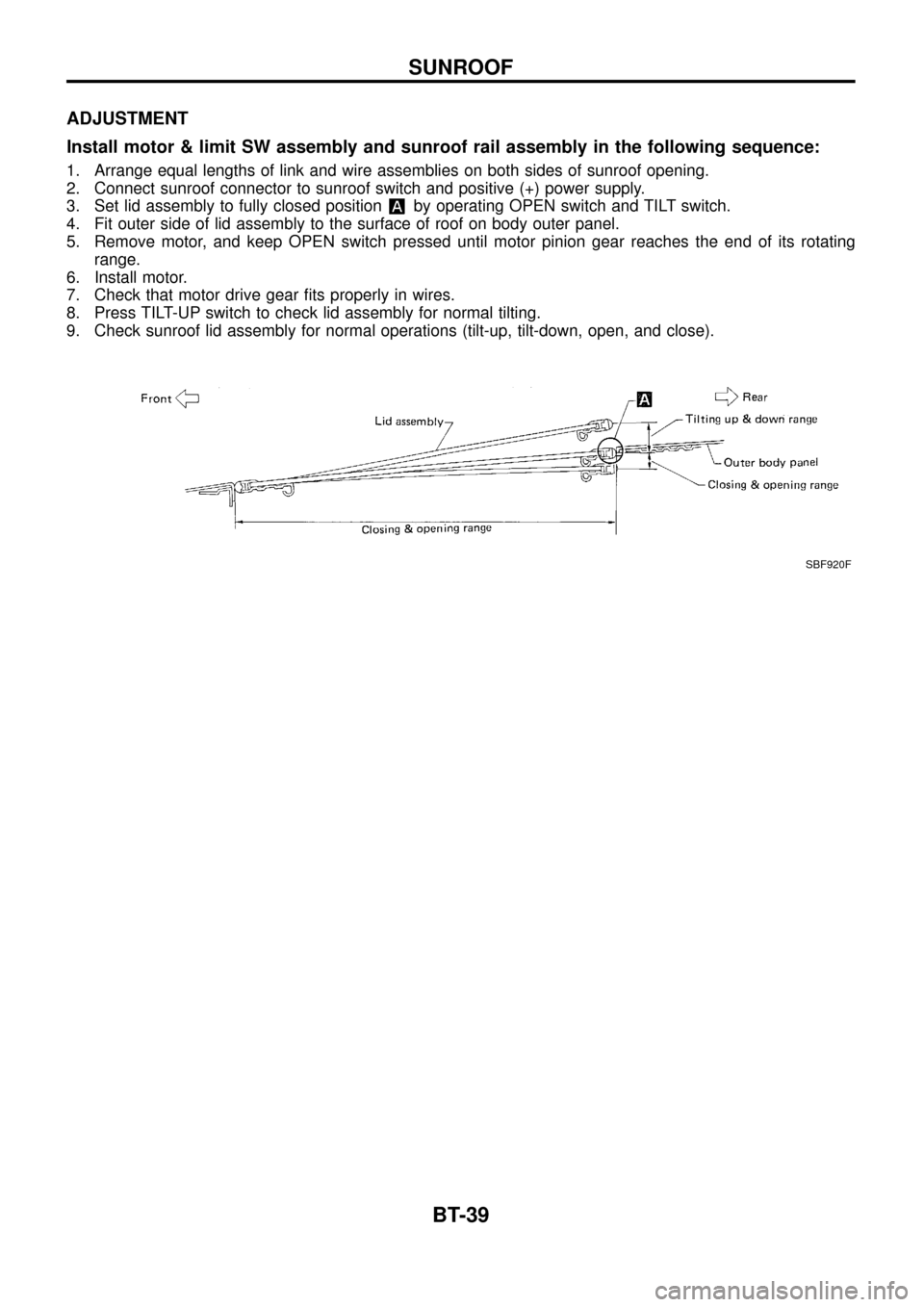

NISSAN PATROL 1998 Y61 / 5.G Body Owners Guide ADJUSTMENT
Install motor & limit SW assembly and sunroof rail assembly in the following sequence:
1. Arrange equal lengths of link and wire assemblies on both sides of sunroof opening.
2. Connect sunr
