NISSAN PATROL 1998 Y61 / 5.G Electrical System Workshop Manual

TEL459A

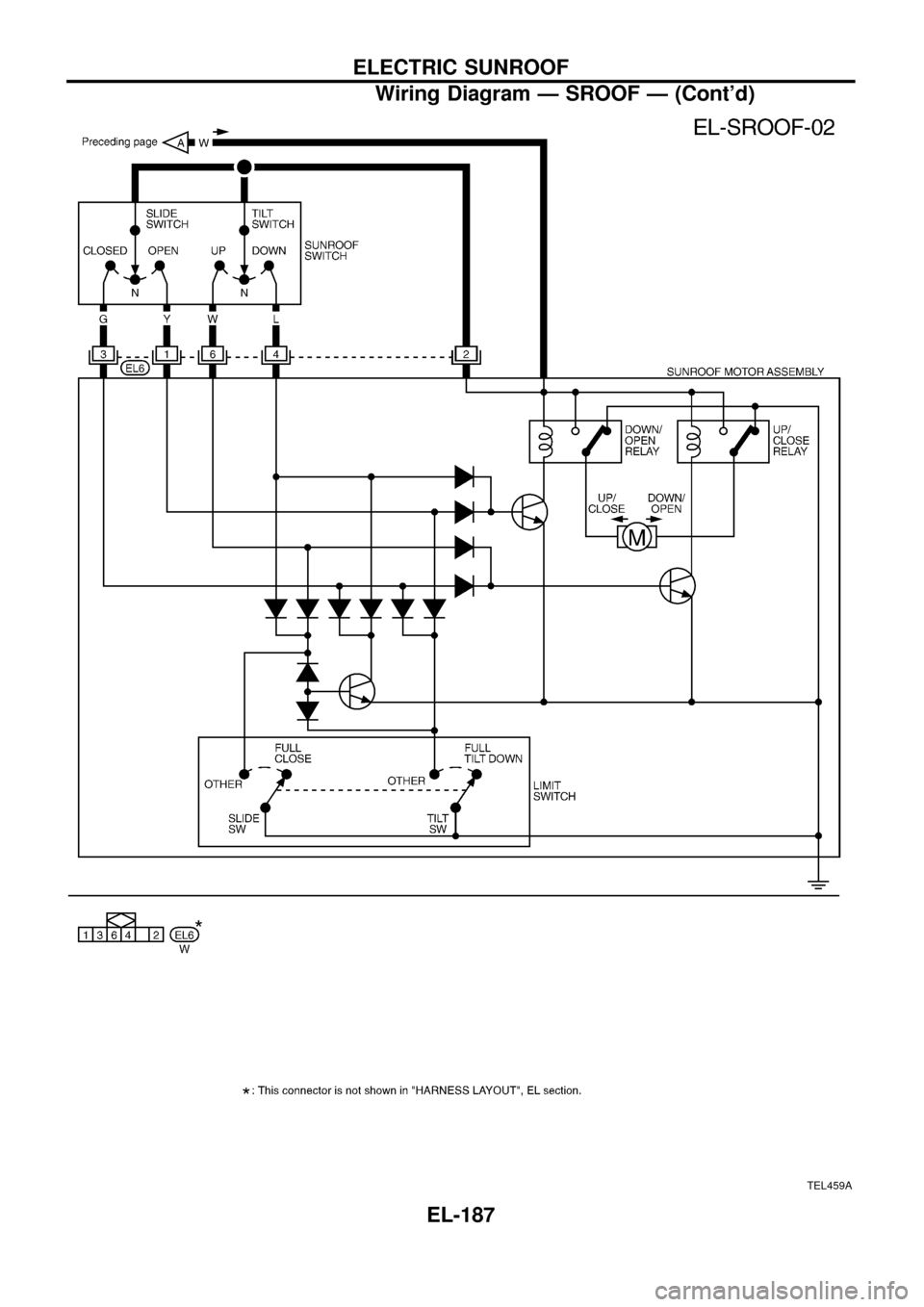

ELECTRIC SUNROOF
Wiring Diagram Ð SROOF Ð (Cont'd)
EL-187

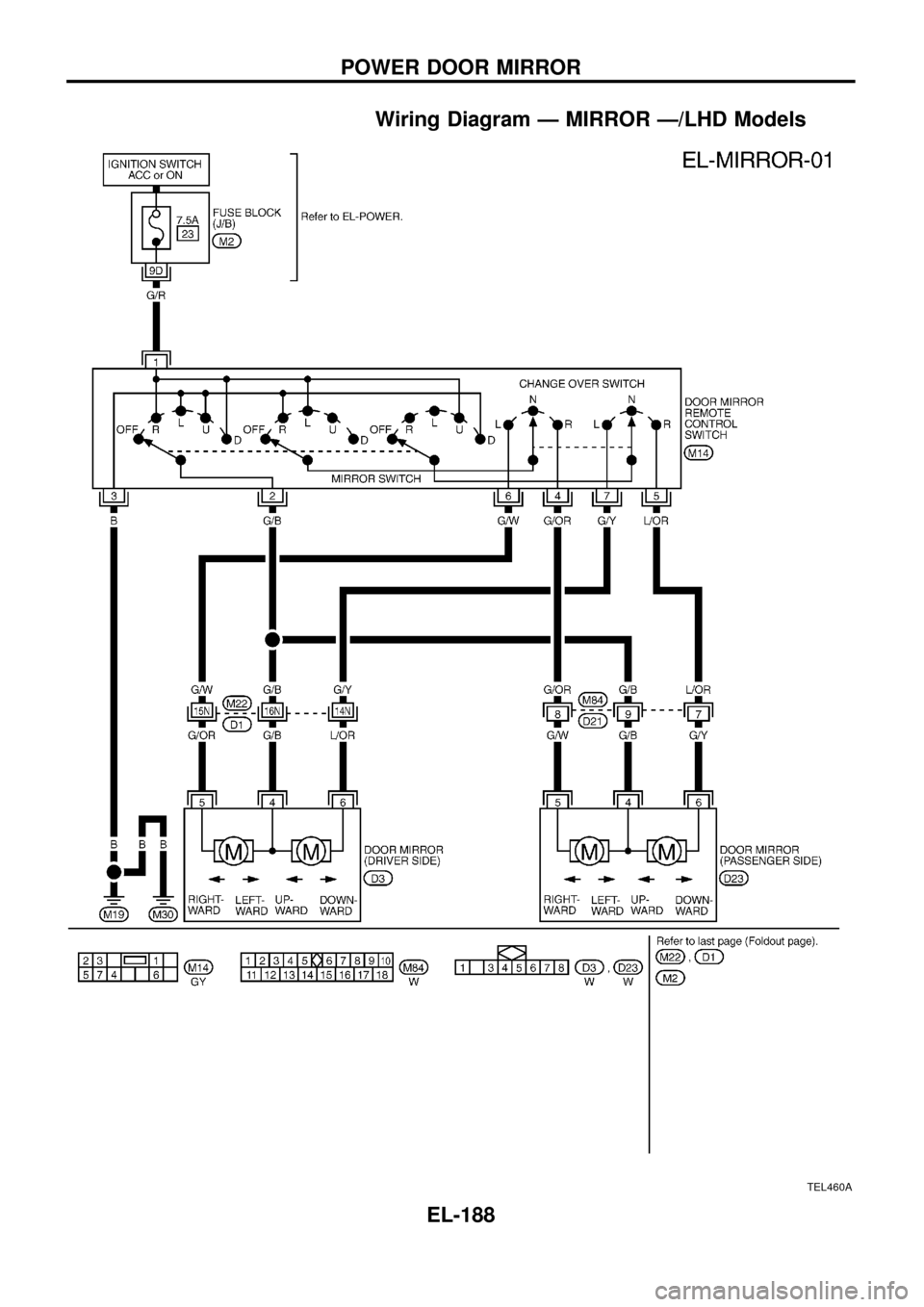

Wiring Diagram Ð MIRROR Ð/LHD Models
TEL460A
POWER DOOR MIRROR
EL-188

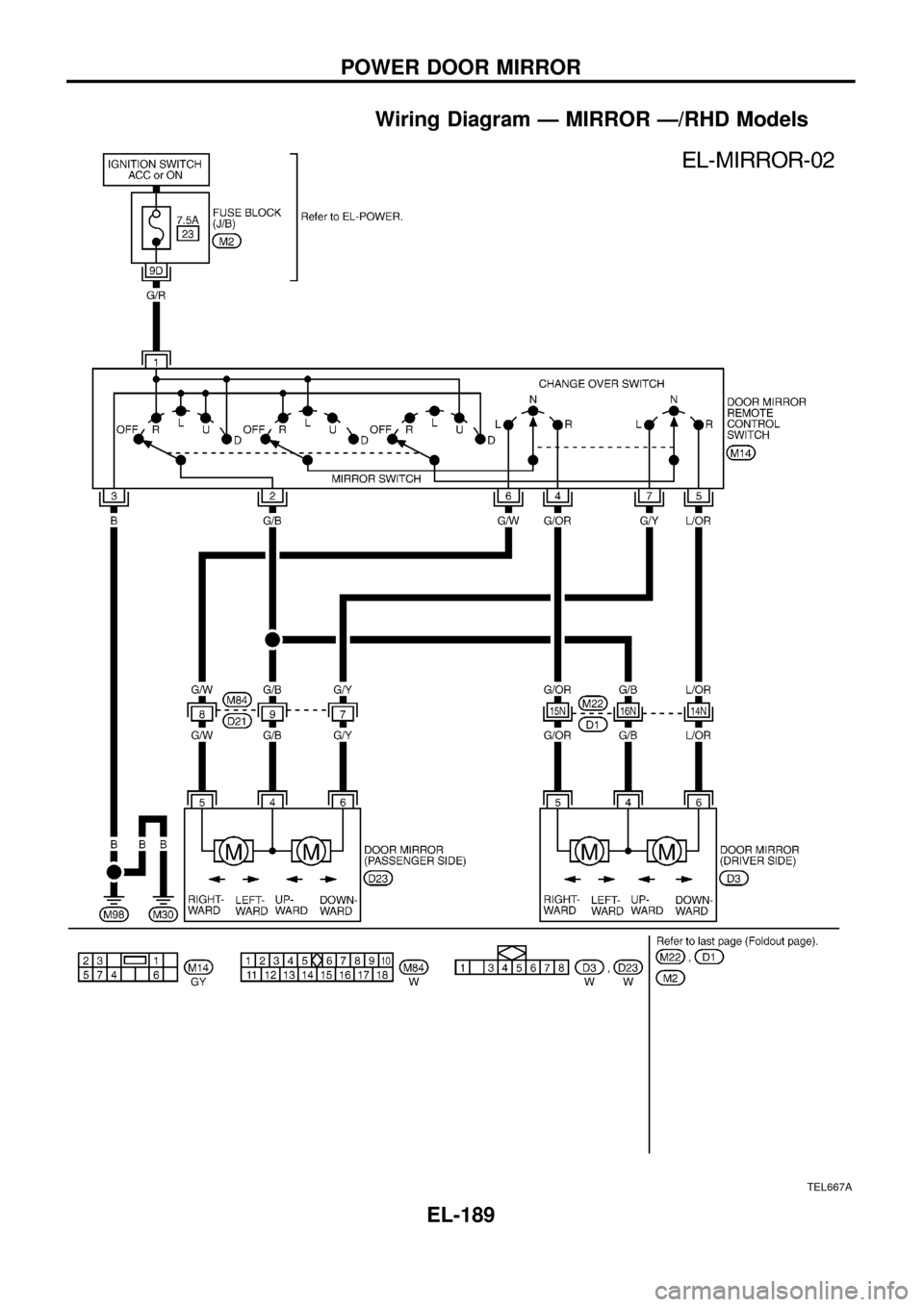

Wiring Diagram Ð MIRROR Ð/RHD Models
TEL667A
POWER DOOR MIRROR
EL-189

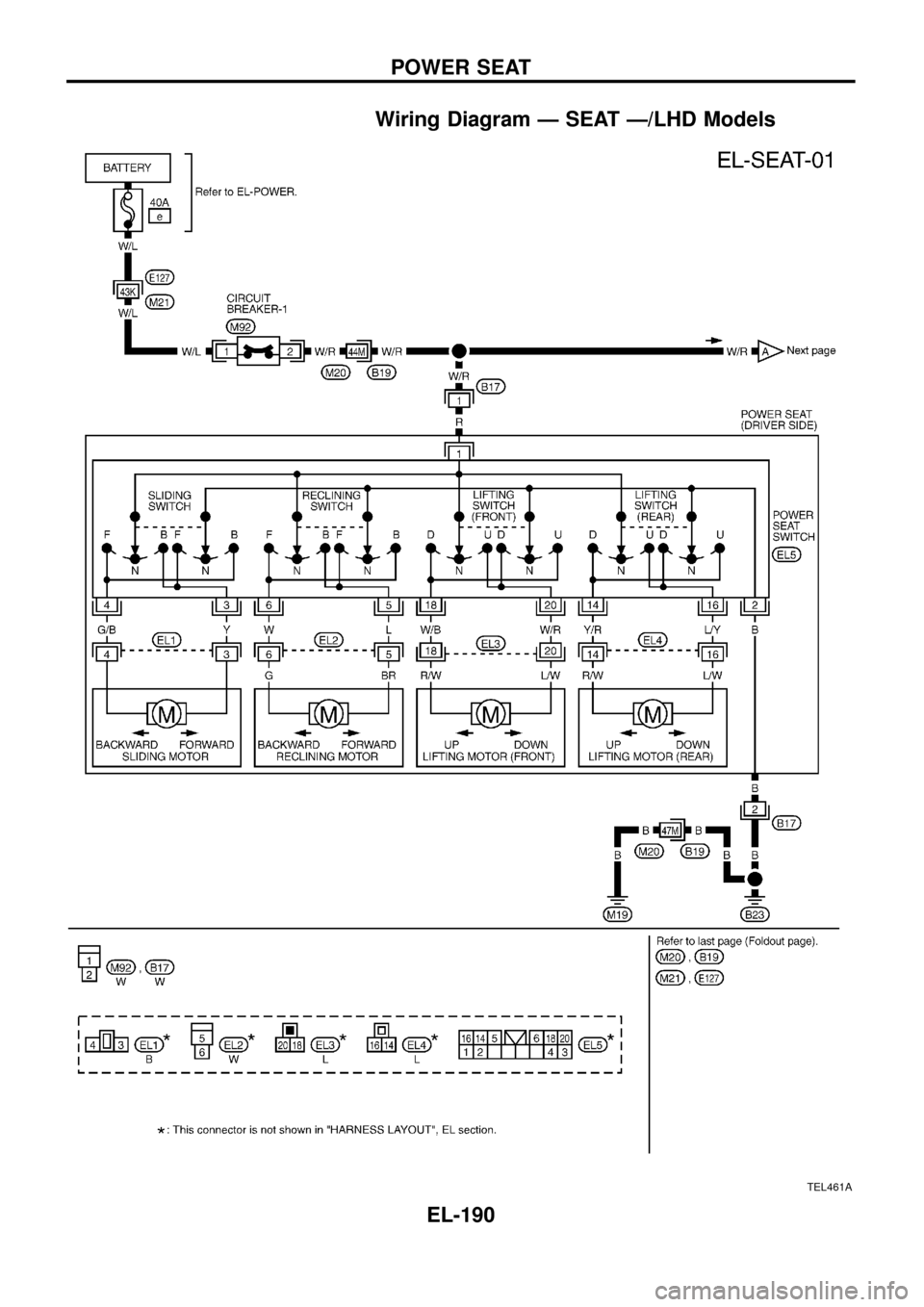

Wiring Diagram Ð SEAT Ð/LHD Models
TEL461A
POWER SEAT
EL-190

TEL462A
POWER SEAT
Wiring Diagram Ð SEAT Ð/LHD Models
(Cont'd)
EL-191

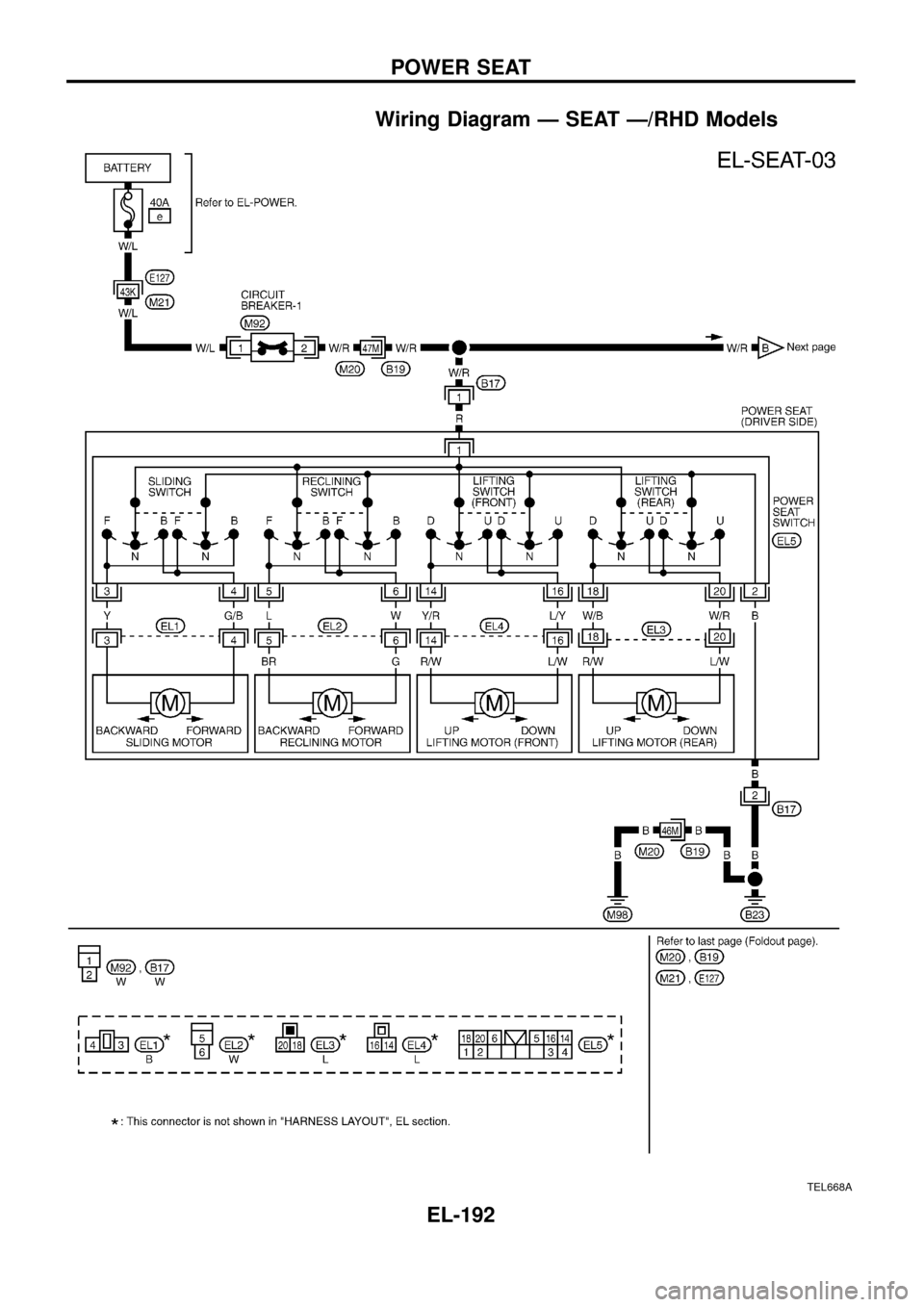

Wiring Diagram Ð SEAT Ð/RHD Models
TEL668A
POWER SEAT
EL-192

TEL669A
POWER SEAT

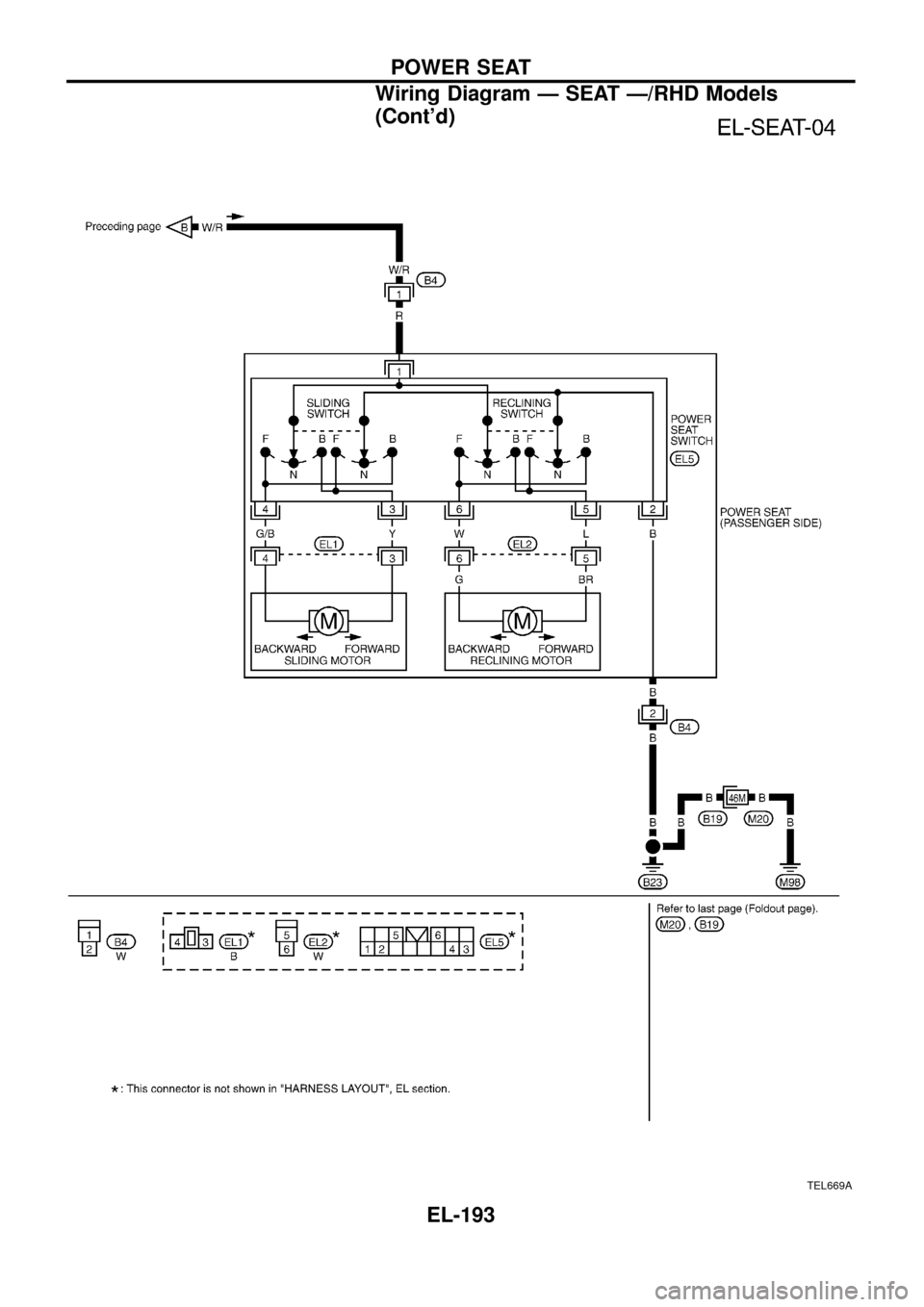

Wiring Diagram Ð SEAT Ð/RHD Models
(Cont'd)
EL-193

Wiring Diagram Ð HSEAT Ð
TEL670A
HEATED SEAT
EL-194

TEL671A
HEATED SEAT
Wiring Diagram Ð HSEAT Ð (Cont'd)
EL-195

System Description
With ignition switch in ON or START position, power is supplied
+through 7.5A fuse [No.
8, located in the fuse block (J/B)]
+to power window relay terminalj
1.
The power window relay is energized and power is supplied
+through power window relay terminalj
5
+to power window main switch terminalj1,
+to power window sub switch terminalj
5.
MANUAL OPERATION
NOTE:
Numbers in parentheses are terminal numbers, when power window switch is pressed in the UP and DOWN
positions respectively.
Driver side
When the driver side switch in the power window main switch is pressed in the up position, power is supplied
+to driver side power window regulator terminal (j
2,j1)
+through power window main switch terminal (j
9,j8).
Ground is supplied
+to driver side power window regulator terminal (j
1,j2)
+through power window main switch terminal (j
8,j9).
Then, the motor raises or lowers the window until the switch is released.
Passenger side
MAIN SWITCH OPERATION
Power is supplied
+through power window main switch (j
5,j6)
+to front power window sub-switch (j
3,j4).
The subsequent operation is the same as the sub-switch operation.
SUB-SWITCH OPERATION
Power is supplied
+through front power window sub-switch (j
1,j2)
+to passenger side power window regulator (j
2,j1).
Ground is supplied
+to passenger side power window regulator (j
1,j2)
+through front power window sub-switch (j
2,j1)
+to front power window sub-switch (j
4,j3)
+through power window main switch (j
6,j5).
Then, the motor raises or lowers the window until the switch is released.
Rear door
Rear door windows will raise and lower in the same manner as passenger side door window.
AUTO OPERATION
The power window AUTO feature enables the driver to open or close the driver's window without holding the
window switch in the respective position.
When the AUTO switch in the main switch is pressed and released, the driver's window will travel to the fully
open or closed position.
POWER WINDOW LOCK
The power window lock is designed to lock operation of all windows except for driver's door window.
When the lock switch is pressed to lock position, ground of the sub-switches in the power window main switch
is disconnected. This prevents the power window motors from operating.
POWER WINDOW
EL-196
