NISSAN PATROL 2000 Electronic Repair Manual

THA273
TROUBLE DIAGNOSESREAR COOLER
Wiring Diagram Ð R/COOL Ð/LHD Models
with Front Manual A/C (Cont'd)
HA-1016

Wiring Diagram Ð R/COOL Ð/RHD Models
with Front Auto A/C
THA042M
TROUBLE DIAGNOSESREAR COOLER
HA-1017

THA043M
TROUBLE DIAGNOSESREAR COOLER

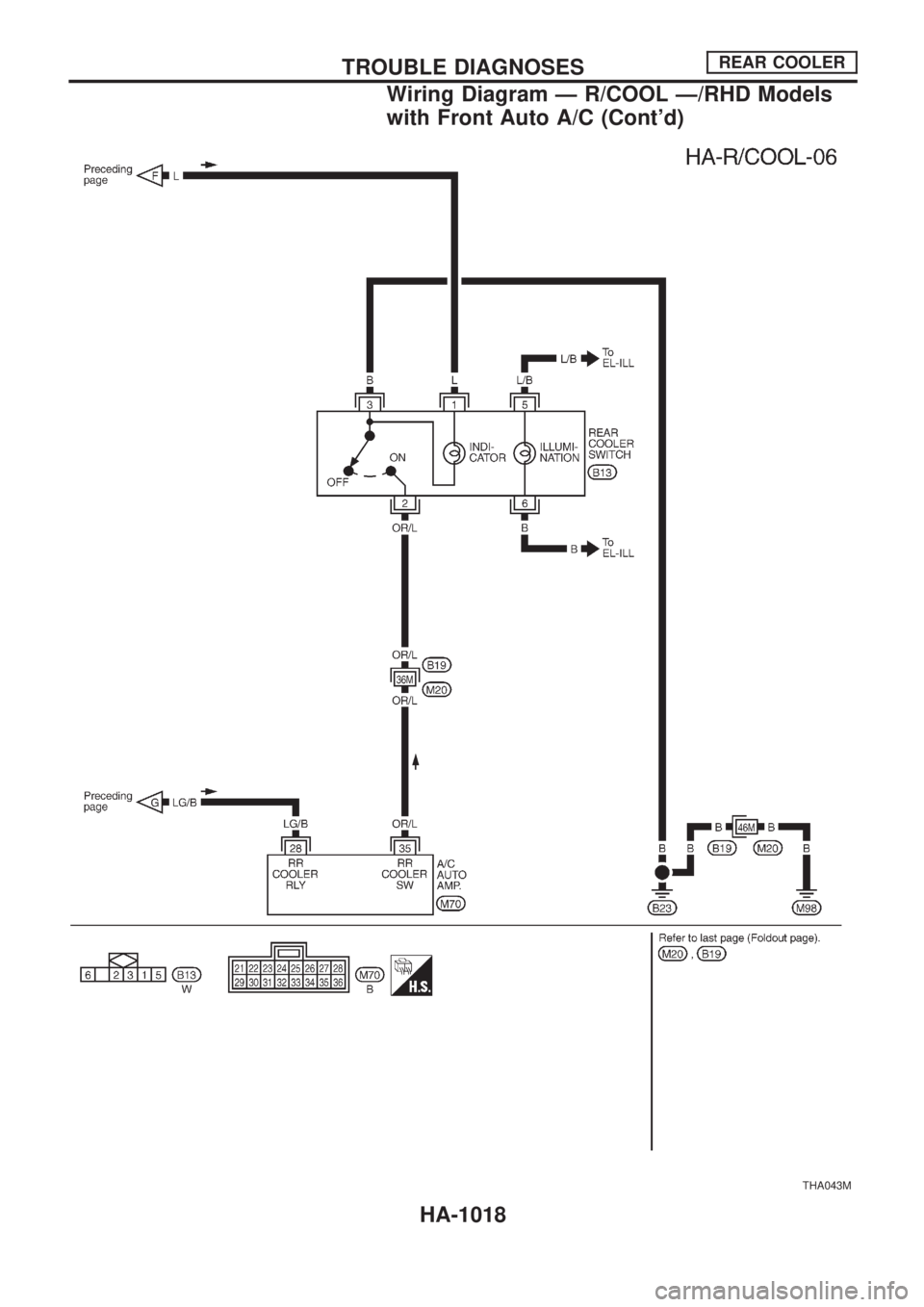

Wiring Diagram Ð R/COOL Ð/RHD Models
with Front Auto A/C (Cont'd)
HA-1018

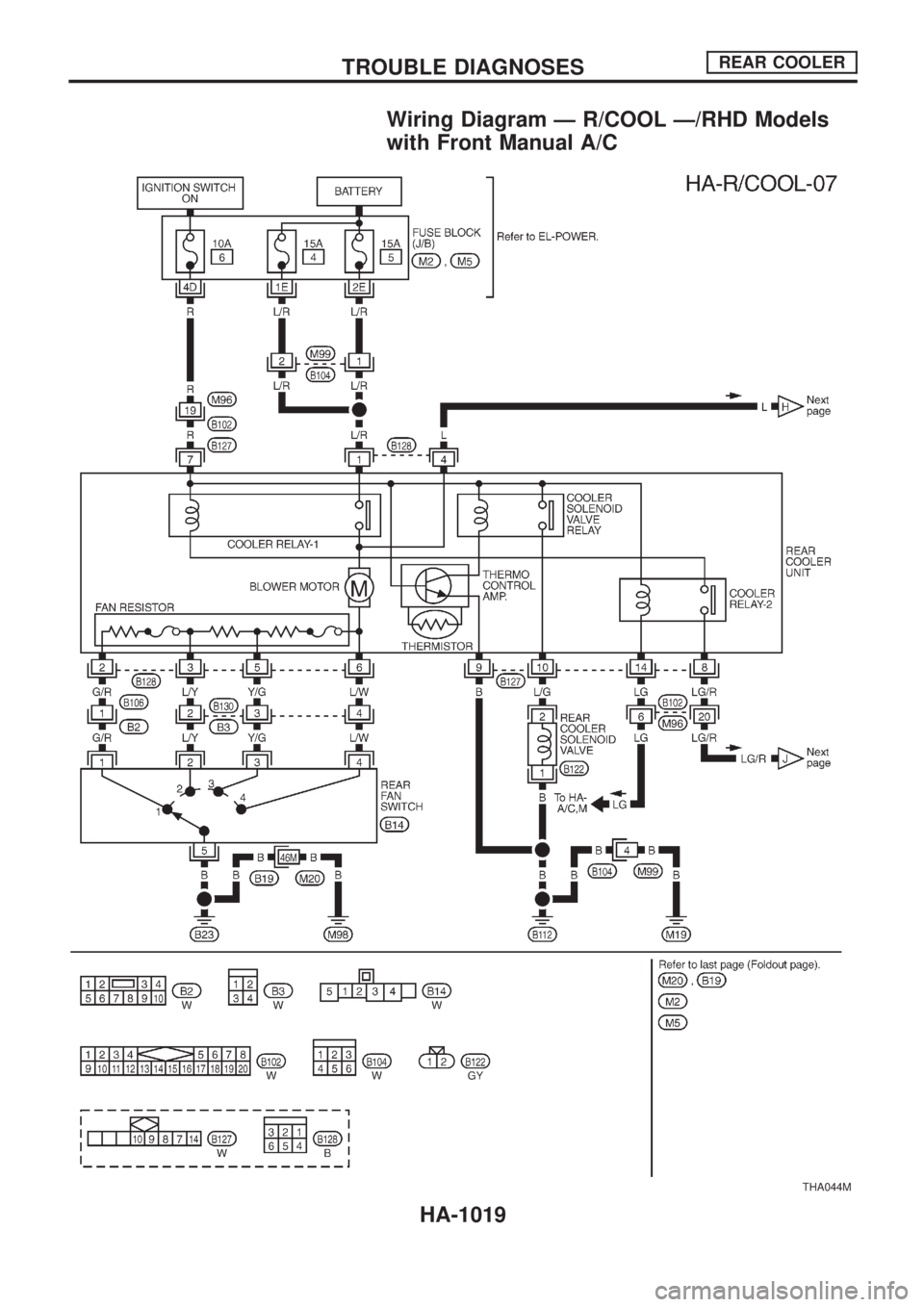

Wiring Diagram Ð R/COOL Ð/RHD Models
with Front Manual A/C
THA044M
TROUBLE DIAGNOSESREAR COOLER
HA-1019

THA045M
TROUBLE DIAGNOSESREAR COOLER

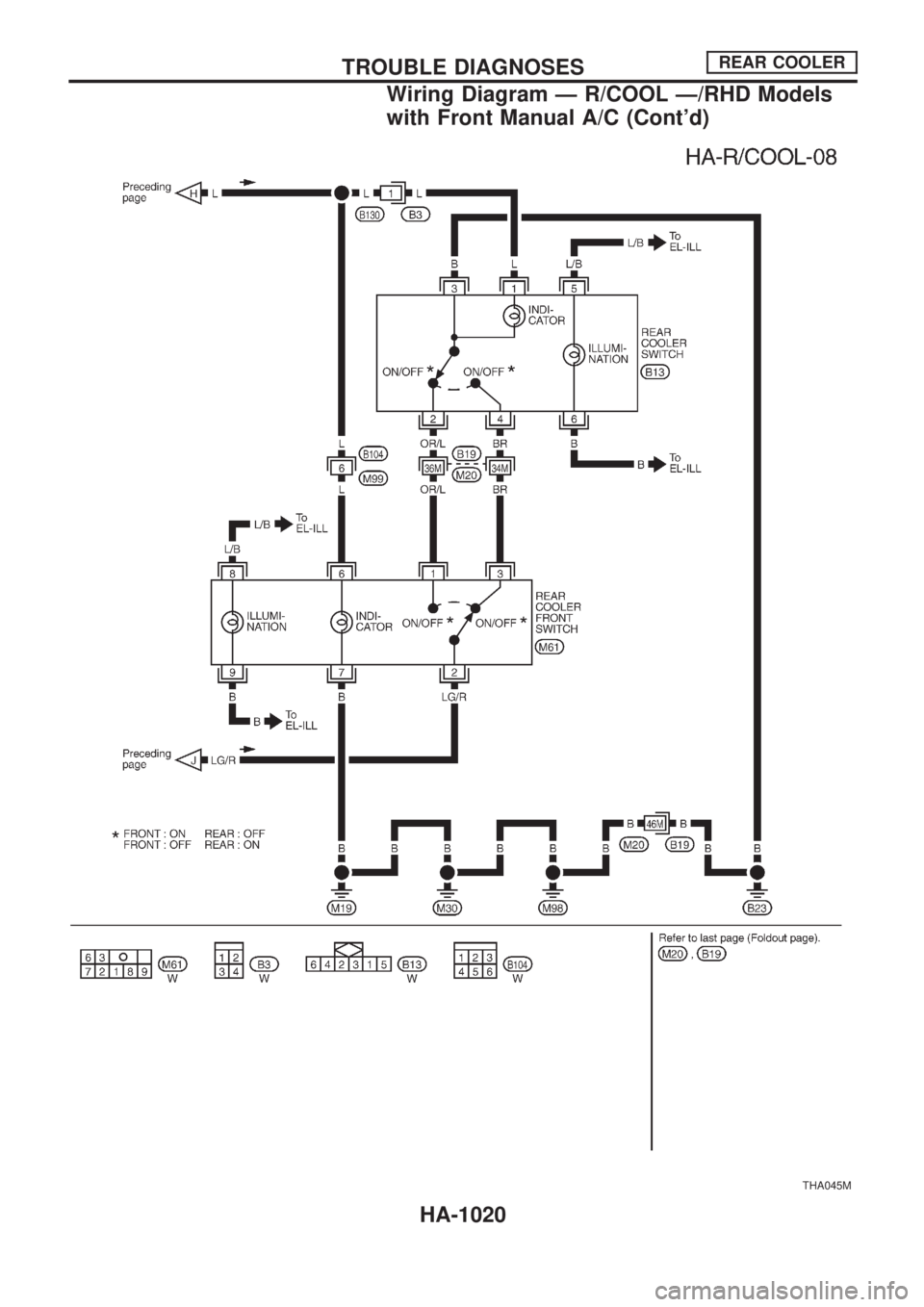

Wiring Diagram Ð R/COOL Ð/RHD Models
with Front Manual A/C (Cont'd)
HA-1020

Refrigerant Lines

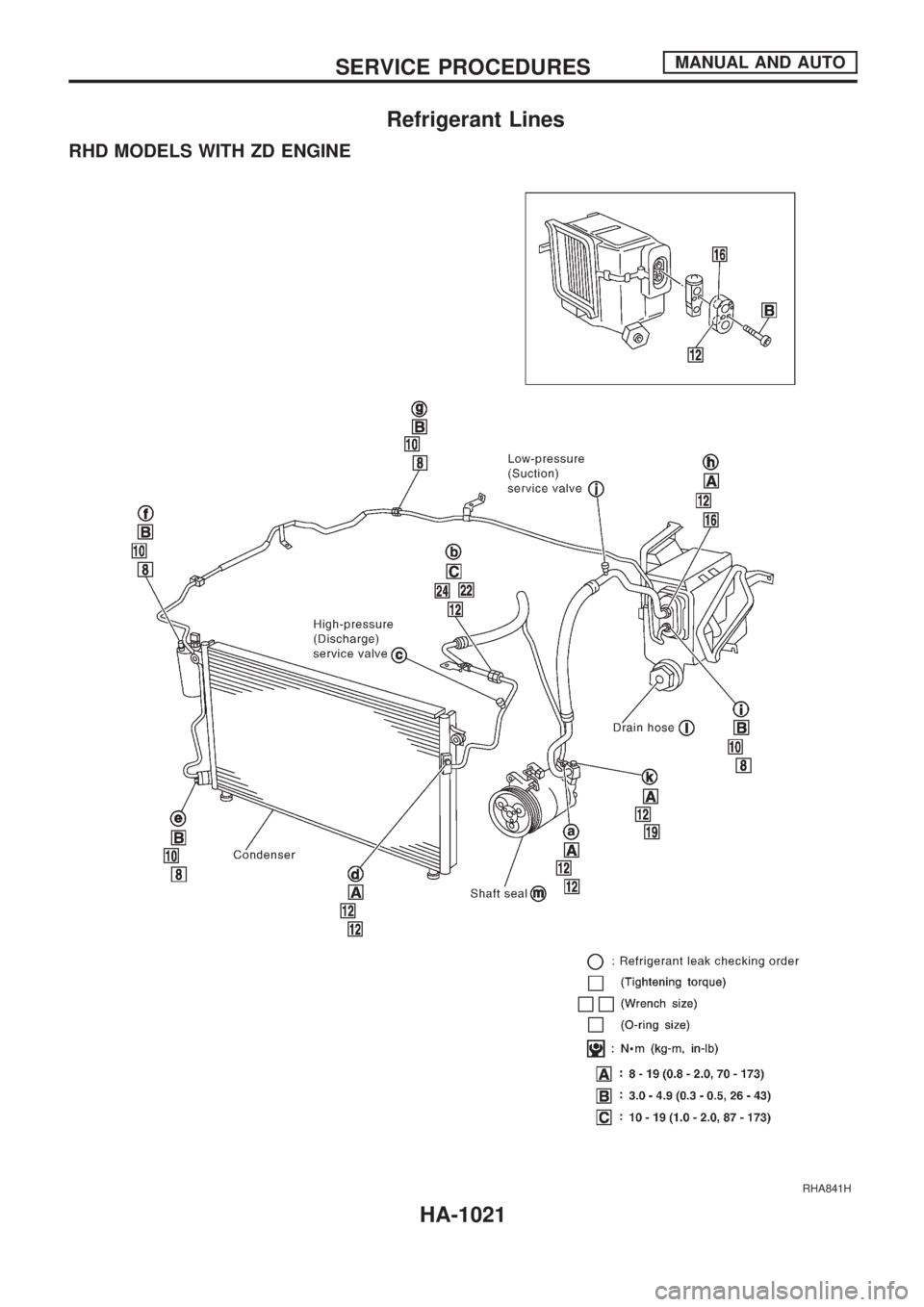

RHD MODELS WITH ZD ENGINE
RHA841H
SERVICE PROCEDURESMANUAL AND AUTO
HA-1021

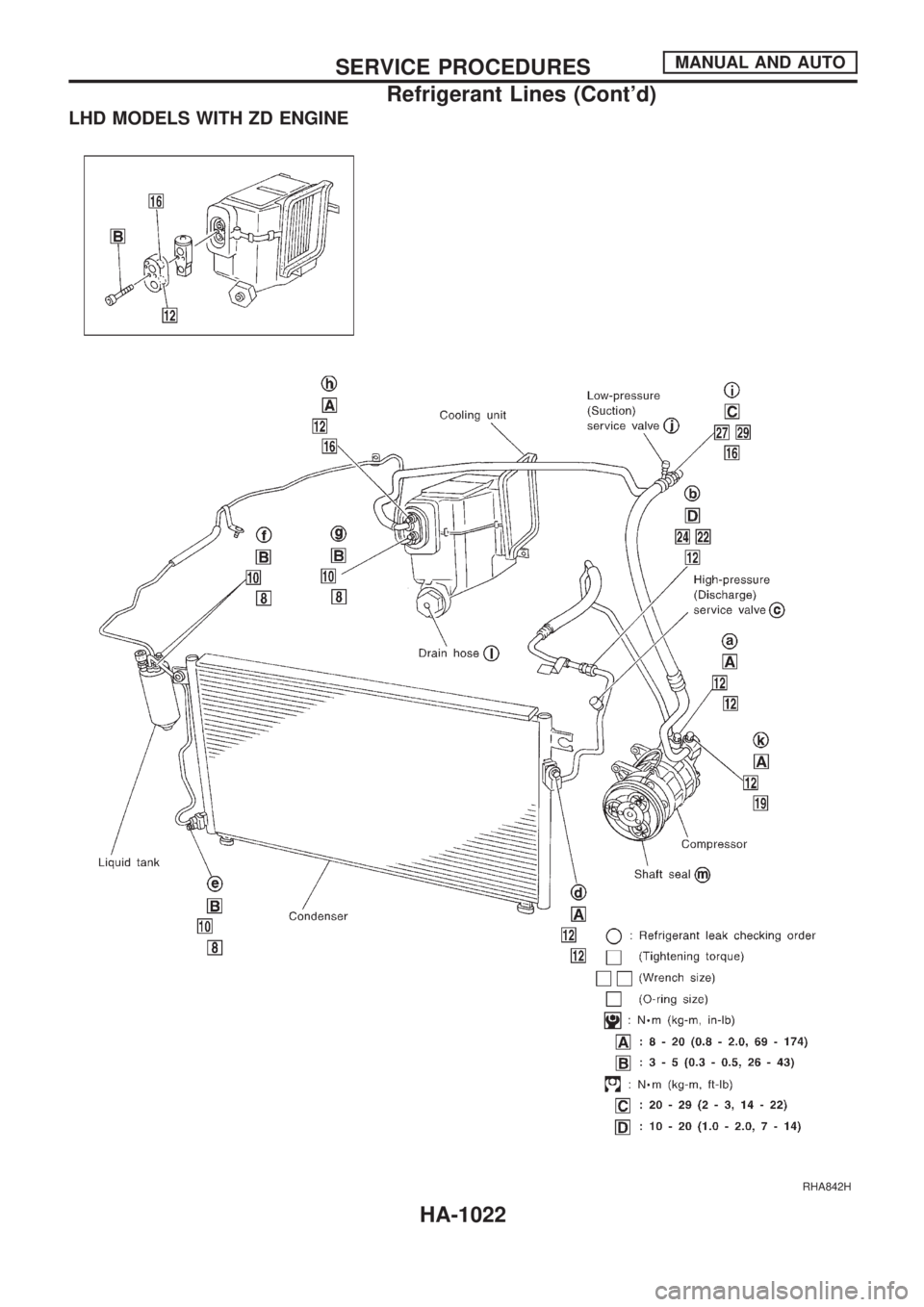

LHD MODELS WITH ZD ENGINE
RHA842H
SERVICE PROCEDURESMANUAL AND AUTO
Refrigerant Lines (Cont'd)
HA-1022

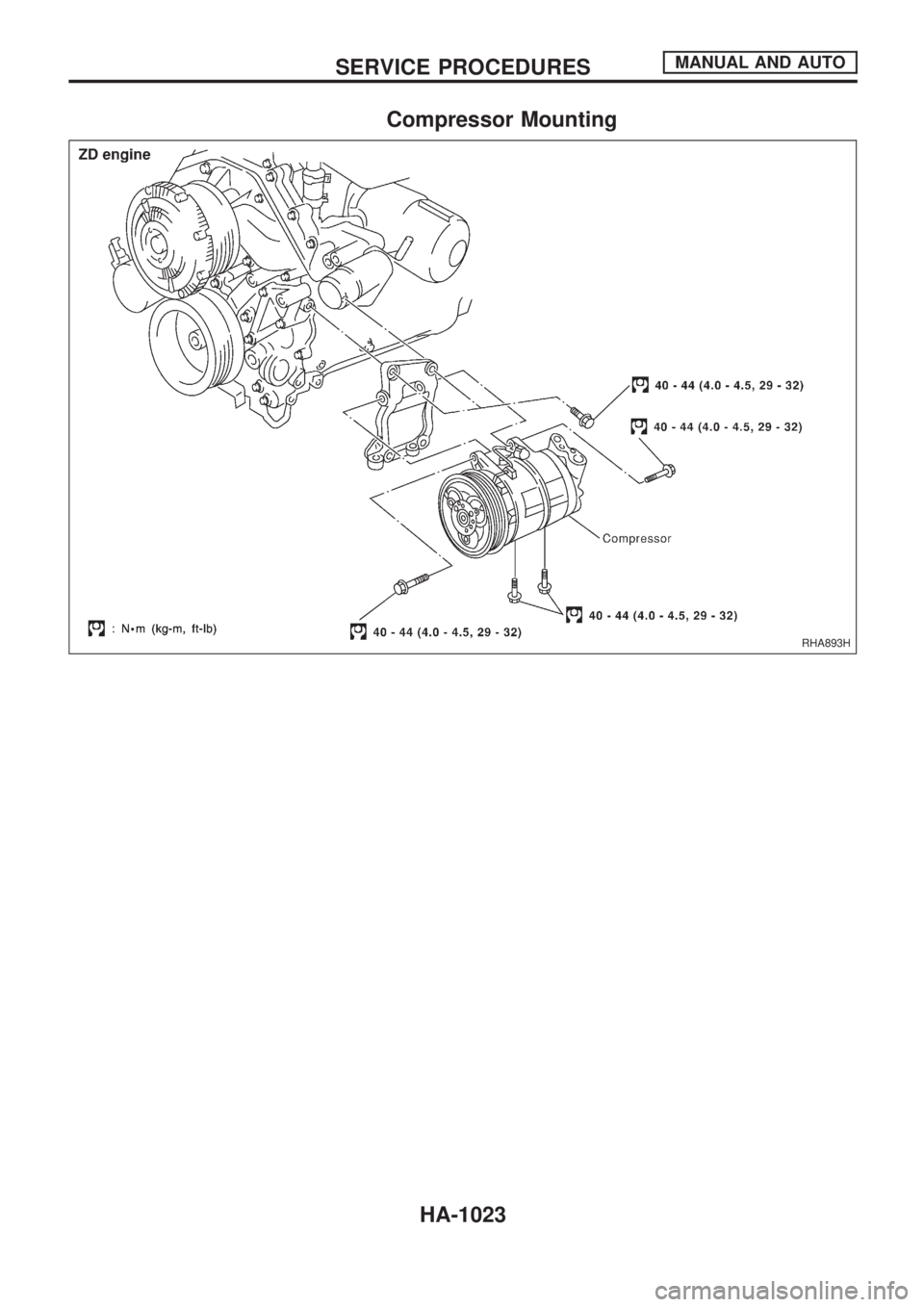

Compressor Mounting
RHA893H
SERVICE PROCEDURESMANUAL AND AUTO
HA-1023

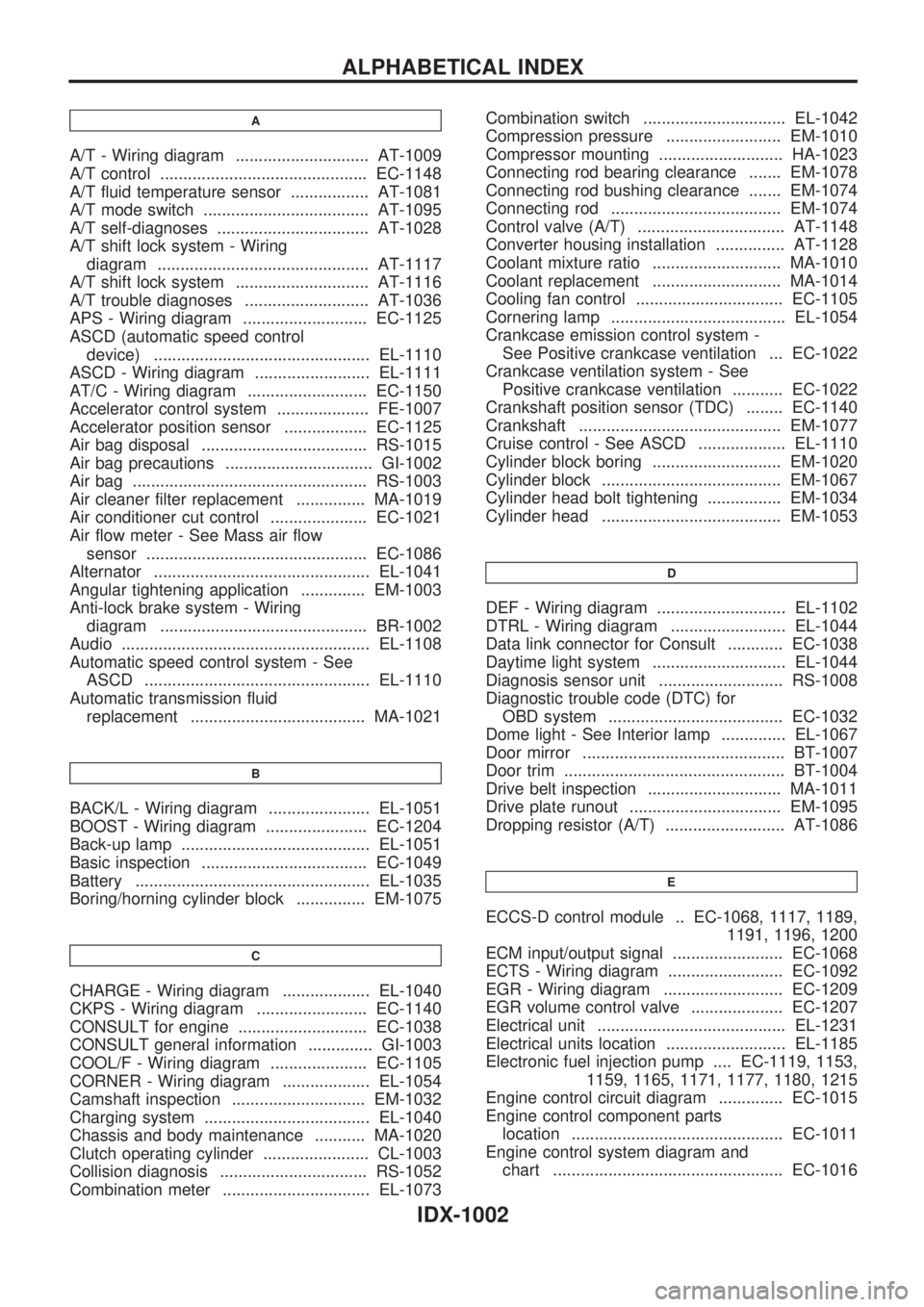

ALPHABETICAL INDEX
