NISSAN PATROL 2000 Electronic Repair Manual

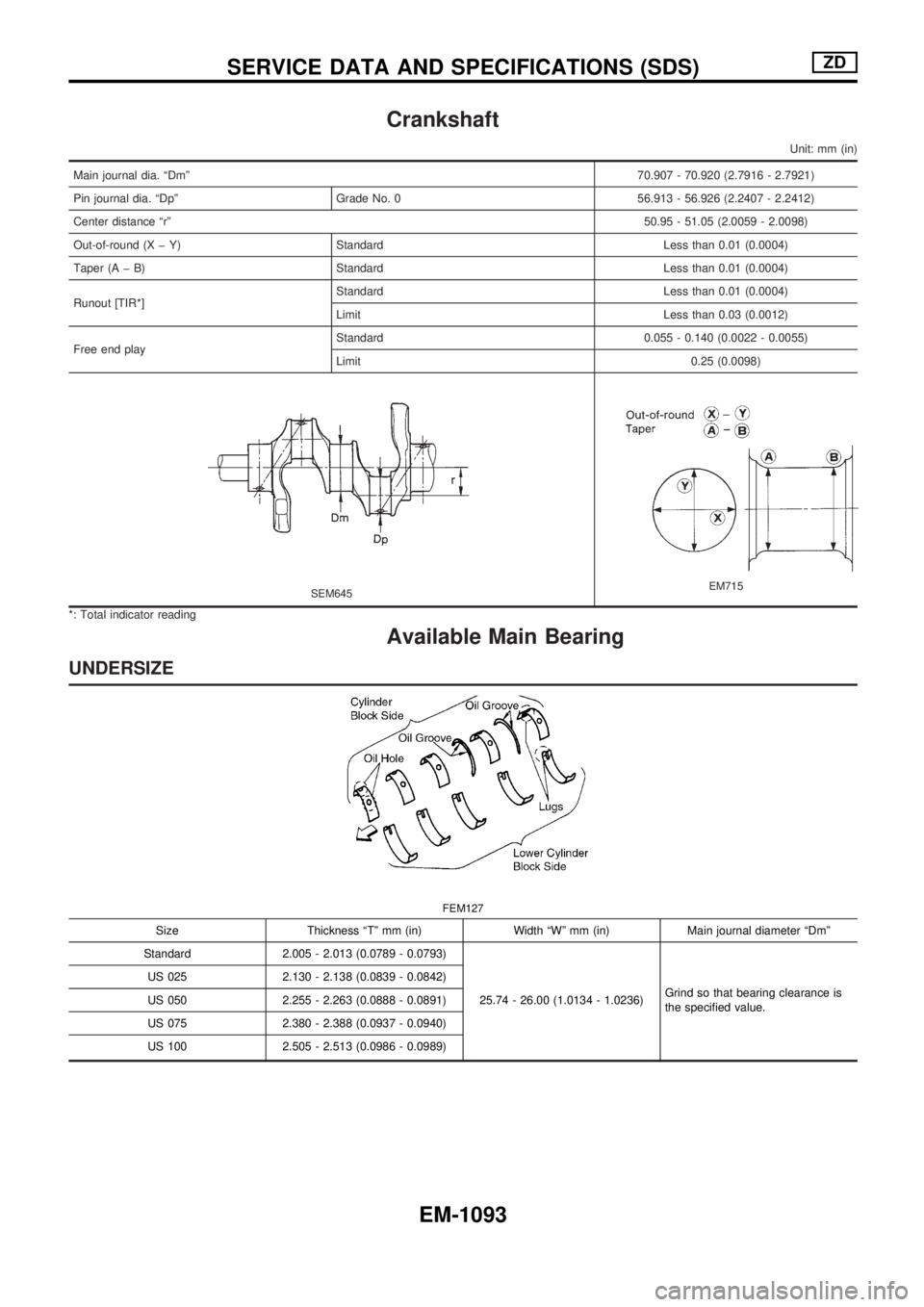

Crankshaft
Unit: mm (in)
Main journal dia. ªDmº70.907 - 70.920 (2.7916 - 2.7921)
Pin journal dia. ªDpº Grade No. 0 56.913 - 56.926 (2.2407 - 2.2412)
Center distance ªrº50.95 - 51.05 (2.0059 - 2.0098)
Out-of-round (X þ Y) Standard Less than 0.01 (0.0004)
Taper (A þ B) Standard Less than 0.01 (0.0004)
Runout [TIR*]Standard Less than 0.01 (0.0004)
Limit Less than 0.03 (0.0012)
Free end playStandard 0.055 - 0.140 (0.0022 - 0.0055)
Limit 0.25 (0.0098)
SEM645EM715
*: Total indicator reading
Available Main Bearing
UNDERSIZE
FEM127
Size Thickness ªTº mm (in) Width ªWº mm (in) Main journal diameter ªDmº
Standard 2.005 - 2.013 (0.0789 - 0.0793)
25.74 - 26.00 (1.0134 - 1.0236)Grind so that bearing clearance is
the specified value. US 025 2.130 - 2.138 (0.0839 - 0.0842)
US 050 2.255 - 2.263 (0.0888 - 0.0891)
US 075 2.380 - 2.388 (0.0937 - 0.0940)
US 100 2.505 - 2.513 (0.0986 - 0.0989)
SERVICE DATA AND SPECIFICATIONS (SDS)ZD
EM-1093

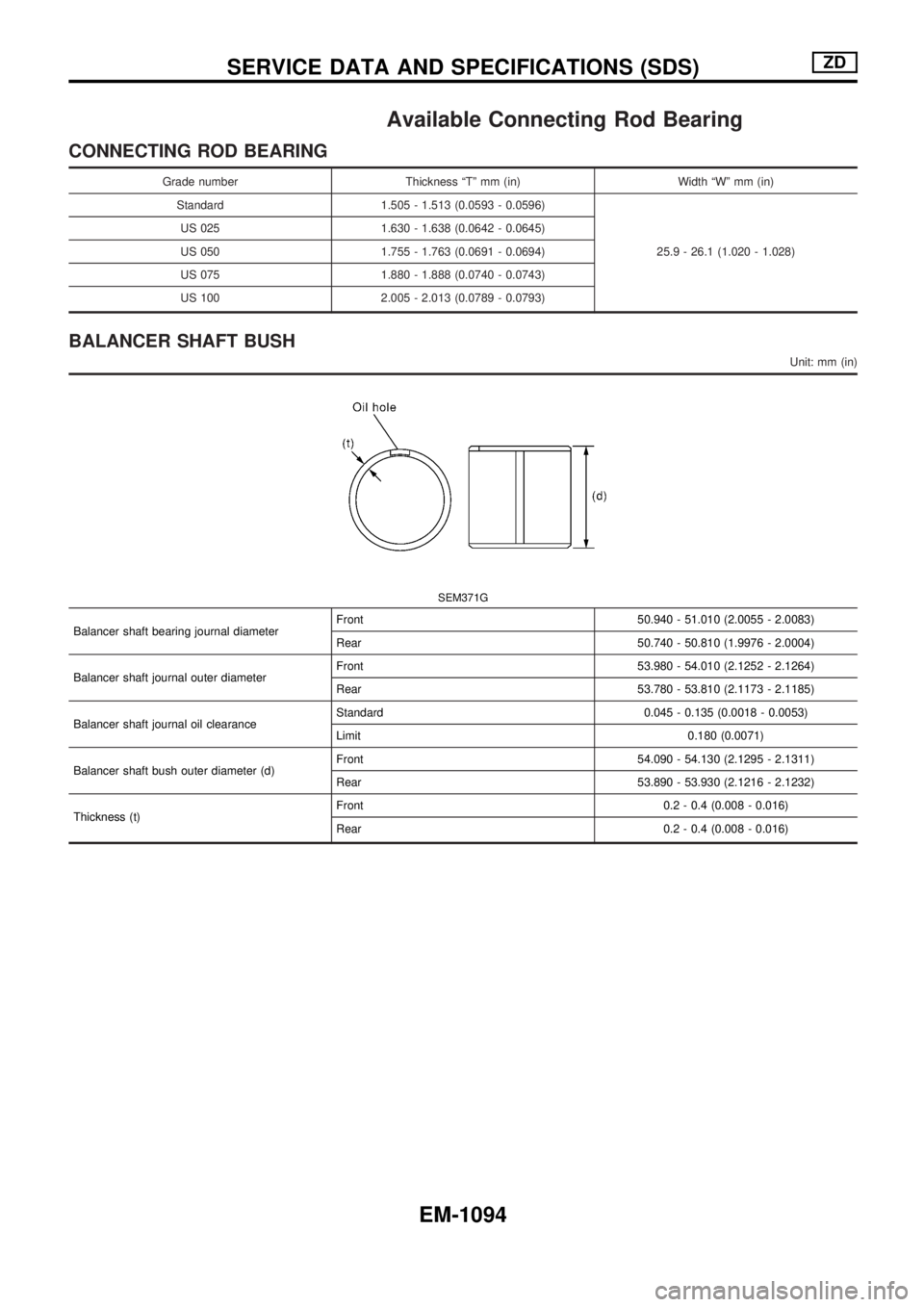

Available Connecting Rod Bearing
CONNECTING ROD BEARING
Grade number Thickness ªTº mm (in) Width ªWº mm (in)
Standard 1.505 - 1.513 (0.0593 - 0.0596)
25.9 - 26.1 (1.020 - 1.028) US 025 1.630 - 1.638 (0.0642 - 0.0645)
US 050 1.755 - 1.763 (0.0691 - 0.0694)
US 075 1.880 - 1.888 (0.0740 - 0.0743)
US 100 2.005 - 2.013 (0.0789 - 0.0793)
BALANCER SHAFT BUSH
Unit: mm (in)
SEM371G
Balancer shaft bearing journal diameterFront 50.940 - 51.010 (2.0055 - 2.0083)
Rear 50.740 - 50.810 (1.9976 - 2.0004)
Balancer shaft journal outer diameterFront 53.980 - 54.010 (2.1252 - 2.1264)
Rear 53.780 - 53.810 (2.1173 - 2.1185)
Balancer shaft journal oil clearanceStandard 0.045 - 0.135 (0.0018 - 0.0053)
Limit 0.180 (0.0071)
Balancer shaft bush outer diameter (d)Front 54.090 - 54.130 (2.1295 - 2.1311)
Rear 53.890 - 53.930 (2.1216 - 2.1232)
Thickness (t)Front 0.2 - 0.4 (0.008 - 0.016)
Rear 0.2 - 0.4 (0.008 - 0.016)
SERVICE DATA AND SPECIFICATIONS (SDS)ZD
EM-1094

Miscellaneous Components
Unit: mm (in)
Flywheel runout [TIR]*Less than 0.15 (0.0059)
Drive plate runout [TIR]*Less than 0.1 (0.0039)
*: Total indicator reading
BEARING CLEARANCE
Unit: mm (in)
Main bearing clearance Standard 0.035 - 0.083 (0.0014 - 0.0033)
Connecting rod bearing clearance Standard 0.035 - 0.077 (0.0014 - 0.0030)
SERVICE DATA AND SPECIFICATIONS (SDS)ZD
EM-1095

FRONT AXLE &
FRONT SUSPENSION
SECTION
FA
MODIFICATION NOTICE:
Tightening torque of brake rotor bolt has been changed.
CONTENTS
FRONT AXLE Ð Drive Flange and
Free-running Hub............................................... 1002

FA

SFA859BA
FRONT AXLE Ð Drive Flange and Free-running Hub
FA-1002

ACCELERATOR CONTROL, FUEL &
EXHAUST SYSTEMS
SECTION
FE
MODIFICATION NOTICE:
+The circuit diagram and wiring diagram have been changed.
+ZD30DDTi engine has been added.
+The accelerator control system for ZD30DDTi engine models is the same as for RD28ETi engine mod-
els. Refer to FE-3 in Service Manual [SM7E-1Y61G0 (01)].
+The fuel tank and sub-fuel tank for ZD30DDTi engine models are the same as for TD42 engine models.
Refer to FE-22 and FE-25 in Service Manual [SM7E-1Y61G0 (01)].
CONTENTS
TROUBLE DIAGNOSES..................................... 1002
Circuit Diagram ................................................ 1002
Wiring Diagram Ð S/TANK Ð ........................ 1003ZD
EXHAUST SYSTEM............................................ 1007

FE

Circuit Diagram
TFE004M
TROUBLE DIAGNOSES
FE-1002

Wiring Diagram Ð S/TANK Ð
TFE005M
TROUBLE DIAGNOSES
FE-1003

TFE014
TROUBLE DIAGNOSES
Wiring Diagram Ð S/TANK Ð (Cont'd)
FE-1004

TFE019
TROUBLE DIAGNOSES
Wiring Diagram Ð S/TANK Ð (Cont'd)
FE-1005
