NISSAN PICK-UP 1998  Repair Manual System Description
CIRCUIT OPERATION
[Example]
Aiming switch ``0
lWhen the aiming switch is set to ``0, the motor will not start.
This is because the power terminals are positioned at the
noncondu

Page 1362 of 1659

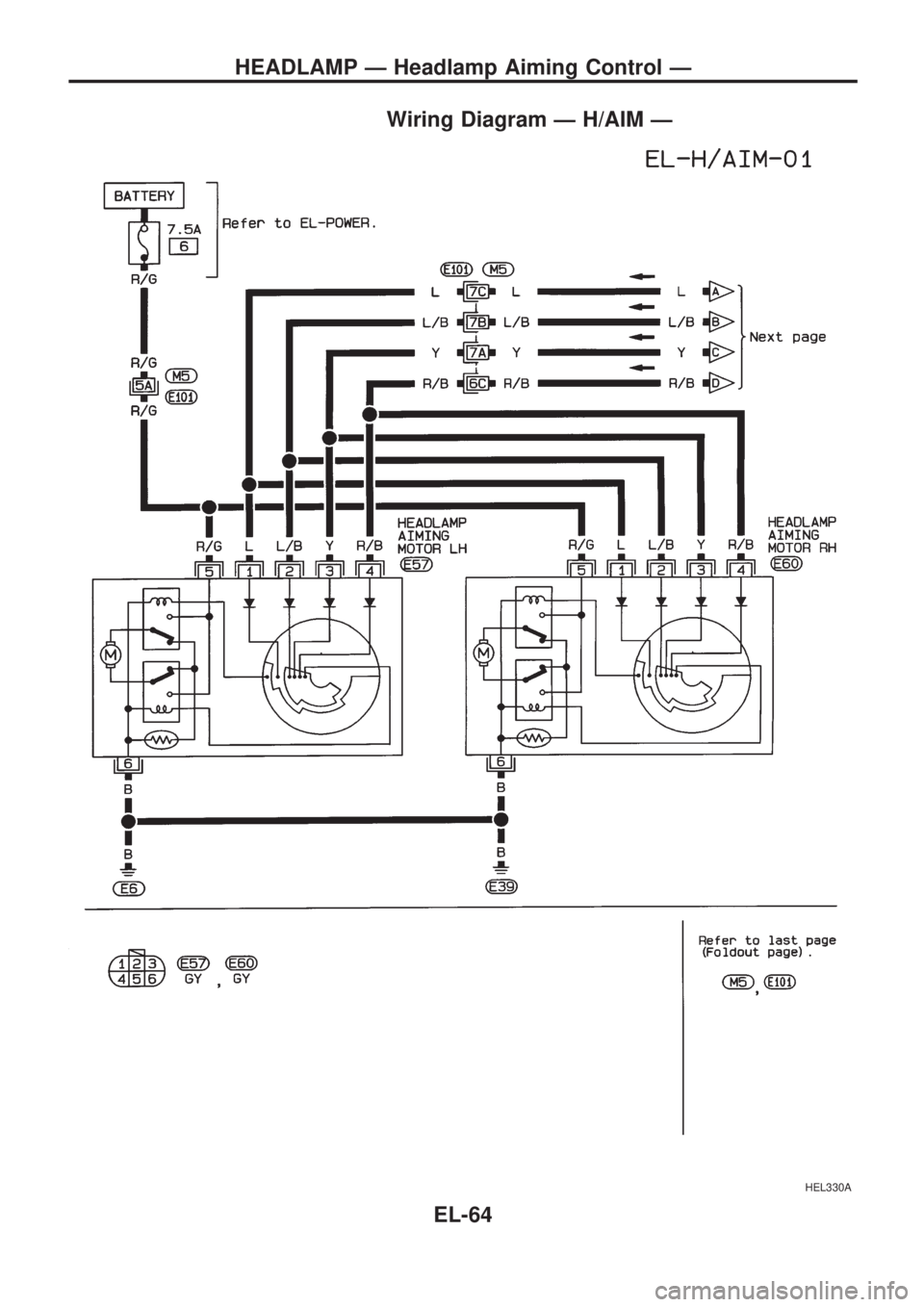

NISSAN PICK-UP 1998  Repair Manual Wiring Diagram Ð H/AIM Ð
HEL330A
HEADLAMP Ð Headlamp Aiming Control Ð
EL-64

Page 1363 of 1659

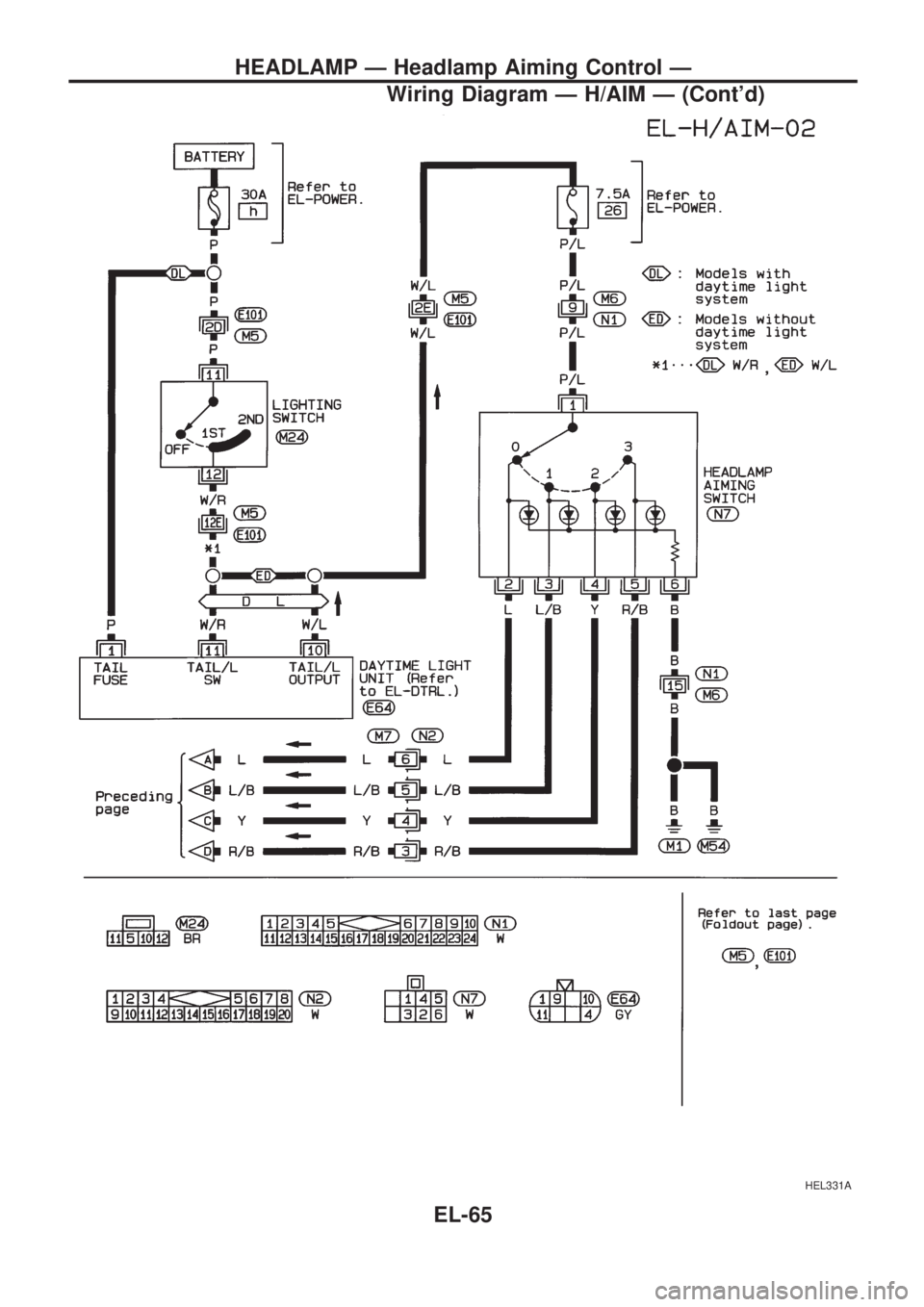

NISSAN PICK-UP 1998  Repair Manual HEL331A
HEADLAMP Ð Headlamp Aiming Control Ð
Wiring Diagram Ð H/AIM Ð (Contd)
EL-65

Page 1364 of 1659

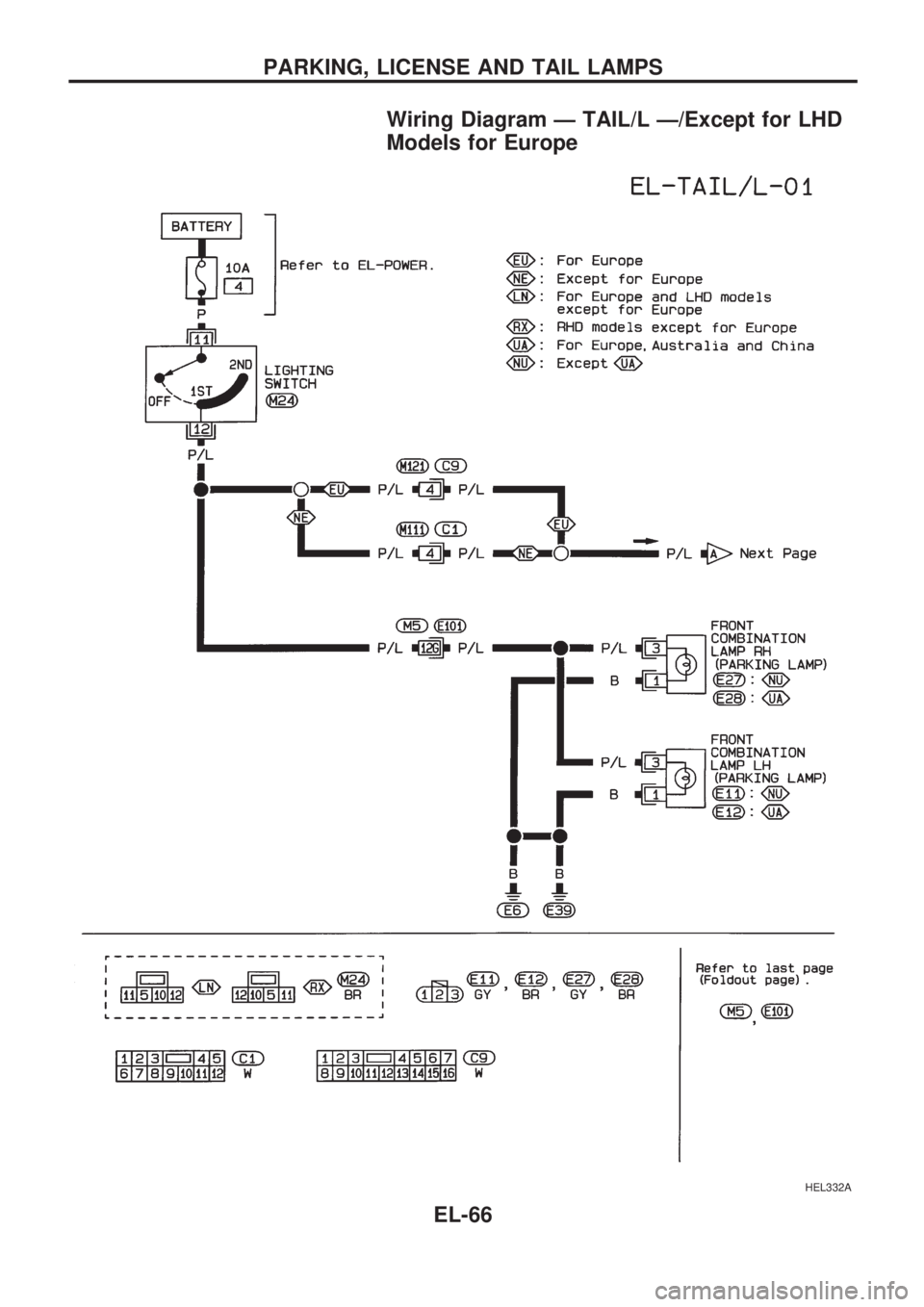

NISSAN PICK-UP 1998  Repair Manual Wiring Diagram Ð TAIL/L Ð/Except for LHD
Models for Europe
HEL332A
PARKING, LICENSE AND TAIL LAMPS
EL-66

Page 1365 of 1659

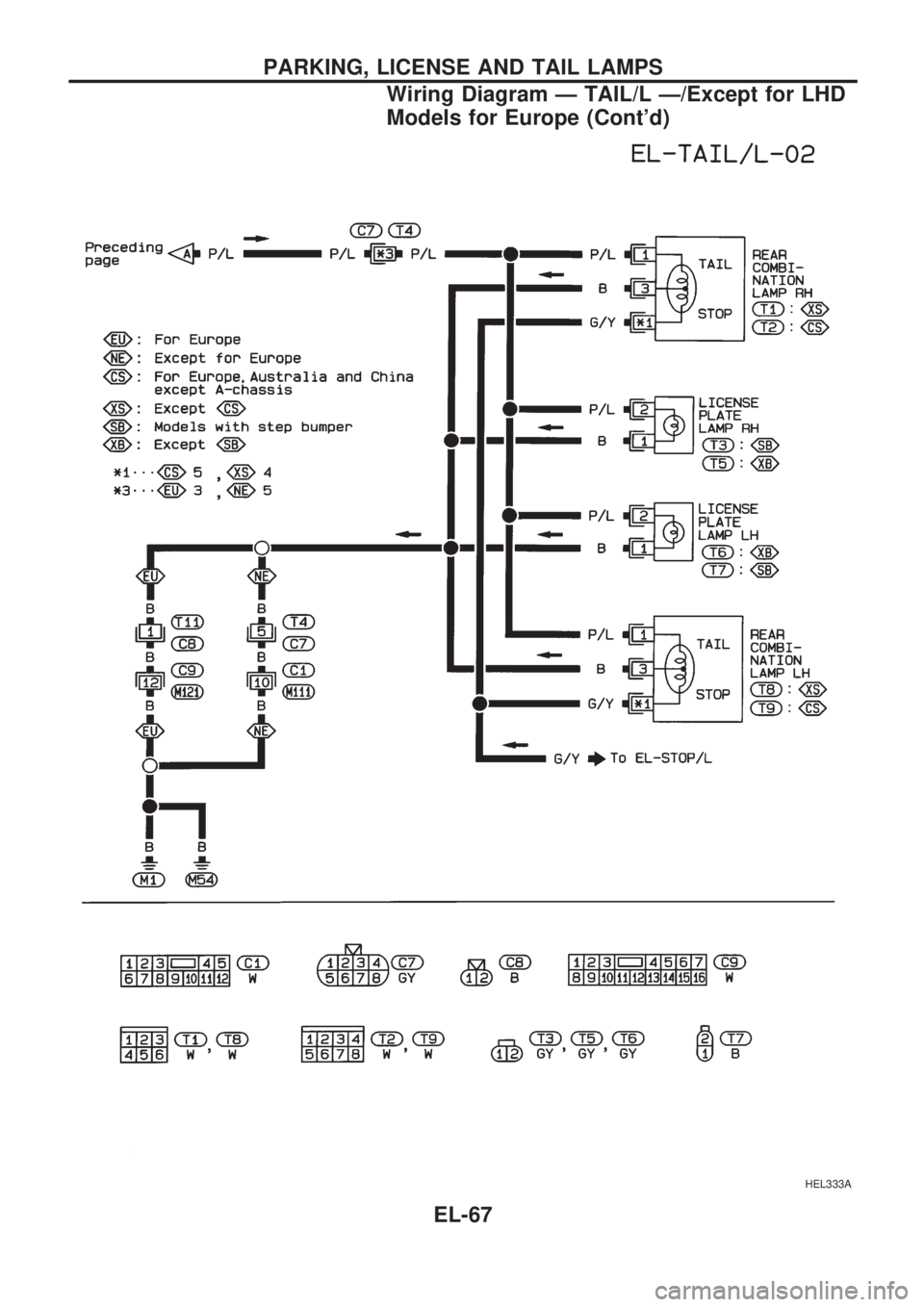

NISSAN PICK-UP 1998  Repair Manual HEL333A
PARKING, LICENSE AND TAIL LAMPS
Wiring Diagram Ð TAIL/L Ð/Except for LHD
Models for Europe (Contd)
EL-67

Page 1366 of 1659

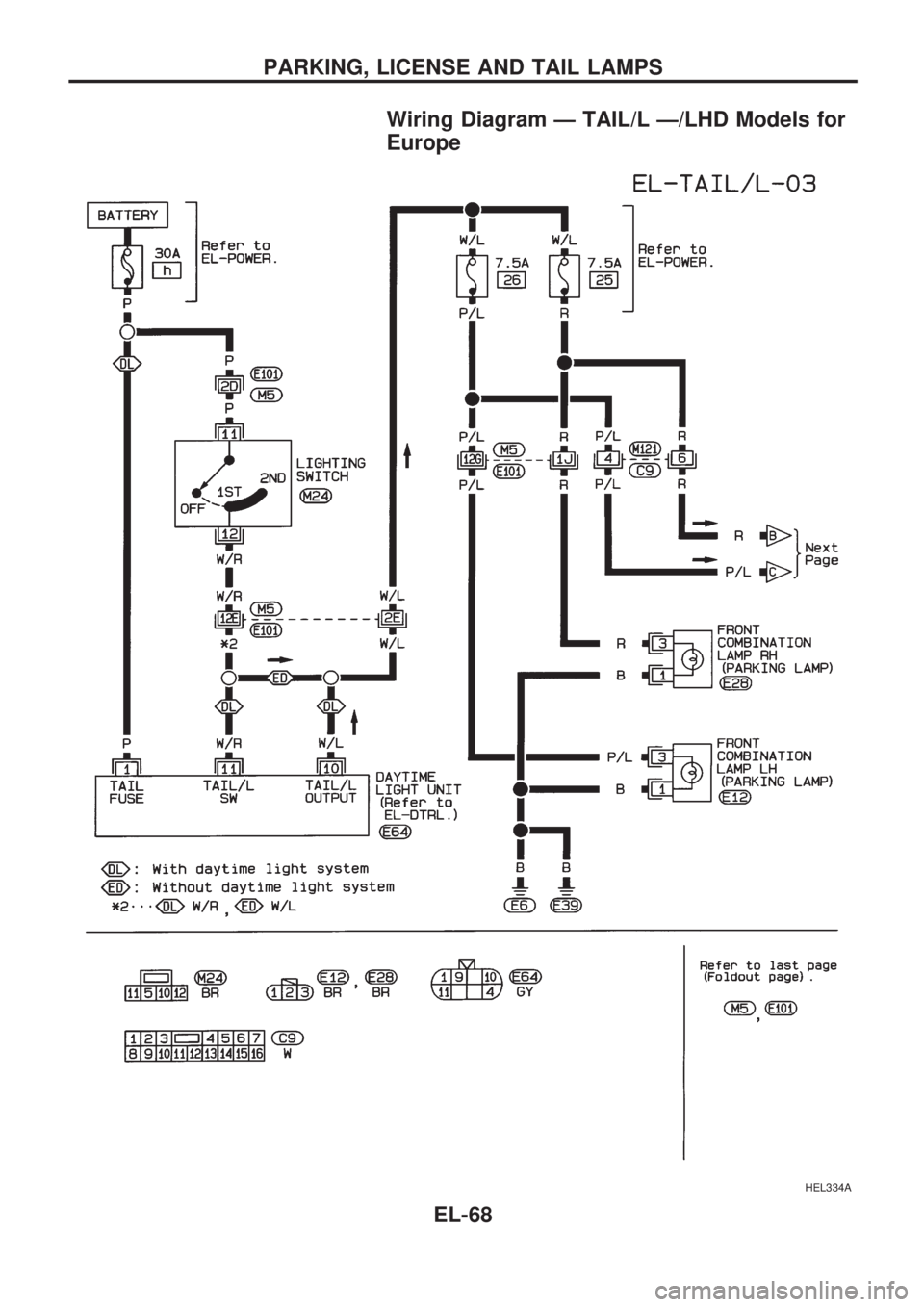

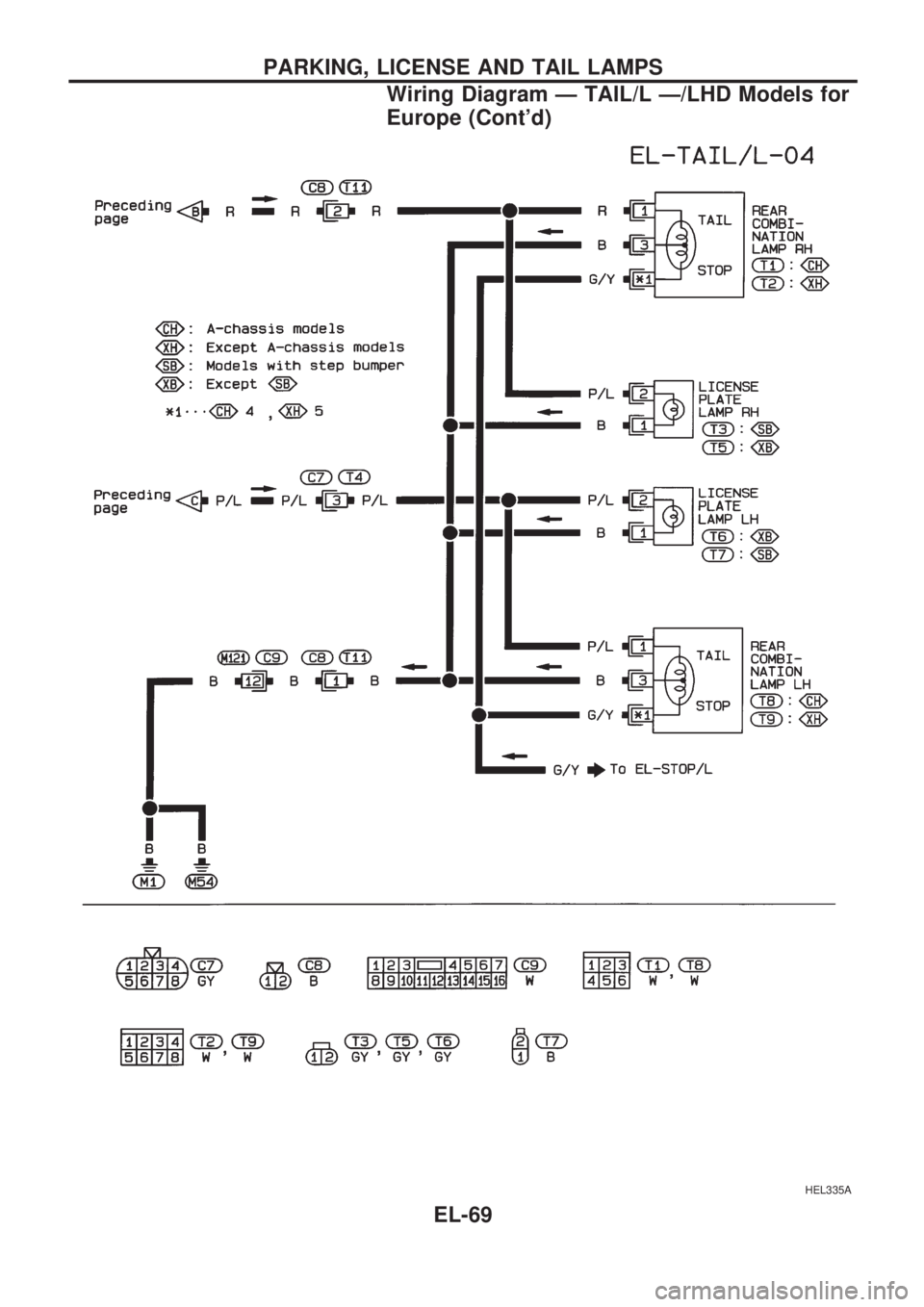

NISSAN PICK-UP 1998  Repair Manual Wiring Diagram Ð TAIL/L Ð/LHD Models for
Europe
HEL334A
PARKING, LICENSE AND TAIL LAMPS
EL-68

Page 1367 of 1659

NISSAN PICK-UP 1998  Repair Manual HEL335A
PARKING, LICENSE AND TAIL LAMPS
Wiring Diagram Ð TAIL/L Ð/LHD Models for
Europe (Contd)
EL-69

Page 1368 of 1659

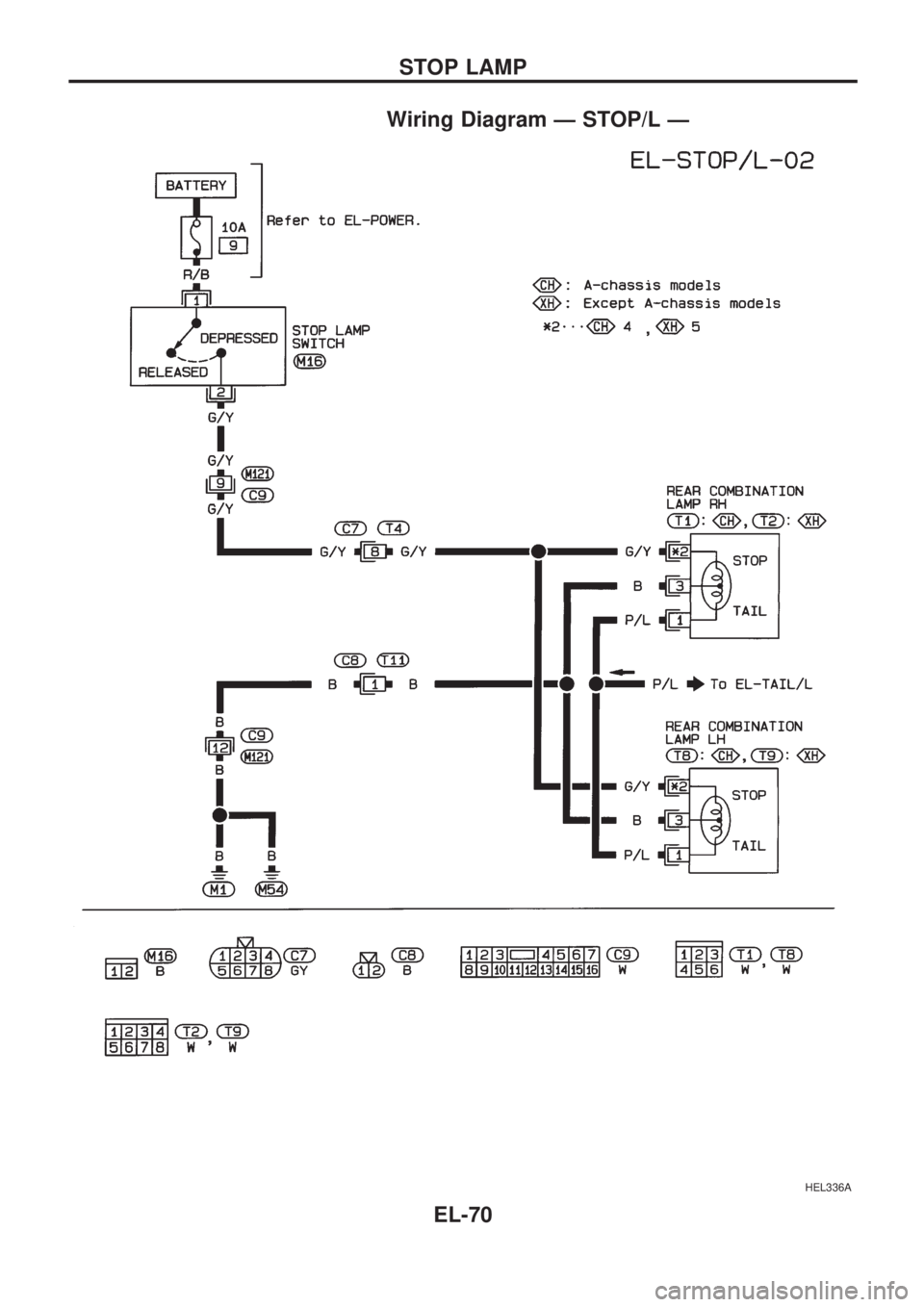

NISSAN PICK-UP 1998  Repair Manual Wiring Diagram Ð STOP/L Ð
HEL336A
STOP LAMP
EL-70

Page 1369 of 1659

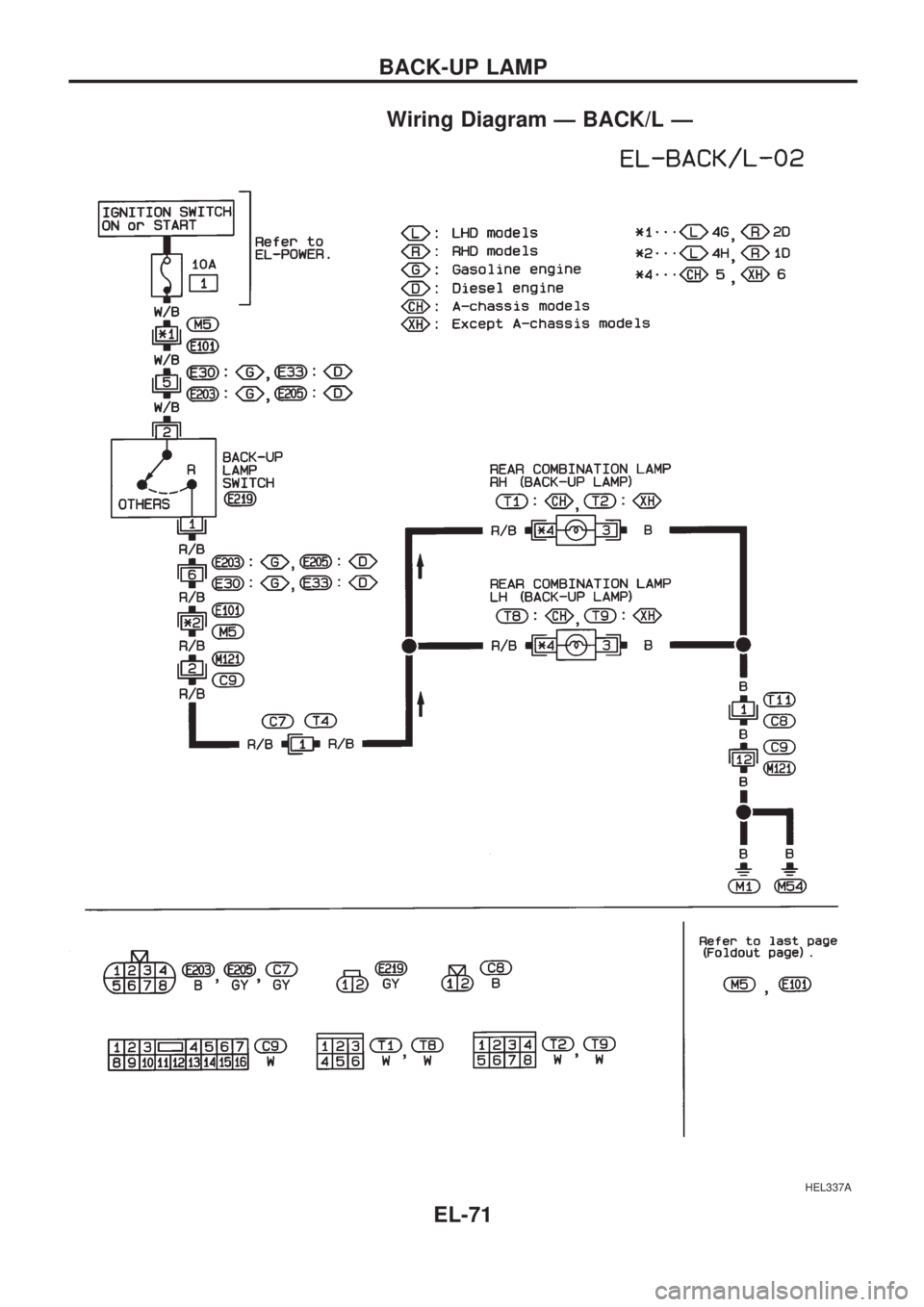

NISSAN PICK-UP 1998  Repair Manual Wiring Diagram Ð BACK/L Ð
HEL337A
BACK-UP LAMP
EL-71

Page 1370 of 1659

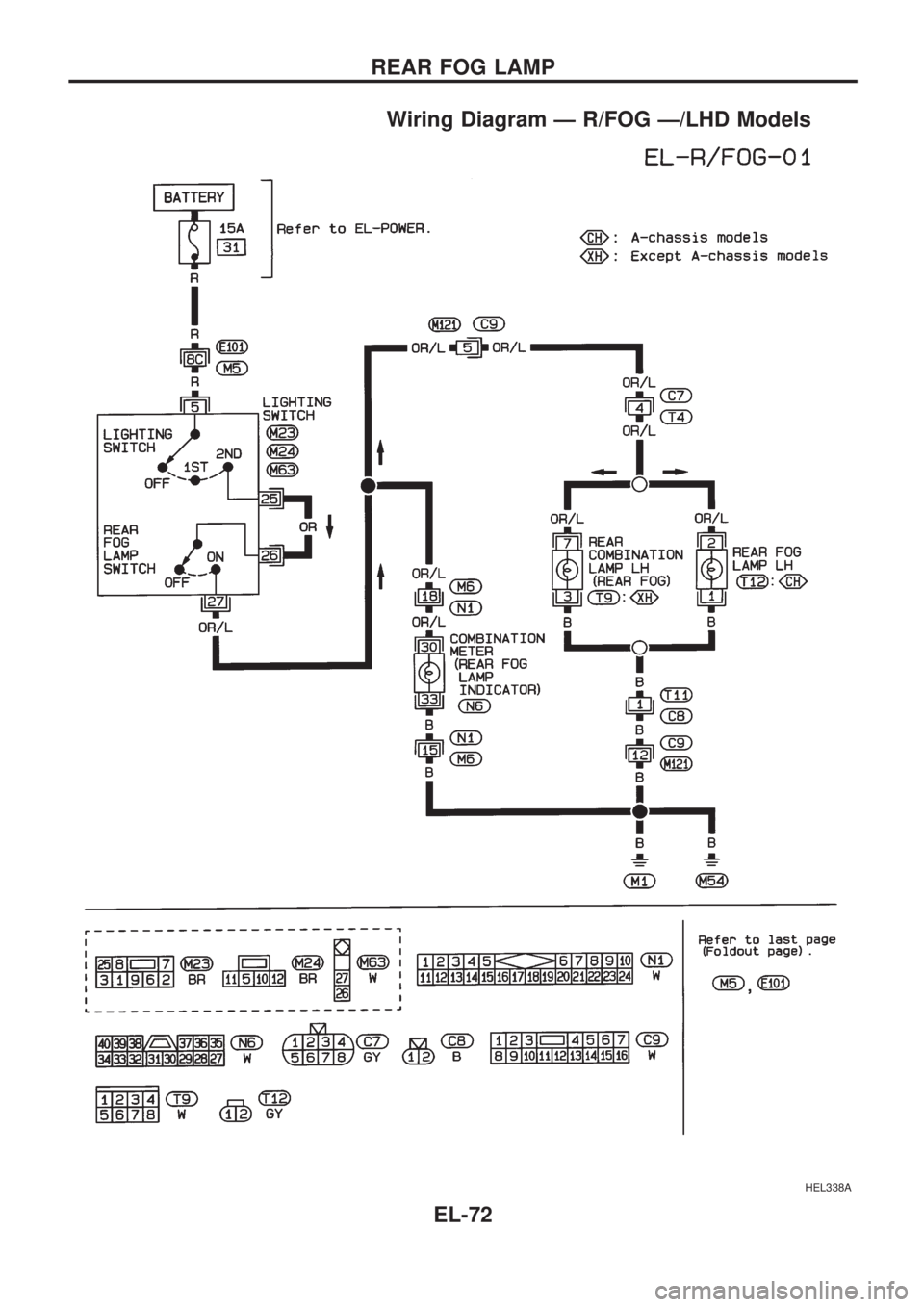

NISSAN PICK-UP 1998  Repair Manual Wiring Diagram Ð R/FOG Ð/LHD Models
HEL338A
REAR FOG LAMP
EL-72
