Page 1371 of 1659

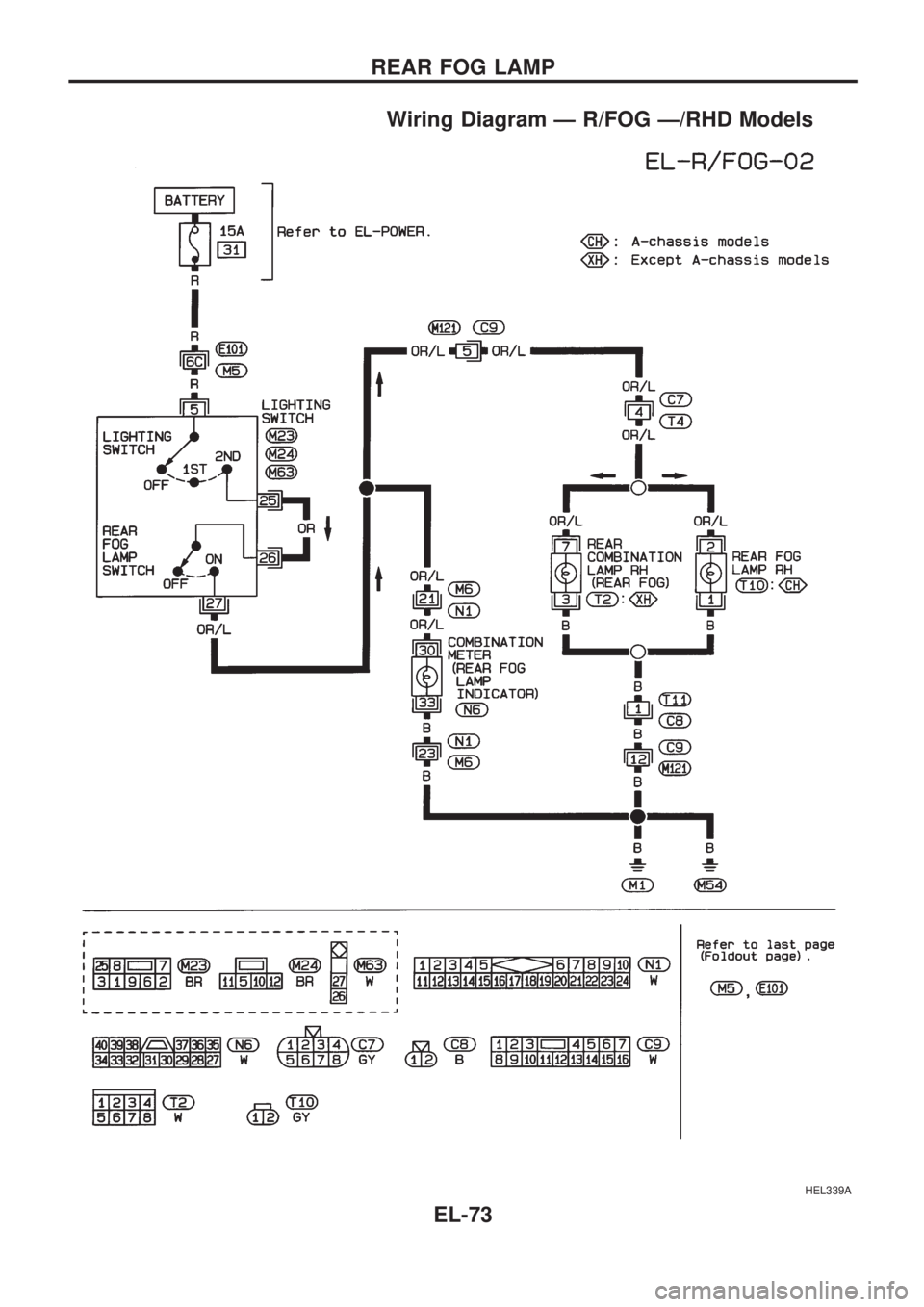

NISSAN PICK-UP 1998  Repair Manual Wiring Diagram Ð R/FOG Ð/RHD Models
HEL339A
REAR FOG LAMP
EL-73

Page 1372 of 1659

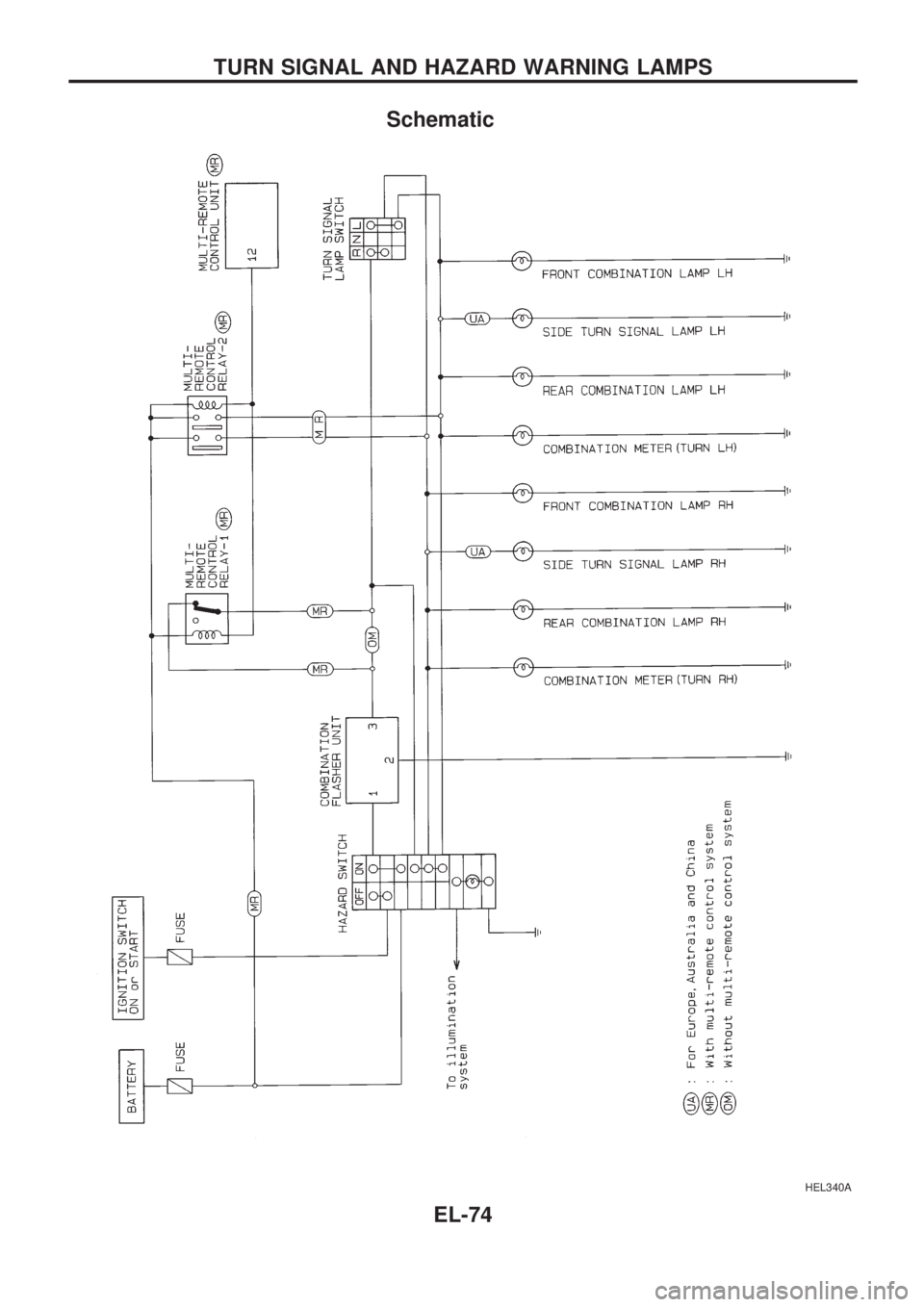

NISSAN PICK-UP 1998  Repair Manual Schematic
HEL340A
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-74

Page 1373 of 1659

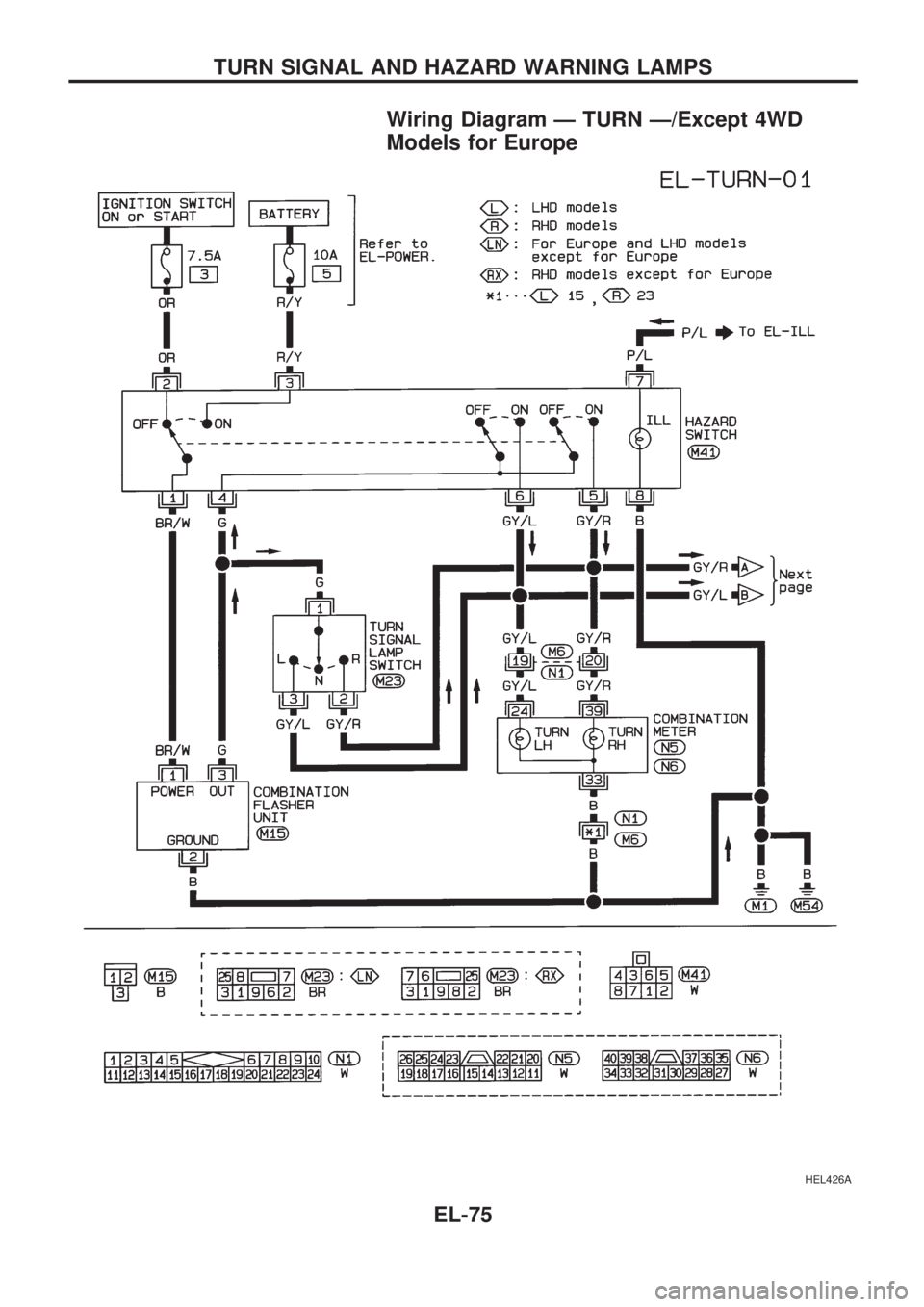

NISSAN PICK-UP 1998  Repair Manual Wiring Diagram Ð TURN Ð/Except 4WD
Models for Europe
HEL426A
TURN SIGNAL AND HAZARD WARNING LAMPS
EL-75

Page 1374 of 1659

NISSAN PICK-UP 1998  Repair Manual HEL427A
TURN SIGNAL AND HAZARD WARNING LAMPS

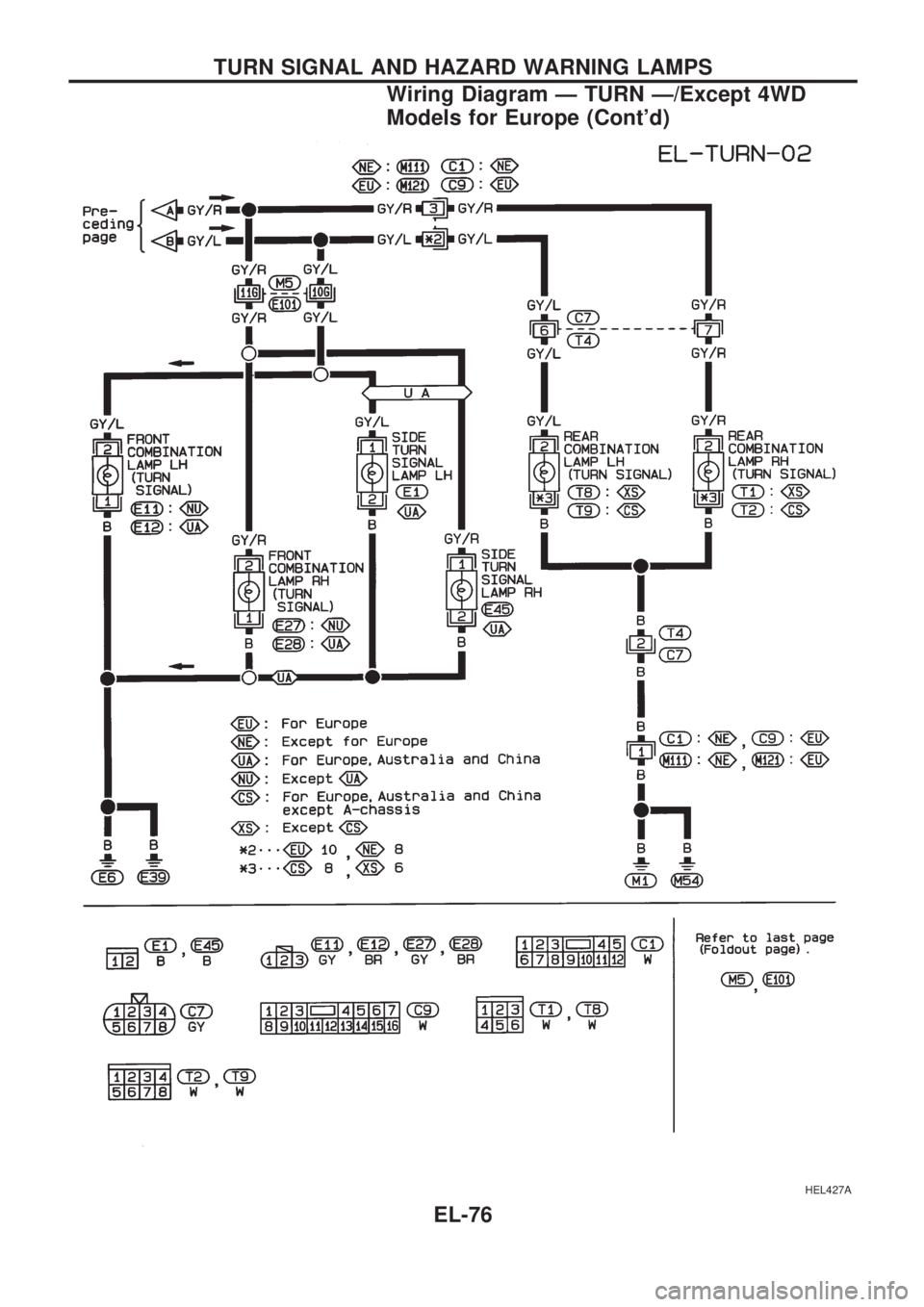

Wiring Diagram Ð TURN Ð/Except 4WD
Models for Europe (Contd)
EL-76

Page 1375 of 1659

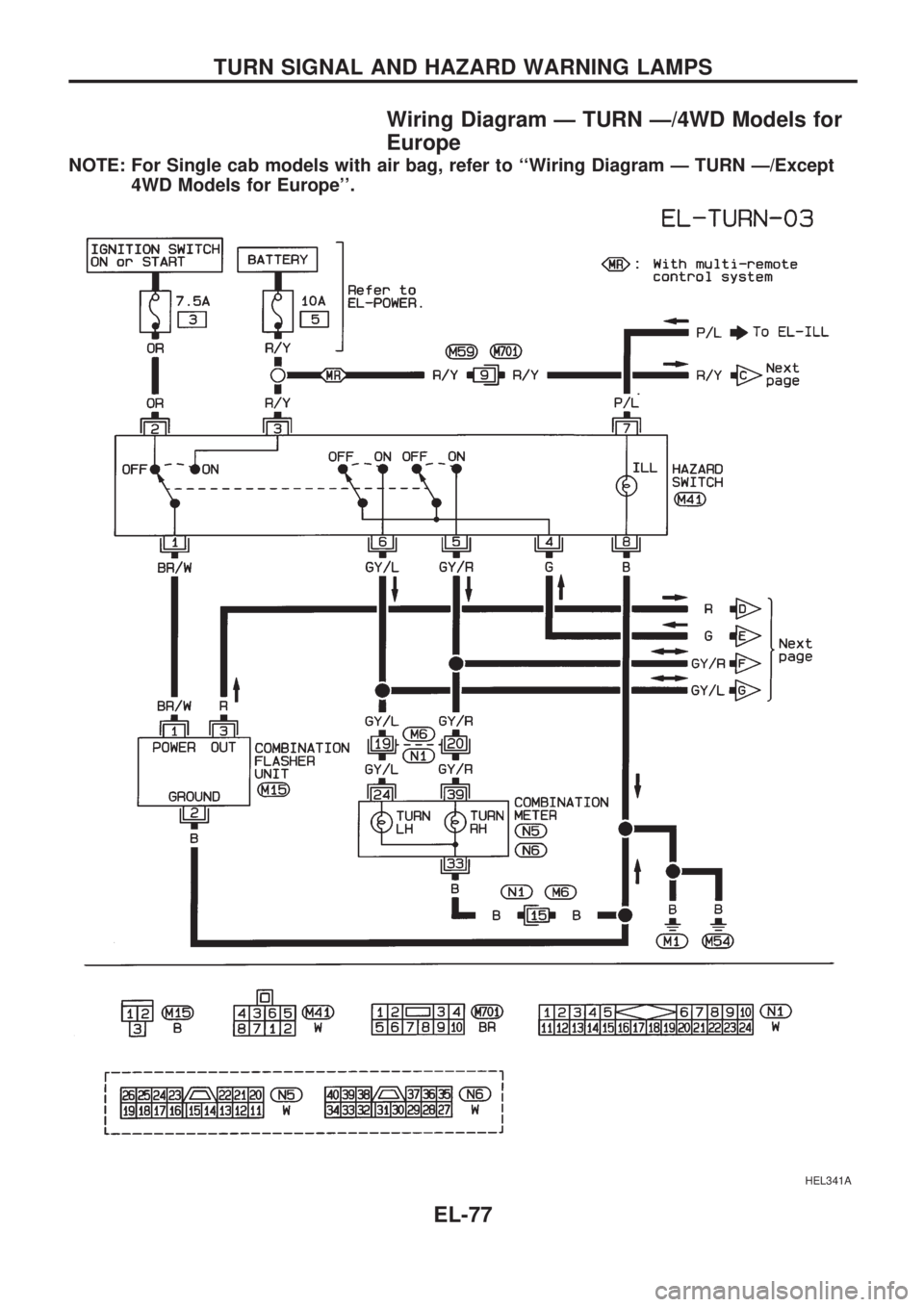

NISSAN PICK-UP 1998  Repair Manual Wiring Diagram Ð TURN Ð/4WD Models for
Europe
NOTE: For Single cab models with air bag, refer to ``Wiring Diagram Ð TURN Ð/Except
4WD Models for Europe.
HEL341A
TURN SIGNAL AND HAZARD WARNING LA

Page 1376 of 1659

NISSAN PICK-UP 1998  Repair Manual HEL342A
TURN SIGNAL AND HAZARD WARNING LAMPS
Wiring Diagram Ð TURN Ð/4WD Models for
Europe (Contd)
EL-78

Page 1377 of 1659

NISSAN PICK-UP 1998  Repair Manual HEL343A
TURN SIGNAL AND HAZARD WARNING LAMPS

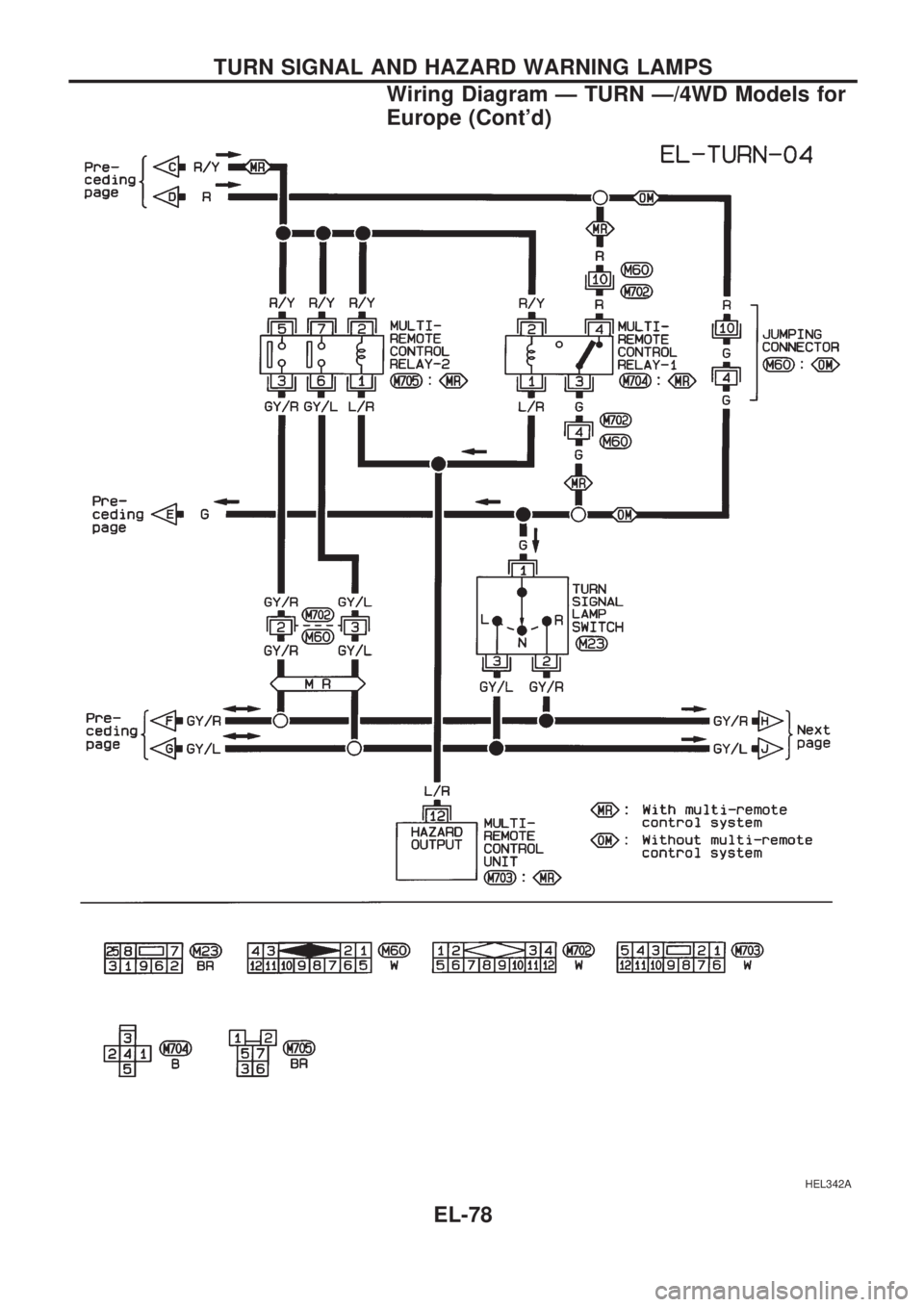

Wiring Diagram Ð TURN Ð/4WD Models for
Europe (Contd)
EL-79

Page 1378 of 1659

NISSAN PICK-UP 1998  Repair Manual Trouble Diagnoses
Symptom Possible cause Repair order
Turn signal and hazard warning
lamps do not operate.1. Hazard switch
2. Combination flasher unit
3. Open in combination flasher unit
circuit1. Che

Page 1379 of 1659

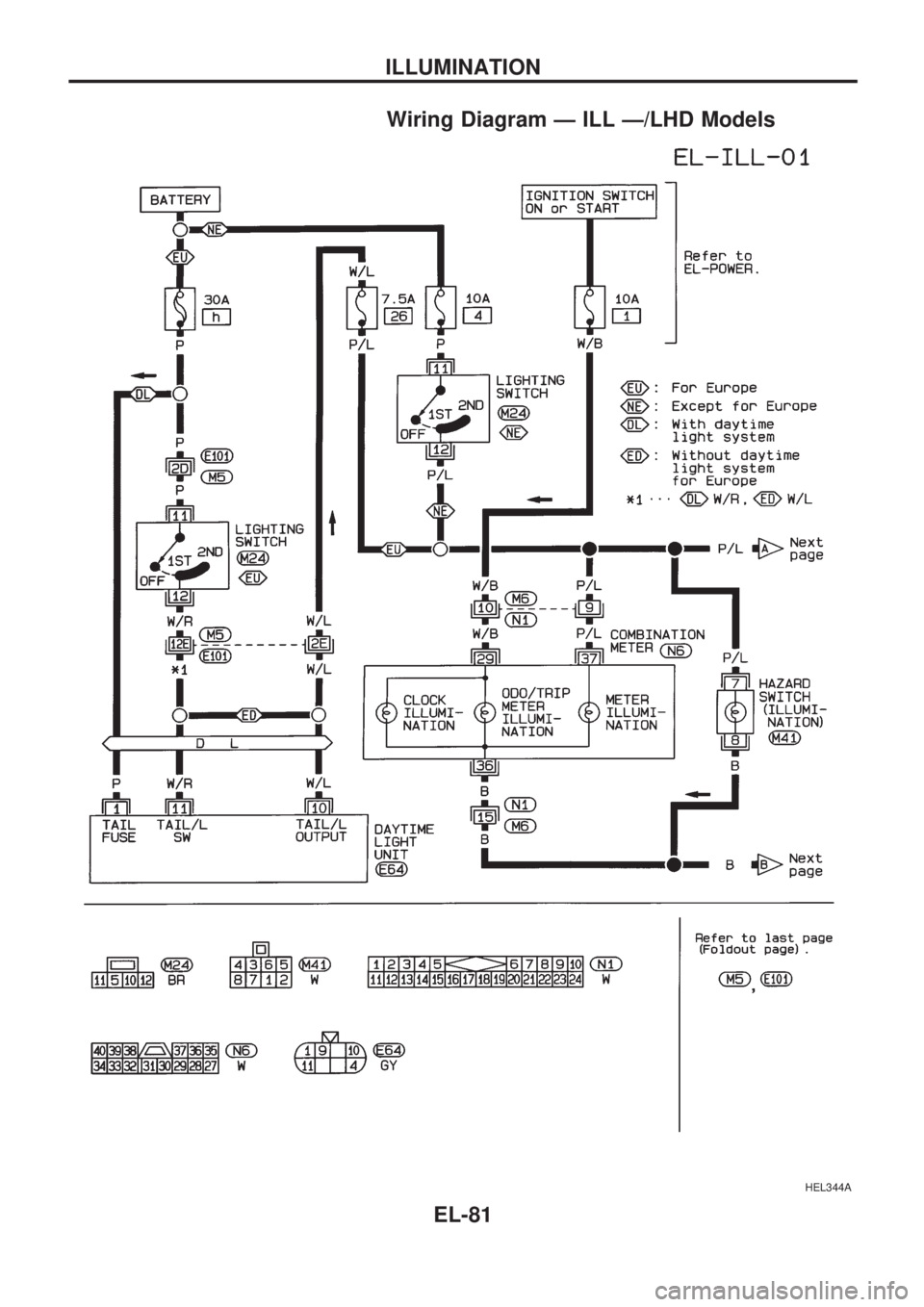

NISSAN PICK-UP 1998  Repair Manual Wiring Diagram Ð ILL Ð/LHD Models
HEL344A
ILLUMINATION
EL-81

Page 1380 of 1659

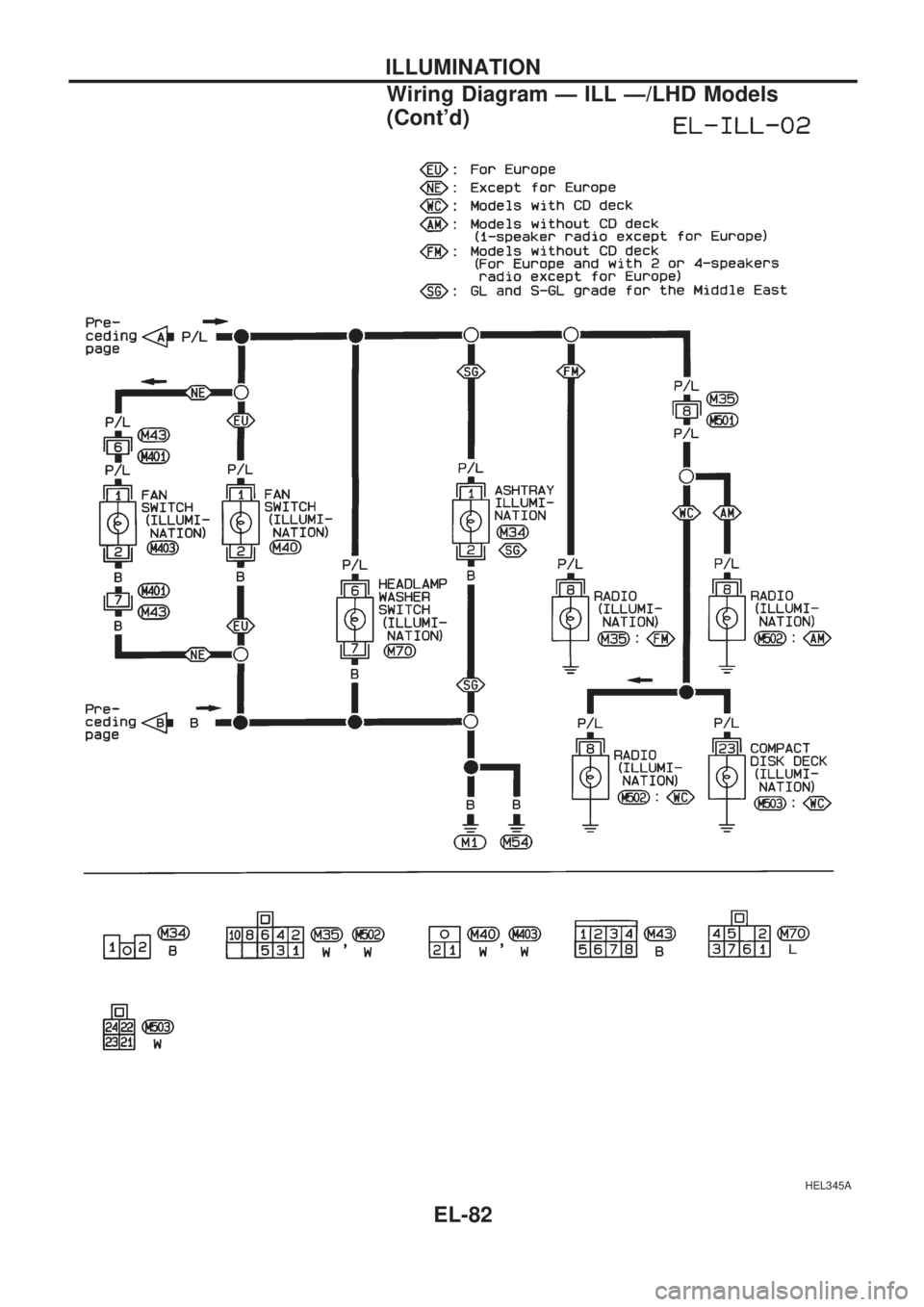

NISSAN PICK-UP 1998  Repair Manual HEL345A
ILLUMINATION
Wiring Diagram Ð ILL Ð/LHD Models
(Contd)
EL-82
