NISSAN PICK-UP 1999 Repair Manual

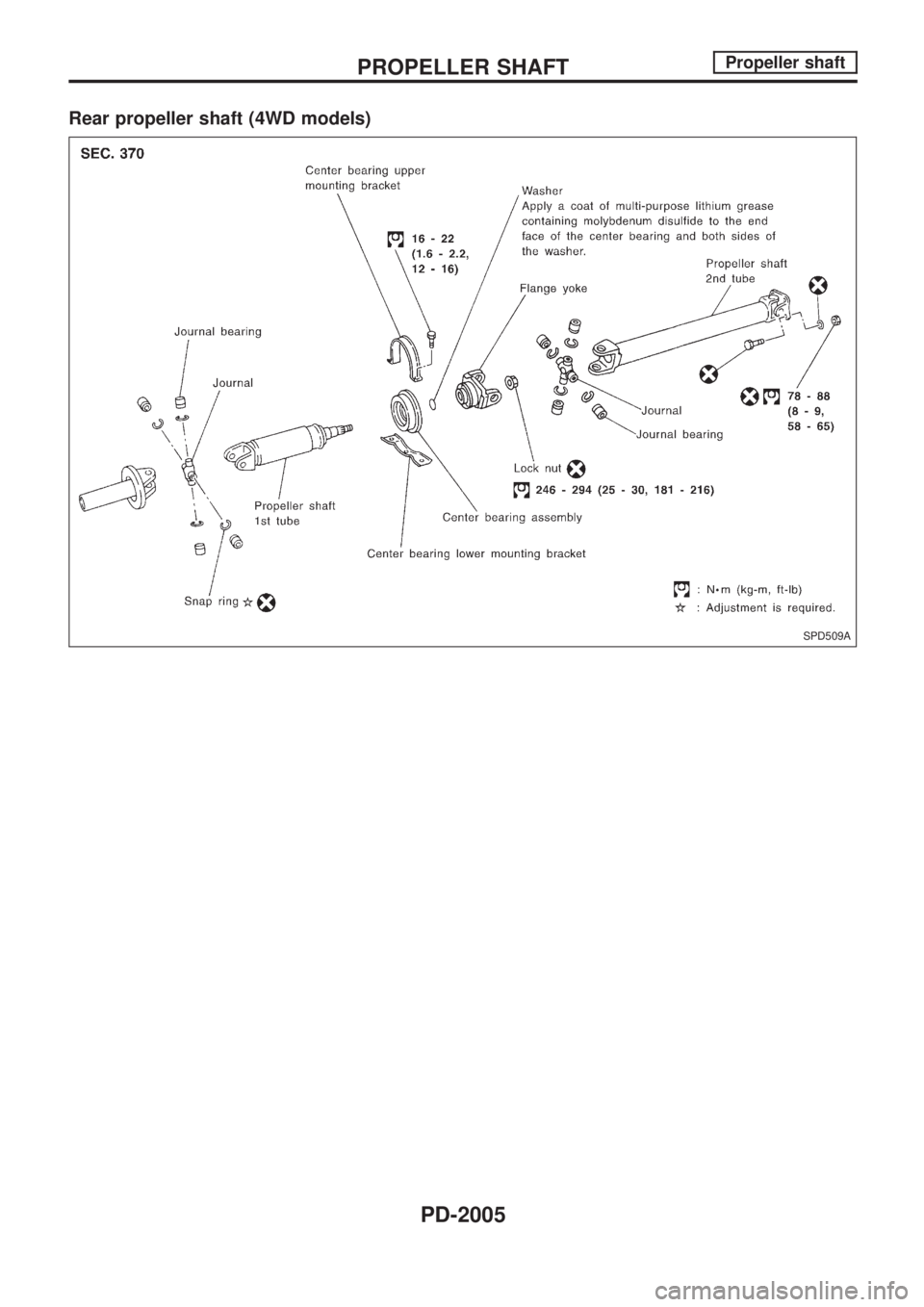

Rear propeller shaft (4WD models)
SPD509A
PROPELLER SHAFTPropeller shaft
PD-2005

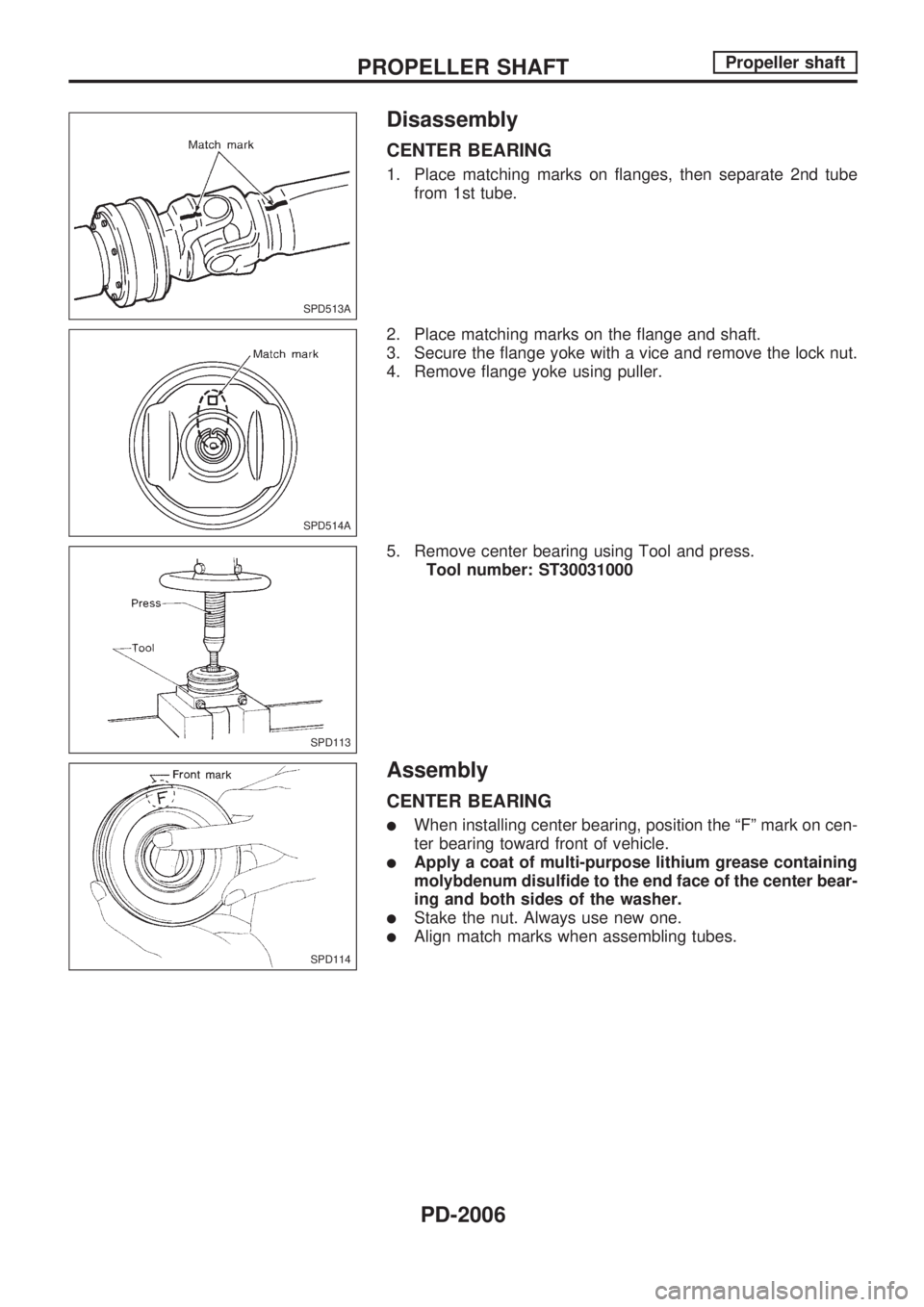

Disassembly
CENTER BEARING
1. Place matching marks on flanges, then separate 2nd tube
from 1st tube.
2. Place matching marks on the flange and shaft.
3. Secure the flange yoke with a vice and remove the lock nut.
4. Remove flange yoke using puller.
5. Remove center bearing using Tool and press.
Tool number: ST30031000
Assembly
CENTER BEARING
lWhen installing center bearing, position the ªFº mark on cen-
ter bearing toward front of vehicle.
lApply a coat of multi-purpose lithium grease containing
molybdenum disulfide to the end face of the center bear-
ing and both sides of the washer.
lStake the nut. Always use new one.
lAlign match marks when assembling tubes.
SPD513A
SPD514A
SPD113
SPD114
PROPELLER SHAFTPropeller shaft
PD-2006

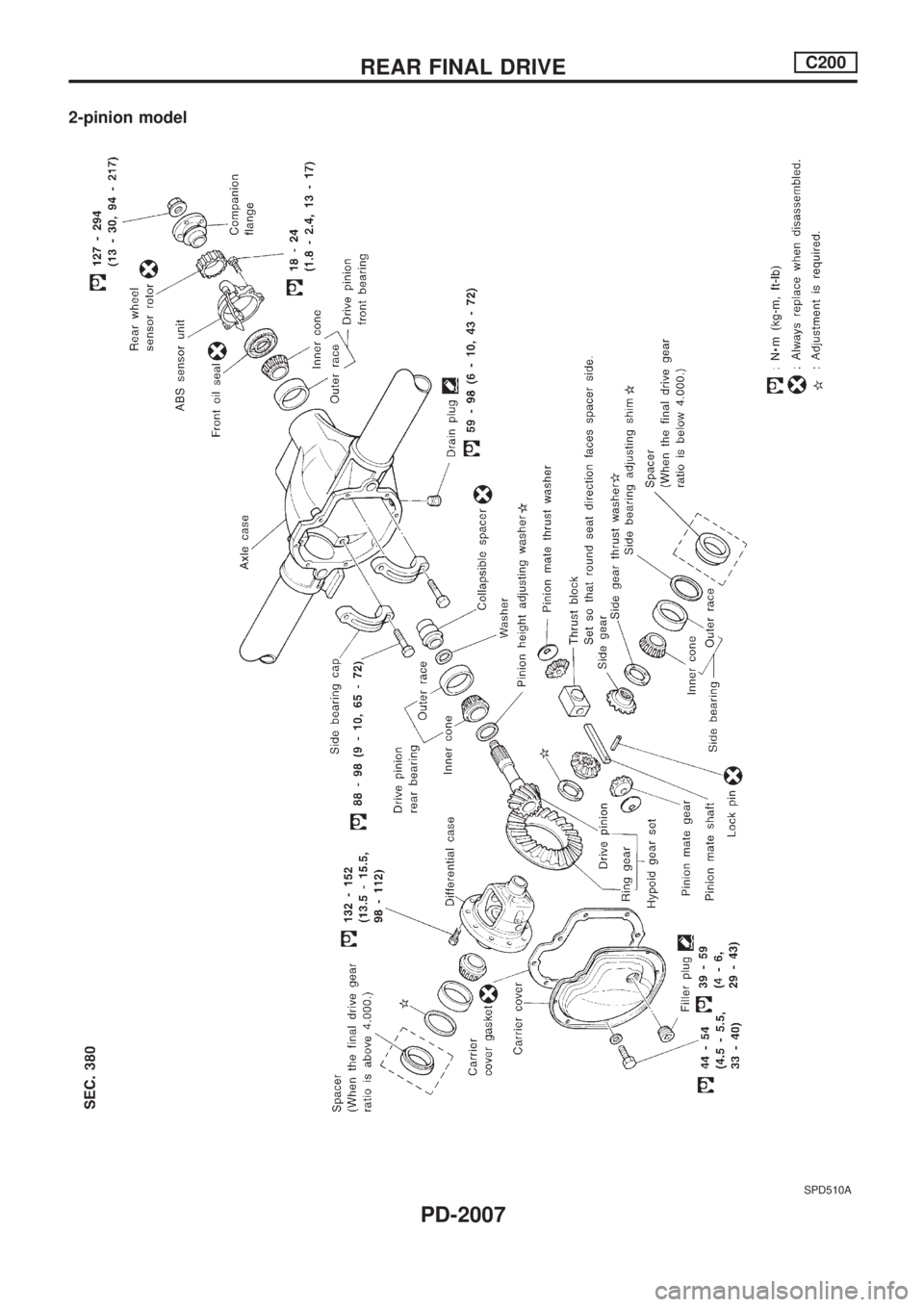

2-pinion model
SPD510A
REAR FINAL DRIVEC200
PD-2007

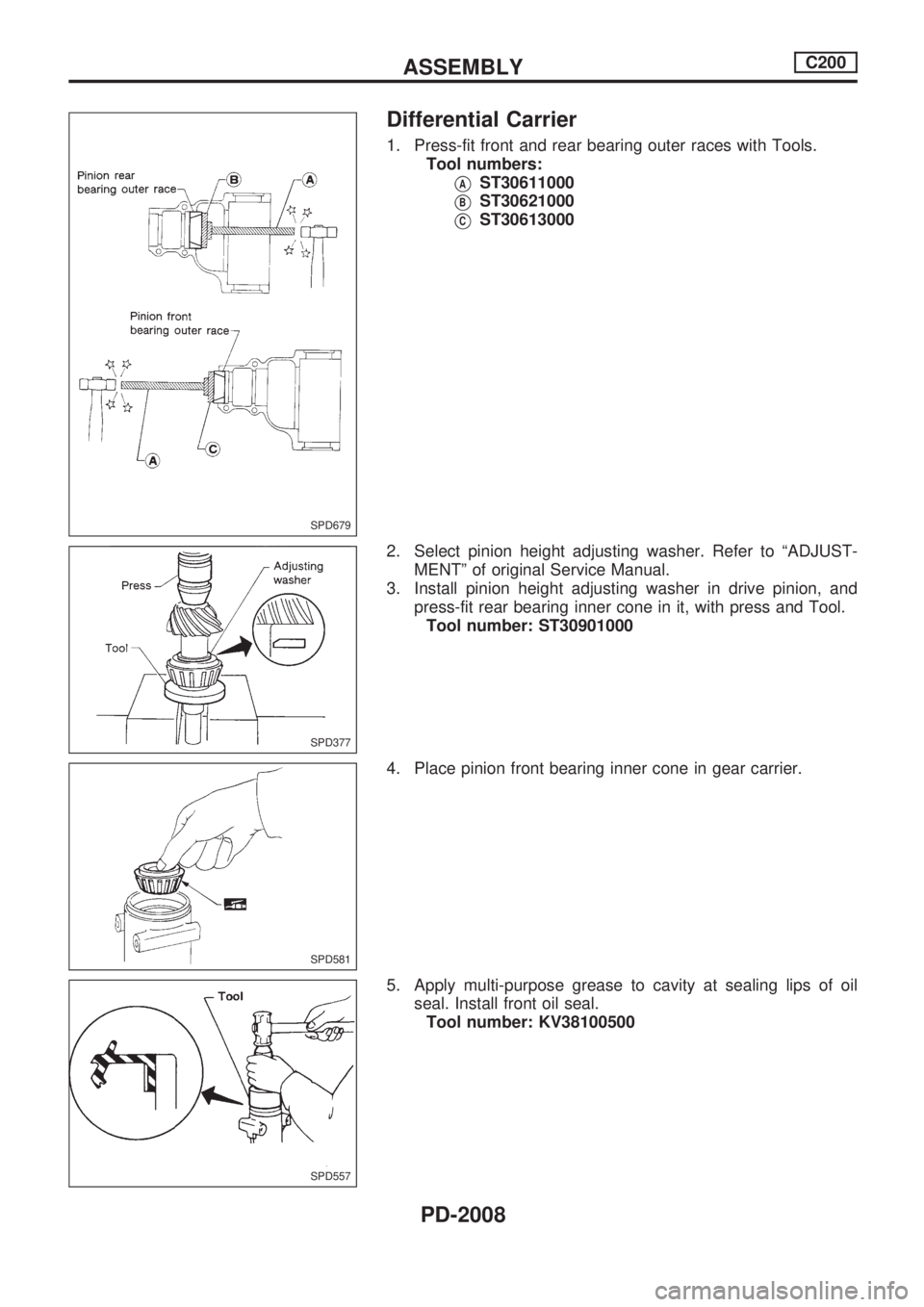

Differential Carrier
1. Press-fit front and rear bearing outer races with Tools.
Tool numbers:
VAST30611000
VBST30621000
VCST30613000
2. Select pinion height adjusting washer. Refer to ªADJUST-
MENTº of original Service Manual.
3. Install pinion height adjusting washer in drive pinion, and
press-fit rear bearing inner cone in it, with press and Tool.
Tool number: ST30901000
4. Place pinion front bearing inner cone in gear carrier.
5. Apply multi-purpose grease to cavity at sealing lips of oil
seal. Install front oil seal.
Tool number: KV38100500
SPD679
SPD377
SPD581
SPD557
ASSEMBLYC200
PD-2008

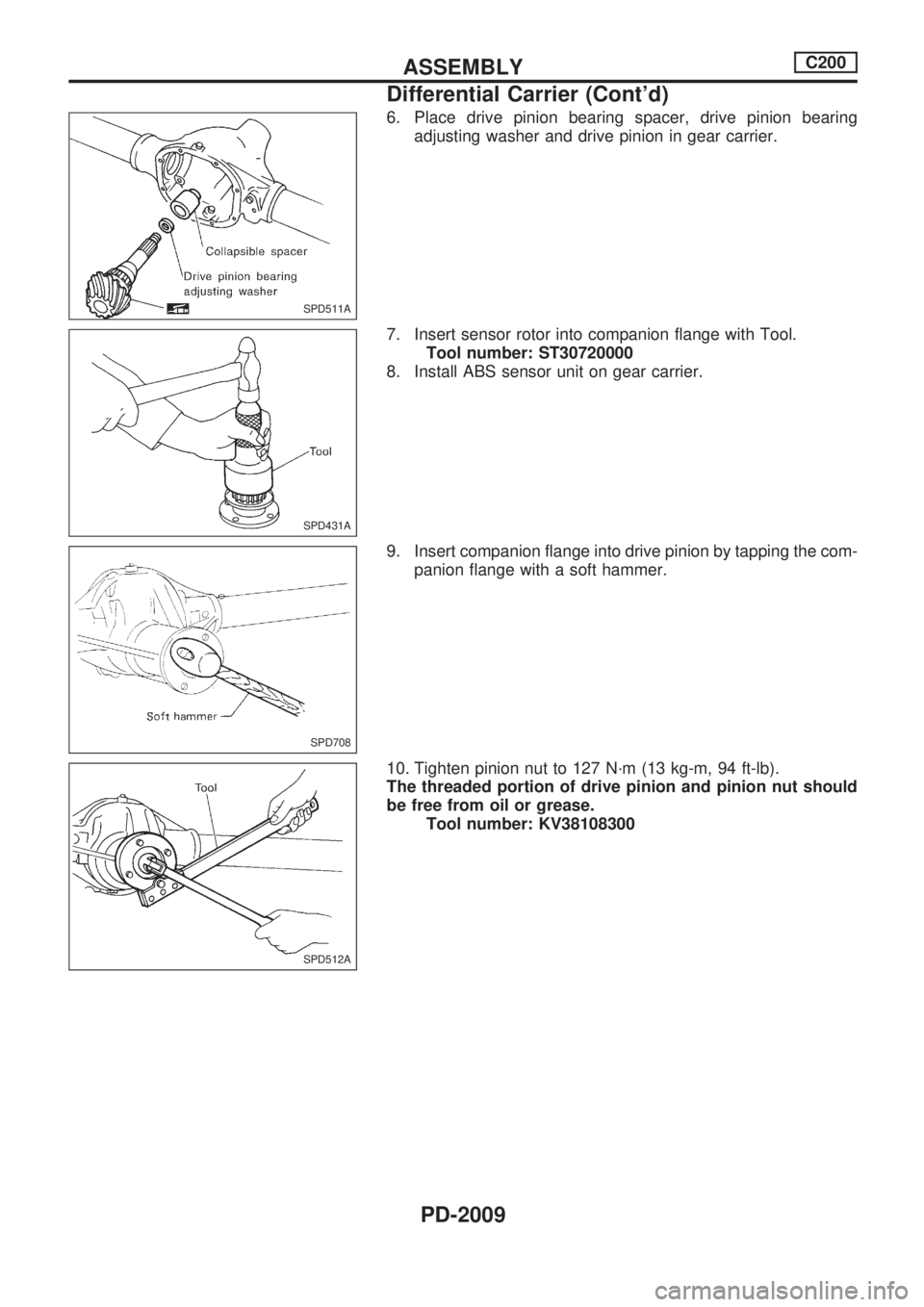

6. Place drive pinion bearing spacer, drive pinion bearing
adjusting washer and drive pinion in gear carrier.
7. Insert sensor rotor into companion flange with Tool.
Tool number: ST30720000
8. Install ABS sensor unit on gear carrier.
9. Insert companion flange into drive pinion by tapping the com-
panion flange with a soft hammer.
10. Tighten pinion nut to 127 N´m (13 kg-m, 94 ft-lb).
The threaded portion of drive pinion and pinion nut should
be free from oil or grease.
Tool number: KV38108300
SPD511A
SPD431A
SPD708
SPD512A
ASSEMBLYC200
Differential Carrier (Cont'd)
PD-2009

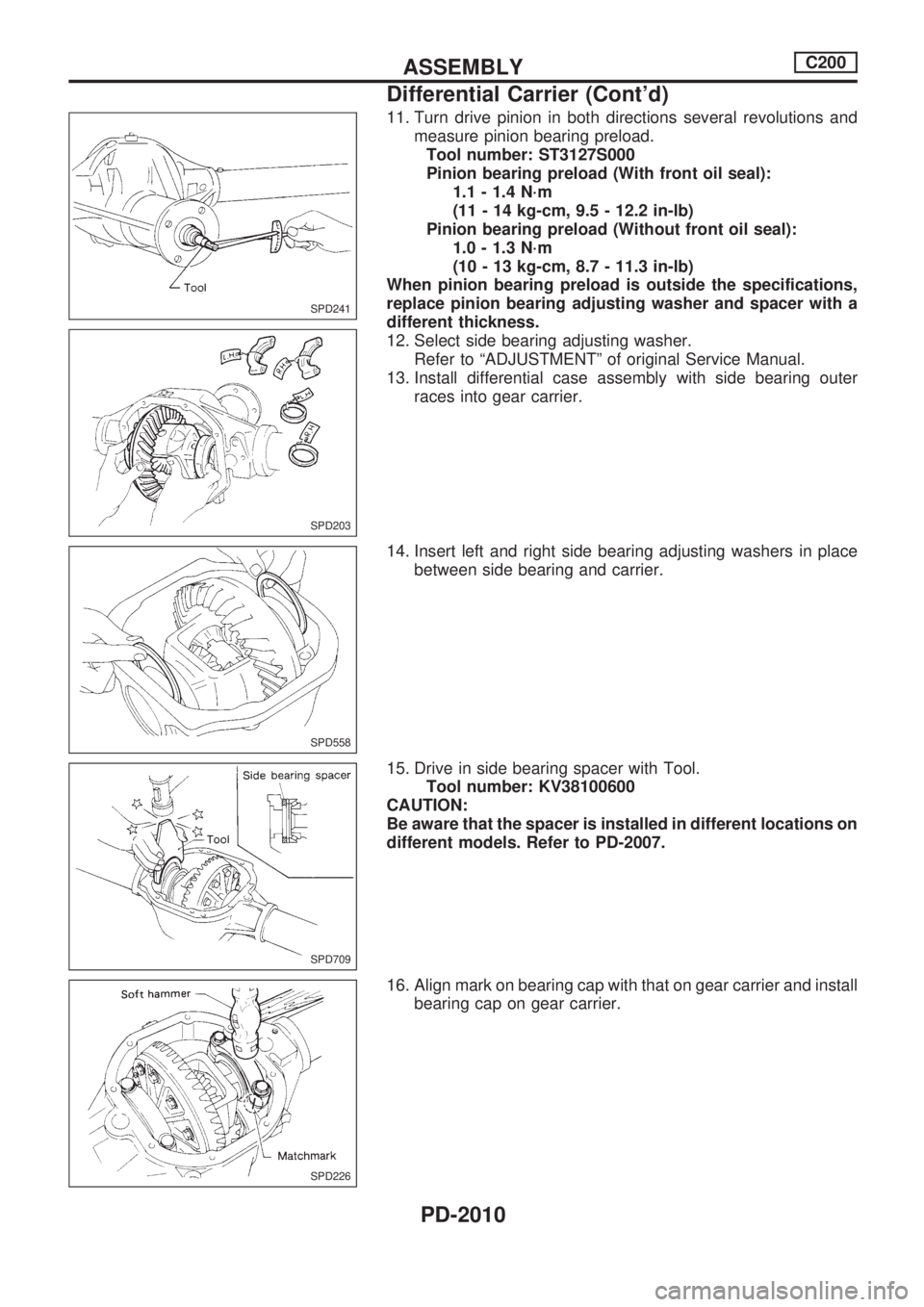

11. Turn drive pinion in both directions several revolutions and
measure pinion bearing preload.
Tool number: ST3127S000
Pinion bearing preload (With front oil seal):
1.1 - 1.4 N´m
(11 - 14 kg-cm, 9.5 - 12.2 in-lb)
Pinion bearing preload (Without front oil seal):
1.0 - 1.3 N´m
(10 - 13 kg-cm, 8.7 - 11.3 in-lb)
When pinion bearing preload is outside the specifications,
replace pinion bearing adjusting washer and spacer with a
different thickness.
12. Select side bearing adjusting washer.
Refer to ªADJUSTMENTº of original Service Manual.
13. Install differential case assembly with side bearing outer
races into gear carrier.
14. Insert left and right side bearing adjusting washers in place
between side bearing and carrier.
15. Drive in side bearing spacer with Tool.
Tool number: KV38100600
CAUTION:
Be aware that the spacer is installed in different locations on
different models. Refer to PD-2007.
16. Align mark on bearing cap with that on gear carrier and install
bearing cap on gear carrier.
SPD241
SPD203
SPD558
SPD709
SPD226
ASSEMBLYC200
Differential Carrier (Cont'd)
PD-2010

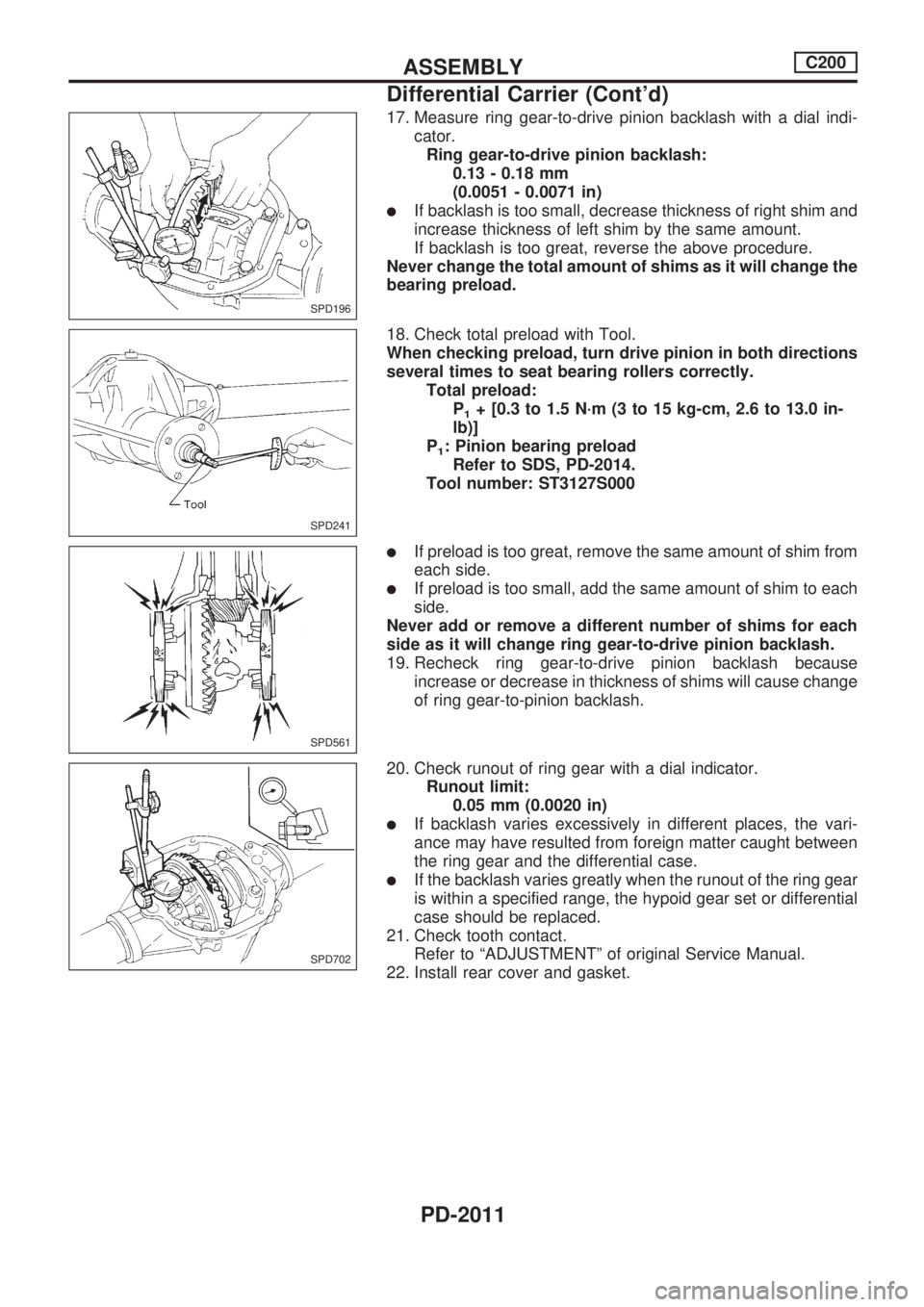

17. Measure ring gear-to-drive pinion backlash with a dial indi-
cator.
Ring gear-to-drive pinion backlash:
0.13 - 0.18 mm
(0.0051 - 0.0071 in)
lIf backlash is too small, decrease thickness of right shim and
increase thickness of left shim by the same amount.
If backlash is too great, reverse the above procedure.
Never change the total amount of shims as it will change the
bearing preload.
18. Check total preload with Tool.
When checking preload, turn drive pinion in both directions
several times to seat bearing rollers correctly.
Total preload:
P
1+ [0.3 to 1.5 N´m (3 to 15 kg-cm, 2.6 to 13.0 in-
lb)]
P
1: Pinion bearing preload
Refer to SDS, PD-2014.
Tool number: ST3127S000
lIf preload is too great, remove the same amount of shim from
each side.
lIf preload is too small, add the same amount of shim to each
side.
Never add or remove a different number of shims for each
side as it will change ring gear-to-drive pinion backlash.
19. Recheck ring gear-to-drive pinion backlash because
increase or decrease in thickness of shims will cause change
of ring gear-to-pinion backlash.
20. Check runout of ring gear with a dial indicator.
Runout limit:
0.05 mm (0.0020 in)
lIf backlash varies excessively in different places, the vari-
ance may have resulted from foreign matter caught between
the ring gear and the differential case.
lIf the backlash varies greatly when the runout of the ring gear
is within a specified range, the hypoid gear set or differential
case should be replaced.
21. Check tooth contact.
Refer to ªADJUSTMENTº of original Service Manual.
22. Install rear cover and gasket.
SPD196
SPD241
SPD561
SPD702
ASSEMBLYC200
Differential Carrier (Cont'd)
PD-2011

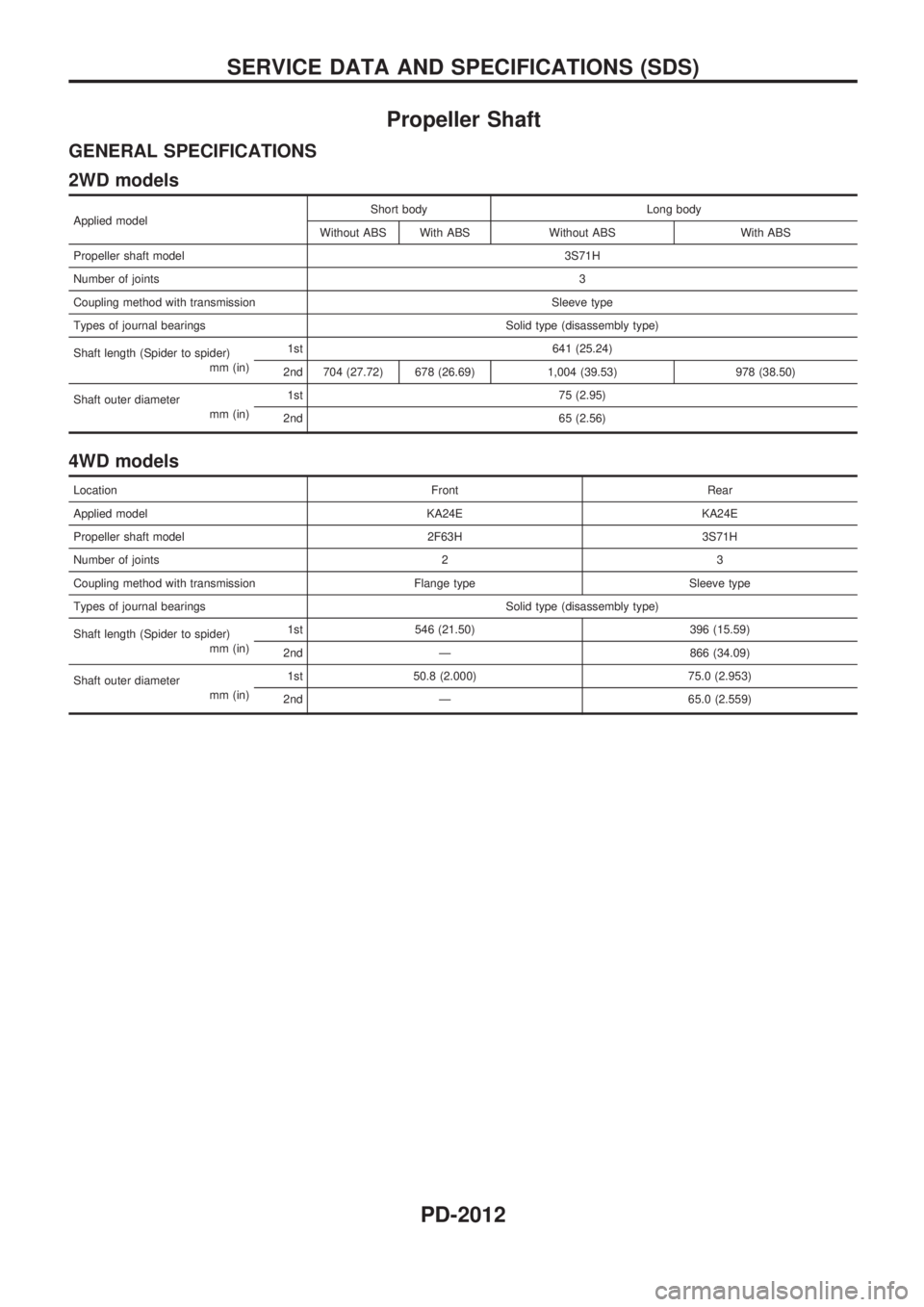

Propeller Shaft
GENERAL SPECIFICATIONS
2WD models
Applied modelShort body Long body
Without ABS With ABS Without ABS With ABS
Propeller shaft model3S71H
Number of joints3
Coupling method with transmission Sleeve type
Types of journal bearings Solid type (disassembly type)
Shaft length (Spider to spider)
mm (in)1st 641 (25.24)
2nd 704 (27.72) 678 (26.69) 1,004 (39.53) 978 (38.50)
Shaft outer diameter
mm (in)1st 75 (2.95)
2nd 65 (2.56)
4WD models
Location Front Rear
Applied model KA24E KA24E
Propeller shaft model 2F63H 3S71H
Number of joints 2 3
Coupling method with transmission Flange type Sleeve type
Types of journal bearings Solid type (disassembly type)
Shaft length (Spider to spider)
mm (in)1st 546 (21.50) 396 (15.59)
2nd Ð 866 (34.09)
Shaft outer diameter
mm (in)1st 50.8 (2.000) 75.0 (2.953)
2nd Ð 65.0 (2.559)
SERVICE DATA AND SPECIFICATIONS (SDS)
PD-2012

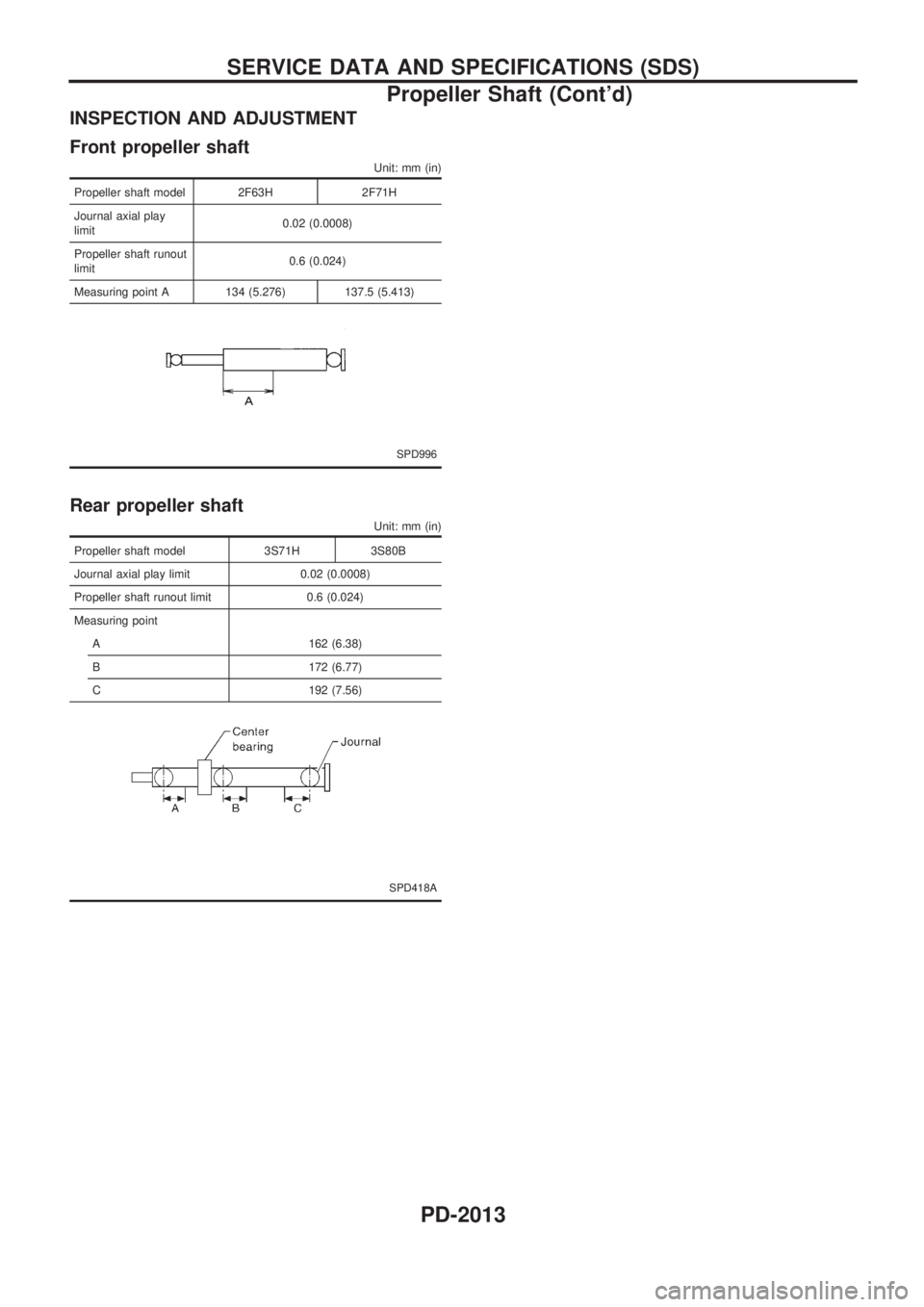

INSPECTION AND ADJUSTMENT
Front propeller shaft
Unit: mm (in)
Propeller shaft model 2F63H 2F71H
Journal axial play
limit0.02 (0.0008)
Propeller shaft runout
limit0.6 (0.024)
Measuring point A 134 (5.276) 137.5 (5.413)
SPD996
Rear propeller shaft
Unit: mm (in)
Propeller shaft model 3S71H 3S80B
Journal axial play limit 0.02 (0.0008)
Propeller shaft runout limit 0.6 (0.024)
Measuring point
A 162 (6.38)
B 172 (6.77)
C 192 (7.56)
SPD418A
SERVICE DATA AND SPECIFICATIONS (SDS)
Propeller Shaft (Cont'd)
PD-2013

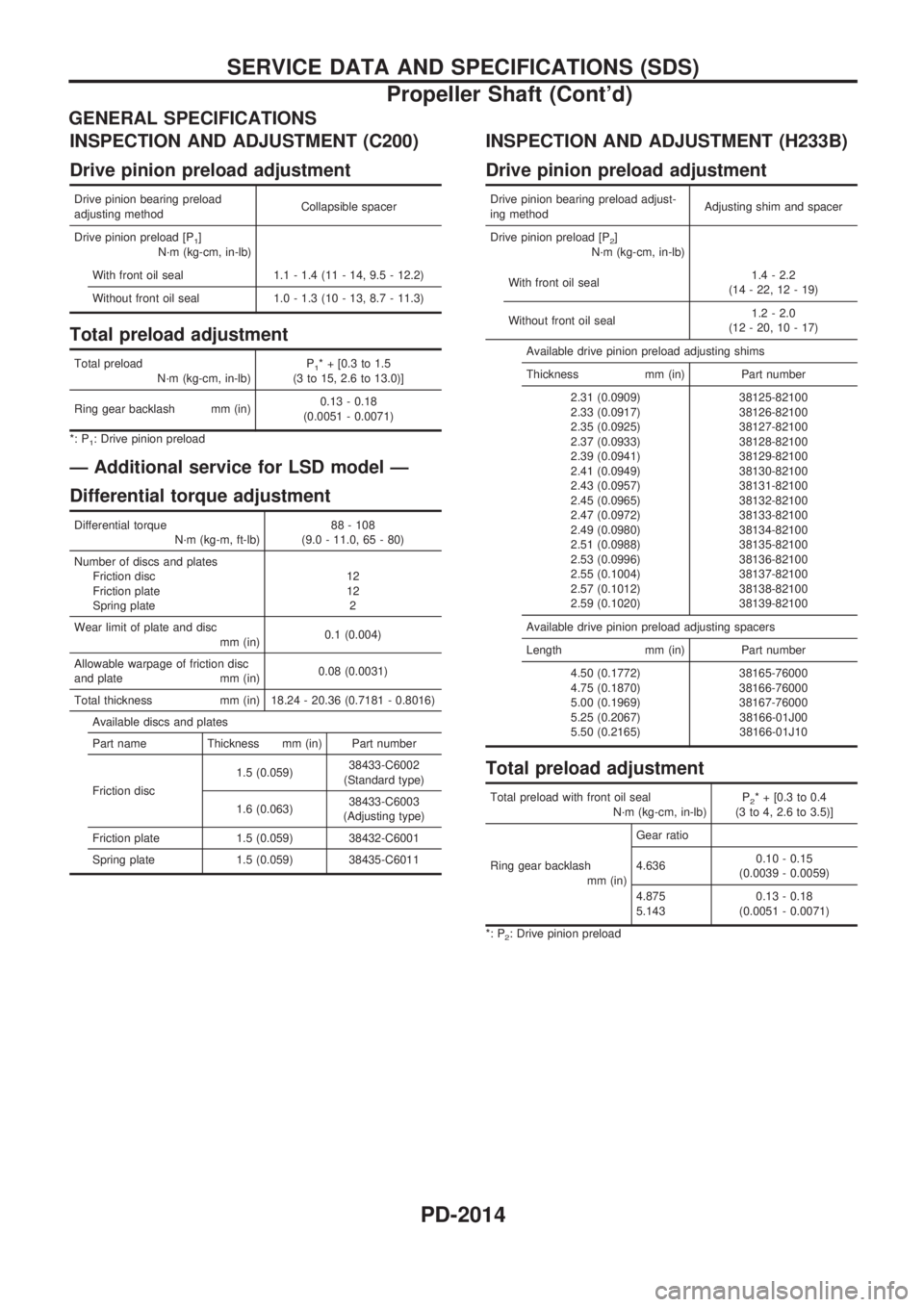

GENERAL SPECIFICATIONS
INSPECTION AND ADJUSTMENT (C200)
Drive pinion preload adjustment
Drive pinion bearing preload
adjusting methodCollapsible spacer
Drive pinion preload [P
1]
N´m (kg-cm, in-lb)
With front oil seal 1.1 - 1.4 (11 - 14, 9.5 - 12.2)
Without front oil seal 1.0 - 1.3 (10 - 13, 8.7 - 11.3)
Total preload adjustment
Total preload
N´m (kg-cm, in-lb)P1* + [0.3 to 1.5
(3 to 15, 2.6 to 13.0)]
Ring gear backlash mm (in)0.13 - 0.18
(0.0051 - 0.0071)
*: P1: Drive pinion preload
Ð Additional service for LSD model Ð
Differential torque adjustment
Differential torque
N´m (kg-m, ft-lb)88 - 108
(9.0 - 11.0, 65 - 80)
Number of discs and plates
Friction disc
Friction plate
Spring plate12
12
2
Wear limit of plate and disc
mm (in)0.1 (0.004)
Allowable warpage of friction disc
and plate mm (in)0.08 (0.0031)
Total thickness mm (in) 18.24 - 20.36 (0.7181 - 0.8016)
Available discs and plates
Part name Thickness mm (in) Part number
Friction disc1.5 (0.059)38433-C6002
(Standard type)
1.6 (0.063)38433-C6003
(Adjusting type)
Friction plate 1.5 (0.059) 38432-C6001
Spring plate 1.5 (0.059) 38435-C6011
INSPECTION AND ADJUSTMENT (H233B)
Drive pinion preload adjustment
Drive pinion bearing preload adjust-
ing methodAdjusting shim and spacer
Drive pinion preload [P
2]
N´m (kg-cm, in-lb)
With front oil seal1.4 - 2.2
(14 - 22, 12 - 19)
Without front oil seal1.2 - 2.0
(12 - 20, 10 - 17)
Available drive pinion preload adjusting shims
Thickness mm (in) Part number
2.31 (0.0909)
2.33 (0.0917)
2.35 (0.0925)
2.37 (0.0933)
2.39 (0.0941)
2.41 (0.0949)
2.43 (0.0957)
2.45 (0.0965)
2.47 (0.0972)
2.49 (0.0980)
2.51 (0.0988)
2.53 (0.0996)
2.55 (0.1004)
2.57 (0.1012)
2.59 (0.1020)38125-82100
38126-82100
38127-82100
38128-82100
38129-82100
38130-82100
38131-82100
38132-82100
38133-82100
38134-82100
38135-82100
38136-82100
38137-82100
38138-82100
38139-82100
Available drive pinion preload adjusting spacers
Length mm (in) Part number
4.50 (0.1772)
4.75 (0.1870)
5.00 (0.1969)
5.25 (0.2067)
5.50 (0.2165)38165-76000
38166-76000
38167-76000
38166-01J00
38166-01J10
Total preload adjustment
Total preload with front oil seal
N´m (kg-cm, in-lb)P2* + [0.3 to 0.4
(3 to 4, 2.6 to 3.5)]
Ring gear backlash
mm (in)Gear ratio
4.6360.10 - 0.15
(0.0039 - 0.0059)
4.875
5.1430.13 - 0.18
(0.0051 - 0.0071)
*: P2: Drive pinion preload
SERVICE DATA AND SPECIFICATIONS (SDS)
Propeller Shaft (Cont'd)
PD-2014
