NISSAN PICK-UP 1999 Repair Manual

\

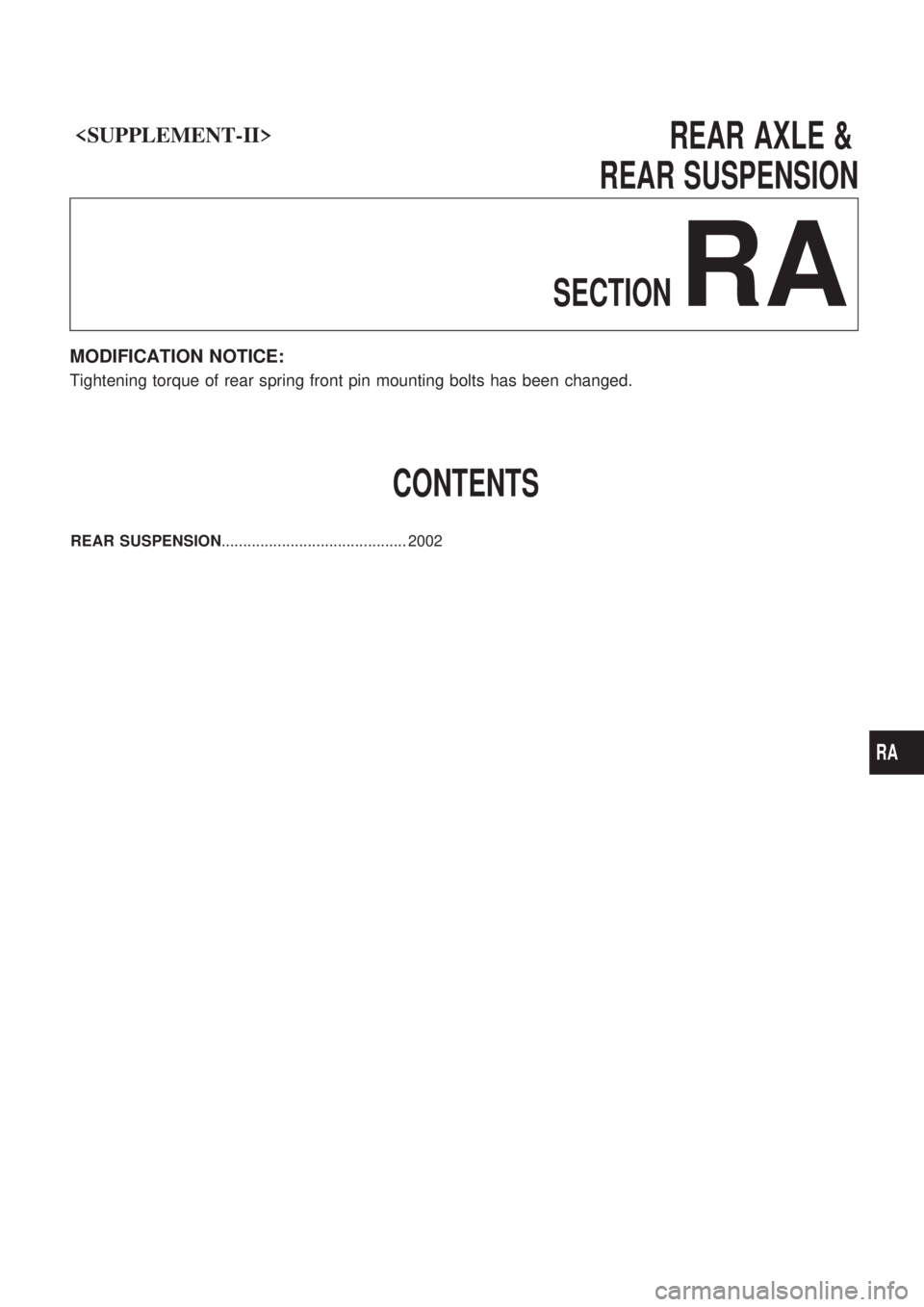

REARAXLE&
REAR SUSPENSION
SECTION
RA
MODIFICATION NOTICE:
Tightening torque of rear spring front pin mounting bolts has been changed.
CONTENTS
REAR SUSPENSION ........................................... 2002
RA

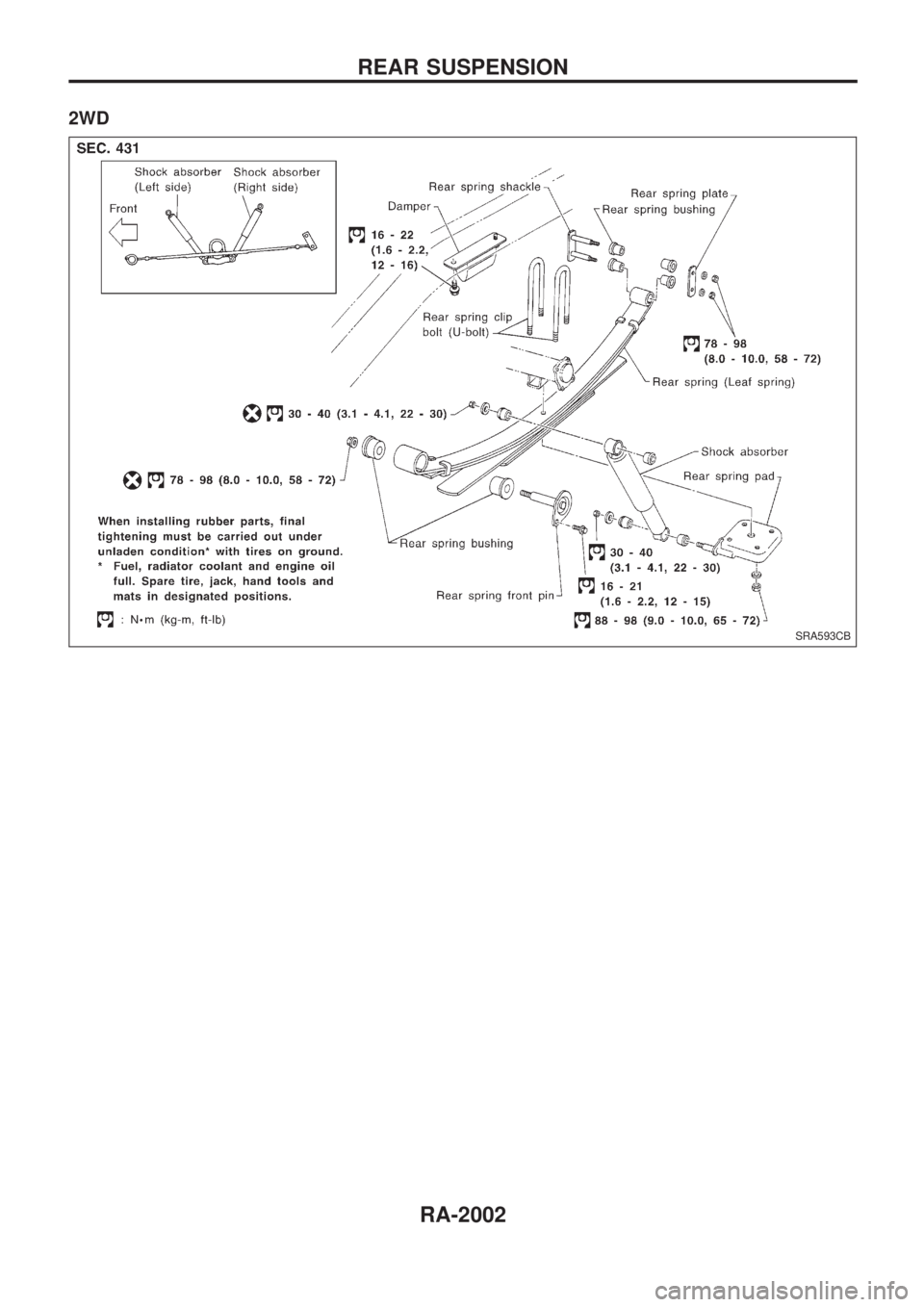

2WD
SRA593CB
REAR SUSPENSION
RA-2002

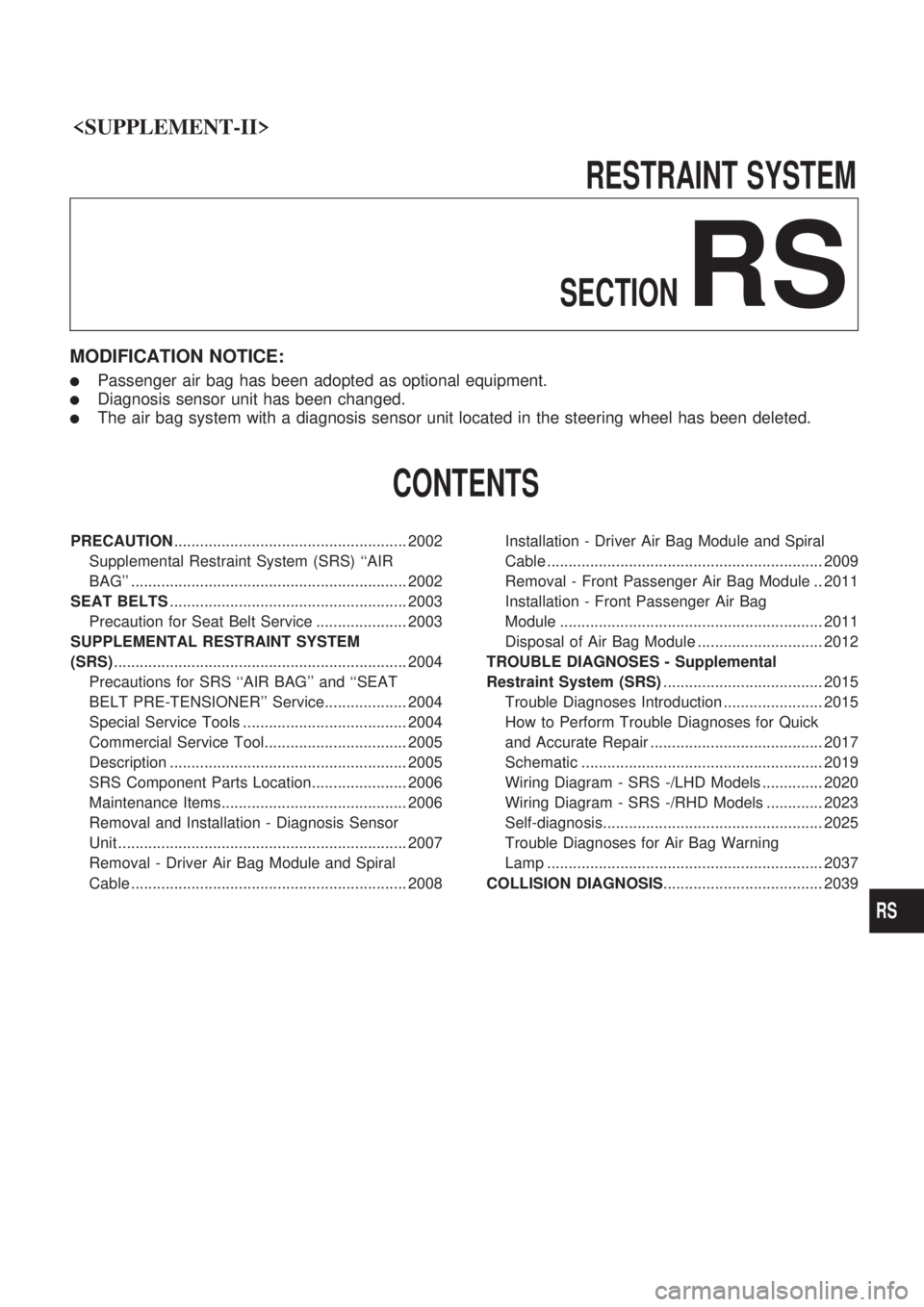

RESTRAINTSYSTEM
SECTION
RS
MODIFICATION NOTICE:
lPassenger air bag has been adopted as optional equipment.
lDiagnosis sensor unit has been changed.
lThe air bag system with a diagnosis sensor unit located in the steering wheel has been deleted.
CONTENTS
PRECAUTION ...................................................... 2002
Supplemental Restraint System (SRS) ``AIR
BAG'' ................................................................ 2002
SEAT BELTS ....................................................... 2003
Precaution for Seat Belt Service ..................... 2003
SUPPLEMENTAL RESTRAINT SYSTEM
(SRS) .................................................................... 2004
Precautions for SRS ``AIR BAG'' and ``SEAT
BELT PRE-TENSIONER'' Service................... 2004
Special Service Tools ...................................... 2004
Commercial Service Tool................................. 2005
Description ....................................................... 2005
SRS Component Parts Location...................... 2006
Maintenance Items........................................... 2006
Removal and Installation - Diagnosis Sensor
Unit ................................................................... 2007
Removal - Driver Air Bag Module and Spiral
Cable ................................................................ 2008 Installation - Driver Air Bag Module and Spiral
Cable ................................................................ 2009
Removal - Front Passenger Air Bag Module .. 2011
Installation - Front Passenger Air Bag
Module ............................................................. 2011
Disposal of Air Bag Module ............................. 2012
TROUBLE DIAGNOSES - Supplemental
Restraint System (SRS) ..................................... 2015
Trouble Diagnoses Introduction ....................... 2015
How to Perform Trouble Diagnoses for Quick
and Accurate Repair ........................................ 2017
Schematic ........................................................ 2019
Wiring Diagram - SRS -/LHD Models .............. 2020
Wiring Diagram - SRS -/RHD Models ............. 2023
Self-diagnosis................................................... 2025
Trouble Diagnoses for Air Bag Warning
Lamp ................................................................ 2037
COLLISION DIAGNOSIS ..................................... 2039
RS

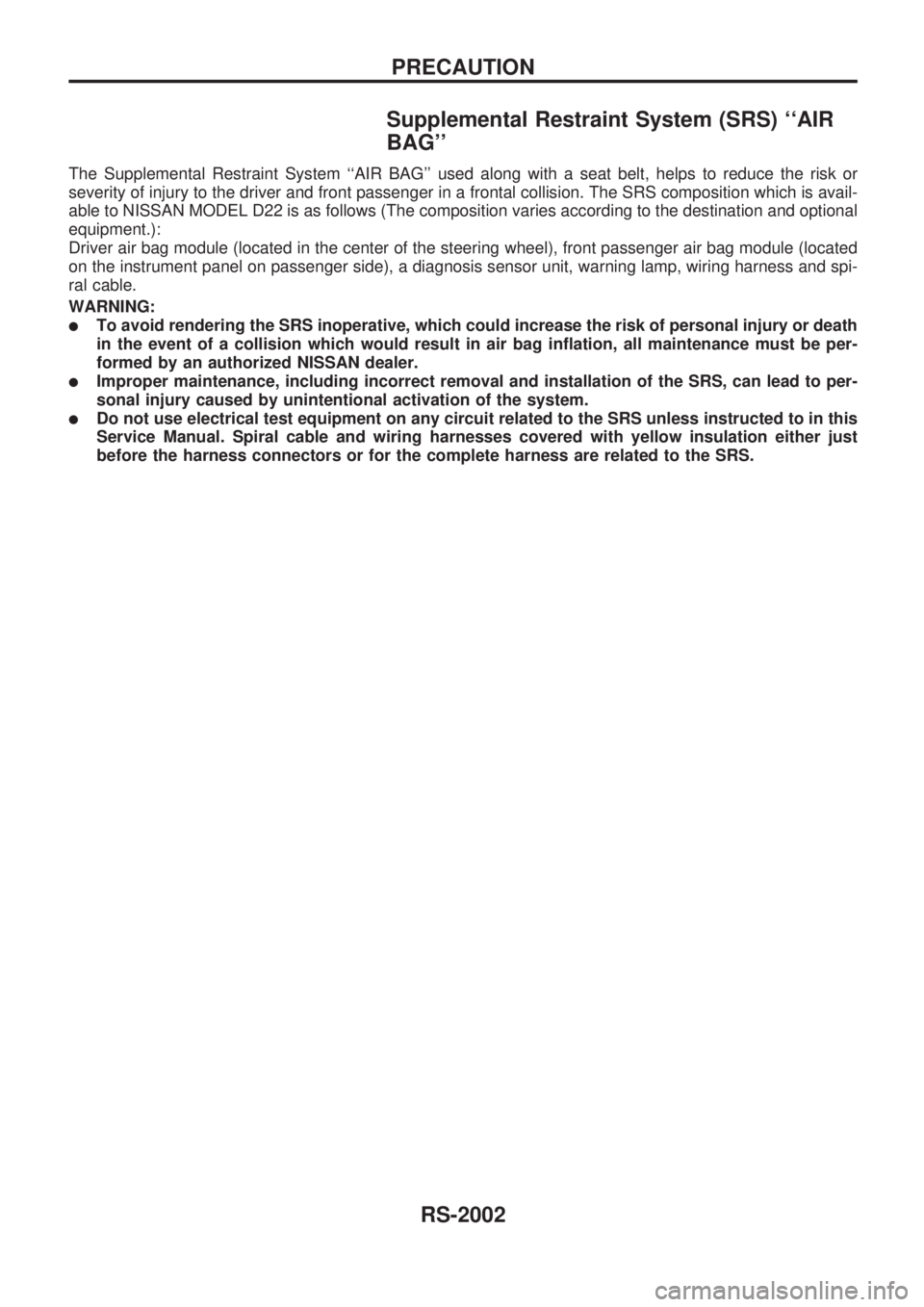

Supplemental Restraint System (SRS) ``AIR
BAG''
The Supplemental Restraint System ``AIR BAG'' used along with a seat belt, helps to reduce the risk or
severity of injury to the driver and front passenger in a frontal collision. The SRS composition which is avail-
able to NISSAN MODEL D22 is as follows (The composition varies according to the destination and optional
equipment.):
Driver air bag module (located in the center of the steering wheel), front passenger air bag module (located
on the instrument panel on passenger side), a diagnosis sensor unit, warning lamp, wiring harness and spi-
ral cable.
WARNING:
lTo avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN dealer.
lImproper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.
lDo not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation either just
before the harness connectors or for the complete harness are related to the SRS.
PRECAUTION
RS-2002

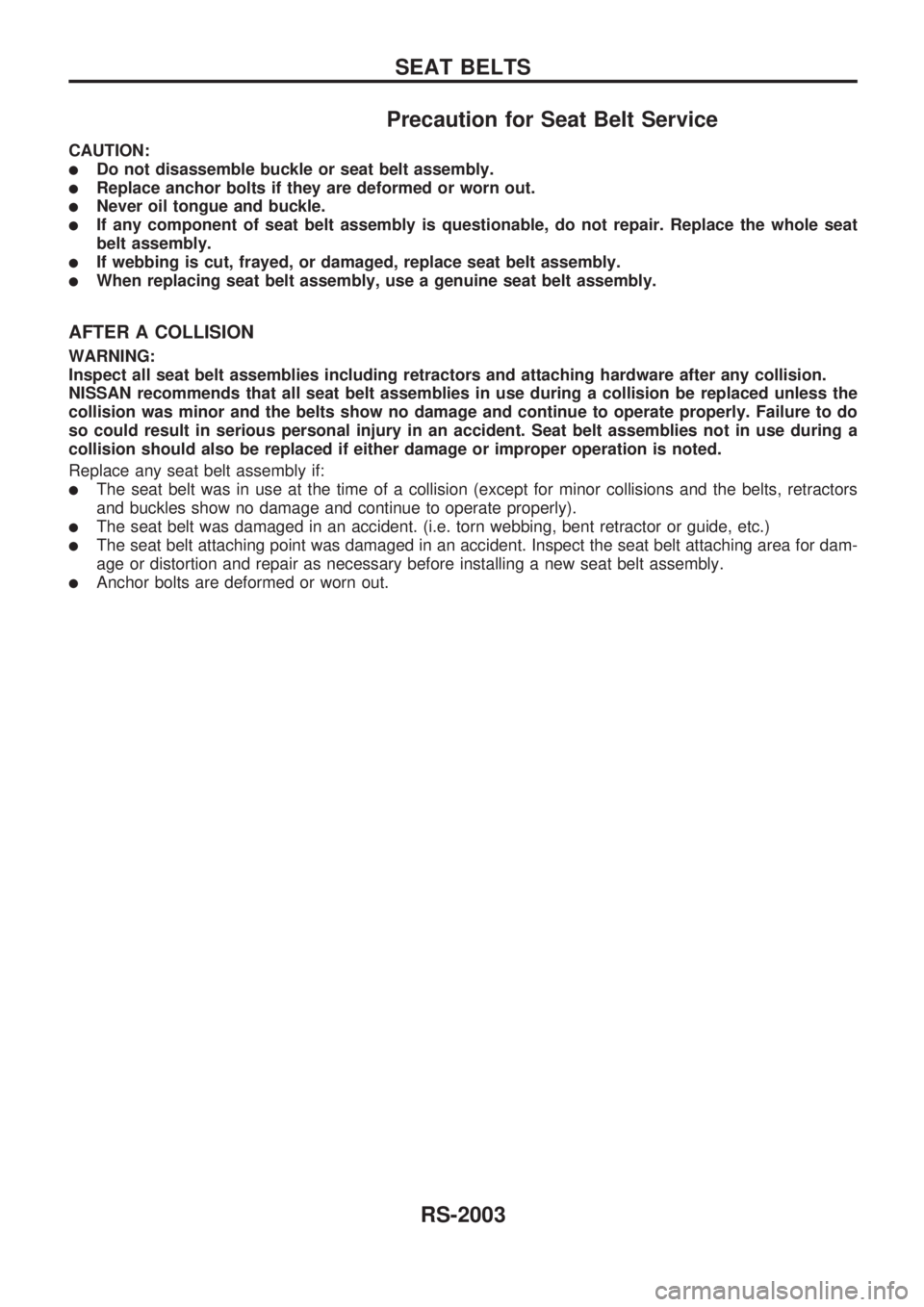

Precaution for Seat Belt Service
CAUTION:
lDo not disassemble buckle or seat belt assembly.
lReplace anchor bolts if they are deformed or worn out.
lNever oil tongue and buckle.
lIf any component of seat belt assembly is questionable, do not repair. Replace the whole seat
belt assembly.
lIf webbing is cut, frayed, or damaged, replace seat belt assembly.
lWhen replacing seat belt assembly, use a genuine seat belt assembly.
AFTER A COLLISION
WARNING:
Inspect all seat belt assemblies including retractors and attaching hardware after any collision.
NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the
collision was minor and the belts show no damage and continue to operate properly. Failure to do
so could result in serious personal injury in an accident. Seat belt assemblies not in use during a
collision should also be replaced if either damage or improper operation is noted.
Replace any seat belt assembly if:
lThe seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors
and buckles show no damage and continue to operate properly).
lThe seat belt was damaged in an accident. (i.e. torn webbing, bent retractor or guide, etc.)
lThe seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for dam-
age or distortion and repair as necessary before installing a new seat belt assembly.
lAnchor bolts are deformed or worn out.
SEAT BELTS
RS-2003

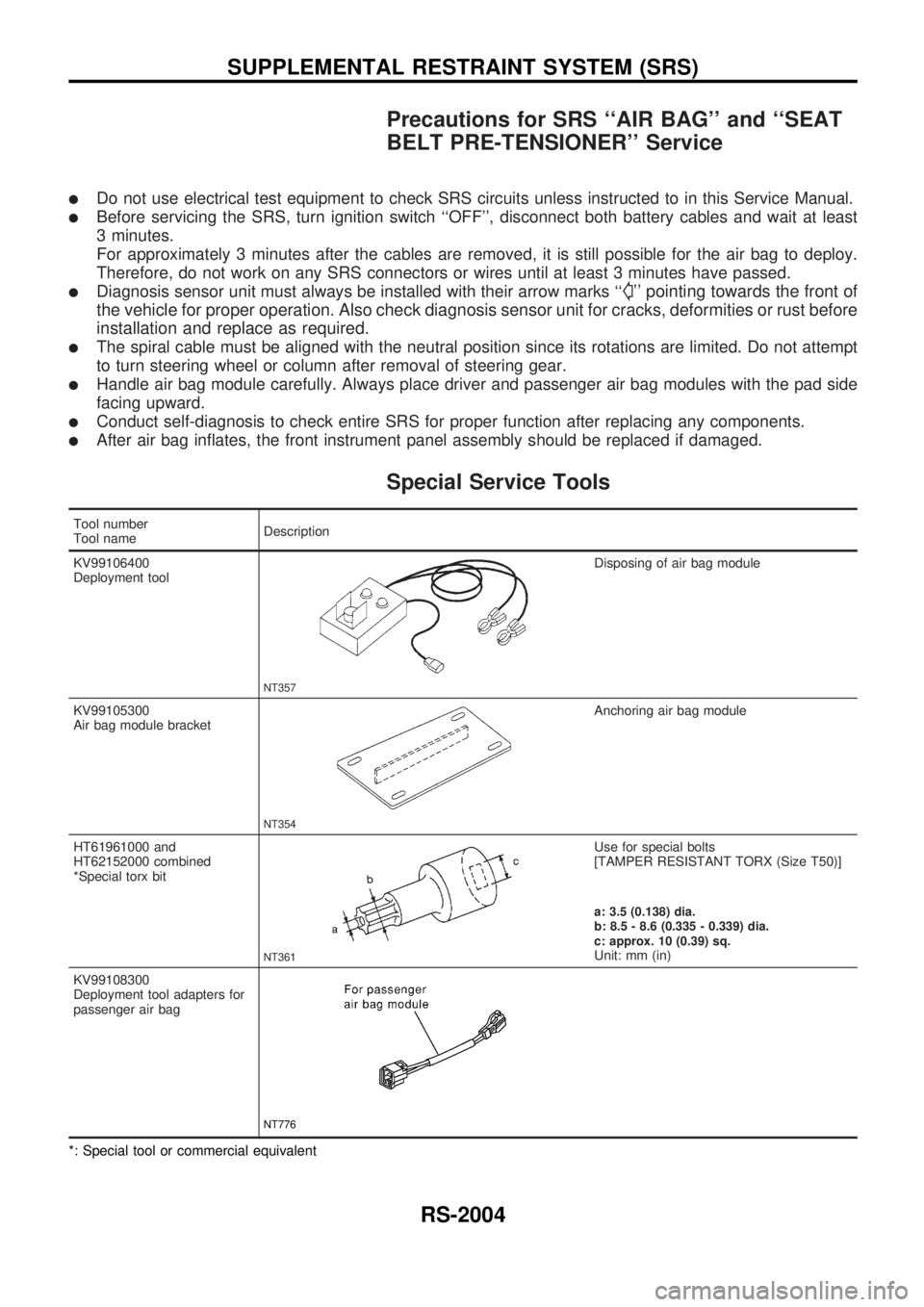

Precautions for SRS ``AIR BAG'' and ``SEAT
BELT PRE-TENSIONER'' Service
lDo not use electrical test equipment to check SRS circuits unless instructed to in this Service Manual.
lBefore servicing the SRS, turn ignition switch ``OFF'', disconnect both battery cables and wait at least
3 minutes.
For approximately 3 minutes after the cables are removed, it is still possible for the air bag to deploy.
Therefore, do not work on any SRS connectors or wires until at least 3 minutes have passed.
lDiagnosis sensor unit must always be installed with their arrow marks ``S'' pointing towards the front of
the vehicle for proper operation. Also check diagnosis sensor unit for cracks, deformities or rust before
installation and replace as required.
lThe spiral cable must be aligned with the neutral position since its rotations are limited. Do not attempt
to turn steering wheel or column after removal of steering gear.
lHandle air bag module carefully. Always place driver and passenger air bag modules with the pad side
facing upward.
lConduct self-diagnosis to check entire SRS for proper function after replacing any components.
lAfter air bag inflates, the front instrument panel assembly should be replaced if damaged.
Special Service Tools
Tool number
Tool nameDescription
KV99106400
Deployment tool
NT357
Disposing of air bag module
KV99105300
Air bag module bracket
NT354
Anchoring air bag module
HT61961000 and
HT62152000 combined
*Special torx bit
NT361
Use for special bolts
[TAMPER RESISTANT TORX (Size T50)]
a: 3.5 (0.138) dia.
b: 8.5 - 8.6 (0.335 - 0.339) dia.
c: approx. 10 (0.39) sq.
Unit: mm (in)
KV99108300
Deployment tool adapters for
passenger air bag
NT776
*: Special tool or commercial equivalent
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
RS-2004

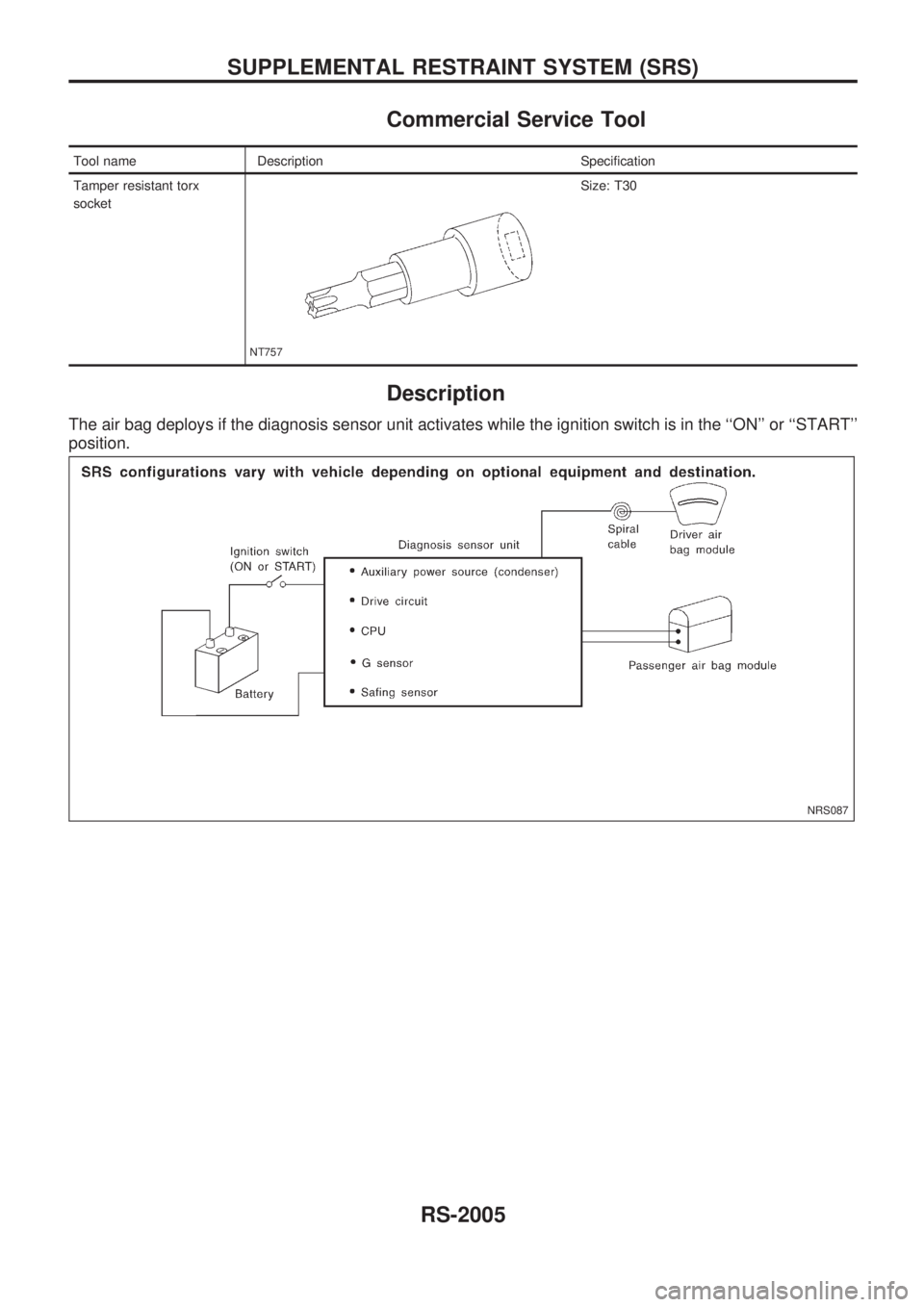

Commercial Service Tool
Tool name Description Specification
Tamper resistant torx
socket
NT757
Size: T30
Description
The air bag deploys if the diagnosis sensor unit activates while the ignition switch is in the ``ON'' or ``START''
position.
NRS087
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
RS-2005

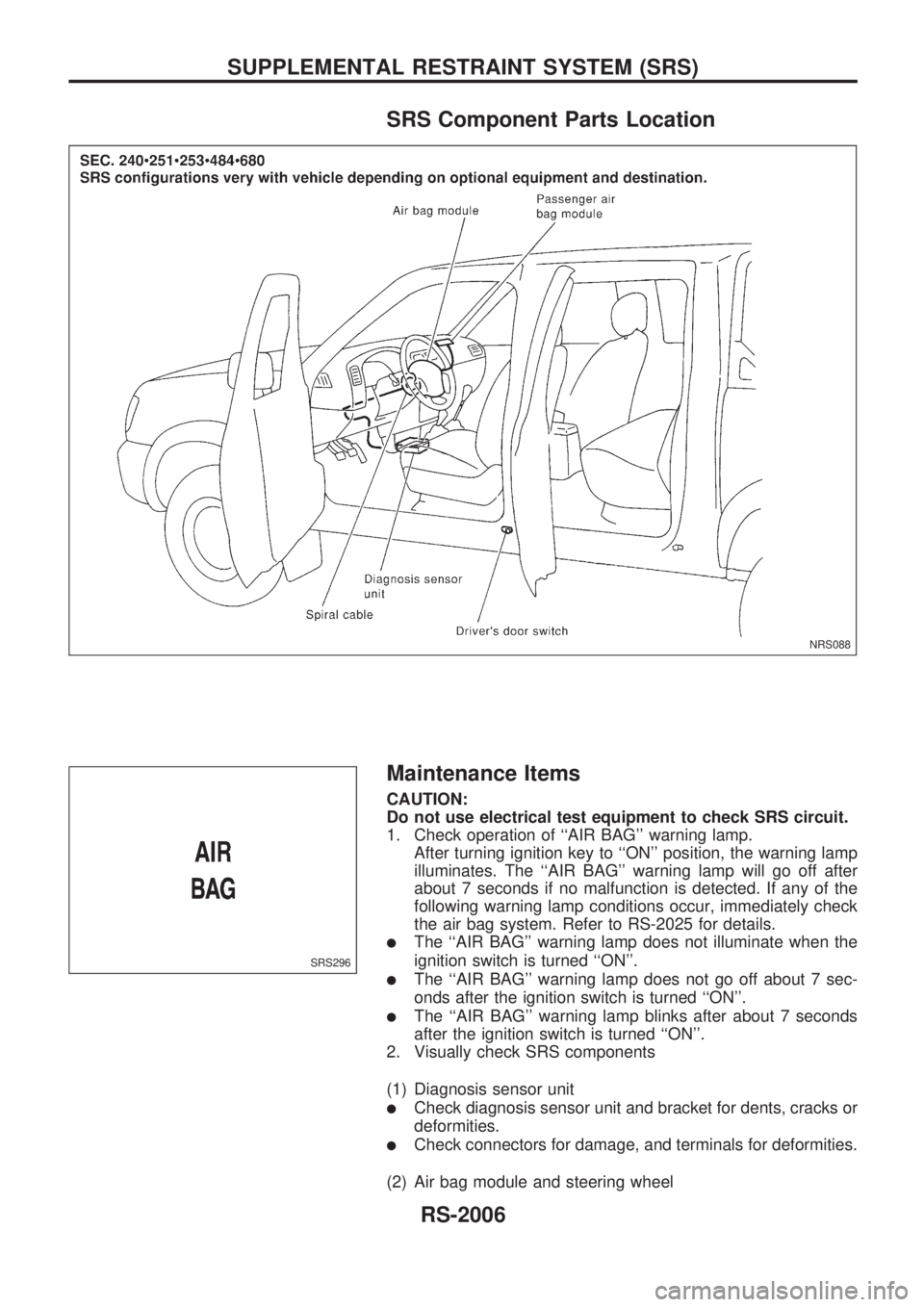

SRS Component Parts Location
Maintenance Items
CAUTION:
Do not use electrical test equipment to check SRS circuit.
1. Check operation of ``AIR BAG'' warning lamp.
After turning ignition key to ``ON'' position, the warning lamp
illuminates. The ``AIR BAG'' warning lamp will go off after
about 7 seconds if no malfunction is detected. If any of the
following warning lamp conditions occur, immediately check
the air bag system. Refer to RS-2025 for details.
lThe ``AIR BAG'' warning lamp does not illuminate when the
ignition switch is turned ``ON''.
lThe ``AIR BAG'' warning lamp does not go off about 7 sec-
onds after the ignition switch is turned ``ON''.
lThe ``AIR BAG'' warning lamp blinks after about 7 seconds
after the ignition switch is turned ``ON''.
2. Visually check SRS components
(1) Diagnosis sensor unit
lCheck diagnosis sensor unit and bracket for dents, cracks or
deformities.
lCheck connectors for damage, and terminals for deformities.
(2) Air bag module and steering wheel
NRS088
SRS296
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
RS-2006

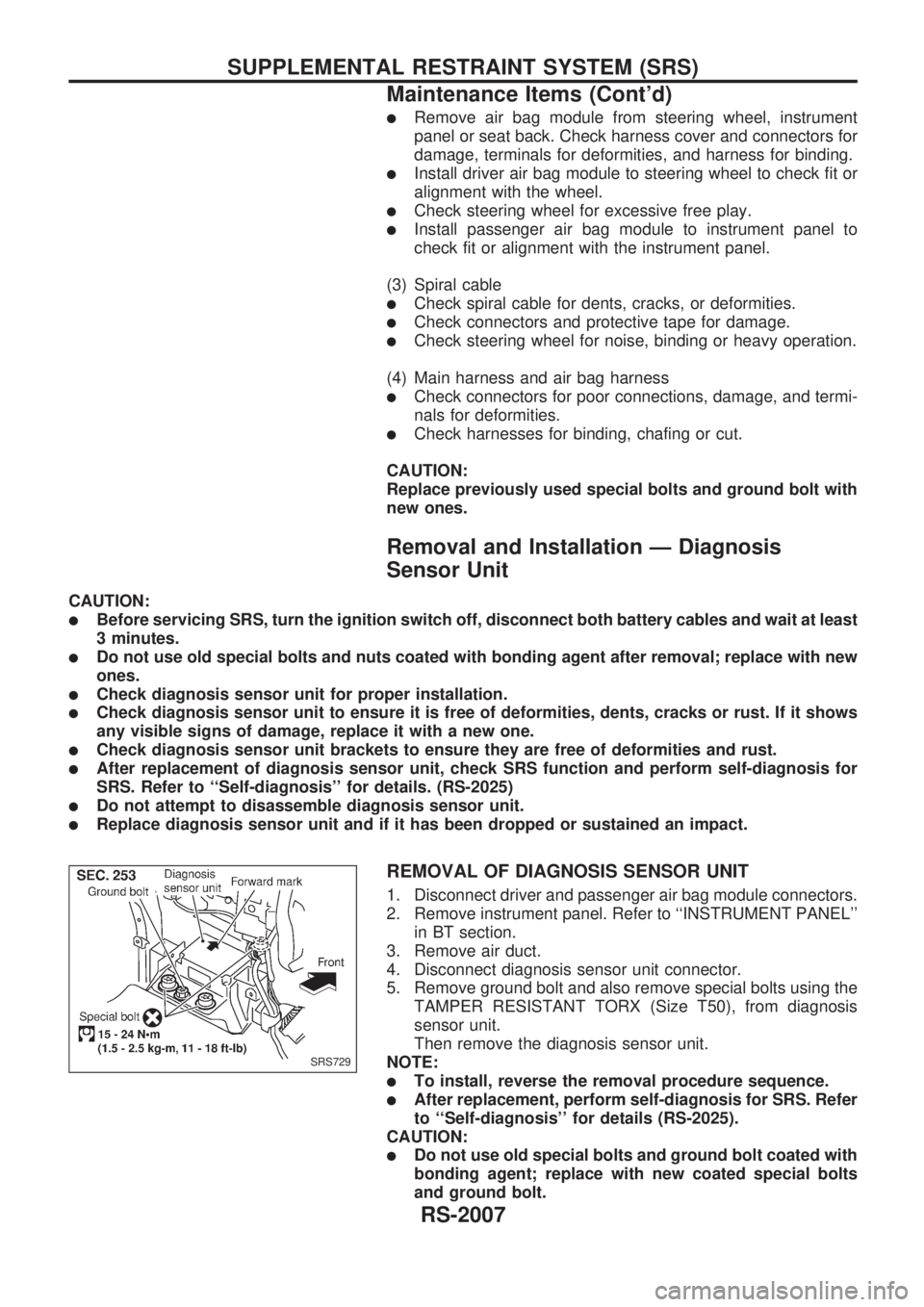

lRemove air bag module from steering wheel, instrument
panel or seat back. Check harness cover and connectors for
damage, terminals for deformities, and harness for binding.
lInstall driver air bag module to steering wheel to check fit or
alignment with the wheel.
lCheck steering wheel for excessive free play.
lInstall passenger air bag module to instrument panel to
check fit or alignment with the instrument panel.
(3) Spiral cable
lCheck spiral cable for dents, cracks, or deformities.
lCheck connectors and protective tape for damage.
lCheck steering wheel for noise, binding or heavy operation.
(4) Main harness and air bag harness
lCheck connectors for poor connections, damage, and termi-
nals for deformities.
lCheck harnesses for binding, chafing or cut.
CAUTION:
Replace previously used special bolts and ground bolt with
new ones.
Removal and Installation Ð Diagnosis
Sensor Unit
CAUTION:
lBefore servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least
3 minutes.
lDo not use old special bolts and nuts coated with bonding agent after removal; replace with new
ones.
lCheck diagnosis sensor unit for proper installation.
lCheck diagnosis sensor unit to ensure it is free of deformities, dents, cracks or rust. If it shows
any visible signs of damage, replace it with a new one.
lCheck diagnosis sensor unit brackets to ensure they are free of deformities and rust.
lAfter replacement of diagnosis sensor unit, check SRS function and perform self-diagnosis for
SRS. Refer to ``Self-diagnosis'' for details. (RS-2025)
lDo not attempt to disassemble diagnosis sensor unit.
lReplace diagnosis sensor unit and if it has been dropped or sustained an impact.
REMOVAL OF DIAGNOSIS SENSOR UNIT
1. Disconnect driver and passenger air bag module connectors.
2. Remove instrument panel. Refer to ``INSTRUMENT PANEL''
in BT section.
3. Remove air duct.
4. Disconnect diagnosis sensor unit connector.
5. Remove ground bolt and also remove special bolts using the
TAMPER RESISTANT TORX (Size T50), from diagnosis
sensor unit.
Then remove the diagnosis sensor unit.
NOTE:
lTo install, reverse the removal procedure sequence.
lAfter replacement, perform self-diagnosis for SRS. Refer
to ``Self-diagnosis'' for details (RS-2025).
CAUTION:
lDo not use old special bolts and ground bolt coated with
bonding agent; replace with new coated special bolts
and ground bolt.
SRS729
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Maintenance Items (Cont'd)
RS-2007

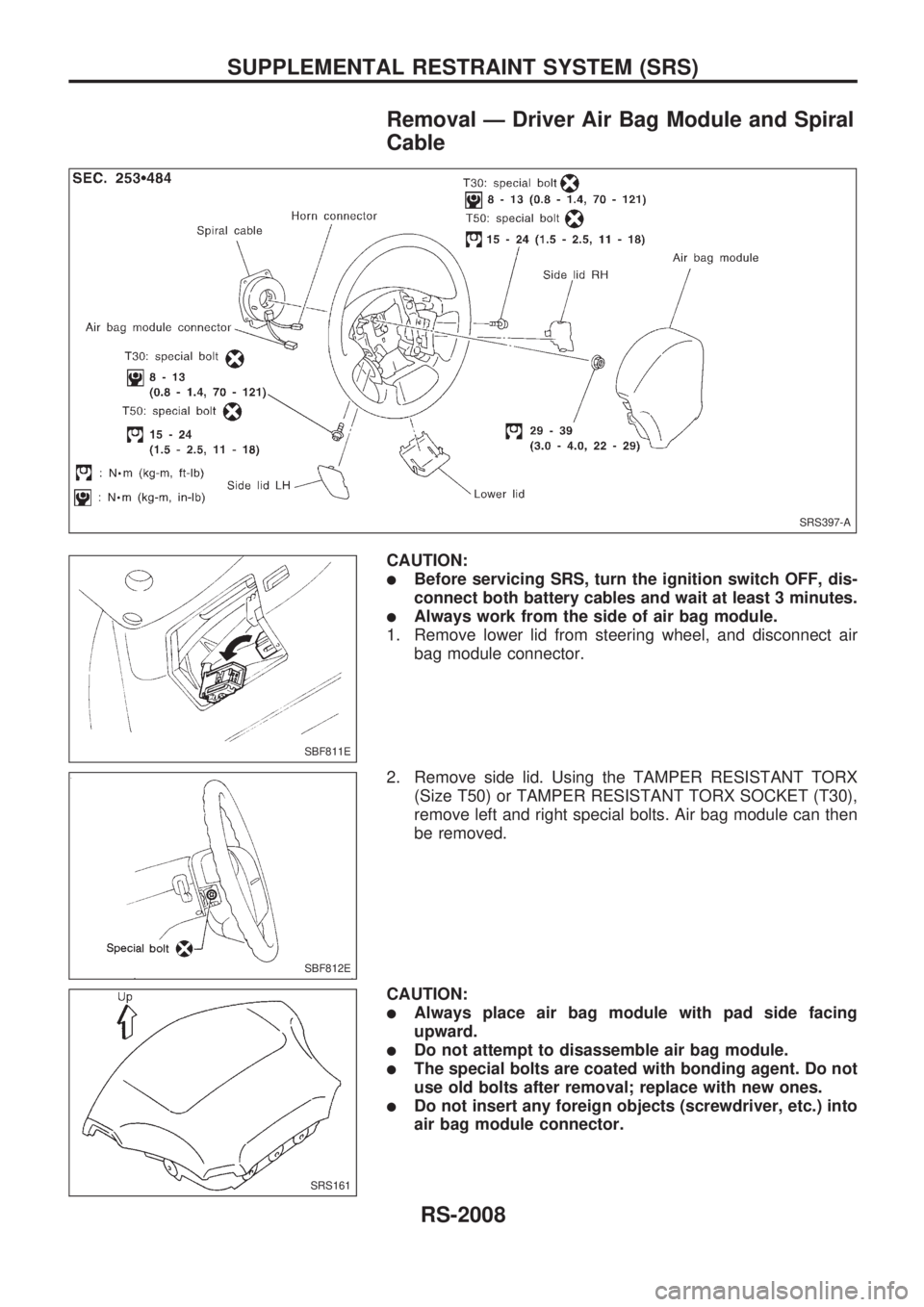

Removal Ð Driver Air Bag Module and Spiral
Cable
CAUTION:
lBefore servicing SRS, turn the ignition switch OFF, dis-
connect both battery cables and wait at least 3 minutes.
lAlways work from the side of air bag module.
1. Remove lower lid from steering wheel, and disconnect air
bag module connector.
2. Remove side lid. Using the TAMPER RESISTANT TORX
(Size T50) or TAMPER RESISTANT TORX SOCKET (T30),
remove left and right special bolts. Air bag module can then
be removed.
CAUTION:
lAlways place air bag module with pad side facing
upward.
lDo not attempt to disassemble air bag module.
lThe special bolts are coated with bonding agent. Do not
use old bolts after removal; replace with new ones.
lDo not insert any foreign objects (screwdriver, etc.) into
air bag module connector.
SRS397-A
SBF811E
SBF812E
SRS161
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
