NISSAN PRIMERA 1999 Electronic Repair Manual

Models before VIN - P11U0548750
YEL213C
TIME
CONTROL
UNIT
To EL-THEFT-01
TRUNK
ROOM LAMP
SWITCHLUGGAGE
ROOM LAMP
SWITCH
THEFT
WARNING
HORN CLOSEDOPEN
CLOSEDOPEN: 4 door models
: 5 door hatchback models
: 5 door hatchback models and
wagon models
: Wagon models THEFT
WARNING
HORN
RELAY
THEFT WARNING SYSTEM
Wiring Diagram—THEFT—(Cont’d)
EL-319

Models before VIN - P11U0548750
YEL928C
THEFT WARNING SYSTEM
Wiring Diagram—THEFT—(Cont’d)
EL-320

Models before VIN - P11U0548750
YEL929C
THEFT WARNING SYSTEM
Wiring Diagram—THEFT—(Cont’d)
EL-321

Models after VIN - P11U0548750
YEL930C
THEFT WARNING SYSTEM
Wiring Diagram—THEFT—(Cont’d)
EL-322

Models after VIN - P11U0548750
YEL931C
THEFT WARNING SYSTEM
Wiring Diagram—THEFT—(Cont’d)
EL-323

Models after VIN - P11U0548750
YEL932C
THEFT WARNING SYSTEM
Wiring Diagram—THEFT—(Cont’d)
EL-324

YEL933C
THEFT WARNING SYSTEM
Wiring Diagram—THEFT—(Cont’d)
EL-325

YEL934C
THEFT WARNING SYSTEM
Wiring Diagram—THEFT—(Cont’d)
EL-326

YEL935C
THEFT WARNING SYSTEM
Wiring Diagram—THEFT—(Cont’d)
EL-327

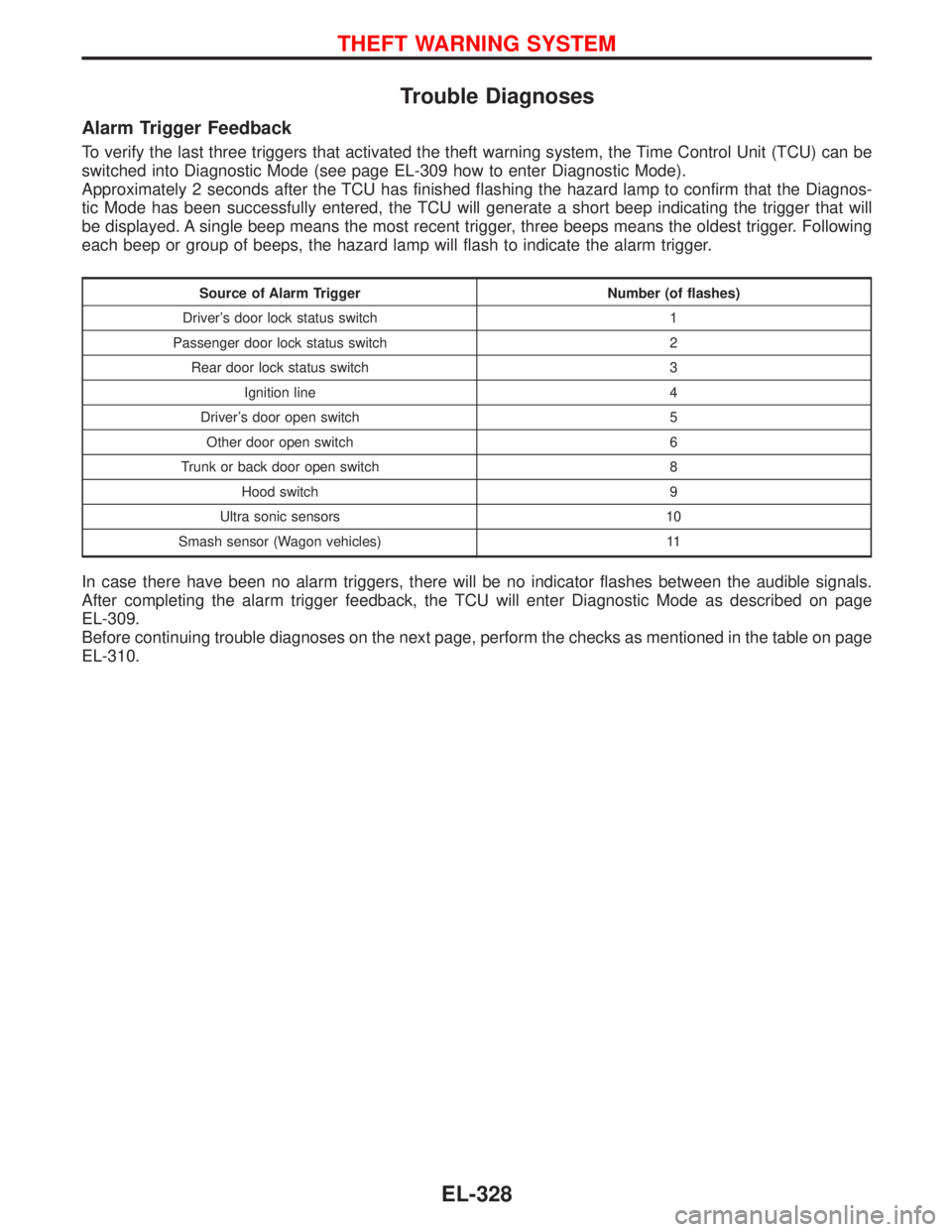

Trouble Diagnoses
Alarm Trigger Feedback
To verify the last three triggers that activated the theft warning system, the Time Control Unit (TCU) can be
switched into Diagnostic Mode (see page EL-309 how to enter Diagnostic Mode).
Approximately 2 seconds after the TCU has finished flashing the hazard lamp to confirm that the Diagnos-
tic Mode has been successfully entered, the TCU will generate a short beep indicating the trigger that will
be displayed. A single beep means the most recent trigger, three beeps means the oldest trigger. Following
each beep or group of beeps, the hazard lamp will flash to indicate the alarm trigger.
Source of Alarm Trigger Number (of flashes)
Driver’s door lock status switch 1
Passenger door lock status switch 2
Rear door lock status switch 3
Ignition line 4
Driver’s door open switch 5
Other door open switch 6
Trunk or back door open switch 8
Hood switch 9
Ultra sonic sensors 10
Smash sensor (Wagon vehicles) 11
In case there have been no alarm triggers, there will be no indicator flashes between the audible signals.
After completing the alarm trigger feedback, the TCU will enter Diagnostic Mode as described on page
EL-309.
Before continuing trouble diagnoses on the next page, perform the checks as mentioned in the table on page
EL-310.
THEFT WARNING SYSTEM
EL-328
