NISSAN PRIMERA 1999 Electronic Repair Manual

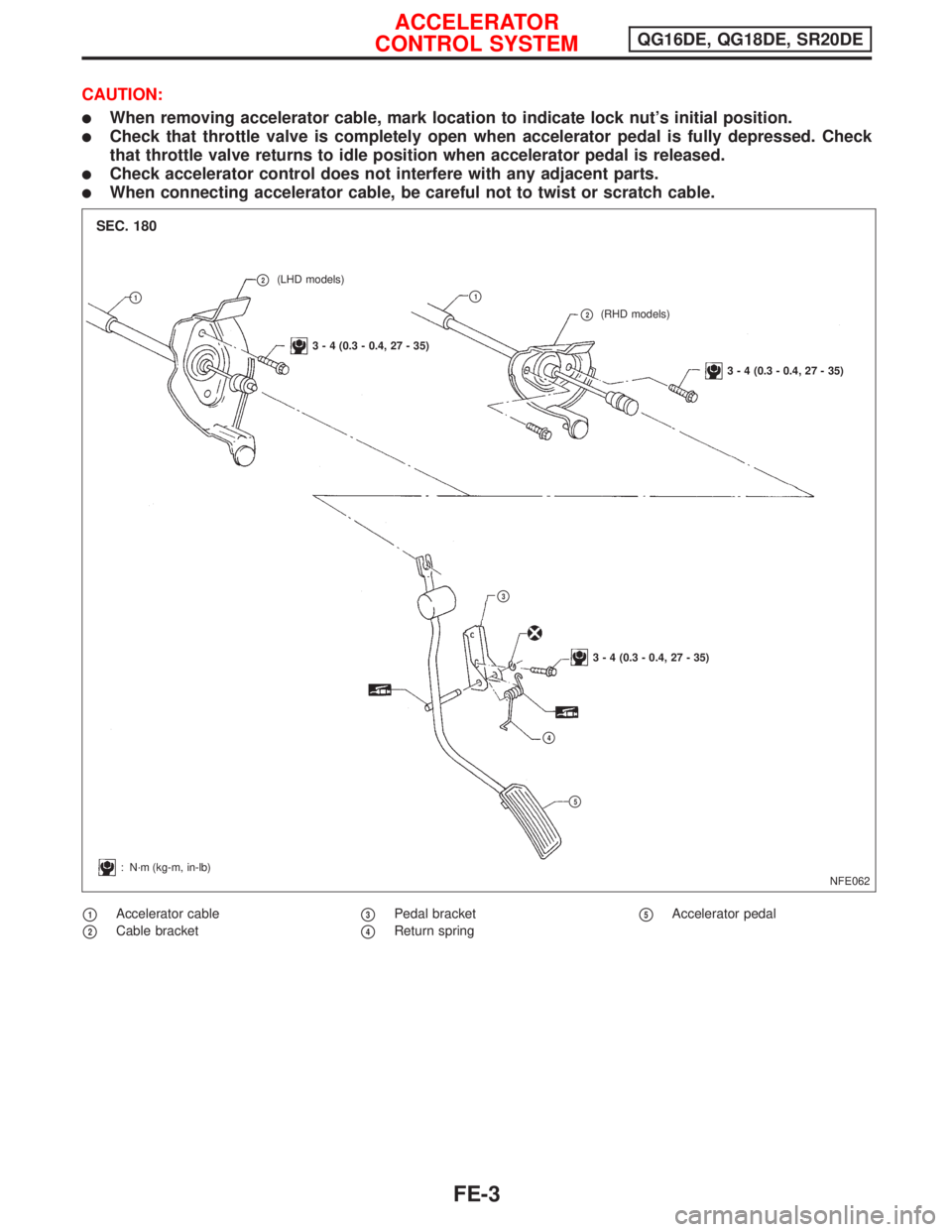

CAUTION:
lWhen removing accelerator cable, mark location to indicate lock nut's initial position.
lCheck that throttle valve is completely open when accelerator pedal is fully depressed. Check
that throttle valve returns to idle position when accelerator pedal is released.
lCheck accelerator control does not interfere with any adjacent parts.
lWhen connecting accelerator cable, be careful not to twist or scratch cable.
p1Accelerator cable
p2Cable bracketp3Pedal bracket
p4Return springp5Accelerator pedal
NFE062
SEC. 180
p1p2(LHD models)
p1
3 - 4 (0.3 - 0.4, 27 - 35)
3 - 4 (0.3 - 0.4, 27 - 35)
p2(RHD models)
p5
p4
3 - 4 (0.3 - 0.4, 27 - 35)
p3
: N´m (kg-m, in-lb)
ACCELERATOR
CONTROL SYSTEMQG16DE, QG18DE, SR20DE
FE-3

Adjusting Accelerator Cable
1. Loosen lock nut, and tighten adjusting nut until throttle drum
starts to move.
2. From that position turn back adjusting nut 1.5 to 2 turns, and
secure lock nut.
NFE020 Throttle drum
Accelerator
Adjusting nut Lock nut
8-11N´m
(0.8 - 1.1 kg-m,
71 - 97 in-lb)
ACCELERATOR
CONTROL SYSTEMQG16DE, QG18DE, SR20DE
FE-4

p1Pedal bracket
p2Accelerator position sensorp3Accelerator cable
p4Return springp5Accelerator pedal
lIf MIL illuminates after engine has started, refer to ªON
BOARD DIAGNOSTIC SYSTEM DESCRIPTIONº in EC
section for instructions.
NFE043
p1
p5
6 - 7 (0.61 - 0.71, 53.1 - 62.0)
p4
p3
p2
2.9 - 3.9 (0.30 - 0.40, 25.7 - 34.5)
SEC. 180
: Apply grease
: N´m (kg-m, in-lb)
: Do not re-use
2.9 - 3.9 (0.3 - 0.4, 25.7 - 34.5)
ACCELERATOR CONTROL SYSTEMCD20T
FE-5

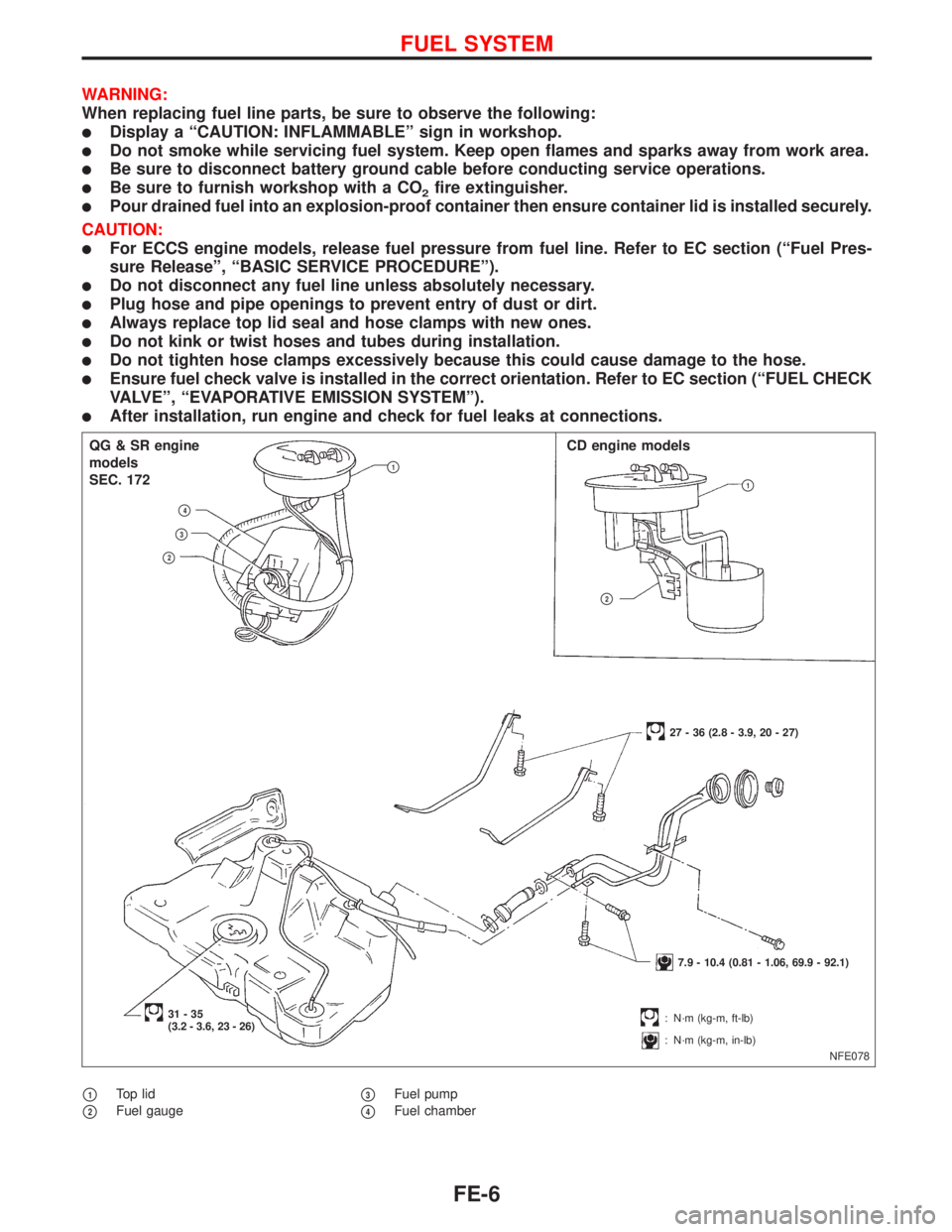

WARNING:
When replacing fuel line parts, be sure to observe the following:
lDisplay a ªCAUTION: INFLAMMABLEº sign in workshop.
lDo not smoke while servicing fuel system. Keep open flames and sparks away from work area.
lBe sure to disconnect battery ground cable before conducting service operations.
lBe sure to furnish workshop with a CO2fire extinguisher.
lPour drained fuel into an explosion-proof container then ensure container lid is installed securely.
CAUTION:
lFor ECCS engine models, release fuel pressure from fuel line. Refer to EC section (ªFuel Pres-
sure Releaseº, ªBASIC SERVICE PROCEDUREº).
lDo not disconnect any fuel line unless absolutely necessary.
lPlug hose and pipe openings to prevent entry of dust or dirt.
lAlways replace top lid seal and hose clamps with new ones.
lDo not kink or twist hoses and tubes during installation.
lDo not tighten hose clamps excessively because this could cause damage to the hose.
lEnsure fuel check valve is installed in the correct orientation. Refer to EC section (ªFUEL CHECK
VALVEº, ªEVAPORATIVE EMISSION SYSTEMº).
lAfter installation, run engine and check for fuel leaks at connections.
p1Top lid
p2Fuel gaugep3Fuel pump
p4Fuel chamber
NFE078
p1
QG & SR engine
models
SEC. 172
p4
p3
p2
CD engine models
p1
p2
27 - 36 (2.8 - 3.9, 20 - 27)
7.9 - 10.4 (0.81 - 1.06, 69.9 - 92.1)
31-35
(3.2 - 3.6, 23 - 26): N´m (kg-m, ft-lb)
: N´m (kg-m, in-lb)
FUEL SYSTEM
FE-6

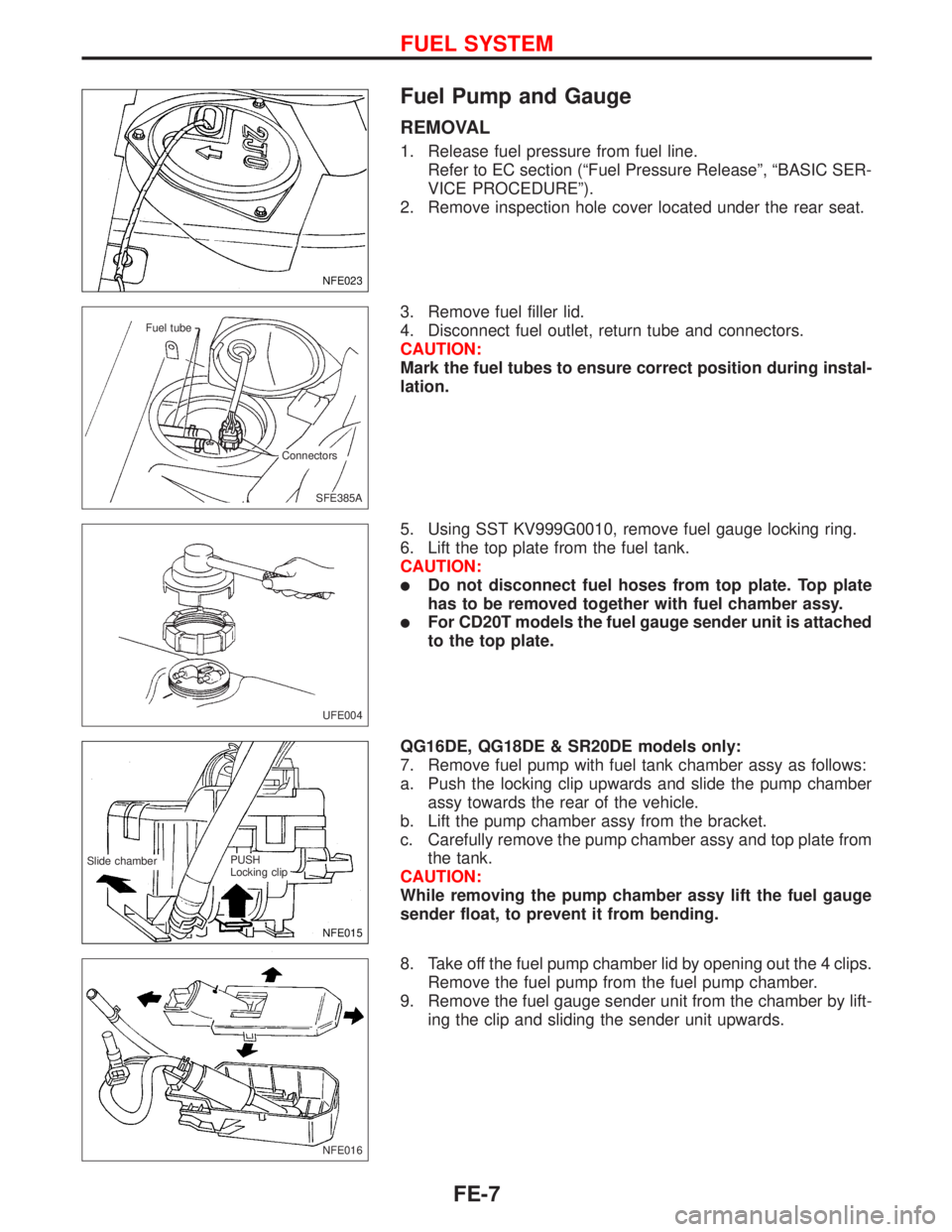

Fuel Pump and Gauge
REMOVAL
1. Release fuel pressure from fuel line.
Refer to EC section (ªFuel Pressure Releaseº, ªBASIC SER-
VICE PROCEDUREº).
2. Remove inspection hole cover located under the rear seat.
3. Remove fuel filler lid.
4. Disconnect fuel outlet, return tube and connectors.
CAUTION:
Mark the fuel tubes to ensure correct position during instal-
lation.
5. Using SST KV999G0010, remove fuel gauge locking ring.
6. Lift the top plate from the fuel tank.
CAUTION:
lDo not disconnect fuel hoses from top plate. Top plate
has to be removed together with fuel chamber assy.
lFor CD20T models the fuel gauge sender unit is attached
to the top plate.
QG16DE, QG18DE & SR20DE models only:
7. Remove fuel pump with fuel tank chamber assy as follows:
a. Push the locking clip upwards and slide the pump chamber
assy towards the rear of the vehicle.
b. Lift the pump chamber assy from the bracket.
c. Carefully remove the pump chamber assy and top plate from
the tank.
CAUTION:
While removing the pump chamber assy lift the fuel gauge
sender float, to prevent it from bending.
8. Take off the fuel pump chamber lid by opening out the 4 clips.
Remove the fuel pump from the fuel pump chamber.
9. Remove the fuel gauge sender unit from the chamber by lift-
ing the clip and sliding the sender unit upwards.
NFE023
SFE385A Fuel tube
Connectors
UFE004
NFE015
.Slide chamber.PUSH
Locking clip
NFE016
FUEL SYSTEM
FE-7

INSTALLATION
Installation is reverse procedure of removal.
CAUTION:
lAlways use a new top plate seal.
lUse the alignment marks to position the top plate.
lTighten to specified torque.
FUEL SYSTEM
Fuel Pump and Gauge (Cont'd)
FE-8

CAUTION:
lAlways replace exhaust gaskets with new ones when
reassembling.
Scrape off all residue of old gasket from flange surface.
lWith engine running, check all tube connections for
exhaust gas leaks, and entire system for unusual noises.
lAfter installation, check to ensure that mounting brack-
ets and mounting insulators are free from undue stress.
If any of the above parts are not installed properly,
excessive noise or vibration may be transmitted to the
vehicle body.
SFE180A
NFE079
QG engine models
SEC. 200×208
12.7 - 15.7 (1.30 - 1.60, 9.4 11.6)
51.0 - 64.7 (5.20 - 6.60,
37.6 - 47.7)
30-35
(3.1 - 3.5,
23 - 25)
5.1 - 6.4
(0.52 - 0.65,
45.1 - 56.6)
Gasket
Gasket
Gasket
51.0 - 64.7 (5.20 - 6.60, 37.6 - 47.7)
36.3 - 45.1 (3.7 - 4.6, 26.8 - 33.3)Gasket
12.7 - 15.7 (1.30 - 1.60, 9.4 - 11.6)
: N´m (kg-m, ft-lb)
: N´m (kg-m, in-lb)
: Do not re-use
5.1 - 6.4 (0.52 - 0.65, 45.1 - 56.6)
5.1 - 6.4
(0.52 - 0.65,
45.1 - 56.6)
40-60
(4.1 - 6.1,
30 - 44)
Catalyst
Without catalyst
EXHAUST SYSTEM
FE-9

NFE080

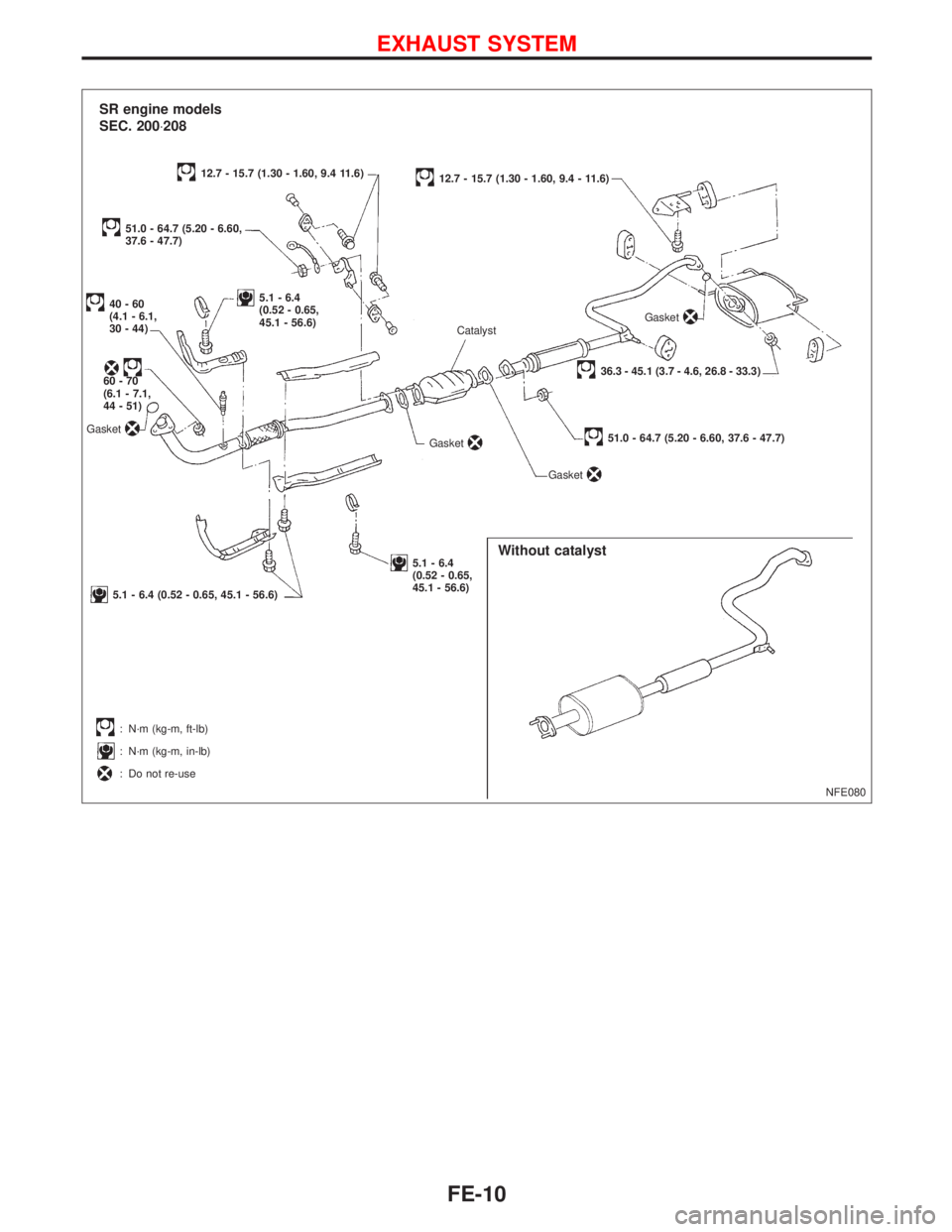

SR engine models
SEC. 200×208
12.7 - 15.7 (1.30 - 1.60, 9.4 11.6)
51.0 - 64.7 (5.20 - 6.60,
37.6 - 47.7)
60-70
(6.1 - 7.1,
44 - 51)
5.1 - 6.4
(0.52 - 0.65,
45.1 - 56.6)
Gasket
Gasket
Gasket
51.0 - 64.7 (5.20 - 6.60, 37.6 - 47.7)
36.3 - 45.1 (3.7 - 4.6, 26.8 - 33.3)Gasket
12.7 - 15.7 (1.30 - 1.60, 9.4 - 11.6)
: N´m (kg-m, ft-lb)
: N´m (kg-m, in-lb)
: Do not re-use
5.1 - 6.4 (0.52 - 0.65, 45.1 - 56.6)
5.1 - 6.4
(0.52 - 0.65,
45.1 - 56.6)
40-60
(4.1 - 6.1,
30 - 44)
Catalyst
Without catalyst
EXHAUST SYSTEM
FE-10

NFE077
CD engine model
SEC. 200×208
Gasket
51.0 - 64.7
(5.20 - 6.60,
37.6 - 47.7)
60.0 - 70.0
(6.12 - 7.14,
44.3 - 51.6)Gasket
12.7 - 15.7
(1.30 - 1.60, 9.4 - 11.6)
Gasket
36.3 - 45.1
(3.7 - 4.6, 26.8 - 33.3)
12.7 - 15.7 (1.30 - 1.60, 9.4 - 11.6)
: N´m (kg-m, ft-lb)
: N´m (kg-m, in-lb)
: Do not re-use
EXHAUST SYSTEM
FE-11
