NISSAN TEANA 2008 Service Manual

DRIVER SEAT CONTROL UNIT
ADP-115
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
K
L
MA
B
ADP
N
O
P
17
(LG/B)GroundLifting switch (front) down
signalInputLifting switch
(front)Operate
(down)0
Release Battery voltage
18
(LG/R)GroundLifting switch (front) up sig-
nalInputSeat lifting switch
(front)Operate
(up)0
Release Battery voltage
19
(G/Y)Ground Sliding sensor signal Input Seat slidingOperate
Stop 0 or 5
20
(R/Y)Ground Reclining sensor signal Input Seat recliningOperate
Stop 0 or 5
21
(L/Y)Ground Lifting sensor (rear) signal Input Seat lifting (rear)Operate
Stop 0 or 5
22
(BR/Y)Ground Lifting sensor (front) signal Input Seat lifting (front)Operate
Stop 0 or 5
23
(P)—CAN-H — — —
24
(P/L)—CAN-L — — —
25
(G/O)Ground Memory indictor 1 signal Output Memory indictor 1Illuminate 1
Other than above Battery voltage
26
(L/O)Ground Memory indictor 2 signal Output Memory indictor 2Illuminate 1
Other than above Battery voltage Te r m i n a l N o .
(wire color)Description
ConditionVoltage (V)
(Approx)
+ - Signal nameInput/
Output
JMJIA0119ZZ
JMJIA0119ZZ
JMJIA0119ZZ
JMJIA0119ZZ

ADP-116
< ECU DIAGNOSIS >
DRIVER SEAT CONTROL UNIT
27
(LG)Ground Memory switch 1 signal Input Memory switch 1Press 0
Other than above 5
28
(V/W)Ground Memory switch 2 signal Input Memory switch 2Press 0
Other than above 5
29
(O/L)Ground Set switch signal Input Set switchPress 0
Other than above 5
31
(W)Ground Sensor power supply Output — Battery voltage
35
(BY)Ground Ground — — 0 Te r m i n a l N o .
(wire color)Description
ConditionVoltage (V)
(Approx)
+ - Signal nameInput/
Output

DRIVER SEAT CONTROL UNIT
ADP-117
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
K
L
MA
B
ADP
N
O
P
Wiring Diagram - AUTOMATIC DRIVE POSITIONER CONTROL SYSTEM -
INFOID:0000000003759212
JCJWM0303GB

ADP-118
< ECU DIAGNOSIS >
DRIVER SEAT CONTROL UNIT
JCJWM0304GB

DRIVER SEAT CONTROL UNIT
ADP-119
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
K
L
MA
B
ADP
N
O
P
JCJWM0305GB

ADP-120
< ECU DIAGNOSIS >
DRIVER SEAT CONTROL UNIT

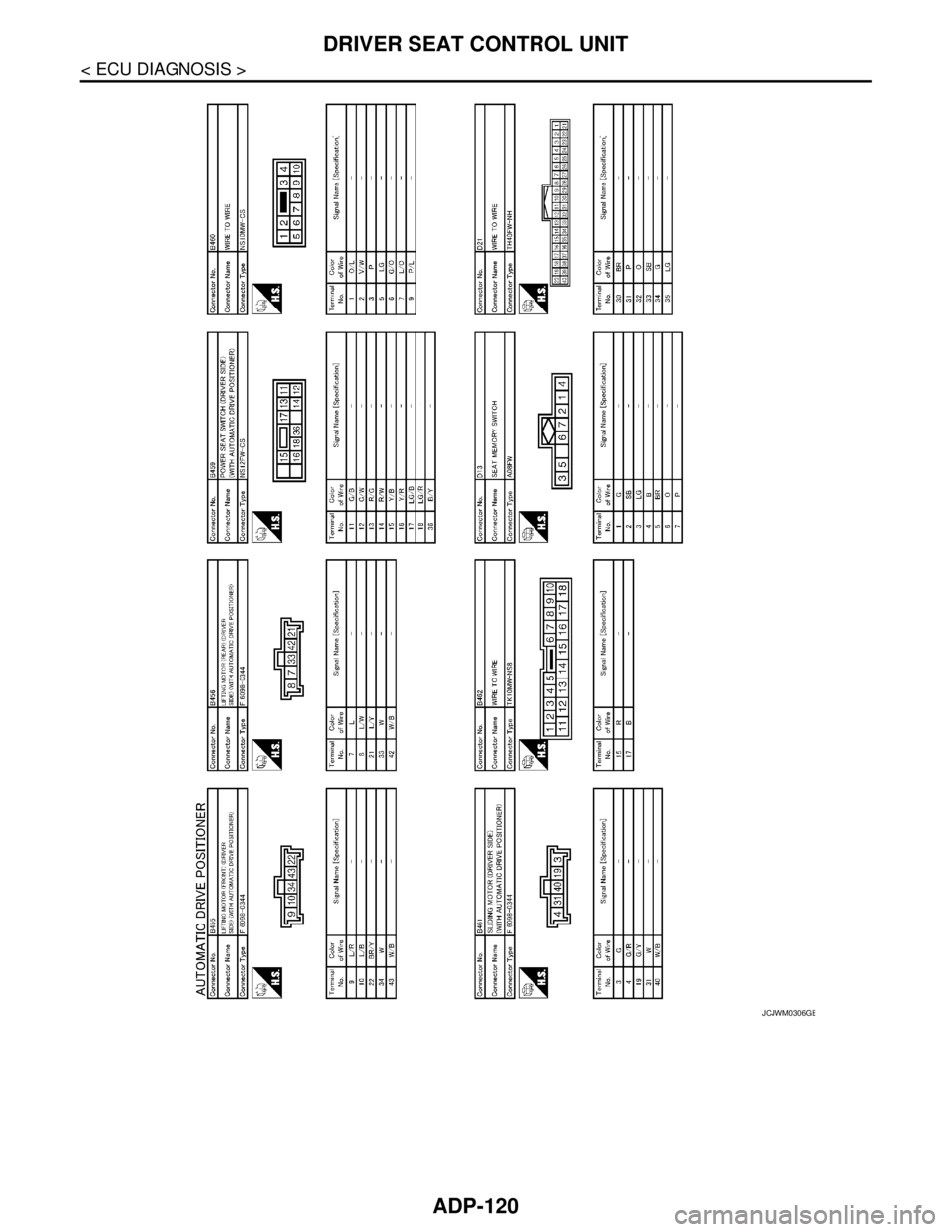

JCJWM0306GB

DRIVER SEAT CONTROL UNIT
ADP-121
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
K
L
MA
B
ADP
N
O
P

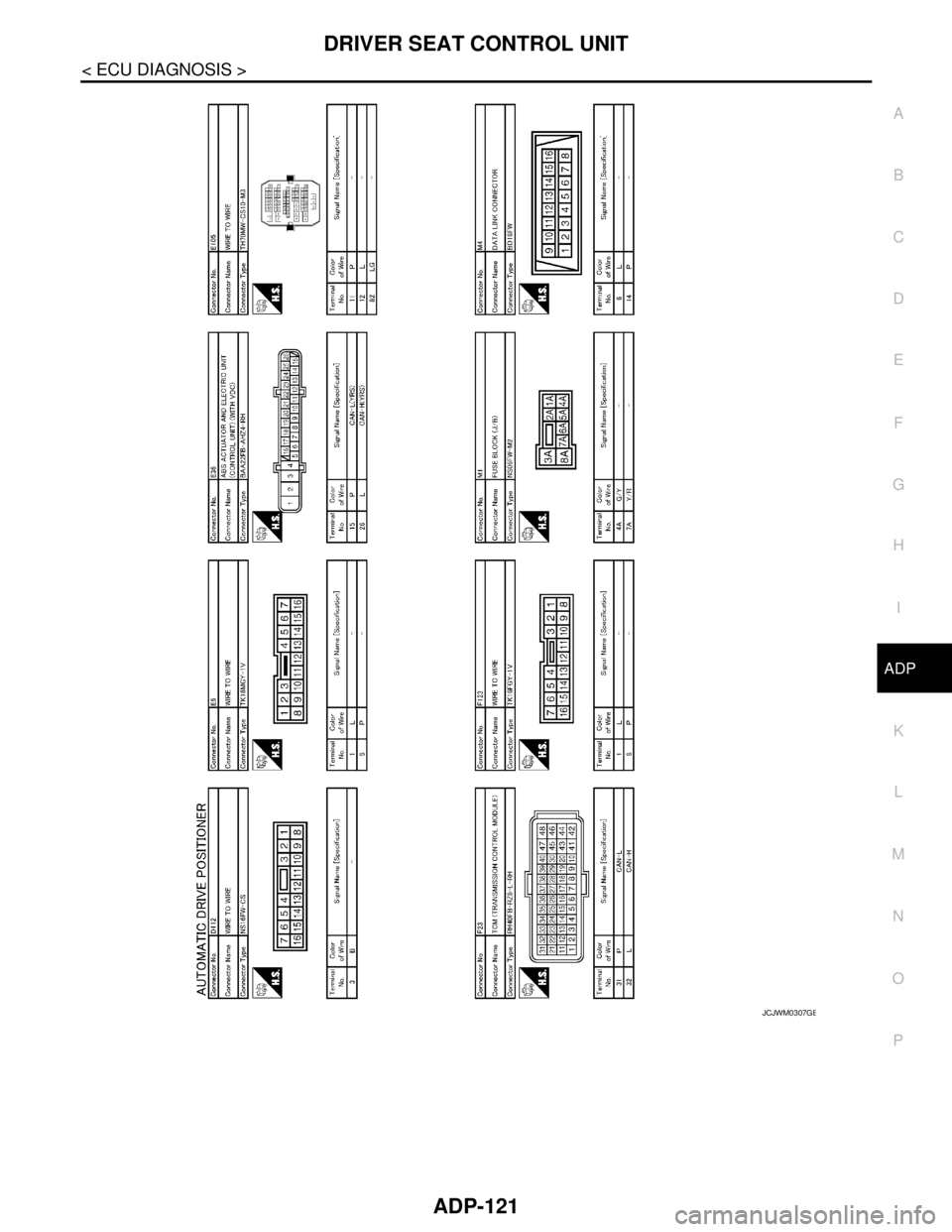

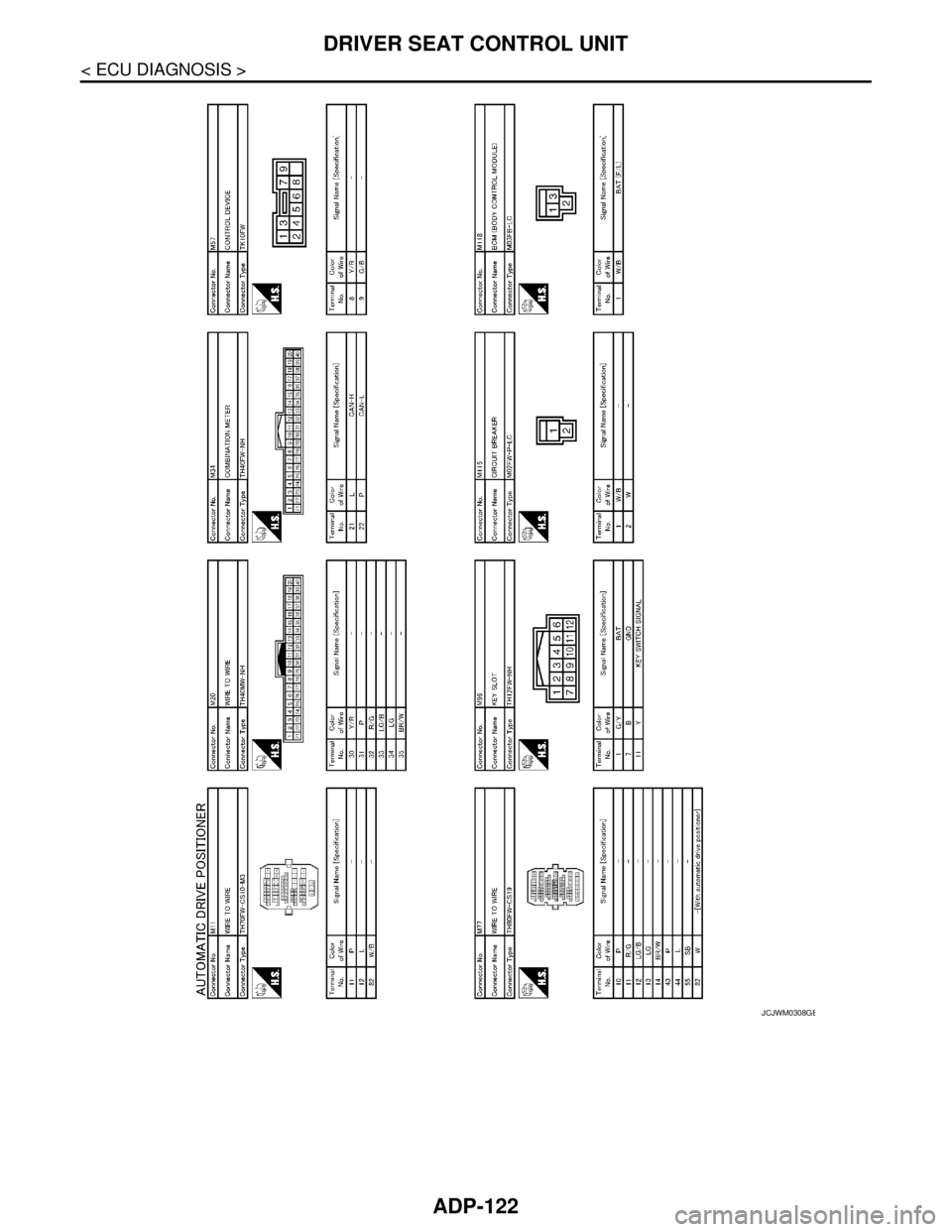

JCJWM0307GB

ADP-122
< ECU DIAGNOSIS >
DRIVER SEAT CONTROL UNIT

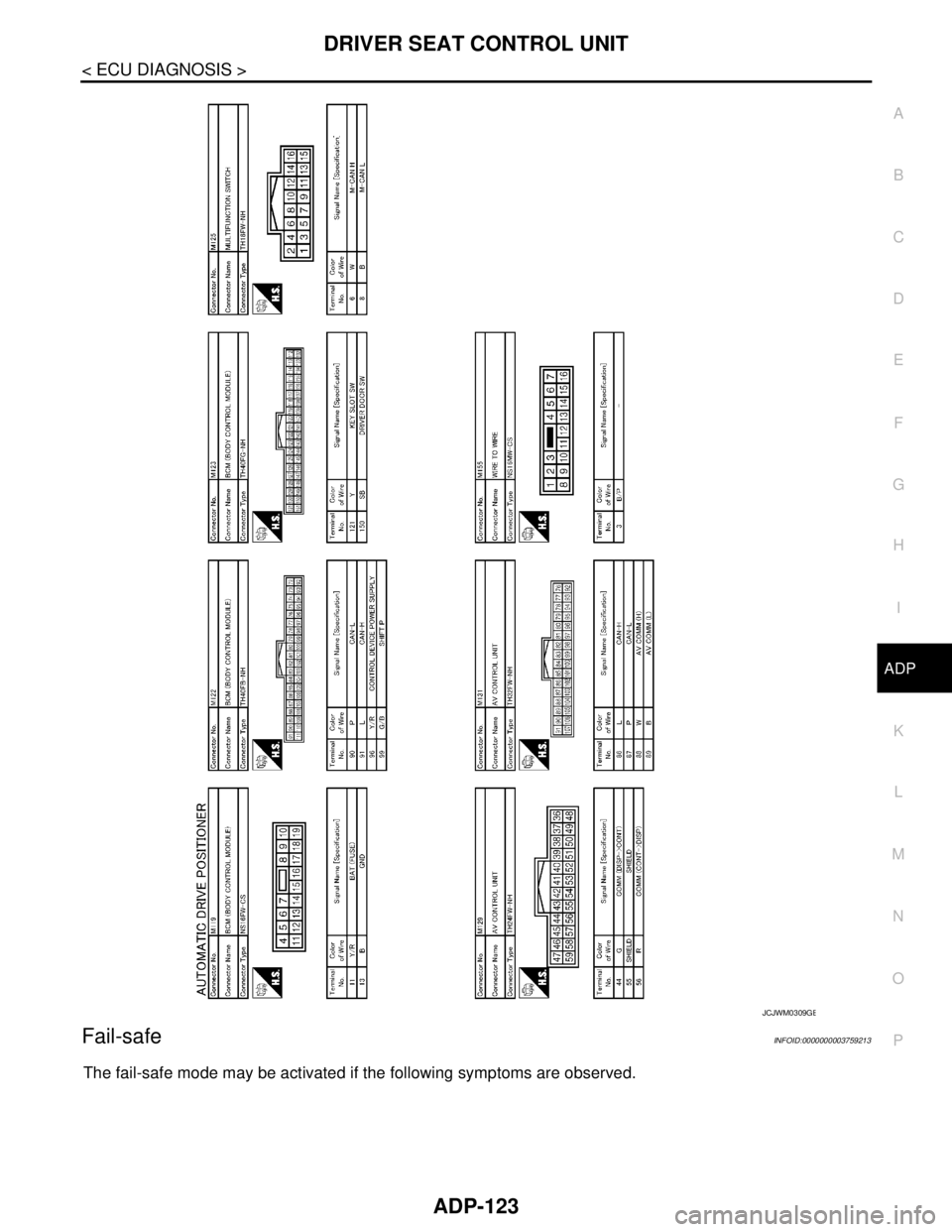

JCJWM0308GB

DRIVER SEAT CONTROL UNIT
ADP-123
< ECU DIAGNOSIS >
C
D
E
F
G
H
I
K
L
MA
B
ADP
N
O
P
Fail-safeINFOID:0000000003759213
The fail-safe mode may be activated if the following symptoms are observed.
JCJWM0309GB

ADP-124
< ECU DIAGNOSIS >
DRIVER SEAT CONTROL UNIT
DTC Index
INFOID:0000000003759214
*1:
 0: Current malfunction is present
 1-39: Displayed if any previous malfunction is present when current condition is normal. The numeral value increases by one at each
IGN ON to OFF cycle from 1 to 39. The counter remains at 39 even if the number of cycles exceeds it. However, the counter is reset
to 1 if any malfunction is detected again, the normal operation is resumed and the ignition switch is turned from OFF to ON. Operating in
fail-safe modeMalfunction ItemRelated
DTCDiagnosis
Only manual functions operate normallyCAN communication U1000ADP-38
CONTROL UNIT U1010ADP-39
EEPROM B2130ADP-40
Only manual functions, except seat sliding, operate normally Seat sliding output B2112ADP-41
Only manual functions, except seat reclining, operate normally Seat reclining output B2113ADP-43
CONSULT-III
displayTiming
*1
Item Reference page
Current mal-
functionPrevious mal-
function
CAN COMM CIRCUIT
[U1000]0 1-39 CAN communicationADP-38
CONTROL UNIT
[U1010]0 1-39 Control unitADP-39
SEAT SLIDE
[B2112]0 1-39 Seat slide motor outputADP-41
SEAT RECLINING
[B2113]0 1-39 Seat reclining motor outputADP-43
EEPROM
[B2130]0 1-39 EEPROMADP-40
