FRONT FOG LAMP AIMING ADJUSTMENT
A : Cutoff line
B : High illuminance area
H : Horizontal center line of front fog lamp
V : Vertical center line of front fog lamp
X : Cutoff line height

FRONT COMBINATION LAMP
EXL-343
< ON-VEHICLE REPAIR >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
ON-VEHICLE REPAIR
FRONT COMBINATION LAMP
Exploded ViewINFOID:0000000003773730
REMOVAL
DISASSEMBLY
Removal and InstallationINFOID:0000000003773731
REMOVAL
CAUTION:
Disconnect the battery negative terminal or remove the fuse.
1. Front combination lamp
JPLIA1087ZZ

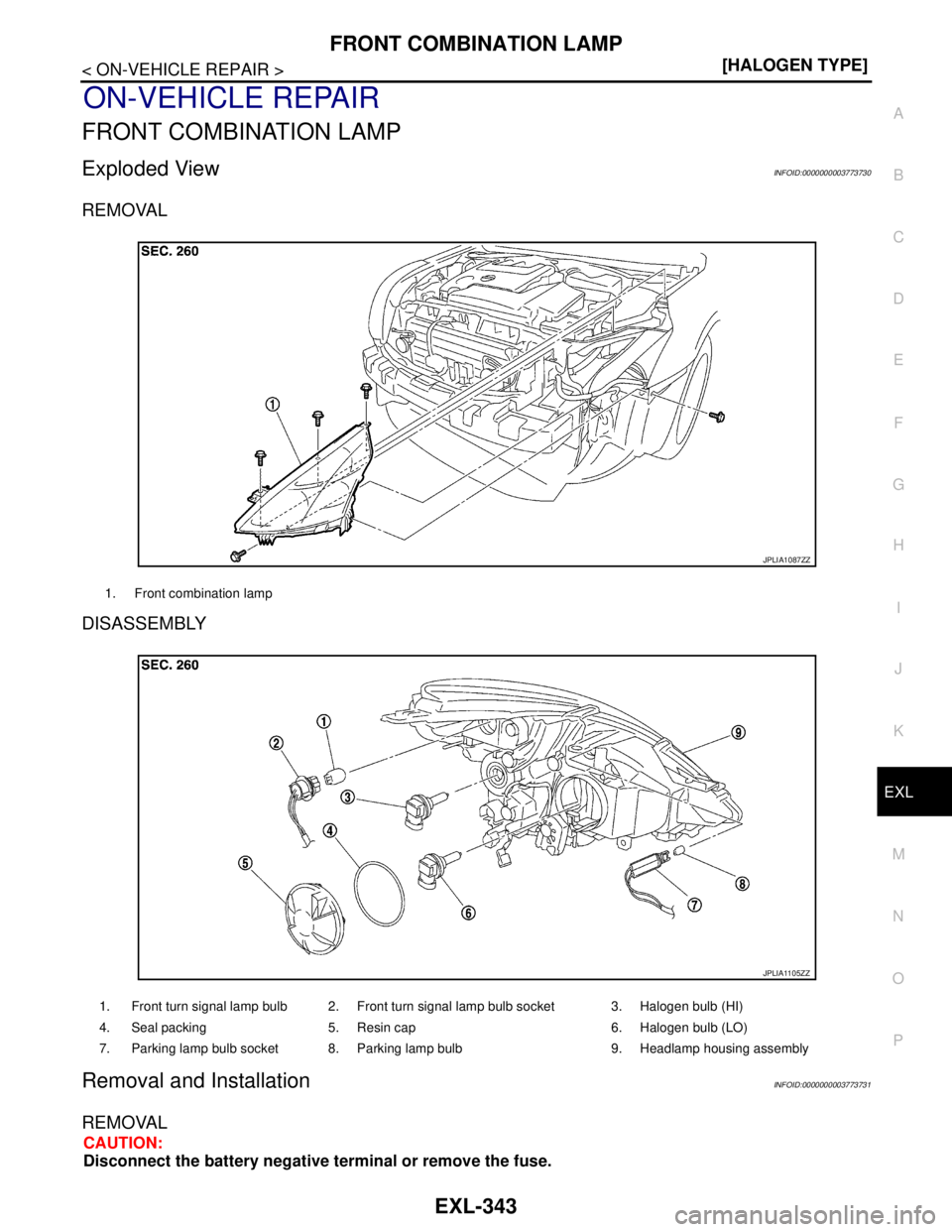

1. Front turn signal lamp bulb 2. Front turn signal lamp bulb socket 3. Halogen bulb (HI)
4. Seal packing 5. Resin cap 6. Halogen bulb (LO)
7. Parking lamp bulb socket 8. Parking lamp bulb 9. Headlamp housing assembly
JPLIA1105ZZ

EXL-344
< ON-VEHICLE REPAIR >[HALOGEN TYPE]
FRONT COMBINATION LAMP
1. Remove the front bumper fascia. Refer to EXT-11, "Exploded View".
2. Remove the headlamp mounting bolts.
3. Remove the harness clips from the headlamp housing.
4. Pull out the headlamp assembly forward the vehicle.
5. Disconnect the connector before removing the headlamp assembly.
INSTALLATION
Install in the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to EXL-336, "
Description".
ReplacementINFOID:0000000003773732
CAUTION:
 Disconnect the battery negative terminal or remove the fuse.
 After installing the bulb, install the resin cap and the bulb socket securely for watertightness.
 Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
 Never touch bulb by hand while it is lit or right after being turned off.
 Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect
the performance of lamp. When replacing bulb, be sure to replace it with new one.
HEADLAMP BULB (LO)
1. Remove the fender protector. Keep a service area. Refer to EXT-22, "FENDER PROTECTOR : Exploded
View".
2. Rotate the resin cap counterclockwise and unlock it.
3. Disconnect the headlamp bulb (LO) connector.
4. Rotate the bulb counterclockwise and unlock it.
5. Remove the bulb from the headlamp housing.
HEADLAMP BULB (HI)
1. Remove the fender protector. Keep a service area. Refer to EXT-22, "FENDER PROTECTOR : Exploded
View".
2. Disconnect the headlamp bulb (HI) connector.
3. Rotate the bulb counterclockwise and unlock it.
4. Remove the bulb from the headlamp housing.
PARKING LAMP BULB
1. Remove the fender protector. Keep a service area. Refer to EXT-22, "FENDER PROTECTOR : Exploded
View".
2. Rotate the parking lamp bulb socket counterclockwise and unlock it.
3. Remove the bulb from the parking lamp bulb socket.
FRONT TURN SIGNAL LAMP BULB
1. Remove the relay box cover*. Refer to PCS-34, "Exploded View".
*: When replace a left
2. Rotate the front turn signal lamp bulb socket counterclockwise and unlock it.
3. Remove the bulb from the front turn signal lamp bulb socket.
Disassembly and AssemblyINFOID:0000000003773733
DISASSEMBLY
1. Rotate the resin cap counterclockwise and unlock it
2. Disconnect the headlamp bulb (LO) connector.
3. Rotate the headlamp bulb (LO) counterclockwise and unlock it
4. Remove the bulb from the headlamp housing.
5. Rotate the headlamp bulb (HI) counterclockwise and unlock it

FRONT COMBINATION LAMP
EXL-345
< ON-VEHICLE REPAIR >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
6. Remove the bulb from the headlamp housing.
7. Rotate the parking lamp bulb socket counterclockwise and unlock it.
8. Remove the bulb from the parking lamp bulb socket.
9. Rotate the front turn signal lamp bulb socket counterclockwise and unlock it.
10. Remove the bulb from the front turn signal lamp bulb socket.
ASSEMBLY
Assemble in the reverse order of disassembly.

EXL-346
< ON-VEHICLE REPAIR >[HALOGEN TYPE]
FRONT FOG LAMP
FRONT FOG LAMP
Exploded ViewINFOID:0000000003894360
Removal and InstallationINFOID:0000000003894361
CAUTION:
Disconnect the battery negative terminal or remove the fuse.
REMOVAL
1. Remove the front fender protector. Keep a service area. Refer to EXT-22, "FENDER PROTECTOR :
Exploded View".
2. Remove the front fog lamp connector.
3. Remove the mounting nuts. And then remove the front fog lamp.
NOTE:
Never remove a front fog lamp bracket, when the front fog lamp is replaced.
INSTALLATION
Installation is the reverse order of removal.
NOTE:
After installation, perform aiming adjustment. Refer to EXL-341, "
Description".
ReplacementINFOID:0000000003894362
CAUTION:
 Disconnect the battery negative terminal or remove the fuse.
 Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.
Never touch bulb by hand while it is lit or right after being turned off.
 Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect
the performance of lamp. When replacing bulb, be sure to replace it with new one.
FRONT FOG LAMP BULB
1. Remove the front fender protector. Keep a service area. Refer to EXT-22, "FENDER PROTECTOR :
Exploded View".
1. Front fog lamp bracket 2. Front fog lamp
JPLIA1090ZZ

FRONT FOG LAMP
EXL-347
< ON-VEHICLE REPAIR >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
2. Remove the front fog lamp bulb connector (1).
3. Rotate the bulb (2) counterclockwise and unlock it.
JPLIA1091ZZ

EXL-348
< ON-VEHICLE REPAIR >[HALOGEN TYPE]
OPTICAL SENSOR
OPTICAL SENSOR
Exploded ViewINFOID:0000000003894363
Removal and InstallationINFOID:0000000003894364
REMOVAL
1. Insert an appropriate tool between the optical sensor and the speaker grille (RH). Pull out the optical sen-
sor upward.
2. Disconnect the optical sensor connector. And then remove the optical sensor.
INSTALLATION
Install in the reverse order of removal.
1. Optical sensor
JPLIA1092ZZ

LIGHTING & TURN SIGNAL SWITCH
EXL-349
< ON-VEHICLE REPAIR >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
LIGHTING & TURN SIGNAL SWITCH
Exploded ViewINFOID:0000000003894365
Removal and InstallationINFOID:0000000003894366
Lighting & turn signal switch is integrated in the combination switch. Refer to BCS-79, "Exploded View".

EXL-350
< ON-VEHICLE REPAIR >[HALOGEN TYPE]
HEADLAMP AIMING SWITCH
HEADLAMP AIMING SWITCH
Exploded ViewINFOID:0000000003773632
Removal and InstallationINFOID:0000000003773633
REMOVAL
1. Remove the instrument driver lower panel. Refer to IP-11, "Exploded View".
2. Disengage the pawls. And then remove the headlamp aiming switch.
INSTALLATION
Install in the reverse order of removal.
1. Headlamp aiming switch
A. Pawls
JPLIA1106ZZ

HAZARD SWITCH
EXL-351
< ON-VEHICLE REPAIR >[HALOGEN TYPE]
C
D
E
F
G
H
I
J
K
MA
B
EXL
N
O
P
HAZARD SWITCH
Exploded ViewINFOID:0000000003894367
Removal and InstallationINFOID:0000000003894368
REMOVAL
1. Remove the cluster lid D. Refer to IP-11, "Exploded View".
2. Disengage the pawls. And then remove the hazard switch.
INSTALLATION
Install in the reverse order of removal.
1. Hazard switch 2. Cluster lid D
A. Pawls
JPLIA1093ZZ
