NISSAN TEANA 2008 Service Manual

EXT-12
< ON-VEHICLE REPAIR >
FRONT BUMPER
Removal and Installation
INFOID:0000000003819530
REMOVAL
CAUTION:
Bumper fascia is made of resin. Never apply strong force to it, and be careful to prevent contact with
oil.
1. Fully open hood assembly.
2. Remove clips (A) of front bumper fascia upper side.
3. Remove front bumper fascia fixing screws (A) and clips (B) from
front bumper fascia lower side.
4. Disconnect front fog lamp harness connectors (LH/RH).
5. Disconnect headlamp washer tube connector. Refer to WW-97, "
Removal and Installation".
6. Remove fender protector fixing clips to access front bumper fas-
cia fixing screw (A), and then remove front bumper fascia fixing
screws (LH/RH).
16. Front fog lamp bracket RH 17. Front fog lamp bracket LH 18. Front fog lamp LH
19. Bumper upper retainer 20. Front fog lamp RH
JMKIA2517ZZ
JMKIA2518ZZ
JMKIA2519ZZ

FRONT BUMPER
EXT-13
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
L
MA
B
EXT
N
O
P
7. Pull bumper fascia side toward the vehicle side to disengage the
bumper fascia from bumper side brackets (LH/RH).
8. Disengage front bumper fascia from bumper brackets (A) (LH/
RH).
9. Remove bumper fascia assembly.
CAUTION:
When removing bumper fascia, 2 workers are required so as to prevent it from dropping.
10. Remove the following parts after removing bumper fascia.
 License plate bracket
 Front bumper retainer
 Front bumper molding (LH/RH)
 Headlamp washer nozzle (LH/RH). Refer to WW-102, "
Removal and Installation".
 Front fog lamps (LH/RH). Refer to EXL-183, "
Removal and Installation".
11. Remove bumper energy absorber.
12. Remove bumper reinforcement mounting nuts, and then remove bumper reinforcement with power tool.
13. Remove bumper stay (LH/RH) mounting bolts, and then remove bumper stay (LH/RH).
INSTALLATION
Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.
: Pawl
JMKIA2520ZZ
JMKIA2521ZZ
JMKIA2550ZZ
Portion Clearance Flush
Front bumper – Front grille A – A 3.5 – 8.5 mm (0.138 – 0.335 in) —
Front bumper – Hood B – B 3.7 – 8.3 mm (0.146 – 0.327 in) —

EXT-14
< ON-VEHICLE REPAIR >
FRONT BUMPER
Front bumper – Headlamp C – C 0.5 – 2.5 mm (0.020 – 0.098 in) —
Front bumper – Front fender D – D 0.0 – 0.7 mm (0.000 – 0.028 in)−0.3 – 1.7 mm (−0.012 – 0.067 in) Portion Clearance Flush

REAR BUMPER
EXT-15
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
L
MA
B
EXT
N
O
P
REAR BUMPER
Exploded ViewINFOID:0000000003819531

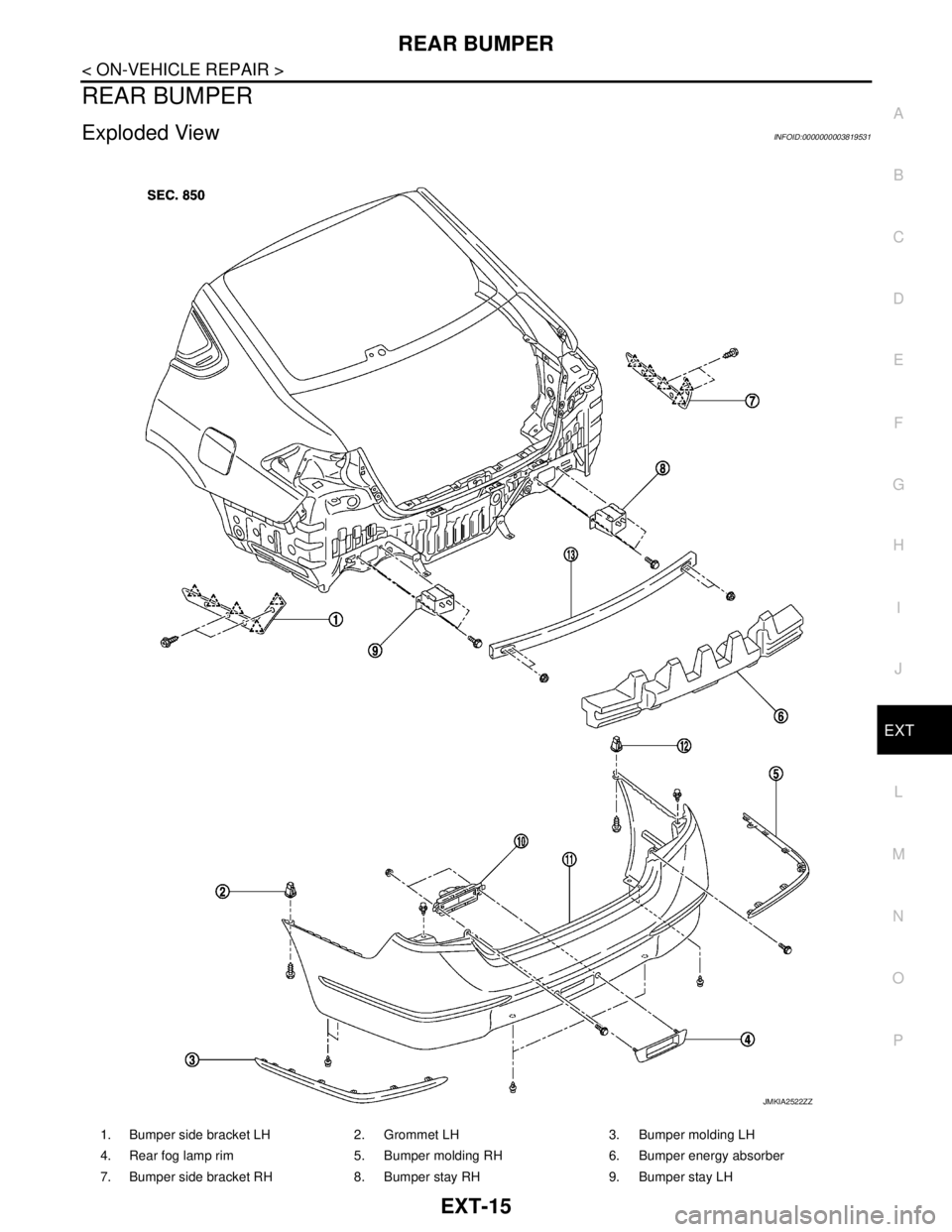

1. Bumper side bracket LH 2. Grommet LH 3. Bumper molding LH
4. Rear fog lamp rim 5. Bumper molding RH 6. Bumper energy absorber
7. Bumper side bracket RH 8. Bumper stay RH 9. Bumper stay LH
JMKIA2522ZZ

EXT-16
< ON-VEHICLE REPAIR >
REAR BUMPER
Removal and Installation
INFOID:0000000003819532
REMOVAL
CAUTION:
Bumper fascia is made of resin. Never apply strong force to it, and be careful to prevent contact with
oil.
1. Fully open trunk lid assembly.
2. Remove rear combination lamp (LH/RH). Refer to EXL-191, "
Removal and Installation".
3. Remove clips (A) and screws (B) located under rear combina-
tion lamp (LH/RH).
4. Remove screws (A) of bumper fascia underside.
5. Remove rear wheel house protector fixing clips (A) (LH/RH) and
remove rear bumper fascia fixing screws (B) (LH/RH).
10. Rear fog lamp 11. Rear bumper fascia assembly 12. Grommet RH
13. Bumper reinforcement
: Pawl
JMKIA2523ZZ
JMKIA2524ZZ
JMKIA2525ZZ

REAR BUMPER
EXT-17
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
L
MA
B
EXT
N
O
P
6. Pull rear bumper fascia side toward the vehicle side to disen-
gage the rear bumper fascia from bumper side bracket (LH/RH).
7. Disconnect rear fog lamp (1) harness connector (A).
8. Pull out bumper fascia toward rear of vehicle.
9. Remove bumper fascia assembly.
CAUTION:
When removing bumper fascia, 2 workers are required so as to prevent it from dropping.
10. Remove the following parts after removing bumper fascia.
 Rear fog lamp. Refer to EXL-194, "
Removal and Installation".
 Rear bumper molding (LH/RH).
11. Remove bumper energy absorber.
12. Remove bumper reinforcement mounting nuts, and then remove bumper reinforcement with power tool.
13. Remove rear bumper stay (LH/RH) mounting bolts, and then remove rear bumper stay (LH/RH).
INSTALLATION
Install in the reverse order of removal.
NOTE:
After installing, perform fitting adjustment.
: Pawl
JMKIA2526ZZ
JMKIA2527ZZ
JMKIA2551ZZ
Portion Clearance Flush
Rear bumper – Rear fender A – A 0.0 – 0.8 mm (0.000 – 0.031 in)−0.2 – 1.8 mm (−0.008 – 0.071 in)
Rear bumper – Rear com-
bination lampB – B 0.5 – 3.5 mm (0.020 – 0.138 in) —
Rear bumper – Trunk lid C – C 5.0 – 9.0 mm (0.197 – 0.354 in) —

EXT-18
< ON-VEHICLE REPAIR >
FRONT GRILLE
FRONT GRILLE
Exploded ViewINFOID:0000000003819533
Removal and InstallationINFOID:0000000003819534
REMOVAL
CAUTION:
Apply protection tape around outer circumference of front grille (bumper fascia side).
1. Fully open hood assembly.
2. Remove front grille mounting nuts (A).
3. Pull front grille out toward vehicle front.
4. Remove the following parts after removing front grille.
Front emblem
1. Front grille 2. Front emblem
: Pawl
JMKIA2528ZZ
JMKIA2529ZZ

FRONT GRILLE
EXT-19
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
L
MA
B
EXT
N
O
P
INSTALLATION
Install in the reverse order of removal.

EXT-20
< ON-VEHICLE REPAIR >
COWL TOP
COWL TOP
Exploded ViewINFOID:0000000003819535
Removal and InstallationINFOID:0000000003819536
REMOVAL
1. Fully open hood assembly.
2. Remove front fender covers (LH/RH). Refer to DLK-199, "
Removal and Installation"
3. Remove front wiper arms (LH/RH) from vehicle. Refer to WW-105, "Removal and Installation".
4. Remove cowl top cover seal.
5. Remove cowl top cover clips on cowl top cover front side.
1. Cowl top end rubber RH 2. Cowl top cover seal 3. Cowl top end rubber LH
4. Cowl top cover 5. EPT sealer 6. Cowl top cover clip
: Clip
Refer to GI-4, "
Components" for symbols in the figure.
JMKIA2655ZZ
PIIB2815J

COWL TOP
EXT-21
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
J
L
MA
B
EXT
N
O
P
6. Remove cowl top cover fixing clips on cowl top cover top side.
7. Remove cowl top end rubbers (LH/RH) from cowl top cover.
CAUTION:
 Replace double-faced adhesive tape on cowl top end rubber with a new tape if cowl top end rub-
ber is reused.
 To secure contact, never wash vehicle within 24 hours after installation.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
 After installing, perform adjustment of wiper arm. Refer to WW-105, "
Adjustment".
 Always replace cowl top cover EPT sealer on rear of vehicle with a new one when installing old cowl
top cover.
