NISSAN TEANA 2008 Service Manual

AV
DISPLAY UNIT
AV-137
< ECU DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
C
D
E
F
G
H
I
J
K
L
MB A
O
P

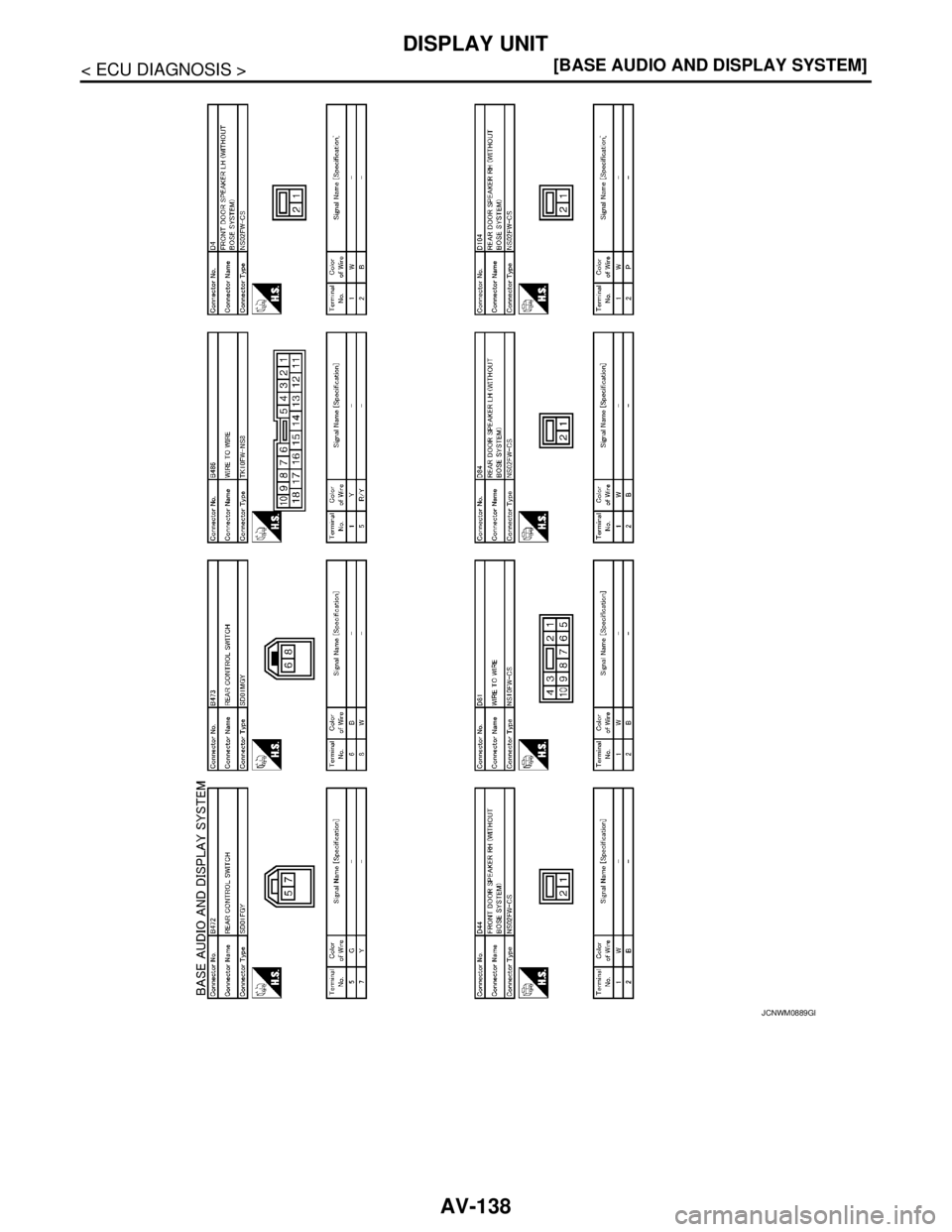

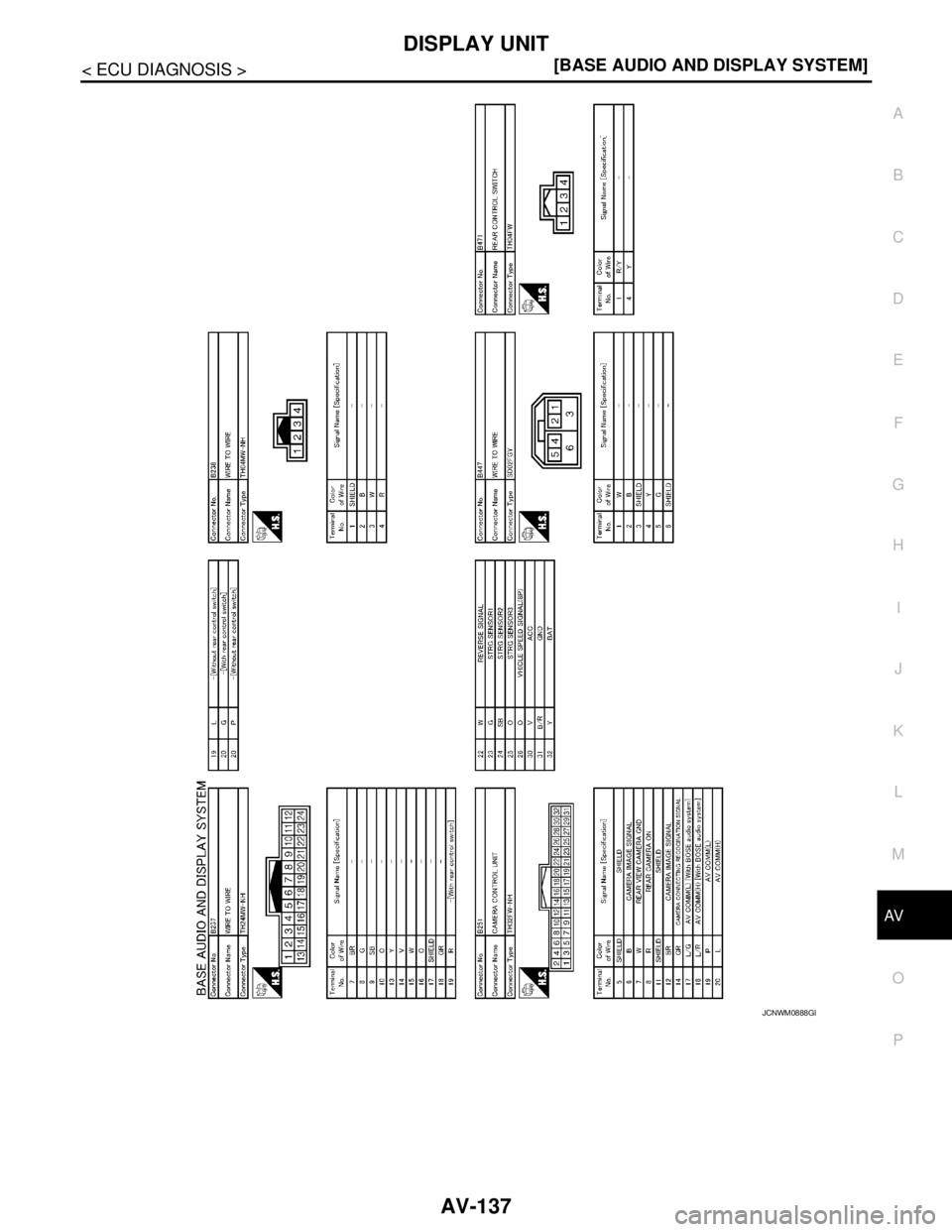

JCNWM0888GB

AV-138
< ECU DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
DISPLAY UNIT
JCNWM0889GB

AV
DISPLAY UNIT
AV-139
< ECU DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
C
D
E
F
G
H
I
J
K
L
MB A
O
P

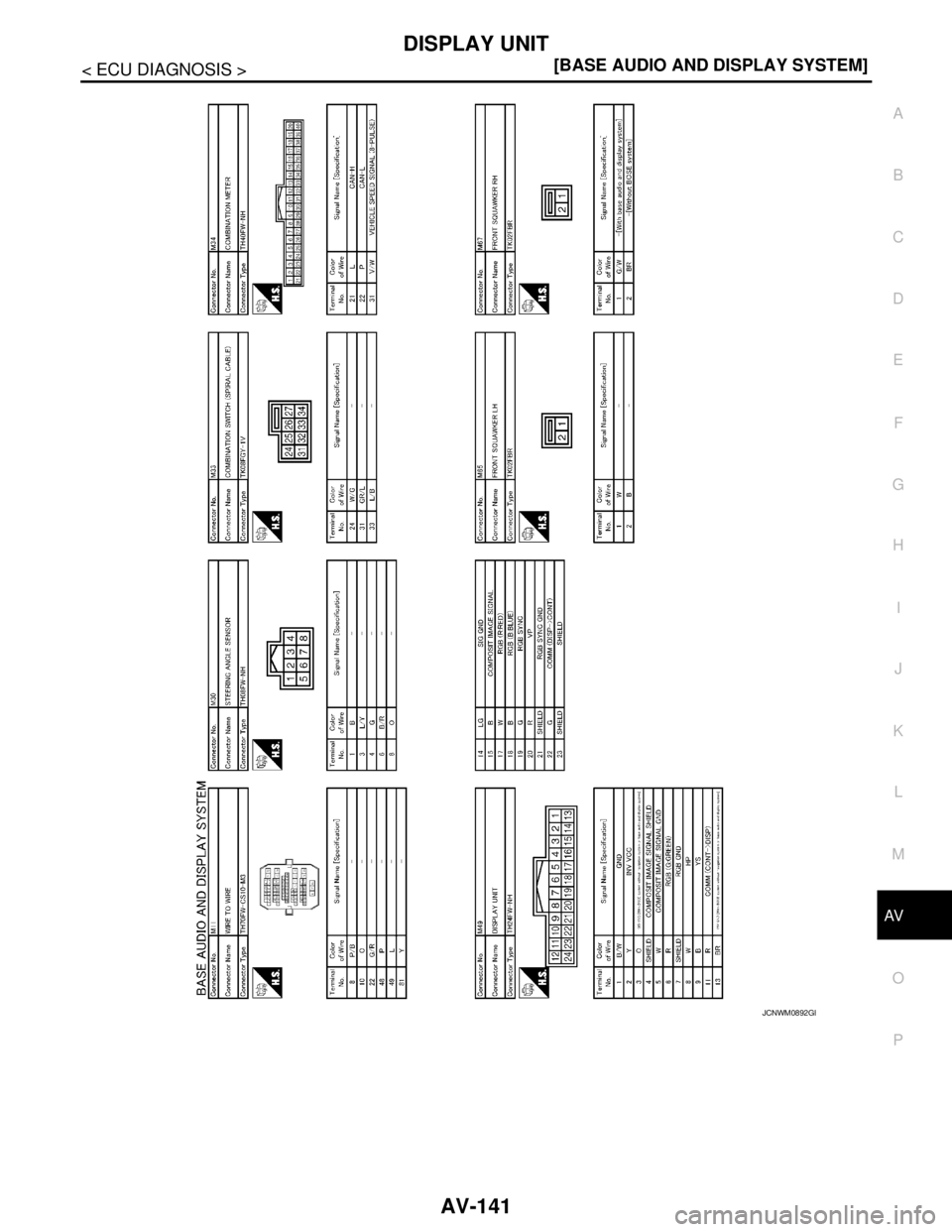

JCNWM0890GB

AV-140
< ECU DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
DISPLAY UNIT

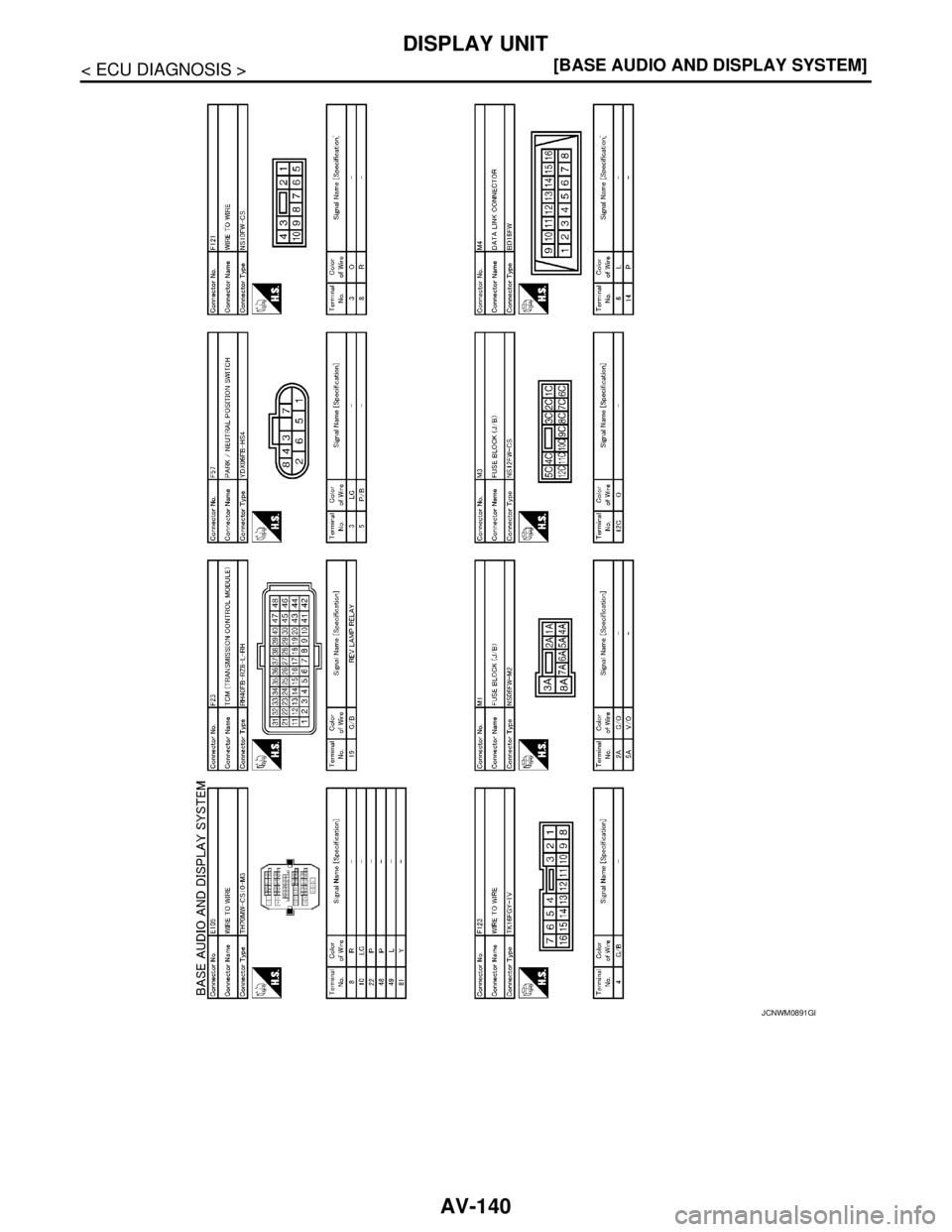

JCNWM0891GB

AV
DISPLAY UNIT
AV-141
< ECU DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
C
D
E
F
G
H
I
J
K
L
MB A
O
P

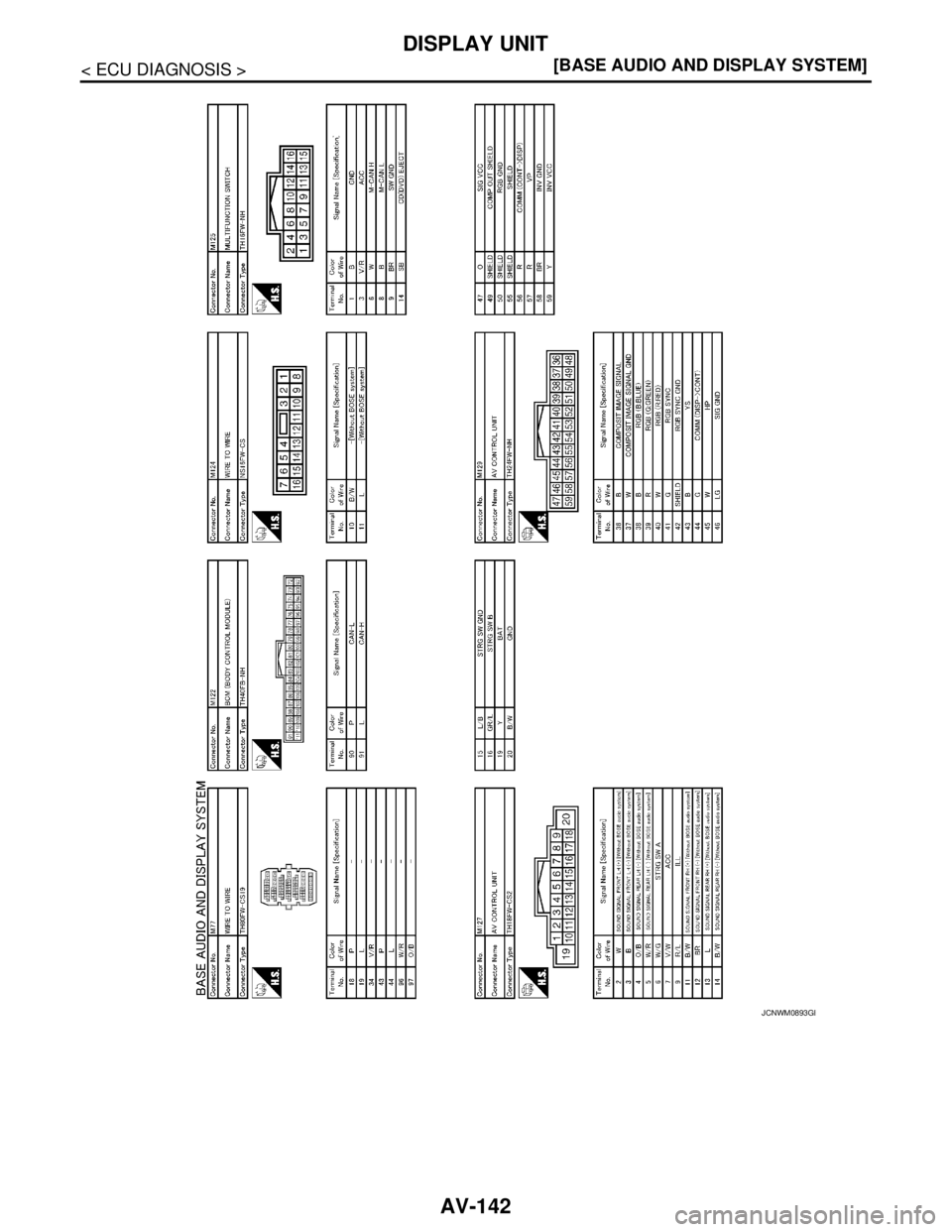

JCNWM0892GB

AV-142
< ECU DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
DISPLAY UNIT
JCNWM0893GB

AV
DISPLAY UNIT
AV-143
< ECU DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
C
D
E
F
G
H
I
J
K
L
MB A
O
P

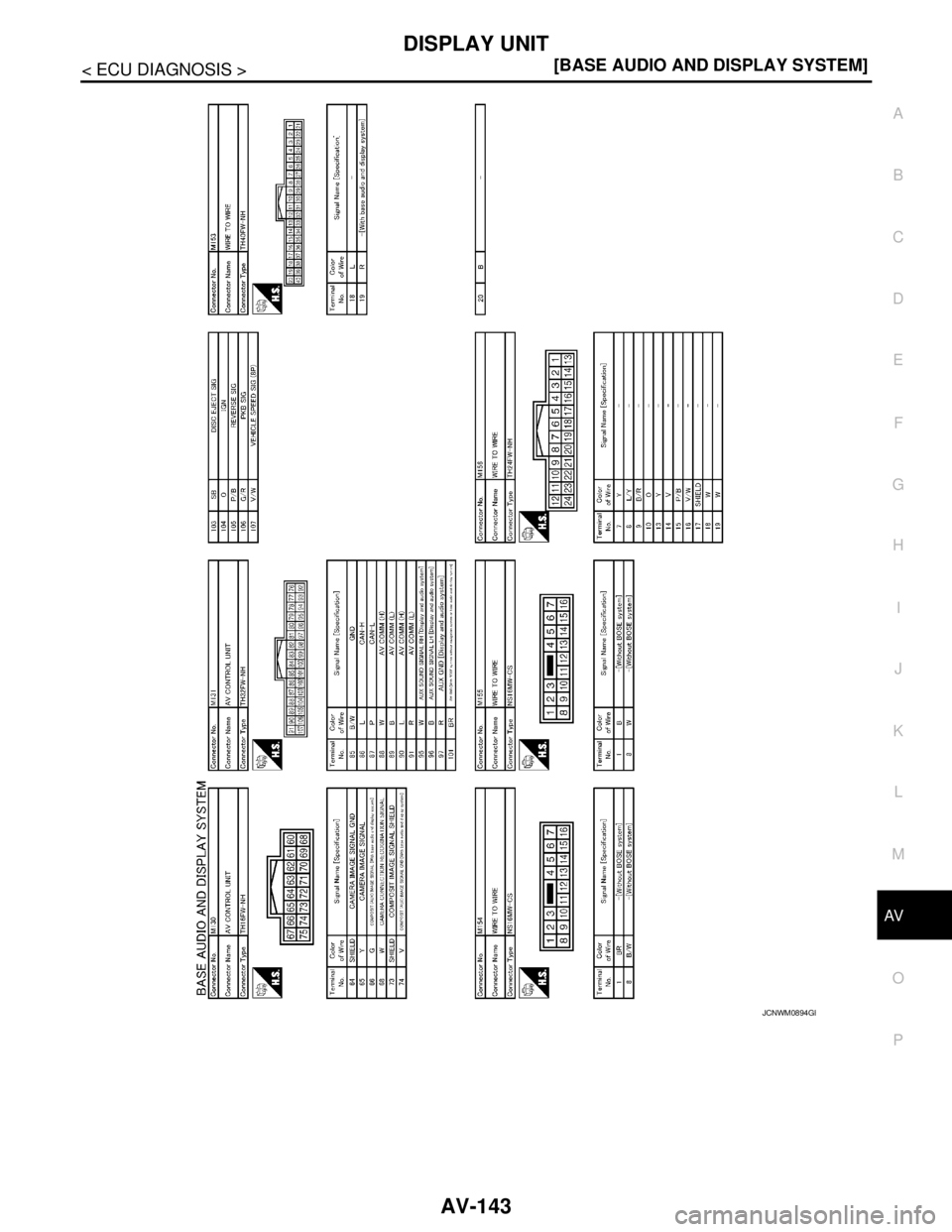

JCNWM0894GB

AV-144
< ECU DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
DISPLAY UNIT

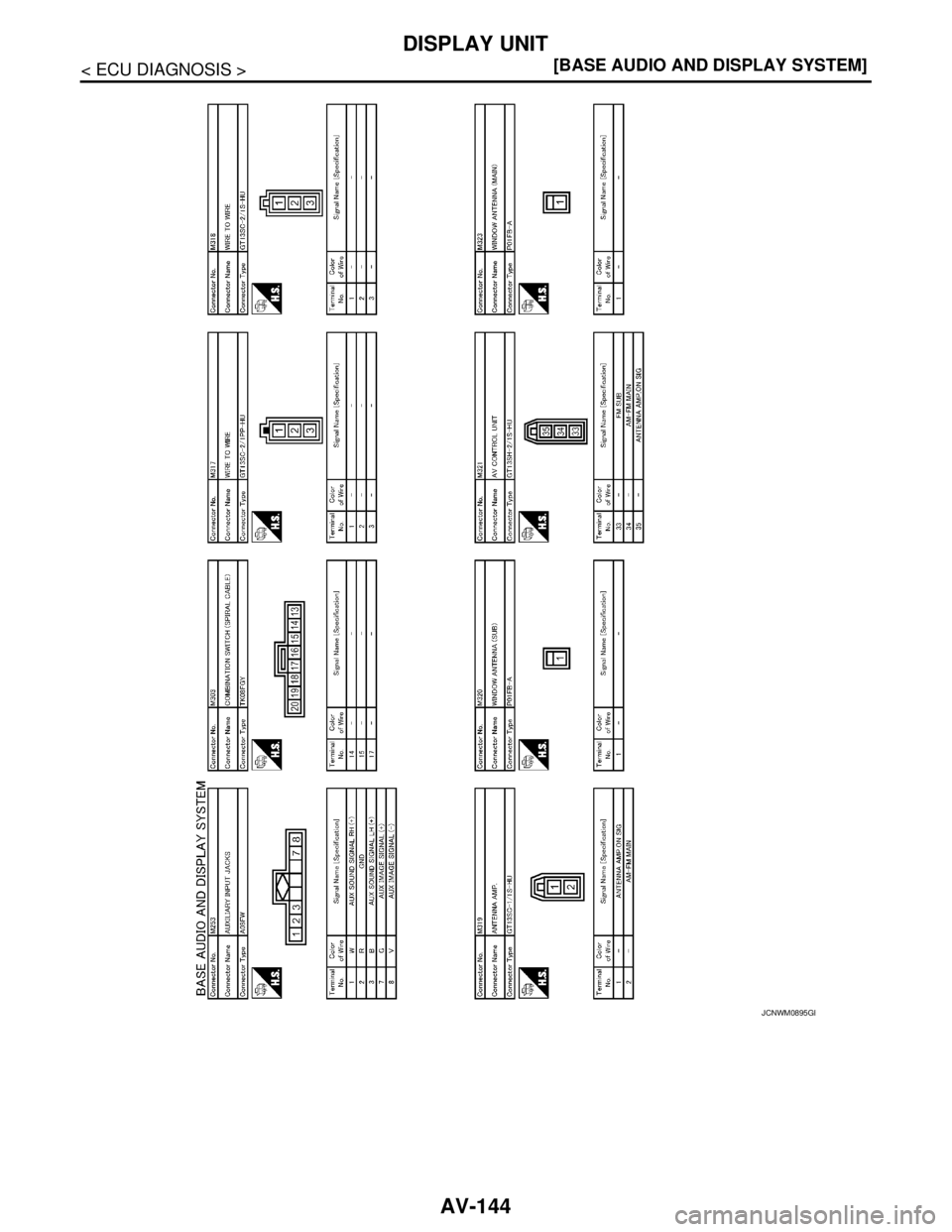

JCNWM0895GB

AV
DISPLAY UNIT
AV-145
< ECU DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
NOTE:
The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.

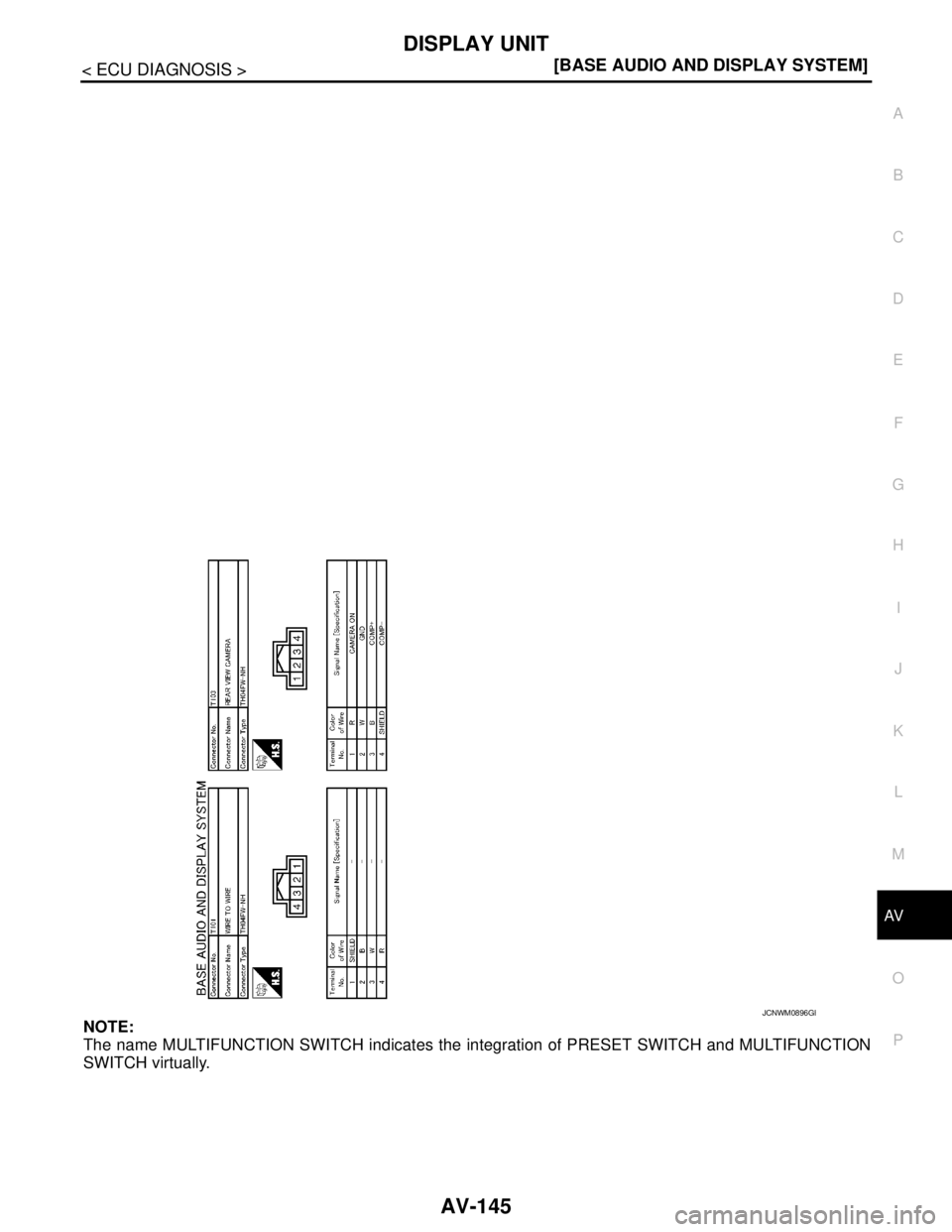

JCNWM0896GB

AV-146
< ECU DIAGNOSIS >[BASE AUDIO AND DISPLAY SYSTEM]

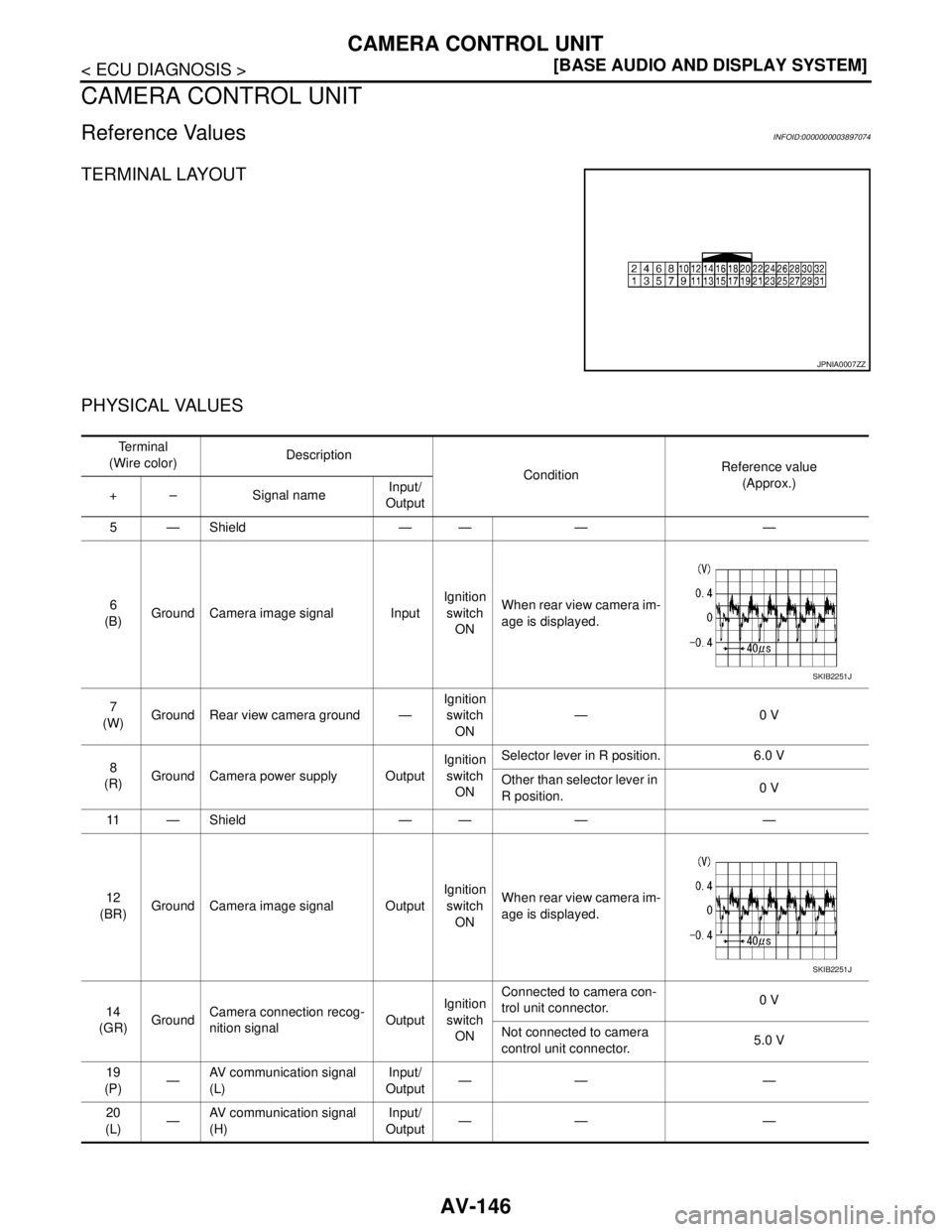

CAMERA CONTROL UNIT
CAMERA CONTROL UNIT
Reference ValuesINFOID:0000000003897074
TERMINAL LAYOUT
PHYSICAL VALUES
JPNIA0007ZZ
Terminal
(Wire color)Description
ConditionReference value
(Approx.)
+ – Signal nameInput/
Output
5—Shield —— — —
6
(B)Ground Camera image signal InputIgnition
switch
ONWhen rear view camera im-
age is displayed.
7
(W)Ground Rear view camera ground —Ignition
switch
ON—0 V
8
(R)Ground Camera power supply OutputIgnition
switch
ON Selector lever in R position. 6.0 V
Other than selector lever in
R position.0 V
11 — Shield — — — —
12
(BR)Ground Camera image signal OutputIgnition
switch
ONWhen rear view camera im-
age is displayed.
14
(GR)GroundCamera connection recog-
nition signalOutputIgnition
switch
ONConnected to camera con-
trol unit connector.0 V
Not connected to camera
control unit connector.5.0 V
19
(P)—AV communication signal
(L)Input/
Output—— —
20
(L)—AV communication signal
(H)Input/
Output—— —
SKIB2251J
SKIB2251J
