NISSAN TEANA 2008 Service Manual

INT-44
< ON-VEHICLE REPAIR >
REAR PARCEL SHELF FINISHER
5. From the trunk room, disconnect left side speaker harness connector located behind sunshade control
unit (1) and the right side rear tweeter harness connector (LH/RH) as shown in the figure below.
6. Hold from both sides the rear parcel shelf (1), pull it upward to
disengage the clips and then disconnect high-mounted stop
lamp harness connector (A) located on the left side only.
7. Pull rear parcel shelf finisher to remove it.
8. Remove the following parts after removing the rear parcel shelf.
 Rear tweeter. Refer to AV-654, "
Removal and Installation".
 High-mounted stop lamp. Refer to EXL-193, "
Removal and Installation".
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Check that clips are securely fitted in panel holes on body when installing, and then press them in.
JMJIA1781ZZ
JMJIA1782ZZ

REAR SUNSHADE
INT-45
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
K
L
MA
B
INT
N
O
P

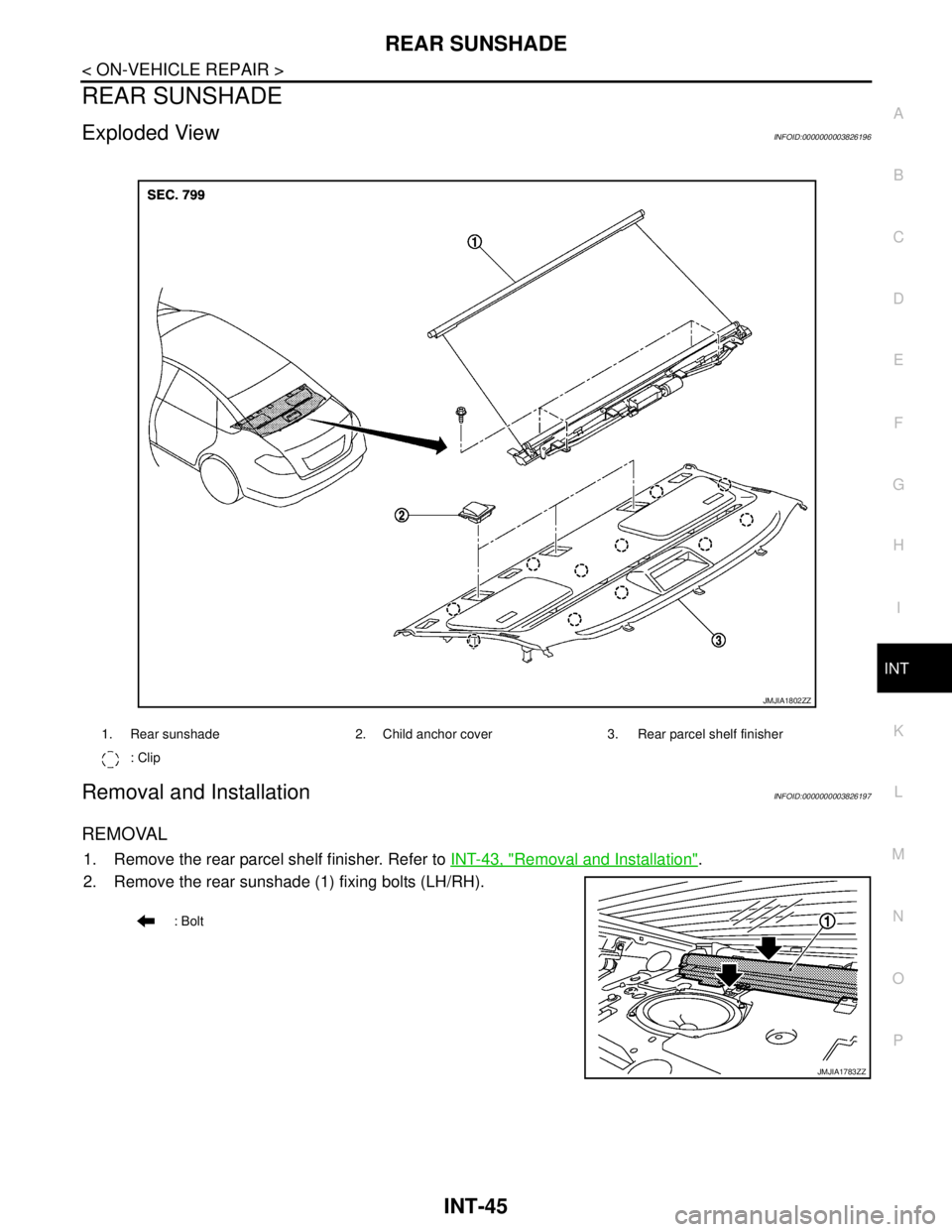

REAR SUNSHADE
Exploded ViewINFOID:0000000003826196
Removal and InstallationINFOID:0000000003826197
REMOVAL
1. Remove the rear parcel shelf finisher. Refer to INT-43, "Removal and Installation".
2. Remove the rear sunshade (1) fixing bolts (LH/RH).
1. Rear sunshade 2. Child anchor cover 3. Rear parcel shelf finisher
: Clip
JMJIA1802ZZ
: Bolt
JMJIA1783ZZ

INT-46
< ON-VEHICLE REPAIR >
REAR SUNSHADE
3. From the trunk room, disconnect the rear sunshade harness
connector (A) located between the left speaker (1) and the
speaker amp. (2).
4. Remove the rear sunshade assembly.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Check that clips are securely fitted in panel holes on body when installing, and then press them in.
: Harness connector
JMJIA1784ZZ

FLOOR TRIM
INT-47
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
K
L
MA
B
INT
N
O
P

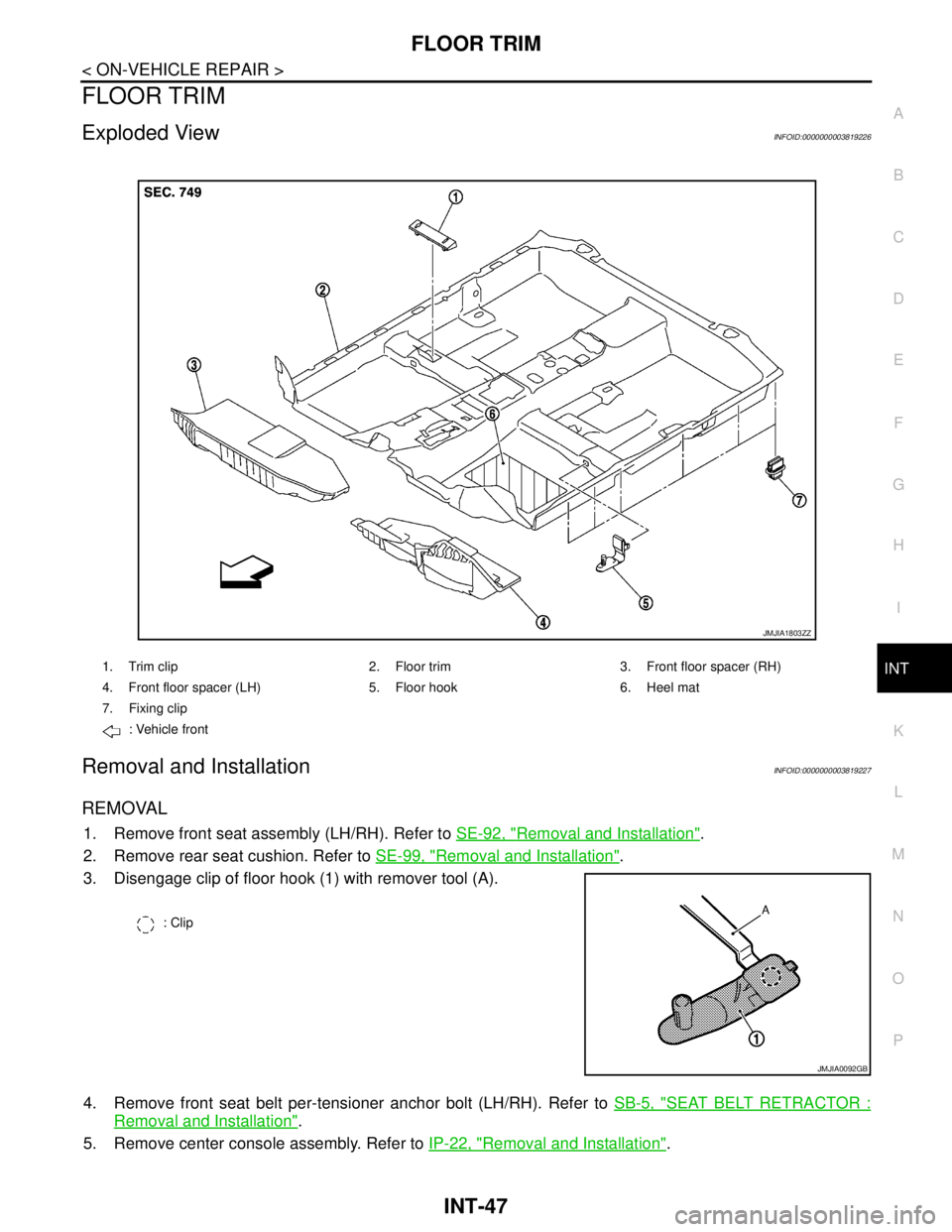

FLOOR TRIM
Exploded ViewINFOID:0000000003819226
Removal and InstallationINFOID:0000000003819227
REMOVAL
1. Remove front seat assembly (LH/RH). Refer to SE-92, "Removal and Installation".
2. Remove rear seat cushion. Refer to SE-99, "
Removal and Installation".
3. Disengage clip of floor hook (1) with remover tool (A).
4. Remove front seat belt per-tensioner anchor bolt (LH/RH). Refer to SB-5, "
SEAT BELT RETRACTOR :
Removal and Installation".
5. Remove center console assembly. Refer to IP-22, "
Removal and Installation".
1. Trim clip 2. Floor trim 3. Front floor spacer (RH)
4. Front floor spacer (LH) 5. Floor hook 6. Heel mat
7. Fixing clip
: Vehicle front
JMJIA1803ZZ
: Clip
JMJIA0092GB

INT-48
< ON-VEHICLE REPAIR >
FLOOR TRIM
6. Remove instrument lower cover, instrument driver panel, instrument assist lower panel and instrument
side panel (LH/RH). Refer to IP-12, "
Removal and Installation".
7. Remove G-sensor. Refer to VTL-82, "
WITH INTELLIGENT AIR CONDITIONER SYSTEM : Removal and
Installation".
8. Remove diagnosis sensor unit. Refer to SR-22, "
Removal and Installation".
9. Remove dash side finisher (LH/RH), front kicking plate inner (LH/RH), center pillar lower garnish (LH/RH)
and body side welt (LH/RH). Refer to INT-39, "
Removal and Installation".
10. Remove side brake wire. Refer to BR-17, "
Removal and Installation".
11. Remove automatic transmission drive. Refer to FAX-16, "
Exploded View".
12. Remove the front floor bracket (1) and front floor duct (2). (Both
sides)
13. Remove floor trim from floor trim fixing clips (A) and remove floor
carpet (1).
INSTALLATION
Install in the reverse order of removal.
JMJIA1957ZZ
JMJIA0094GB

HEADLINING
INT-49
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
K
L
MA
B
INT
N
O
P

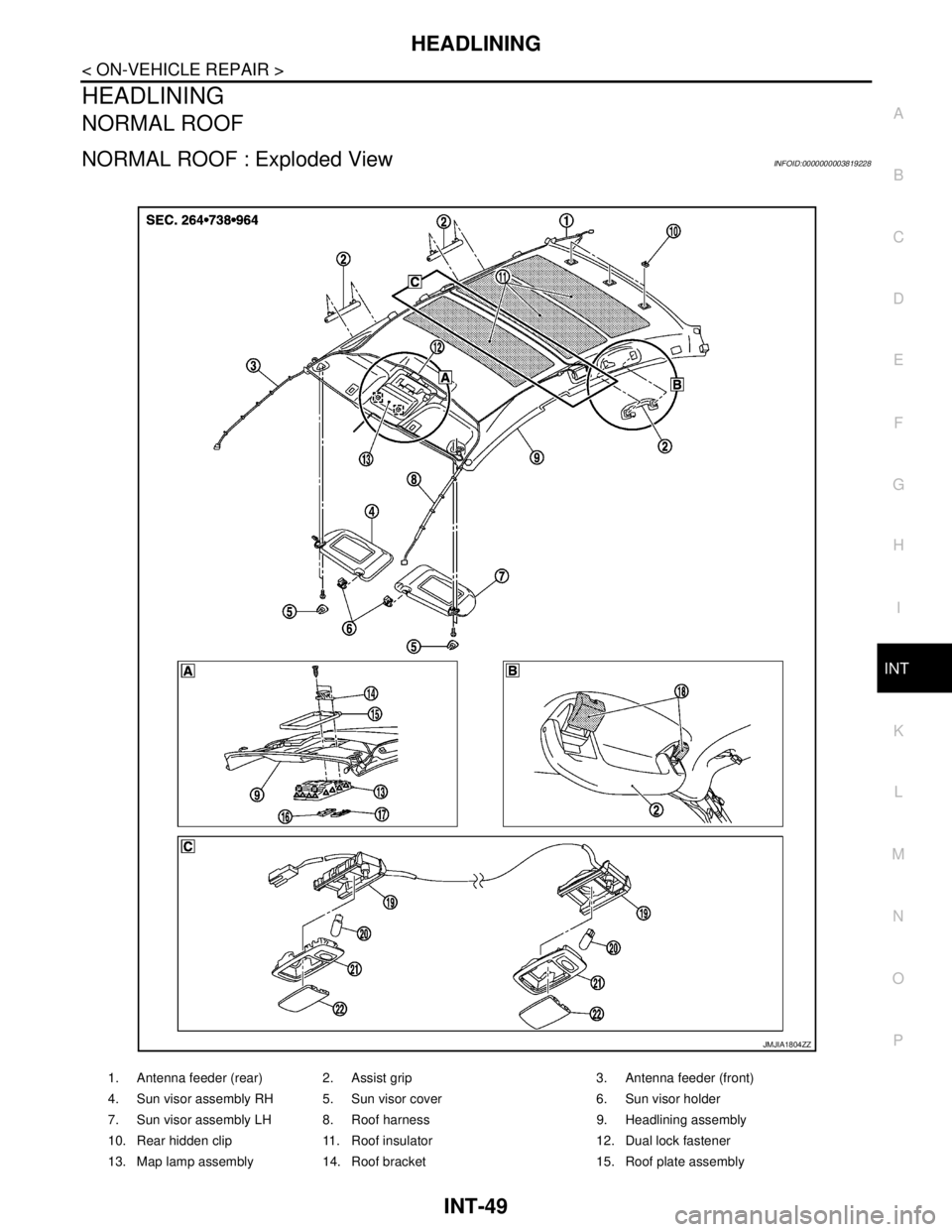

HEADLINING
NORMAL ROOF
NORMAL ROOF : Exploded ViewINFOID:0000000003819228
1. Antenna feeder (rear) 2. Assist grip 3. Antenna feeder (front)
4. Sun visor assembly RH 5. Sun visor cover 6. Sun visor holder
7. Sun visor assembly LH 8. Roof harness 9. Headlining assembly
10. Rear hidden clip 11. Roof insulator 12. Dual lock fastener
13. Map lamp assembly 14. Roof bracket 15. Roof plate assembly
JMJIA1804ZZ

INT-50
< ON-VEHICLE REPAIR >
HEADLINING
NORMAL ROOF : Removal and Installation
INFOID:0000000003819229
REMOVAL
1. Remove front body side welt (LH/RH) and front pillar garnish (LH/RH). Refer to INT-39, "Removal and
Installation".
2. Disconnect the roof harness (1) connector (B), antenna feeder (2) harness connector (C) and then
remove the clips (A) as shown in the figure below.
3. Remove sun visor assembly (LH/RH).
 Remove sun visor cover.
 Remove sun visor assembly (1) mounting screws (B) with a
screwdriver (A).
 Disconnect vanity mirror lamp harness connector.
4. Rotate 90 degrees and remove sun visor holder (1) (LH/RH).
16. Map lamp lens RH 17. Map lamp lens LH 18. Assist grip clip
19. Personal lamp bracket 20. Personal lamp bulb 21. Personal lamp cover
22. Personal lamp lens
: Pawl
: Metal clip
: Clip
JMJIA1785ZZ
JMJIA1786ZZ
JMJIA1787ZZ

HEADLINING
INT-51
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
K
L
MA
B
INT
N
O
P

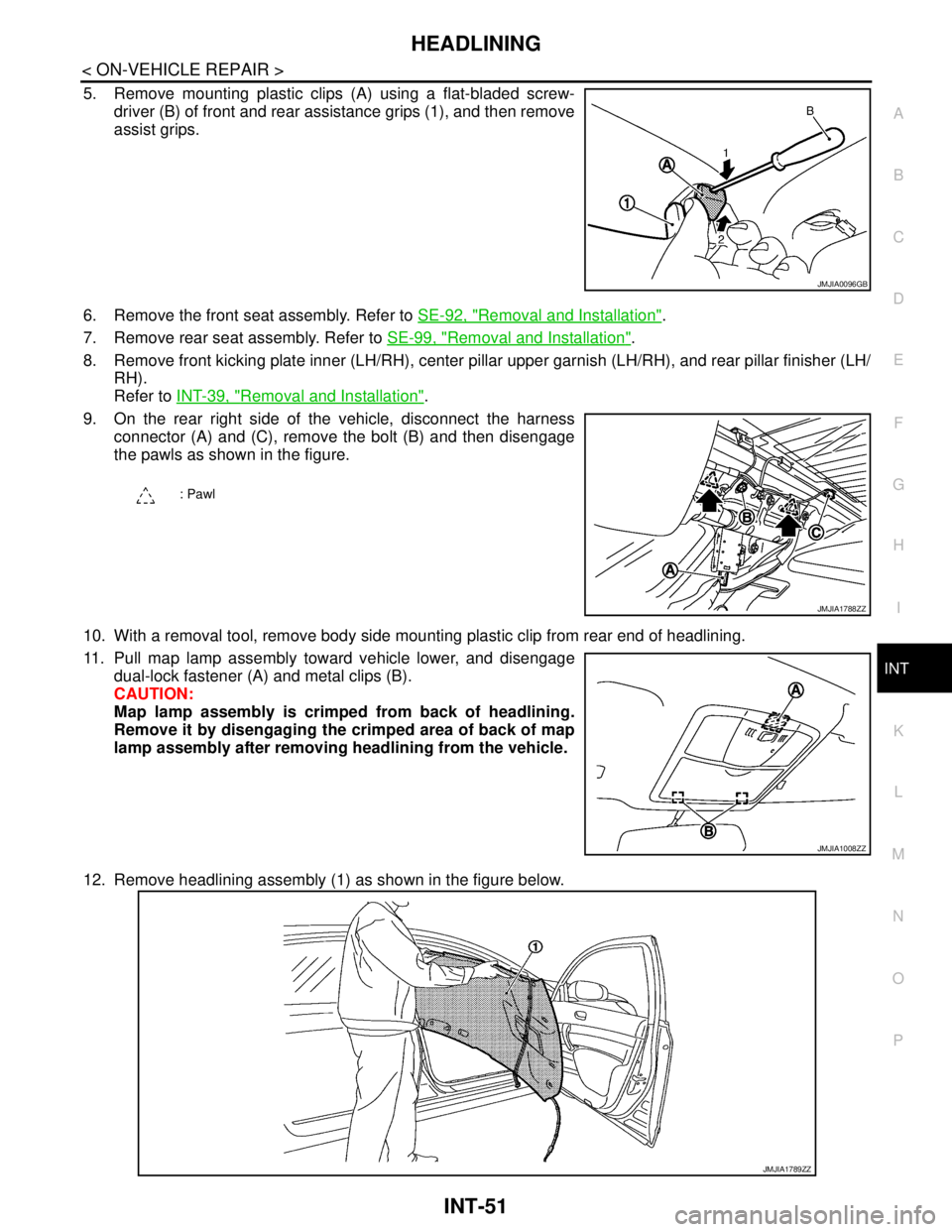

5. Remove mounting plastic clips (A) using a flat-bladed screw-
driver (B) of front and rear assistance grips (1), and then remove
assist grips.
6. Remove the front seat assembly. Refer to SE-92, "
Removal and Installation".
7. Remove rear seat assembly. Refer to SE-99, "
Removal and Installation".
8. Remove front kicking plate inner (LH/RH), center pillar upper garnish (LH/RH), and rear pillar finisher (LH/
RH).
Refer to INT-39, "
Removal and Installation".
9. On the rear right side of the vehicle, disconnect the harness
connector (A) and (C), remove the bolt (B) and then disengage
the pawls as shown in the figure.
10. With a removal tool, remove body side mounting plastic clip from rear end of headlining.
11. Pull map lamp assembly toward vehicle lower, and disengage
dual-lock fastener (A) and metal clips (B).
CAUTION:
Map lamp assembly is crimped from back of headlining.
Remove it by disengaging the crimped area of back of map
lamp assembly after removing headlining from the vehicle.
12. Remove headlining assembly (1) as shown in the figure below.
JMJIA0096GB
: Pawl
JMJIA1788ZZ
JMJIA1008ZZ
JMJIA1789ZZ

INT-52
< ON-VEHICLE REPAIR >
HEADLINING
CAUTION:
 When removing, 2 workers are required. (1 for the front and rear of headlining)
 Cover center console finisher upper surface with a shop cloth to prevent it from being damaged.
 Never bend headlining when removing.
13. Remove the following parts after removing headlining.
 Map lamp assembly. Refer to INL-89, "
Removal and Installation".
 Personal lamp assembly. Refer to INL-96, "
Removal and Installation".
 Roof harness assembly.
 Antenna feeder assembly. Refer to AV-44, "
Harness Layout".
INSTALLATION
Install in the reverse order of removal.
CAUTION:
 Install headlining assembly after inserting clips to clip holder of headlining rear end.
 Never bend headlining when installing.
SUNROOF

HEADLINING
INT-53
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
K
L
MA
B
INT
N
O
P
SUNROOF : Exploded ViewINFOID:0000000003826877
1. Antenna feeder (rear) 2. Assist grip 3. Antenna feeder (front)
4. Sun visor assembly RH 5. Sun visor cover 6. Sun visor holder
7. Sun visor assembly LH 8. Roof harness 9. Headlining assembly
10. Rear hidden clip 11. Roof insulator 12. Dual lock fastener
13. Over head console 14. Roof bracket 15. Roof plate assembly
16. Map lamp lens RH 17. Map lamp lens LH 18. Assist grip clip
19. Personal lamp bracket 20. Personal lamp bulb 21. Personal lamp cover
22. Personal lamp lens
JMJIA1805ZZ
