NISSAN TEANA 2008 Service Manual

PG
HARNESS LAYOUT
PG-83
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
C
D
E
F
G
H
I
J
K
L B A
O
P N
HARNESS LAYOUT
How To Read Harness LayoutINFOID:0000000003795161
CONNECTOR SYMBOL
Main symbols of connector (in Harness Layout) are indicated in the below.
1 : Connector model
2 : Cavity
3 : Male (M) and female (F) terminals
4 : Connector color
5 : Special type
JPMIA0113GB
JPMIA0114GB

PG-84
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
HARNESS LAYOUT
Outline
INFOID:0000000003792670
JCMIM0318GB

PG
HARNESS LAYOUT
PG-85
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
C
D
E
F
G
H
I
J
K
L B A
O
P N
Main HarnessINFOID:0000000003792671
JCMIM0319GB

PG-86
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
HARNESS LAYOUT
Engine Room Harness
INFOID:0000000003792672
ENGINE COMPARTMENT
JCMIM0320GB

PG
HARNESS LAYOUT
PG-87
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
C
D
E
F
G
H
I
J
K
L B A
O
P N
PASSENGER COMPARTMENT
JCMIM0321GB

PG-88
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
HARNESS LAYOUT
Engine Control Harness
INFOID:0000000003792673
JCMIM0322GB

PG
HARNESS LAYOUT
PG-89
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
C
D
E
F
G
H
I
J
K
L B A
O
P N

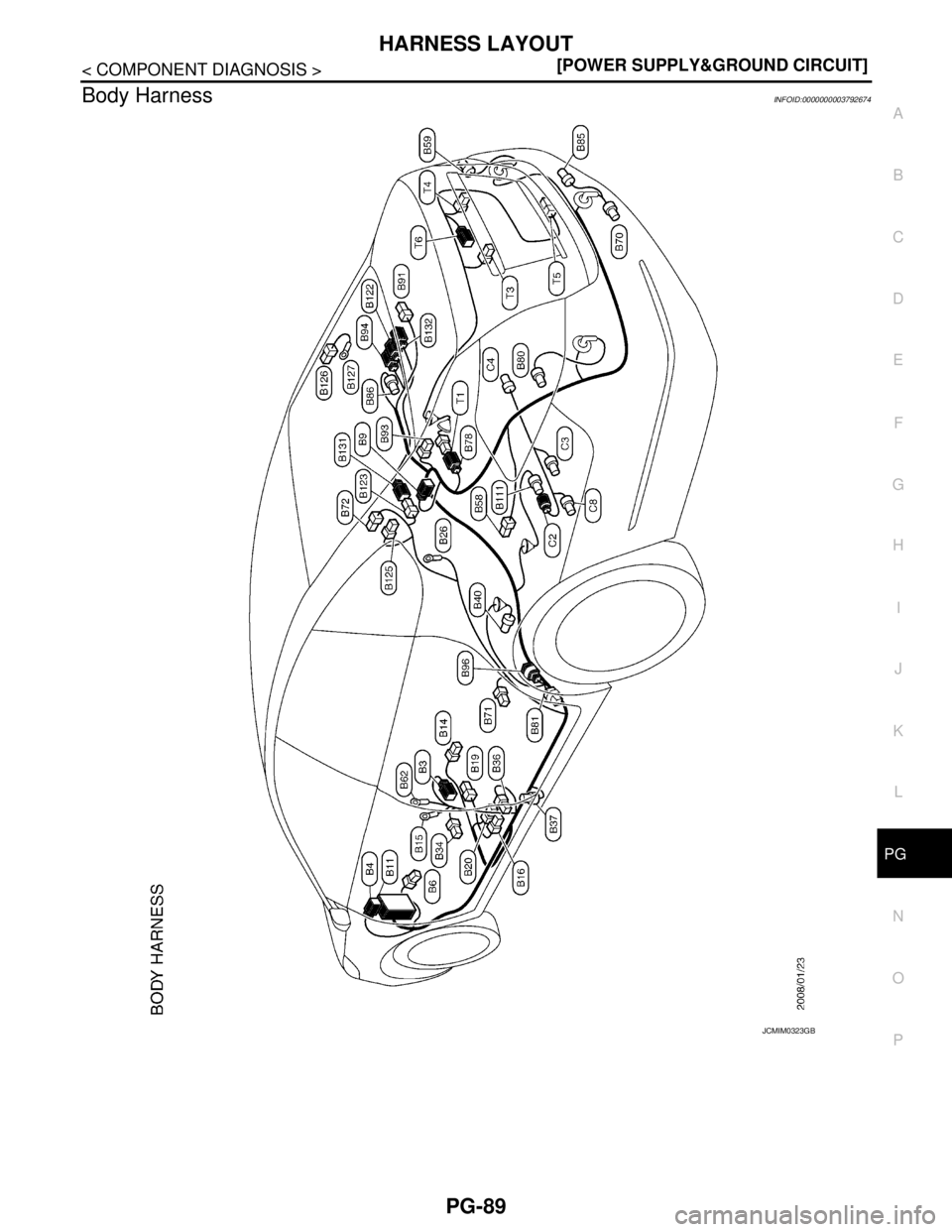

Body HarnessINFOID:0000000003792674
JCMIM0323GB

PG-90
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
HARNESS LAYOUT

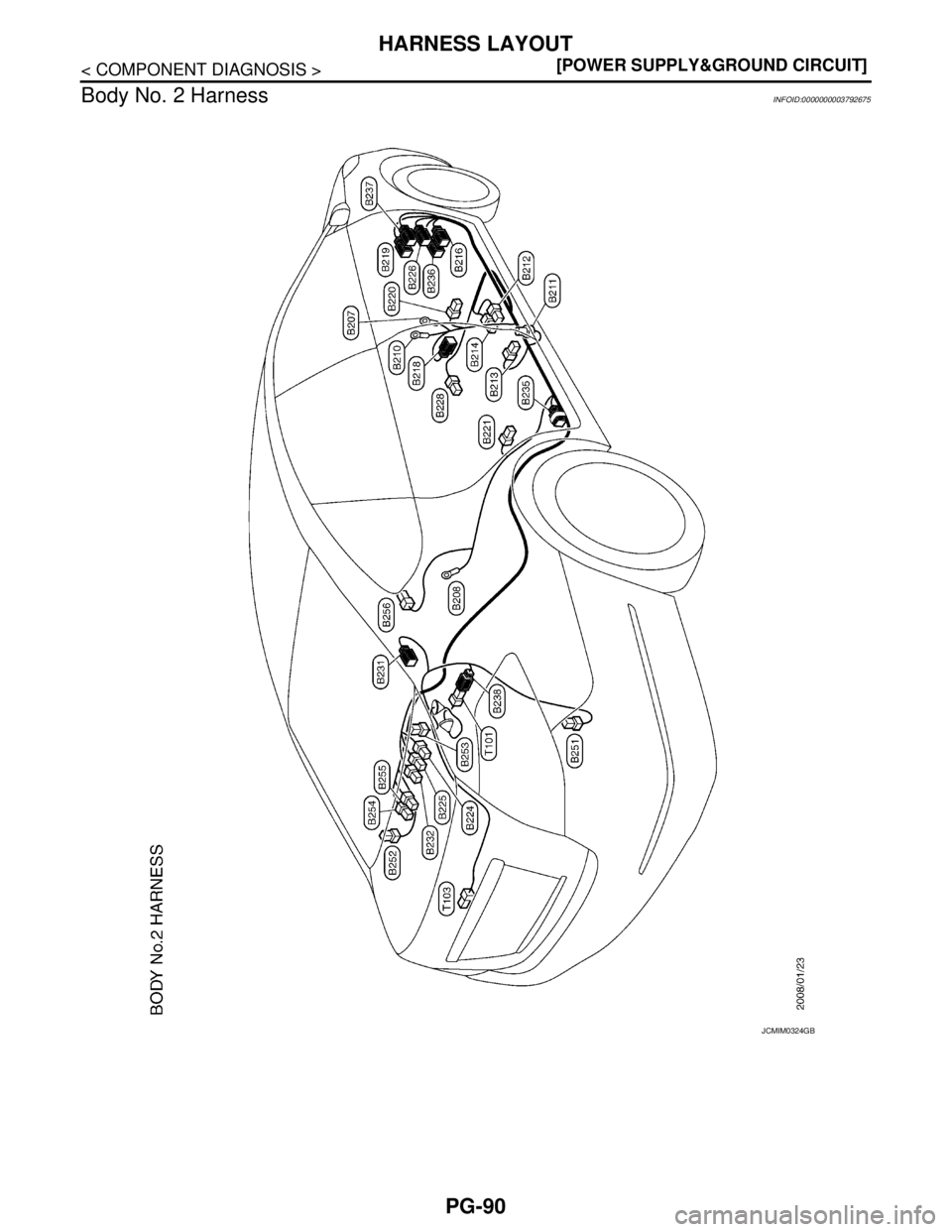

Body No. 2 Harness
INFOID:0000000003792675
JCMIM0324GB

PG
HARNESS LAYOUT
PG-91
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
C
D
E
F
G
H
I
J
K
L B A
O
P N

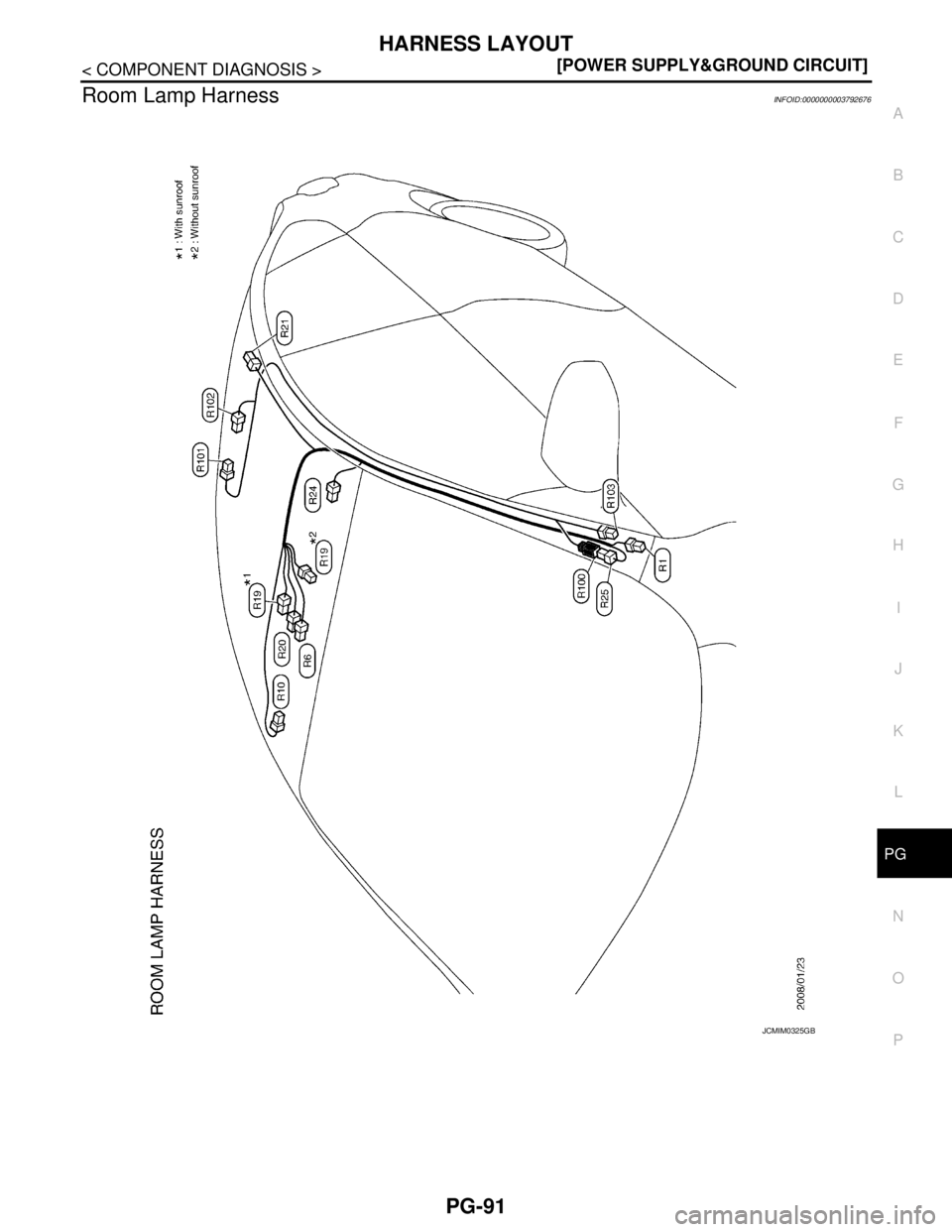

Room Lamp HarnessINFOID:0000000003792676
JCMIM0325GB

PG-92
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
HARNESS LAYOUT

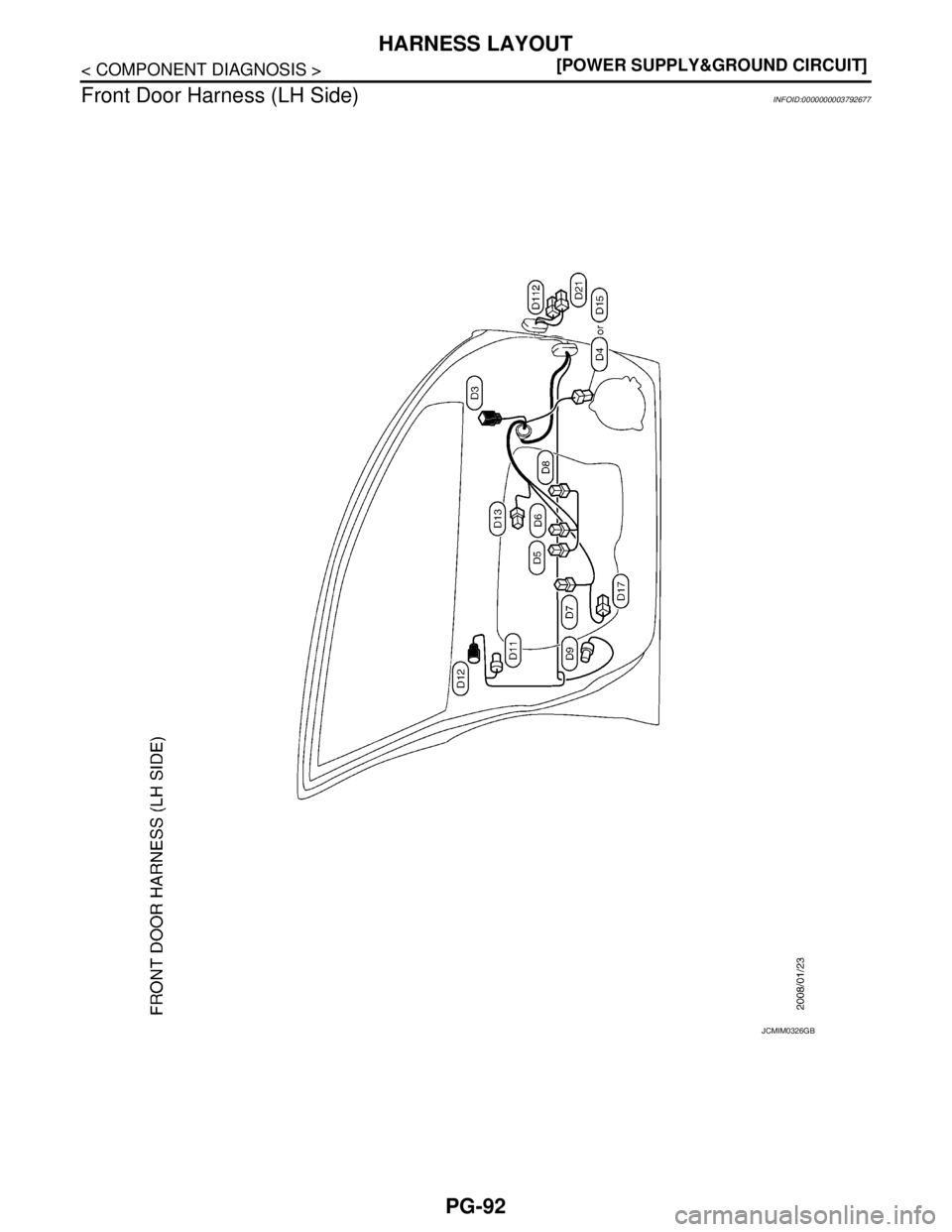

Front Door Harness (LH Side)
INFOID:0000000003792677
JCMIM0326GB
