POWER SUPPLY ROUTING CIRCUIT
PG-73
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
C
D
E
F
G
H
I
J
K
L B A
O
P N
JCMWM1757GB

PG-74
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
POWER SUPPLY ROUTING CIRCUIT

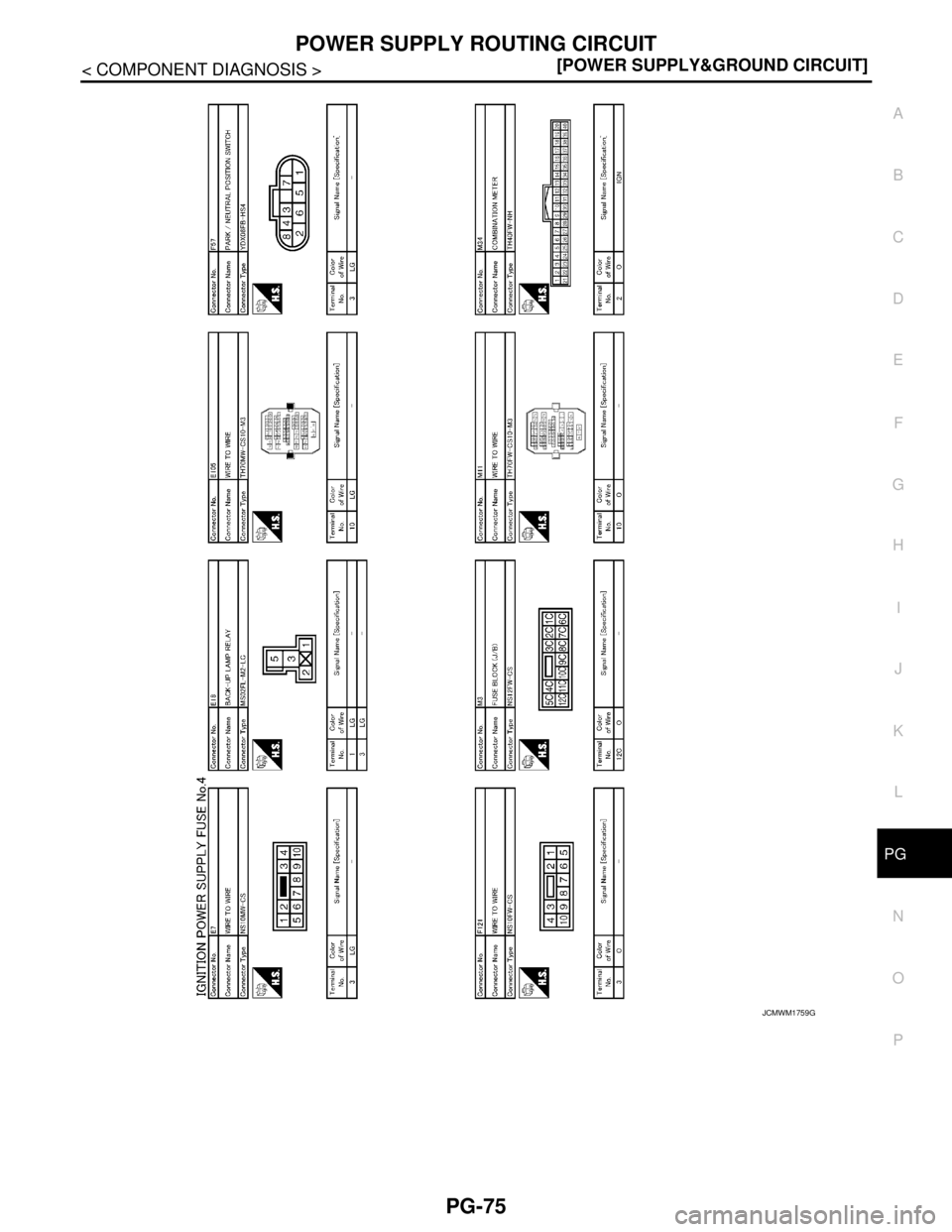

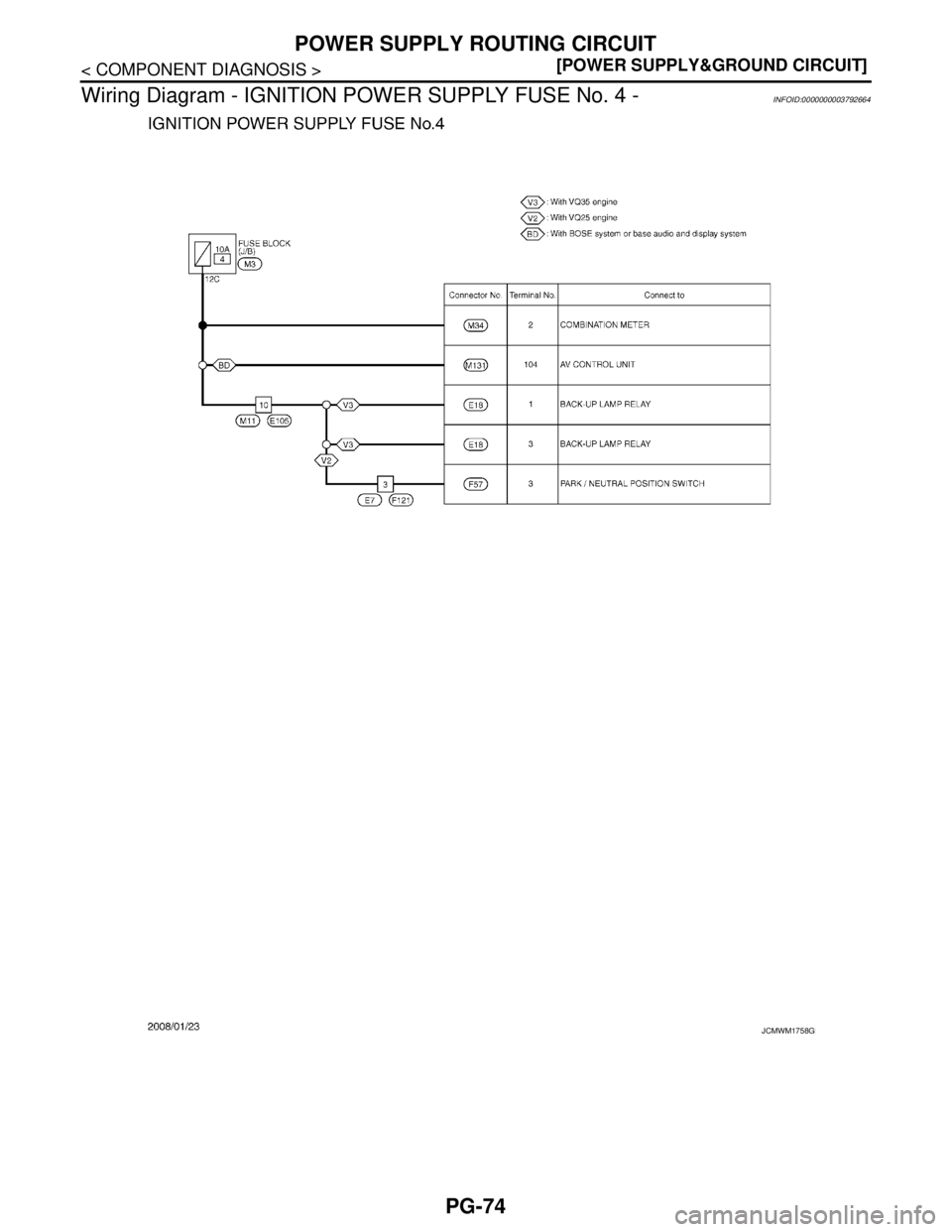

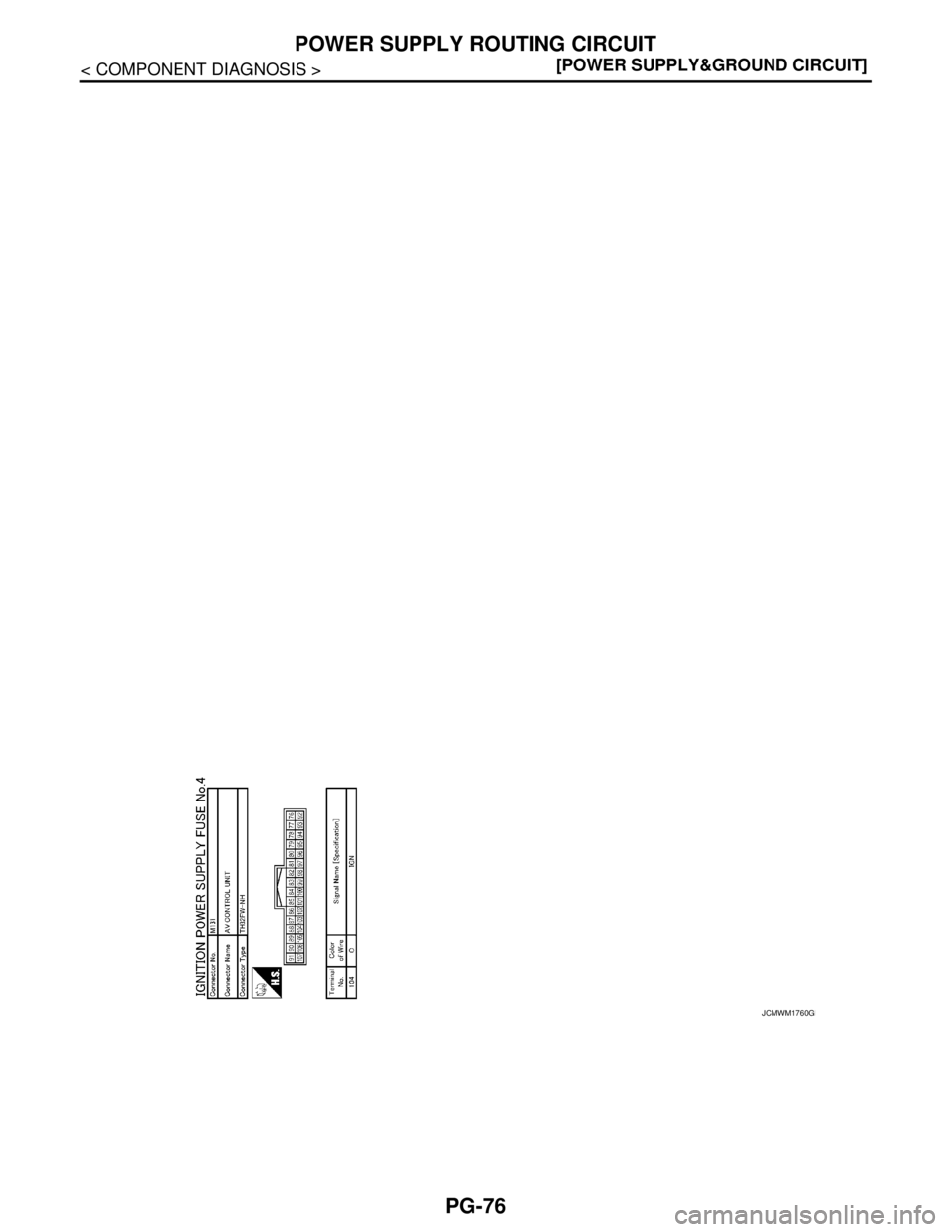

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 4 -
INFOID:0000000003792664
JCMWM1758GB

PG
POWER SUPPLY ROUTING CIRCUIT
PG-75
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
C
D
E
F
G
H
I
J
K
L B A
O
P N
JCMWM1759GB

PG-76
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
POWER SUPPLY ROUTING CIRCUIT
JCMWM1760GB

PG
POWER SUPPLY ROUTING CIRCUIT
PG-77
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
C
D
E
F
G
H
I
J
K
L B A
O
P N

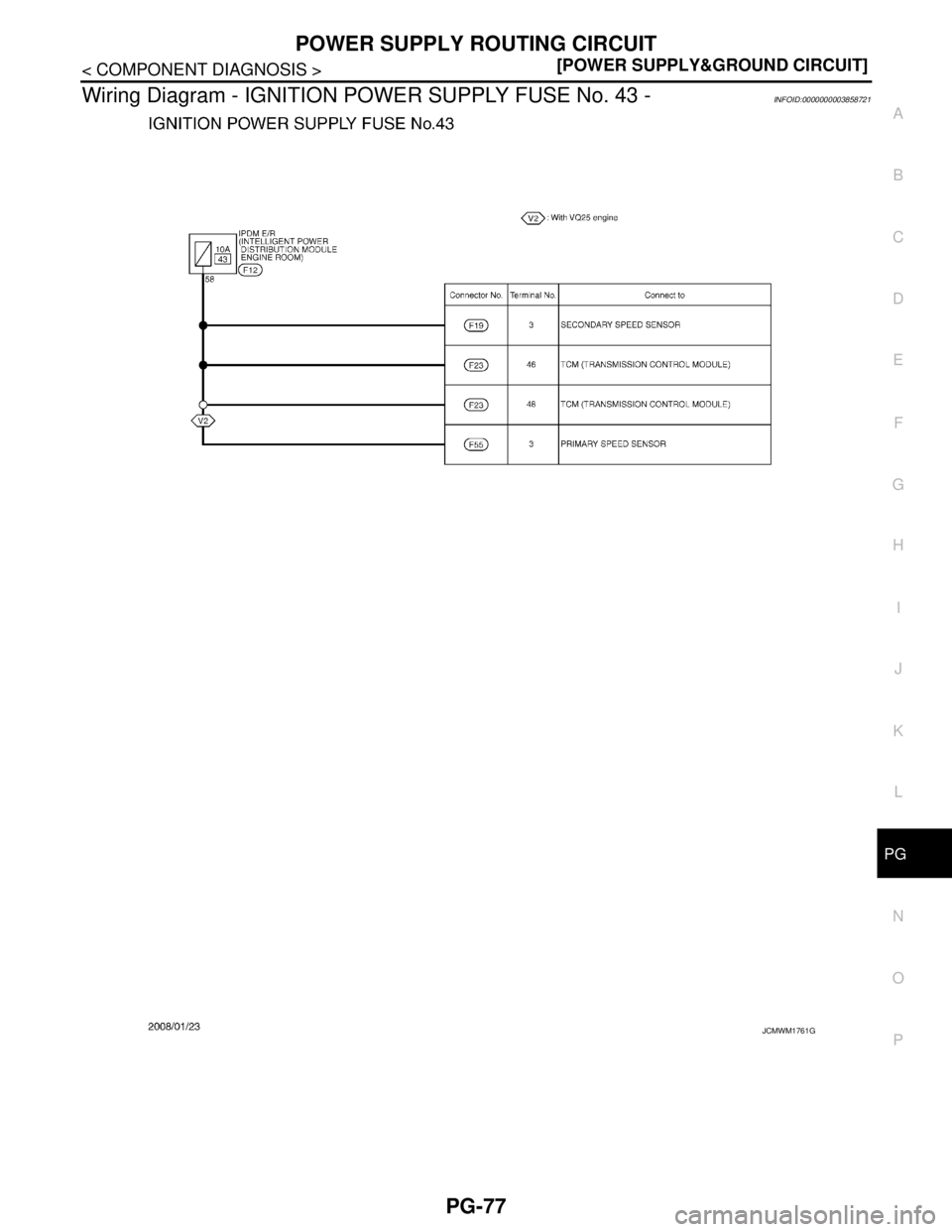

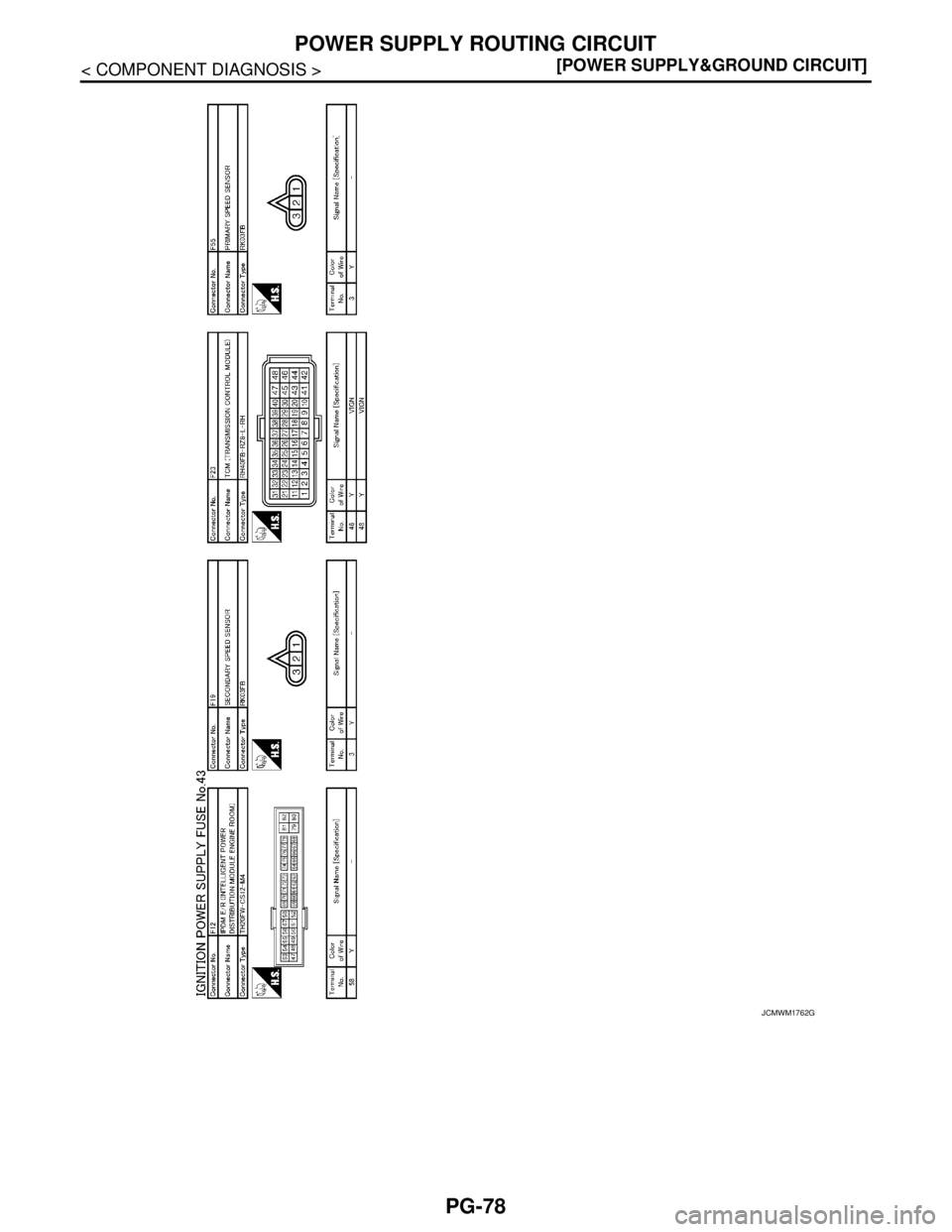

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 43 -INFOID:0000000003858721
JCMWM1761GB

PG-78
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
POWER SUPPLY ROUTING CIRCUIT
JCMWM1762GB

PG
POWER SUPPLY ROUTING CIRCUIT
PG-79
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
C
D
E
F
G
H
I
J
K
L B A
O
P N

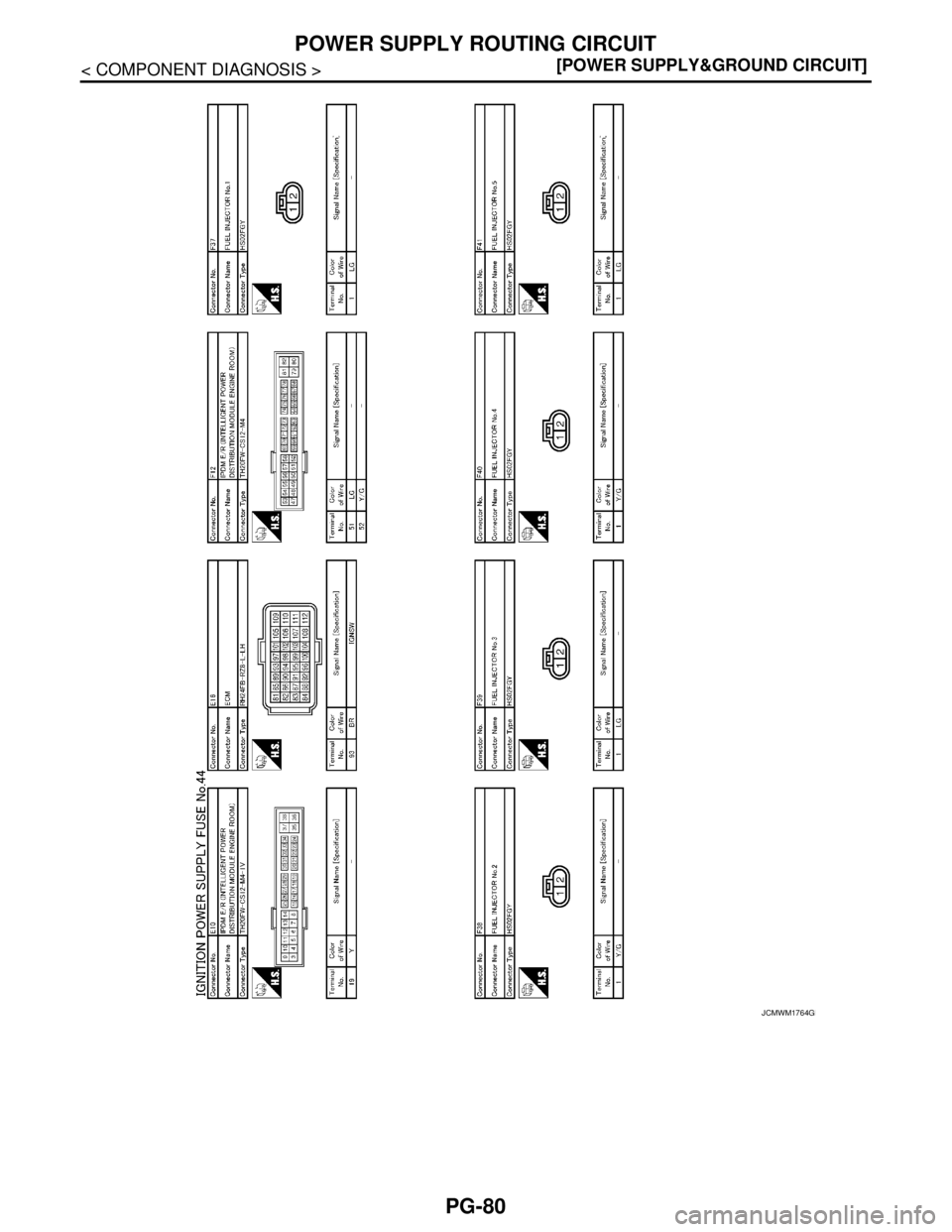

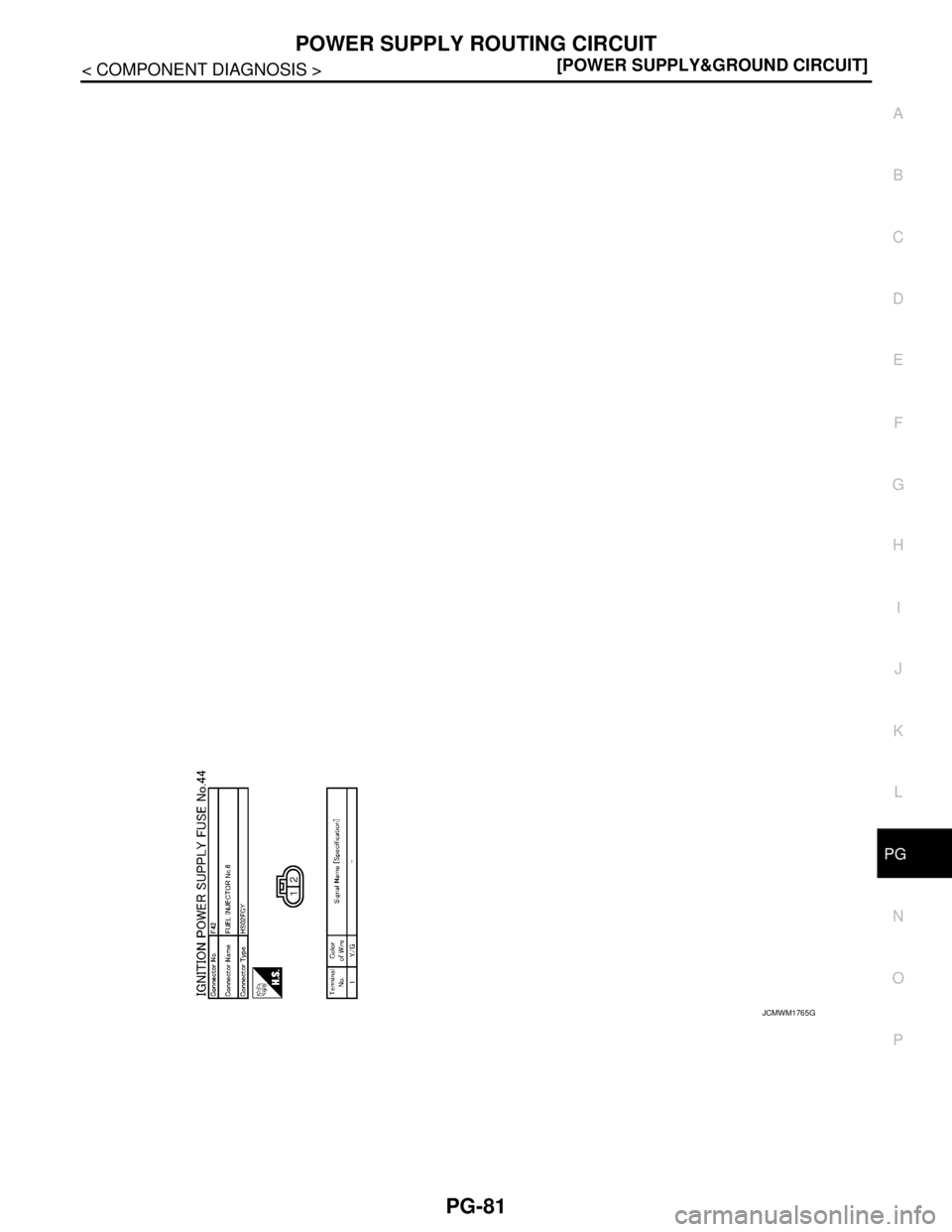

Wiring Diagram - IGNITION POWER SUPPLY FUSE No. 44 -INFOID:0000000003792665
JCMWM1763GB

PG-80
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
POWER SUPPLY ROUTING CIRCUIT
JCMWM1764GB

PG
POWER SUPPLY ROUTING CIRCUIT
PG-81
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
C
D
E
F
G
H
I
J
K
L B A
O
P N
JCMWM1765GB

PG-82
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
POWER SUPPLY ROUTING CIRCUIT
Fuse
INFOID:0000000003792666

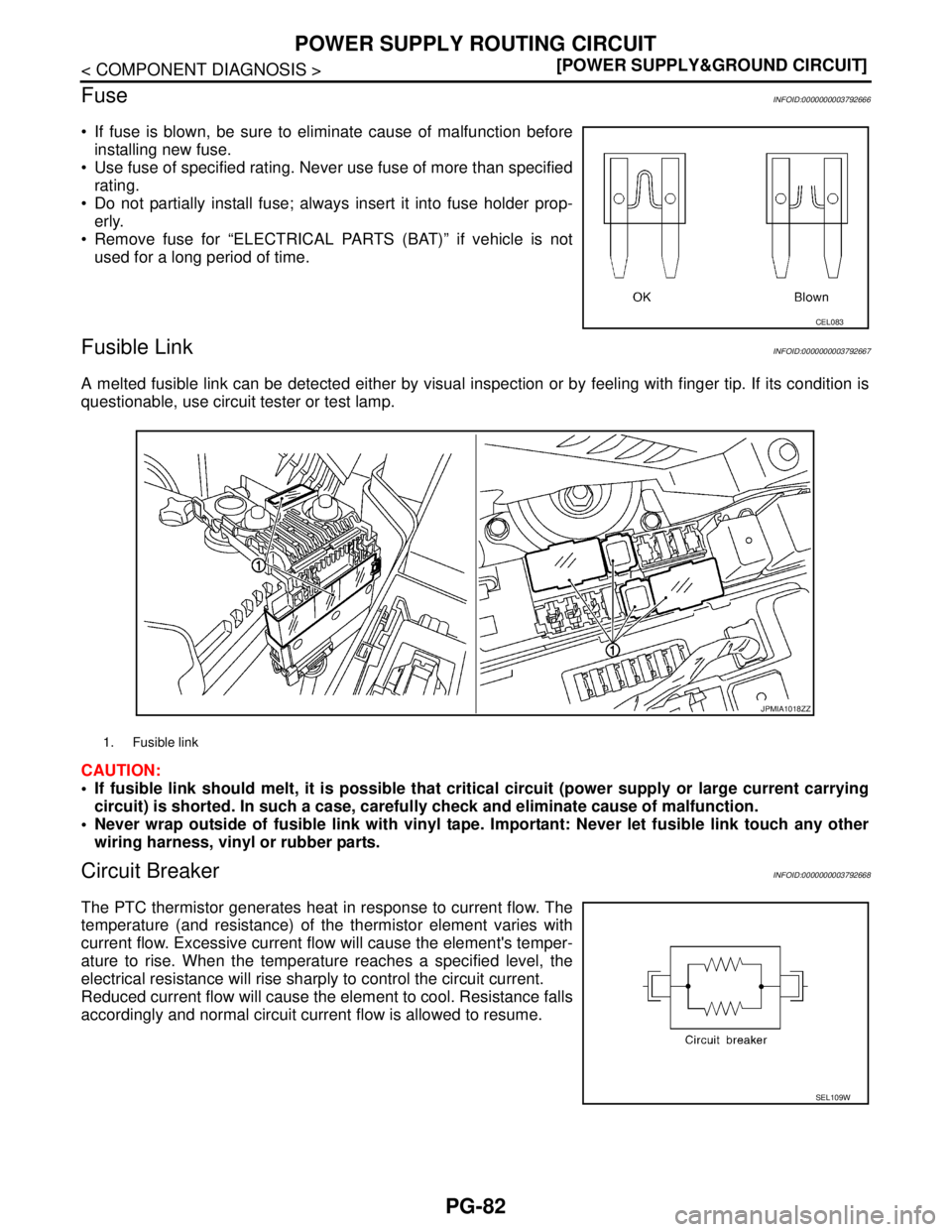

 If fuse is blown, be sure to eliminate cause of malfunction before
installing new fuse.
 Use fuse of specified rating. Never use fuse of more than specified
rating.
 Do not partially install fuse; always insert it into fuse holder prop-
erly.
 Remove fuse for “ELECTRICAL PARTS (BAT)” if vehicle is not
used for a long period of time.
Fusible LinkINFOID:0000000003792667
A melted fusible link can be detected either by visual inspection or by feeling with finger tip. If its condition is
questionable, use circuit tester or test lamp.
CAUTION:
 If fusible link should melt, it is possible that critical circuit (power supply or large current carrying
circuit) is shorted. In such a case, carefully check and eliminate cause of malfunction.
 Never wrap outside of fusible link with vinyl tape. Important: Never let fusible link touch any other
wiring harness, vinyl or rubber parts.
Circuit BreakerINFOID:0000000003792668
The PTC thermistor generates heat in response to current flow. The
temperature (and resistance) of the thermistor element varies with
current flow. Excessive current flow will cause the element's temper-
ature to rise. When the temperature reaches a specified level, the
electrical resistance will rise sharply to control the circuit current.
Reduced current flow will cause the element to cool. Resistance falls
accordingly and normal circuit current flow is allowed to resume.
CEL083
1. Fusible link
JPMIA1018ZZ
SEL109W
