NISSAN TEANA 2008 Service Manual

PG
HARNESS LAYOUT
PG-93
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
C
D
E
F
G
H
I
J
K
L B A
O
P N
Front Door Harness (RH Side)INFOID:0000000003792678
JCMIM0327GB

PG-94
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
HARNESS LAYOUT
Rear Door Harness (LH Side)
INFOID:0000000003792679
JCMIM0328GB

PG
HARNESS LAYOUT
PG-95
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
C
D
E
F
G
H
I
J
K
L B A
O
P N

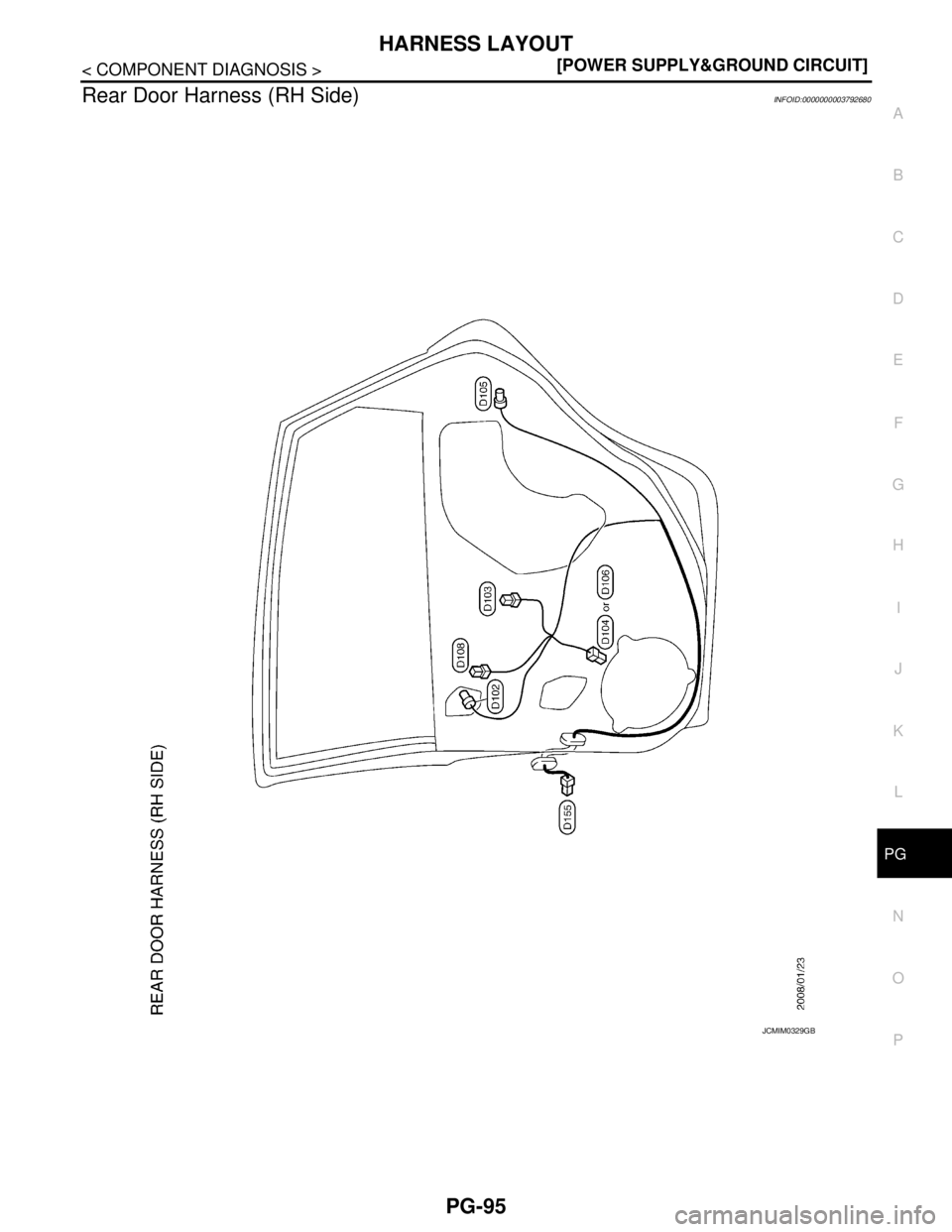

Rear Door Harness (RH Side)INFOID:0000000003792680
JCMIM0329GB

PG-96
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
HARNESS CONNECTOR
HARNESS CONNECTOR
DescriptionINFOID:0000000003792682

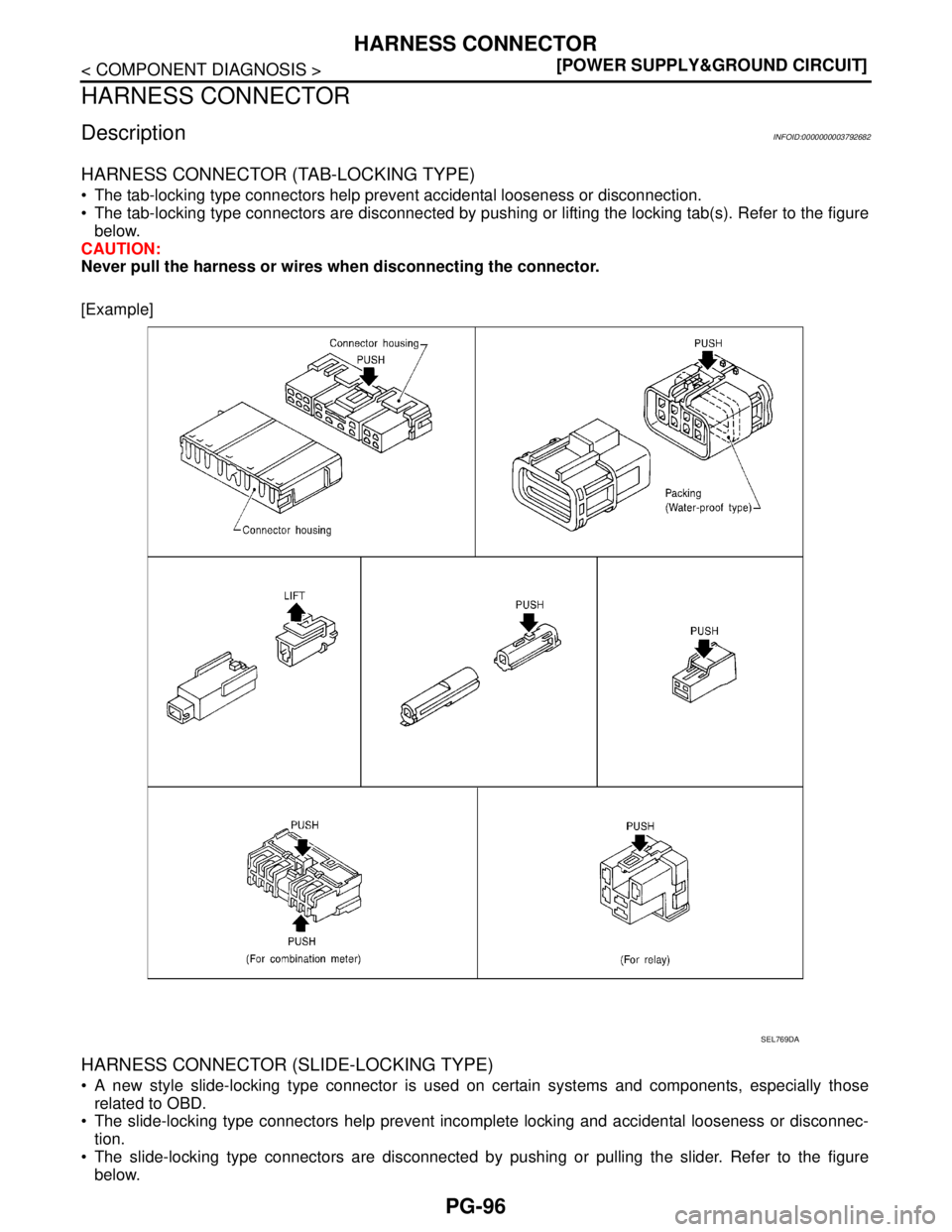

HARNESS CONNECTOR (TAB-LOCKING TYPE)
 The tab-locking type connectors help prevent accidental looseness or disconnection.
 The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the figure
below.
CAUTION:
Never pull the harness or wires when disconnecting the connector.
[Example]
HARNESS CONNECTOR (SLIDE-LOCKING TYPE)
 A new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.
 The slide-locking type connectors help prevent incomplete locking and accidental looseness or disconnec-
tion.
 The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the figure
below.
SEL769DA

PG
HARNESS CONNECTOR
PG-97
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
C
D
E
F
G
H
I
J
K
L B A
O
P N

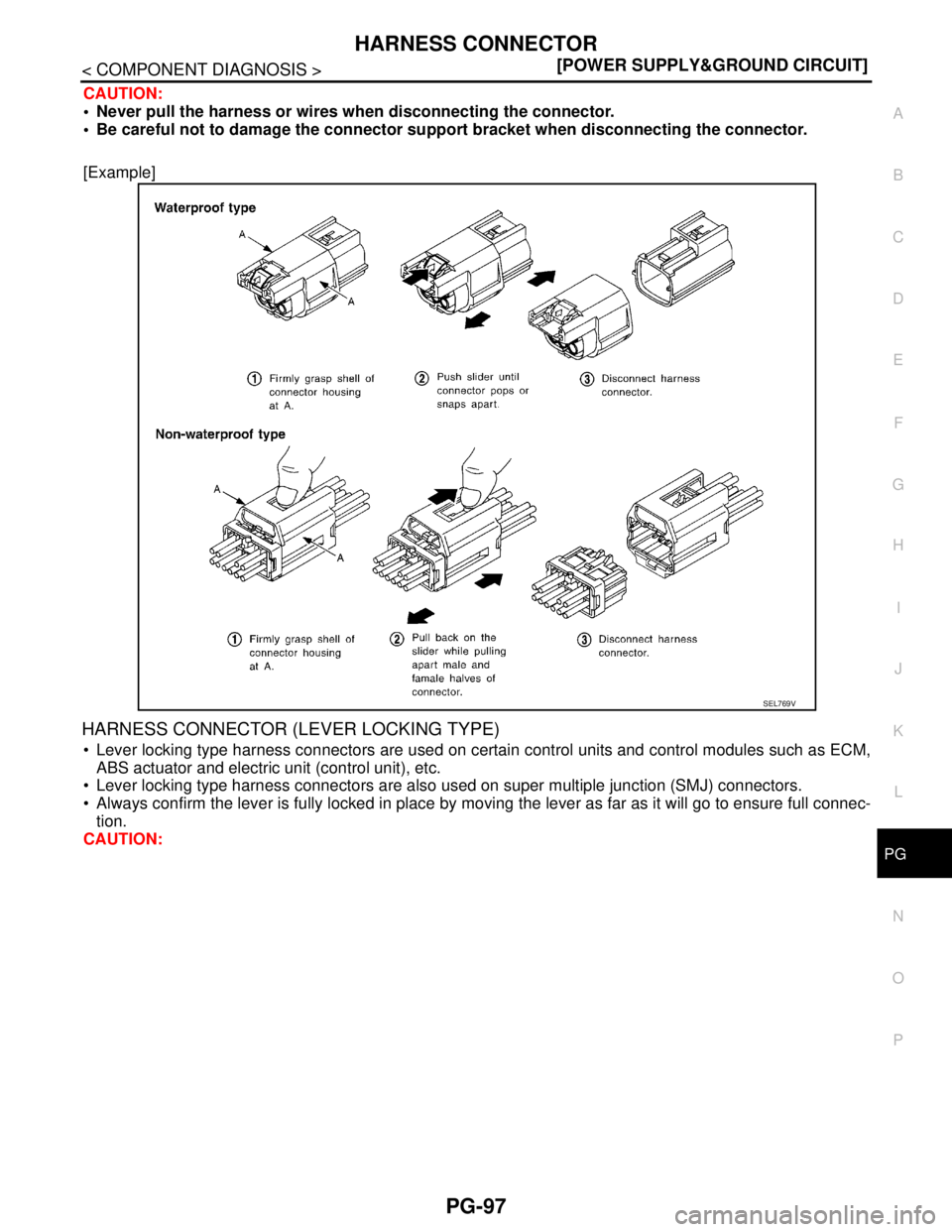

CAUTION:
 Never pull the harness or wires when disconnecting the connector.
 Be careful not to damage the connector support bracket when disconnecting the connector.
[Example]
HARNESS CONNECTOR (LEVER LOCKING TYPE)
 Lever locking type harness connectors are used on certain control units and control modules such as ECM,
ABS actuator and electric unit (control unit), etc.
 Lever locking type harness connectors are also used on super multiple junction (SMJ) connectors.
 Always confirm the lever is fully locked in place by moving the lever as far as it will go to ensure full connec-
tion.
CAUTION:
SEL769V

PG-98
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
HARNESS CONNECTOR
Always confirm the lever is fully released (loosened) before attempting to disconnect or connect these
connectors to avoid damage to the connector housing or terminals.
LKIA0670E

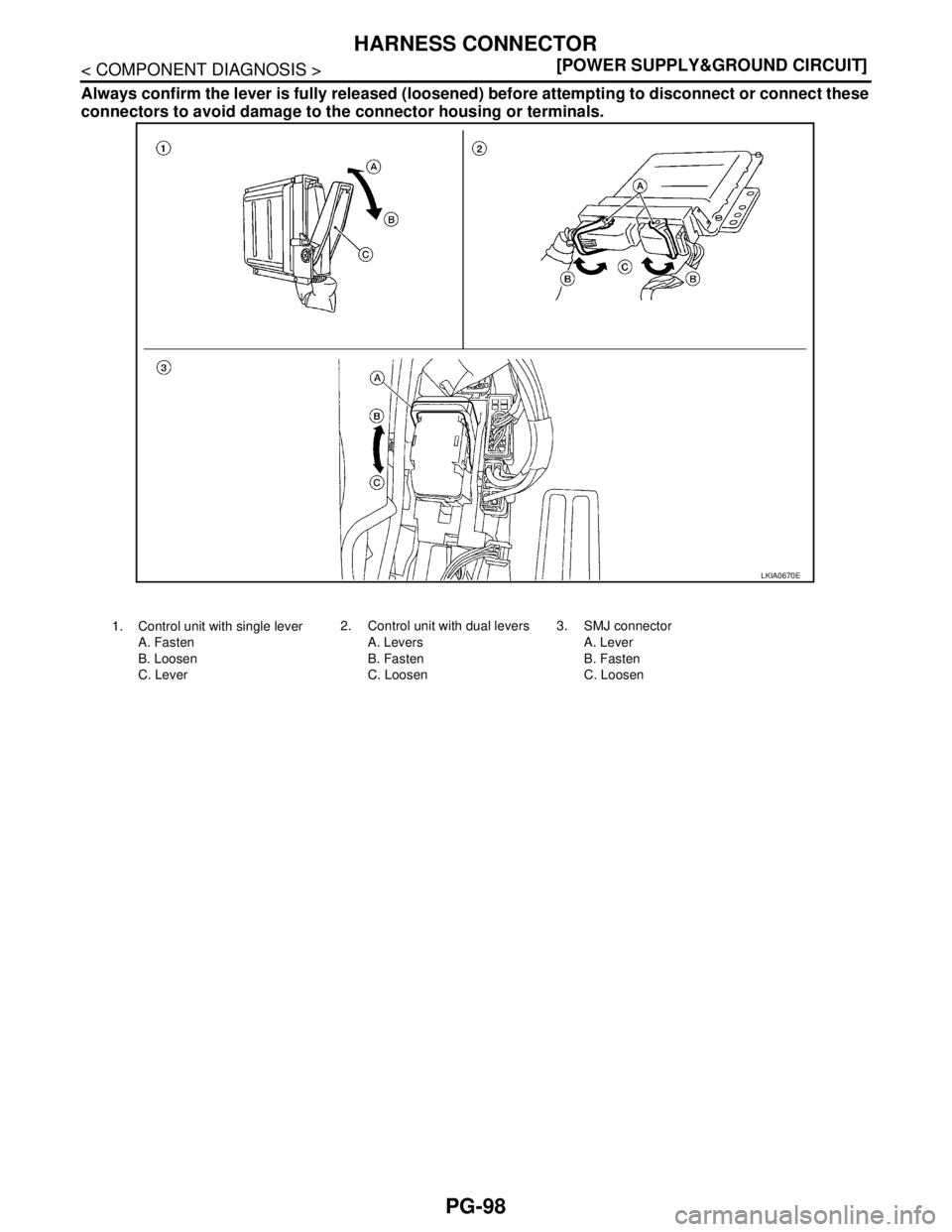

1. Control unit with single lever
A. Fasten
B. Loosen
C. Lever2. Control unit with dual levers
A. Levers
B. Fasten
C. Loosen3. SMJ connector
A. Lever
B. Fasten
C. Loosen

PG
STANDARDIZED RELAY
PG-99
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
C
D
E
F
G
H
I
J
K
L B A
O
P N
STANDARDIZED RELAY
DescriptionINFOID:0000000003792683
NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS
Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.
TYPE OF STANDARDIZED RELAYS

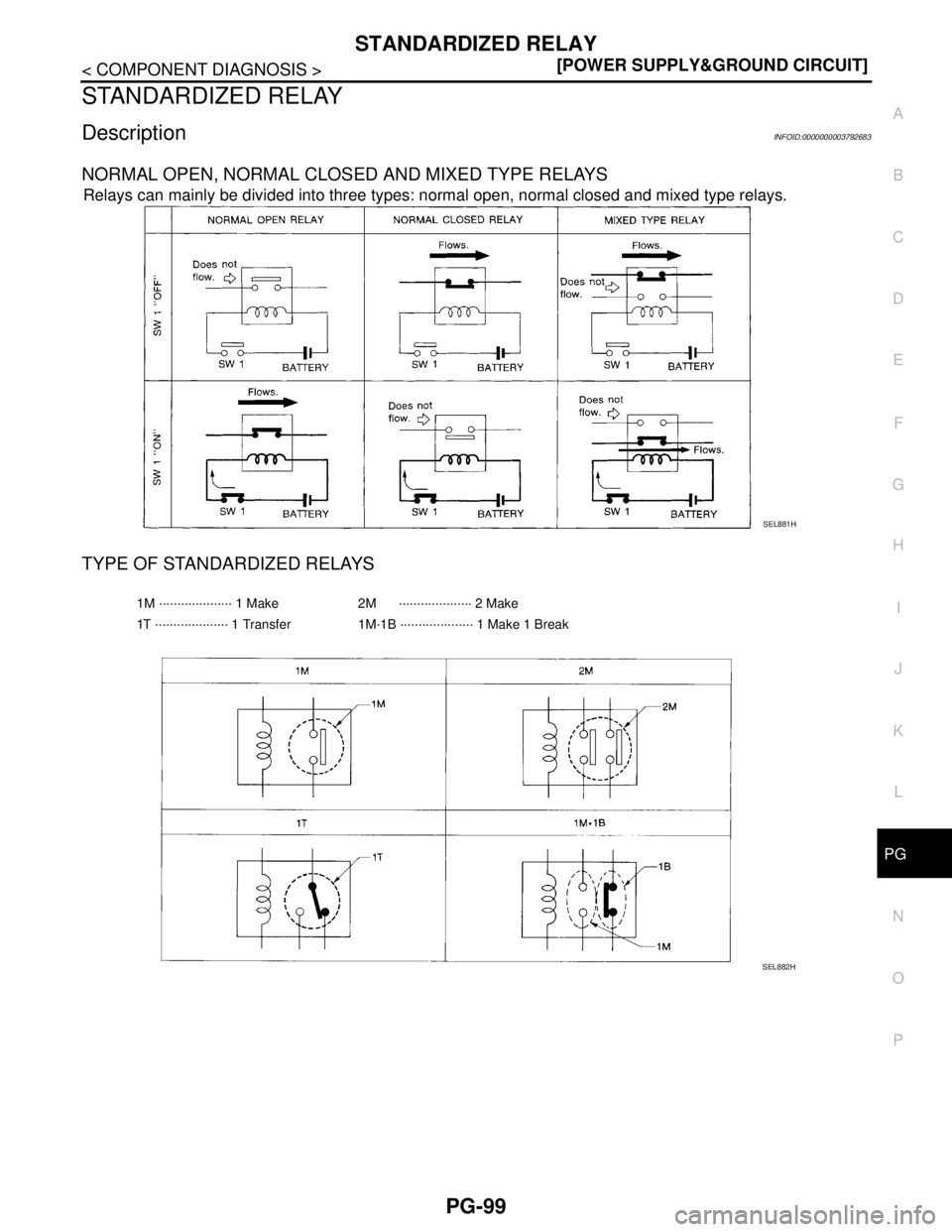

SEL881H
1M ···················· 1 Make 2M ···················· 2 Make
1T ···················· 1 Transfer 1M·1B ···················· 1 Make 1 Break
SEL882H

PG-100
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
STANDARDIZED RELAY

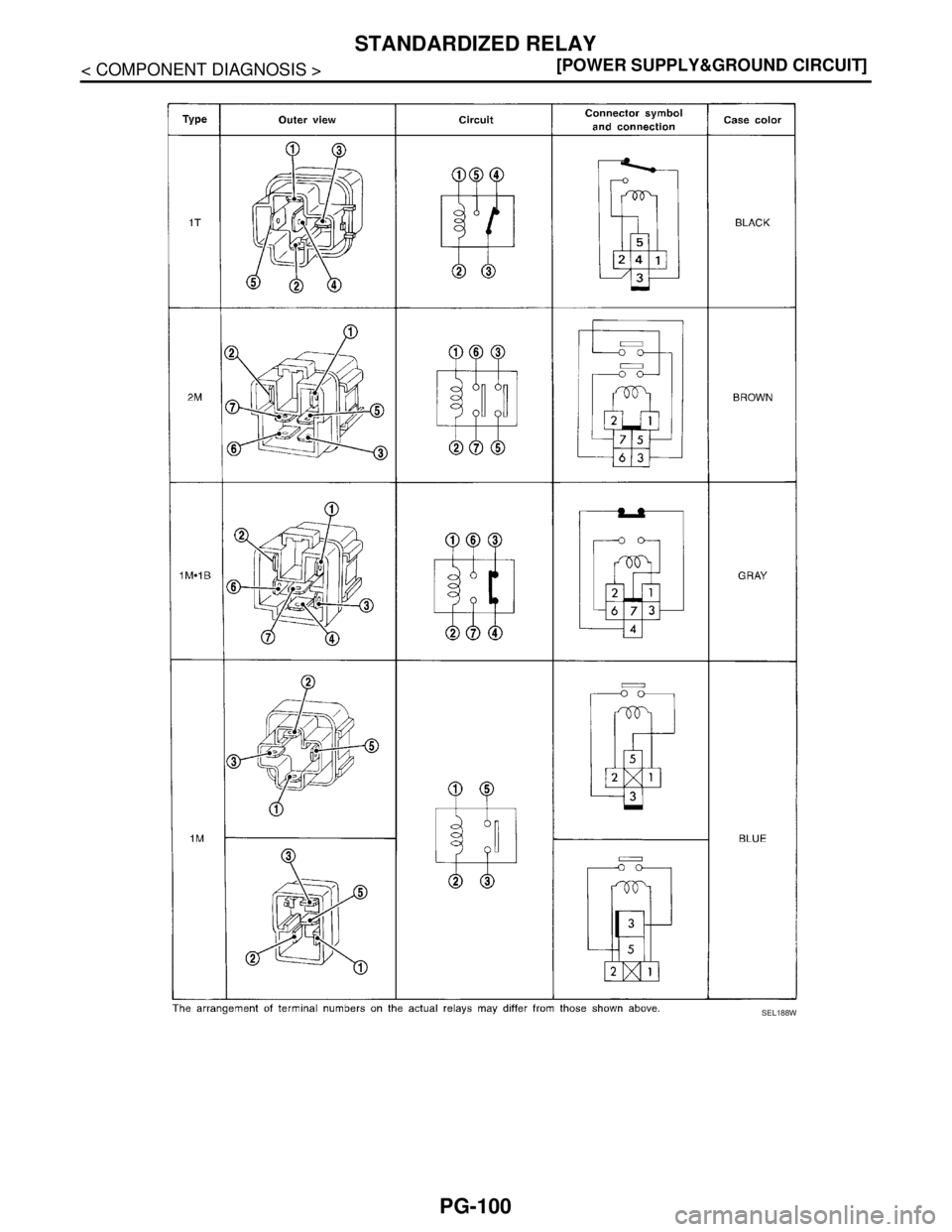

SEL188W

PG
FUSE BLOCK - JUNCTION BOX (J/B)
PG-101
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
C
D
E
F
G
H
I
J
K
L B A
O
P N
FUSE BLOCK - JUNCTION BOX (J/B)

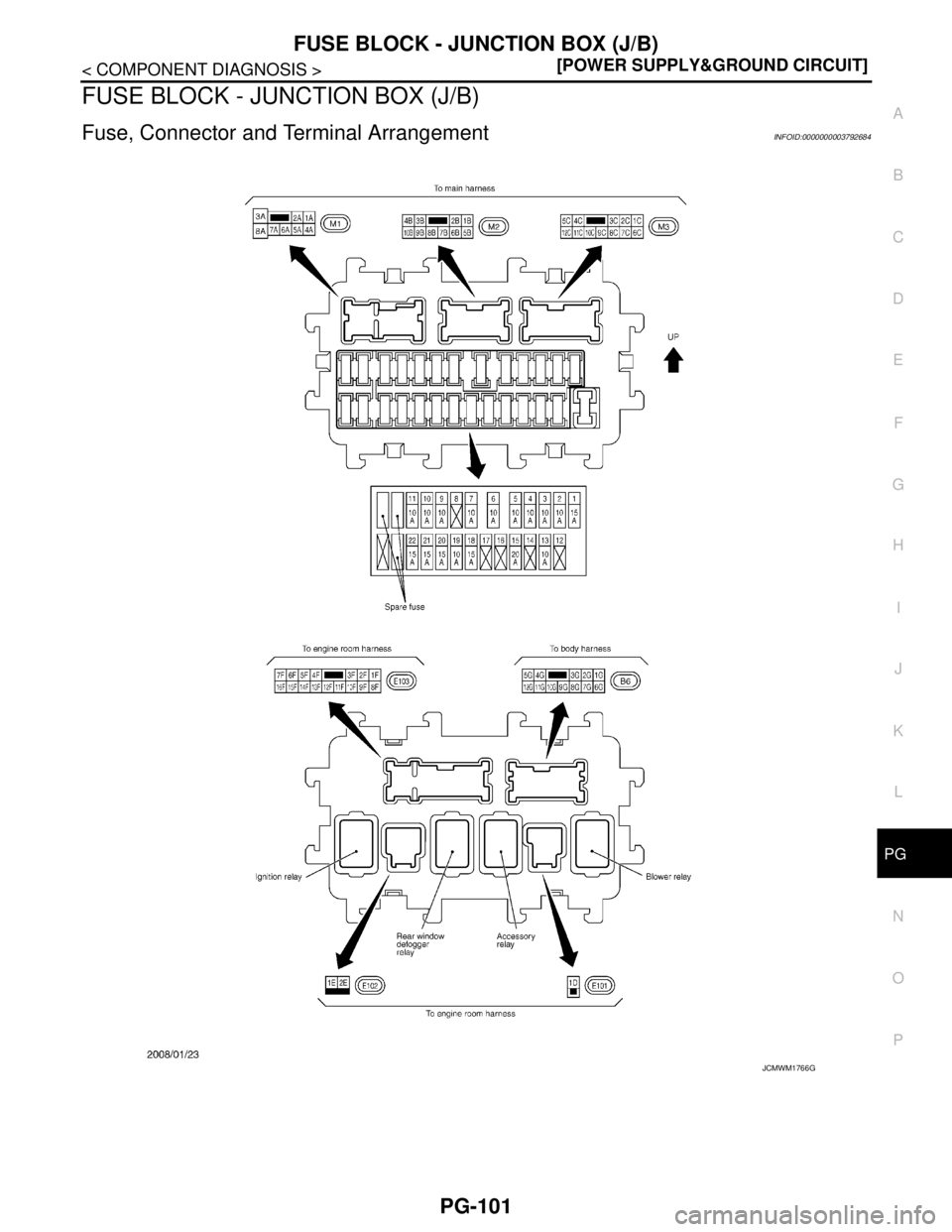

Fuse, Connector and Terminal ArrangementINFOID:0000000003792684
JCMWM1766GB

PG-102
< COMPONENT DIAGNOSIS >[POWER SUPPLY&GROUND CIRCUIT]
FUSE, FUSIBLE LINK AND RELAY BOX
FUSE, FUSIBLE LINK AND RELAY BOX
Fuse and Fusible Link ArrangementINFOID:0000000003792685

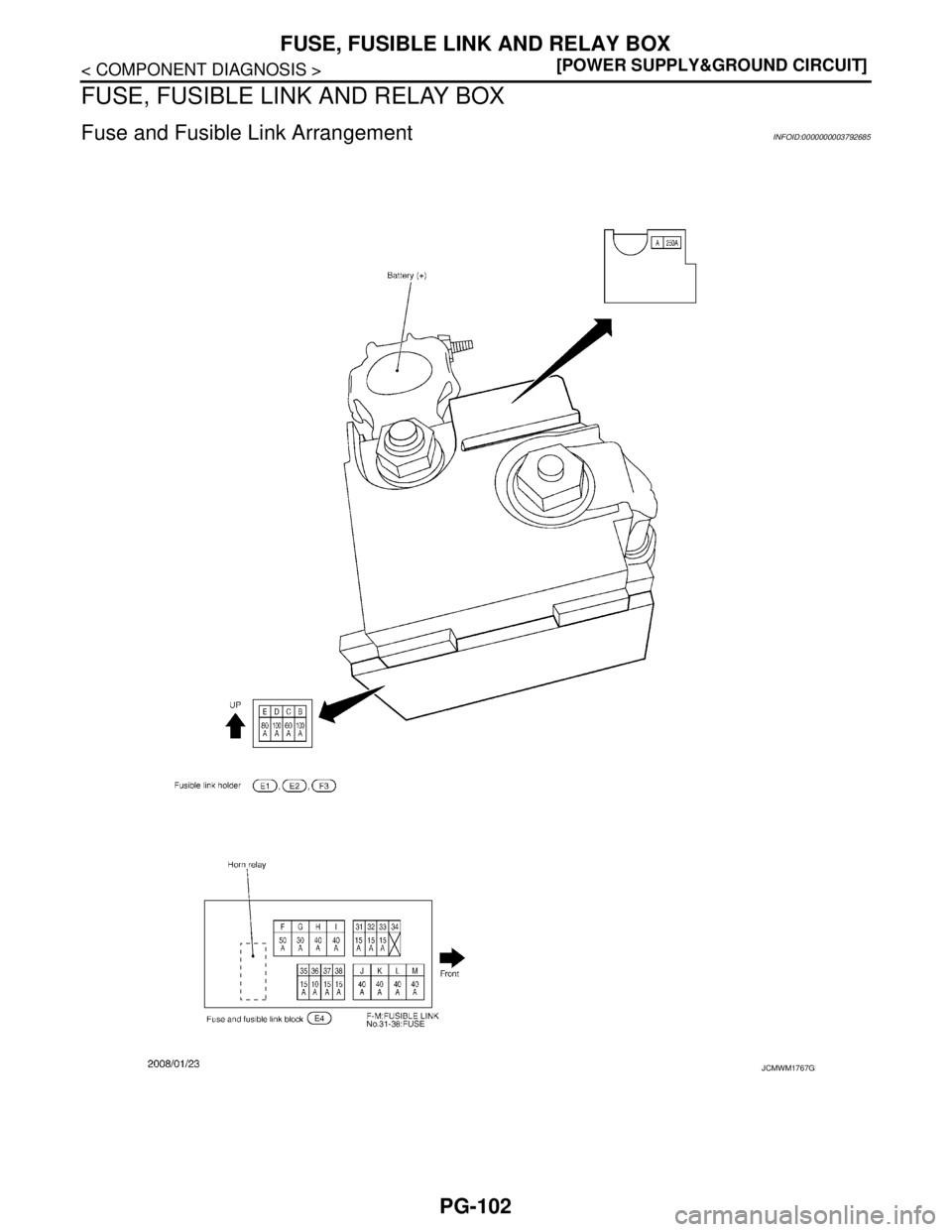

JCMWM1767GB
