NISSAN TEANA 2008 Service Manual

POWER SEAT
SE-47
< COMPONENT DIAGNOSIS >[WITH VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P

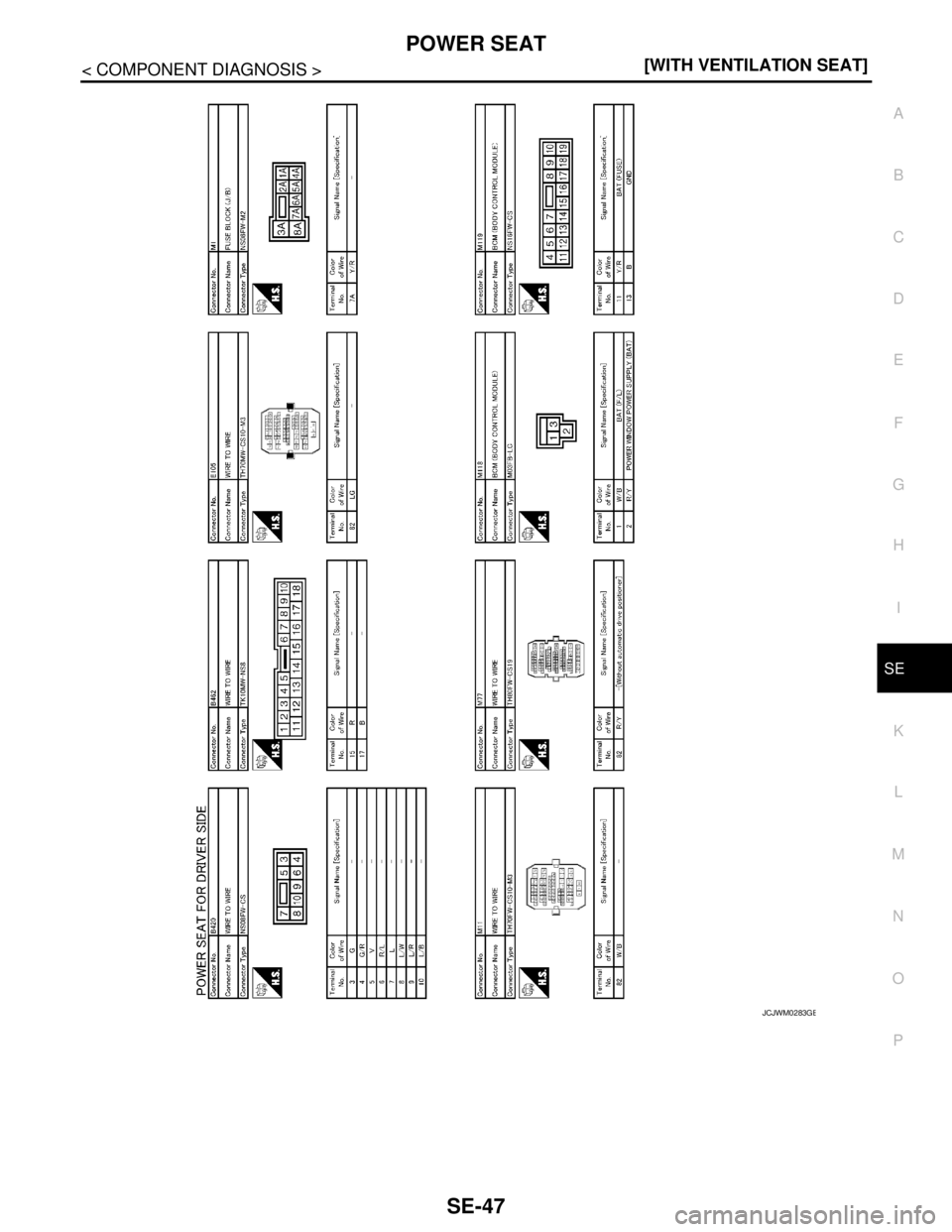

JCJWM0283GB

SE-48
< COMPONENT DIAGNOSIS >[WITH VENTILATION SEAT]
POWER SEAT
Wiring Diagram - POWER SEAT FOR PASSENGER SIDE -
INFOID:0000000003809258
JCJWM0284GB

POWER SEAT
SE-49
< COMPONENT DIAGNOSIS >[WITH VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
JCJWM0285GB

SE-50
< COMPONENT DIAGNOSIS >[WITH VENTILATION SEAT]
POWER SEAT
JCJWM0286GB

POWER SEAT
SE-51
< COMPONENT DIAGNOSIS >[WITH VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
JCJWM0287GB

SE-52
< ECU DIAGNOSIS >[WITH VENTILATION SEAT]
VENTILATION SEAT CONTROL UNIT
ECU DIAGNOSIS
VENTILATION SEAT CONTROL UNIT
FRONT SEAT
FRONT SEAT : Reference ValueINFOID:0000000003809262
TERMINAL LAYOUT
PHYSICAL VALUES
JMJIA2081ZZ
Te r m i n a l N o .
(Wire color)Description
ConditionVa l u e
(Approx.)
(+) (–) Signal nameInput/
Output
44
(GR/R)Ground Battery power supply Input Ignition switch OFF Battery voltage
45
(B/P)Ground Ground — Ignition switch ON 0 V
46
(B/W)Ground IGN power supply Input Ignition switchOFF or ACC 0 V
ON Battery voltage
47
(Y/G)Ground Ventilation seat switch HI signal Input Ventilation seat switch HIPressed 0 V
Other than
aboveBattery voltage
48
(P/B)Ground Ventilation seat switch LO signal Input Ventilation seat switch LOPressed 0 V
Other than
aboveBattery voltage
49
(BR)GroundVentilation seat HI indictor sig-
nalOutput Ventilation seat HI indicatorIlluminate 3 V
Other than
aboveBattery voltage
50
(BR/W)GroundVentilation seat LO indictor sig-
nalOutputVentilation seat LO indica-
torIlluminate 3 V
Other than
aboveBattery voltage
51
(W/V)Ground Heated seat switch HI signal Input Heated seat switch HIPressed 0 V
Other than
aboveBattery voltage
52
(R/V)Ground Heated seat switch LO signal Input Heated seat switch LOPressed 0 V
Other than
aboveBattery voltage
53
(Y/L)Ground Heated seat HI indictor signal Output Heated seat HI indicatorIlluminate 3 V
Other than
aboveBattery voltage

VENTILATION SEAT CONTROL UNIT
SE-53
< ECU DIAGNOSIS >[WITH VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
FRONT SEAT : Wiring Diagram - FRONT HEATED SEAT AND VENTILATION SEAT
54
(O/B)Ground Heated seat LO indictor signal Output Heated seat LO indicatorIlluminate 3 V
Other than
aboveBattery voltage
55
(V/R)Ground Ventilation motor ground — Ignition switch ON 0 V
56
(GR/L)GroundVentilation motor speed control
signalOutput Ventilation seatLO mode 8 V
HI mode 10.5 V
57
(Y)Ground Ventilation motor power supply Output Ventilation seatLO mode Battery voltage
HI mode Battery voltage
Other than
above0 V
58
(B/R)Ground Heated seat power supply Output Heated seatLO mode Battery voltage
HI mode Battery voltage
Other than
above0 V
59
(W/R)GroundGround
(Heated seat HI mode)— Heated seatLO mode 6.5 V
HI mode 0 V
Other than
above0 V
60
(R/B)GroundHeated seat HI mode power
supplyOutput
Heated seatLO mode 0 V
Heated seat LO mode ground —HI mode Battery voltage
Other than
above0 V Te r m i n a l N o .
(Wire color)Description
ConditionVa l u e
(Approx.)
(+) (–) Signal nameInput/
Output

SE-54
< ECU DIAGNOSIS >[WITH VENTILATION SEAT]
VENTILATION SEAT CONTROL UNIT
SYSTEM -
INFOID:0000000003809263
JCJWM0288GB

VENTILATION SEAT CONTROL UNIT
SE-55
< ECU DIAGNOSIS >[WITH VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
JCJWM0289GB

SE-56
< ECU DIAGNOSIS >[WITH VENTILATION SEAT]
VENTILATION SEAT CONTROL UNIT
JCJWM0290GB
