NISSAN TEANA 2008 Service Manual

PRECAUTIONS
SE-87
< PRECAUTION >[WITH VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
 When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust preven-
tion measures.
Precaution for WorkINFOID:0000000003809272
 When removing or disassembling each component, be careful not to damage or deform it. If a component
may be subject to interference, be sure to protect it with a shop cloth.
 When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component
with a shop cloth or vinyl tape to protect it.
 Protect the removed parts with a shop cloth and keep them.
 Replace a deformed or damaged clip.
 If a part is specified as a non-reusable part, always replace it with new one.
 Be sure to tighten bolts and nuts securely to the specified torque.
 After re-installation is completed, be sure to check that each part works normally.
 Follow the steps below to clean components.
- Water soluble foul: Dip a soft cloth into lukewarm water, and wring the water out of the cloth to wipe the
fouled area.
Then rub with a soft and dry cloth.
- Oily foul: Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%), and wipe
the fouled area.
Then dip a cloth into fresh water, and wring the water out of the cloth to wipe the detergent off. Then rub with
a soft and dry cloth.
 Never use organic solvent such as thinner, benzene, alcohol, and gasoline.
 For genuine leather seats, use a genuine leather seat cleaner.

SE-88
< PREPARATION >[WITH VENTILATION SEAT]
PREPARATION
PREPARATION
PREPARATION
Commercial Service ToolsINFOID:0000000003809274
Tool nameDescription
Engine earLocating the noise
Remover tool Removes clips, pawls, metal clips
Hook and pick tool Removes the snap pins
SIIA0995E
PIIB7923J
JMJIA0490ZZ

FRONT SEAT
SE-89
< ON-VEHICLE REPAIR >[WITH VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
ON-VEHICLE REPAIR
FRONT SEAT

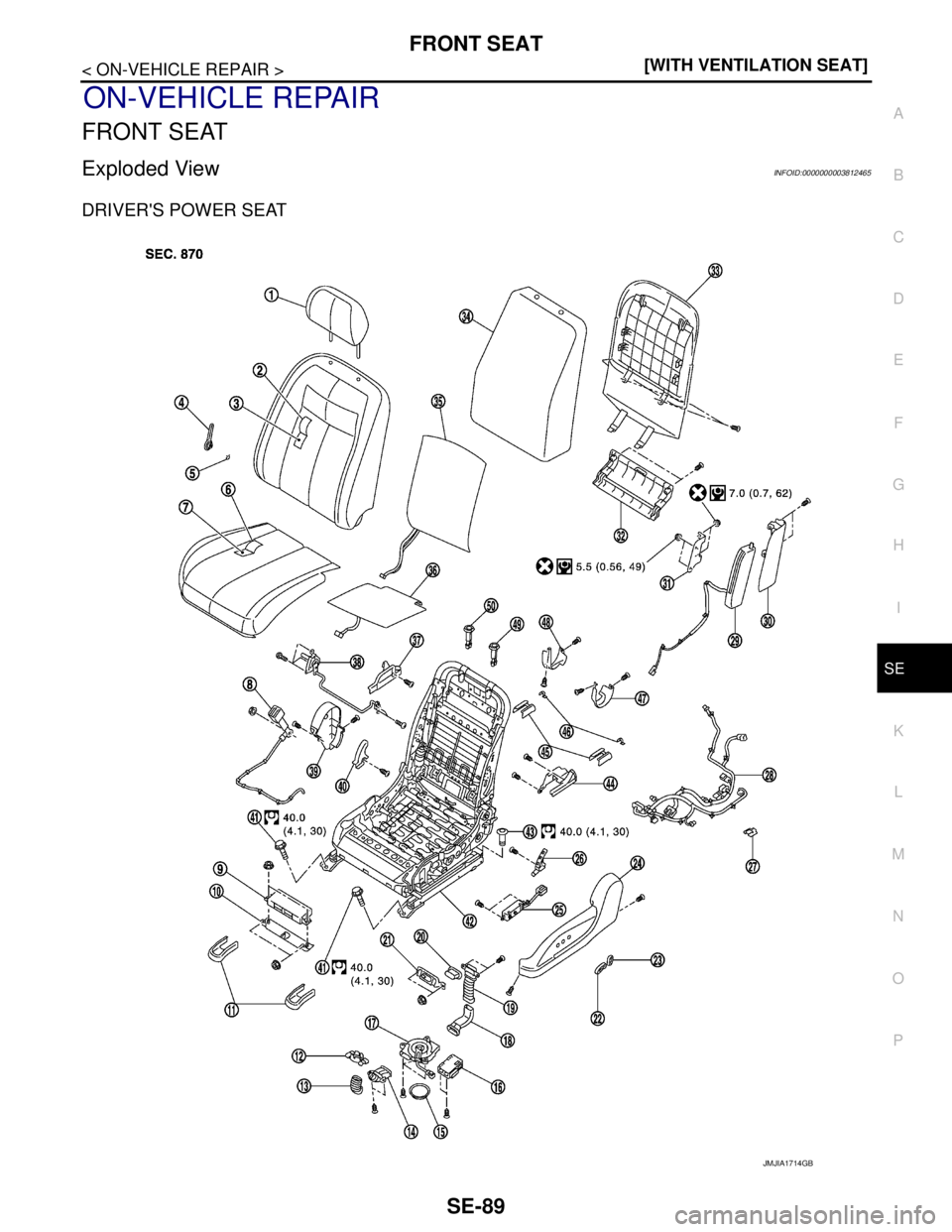

Exploded ViewINFOID:0000000003812465
DRIVER'S POWER SEAT
JMJIA1714GB

SE-90
< ON-VEHICLE REPAIR >[WITH VENTILATION SEAT]
FRONT SEAT
PASSENGER'S POWER SEAT
1. Headrest 2. Seatback trim 3. Seatback pad
4. Lumbar support lever knob 5. Snap pin 6. Seat cushion trim
7. Seat cushion pad 8. Seat belt buckle 9. Seat control unit
10. Seat cushion frame bracket 11. Front slide cover 12. Clip
13. Seat cushion duct B 14. Seat cushion duct A 15. Blower filter
16. Ventilation seat control unit 17. Ventilation motor 18. Seatback duct A
19. Seatback duct B 20. Seatback duct C 21. Clip
22. Seat slide and lifter switch knob 23. Reclining switch knob 24. Seat cushion outer finisher
25. Seat control switch 26. Seat cushion outer finisher inside 27. Seat harness clamp
28. Seat harness 29. Side air bag module 30. Seatback finisher
31. Side air bag module bracket 32. Seat cushion rear finisher 33. Seatback board
34. Seatback silencer 35. Seatback heater unit 36. Seat cushion heater unit
37. Seat slide inner cover 38. Lumbar support unit 39. Seat cushion inner finisher
40. Seat cushion inner finisher inside 41. TORX bolt 42. Seat frame assembly
43. TORX bolt 44. Seat slide outer cover 45. Rear slide cover
46. End cap 47. Reclining device outer cover 48. Reclining device inner cover
49. Headrest holder (locked) 50. Headrest holder (free)
Refer to GI-4, "
Components" for symbols in the figure.

FRONT SEAT
SE-91
< ON-VEHICLE REPAIR >[WITH VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P

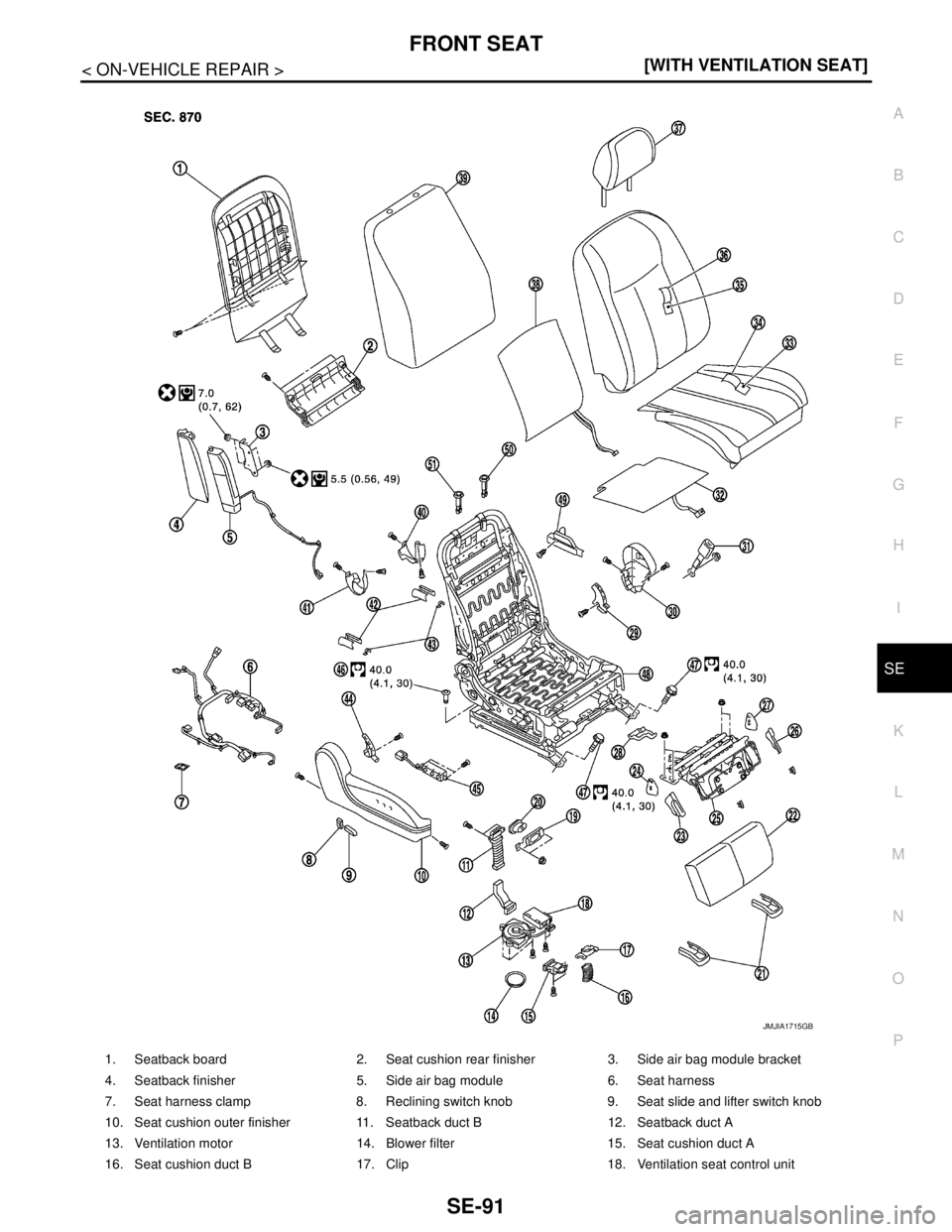

1. Seatback board 2. Seat cushion rear finisher 3. Side air bag module bracket
4. Seatback finisher 5. Side air bag module 6. Seat harness
7. Seat harness clamp 8. Reclining switch knob 9. Seat slide and lifter switch knob
10. Seat cushion outer finisher 11. Seatback duct B 12. Seatback duct A
13. Ventilation motor 14. Blower filter 15. Seat cushion duct A
16. Seat cushion duct B 17. Clip 18. Ventilation seat control unit
JMJIA1715GB

SE-92
< ON-VEHICLE REPAIR >[WITH VENTILATION SEAT]
FRONT SEAT

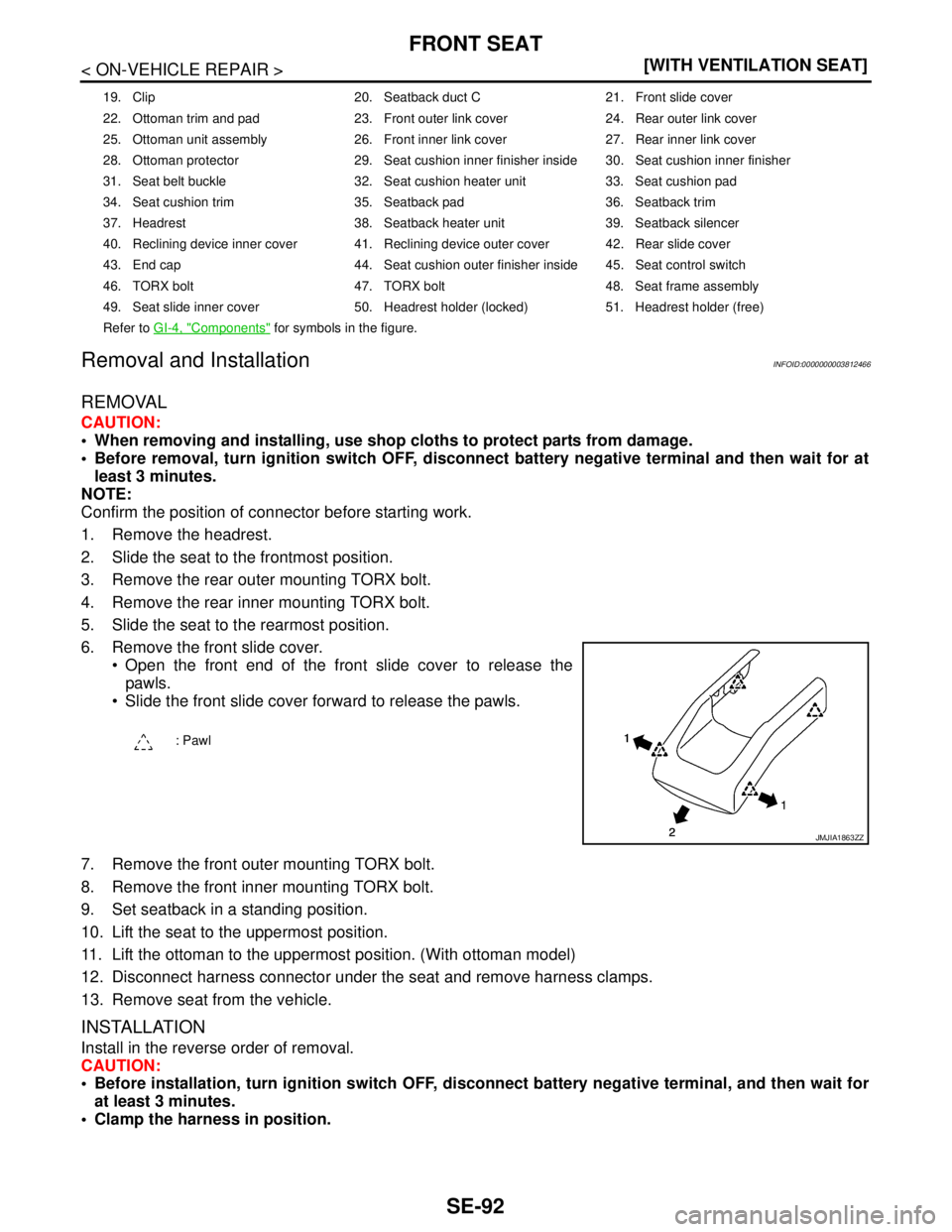

Removal and Installation
INFOID:0000000003812466
REMOVAL
CAUTION:
 When removing and installing, use shop cloths to protect parts from damage.
 Before removal, turn ignition switch OFF, disconnect battery negative terminal and then wait for at
least 3 minutes.
NOTE:
Confirm the position of connector before starting work.
1. Remove the headrest.
2. Slide the seat to the frontmost position.
3. Remove the rear outer mounting TORX bolt.
4. Remove the rear inner mounting TORX bolt.
5. Slide the seat to the rearmost position.
6. Remove the front slide cover.
 Open the front end of the front slide cover to release the
pawls.
 Slide the front slide cover forward to release the pawls.
7. Remove the front outer mounting TORX bolt.
8. Remove the front inner mounting TORX bolt.
9. Set seatback in a standing position.
10. Lift the seat to the uppermost position.
11. Lift the ottoman to the uppermost position. (With ottoman model)
12. Disconnect harness connector under the seat and remove harness clamps.
13. Remove seat from the vehicle.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
 Before installation, turn ignition switch OFF, disconnect battery negative terminal, and then wait for
at least 3 minutes.
 Clamp the harness in position.
19. Clip 20. Seatback duct C 21. Front slide cover
22. Ottoman trim and pad 23. Front outer link cover 24. Rear outer link cover
25. Ottoman unit assembly 26. Front inner link cover 27. Rear inner link cover
28. Ottoman protector 29. Seat cushion inner finisher inside 30. Seat cushion inner finisher
31. Seat belt buckle 32. Seat cushion heater unit 33. Seat cushion pad
34. Seat cushion trim 35. Seatback pad 36. Seatback trim
37. Headrest 38. Seatback heater unit 39. Seatback silencer
40. Reclining device inner cover 41. Reclining device outer cover 42. Rear slide cover
43. End cap 44. Seat cushion outer finisher inside 45. Seat control switch
46. TORX bolt 47. TORX bolt 48. Seat frame assembly
49. Seat slide inner cover 50. Headrest holder (locked) 51. Headrest holder (free)
Refer to GI-4, "
Components" for symbols in the figure.
: Pawl
JMJIA1863ZZ

FRONT SEAT
SE-93
< ON-VEHICLE REPAIR >[WITH VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P

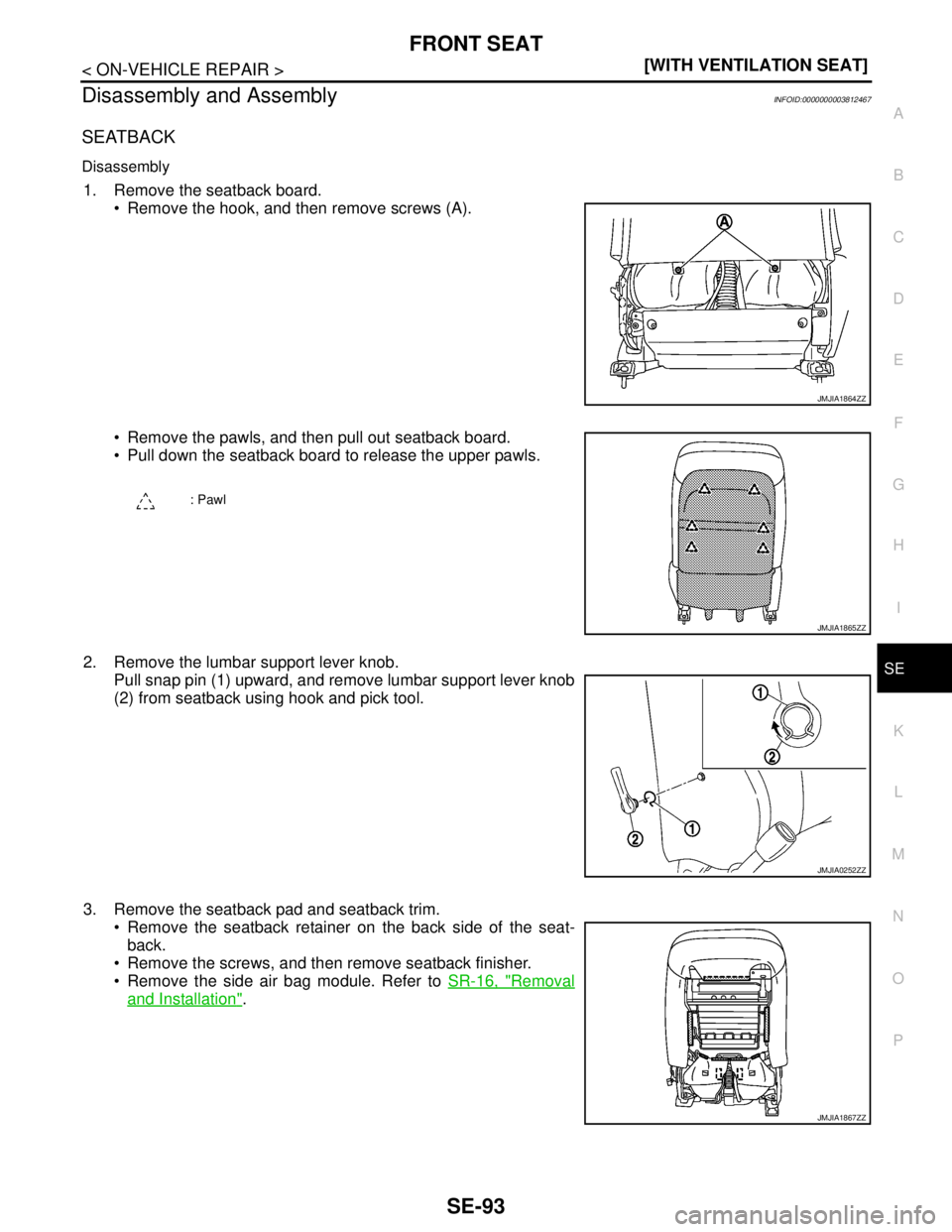

Disassembly and AssemblyINFOID:0000000003812467
SEATBACK
Disassembly
1. Remove the seatback board.
 Remove the hook, and then remove screws (A).
 Remove the pawls, and then pull out seatback board.
 Pull down the seatback board to release the upper pawls.
2. Remove the lumbar support lever knob.
Pull snap pin (1) upward, and remove lumbar support lever knob
(2) from seatback using hook and pick tool.
3. Remove the seatback pad and seatback trim.
 Remove the seatback retainer on the back side of the seat-
back.
 Remove the screws, and then remove seatback finisher.
 Remove the side air bag module. Refer to SR-16, "
Removal
and Installation".
JMJIA1864ZZ
: Pawl
JMJIA1865ZZ
JMJIA0252ZZ
JMJIA1867ZZ

SE-94
< ON-VEHICLE REPAIR >[WITH VENTILATION SEAT]
FRONT SEAT

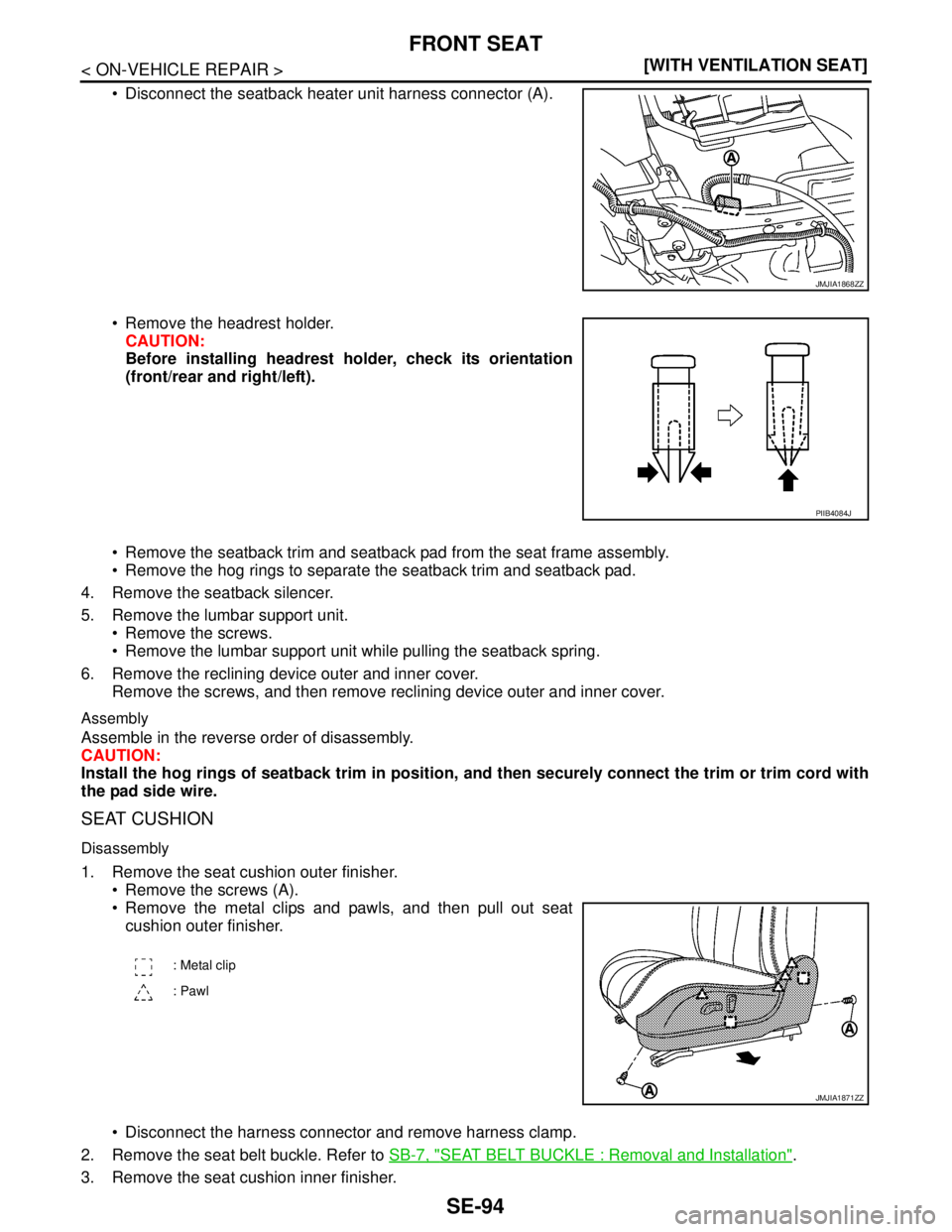

 Disconnect the seatback heater unit harness connector (A).
 Remove the headrest holder.
CAUTION:
Before installing headrest holder, check its orientation
(front/rear and right/left).
 Remove the seatback trim and seatback pad from the seat frame assembly.
 Remove the hog rings to separate the seatback trim and seatback pad.
4. Remove the seatback silencer.
5. Remove the lumbar support unit.
 Remove the screws.
 Remove the lumbar support unit while pulling the seatback spring.
6. Remove the reclining device outer and inner cover.
Remove the screws, and then remove reclining device outer and inner cover.
Assembly
Assemble in the reverse order of disassembly.
CAUTION:
Install the hog rings of seatback trim in position, and then securely connect the trim or trim cord with
the pad side wire.
SEAT CUSHION
Disassembly
1. Remove the seat cushion outer finisher.
 Remove the screws (A).
 Remove the metal clips and pawls, and then pull out seat
cushion outer finisher.
 Disconnect the harness connector and remove harness clamp.
2. Remove the seat belt buckle. Refer to SB-7, "
SEAT BELT BUCKLE : Removal and Installation".
3. Remove the seat cushion inner finisher.
JMJIA1868ZZ
PIIB4084J
: Metal clip
: Pawl
JMJIA1871ZZ

FRONT SEAT
SE-95
< ON-VEHICLE REPAIR >[WITH VENTILATION SEAT]
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P

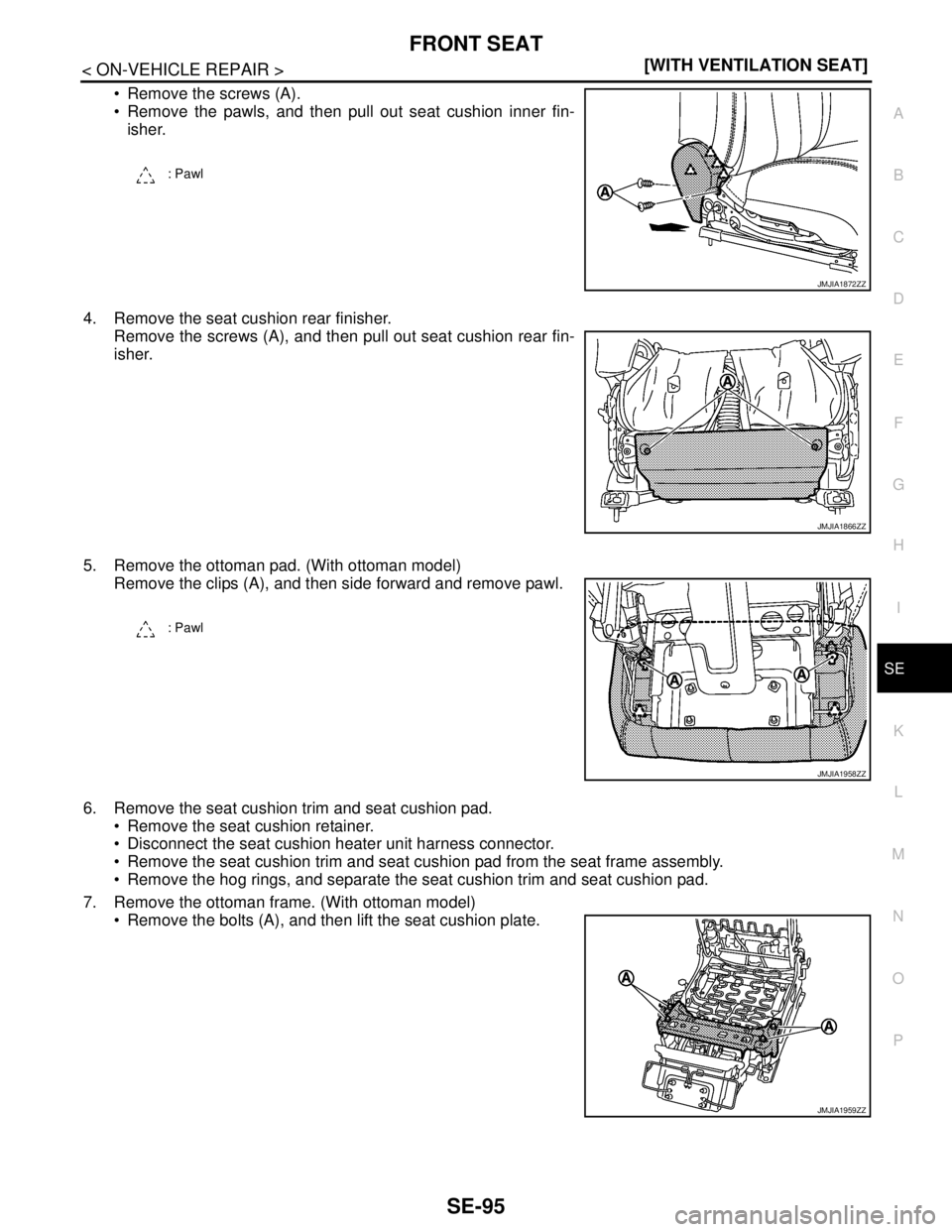

 Remove the screws (A).
 Remove the pawls, and then pull out seat cushion inner fin-
isher.
4. Remove the seat cushion rear finisher.
Remove the screws (A), and then pull out seat cushion rear fin-
isher.
5. Remove the ottoman pad. (With ottoman model)
Remove the clips (A), and then side forward and remove pawl.
6. Remove the seat cushion trim and seat cushion pad.
 Remove the seat cushion retainer.
 Disconnect the seat cushion heater unit harness connector.
 Remove the seat cushion trim and seat cushion pad from the seat frame assembly.
 Remove the hog rings, and separate the seat cushion trim and seat cushion pad.
7. Remove the ottoman frame. (With ottoman model)
 Remove the bolts (A), and then lift the seat cushion plate.
: Pawl
JMJIA1872ZZ
JMJIA1866ZZ
: Pawl
JMJIA1958ZZ
JMJIA1959ZZ

SE-96
< ON-VEHICLE REPAIR >[WITH VENTILATION SEAT]
FRONT SEAT

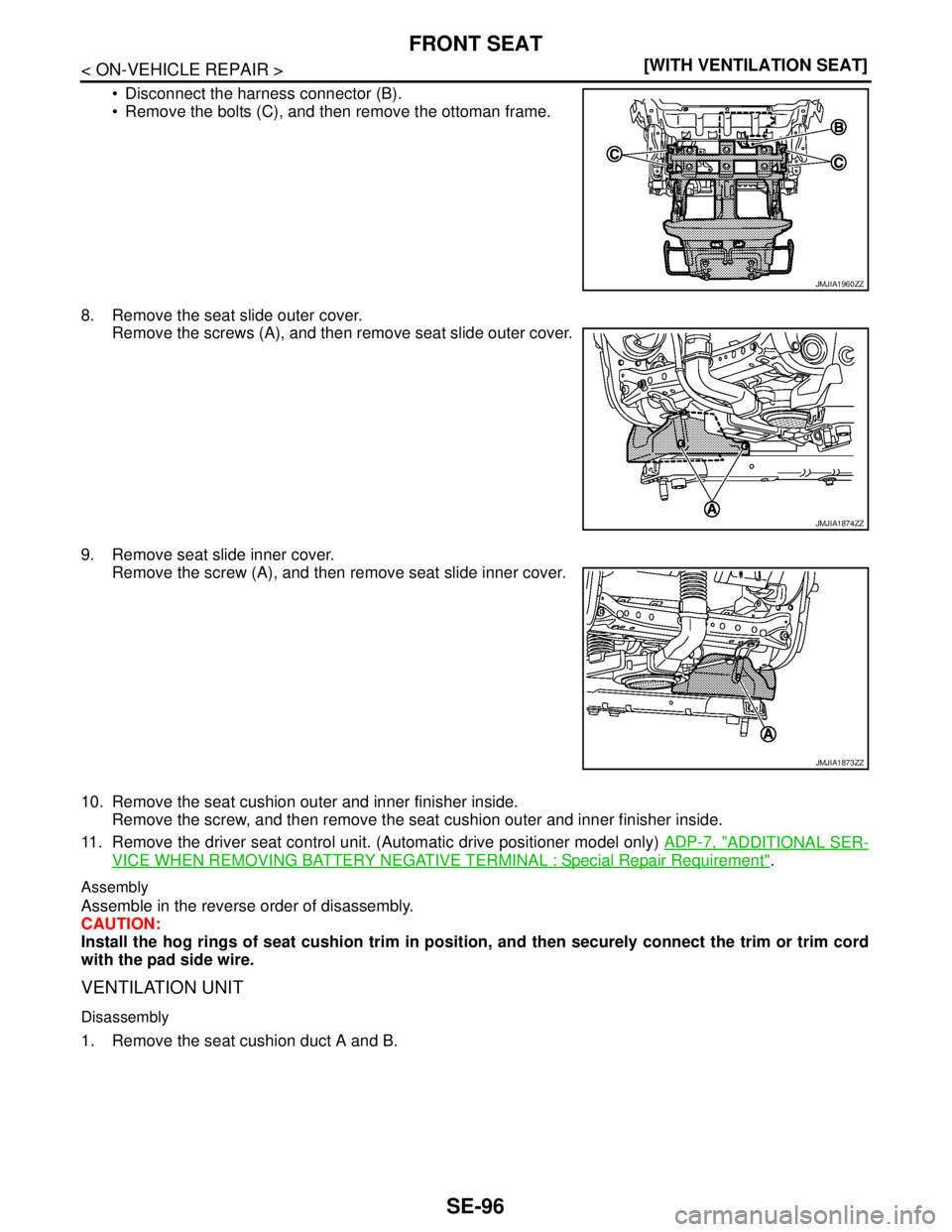

 Disconnect the harness connector (B).
 Remove the bolts (C), and then remove the ottoman frame.
8. Remove the seat slide outer cover.
Remove the screws (A), and then remove seat slide outer cover.
9. Remove seat slide inner cover.
Remove the screw (A), and then remove seat slide inner cover.
10. Remove the seat cushion outer and inner finisher inside.
Remove the screw, and then remove the seat cushion outer and inner finisher inside.
11. Remove the driver seat control unit. (Automatic drive positioner model only) ADP-7, "
ADDITIONAL SER-
VICE WHEN REMOVING BATTERY NEGATIVE TERMINAL : Special Repair Requirement".
Assembly
Assemble in the reverse order of disassembly.
CAUTION:
Install the hog rings of seat cushion trim in position, and then securely connect the trim or trim cord
with the pad side wire.
VENTILATION UNIT
Disassembly
1. Remove the seat cushion duct A and B.
JMJIA1960ZZ
JMJIA1874ZZ
JMJIA1873ZZ
