NISSAN TEANA 2008 Service Manual

AV
BOSE AMP.
AV-657
< ON-VEHICLE REPAIR >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
BOSE AMP.
Exploded ViewINFOID:0000000003765999
Removal and InstallationINFOID:0000000003766000
REMOVAL
1. Remove trunk front finisher upper. Refer to INT-57, "Removal and Installation".
2. Remove BOSE amp. mounting bolts, disconnect the BOSE amp. connector.
3. Remove BOSE amp.
INSTALLATION
Installation is the reverse order of removal.
JPNIA1042ZZ
:Vehicle front
1. BOSE amp.

AV-658
< ON-VEHICLE REPAIR >[BOSE AUDIO WITH NAVIGATION]
ANTENNA AMP.
ANTENNA AMP.
Exploded ViewINFOID:0000000003766001
Removal and InstallationINFOID:0000000003766002
REMOVAL
1. Remove rear side pillar finisher. Refer to INT-39, "Removal and Installation".
2. Disconnect antenna feeder connector and clip.
3. Remove antenna amp. mounting nut, disconnect the antenna amp. connector.
4. Remove antenna amp.
INSTALLATION
Installation is the reverse order of removal.
JPNIA1032ZZ
1. AM-FM main connector
2. Antenna amp.

AV
MULTIFUNCTION SWITCH
AV-659
< ON-VEHICLE REPAIR >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
MULTIFUNCTION SWITCH
Exploded ViewINFOID:0000000003766003
REMOVAL
Refer to IP-11, "Exploded View".
DISASSEMBLY
Removal and InstallationINFOID:0000000003766004
REMOVAL
1. Remove cluster lid D. Refer to IP-12, "Removal and Installation".
2. Remove multifunction switch mounting screws.
3. Remove multifunction switch.
INSTALLATION
Installation is the reverse order of removal.
JPNIA1052ZZ
1. Cluster lid D
2. Multifunction switch

AV-660
< ON-VEHICLE REPAIR >[BOSE AUDIO WITH NAVIGATION]
PRESET SWITCH
PRESET SWITCH
Exploded ViewINFOID:0000000003766005
REMOVAL
Refer to IP-11, "Exploded View".
DISASSEMBLY
Removal and InstallationINFOID:0000000003766006
REMOVAL
1. Remove cluster lid C. Refer to IP-12, "Removal and Installation".
2. Remove preset switch mounting screws.
3. Remove preset switch.
INSTALLATION
Installation is the reverse order of removal.
NOTE:
When installing preset switch, do not allow the print wire that connects preset switch and multifunction switch
to get caught in between AV control unit and preset switch.
1. Preset switch 2. Cluster lid C
JPNIA1044ZZ
1. Preset switch
A. Screw
B. Screw
JPNIA1045ZZ

AV
REAR CONTROL SWITCH
AV-661
< ON-VEHICLE REPAIR >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
REAR CONTROL SWITCH
Exploded ViewINFOID:0000000003824769
REMOVAL
Refer to SE-98, "Exploded View".
DISASSEMBLY
Removal and InstallationINFOID:0000000003824770
REMOVAL
1. Remove rear control switch, stretching pawls of armrest assembly.
2. Disconnect rear control switch connector.
3. Remove rear control switch.
INSTALLATION
Installation is the reverse order of removal.
JPNIA1046ZZ
1. Rear control switch
A. Clip

AV-662
< ON-VEHICLE REPAIR >[BOSE AUDIO WITH NAVIGATION]
DVD PLAYER
DVD PLAYER
Exploded ViewINFOID:0000000003824765
REMOVAL
Refer to IP-11, "Exploded View".
DISASSEMBLY
Removal and InstallationINFOID:0000000003824766
REMOVAL
1. Remove grove box. Refer to IP-12, "Removal and Installation"
2. Remove DVD player mounting screw, disconnect the DVD player connector.
3. Remove DVD player.
INSTALLATION
Installation is the reverse order of removal.
JPNIA1047ZZ
1. DVD player

AV
AUXILIARY INPUT JACKS
AV-663
< ON-VEHICLE REPAIR >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P
AUXILIARY INPUT JACKS
Exploded ViewINFOID:0000000003766007
REMOVAL
Refer to IP-22, "Removal and Installation".
DISASSEMBLY
Removal and InstallationINFOID:0000000003766008
REMOVAL
1. Remove console finisher. Refer to IP-22, "Removal and Installation".
2. Remove auxiliary mounting screws.
3. Remove auxiliary input jacks.
INSTALLATION
Installation is the reverse order of removal.
JPNIA1048ZZ
1. Auxiliary input jacks

AV-664
< ON-VEHICLE REPAIR >[BOSE AUDIO WITH NAVIGATION]
MICROPHONE
MICROPHONE
Exploded ViewINFOID:0000000003766009
REMOVAL
Refer to INL-89, "Exploded View".
DISASSEMBLY
Removal and InstallationINFOID:0000000003766010
REMOVAL
1. Remove map lamp assembly. Refer to INL-89, "Removal and Installation".
2. Remove microphone(1), stretching pawls of map lamp assem-
bly.
INSTALLATION
Installation is the reverse order of removal.
JSNIA0132ZZ
1. Microphone
JSNIA0132ZZ

AV
GPS ANTENNA
AV-665
< ON-VEHICLE REPAIR >[BOSE AUDIO WITH NAVIGATION]
C
D
E
F
G
H
I
J
K
L
MB A
O
P

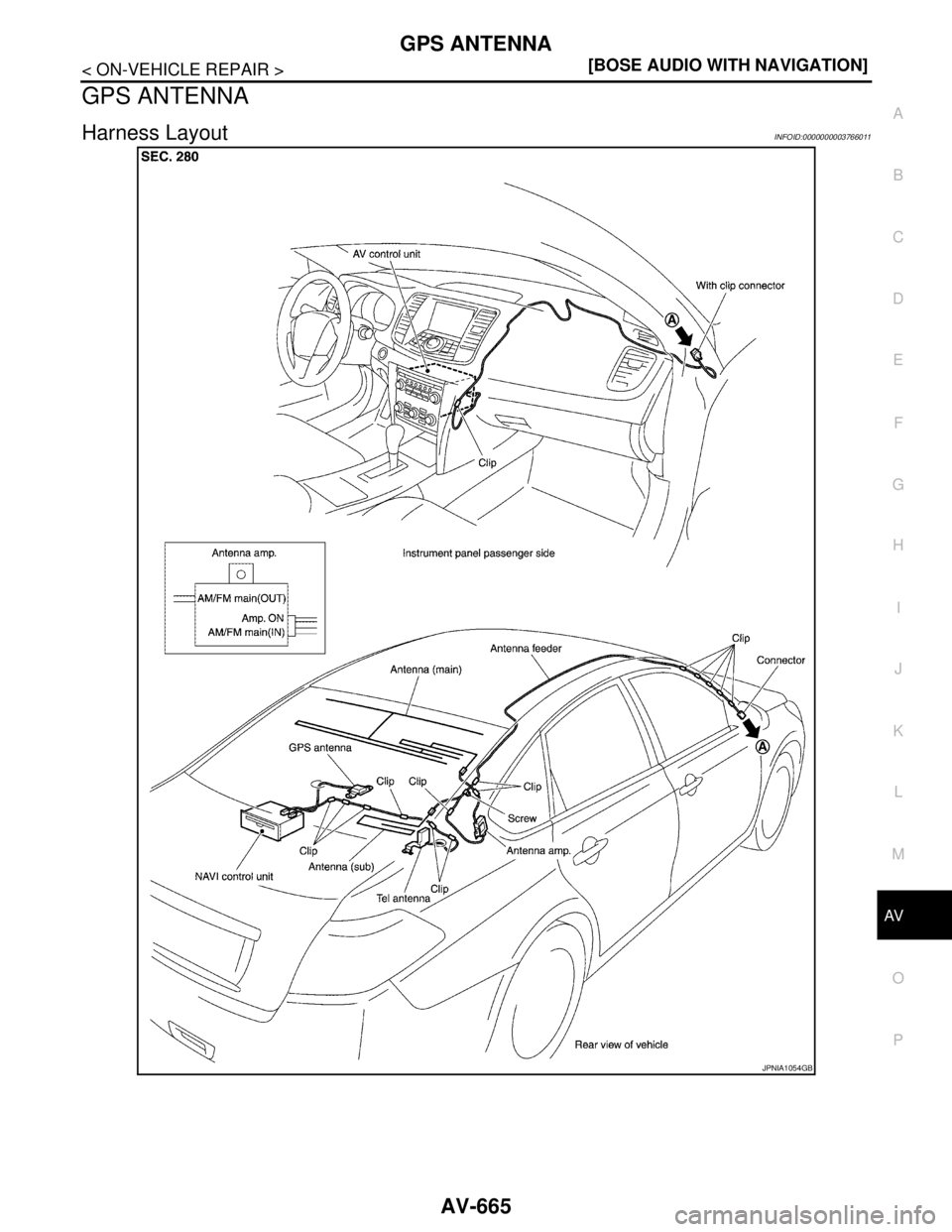

GPS ANTENNA
Harness LayoutINFOID:0000000003766011
JPNIA1054GB

AV-666
< ON-VEHICLE REPAIR >[BOSE AUDIO WITH NAVIGATION]
GPS ANTENNA
Exploded View
INFOID:0000000003766012
Removal and InstallationINFOID:0000000003766013
REMOVAL
1. Remove rear parcel shelf finisher. Refer to INT-43, "Removal and Installation".
2. Remove GPS antenna mounting screws, disconnect GPS antenna connector.
3. Remove GPS antenna.
INSTALLATION
Install in the reverse order of removal.
JPNIA1055ZZ
1. GPS antenna
