FUEL INJECTOR AND FUEL TUBEEM-43
< REMOVAL AND INSTALLATION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O• Handle O-rings with bare hands only. Do not wear gloves.
• Do not clean O-rings with solvent.
• Make sure that O-ring and its mating part are free of foreign material.
• Be careful not to scratch O- rings during installation.
• Do not twist or stretch the O-ring. If the O-ring was stretched while it is attached, do not insert it
into the fuel tube immediately.
2. Install the fuel injector (5) into the fuel tube (1) with the following procedure:
(2): O-ring (black)
(4): O-ring (green)
a. Insert the new clip (3) into the clip mounting groove (F) on fuel injector (5).
• Insert the clip (3) so that prot rusion (E) of fuel injector (5)
matches cutout (C) of the clip (3).
CAUTION:
• Do not reuse clip (3), replace it with a new one.
• Be careful to keep clip from interfering with O-ring. If
interference occurs, replace O-ring.
b. Insert fuel injector (5) into fuel tube (1) with clip (3) attached. • Insert fuel injector (5) so that protrusion (A) of fuel tube (1)
matches cut-out (B) of the clip (3).
• Check that fuel tube flange (G) is securely fixed in flange
groove (D) on the clip (3).
c. Check that installation is comple te by checking that fuel injector
(5) does not rotate or come off.
3. Install fuel tube and fuel injector assembly with the following procedure.
a. Insert the tip of each fuel injector into intake manifold.
b. Tighten the bolts to specification in the numerical order as shown.
CAUTION:
After properly connecting fu el tube assembly to injector
and fuel hose, check co nnection for fuel leaks.
4. Connect the fuel hose quick connector.
a. Make sure no foreign substances are deposited in and around the fuel tube and quick connector, and there is no damage to them.
b. Thinly apply new engine oil around the fuel tube tip end. Fuel tube side : Black
Nozzle side : Green
AWBIA1262GB
AWBIA1261GB
Revision: November 20132014 Altima NAM

EM-44
< REMOVAL AND INSTALLATION >[QR25DE]
FUEL INJECTOR AND FUEL TUBE
c. Align center to insert quick connector straight onto fuel tube.
d. Insert fuel tube into quick connector (1) until the top spool (B) on fuel tubes is inserted completely and the second level spool (C)
is positioned slightly below the quick connector bottom end.
CAUTION:
• Hold at position (A) as show n, when inserting the fuel
tube into the quick connector.
• Carefully align to center to avoid inclined insertion to pre-
vent damage to the O-ring inside the quick connector.
• Insert the fuel tube until you hear a “click” sound and
actually feel the engagement.
• To avoid misidentification of engagement with a similar
sound, be sure to perform the next step.
• Do not reuse O-ring.
e. Before clamping the fuel hose with the hose clamp, pull the quick connector hard by hand, holding at the
(A) position, as shown. Make sure it is completely engaged (connected) so that it does not come off of the
fuel tube.
NOTE:
Recommended pulling force is 50 N (5.1 kg, 11.2 lb).
f. Install quick connector cap (1) over fuel hose side (B) and fuel tube side (A).
NOTE:
Direct arrow mark on quick connector cap (1) to fuel hose side.
5. Installation of the remaining components is in the reverse order of removal.
INSPECTION AFTER INSTALLATION
Make sure there are no fuel leaks at connections as follows:
1. Apply fuel pressure to fuel lines by turning ignition switch ON (with engine stopped). Then check for fuel leaks at connections.
2. Start the engine and rev it up and check for fuel leaks at connections. • Perform procedures for “Throttle Valve Closed Posi tion Learning” after finishing repairs. Refer to EC-
178, "Work Procedure".
• If electric throttle control actuator is replaced, perform procedures for “Idle Air Volume Learning” after
finishing repairs. Refer to EC-179, "Work Procedure"
.
WARNING:
Do not touch engine immediately after stopping as engine is extremely hot.
NOTE:
Use mirrors for checking on connections out of the direct line of sight.
ALBIA0896GB
ALBIA0890GB
Revision: November 20132014 Altima NAM

ROCKER COVEREM-45
< REMOVAL AND INSTALLATION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
ROCKER COVER
Exploded ViewINFOID:0000000009460490
Removal and InstallationINFOID:0000000009460491
REMOVAL
1. Disconnect the battery negative terminal. Refer to
PG-73, "Removal and Installation (Battery)".
2. Remove the engine room cover. Refer to EM-28, "Removal and Installation"
.
3. Remove the core support cover. Refer to EXT-17, "Removal and Installation"
.
4. Remove the front air duct. Refer to EM-29, "Removal and Installation"
.
5. Remove the RH engine mount torque rod. Refer to EM-84, "Removal and Installation"
.
6. Support the engine using a suitable jack.
7. Remove harness grounds from the top of the engine mount bracket.
8. Remove the RH engine support bracket. Refer to EM-84, "Removal and Installation"
.
9. Remove the RH engine mounting bracket. Refer to EM-84, "Removal and Installation"
.
10. Disconnect the PCV hose.
11. Remove the ignition coils. Refer to EM-40, "Removal and Installation"
.
12. Loosen the bolts in the numerical order as shown using power tool.
13. Remove the rocker cover and the rocker cover gasket. Discard the rocker cover gasket.
CAUTION:
Do not reuse the rocker cover gasket.
14. Remove the oil filler cap, (if necessary).
INSTALLATION
1. Oil filler cap 2. Rocker cover 3. Rocker cover gasket
A. Refer to INSTALLATION Engine front
AWBIA1317GB
ALBIA0836GB
Revision: November 20132014 Altima NAM

EM-46
< REMOVAL AND INSTALLATION >[QR25DE]
ROCKER COVER
1. Apply liquid gasket to the position shown (A) with the following
procedure:
a. Apply liquid gasket to joint part of No.1 camshaft bracket (1) and cylinder head.
b. Apply liquid gasket in a 90 ° degree angle (B).
• Use Genuine Silicone RTV Seal ant, or equivalent. Refer to
GI-21
.
2. Install rocker cover gasket to rocker cover. NOTE:
The rocker cover gasket must be securely installed in the groove in the rocker cover.
3. Install the rocker cover and rocker cover gasket onto the cylinder head.
4. Tighten the rocker cover bolts to specification in two steps in the order shown.
5. Installation of the remaining components is in the reverse order of removal. (B) : 10 mm (0.39 in)
(C) : 4 mm (0.16 in)
(D) : 5 mm (0.20 in)
ALBIA0837GB
Step 1 : 1.96 N·m (0.20 kg-m, 17 in-lb)
Step 2 : 8.33 N·m (0.85 kg-m, 74 in-lb)
ALBIA0836GB
Revision: November 20132014 Altima NAM

CAMSHAFTEM-47
< REMOVAL AND INSTALLATION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
CAMSHAFT
Exploded ViewINFOID:0000000009460492
Removal and InstallationINFOID:0000000009460493
REMOVAL
1. Remove the rocker cover. Refer to
EM-45, "Removal and Installation".
2. Disconnect intake valve timing intermediate lock contro l solenoid valve, intake valve timing control sole-
noid valve, exhaust valve timing control solenoi d valve and camshaft sensor harness connectors.
3. Remove camshaft position sensors.
4. Remove camshaft position sensor bracket.
5. Remove the intake valve timing intermediate lock control solenoid valve, intake valve timing control sole- noid valve and exhaust valve timing control solenoid valve.
CAUTION:
Do not reuse O-ring.
6. Remove the spark plugs. Refer to EM-16, "Removal and Installation"
.
1. Washer 2. Camshaft bracket (No.1) 3. Camshaft sprocket (INT)
4. Camshaft sprocket (EXH) 5. Chain tensioner 6. Front cover (partial view)
7. Valve timing control cover O-rings (INT) 8. Valve timing control cover 9. Valve timing control solenoid valve
O-rings
10. Intake valve timing intermediate lock control solenoid valve 11. Intake valve timing control solenoid
valve 12. Exhaust valve timing control sole-
noid valve
13. Valve timing control cover O-rings (EXH) 14. Cylinder head 15. Valve lifters
16. Camshaft (EXH) 17. Signal plate (EXH) 18. Signal plate (INT)
19. Camshaft position sensor bracket 20. Camshaft position sensor (EXH) 21. Camshaft positions sensor (INT)
22. Camshaft position sensor O-rings 23. Camshaft brackets (INT) 24. Camshaft brackets (EXH)
25. Camshaft (INT) A. Refer to INSTALLATION B. Refer to INSTALLATION
AWBIA1769ZZ
Revision: November 20132014 Altima NAM

EM-48
< REMOVAL AND INSTALLATION >[QR25DE]
CAMSHAFT
7. Loosen the valve timing control cover bolts in the reverse order
shown.
a. Remove the valve timing control cover bolts.
8. Remove the valve timing control cover by cutting the liquid gas- ket using Tool (A).
NOTE:
Do not loosen screws (A) on the back of the valve timing control
cover.
9. Set the No.1 cylinder at TDC on its compression stroke using the following procedure:
a. Remove the fender protector side cover RH. Refer to EXT-26,
"FENDER PROTECTOR : Removal and Installation".
b. Rotate crankshaft pulley clockwise, and align mating mark for TDC (B) with timing indicator (A) on front cover, as shown.
NOTE:
Do not confuse TDC (B) with paint mark (C).
ALBIA0839GB
Tool number : KV10111100 (J-37228)
AWBIA1257GB
AWBIA1361ZZ
ALBIA0840GB
Revision: November 20132014 Altima NAM

CAMSHAFTEM-49
< REMOVAL AND INSTALLATION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O
c. At the same time, make sure that the mating marks (outer
groove) (B) on camshaft sprockets are lined up with the pink
links (A) in the timing chain, as shown.
• If not, rotate crankshaft pulley one more turn to line up the
mating marks (outer groove) (B) to the pink links (A), as
shown.
10. Remove the timing chain tensioner (primary) with the following procedure.
a. Pull the lever down and release the plunger stopper tab. • Plunger stopper tab can be pushed up to release (coaxial
structure with lever).
b. Insert the stopper pin into the tensioner body hole to hold the lever and keep tab released.
NOTE:
Allen wrench [2.5 mm (0.098)] is used for a stopper pin as an
example.
c. Insert plunger into tensioner body by pressing slack guide.
d. Keep slack the guide pressed and hold it by pushing the stopper
pin through the lever hole and body hole.
e. Remove the bolts and remove the timing chain tensioner (pri- mary).
11. Remove camshaft sprockets with the following procedure. CAUTION:
• Do not rotate the crankshaft or camshaft while the timing chain is removed. It causes interference between valve
and piston.
NOTE:
• Chain tension holding work is not necessary. Timing chain does not fall off the crankshaft sprocket while the front cover is
attached.
a. Line up the mating marks on camshaft sprockets with the pink links in the timing chain, and paint an indelible mating mark on
the sprocket and timing chain link plate.
b. Secure the hexagonal part of camshaft with a suitable tool. Loosen the camshaft sprocket bolts and remove the camshaft sprockets.
ALBIA0841GB
PBIC2107E
PBIC2108E
ALBIA0844GB
Revision: November 20132014 Altima NAM

EM-50
< REMOVAL AND INSTALLATION >[QR25DE]
CAMSHAFT
12. Loosen the camshaft bracket bolts in the order as shown, and
remove the camshaft brackets and camshafts.
NOTE:
Remove No.1 camshaft bracket by slightly tapping it with a rub-
ber mallet.
13. Remove the valve lifters. NOTE:
Check mounting positions, and set them aside in the order removed.
INSPECTION AFTER REMOVAL
Oil Filter
• Check that there is no foreign material on the oil filter (1) and check for clogging.
• Check the oil filter for damage.
• If there is damage, replace the oil filter.

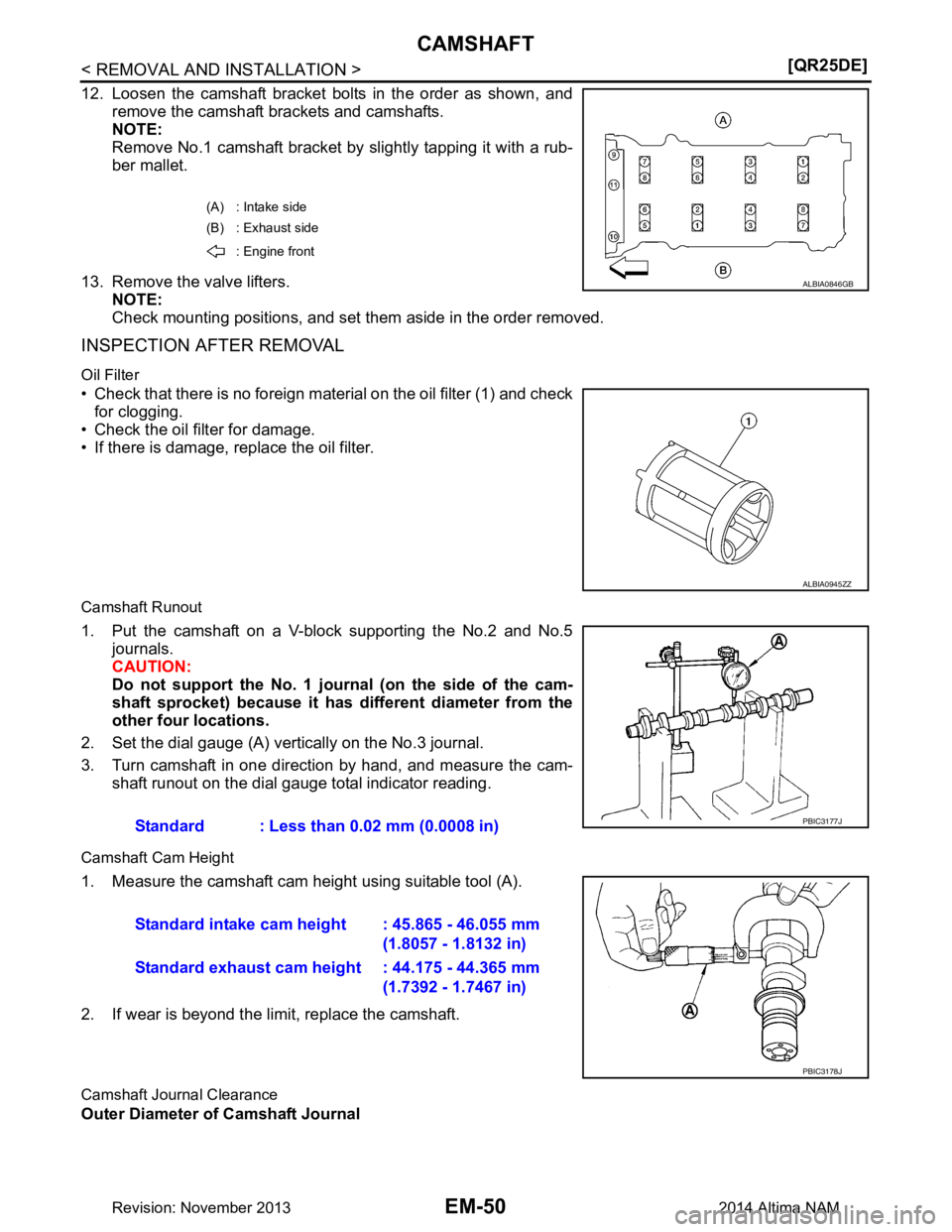

Camshaft Runout
1. Put the camshaft on a V-block supporting the No.2 and No.5 journals.
CAUTION:
Do not support the No. 1 journal (on the side of the cam-
shaft sprocket) because it has different diameter from the
other four locations.
2. Set the dial gauge (A) vertically on the No.3 journal.
3. Turn camshaft in one direction by hand, and measure the cam- shaft runout on the dial gauge total indicator reading.
Camshaft Cam Height
1. Measure the camshaft cam height using suitable tool (A).
2. If wear is beyond the limit, replace the camshaft.
Camshaft Journal Clearance

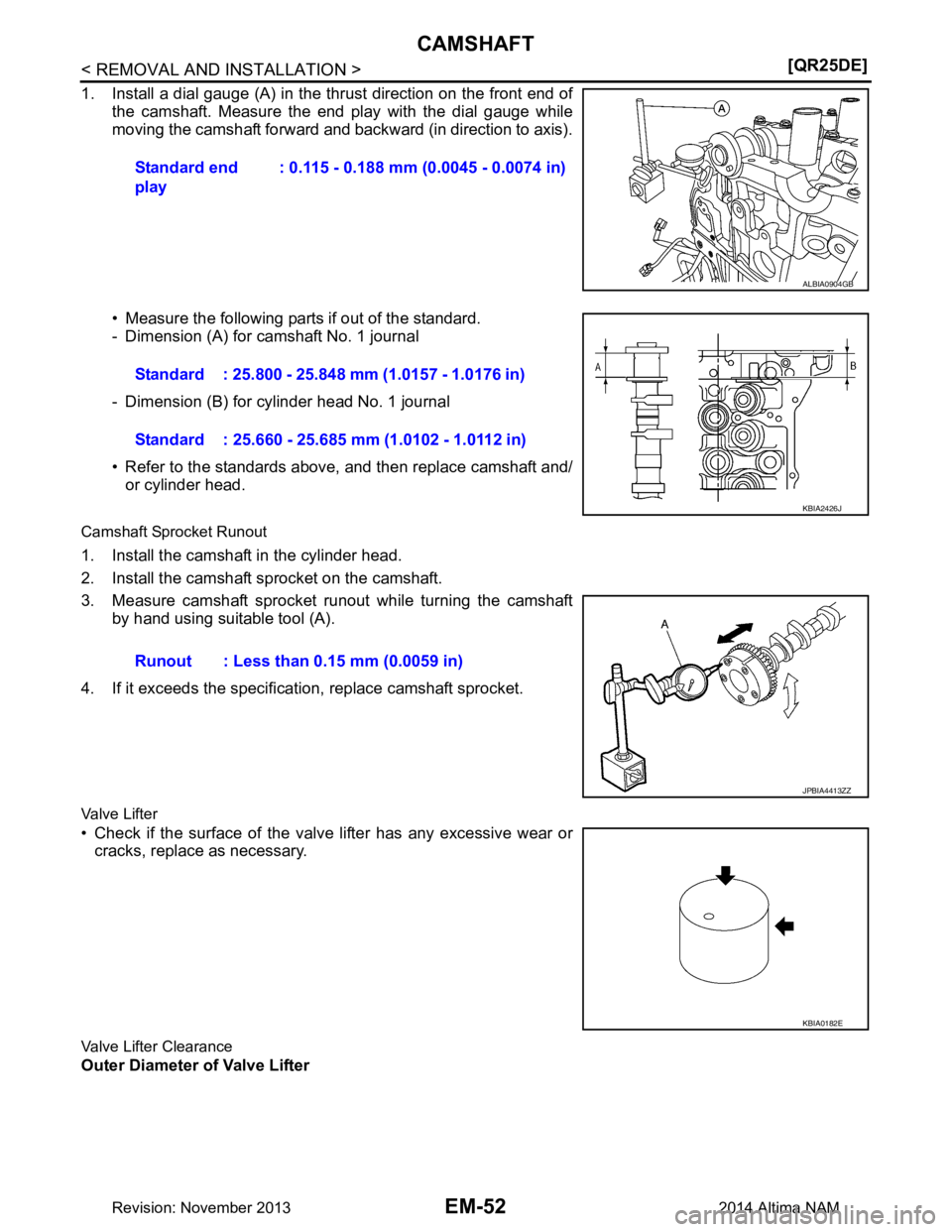

Outer Diameter of Camshaft Journal
(A) : Intake side
(B) : Exhaust side
: Engine front
ALBIA0846GB
ALBIA0945ZZ
Standard : Less than 0.02 mm (0.0008 in)PBIC3177J
Standard intake cam height : 45.865 - 46.055 mm (1.8057 - 1.8132 in)
Standard exhaust cam height : 44.175 - 44.365 mm (1.7392 - 1.7467 in)
PBIC3178J
Revision: November 20132014 Altima NAM

CAMSHAFTEM-51
< REMOVAL AND INSTALLATION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EM
NP
O

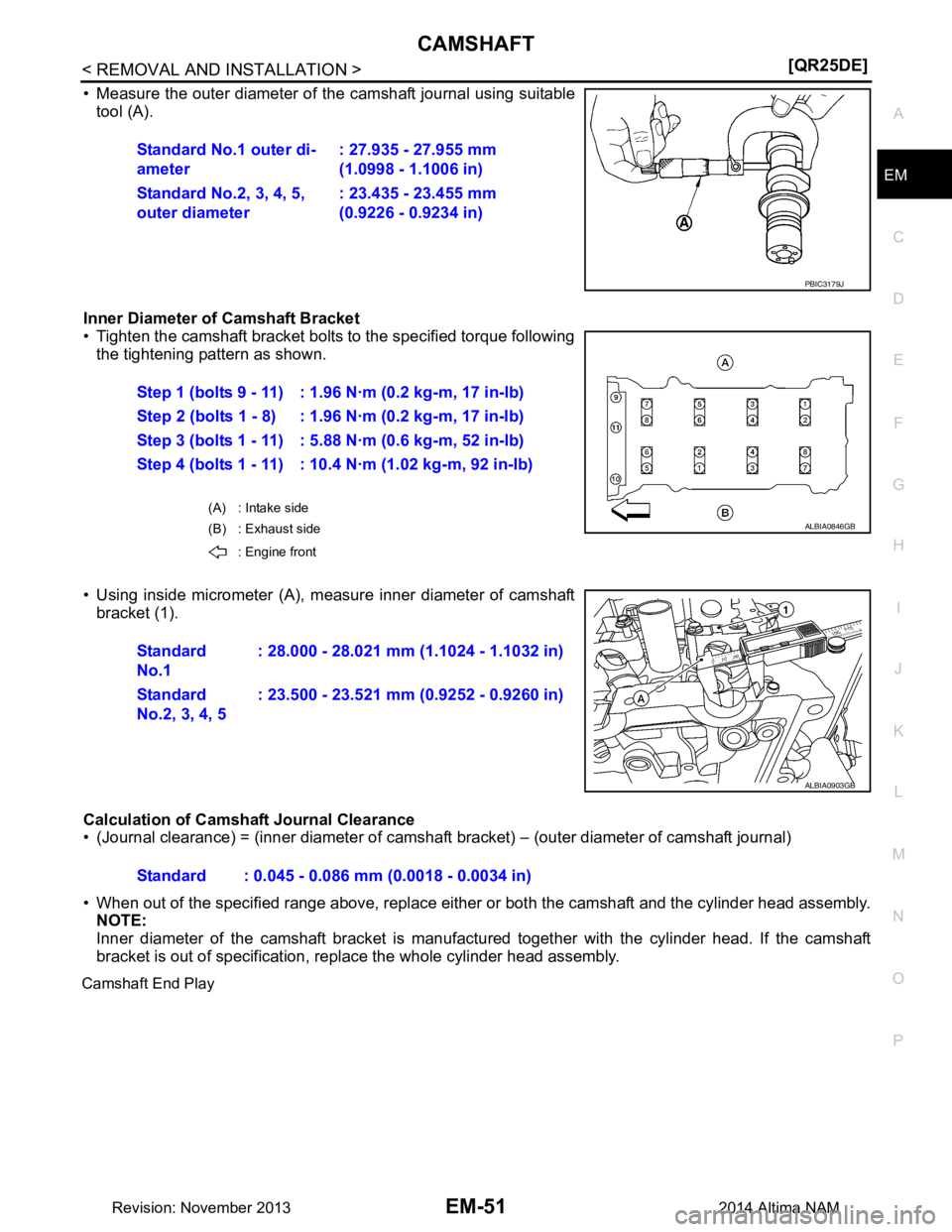

• Measure the outer diameter of t
he camshaft journal using suitable
tool (A).
Inner Diameter of Camshaft Bracket
• Tighten the camshaft bracket bolts to the specified torque following
the tightening pattern as shown.
• Using inside micrometer (A), measure inner diameter of camshaft bracket (1).
Calculation of Camshaft Journal Clearance
• (Journal clearance) = (inner diameter of camshaft bracket) – (outer diameter of camshaft journal)
• When out of the specified range above, replace either or both the camshaft and the cylinder head assembly.
NOTE:
Inner diameter of the camshaft bracket is manufac tured together with the cylinder head. If the camshaft
bracket is out of specification, replace the whole cylinder head assembly.
Camshaft End Play
Standard No.1 outer di-
ameter : 27.935 - 27.955 mm
(1.0998 - 1.1006 in)
Standard No.2, 3, 4, 5,
outer diameter : 23.435 - 23.455 mm
(0.9226 - 0.9234 in)
PBIC3179J
Step 1 (bolts 9 - 11) : 1.96 N·m (0.2 kg-m, 17 in-lb)
Step 2 (bolts 1 - 8) : 1.96 N·m (0.2 kg-m, 17 in-lb)
Step 3 (bolts 1 - 11) : 5.88 N·m (0.6 kg-m, 52 in-lb)
Step 4 (bolts 1 - 11) : 10.4 N·m (1.02 kg-m, 92 in-lb)
(A) : Intake side
(B) : Exhaust side
: Engine front
ALBIA0846GB
Standard
No.1 : 28.000 - 28.021 mm (1.1024 - 1.1032 in)
Standard
No.2, 3, 4, 5 : 23.500 - 23.521 mm (0.9252 - 0.9260 in)
ALBIA0903GB
Standard : 0.045 - 0.086 mm (0.0018 - 0.0034 in)
Revision: November 20132014 Altima NAM

EM-52
< REMOVAL AND INSTALLATION >[QR25DE]
CAMSHAFT
1. Install a dial gauge (A) in the thrust direction on the front end of
the camshaft. Measure the end play with the dial gauge while
moving the camshaft forward and backward (in direction to axis).
• Measure the following parts if out of the standard.
- Dimension (A) for camshaft No. 1 journal
- Dimension (B) for cylinder head No. 1 journal
• Refer to the standards above, and then replace camshaft and/ or cylinder head.
Camshaft Sprocket Runout
1. Install the camshaft in the cylinder head.
2. Install the camshaft sprocket on the camshaft.
3. Measure camshaft sprocket runout while turning the camshaft by hand using suitable tool (A).
4. If it exceeds the specificat ion, replace camshaft sprocket.
Valve Lifter
• Check if the surface of the valve lifter has any excessive wear or
cracks, replace as necessary.
Valve Lifter Clearance
Outer Diameter of Valve Lifter Standard end
play : 0.115 - 0.188 mm (0.0045 - 0.0074 in)
ALBIA0904GB
Standard : 25.800 - 25.848 mm (1.0157 - 1.0176 in)
Standard : 25.660 - 25.685 mm (1.0102 - 1.0112 in)
KBIA2426J
Runout : Less than 0.15 mm (0.0059 in)
JPBIA4413ZZ
KBIA0182E
Revision: November 20132014 Altima NAM
