TM-36
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
SYSTEM
SHIFT CONTROL : System Description
INFOID:0000000009463991

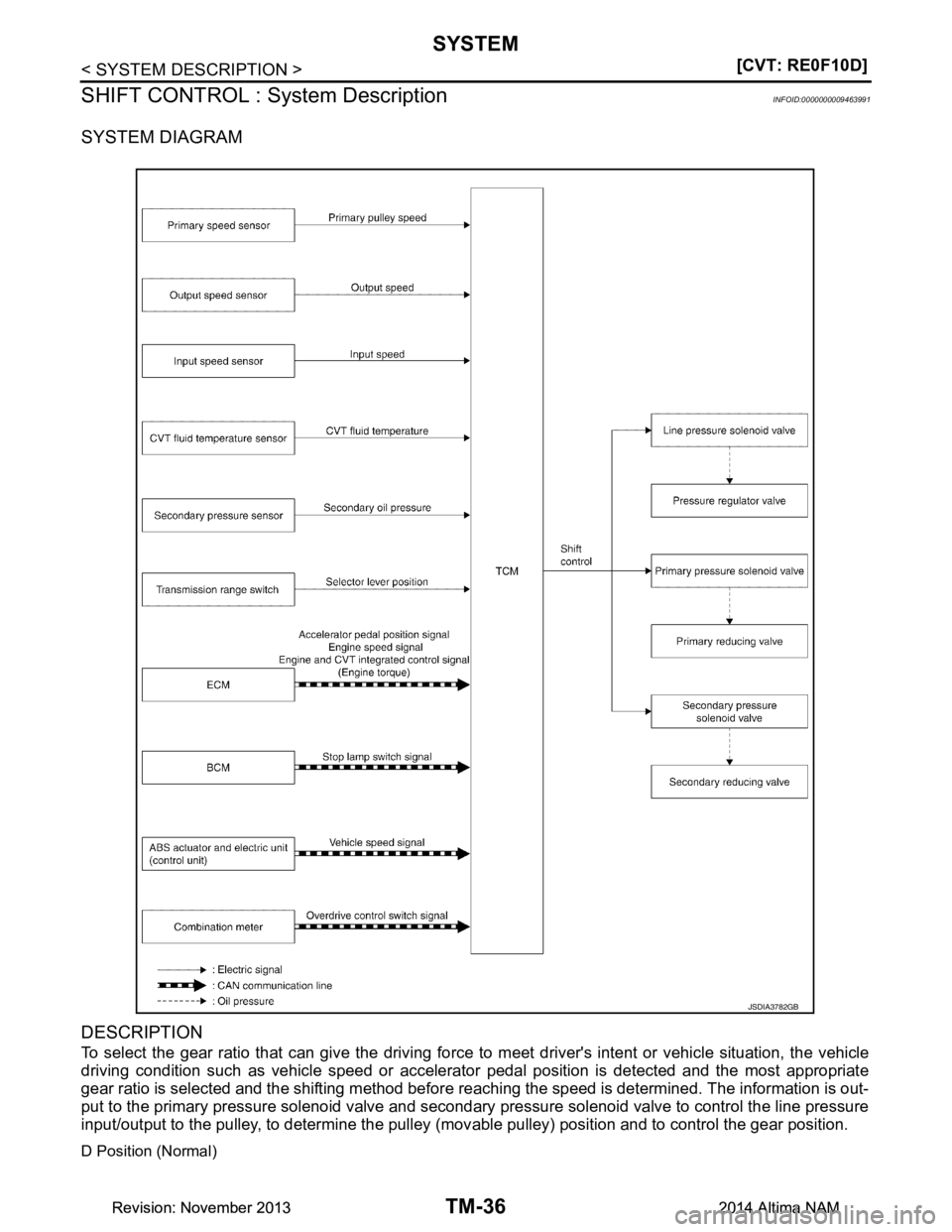

SYSTEM DIAGRAM
DESCRIPTION
To select the gear ratio that can give the driving force to meet driver's intent or vehicle situation, the vehicle
driving condition such as vehicle speed or accelera tor pedal position is detected and the most appropriate
gear ratio is selected and the shifting method before reaching the speed is determined. The information is out-
put to the primary pressure solenoid valve and secondary pressure solenoid valve to control the line pressure
input/output to the pulley, to determine the pulley (mov able pulley) position and to control the gear position.

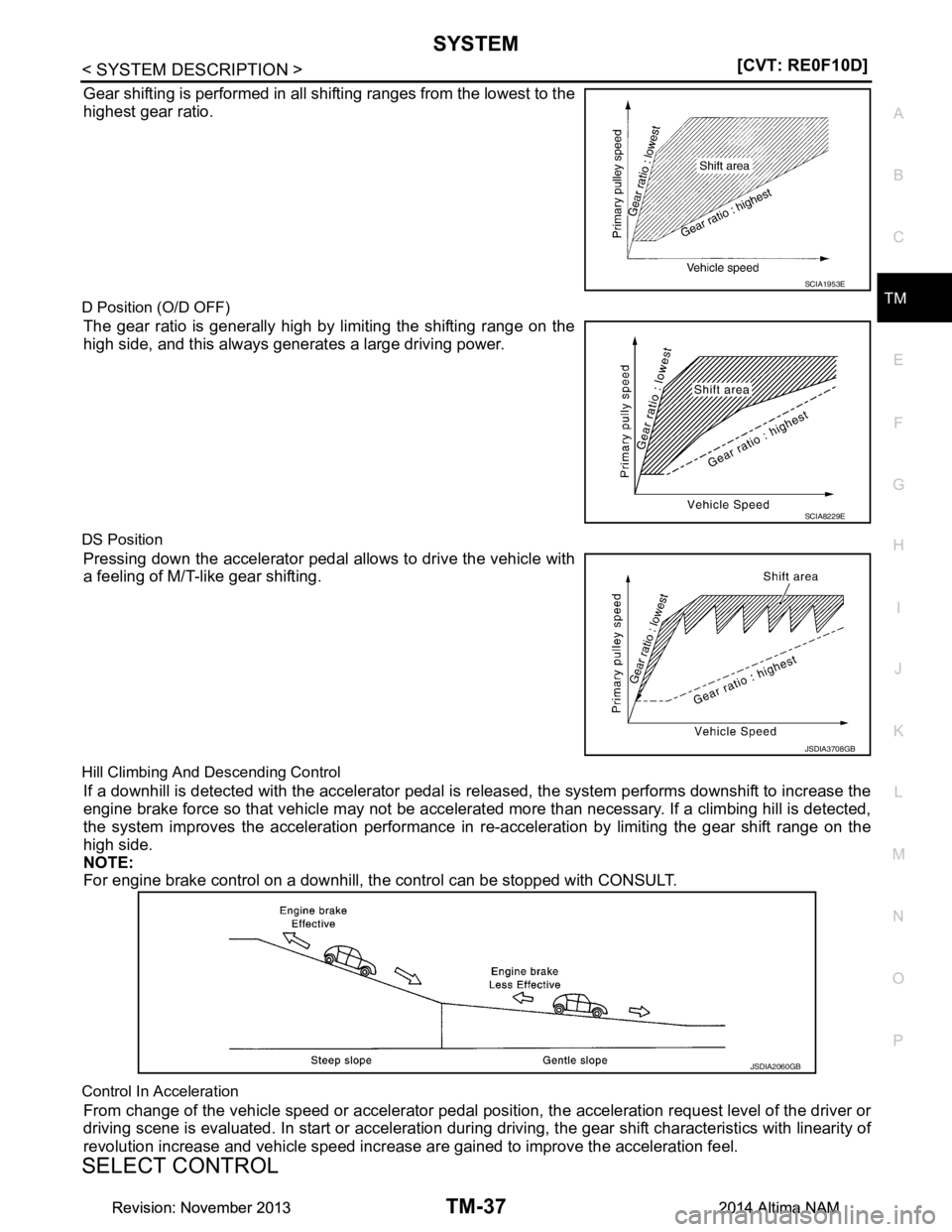

D Position (Normal)
JSDIA3782GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

SYSTEMTM-37
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
Gear shifting is performed in all shifting ranges from the lowest to the
highest gear ratio.
D Position (O/D OFF)
The gear ratio is generally high by limiting the shifting range on the
high side, and this always generates a large driving power.
DS Position
Pressing down the accelerator pedal allows to drive the vehicle with
a feeling of M/T-like gear shifting.
Hill Climbing And Descending Control
If a downhill is detected with the accelerator pedal is released, the system performs downshift to increase the
engine brake force so that vehicle may not be accelerat ed more than necessary. If a climbing hill is detected,
the system improves the acceleration performance in re-acceleration by limiting the gear shift range on the
high side.
NOTE:
For engine brake control on a downhill, the control can be stopped with CONSULT.
Control In Acceleration
From change of the vehicle speed or accelerator pedal pos ition, the acceleration request level of the driver or
driving scene is evaluated. In start or acceleration duri ng driving, the gear shift characteristics with linearity of
revolution increase and vehicle speed increase ar e gained to improve the acceleration feel.
SELECT CONTROL
SCIA1953E
SCIA8229E
JSDIA3708GB
JSDIA2060GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-38
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
SYSTEM
SELECT CONTROL : System Description
INFOID:0000000009463992

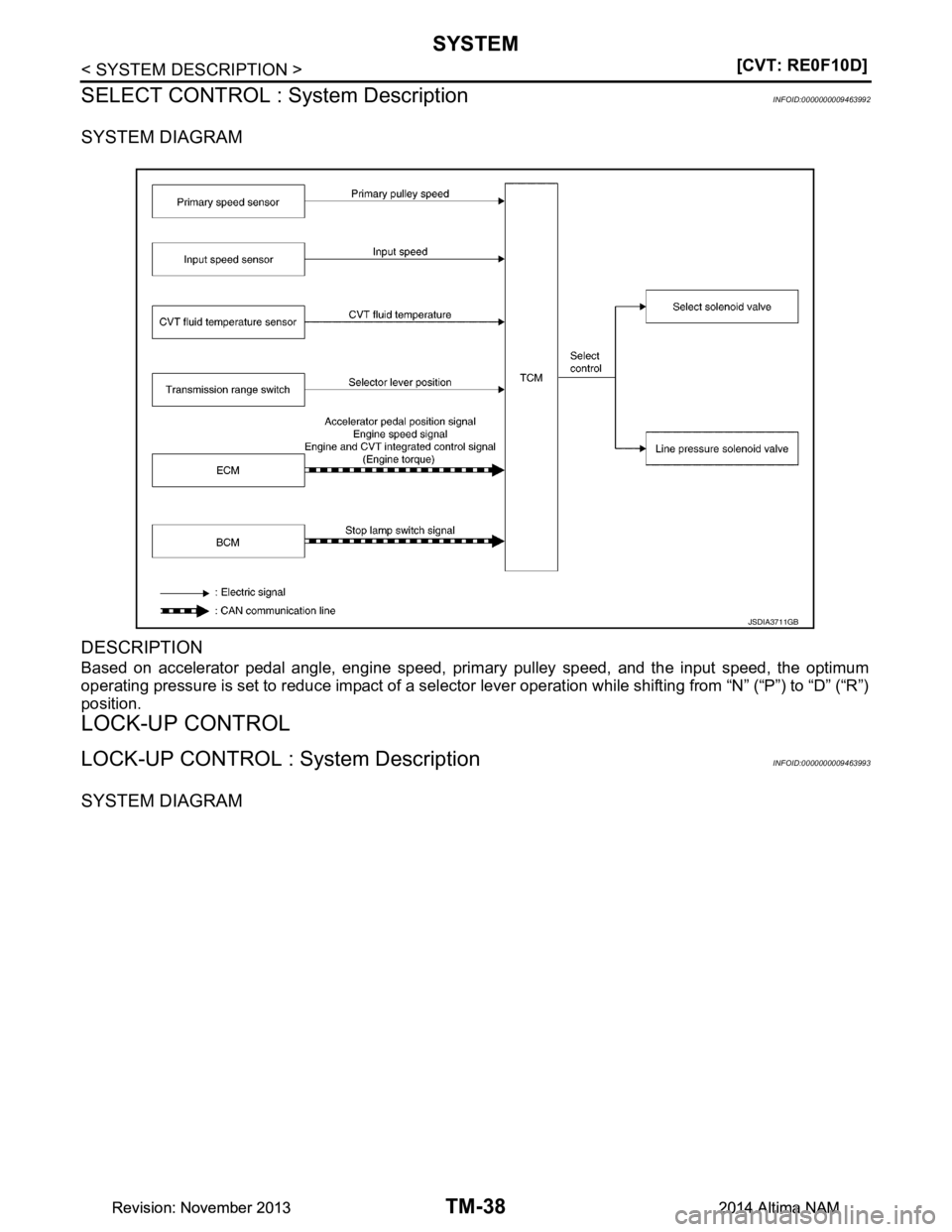

SYSTEM DIAGRAM
DESCRIPTION
Based on accelerator pedal angle, engine speed, prim ary pulley speed, and the input speed, the optimum
operating pressure is set to reduce impact of a selector lever operation while shifting from “N” (“P”) to “D” (“R”)
position.
LOCK-UP CONTROL
LOCK-UP CONTROL : System DescriptionINFOID:0000000009463993

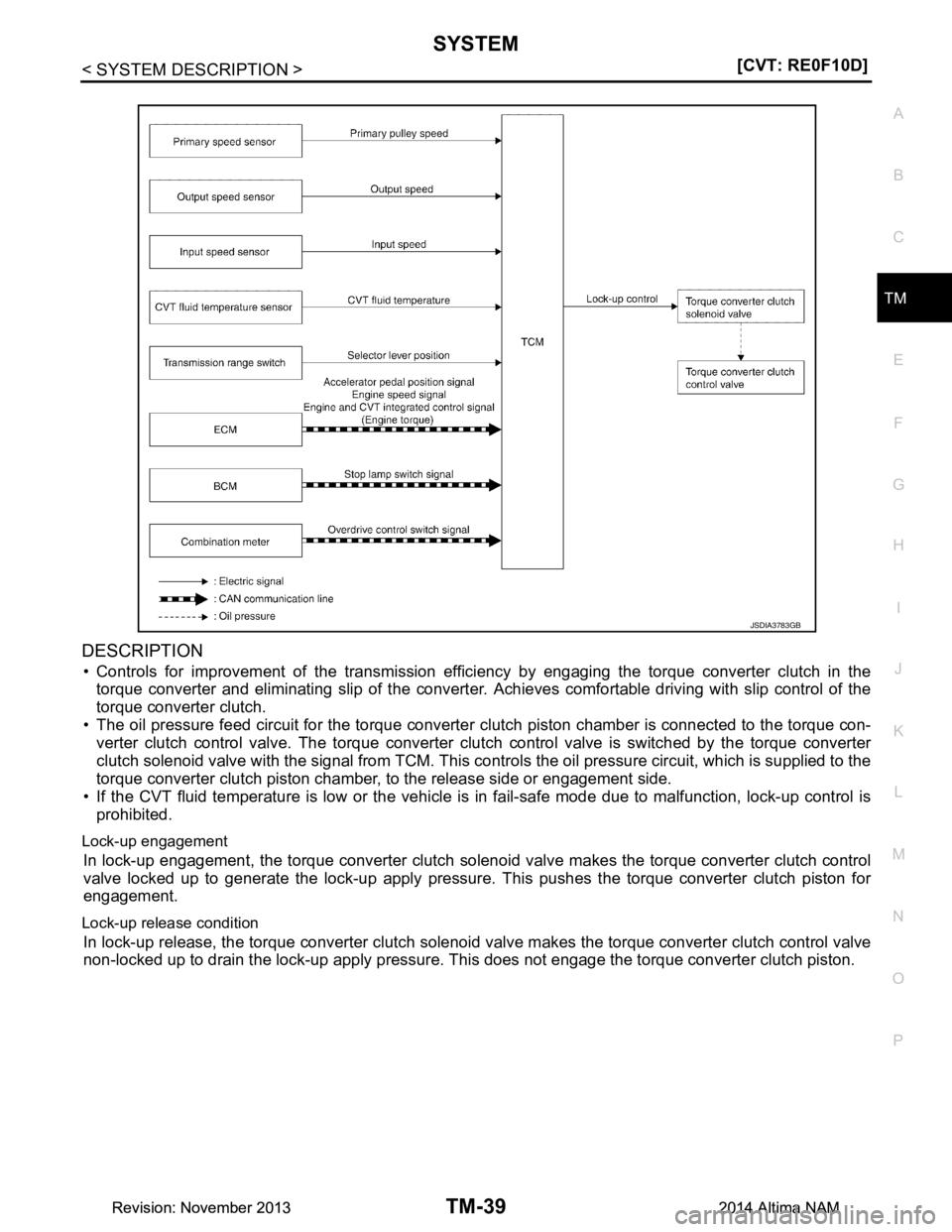

SYSTEM DIAGRAM
JSDIA3711GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

SYSTEMTM-39
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
DESCRIPTION
• Controls for improvement of the transmission effici ency by engaging the torque converter clutch in the
torque converter and eliminating slip of the converter. Achieves comfortable driving with slip control of the
torque converter clutch.
• The oil pressure feed circuit for the torque converter clutch piston chamber is connected to the torque con-
verter clutch control valve. The torque converter clut ch control valve is switched by the torque converter
clutch solenoid valve with the signal from TCM. This contro ls the oil pressure circuit, which is supplied to the
torque converter clutch piston chamber, to the release side or engagement side.
• If the CVT fluid temperature is low or the vehicle is in fail-safe mode due to malfunction, lock-up control is
prohibited.
Lock-up engagement
In lock-up engagement, the torque converter clutch solenoi d valve makes the torque converter clutch control
valve locked up to generate the lock-up apply pressure. This pushes the torque converter clutch piston for
engagement.
Lock-up release condition
In lock-up release, the torque converter clutch solenoi d valve makes the torque converter clutch control valve
non-locked up to drain the lock-up apply pressure. This does not engage the torque converter clutch piston.
JSDIA3783GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-40
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
ON BOARD DIAGNOST
IC (OBD) SYSTEM
DescriptionINFOID:0000000009463994
This is an on board diagnosis system which records diagnosis information related to the exhaust gases. It
detects malfunctions related to sensors and actuators. The malfunctions are indicated by means of the mal-
function indicator lamp (MIL) and are stored as DTC in the ECU memory. The diagnosis information can be
checked using a diagnosis tool (GST: Generic Scan Tool).
Function of OBDINFOID:0000000009463995
The GST is connected to the diagnosis connector on t he vehicle and communicates with the on-board control
units to perform diagnosis. The diagnosis connector is the same as for CONSULT. Refer to GI-51, "Descrip-
tion".
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DIAGNOSIS SYSTEM (TCM)TM-41
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
DIAGNOSIS SYSTEM (TCM)
DIAGNOSIS DESCRIPTION
DIAGNOSIS DESCRIPTION : 1 Tr ip Detection Diagnosis and 2 Trip Detection Diagno-
sis
INFOID:0000000009463996
NOTE:
“Start the engine and turn OFF the ignition switch after warm-up.” This is defined as 1 trip.
1 TRIP DETECTION DIAGNOSIS
When initial malfunction is detected, TCM memorize s DTC. In these diagnoses, some illuminate MIL and
some do not. Refer to TM-60, "DTC Index"
.
2 TRIP DETECTION DIAGNOSIS
When initial malfunction is detected, TCM memorizes DTC of the 1st trip. MIL does not light at this stage. <1
trip>
If the same malfunction is detected again in next drivi ng, TCM memorizes DTC. When DTC is memorized, MIL
lights. <2 trip>
“Trip” of the “2 trip detection diagnosis” indicates the driving mode that executes self-diagnosis during driving.
×: Check possible —: Check not possible
DIAGNOSIS DESCRIPTION : DTC and DTC of 1st TripINFOID:0000000009463997
2 TRIP DETECTION DIAGNOSIS THAT ILLUMINATES MIL
• The DTC number of the 1st trip is the same as the DTC number.
• When a malfunction is detected at the 1st trip, TCM memo rizes DTC of the 1st trip. MIL does not light at this
stage. If the same malfunction is not detected at t he 2nd trip (conforming to necessary driving conditions),
DTC at the 1st trip is erased from TCM. If the same malfunction is detected at the 2nd trip, TCM memorizes
DTC and MIL lights at the same time.
• The DTC of the 1st trip is specified in Service $01 of SAE J1979/ISO 15031-5. Since detection of DTC at the
1st trip does not illuminate MIL, warning for a problem is not given to a driver.
• For procedure to delete DTC and 1st trip DTC from TCM, refer to TM-43, "CONSULT Function"
.
• If DTC of the 1st trip is detected, it is necessary to check the cause according to the “Diagnosis flow”. Refer
to TM-77, "Flowchart of Trouble Diagnosis"
.
DIAGNOSIS DESCRIPTION : Malf unction Indicator Lamp (MIL)INFOID:0000000009463998
• TCM not only detects DTC, but also sends the MI L signal to ECM through CAN communication. ECM sends
the MIL signal to the combination meter through CAN communication according to the signal, and illumi-
nates MIL.
• For malfunction indicator lamp (MIL) description, refer to EC-74, "DIAGNOSIS DESCRIPTION : Malfunction
Indicator Lamp (MIL)".
DIAGNOSIS DESCRIPTION : Counter SystemINFOID:0000000009463999
RELATION BETWEEN DTC AT 1ST TRIP/DTC/MIL AND DRIVING CONDITIONS (FOR 2 TRIP DE-
TECTION DIAGNOSIS THAT ILLUMINATES MIL)
• When initial malfunction is detected, TCM memorizes DT C of the 1st trip. MIL does not light at this stage.
• If the same malfunction is detect ed at the 2nd trip, TCM memorizes DTC and MIL lights at the same time.
• Then, MIL goes after driving the vehicle for 3 tr ips under “Driving condition B” without malfunction.
• DTC is displayed until 40 trips of “Driving condition A” are satisfied without detecting the same malfunction.
DTC is erased when 40 trips are satisfied.
Item DTC at the 1st trip DTC MIL
Display at the 1st trip Display at the
2nd trip Display at the
1st trip Display at the
2nd trip Illumination at
the 1st trip Illumination at
the 2nd trip
1 trip detection diagnosis
(Refer to TM-60, "DTC Index"
) ——
×— ×—
2 trip detection diagnosis
(Refer to TM-60, "DTC Index"
) ×
—— ×— ×
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-42
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
DIAGNOSIS SYSTEM (TCM)
• When the self-diagnosis result is acceptable at the 2nd
trip (conforming to driving condition B), DTC of the
1st trip is erased.
COUNTER SYSTEM LIST
DRIVING CONDITION
Driving condition A
Driving condition A is the driving condition that provides warm-up.
In specific, count-up is performed when all of the following conditions are satisfied.
• Engine speed is 400 rpm or more.
• After start of the engine, the water temperature increased by 20 °C (36 °F) or more.
• Water temperature was 70 °C (158 °F) or more.
• The ignition switch was changed from ON to OFF.
NOTE:
• If the same malfunction is detected regardless of the driving condition, reset the A counter.
• When the above is satisfied without detecting t he same malfunction, count up the A counter.
• When MIL goes off due to the malfunction and the A counter reaches 40, the DTC is erased.
Driving condition B
Driving condition B is the driving condition that performs all diagnoses once.
In specific, count-up is performed when all of the following conditions are satisfied.
• Engine speed is 400 rpm or more.
• Water temperature was 70 °C (158 °F) or more.
• In closed loop control, vehicle speed of 70 – 120 km/h (43 – 75 MPH) continued for 60 seconds or more.
• In closed loop control, vehicle speed of 30 – 60 km/h (19 – 37 MPH) continued for 10 seconds or more.
• In closed loop control, vehicle speed of 4 km/h (2 MPH) or less and idle determination ON continued for 12
seconds or more.
• After start of the engine, 22 minutes or more have passed.
• The condition that the vehicle speed is 10 km/h (6 MPH) or more continued for 10 seconds or more in total.
• The ignition switch was changed from ON to OFF.
NOTE:
• If the same malfunction is detected regardless of the driving condition, reset the B counter.
• When the above is satisfied without detecting t he same malfunction, count up the B counter.
• When the B counter reaches 3 wit hout malfunction, MIL goes off.
• When the B counter is counted once without detecting the same malfunction after TCM memorizes DTC of
the 1st trip, DTC of the 1st trip is erased.
Item Driving condition Trip
MIL (OFF) B 3
DTC (clear) A 40
DTC at 1st trip (clear) B 1
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DIAGNOSIS SYSTEM (TCM)TM-43
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

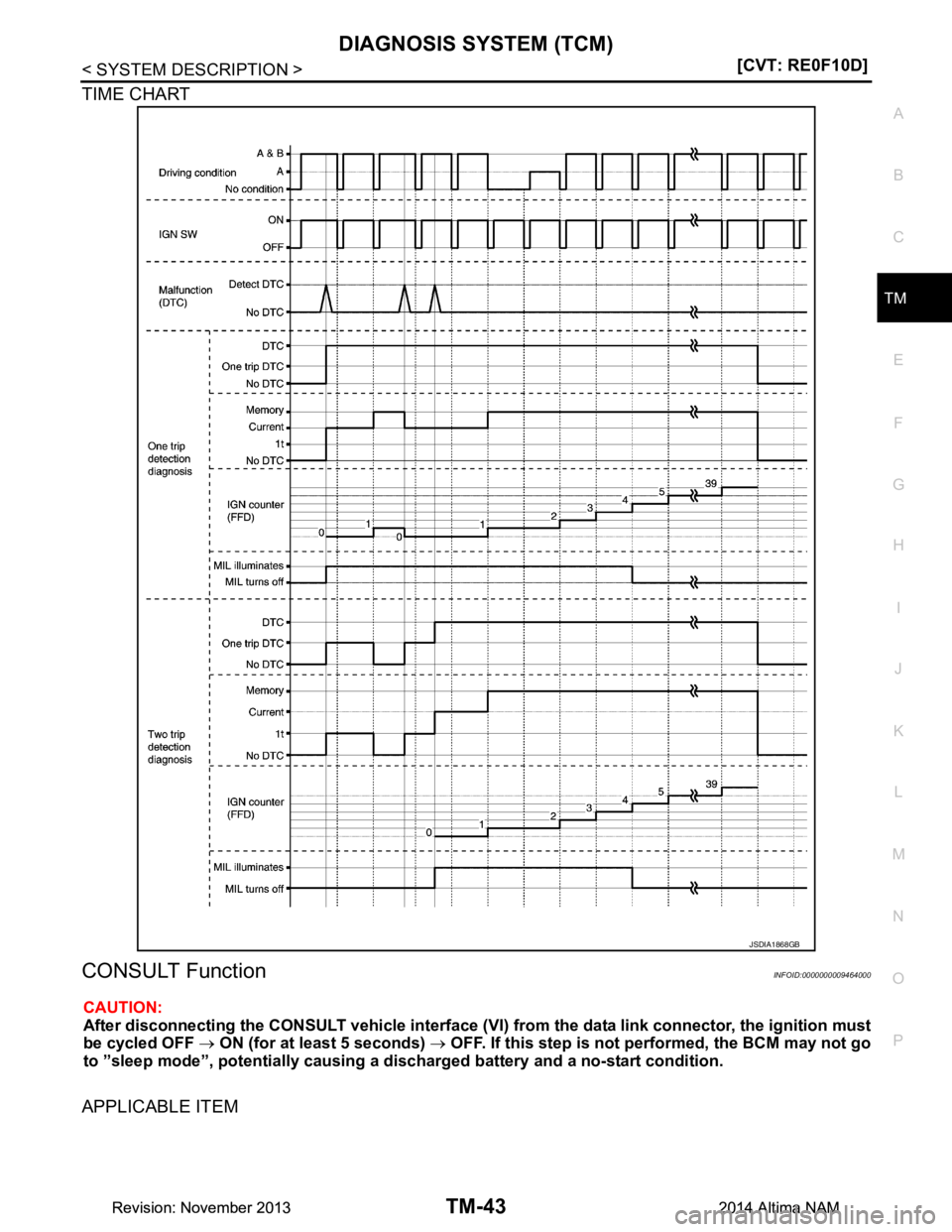

TIME CHART
CONSULT FunctionINFOID:0000000009464000
CAUTION:
After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must
be cycled OFF → ON (for at least 5 seconds) → OFF. If this step is not performed, the BCM may not go
to ”sleep mode”, potentiall y causing a discharged battery and a no-start condition.
APPLICABLE ITEM
JSDIA1868GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

TM-44
< SYSTEM DESCRIPTION >[CVT: RE0F10D]
DIAGNOSIS SYSTEM (TCM)
SELF DIAGNOSTIC RESULTS
Display Item List
Refer to
TM-60, "DTC Index".
DTC at 1st trip and method to read DTC
• DTC (P0705, P0711, P0720, etc.) is specified by SAE J2012/ISO 15031-6.
• DTC and DTC at 1st trip are displayed on “Self Diagnostic results” of CONSULT.
When DTC is currently detected, “CRNT” is displayed. If “PAST” is displayed, it shows a malfunction
occurred in the past. The trip number of drive wit hout malfunction of concerned DTC can be confirmed with
“IGN counter” inside “FFD”.
• When the DTC at the 1st trip is detected, “1t” is displayed.
DTC deletion method
NOTE:
If the ignition switch is left ON after repair, turn O FF the ignition switch and wait for 10 seconds or more. Then,
turn the ignition ON again. (Engine stop)
1. Touch “TRANSMISSION” of CONSULT.
2. Touch “Self Diagnostic Result”.
3. Touch “Erase”. (DTC memorized in TCM is erased.)
IGN counter
The ignition counter is displayed in “FFD” and the number of times of satisfied “Driving condition A” is dis-
played after normal recovery of DTC. Refer to TM-41, "DIAGNOSIS DESCRIPTION : Counter System"
.
• If malfunction (DTC) is currently detected, “0” is displayed.
• After normal recovery, every time “Driving condition A” is satisfied, the display value increases from 1 → 2 →
3...38 → 39.
• When MIL turns OFF due to the malfunction and t he counter reaches 40, the DTC is erased.
NOTE:
The counter display of “40” cannot be checked.
DATA MONITOR
NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable
to this vehicle, refer to CONSULT display items.
× : Application : Optional selection
Conditions Function
Work Support The settings for ECU functions can be changed.
Self Diagnostic Results The ECU self diagnostic results are displayed.
Data Monitor The ECU input/output data is displayed in real time.
CAN Diagnosis Support Monitor The result of transmit/receive diagnosis of CAN communication is displayed.
Active Test The ECU activates outputs to test components.
ECU Identification The ECU part number is displayed.
CALIB DATA The calibration data status of TCM can be checked.
Monitored item (Unit) Monitor item selection
Remarks
ECU IN-
PUT SIG-
NALS MAIN SIG-
NALS
VSP SENSOR (km/h or mph) ×Displays the vehicle speed calculated from the CVT out-
put shaft speed.
ESTM VSP SIG (km/h or mph) ו Displays the vehi
cle speed signal (ABS) received
through CAN communication.
• Models with ABS are displayed.
INPUT SPEED SENSOR (rpm) ×Displays the input speed calculated from the pulse signal
of the input speed sensor.
PRI SPEED SEN (rpm) ×Displays the primary pulley speed calculated from the
pulse signal of the primary speed sensor.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DIAGNOSIS SYSTEM (TCM)TM-45
< SYSTEM DESCRIPTION > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
SEC REV SENSOR (rpm) ×Displays the secondary pulley speed calculated from the
pulse signal of the output speed sensor.
ENG SPEED SIG (rpm) ×Displays the engine speed received through CAN com-
munication.
SEC PRESSURE SEN (V) ×Displays the signal voltage of the secondary pressure-
sensor.
PRI PRESSURE SEN (V) ×Displays the signal voltage of the primary pressuresen-
sor.
ATF TEMP SEN (V) ×Displays the signal voltage of the CVT fluid temperature
sensor.
G SENSOR* (G) ×Displays the signal voltage of the G sensor.
VIGN SEN (V) ×Displays the battery voltage applied to TCM.
PVING VOLT (V) ×Displays the backup voltage of TCM.
VEHICLE SPEED (km/h or mph) ×Displays the vehicle speed recognized by TCM.
INPUT REV (rpm) Displays the input shaft speed of CVT recognized by
TCM.
PRI SPEED (rpm) ×Displays the primary pulley speed recognized by TCM.
SEC SPEED (rpm) Displays the secondary pulley speed recognized by
TCM.
ENG SPEED (rpm) ×Displays the engine speed recognized by TCM.
SLIP REV (rpm) ×Displays the speed difference between the input shaft
speed of CVT and the engine speed.
PULLEY GEAR RATIO ×Displays the pulley gear ratio calculated from primary
pulley speed/secondary pulley speed.
G SPEED* (G) Displays the acceleration and deceleration speed of the
vehicle calculated from vehicle speed change.
ACCEL POSI SEN 1 (deg) ××Displays the estimated throttle position received through
CAN communication.
VENG TRQ (Nm) ×Display the engine torque recognized by TCM.
PRI TRQ (Nm) Display the input shaft torque of CVT.
TRQ RTO Display the torque ratio of torque converter.
SEC PRESSURE (MPa) Displays the secondary pressure calculated from the sig-
nal voltage of the secondary pressure sensor.
PRI PRESSURE (MPa) Displays the primary pressure calculated from the signal
voltage of the primary pressure sensor.
FLUID TEMP ( °C or °F) ×Displays the CVT fluid temperature calculated from the
signal voltage of the CVT fluid temperature sensor.
DSR REV (rpm) Displays the target primary pulley speed calculated from
processing of gear shift control.
TGT PLLY GR RATIO Displays the target gear ratio of the pulley from process-
ing of gear shift control.
LU PRS (MPa) Displays the target oil pressure of the torque converter
clutch solenoid valve calculated from oil pressure pro-
cessing of gear shift control.
LINE PRS (MPa) Displays the target oil pressure of the line pressure sole-
noid valve calculated from oil pressure processing of
gear shift control.
Monitored item (Unit)
Monitor item selection
Remarks
ECU IN-
PUT SIG-
NALS MAIN SIG-
NALS
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
