NISSAN TEANA 2014 Service Manual
Page 4281 of 4801
![NISSAN TEANA 2014 Service Manual
TM-66

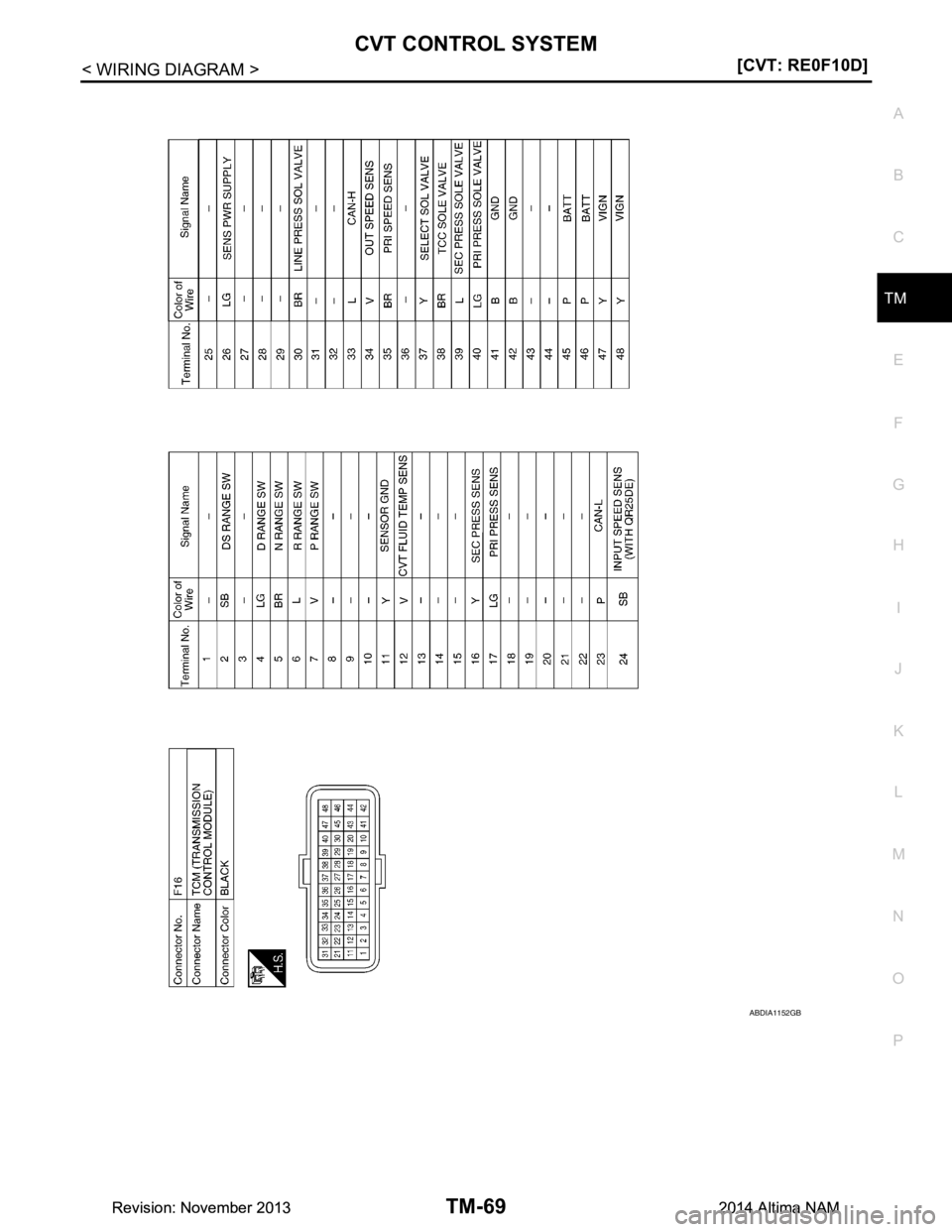

< WIRING DIAGRAM >[CVT: RE0F10D]

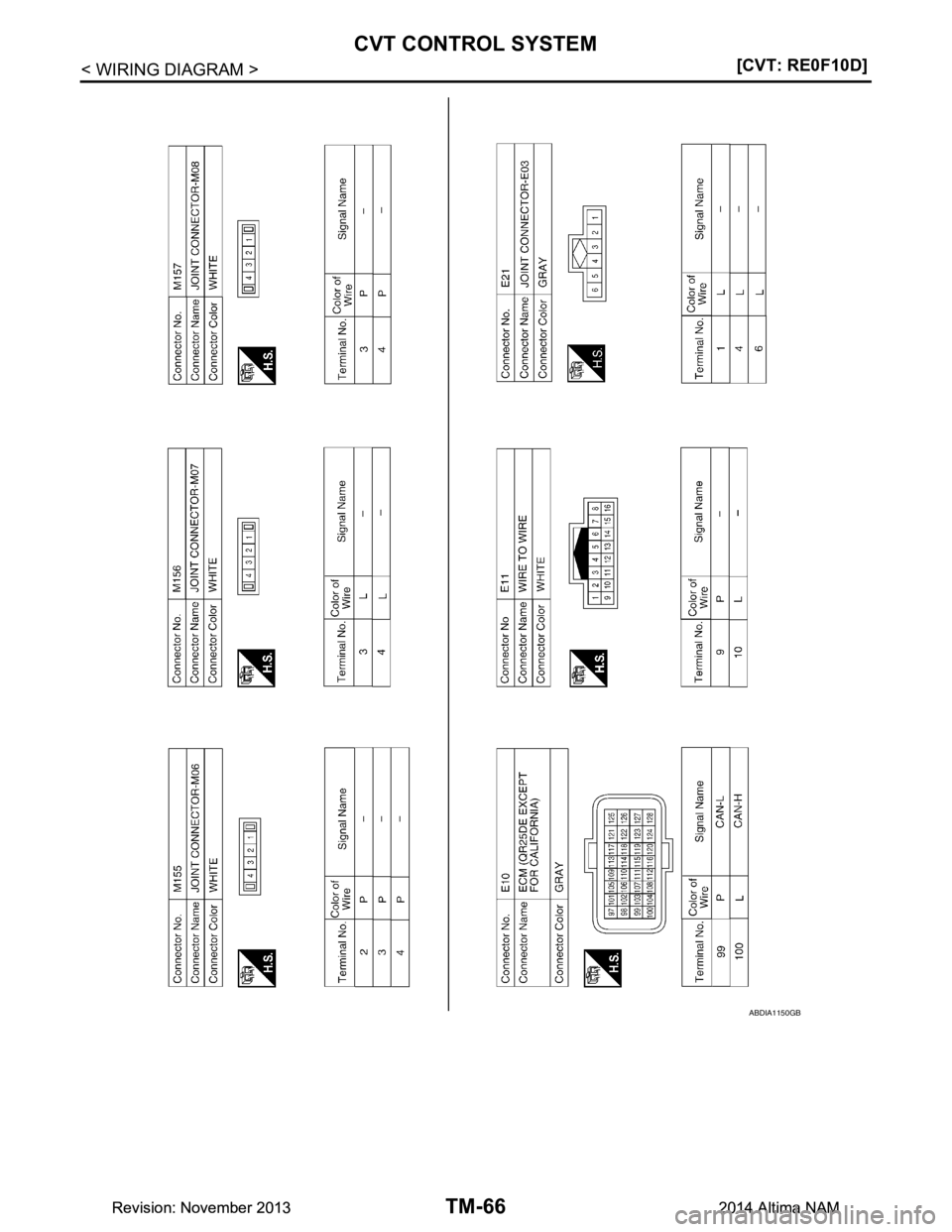

CVT CONTROL SYSTEM
ABDIA1150GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM](/img/5/57390/w960_57390-4280.png "NISSAN TEANA 2014 Service Manual
TM-66
< WIRING DIAGRAM >[CVT: RE0F10D]
CVT CONTROL SYSTEM
ABDIA1150GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM")
Page 4282 of 4801

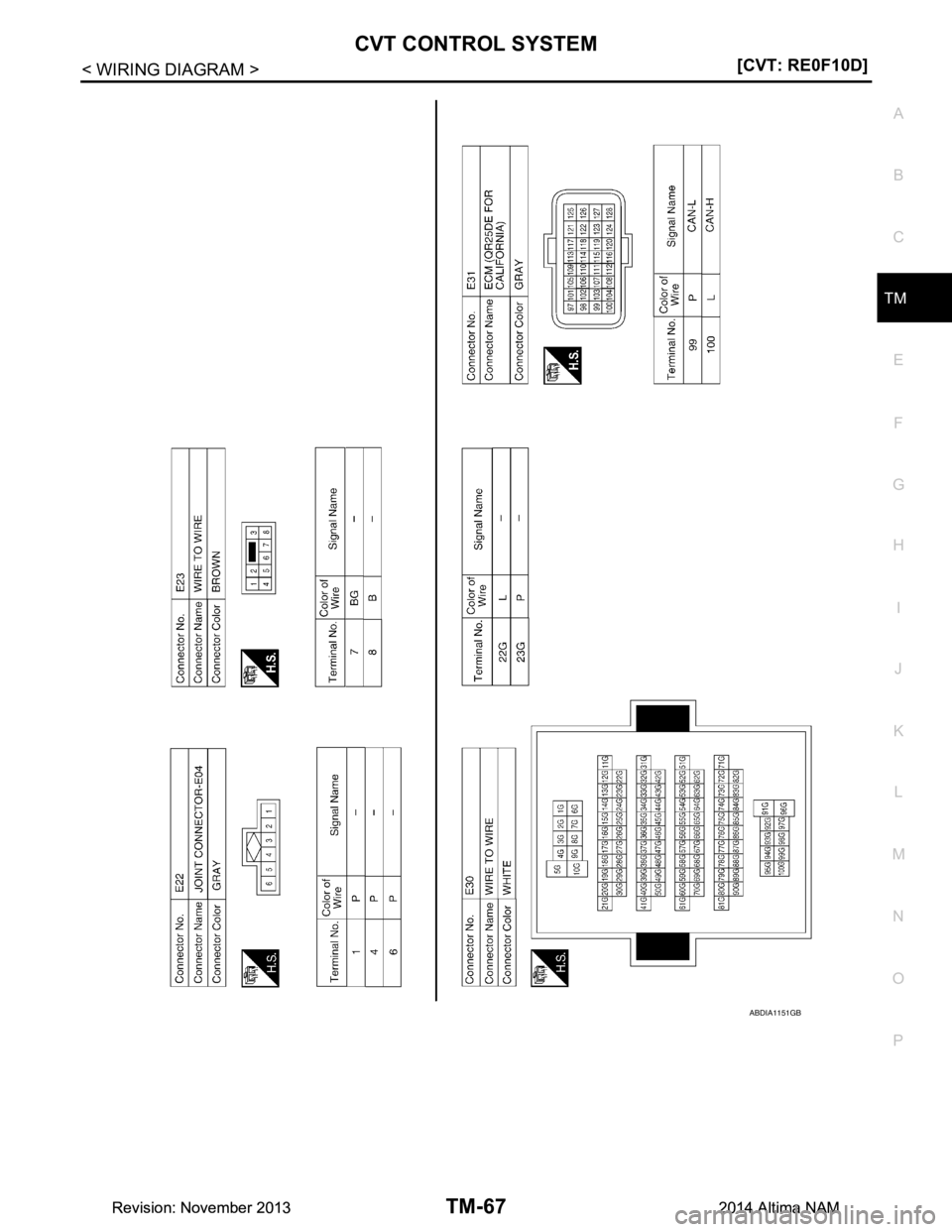

![NISSAN TEANA 2014 Service Manual
CVT CONTROL SYSTEMTM-67
< WIRING DIAGRAM > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
ABDIA1151GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM](/img/5/57390/w960_57390-4281.png "NISSAN TEANA 2014 Service Manual
CVT CONTROL SYSTEMTM-67
< WIRING DIAGRAM > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
ABDIA1151GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM")
Page 4283 of 4801

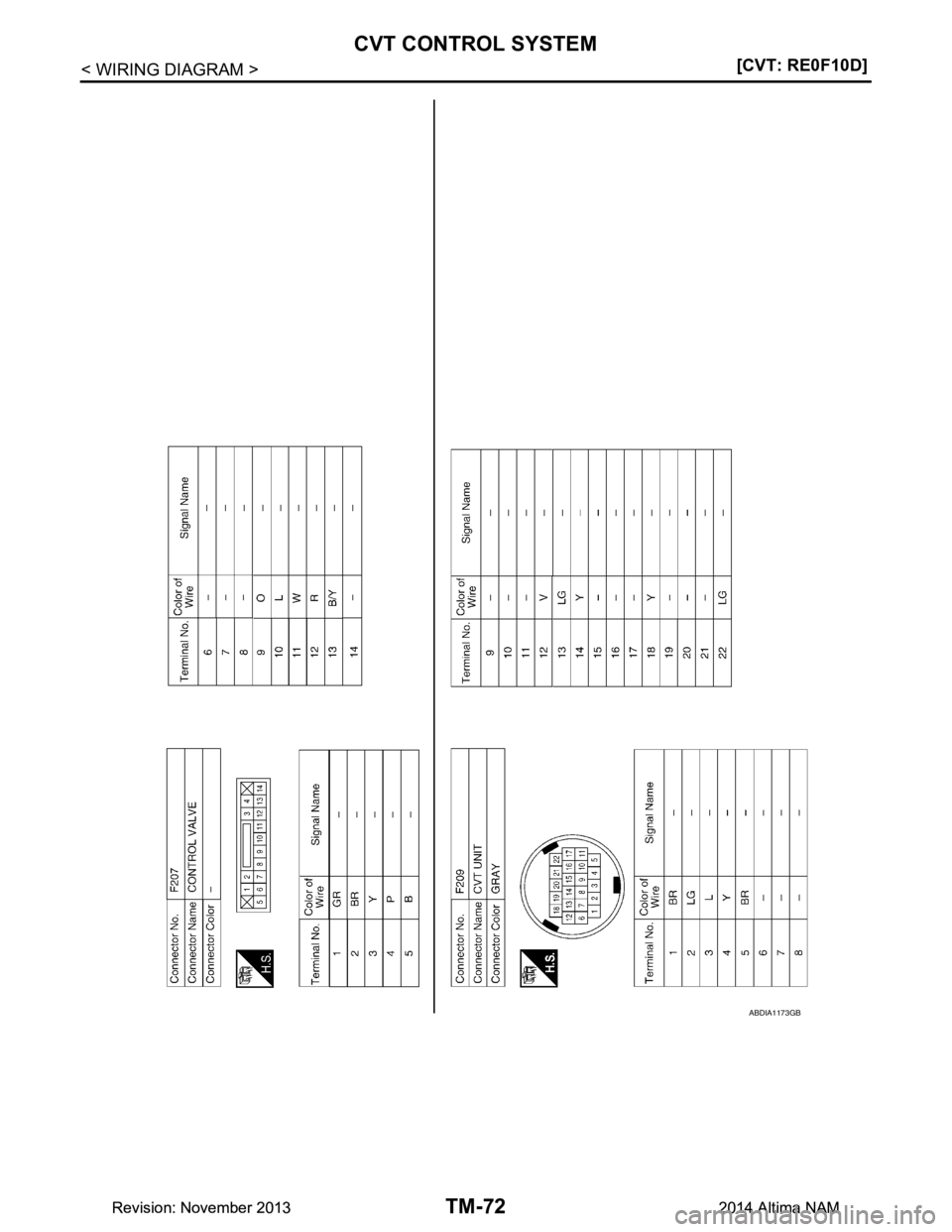

![NISSAN TEANA 2014 Service Manual
TM-68
< WIRING DIAGRAM >[CVT: RE0F10D]

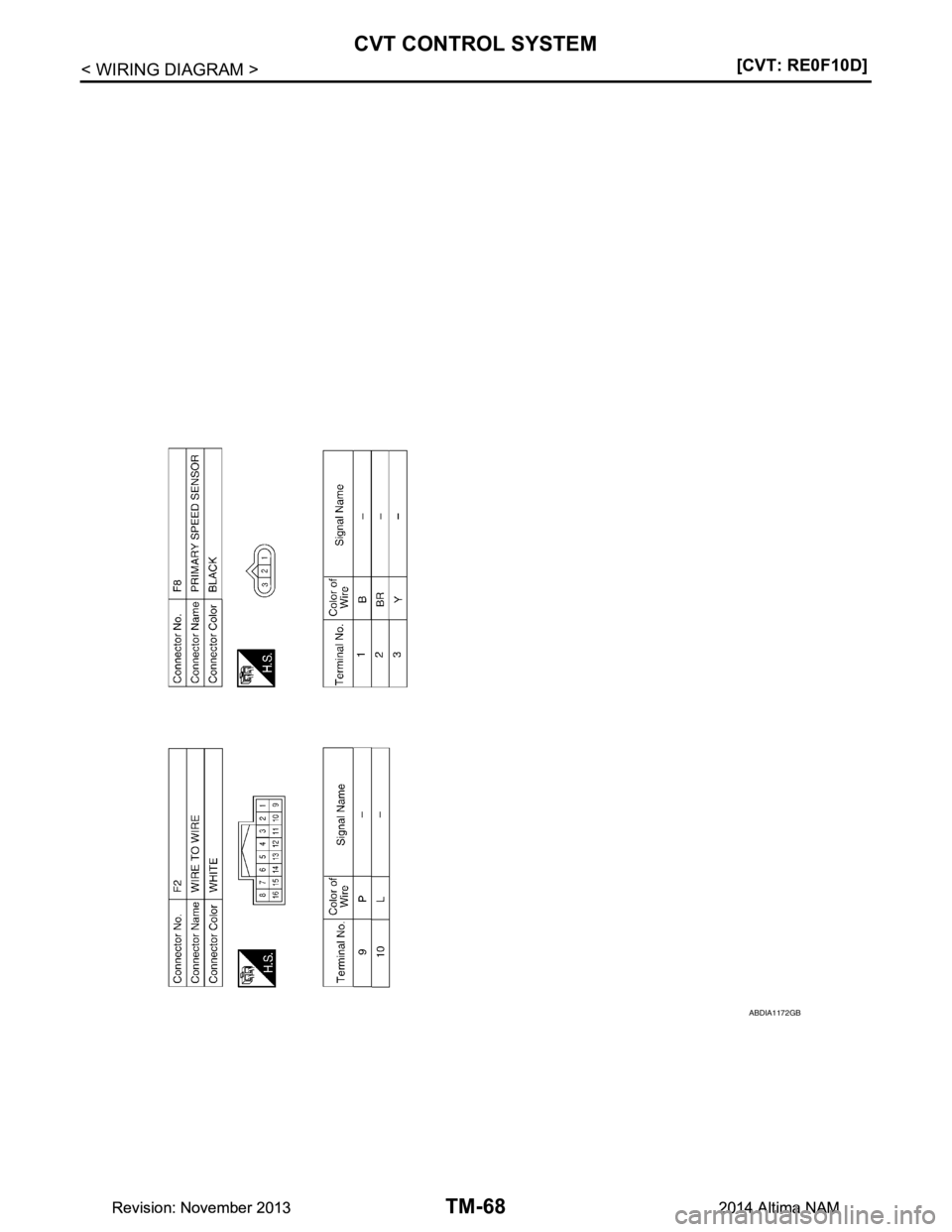

CVT CONTROL SYSTEM
ABDIA1172GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM](/img/5/57390/w960_57390-4282.png "NISSAN TEANA 2014 Service Manual
TM-68
< WIRING DIAGRAM >[CVT: RE0F10D]
CVT CONTROL SYSTEM
ABDIA1172GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM")
Page 4284 of 4801

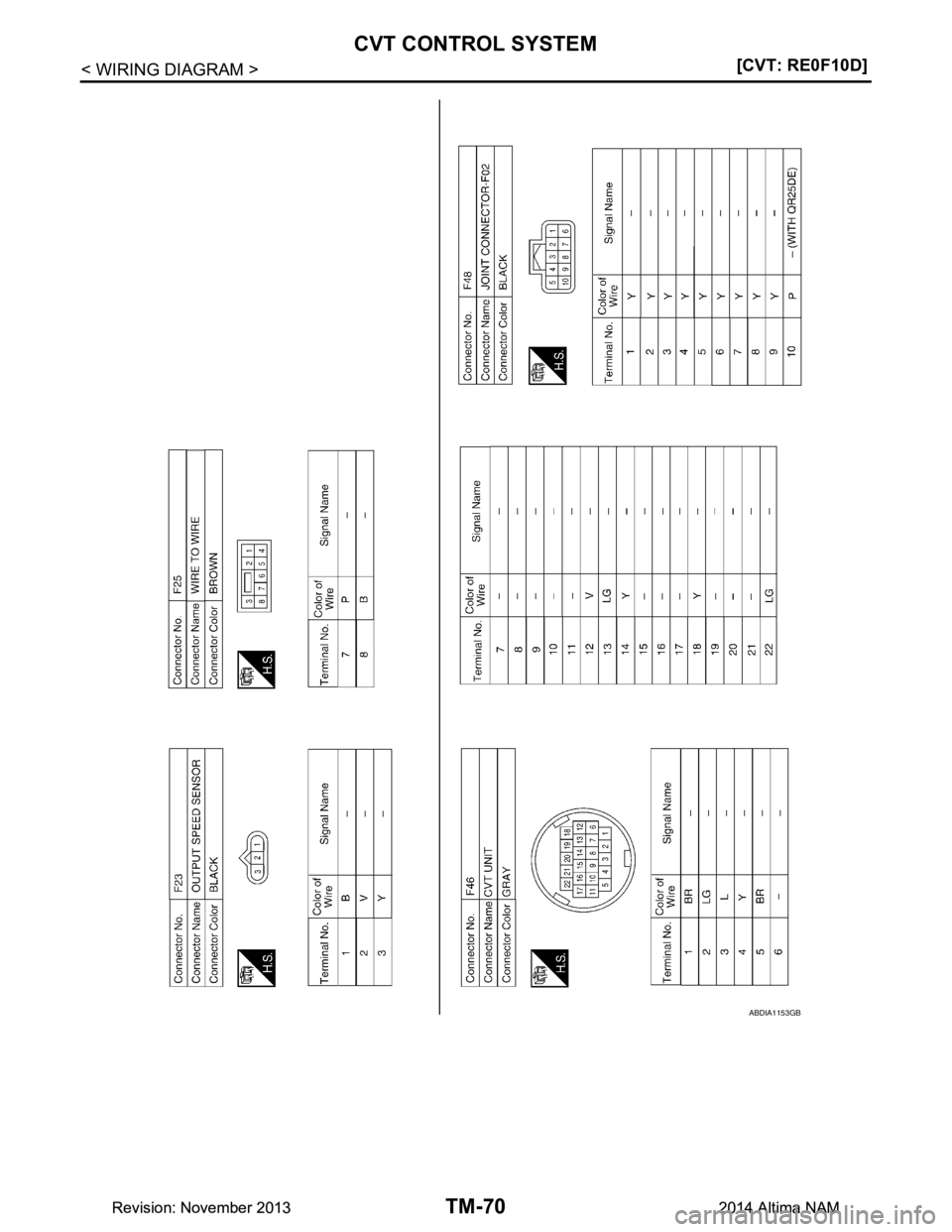

![NISSAN TEANA 2014 Service Manual
CVT CONTROL SYSTEMTM-69
< WIRING DIAGRAM > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
ABDIA1152GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM](/img/5/57390/w960_57390-4283.png "NISSAN TEANA 2014 Service Manual
CVT CONTROL SYSTEMTM-69
< WIRING DIAGRAM > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
ABDIA1152GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM")
Page 4285 of 4801

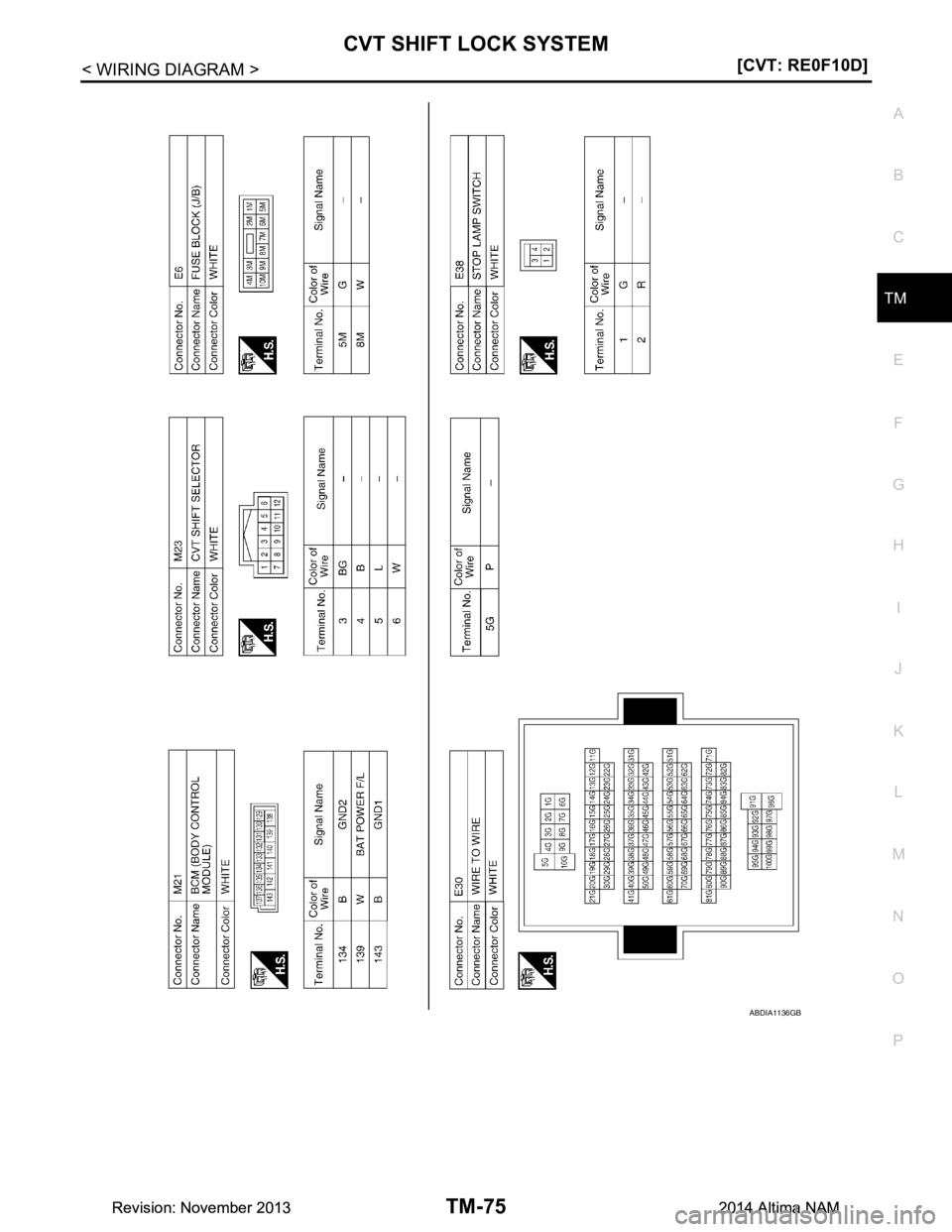

![NISSAN TEANA 2014 Service Manual
TM-70
< WIRING DIAGRAM >[CVT: RE0F10D]
CVT CONTROL SYSTEM
ABDIA1153GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM](/img/5/57390/w960_57390-4284.png "NISSAN TEANA 2014 Service Manual
TM-70
< WIRING DIAGRAM >[CVT: RE0F10D]
CVT CONTROL SYSTEM
ABDIA1153GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM")
Page 4286 of 4801

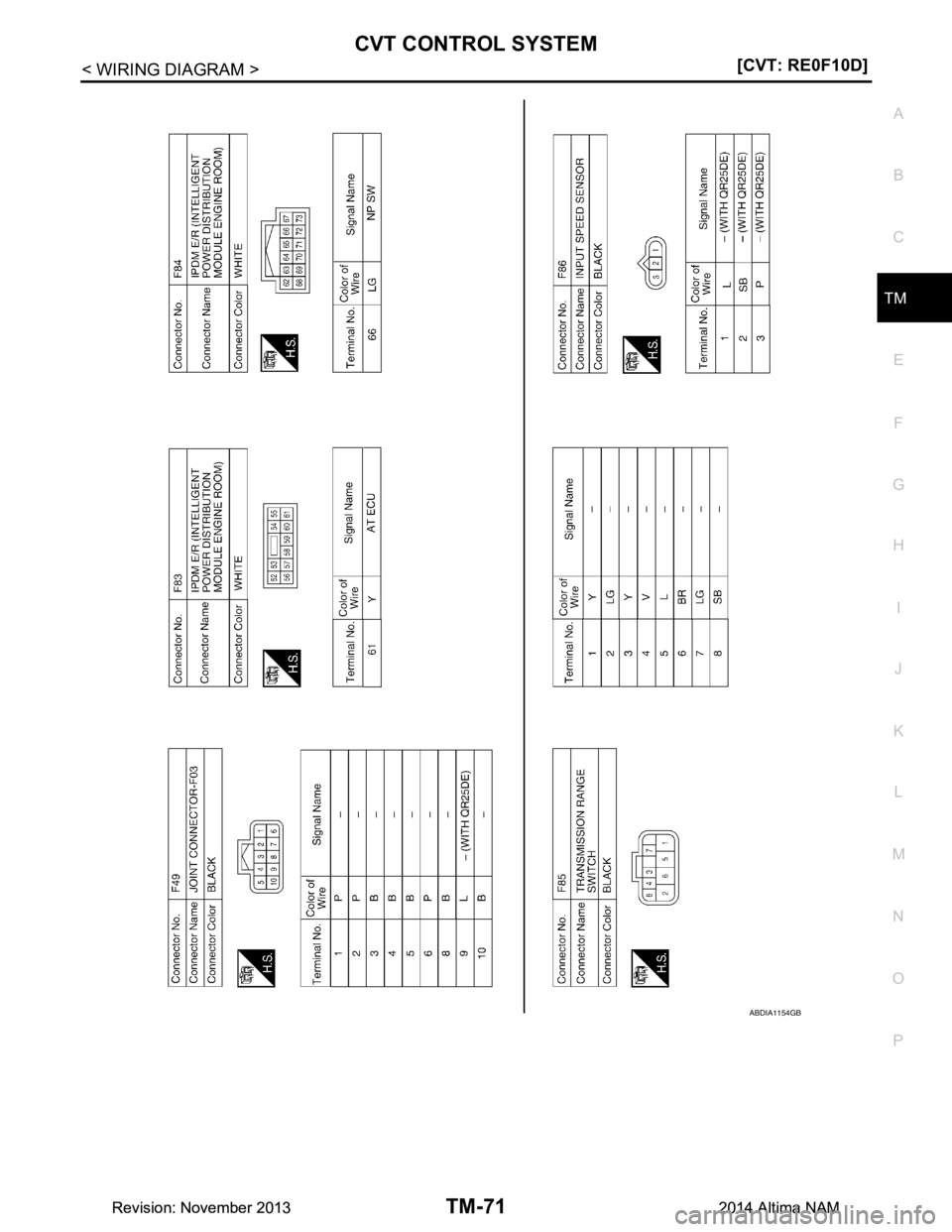

![NISSAN TEANA 2014 Service Manual
CVT CONTROL SYSTEMTM-71
< WIRING DIAGRAM > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
ABDIA1154GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM](/img/5/57390/w960_57390-4285.png "NISSAN TEANA 2014 Service Manual
CVT CONTROL SYSTEMTM-71
< WIRING DIAGRAM > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
ABDIA1154GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM")
Page 4287 of 4801
![NISSAN TEANA 2014 Service Manual
TM-72
< WIRING DIAGRAM >[CVT: RE0F10D]
CVT CONTROL SYSTEM
ABDIA1173GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM](/img/5/57390/w960_57390-4286.png "NISSAN TEANA 2014 Service Manual
TM-72
< WIRING DIAGRAM >[CVT: RE0F10D]
CVT CONTROL SYSTEM
ABDIA1173GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM")
Page 4288 of 4801
![NISSAN TEANA 2014 Service Manual
CVT SHIFT LOCK SYSTEMTM-73
< WIRING DIAGRAM > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

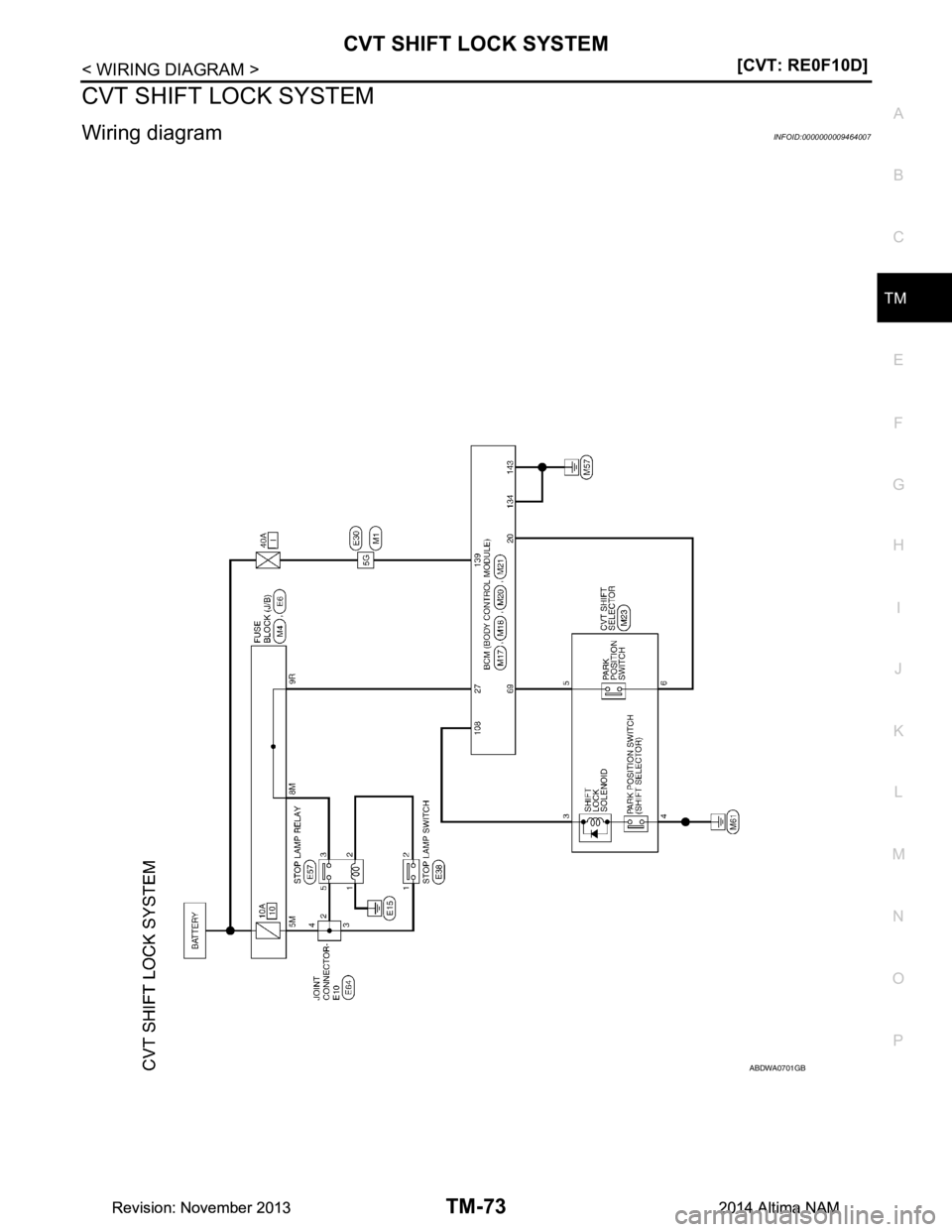

CVT SHIFT LOCK SYSTEM
Wiring diagramINFOID:0000000009464007
ABDWA0701GB
Revision: November 20132014 Altim](/img/5/57390/w960_57390-4287.png "NISSAN TEANA 2014 Service Manual
CVT SHIFT LOCK SYSTEMTM-73
< WIRING DIAGRAM > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
CVT SHIFT LOCK SYSTEM
Wiring diagramINFOID:0000000009464007
ABDWA0701GB
Revision: November 20132014 Altim")
Page 4289 of 4801
![NISSAN TEANA 2014 Service Manual
TM-74
< WIRING DIAGRAM >[CVT: RE0F10D]
CVT SHIFT LOCK SYSTEM
ABDIA1155GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM](/img/5/57390/w960_57390-4288.png "NISSAN TEANA 2014 Service Manual
TM-74
< WIRING DIAGRAM >[CVT: RE0F10D]
CVT SHIFT LOCK SYSTEM
ABDIA1155GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM")
Page 4290 of 4801

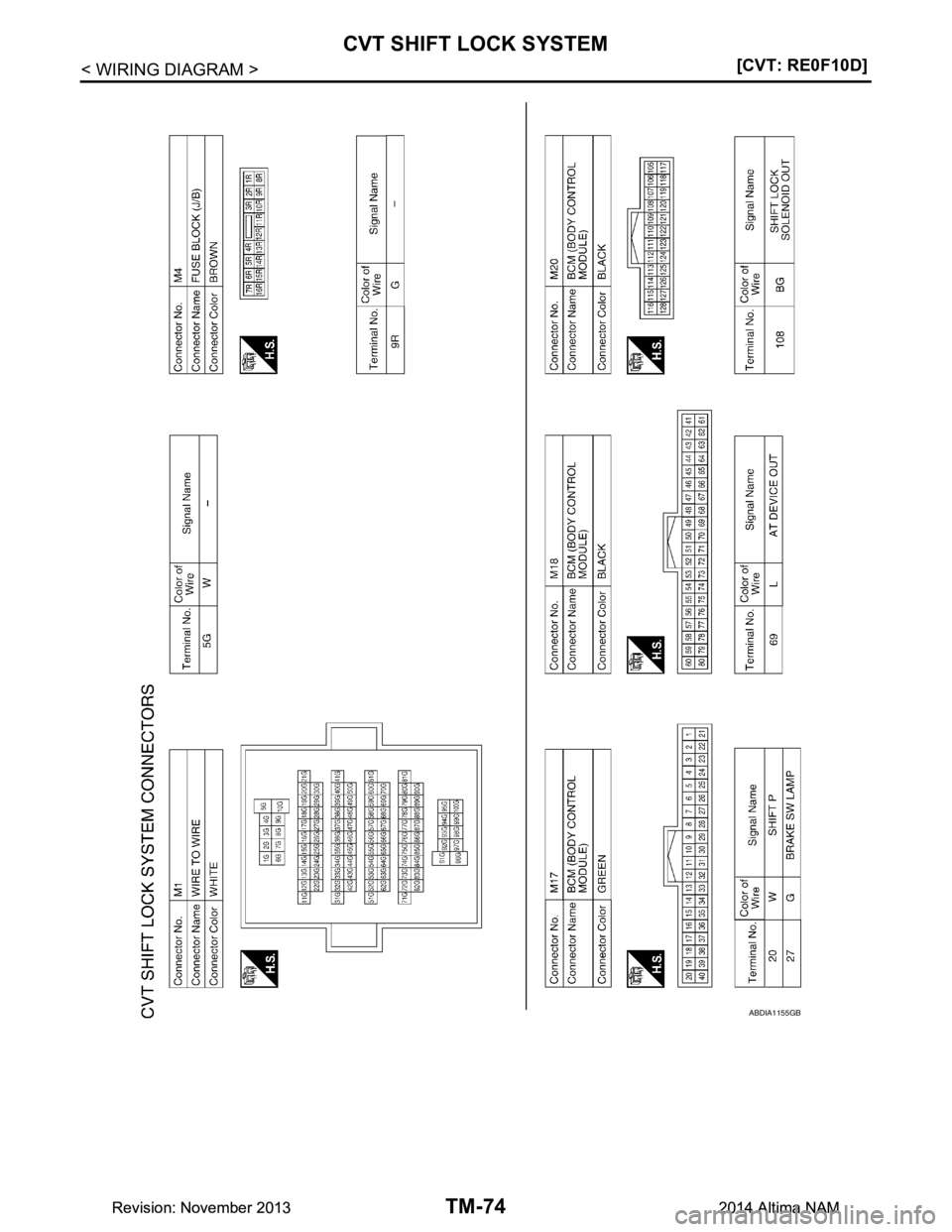

![NISSAN TEANA 2014 Service Manual
CVT SHIFT LOCK SYSTEMTM-75
< WIRING DIAGRAM > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
ABDIA1136GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM](/img/5/57390/w960_57390-4289.png "NISSAN TEANA 2014 Service Manual
CVT SHIFT LOCK SYSTEMTM-75
< WIRING DIAGRAM > [CVT: RE0F10D]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
ABDIA1136GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM")
