ID REGISTRATION PROCEDURE
5. Turn on the Signal Tech II tool (J-50190).
6. Hold the Signal Tech II against the side of the left front tire, near the valve stem.
7. With the tool held at a 0 to 15 degree angle to the tire, select
“Activate Sensor” from the main menu, then press and release
the “OK” button to activate the s ensor. Once the sensor is acti-
vated, the vehicle parking lamps will flash and the sensor ID will
appear on the CONSULT screen.
8. Repeat steps 6 and 7 for the remaining tires in this order: right
front, right rear and left rear.
9. When ID registration is complete, check the following pattern at each wheel.
10. Once all sensors have been activated, select “End” on the CONSULT to finish ID registration.
11. Test drive the vehicle to ensure that the TPMS lamp is OFF and no warning messages are present.
Without CONSULT
1. Adjust the tire pressure for all tires to the recommended value. Refer to WT-60, "Tire".
2. Turn on the Signal Tech II tool (J-50190) and select “TPMS Check” from the main menu.
3. Select vehicle model and year.
4. When prompted, hold the Signal Tech II against the side of the
left front tire, near the valve stem.
5. With the tool held at a 0 to 15 degree angle to the tire, press and release the “OK” button to activate the sensor. Once the sensor
is activated, the tool will sound a tone and the tire pressure will
be displayed.
6. Repeat steps 4 and 5 for the remaining tires in this order: right
front, right rear and left rear.
7. When prompted, connect the tool to the data link connector. The tool will connect to the BCM, read the VIN, read sensor IDs and
check for TPMS DTCs. Along wit h DTCs detected, one of the
following will be displayed next to each wheel:
- N/A - Not applicable because no ID found by the tool
- OK - Wheel and sensor are in original position
- NEW - New ID found compared to BCM
- RT - Wheel has been rotated
- Low Press - Low tire pressure
8. If no DTC is present or the repair has been complet ed, press the “OK” button to register the IDs and clear
DTCs.
9. Test drive the vehicle to ensure that the TPMS lamp is OFF and no warning messages are present.
10. Print a Signal Tech II Audit Report for your records. Re fer to the Signal Tech II User Guide for instructions.
TPMS REGISTRATION WITH CONSULT ONLY
With CONSULT
1. Adjust the tire pressure for all wheels to match the list below.
ALEIA0177ZZ
Sequence ID registration position Turn signal lamp CONSULT
1Front LH
2 blinks“Yet (red)”
↓
“Done (green)”
2Front RH
3Rear RH
4Rear LH
ALEIA0177ZZ
Tire position Tire pressure kPa (kg/cm2, psi)
Front LH 240 (2.4, 35)
Front RH 220 (2.2, 32)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ID REGISTRATION PROCEDUREWT-27
< BASIC INSPECTION >
C
D
F
G H
I
J
K L
M A
B
WT
N
O P
2. Turn the ignition switch ON.
3. Using CONSULT, select “WORK SUPPORT” in BC M (AIR PRESSURE MONITOR). Then, select “ID
REGIST.”
4. Select “Start” on “ID REGIST” screen.
5. Drive the vehicle at a speed greater than 40 km/h (25 MPH) for 3 minutes or more.
6. After ID registration for all wheels is complete, pr ess “End” on the CONSULT to finish ID registration.
7. Adjust the tire pressures for all tires to the recommended value. Refer to WT-60, "Tire"
.
8. Test drive the vehicle to ensure that the TPMS lamp is OFF and no warning messages are present.
Rear RH 200 (2.0, 29)
Rear LH 180 (1.8, 26)
ID registration position CONSULT Front LH “Yet (red)”↓
“Done (green)”
Front RH
Rear RH Rear LH
Tire position
Tire pressure kPa (kg/cm
2, psi)
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

WT-28
< DTC/CIRCUIT DIAGNOSIS >
C1704, C1705, C1706, C1707 LOW TIRE PRESSURE
DTC/CIRCUIT DIAGNOSIS
C1704, C1705, C1706, C1707 LOW TIRE PRESSURE
DTC LogicINFOID:0000000009464494
NOTE:
The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II
User Guide for additional information.
• Activate and display TPMS transmitter IDs
• Display tire pressure reported by the TPMS transmitter
• Read TPMS DTCs
• Register TPMS transmitter IDs
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM SELF DIAGNOSTIC RESULT
With CONSULT
1. Check tire pressure for all wheels and adjust to the specified value. Refer to WT-60, "Tire"
.
2. Drive at a speed of 40 km/h (25 MPH) or more fo r 3 minutes, and then drive the vehicle at any speed for
10 minutes.
3. Perform Self Diagnostic Result.
Is DTC C1704, C1705, C1706, or C1707 detected?
YES >> Proceed to WT-28, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000009464495
NOTE:
The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II
User Guide for additional information.
• Activate and display TPMS transmitter IDs
• Display tire pressure reported by the TPMS transmitter
• Read TPMS DTCs
• Register TPMS transmitter IDs
1.TIRE PRESSURE SENSOR ID REGISTRATION
Perform tire pressure sensor ID registration. Refer to WT-25, "Work Procedure"
.
Can the tire pressure sensor ID registration be completed?
YES >> GO TO 2.
NO >> Replace applicable tire pressure sensor. Refer to WT-57, "Removal and Installation"
.
2.CHECK TIRE PRESSURE
Check the air pressure of all wheels. Refer to WT-60, "Tire"
.
Is the inspection result normal?
CONSULT Display DTC Detectio n Condition Possible Cause
LOW PRESSURE FL
[C1704] Front LH tire pressure drops to 189.6 kPa (1.9 kg/cm
2,
27 psi) or less.
• Low tire pressure
• Tire pressure sensor
LOW PRESSURE FR
[C1705] Front RH tire pressure drops to 189.6 kPa (1.9 kg/cm
2,
27 psi) or less.
LOW PRESSURE RR
[C1706] Rear RH tire pressure drops to 189.6 kPa (1.9 kg/cm
2,
27 psi) or less.
LOW PRESSURE RL
[C1707] Rear LH tire pressure drops to 189.6 kPa (1.9 kg/cm
2,
27 psi) or less.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

C1704, C1705, C1706, C1707 LOW TIRE PRESSURE
WT-29
< DTC/CIRCUIT DIAGNOSIS >
C
D
F
G H
I
J
K L
M A
B
WT
N
O P
YES >> Perform DTC CONFIRMATION PROCEDURE again. Refer to WT-28, "DTC Logic".
NO >> GO TO 3.
3.CHECK TIRE PRESSURE SIGNAL
With CONSULT
1. Adjust tire pressure for all wheels to the specified value. Refer to WT-60, "Tire"
.
2. Select Data Monitor from AIR PRESSURE MONITOR of BCM.
3. Check that the air pressures match the specified value.
Is the inspection result normal?
YES >> Inspection End.
NO >> Repair or replace malfunctioning components.
Monitor item Displayed value
AIR PRESS FL Approximately equal to value indicated on tire gauge for front LH tire
AIR PRESS FR Approximately equal to value indicated on tire gauge for front RH tire
AIR PRESS RR Approximately equa l to value indicated on tire gauge for rear RH tire
AIR PRESS RL Approximately equal to value indicated on tire gauge for rear LH tire
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

WT-30
< DTC/CIRCUIT DIAGNOSIS >
C1708, C1709, C1710, C1711 TRANSMITTER (NO DATA)
C1708, C1709, C1710, C1711 TRANSMITTER (NO DATA)
DTC LogicINFOID:0000000009464496
NOTE:
The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II
User Guide for additional information.
• Activate and display TPMS transmitter IDs
• Display tire pressure reported by the TPMS transmitter
• Read TPMS DTCs
• Register TPMS transmitter IDs
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM SELF DIAGNOSTIC RESULT
With CONSULT
1. Perform tire pressure sensor ID registration. Refer to WT-25, "Work Procedure"
.
2. Drive at a speed of 40 km/h (25 MPH) or more fo r 3 minutes, and then drive the vehicle at any speed for
10 minutes.
NOTE:
Avoid driving in areas with radio interference.
3. Perform Self Diagnostic Result.
Is DTC C1708, C1709, C1710, or C1711 detected?
YES >> Proceed to WT-30, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000009464497
NOTE:
The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II
User Guide for additional information.
• Activate and display TPMS transmitter IDs
• Display tire pressure reported by the TPMS transmitter
• Read TPMS DTCs
• Register TPMS transmitter IDs
Regarding Wiring Diagram information, refer to WT-14, "Wiring Diagram - With Individual Tire Pressure Dis-
play" or WT-20, "Wiring Diagram - Without Individual Tire Pressure Display".
1.CHECK TIRE PRESSURE SIGNAL
With CONSULT
1. Select Data Monitor from AIR PRESSURE MONITOR of BCM.
2. Check that the air pressures match the specified value.
CONSULT Display DTC Detectio n Condition Possible Cause
[NO - DATA] - FL
[C1708] Data signal from the front LH wheel sensor cannot
be detected. • Driving in area with radio interference.
• ID registration incomplete
• Tire pressure sensor
• Harness or connectors
• Remote keyless entry receiver
•BCM
[NO - DATA] - FR
[C1709] Data signal from the front RH wheel sensor cannot
be detected.
[NO - DATA] - RR
[C1710] Data signal from the rear RH wheel sensor cannot
be detected.
[NO - DATA] - RL
[C1711] Data signal from the rear LH wheel sensor cannot
be detected.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

C1708, C1709, C1710, C1711 TRANSMITTER (NO DATA)
WT-31
< DTC/CIRCUIT DIAGNOSIS >
C
D
F
G H
I
J
K L
M A
B
WT
N
O P
Are all tire pressures displayed 0 kPa (psi)?
YES >> GO TO 2.
NO >> Replace applicable tire pressure sensor. Refer to WT-57, "Removal and Installation"
.
2.CHECK REMOTE KEYLESS ENTRY RECEIVER POWER CIRCUIT
Check voltage between remote keyless entry receiver connector M27 terminal 1 and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace harness or connectors.
3.CHECK REMOTE KEYLESS ENTRY RECEIVER SIGNAL
1. Turn ignition switch ON.

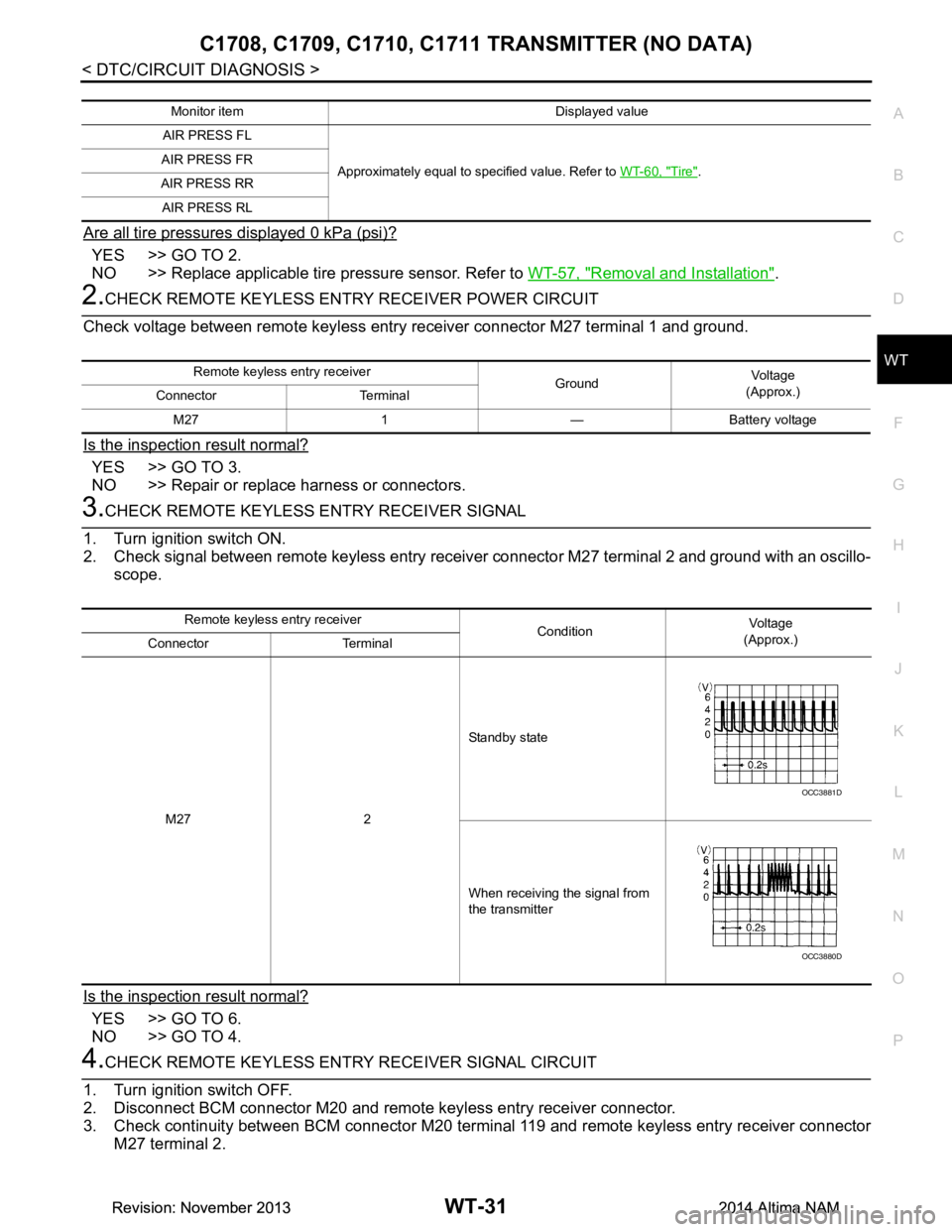

2. Check signal between remote keyless entry receiver connector M27 terminal 2 and ground with an oscillo-
scope.
Is the inspection result normal?
YES >> GO TO 6.
NO >> GO TO 4.
4.CHECK REMOTE KEYLESS ENTR Y RECEIVER SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector M20 and remote keyless entry receiver connector.
3. Check continuity between BCM connector M20 terminal 119 and remote keyless entry receiver connector
M27 terminal 2.
Monitor item Displayed value
AIR PRESS FL
Approximately equal to specified value. Refer to WT-60, "Tire"
.
AIR PRESS FR
AIR PRESS RR AIR PRESS RL
Remote keyless entry receiver GroundVo l ta g e
(Approx.)
Connector Terminal
M27 1 — Battery voltage
Remote keyless entry receiver ConditionVo l ta g e
(Approx.)
Connector Terminal
M27 2 Standby state
When receiving the signal from
the transmitter
OCC3881D
OCC3880D
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

WT-32
< DTC/CIRCUIT DIAGNOSIS >
C1708, C1709, C1710, C1711 TRANSMITTER (NO DATA)
4. Check continuity between BCM connector M20 terminal 119 and ground.
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace harness or connectors.
5.CHECK REMOTE KEYL ESS ENTRY RECEIVER GROUND CIRCUIT
Check continuity between remote keyless entry receiver connector M27 terminal 3 and ground.
Is the inspection result normal?
YES >> Replace the remote keyless entry receiver. Refer to DLK-224, "Removal and Installation".
NO >> Repair or replace harness or connectors.
6.TIRE PRESSURE SENSOR ID REGISTRATION
Perform tire pressure sensor ID registration. Refer to WT-25, "Work Procedure"
.
Can the tire pressure sensor ID registration be completed?
YES >> GO TO 7.
NO >> Replace applicable tire pressure sensor. Refer to WT-57, "Removal and Installation"
.
7.RECHECK TIRE PRESSURE SIGNAL
With CONSULT
1. Drive at a speed of 40 km/h (25 MPH) or more fo r 3 minutes, and then drive the vehicle at any speed for
10 minutes.
2. Select Data Monitor from AIR PRESSURE MONITOR of BCM.
3. Check that the air pressures match the specified value.
Does Data Monitor display specified value without turning tire pressure warning lamp ON?
YES >> Inspection End.
NO >> Replace BCM. Refer to BCS-80, "Removal and Installation"
.
BCM Remote keyless entry receiver
Continuity
Connector Terminal Connector Terminal
M20 119 M27 2 Yes
BCM Ground Continuity
Connector Terminal
M20 119 — No
Remote keyless entry receiver Ground Continuity
Connector Terminal
M27 3 — Yes
Monitor item Displayed value
AIR PRESS FL
Approximately equal to specified value. Refer to WT-60, "Tire"
.
AIR PRESS FR
AIR PRESS RR AIR PRESS RL
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

C1712, C1713, C1714, C1715 TRANSMITTER (CHECKSUM)
WT-33
< DTC/CIRCUIT DIAGNOSIS >
C
D
F
G H
I
J
K L
M A
B
WT
N
O P
C1712, C1713, C1714, C1715 TRANSMITTER (CHECKSUM)
DTC LogicINFOID:0000000009464498
NOTE:
The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II
User Guide for additional information.
• Activate and display TPMS transmitter IDs
• Display tire pressure repor ted by the TPMS transmitter
• Read TPMS DTCs
• Register TPMS transmitter IDs
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM SELF DIAGNOSTIC RESULT
With CONSULT
1. Drive at a speed of 40 km/h (25 MPH) or more fo r 3 minutes, and then drive the vehicle at any speed for
10 minutes.
2. Perform Self Diagnostic Result.
Is DTC C1712, C1713, C1714, or C1715 detected?
YES >> Proceed to WT-33, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000009464499
NOTE:
The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II
User Guide for additional information.
• Activate and display TPMS transmitter IDs
• Display tire pressure repor ted by the TPMS transmitter
• Read TPMS DTCs
• Register TPMS transmitter IDs
1.TIRE PRESSURE SENS OR ID REGISTRATION
Perform tire pressure sensor ID registration. Refer to WT-25, "Work Procedure"
.
Can the tire pressure sensor ID registration be completed?
YES >> GO TO 2.
NO >> Replace applicable tire pressure sensor. Refer to WT-57, "Removal and Installation"
.
2.PERFORM SELF DIAGNOSTIC RESULT
With CONSULT
1. Drive at a speed of 40 km/h (25 MPH) or more fo r 3 minutes, and then drive the vehicle at any speed for
10 minutes.
2. Perform Self Diagnostic Result.
Is DTC C1712, C1713, C1714, or C1715 detected?
CONSULT Display DTC Detection Condition Possible Cause
[CHECKSUM - ERR] - FL
[C1712] Checksum data signal from front LH wheel sensor
is malfunctioning.
• ID registration incomplete
• Tire pressure sensor
•BCM
[CHECKSUM - ERR] - FR
[C1713] Checksum data signal from front RH wheel sensor
is malfunctioning.
[CHECKSUM - ERR] - RR
[C1714] Checksum data signal from rear RH wheel sensor
is malfunctioning.
[CHECKSUM - ERR] - RL
[C1715] Checksum data signal from rear LH wheel sensor
is malfunctioning.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

WT-34
< DTC/CIRCUIT DIAGNOSIS >
C1712, C1713, C1714, C1715 TRANSMITTER (CHECKSUM)
YES >> Replace BCM. Refer to BCS-80, "Removal and Installation".
NO >> Inspection End.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

C1716, C1717, C1718, C1719 TRANSMITTER (PRESSURE DATA)
WT-35
< DTC/CIRCUIT DIAGNOSIS >
C
D
F
G H
I
J
K L
M A
B
WT
N
O P
C1716, C1717, C1718, C1719 TRAN SMITTER (PRESSURE DATA)
DTC LogicINFOID:0000000009464500
NOTE:
The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II
User Guide for additional information.
• Activate and display TPMS transmitter IDs
• Display tire pressure repor ted by the TPMS transmitter
• Read TPMS DTCs
• Register TPMS transmitter IDs
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM SELF DIAGNOSTIC RESULT
With CONSULT
1. Check tire pressure for all wheels and adjust to the specified value. Refer to WT-60, "Tire"
.
2. Drive at a speed of 40 km/h (25 MPH) or more fo r 3 minutes, and then drive the vehicle at any speed for
10 minutes.
3. Perform Self Diagnostic Result.
Is DTC C1716, C1717, C1718, or C1719 detected?
YES >> Proceed to WT-35, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000009464501
NOTE:
The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II
User Guide for additional information.
• Activate and display TPMS transmitter IDs
• Display tire pressure repor ted by the TPMS transmitter
• Read TPMS DTCs
• Register TPMS transmitter IDs
1.TIRE PRESSURE SENS OR ID REGISTRATION
Perform tire pressure sensor ID registration. Refer to WT-25, "Work Procedure"
.
Can the tire pressure sensor ID registration be completed?
YES >> GO TO 2.
NO >> Replace applicable tire pressure sensor. Refer to WT-57, "Removal and Installation"
.
2.CHECK TIRE PRESSURE SIGNAL
With CONSULT
1. Adjust tire pressure for all wheels to the specified value. Refer to WT-60, "Tire"
.
2. Select Data Monitor from AIR PRESSURE MONITOR of BCM.
3. Check that the air pressures match the specified value.
CONSULT Display DTC Detectio n Condition Possible Cause
[PRESSDATA ERR] FL
[C1716] Malfunction in the tire pressure data from the front
LH wheel tire pressure sensor.
• Excessive tire pressure
• ID registration incomplete
• Tire pressure sensor
•BCM
[PRESSDATA ERR] FR
[C1717] Malfunction in the tire pressure data from the front
RH wheel tire pressure sensor.
[PRESSDATA ERR] RR
[C1718] Malfunction in the tire pressure data from the rear
RH wheel tire pressure sensor.
[PRESSDATA ERR] RL
[C1719] Malfunction in the tire pressure data from the rear
LH wheel tire pressure sensor.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
