NISSAN TEANA 2014 Service Manual

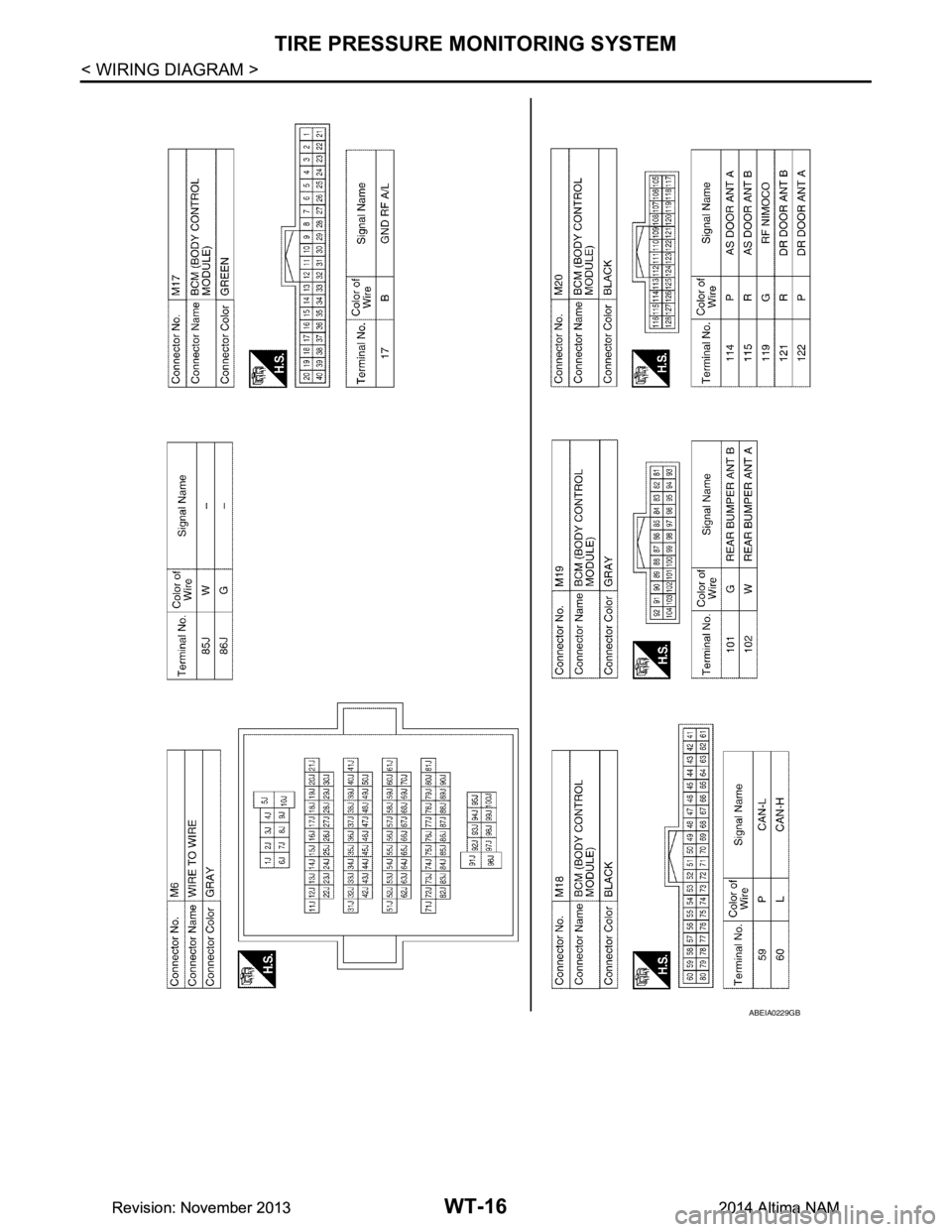

WT-16
< WIRING DIAGRAM >
TIRE PRESSURE MONITORING SYSTEM
ABEIA0229GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

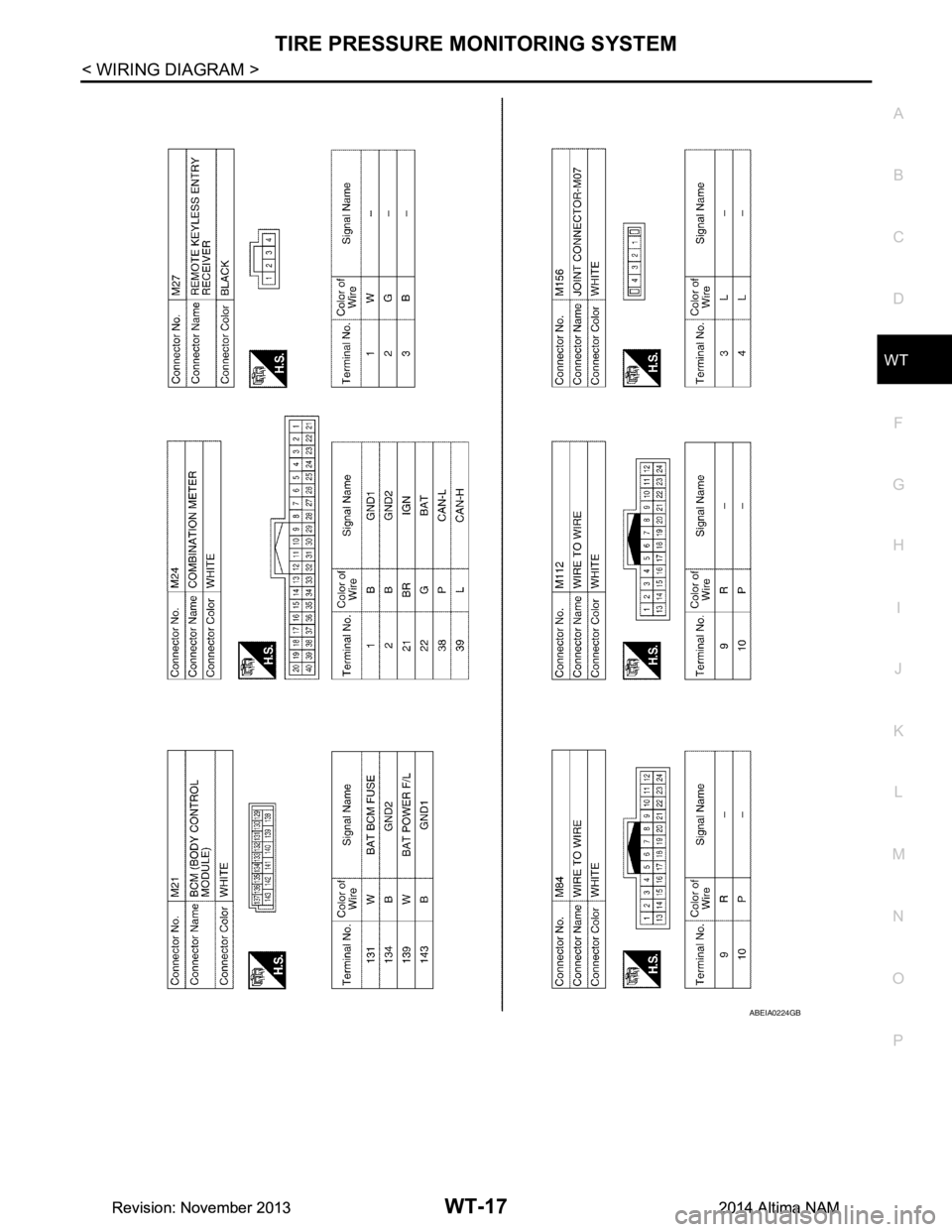

TIRE PRESSURE MONITORING SYSTEMWT-17
< WIRING DIAGRAM >
C
D
F
G H
I
J
K L
M A
B
WT
N
O P
ABEIA0224GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

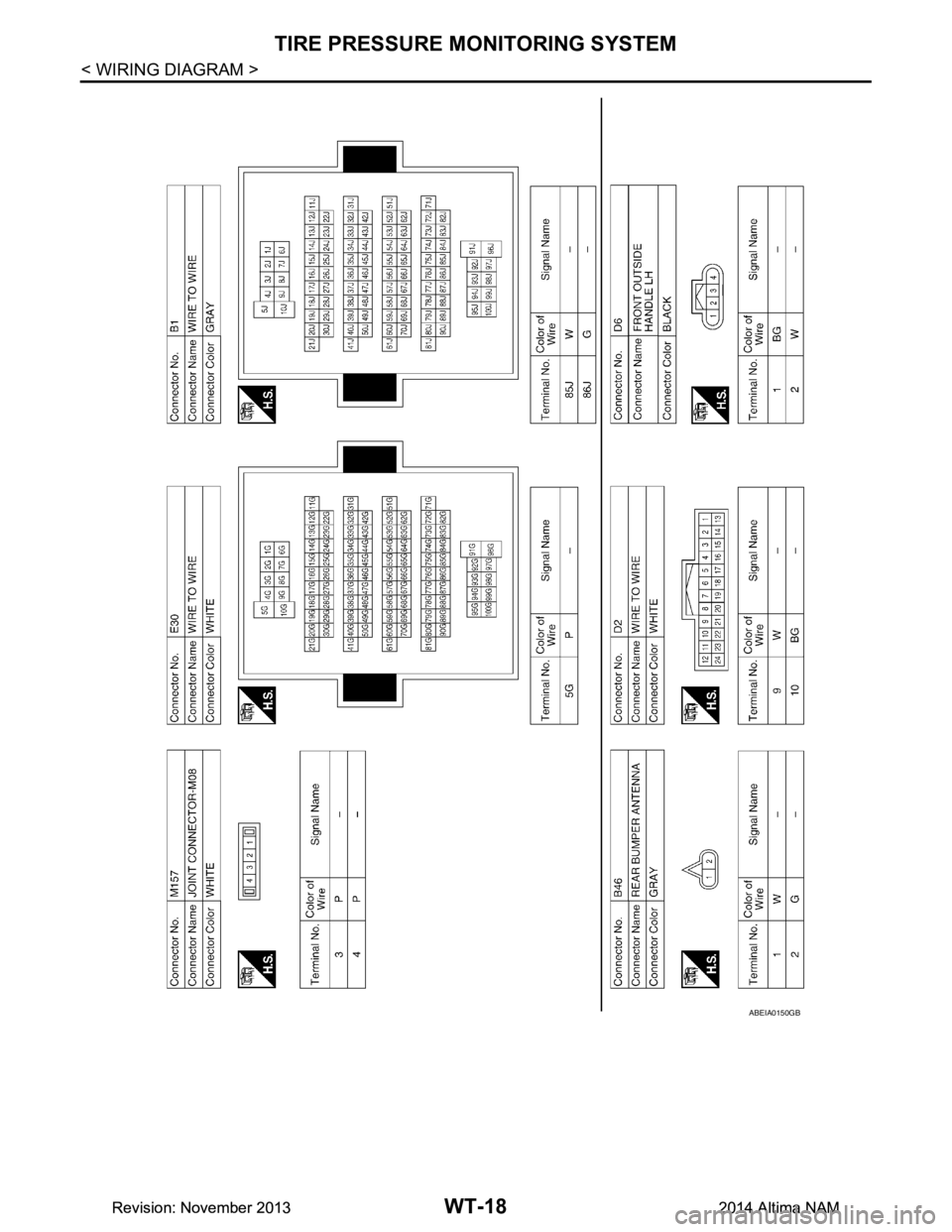

WT-18
< WIRING DIAGRAM >
TIRE PRESSURE MONITORING SYSTEM
ABEIA0150GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

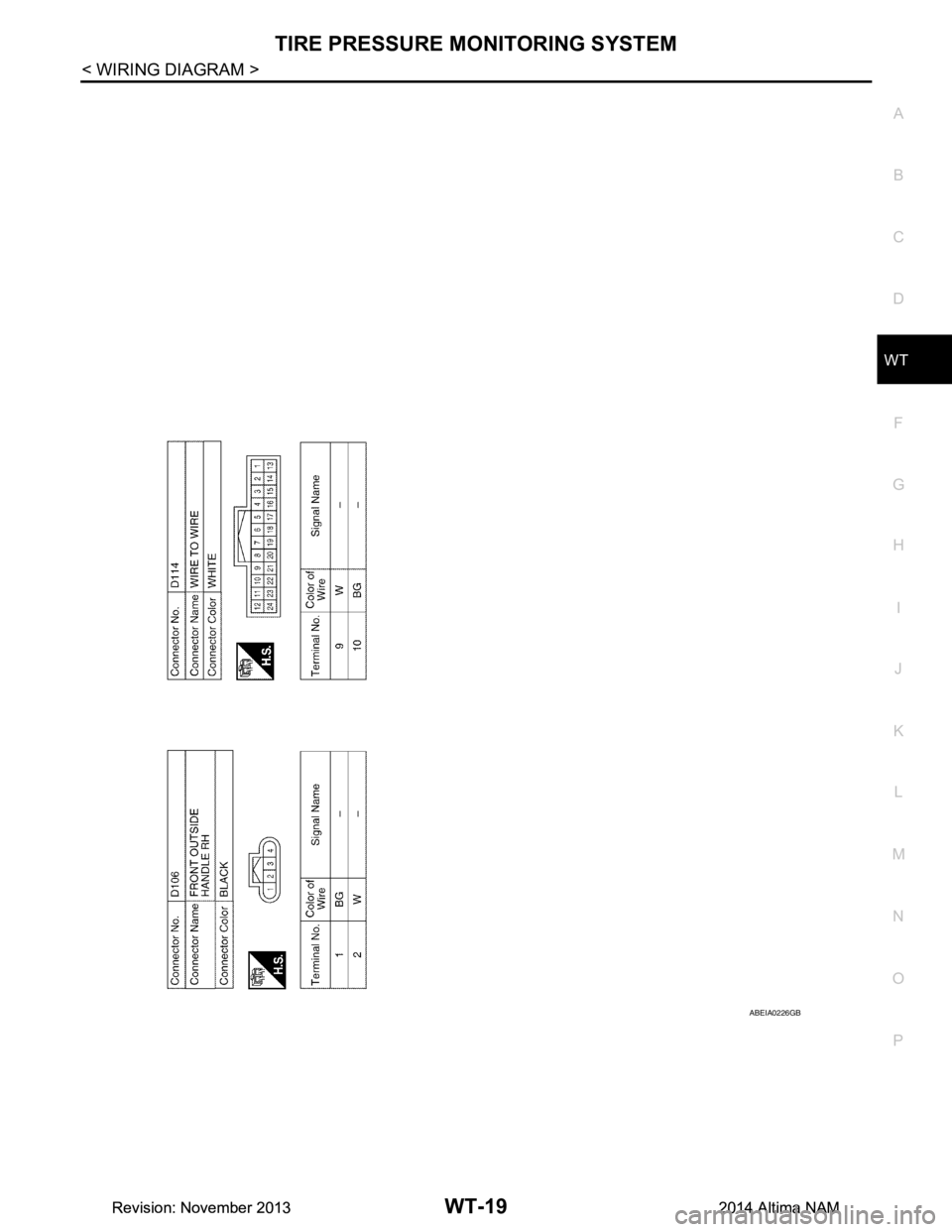

TIRE PRESSURE MONITORING SYSTEMWT-19
< WIRING DIAGRAM >
C
D
F
G H
I
J
K L
M A
B
WT
N
O P
ABEIA0226GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

WT-20
< WIRING DIAGRAM >
TIRE PRESSURE MONITORING SYSTEM

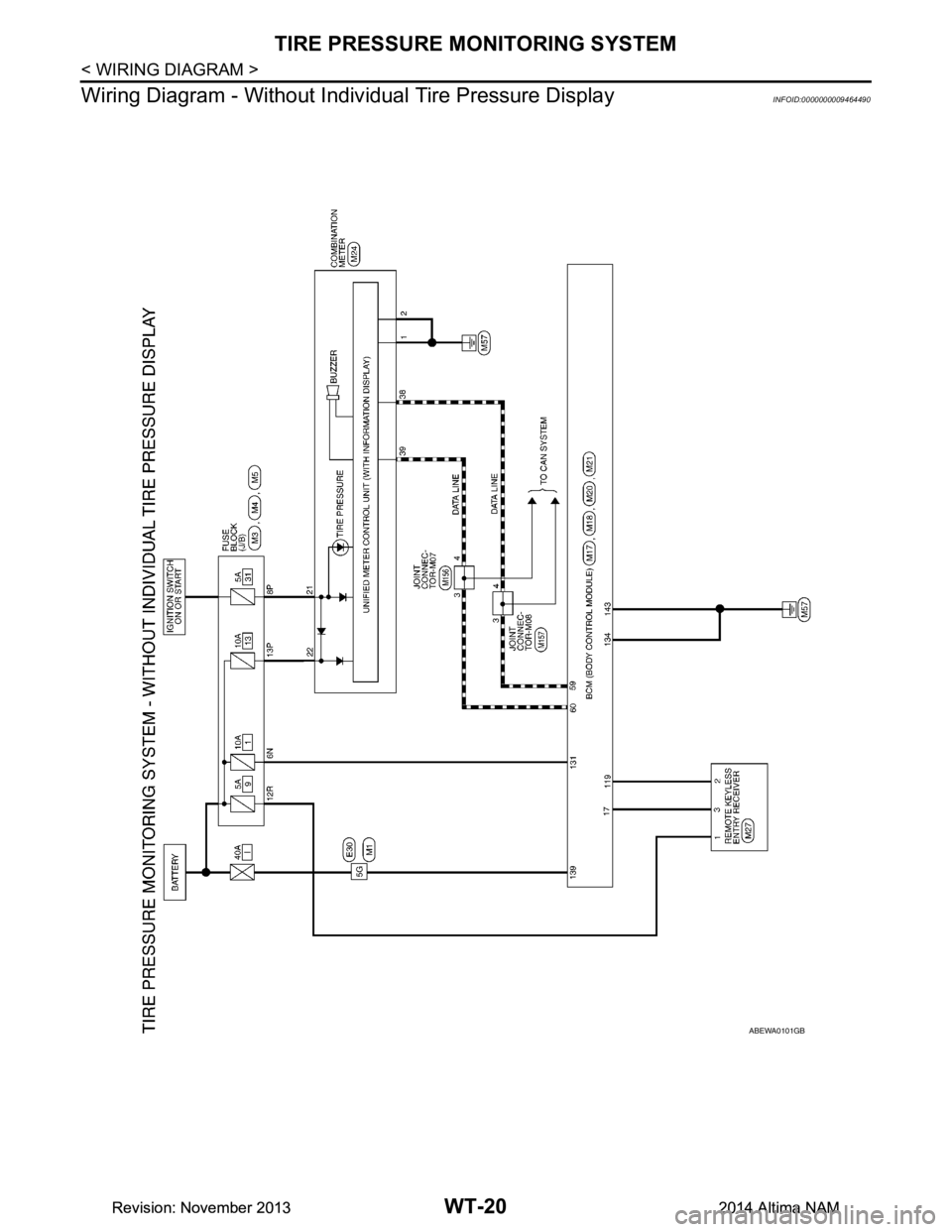

Wiring Diagram - Without Indivi dual Tire Pressure Display
INFOID:0000000009464490
ABEWA0101GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

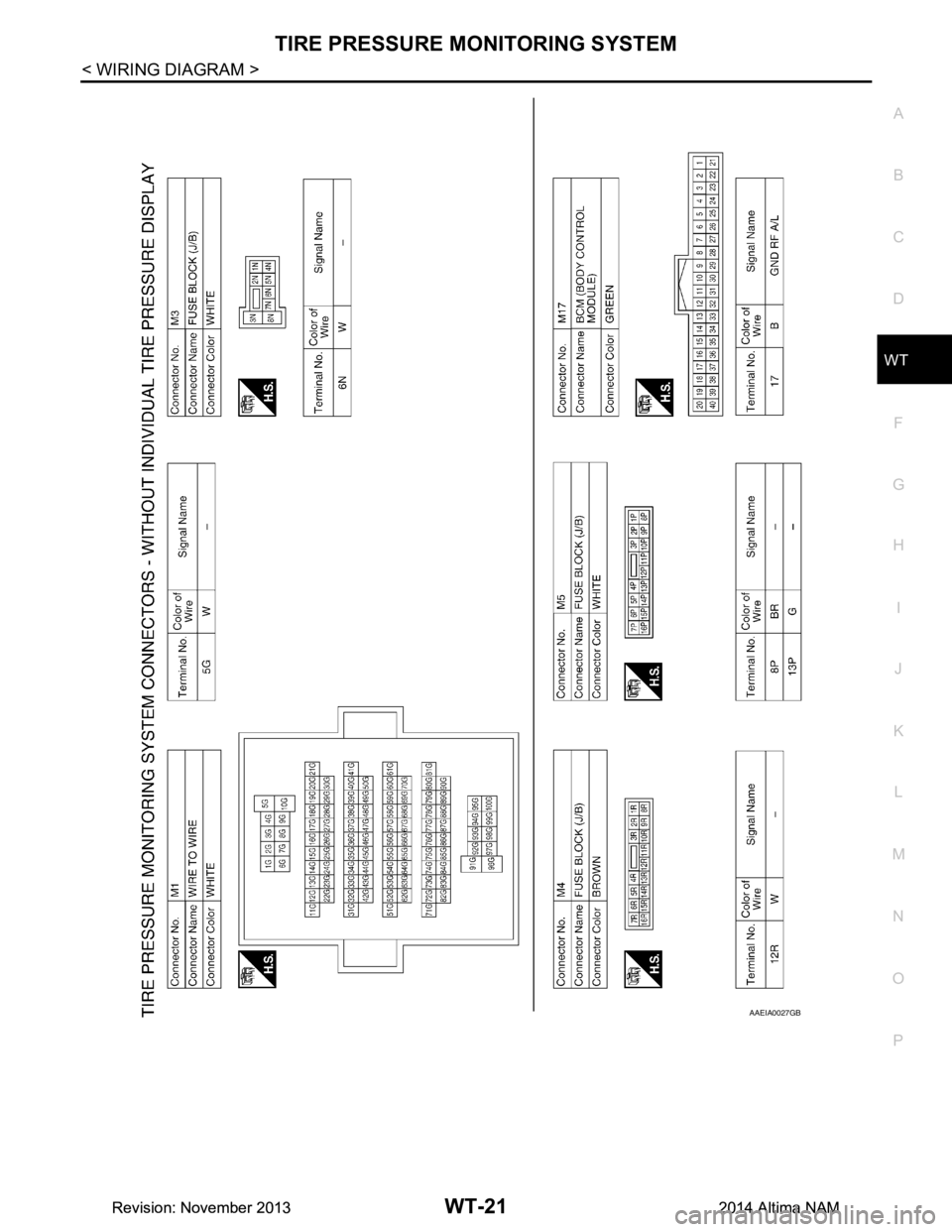

TIRE PRESSURE MONITORING SYSTEMWT-21
< WIRING DIAGRAM >
C
D
F
G H
I
J
K L
M A
B
WT
N
O P
AAEIA0027GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

WT-22
< WIRING DIAGRAM >
TIRE PRESSURE MONITORING SYSTEM

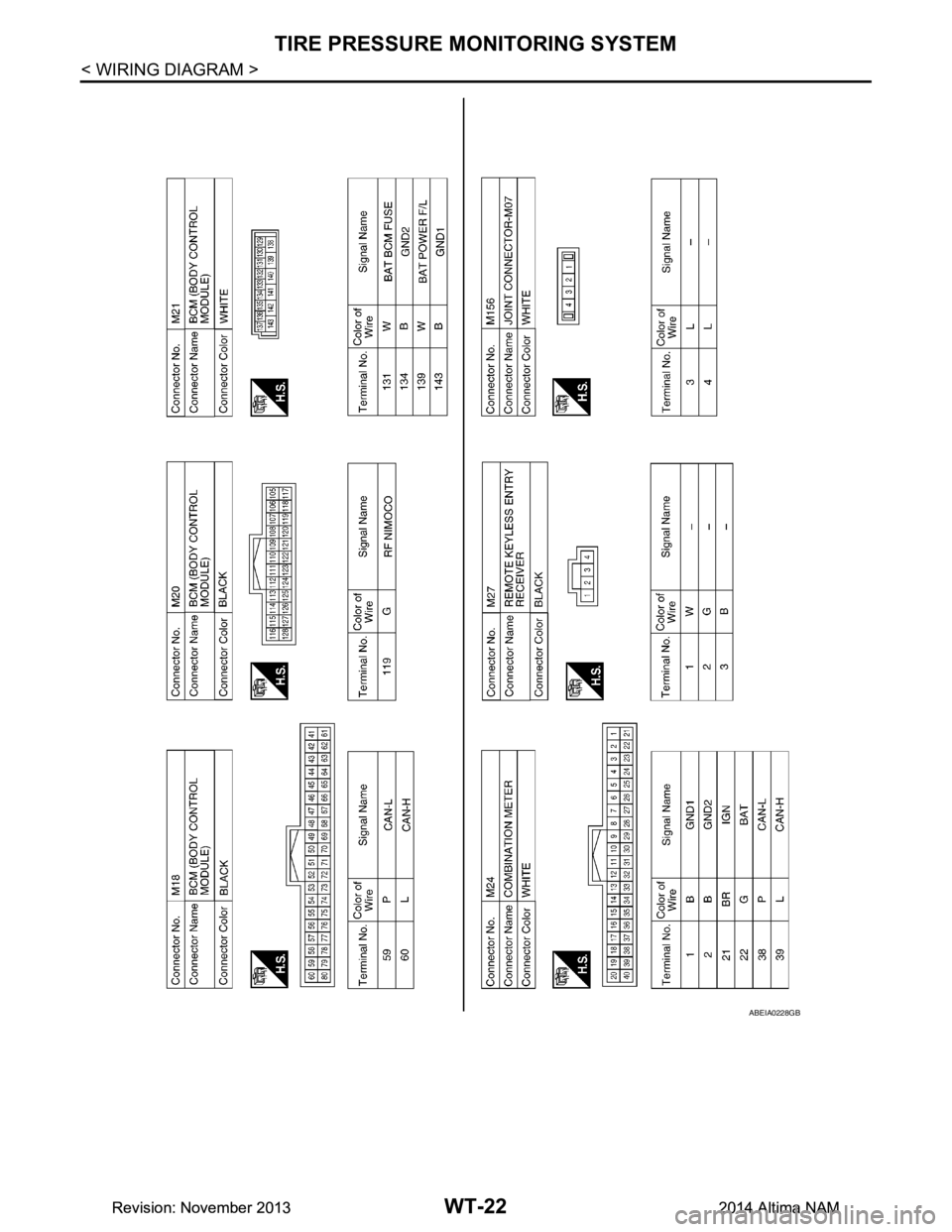

ABEIA0228GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

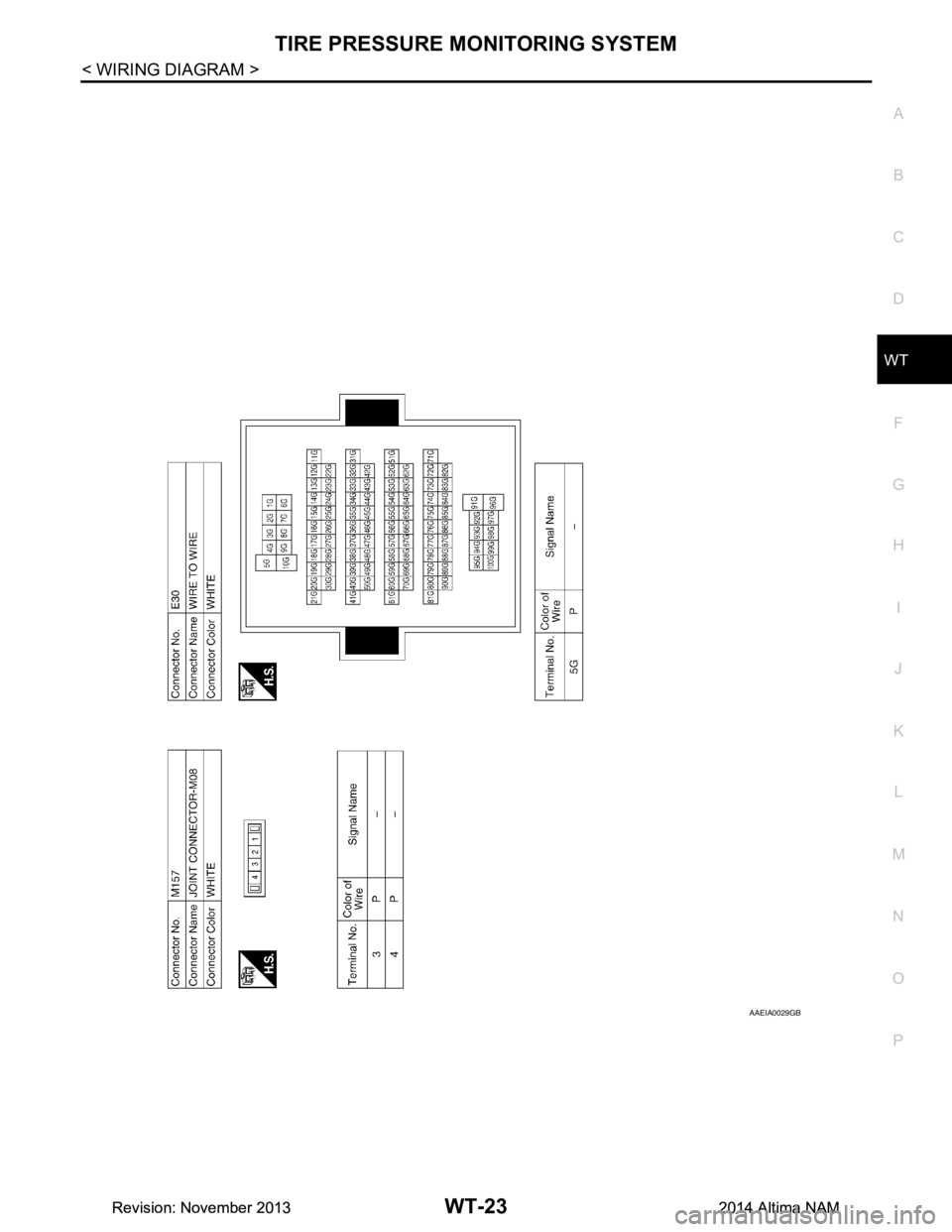

TIRE PRESSURE MONITORING SYSTEMWT-23
< WIRING DIAGRAM >
C
D
F
G H
I
J
K L
M A
B
WT
N
O P
AAEIA0029GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

WT-24
< BASIC INSPECTION >
DIAGNOSIS AND REPAIR WORK FLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work Flow INFOID:0000000009464491
NOTE:
The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II
User Guide for additional information.
• Activate and display TPMS transmitter IDs
• Display tire pressure reported by the TPMS transmitter
• Read TPMS DTCs
• Register TPMS transmitter IDs
1.COLLECT INFORMATION FROM CUSTOMER
Get detailed information from the customer about the symptom (the condition and the environment when the
incident/malfunction occurred).
>> GO TO 2.
2.TIRE PRESSURE INSPECTION
Check the tire pressure for all wheels. Refer to WT-60, "Tire"
.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace tire(s) or wheel(s).
3.CHECK LOW TIRE PRESSURE WARNING LAMP
Check that the low tire pressure warning lamp illumi nates for approximately 1 second after the ignition switch
is turned ON, then turns OFF.
Does the low tire pressure warning lamp turn OFF?
YES >> Inspection End.
NO >> GO TO 4.
4.PERFORM SELF DIAGNOSTIC RESULT
Perform self diagnostic result. Refer to BCS-29, "AIR PRESSURE MONITOR : CONSULT Function (BCM-AIR
PRESSURE MONITOR)".
Are any DTCs displayed?
YES >> Refer to BCS-52, "DTC Index". If two or more DTCs are displayed, refer to BCS-50,
"DTC Inspection Priority Chart".
NO >> GO TO 5.
5.PERFORM DIAGNOSIS APPLICABLE TO THE SYMPTOM
Perform diagnosis applicable to the symptom. Refer to WT-48, "Symptom Table"
.
>> GO TO 6.
6.FINAL CHECK
Perform self diagnostic result again, and check that the malfunction is repaired. After checking, erase the self
diagnosis memory. Refer to BCS-29, "AIR PRESSURE MONITOR : CONSULT Function (BCM-AIR PRES-
SURE MONITOR)".
>> Inspection End.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

ID REGISTRATION PROCEDUREWT-25
< BASIC INSPECTION >
C
D
F
G H
I
J
K L
M A
B
WT
N
O P
ID REGISTRATION PROCEDURE
DescriptionINFOID:0000000009464492
This procedure must be performed:
• after replacement of a transmitter or BCM (with individual tire pressure display).
• after replacement of a transmitter, BCM or rotation of the wheels (without individual tire pressure display).
Work ProcedureINFOID:0000000009464493
TPMS ID registration can be performed using one of the following procedures:
• Transmitter Activation tool (J-45295-A) with CONSULT (preferred method)
• Signal Tech II tool (J-50190) with CONSULT (preferred method)
• Signal Tech II tool (J-50190) without CONSULT
• CONSULT only
TPMS REGISTRATION WITH TRANSMI TTER ACTIVATION TOOL (J-45295-A)
With CONSULT
1. Turn the ignition switch ON.
2. Using CONSULT, select “WORK SUPPORT” in BC M (AIR PRESSURE MONITOR). Then, select “ID
REGIST.”
3. Select “Start” on “ID REGIST” screen.
4. Hold the transmitter activation tool (J-45295-A) (1) against the side of the left front tire, near the valve stem.
5. With the tool held at a 0 to 15 degree angle to the tire, press and
hold the transmitter activation tool button until the indicator lamp
turns OFF (approximately 5 seconds).
6. Repeat steps 4 and 5 for the remaining tires in this order: right
front, right rear and left rear.
7. When ID registration is complete, check the following pattern at each wheel.
8. After the ID registration procedure for all wheels is complete, press “End” on the CONSULT to finish ID registration.
9. Test drive the vehicle to ensure that the TPMS lamp is OFF and no warning messages are present.
TPMS REGISTRATION WITH SIGNAL TECH II TOOL (J-50190)
NOTE:
The Signal Tech II must be updated with software version 1.1.48 or newer in order to perform the below proce-
dures. The Signal Tech II software updates can onl y be downloaded from a CONSULT unit with ASIST. Other
versions of ASIST will not show the updates.
With CONSULT
1. Adjust the tire pressure for all tires to the recommended value. Refer to WT-60, "Tire".
2. Turn the ignition switch ON.
3. Using CONSULT, select “WORK SUPPORT” in BC M (AIR PRESSURE MONITOR). Then, select “ID
REGIST.”
4. Select “Start” on “ID REGIST” screen.
NNEIC0020ZZ
Sequence ID registration position Turn signal lamp CONSULT
1 Front LH
2 blinks“Yet (red)”
↓
“Done (green)”
2Front RH
3 Rear RH
4 Rear LH
