ITS CONTROL UNIT
REMOVAL AND INSTALLATION
ITS CONTROL UNIT
Removal and InstallationINFOID:0000000009464711
REMOVAL
1. Disconnect the battery negative terminal. Refer to
PG-73, "Removal and Installation (Battery)".
2. Remove the center console assembly. Refer to IP-18, "Removal and Installation"
.
3. Disconnect the harness connectors (B,C) from the ITS control unit (1).
: Front
4. Remove bolts ( ) and plastic screw (A) that retain the ITS con- trol unit (1) and remove.
INSTALLATION
Installation is in the reverse order of removal.
ALOIA0141ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DAS
REAR VIEW CAMERADAS-69
< REMOVAL AND INSTALLATION > [ITS CONTROL UNIT]
C
D E
F
G H
I
J
K L
M B
N P
A
REAR VIEW CAMERA
Exploded ViewINFOID:0000000009978529
Removal and InstallationINFOID:0000000009978528
REMOVAL
1. Remove rear view camera air pump motor. Refer to DAS-71, "Removal and Installation".
2. Disconnect the rear washer tube (1 ) from rear view camera (2).
3. Disconnect the harness connector from the rear view camera and remove.
INSTALLATION
Installation is in the reverse order of removal.

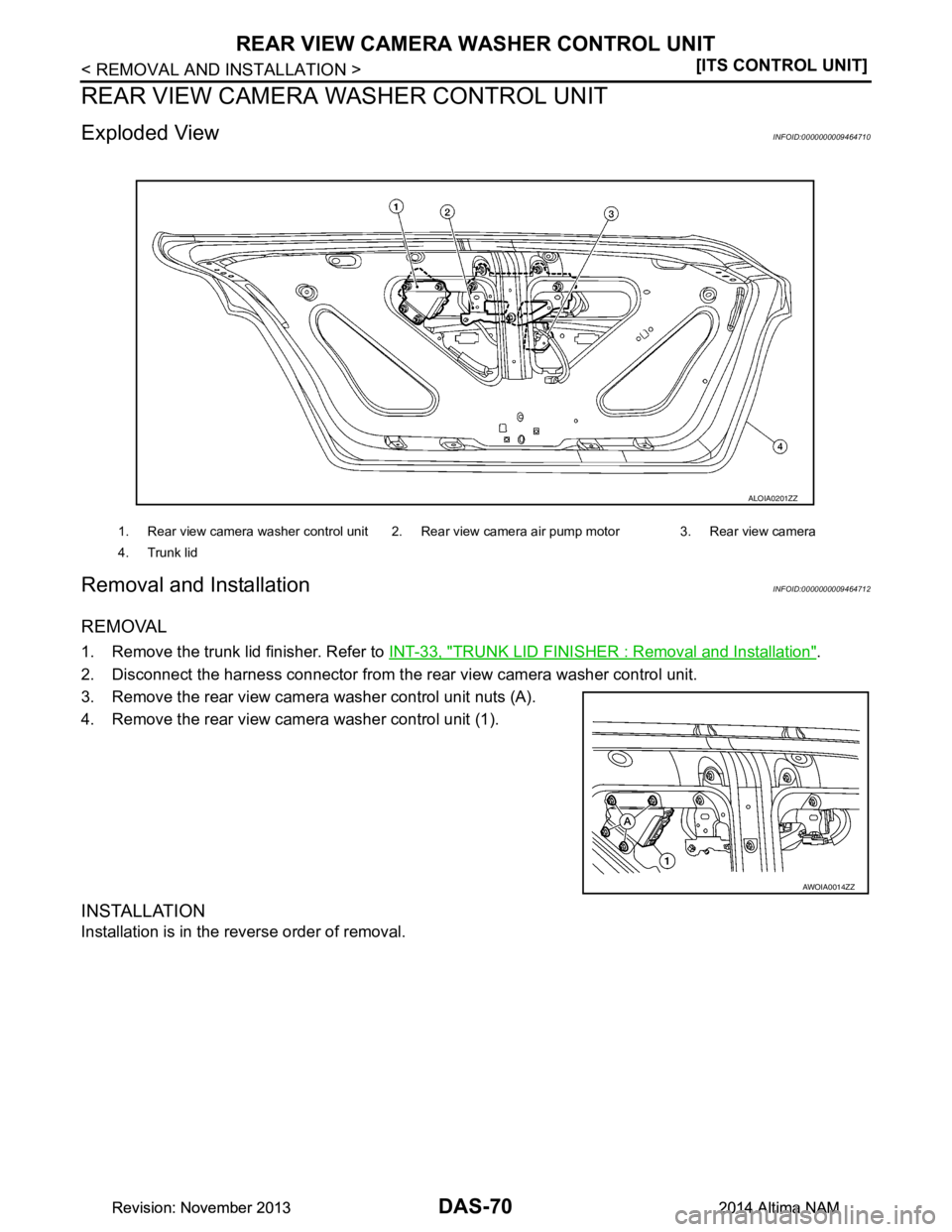

1. Rear view camera washer control unit 2. Rear view camera air pump motor 3. Rear view camera
4. Trunk lid
ALOIA0201ZZ
ALOIA0202ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DAS-70
< REMOVAL AND INSTALLATION >[ITS CONTROL UNIT]
REAR VIEW CAMERA WA
SHER CONTROL UNIT
REAR VIEW CAMERA WASHER CONTROL UNIT
Exploded ViewINFOID:0000000009464710
Removal and InstallationINFOID:0000000009464712
REMOVAL
1. Remove the trunk lid finisher. Refer to INT-33, "TRUNK LID FINISHER : Removal and Installation".
2. Disconnect the harness connector from the r ear view camera washer control unit.
3. Remove the rear view camera washer control unit nuts (A).
4. Remove the rear view camera washer control unit (1).
INSTALLATION
Installation is in the reverse order of removal.
1. Rear view camera washer control unit 2. Rear view camera air pump motor 3. Rear view camera
4. Trunk lid
ALOIA0201ZZ
AWOIA0014ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DAS
REAR VIEW CAMERA AIR PUMP MOTORDAS-71
< REMOVAL AND INSTALLATION > [ITS CONTROL UNIT]
C
D E
F
G H
I
J
K L
M B
N P
A
REAR VIEW CAMERA AIR PUMP MOTOR
Exploded ViewINFOID:0000000009464713
Removal and InstallationINFOID:0000000009464714
REMOVAL
1. Remove the trunk lid finisher. Refer to INT-33, "TRUNK LID FINISHER : Removal and Installation".
2. Disconnect the air tubes from the rear view camera air pump motor.
3. Disconnect the harness connector from the rear view camera air pump motor.
4. Remove the rear view camera air pump motor bracket nuts (A).
5. Remove the rear view camera air pump motor (1).
INSTALLATION
Installation is in the reverse order of removal.
1. Rear view camera washer control unit 2. Rear view camera air pump motor 3. Rear view camera
4. Trunk lid
ALOIA0201ZZ
AWOIA0015ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DAS-72
< PRECAUTION >[LDW]
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint Syst
em (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000009951640
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISS AN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harn esses can be identified by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or electri c power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers , always switch the Ignition OFF, disconnect the
battery and wait at least three minutes before performing any service.
Precaution for WorkINFOID:0000000009464716
• When removing or disassembling each component, be careful not to damage or deform it. If a component may be subject to interference, be sure to protect it with a shop cloth.
• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component with a shop cloth or vinyl tape to protect it.
• Protect the removed parts with a s hop cloth and prevent them from being dropped.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusable part, always replace it with a new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After installation is complete, be sure to check that each part works properly.
• Follow the steps below to clean components:
- Water soluble dirt:
• Dip a soft cloth into lukewarm water, wring the water out of the cloth and wipe the dirty area.
• Then rub with a soft, dry cloth.
- Oily dirt:
• Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%) and wipe the dirty area.
• Then dip a cloth into fresh water, wring the water out of the cloth and wipe the detergent off.
• Then rub with a soft, dry cloth.
- Do not use organic solvent such as thinner, benzene, alcohol or gasoline.
- For genuine leather seats, use a genuine leather seat cleaner.
Precautions For Harness RepairINFOID:0000000009464717
ITS communication uses a twisted pair line. Be careful when repairing it.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DAS
PRECAUTIONSDAS-73
< PRECAUTION > [LDW]
C
D E
F
G H
I
J
K L
M B
N P
A

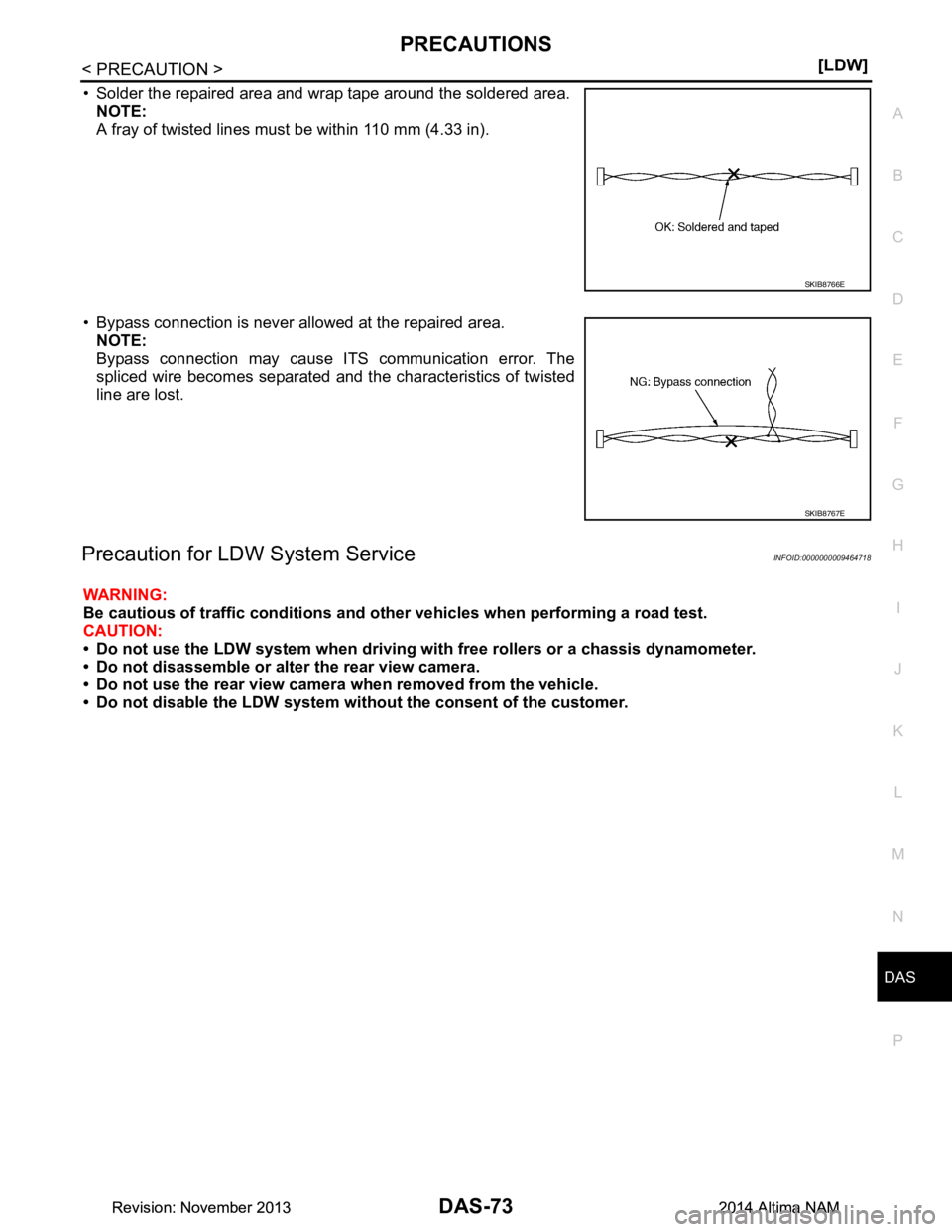

• Solder the repaired area and wrap tape around the soldered area. NOTE:
A fray of twisted lines must be within 110 mm (4.33 in).
• Bypass connection is never allowed at the repaired area. NOTE:
Bypass connection may cause ITS communication error. The
spliced wire becomes separated and t he characteristics of twisted
line are lost.
Precaution for LDW System ServiceINFOID:0000000009464718
WARNING:
Be cautious of traffic conditions and ot her vehicles when performing a road test.
CAUTION:
• Do not use the LDW system when driving with free rollers or a chassis dynamometer.
• Do not disassemble or alter the rear view camera.
• Do not use the rear view camera when removed from the vehicle.
• Do not disable the LDW system with out the consent of the customer.
SKIB8766E
SKIB8767E
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DAS-74
< PREPARATION >[LDW]
PREPARATION
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000009464719
The actual shapes of the tools may
differ from those illustrated here.
Tool number
(TechMate No.)
Tool name Description
—
(J-46534)
Trim Tool Set Removing trim components
AWJIA0483ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DAS
COMPONENT PARTSDAS-75
< SYSTEM DESCRIPTION > [LDW]
C
D E
F
G H
I
J
K L
M B
N P
A
SYSTEM DESCRIPTION
COMPONENT PARTS
Component Parts LocationINFOID:0000000009464720
AWOIA0037ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DAS-76
< SYSTEM DESCRIPTION >[LDW]
COMPONENT PARTS
Component Description
INFOID:0000000009464721
1. Combination meter 2. Vehicle information display 3. BCM (view with combination meter re- moved)
4. Blind spot warning indicator RH 5. Blind spot warning indicator LH 6. TCM
7. ECM 8. Warning systems switch 9. Warning systems ON indicator
10. Rear view camera washer control unit 11. Rear view camera air pump motor 12. Rear view camera
13. AV control unit (center display) (with navi- gation system and bose audio system)
Audio unit (center display) (with display
audio system and bose audio system) 14. ITS control unit
(view with center console removed) 15. Steering angle sensor
(view with steeri ng wheel removed)
16. Washer fluid level switch (view with front fascia removed)
Component Description
ITS control unit • Judges the lane departure depending on the lane detection result and each signal
• Controls the warning buzzer and the warning systems ON indicator
• Transmits lane departure warning lamp signal to combination meter via CAN communica- tion
Warning systems switch Inputs the warning systems switch signal to ITS control unit
Warning systems ON indicator
(On the warning systems switch) Turns on the warning systems ON indicator, according to a warning systems ON indicator sig-
nal received from the ITS control unit
Rear view camera • Detects the lane marker in travel lane
• Transmits the detected lane condition signal to ITS control unit via ITS communication
ABS actuator and electr ic unit (control
unit) • Transmits vehicle speed signal to ITS control unit via CAN communication
• Transmits yaw rate signal/side G sensor signal to ITS control unit via CAN communication
Buzzer (combination meter) Activates the warning buzzer, according to a warning buzzer signal received from the ITS
control unit
Combination meter • Turns the Lane Departure Warning lamp ON/OFF according to the signals from ITS control
unit via CAN communication
• Receives Lane Departure Warning ON indicator signal via CAN communication.
Steering angle sensor Transmits steering angle sensor signal to ITS control unit via CAN communication
BCM • Transmits turn signal indicator to ITS control unit via CAN communication
• Transmits dimmer signal to ITS control unit via CAN communication
ECM Transmits engine speed signal to ITS control unit via CAN communication
TCM Transmits the output shaft speed signal, input speed signal, current gear position signal and
shift position signal to ITS control unit via CAN communication
AV c o n t r o l u n i t
(with navigation system and bose au-
dio system) Receives the various systems and camera signals via CAN communication and routes them
to the center display
Audio unit
(with display audio system and bose
audio system) Receives the various systems and camera signals and routes them to the center display
Center display Displays the various system screen signals according to the priority level received via CAN
communication
Rear view camera washer control unit Controls the air pump to drive air to the rear camera lens according to the signals received
from the ITS control unit
Rear view camera air pump motor Drives air to the rear camera lens according to the signals received from the pump control unit
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

DAS
SYSTEMDAS-77
< SYSTEM DESCRIPTION > [LDW]
C
D E
F
G H
I
J
K L
M B
N P
A
SYSTEM
System DescriptionINFOID:0000000009464722

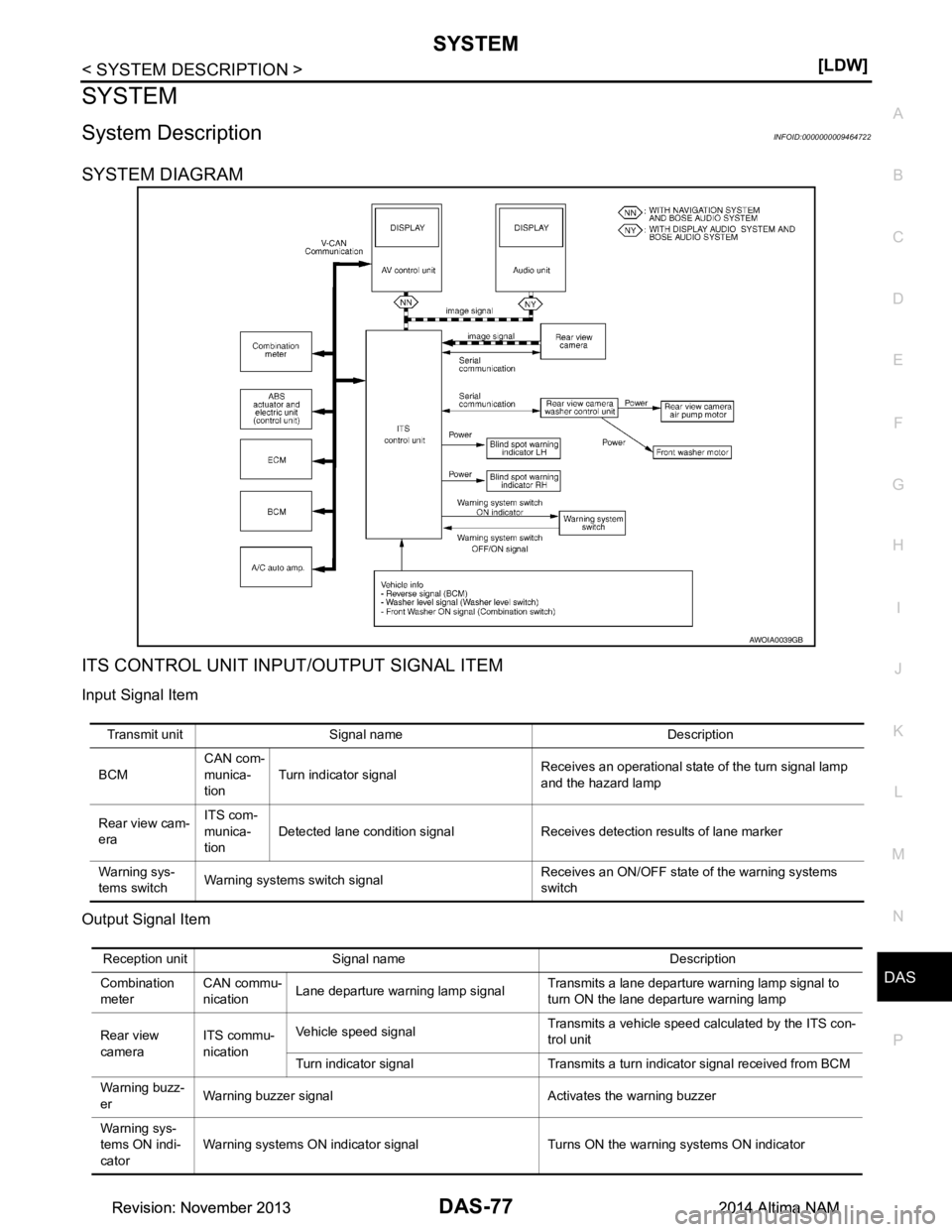

SYSTEM DIAGRAM
ITS CONTROL UNIT INPUT/OUTPUT SIGNAL ITEM
Input Signal Item
Output Signal Item
AWOIA0039GB
Transmit unit Signal name Description
BCM CAN com-
munica-
tion Turn indicator signal
Receives an operational state of the turn signal lamp
and the hazard lamp
Rear view cam-
era ITS com-
munica-
tion Detected lane condition signal Receives detection results of lane marker
Warning sys-
tems switch Warning systems switch signal Receives an ON/OFF state of the warning systems
switch
Reception unit Signal name Description
Combination
meter CAN commu-
nication Lane departure warning lamp signal
Transmits a lane departure warning lamp signal to
turn ON the lane departure warning lamp
Rear view
camera ITS commu-
nication Vehicle speed signal
Transmits a vehicle speed calculated by the ITS con-
trol unit
Turn indicator signal Transmits a turn indicator signal received from BCM
Warning buzz-
er Warning buzzer signal Activates the warning buzzer
Warning sys-
tems ON indi-
cator Warning systems ON indicator signal Turns ON the warning systems ON indicator
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
