NISSAN TERRANO 2002 Service Repair Manual

EGR Cooler
q1EGR tube assembly
q
2Gasket
q
3EGR cooler bracket
q
4Water hose
q
5Clampq
6Water hose
q
7Clamp
q
8Water hose
q
9Clampq
10EGR tube
q
11Gasket
q
12EGR cooler bracket
q
13EGR cooler
YLC042
ENGINE COOLING SYSTEMZD
LC-16

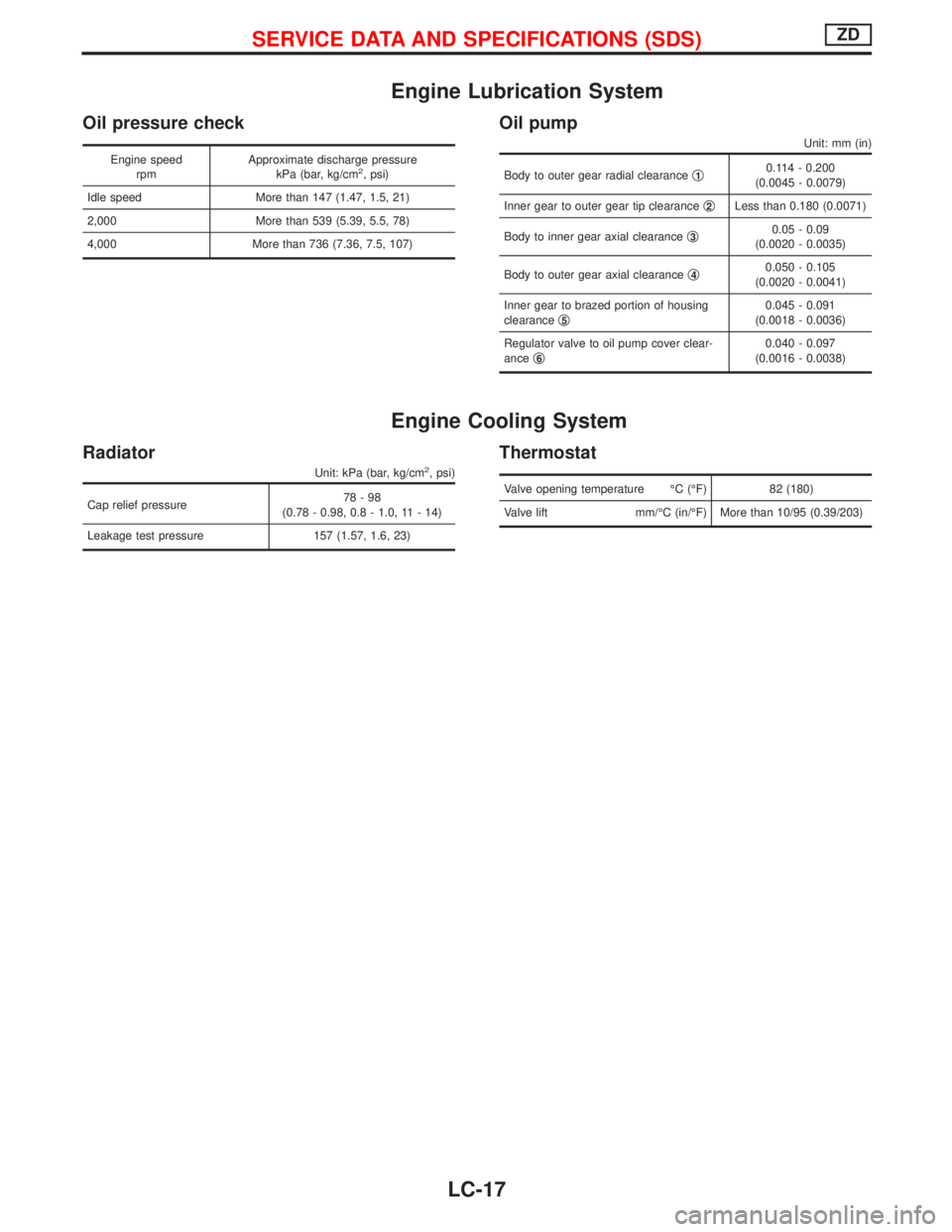

Engine Lubrication System
Oil pressure check
Engine speed
rpmApproximate discharge pressure
kPa (bar, kg/cm2, psi)
Idle speed More than 147 (1.47, 1.5, 21)
2,000 More than 539 (5.39, 5.5, 78)
4,000 More than 736 (7.36, 7.5, 107)
Oil pump
Unit: mm (in)
Body to outer gear radial clearanceq10.114 - 0.200
(0.0045 - 0.0079)
Inner gear to outer gear tip clearanceq
2Less than 0.180 (0.0071)
Body to inner gear axial clearanceq
30.05 - 0.09
(0.0020 - 0.0035)
Body to outer gear axial clearanceq
40.050 - 0.105
(0.0020 - 0.0041)
Inner gear to brazed portion of housing
clearanceq
50.045 - 0.091
(0.0018 - 0.0036)
Regulator valve to oil pump cover clear-
anceq
60.040 - 0.097
(0.0016 - 0.0038)
Engine Cooling System
Radiator
Unit: kPa (bar, kg/cm2, psi)
Cap relief pressure78-98
(0.78 - 0.98, 0.8 - 1.0, 11 - 14)
Leakage test pressure 157 (1.57, 1.6, 23)
Thermostat
Valve opening temperature ÉC (ÉF) 82 (180)
Valve lift mm/ÉC (in/ÉF) More than 10/95 (0.39/203)
SERVICE DATA AND SPECIFICATIONS (SDS)ZD
LC-17

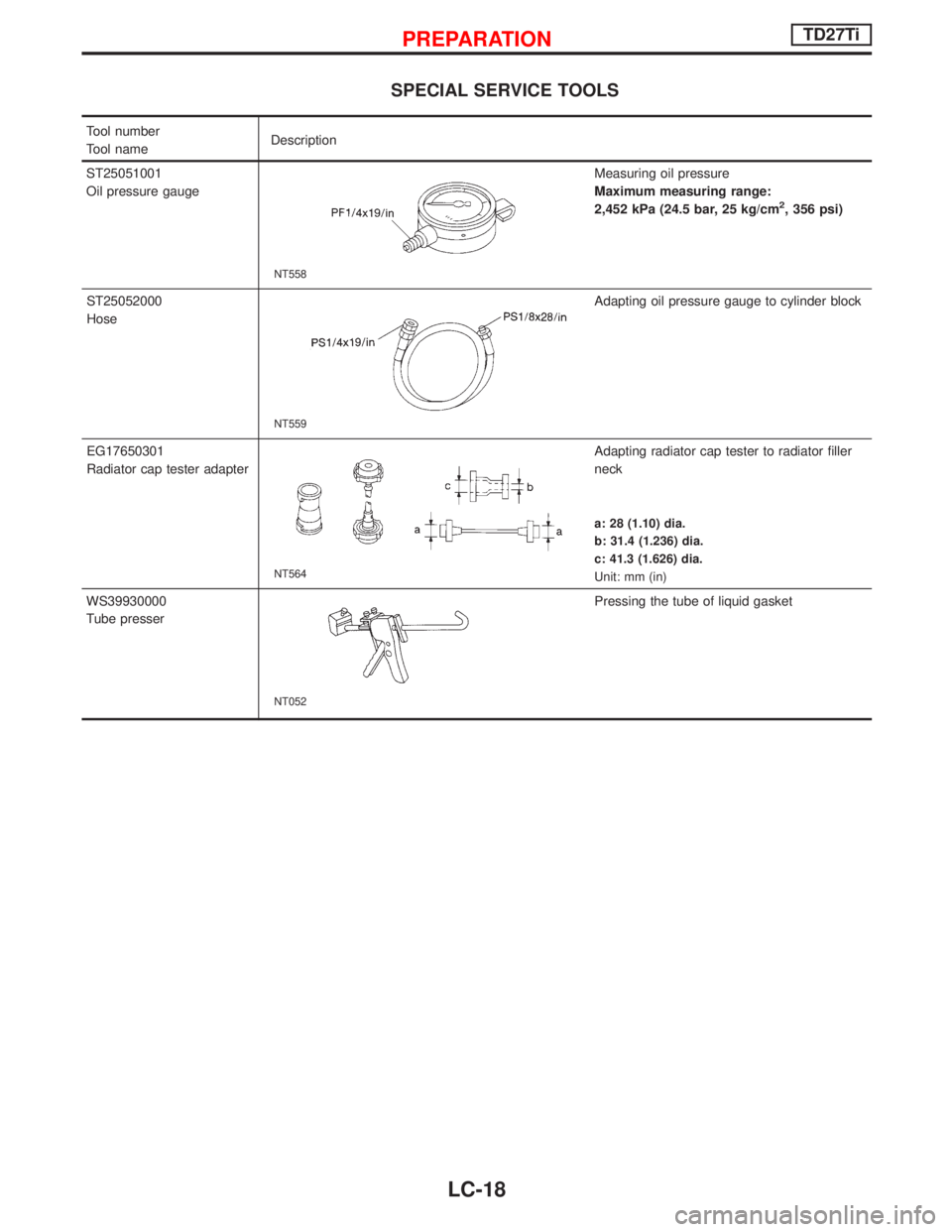

SPECIAL SERVICE TOOLS
Tool number
Tool nameDescription
ST25051001
Oil pressure gauge
NT558
Measuring oil pressure
Maximum measuring range:
2,452 kPa (24.5 bar, 25 kg/cm
2, 356 psi)
ST25052000
Hose
NT559
Adapting oil pressure gauge to cylinder block
EG17650301
Radiator cap tester adapter
NT564
Adapting radiator cap tester to radiator filler
neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)
WS39930000
Tube presser
NT052
Pressing the tube of liquid gasket
PREPARATIONTD27Ti
LC-18

LIQUID GASKET APPLICATION PROCEDURE
a. Before applying liquid gasket, use a scraper to remove all
traces of old liquid gasket from mating surface.
b. Apply a continuous bead of liquid gasket to mating sur-
faces.
(Use Genuine Liquid Gasket or equivalent.)
IBe sure liquid gasket is 3.5 to 4.5 mm (0.138 to 0.177
in) wide (for oil pan).
IBe sure liquid gasket is 2.0 to 3.0 mm (0.079 to 0.118
in) wide (in areas except oil pan).
c. Apply liquid gasket to inner sealing surface around hole
perimeter area.
(Assembly should be done within 5 minutes after coating.)
d. Wait at least 30 minutes before refilling engine oil and
engine coolant.
SEM371C
PRECAUTIONTD27Ti
LC-19

Lubrication Circuit
ELC037
ENGINE LUBRICATION SYSTEMTD27Ti
LC-20

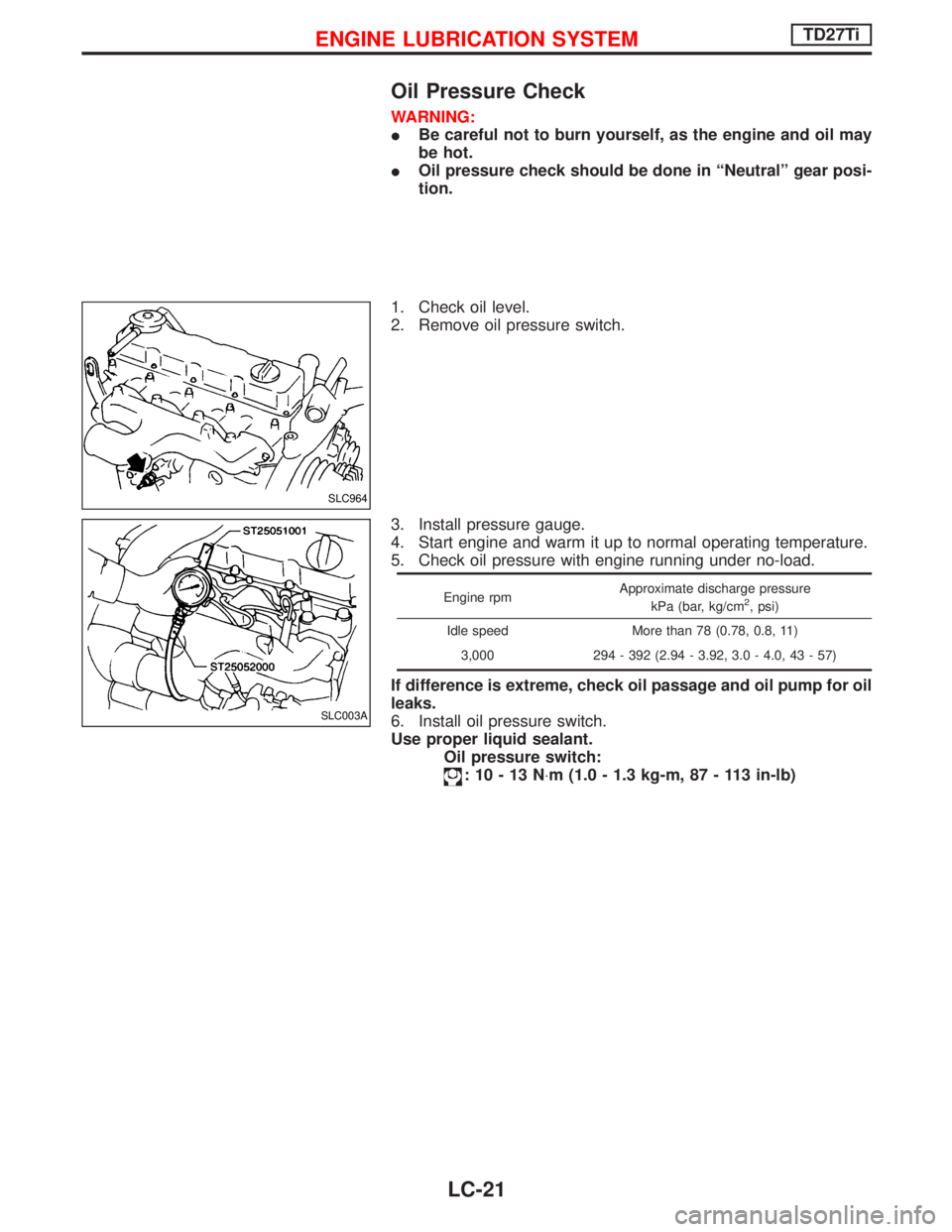

Oil Pressure Check
WARNING:
IBe careful not to burn yourself, as the engine and oil may
be hot.
IOil pressure check should be done in ªNeutralº gear posi-
tion.
1. Check oil level.
2. Remove oil pressure switch.
3. Install pressure gauge.
4. Start engine and warm it up to normal operating temperature.
5. Check oil pressure with engine running under no-load.
Engine rpmApproximate discharge pressure
kPa (bar, kg/cm2, psi)
Idle speed More than 78 (0.78, 0.8, 11)
3,000 294 - 392 (2.94 - 3.92, 3.0 - 4.0, 43 - 57)
If difference is extreme, check oil passage and oil pump for oil
leaks.
6. Install oil pressure switch.
Use proper liquid sealant.
Oil pressure switch:
:10-13N×m (1.0 - 1.3 kg-m, 87 - 113 in-lb)
SLC964
SLC003A
ENGINE LUBRICATION SYSTEMTD27Ti
LC-21

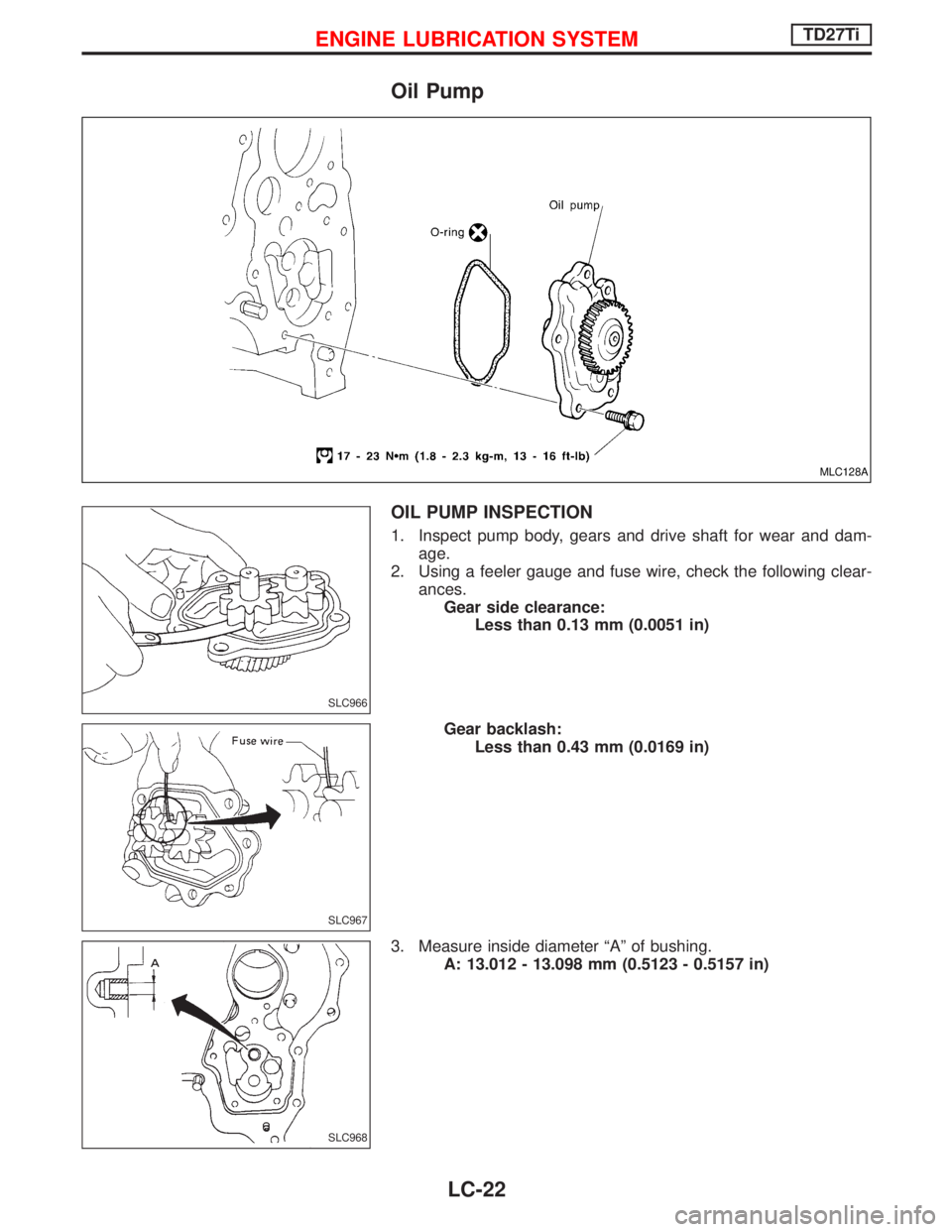

Oil Pump
OIL PUMP INSPECTION
1. Inspect pump body, gears and drive shaft for wear and dam-
age.
2. Using a feeler gauge and fuse wire, check the following clear-
ances.
Gear side clearance:
Less than 0.13 mm (0.0051 in)
Gear backlash:
Less than 0.43 mm (0.0169 in)
3. Measure inside diameter ªAº of bushing.
A: 13.012 - 13.098 mm (0.5123 - 0.5157 in)
MLC128A
SLC966
SLC967
SLC968
ENGINE LUBRICATION SYSTEMTD27Ti
LC-22

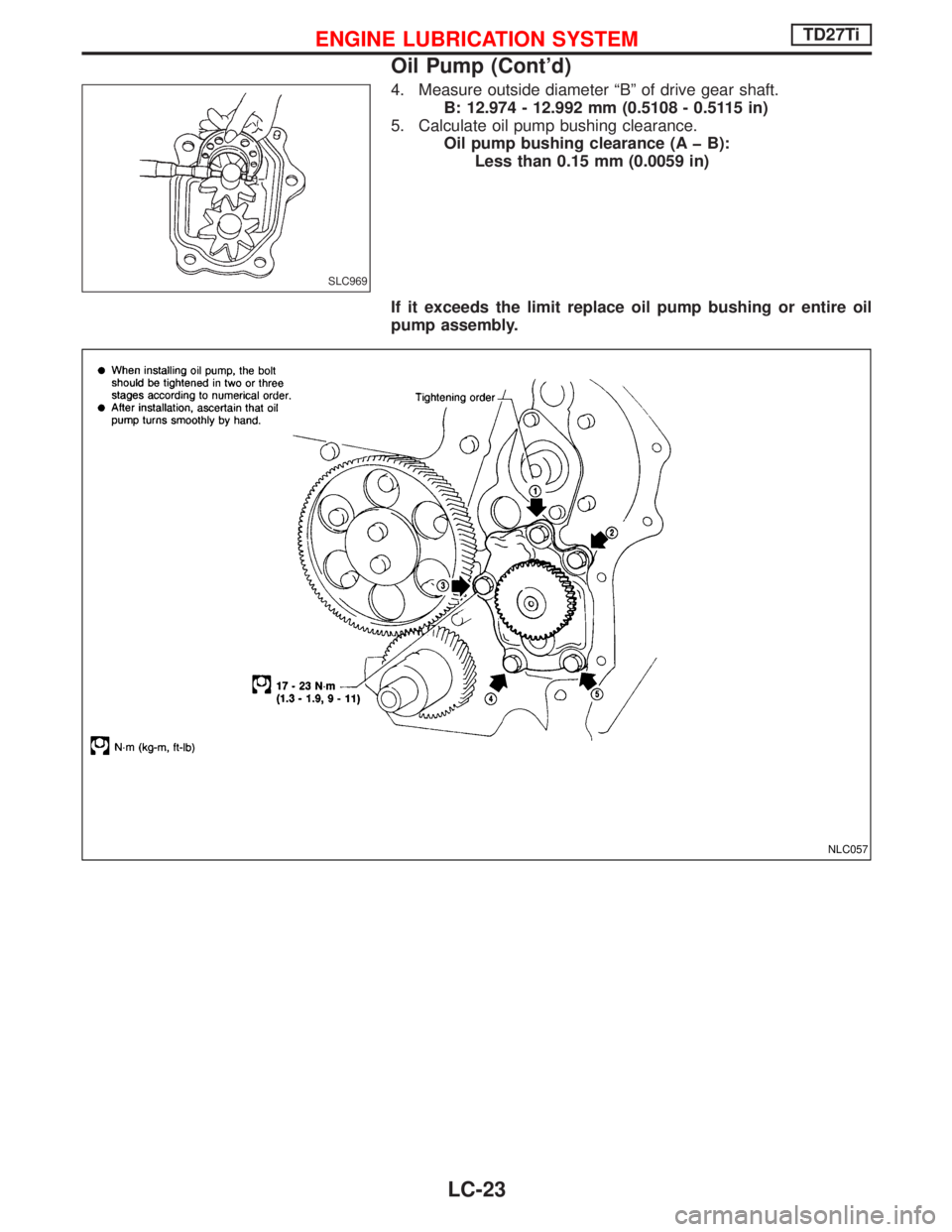

4. Measure outside diameter ªBº of drive gear shaft.
B: 12.974 - 12.992 mm (0.5108 - 0.5115 in)
5. Calculate oil pump bushing clearance.
Oil pump bushing clearance (A þ B):
Less than 0.15 mm (0.0059 in)
If it exceeds the limit replace oil pump bushing or entire oil
pump assembly.
SLC969
NLC057
ENGINE LUBRICATION SYSTEMTD27Ti
Oil Pump (Cont'd)
LC-23

Oil Filter Bracket
q1O-ring
q
2Oil pump relief valveq
3Oil filter
q
4Oil filter bracketq
5Oil filter relief valve
q
6Protection shield
OIL PUMP RELIEF VALVE INSPECTION
1. Visually inspect components for wear and damage.
2. Coat relief valve with engine oil and check that it falls smoothly
into the valve hole by its own weight.
If damaged, replace oil pump relief valve set.
OIL FILTER RELIEF VALVE INSPECTION
Inspect oil filter short valve for movement, cracks and breaks by
pushing the ball.
If damaged, replace oil filter bracket assembly.
NLC056
ENGINE LUBRICATION SYSTEMTD27Ti
LC-24

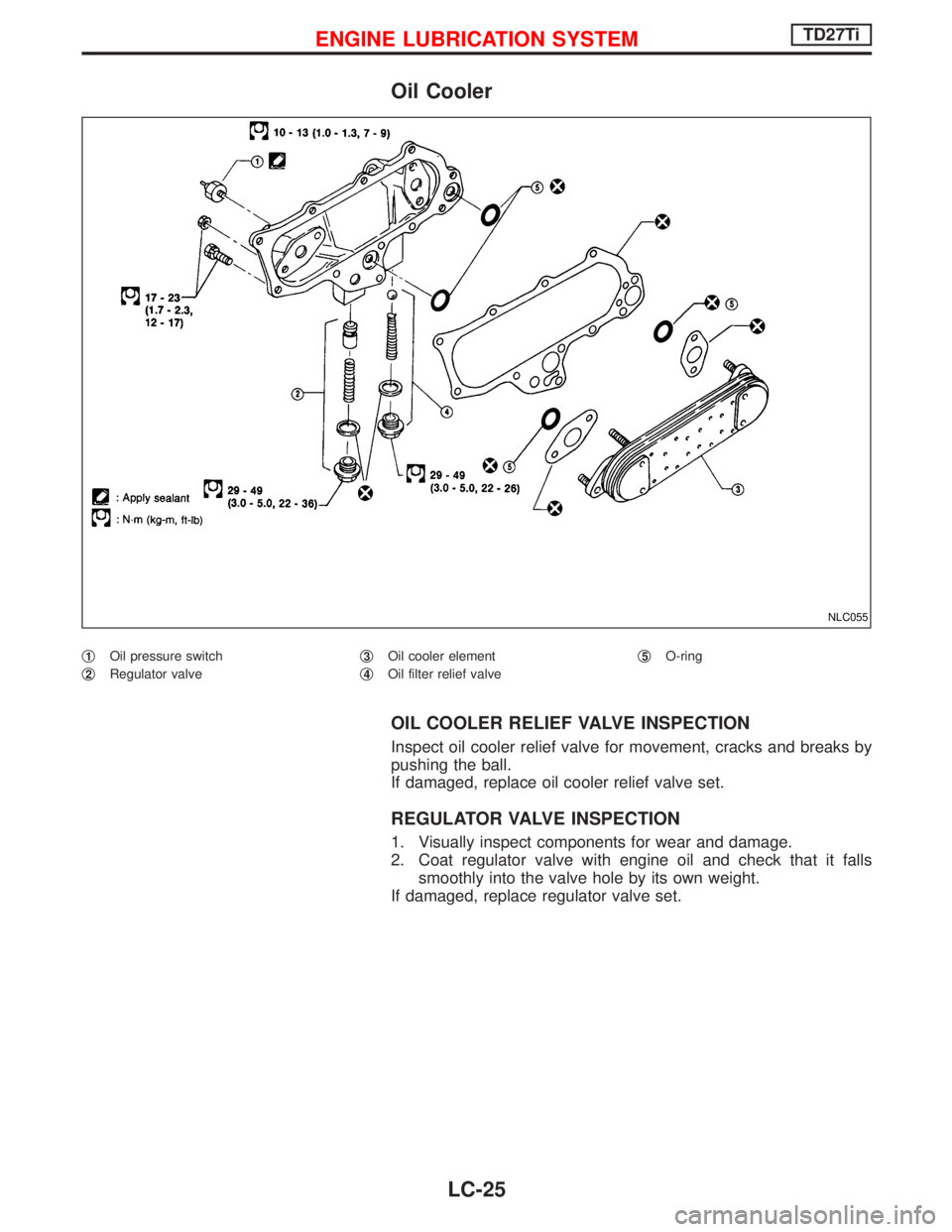

Oil Cooler
q1Oil pressure switch
q
2Regulator valveq
3Oil cooler element
q
4Oil filter relief valveq
5O-ring
OIL COOLER RELIEF VALVE INSPECTION
Inspect oil cooler relief valve for movement, cracks and breaks by
pushing the ball.
If damaged, replace oil cooler relief valve set.
REGULATOR VALVE INSPECTION
1. Visually inspect components for wear and damage.
2. Coat regulator valve with engine oil and check that it falls
smoothly into the valve hole by its own weight.
If damaged, replace regulator valve set.
NLC055
ENGINE LUBRICATION SYSTEMTD27Ti
LC-25
