NISSAN TERRANO 2004 Service Repair Manual

Schematic
YEL784E
POWER WINDOW
EL-158
http://vnx.su/

Wiring Diagram Ð WINDOW Ð
YEL785E
POWER WINDOW
EL-159
http://vnx.su/

YEL786E
POWER WINDOW
Wiring Diagram Ð WINDOW Ð (Cont'd)EL-160
http://vnx.su/

YEL787E
POWER WINDOW
Wiring Diagram Ð WINDOW Ð (Cont'd)EL-161
http://vnx.su/

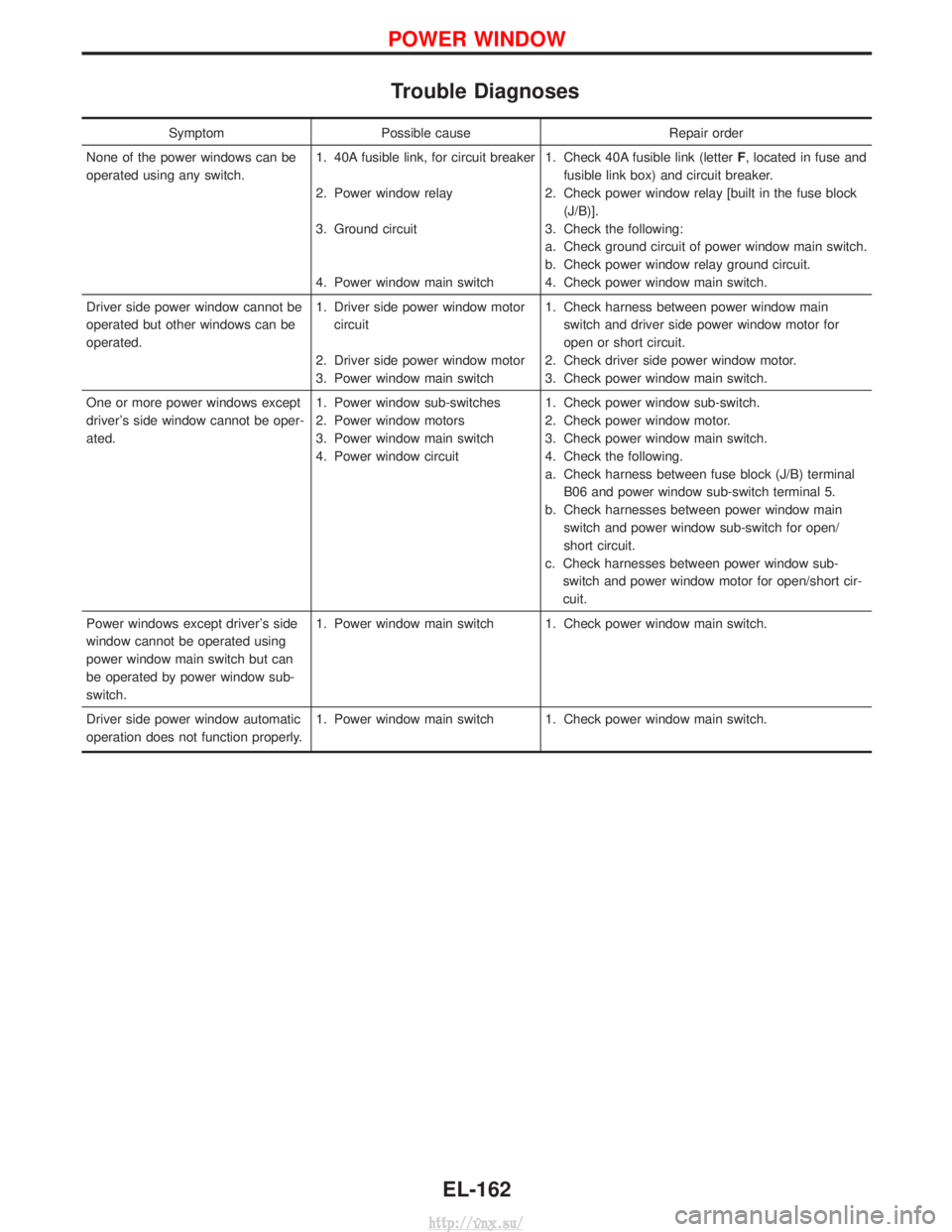

Trouble Diagnoses
SymptomPossible cause Repair order
None of the power windows can be
operated using any switch. 1. 40A fusible link, for circuit breaker
2. Power window relay
3. Ground circuit
4. Power window main switch1. Check 40A fusible link (letter
F, located in fuse and
fusible link box) and circuit breaker.
2. Check power window relay [built in the fuse block (J/B)].
3. Check the following:
a. Check ground circuit of power window main switch.
b. Check power window relay ground circuit.
4. Check power window main switch.
Driver side power window cannot be
operated but other windows can be
operated. 1. Driver side power window motor
circuit
2. Driver side power window motor
3. Power window main switch 1. Check harness between power window main
switch and driver side power window motor for
open or short circuit.
2. Check driver side power window motor.
3. Check power window main switch.
One or more power windows except
driver's side window cannot be oper-
ated. 1. Power window sub-switches
2. Power window motors
3. Power window main switch
4. Power window circuit1. Check power window sub-switch.
2. Check power window motor.
3. Check power window main switch.
4. Check the following.
a. Check harness between fuse block (J/B) terminal
B06 and power window sub-switch terminal 5.
b. Check harnesses between power window main switch and power window sub-switch for open/
short circuit.
c. Check harnesses between power window sub- switch and power window motor for open/short cir-
cuit.
Power windows except driver's side
window cannot be operated using
power window main switch but can
be operated by power window sub-
switch. 1. Power window main switch 1. Check power window main switch.
Driver side power window automatic
operation does not function properly. 1. Power window main switch 1. Check power window main switch.
POWER WINDOW
EL-162
http://vnx.su/

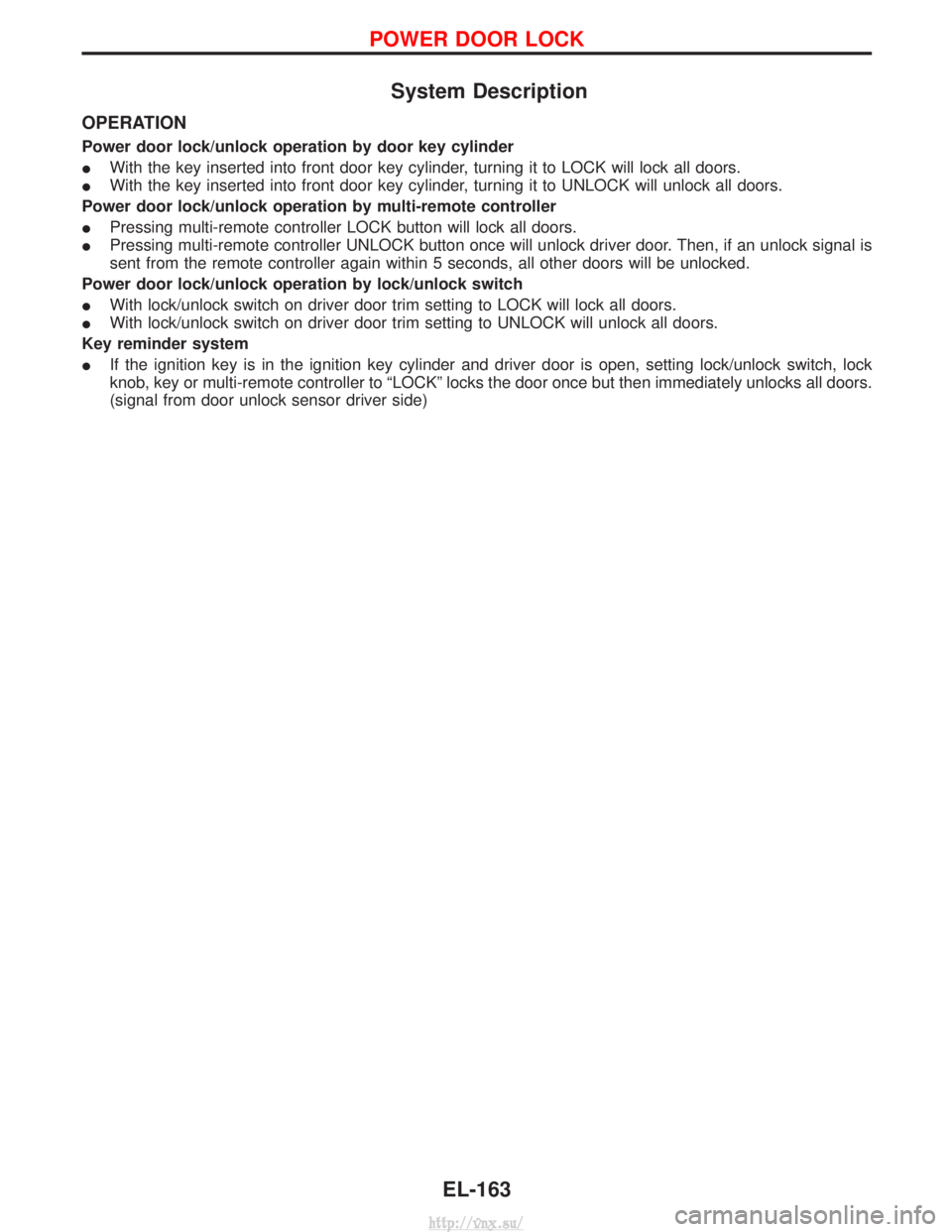

System Description
OPERATION
Power door lock/unlock operation by door key cylinder
IWith the key inserted into front door key cylinder, turning it to LOCK will lock all doors.
I With the key inserted into front door key cylinder, turning it to UNLOCK will unlock all doors.
Power door lock/unlock operation by multi-remote controller
I Pressing multi-remote controller LOCK button will lock all doors.
I Pressing multi-remote controller UNLOCK button once will unlock driver door. Then, if an unlock signal is
sent from the remote controller again within 5 seconds, all other doors will be unlocked.
Power door lock/unlock operation by lock/unlock switch
I With lock/unlock switch on driver door trim setting to LOCK will lock all doors.
I With lock/unlock switch on driver door trim setting to UNLOCK will unlock all doors.
Key reminder system
I If the ignition key is in the ignition key cylinder and driver door is open, setting lock/unlock switch, lock
knob, key or multi-remote controller to ªLOCKº locks the door once but then immediately unlocks all doors.
(signal from door unlock sensor driver side)
POWER DOOR LOCK
EL-163
http://vnx.su/

Schematic
YEL142D
POWER DOOR LOCK
EL-164
http://vnx.su/

YEL143D
POWER DOOR LOCK
Schematic (Cont'd)EL-165
http://vnx.su/

Wiring Diagram Ð D/LOCK Ð
YEL743E
POWER DOOR LOCK
EL-166
http://vnx.su/

YEL145D
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð (Cont'd)EL-167
http://vnx.su/
