NISSAN TERRANO 2004 Service Repair Manual

Trouble Diagnoses

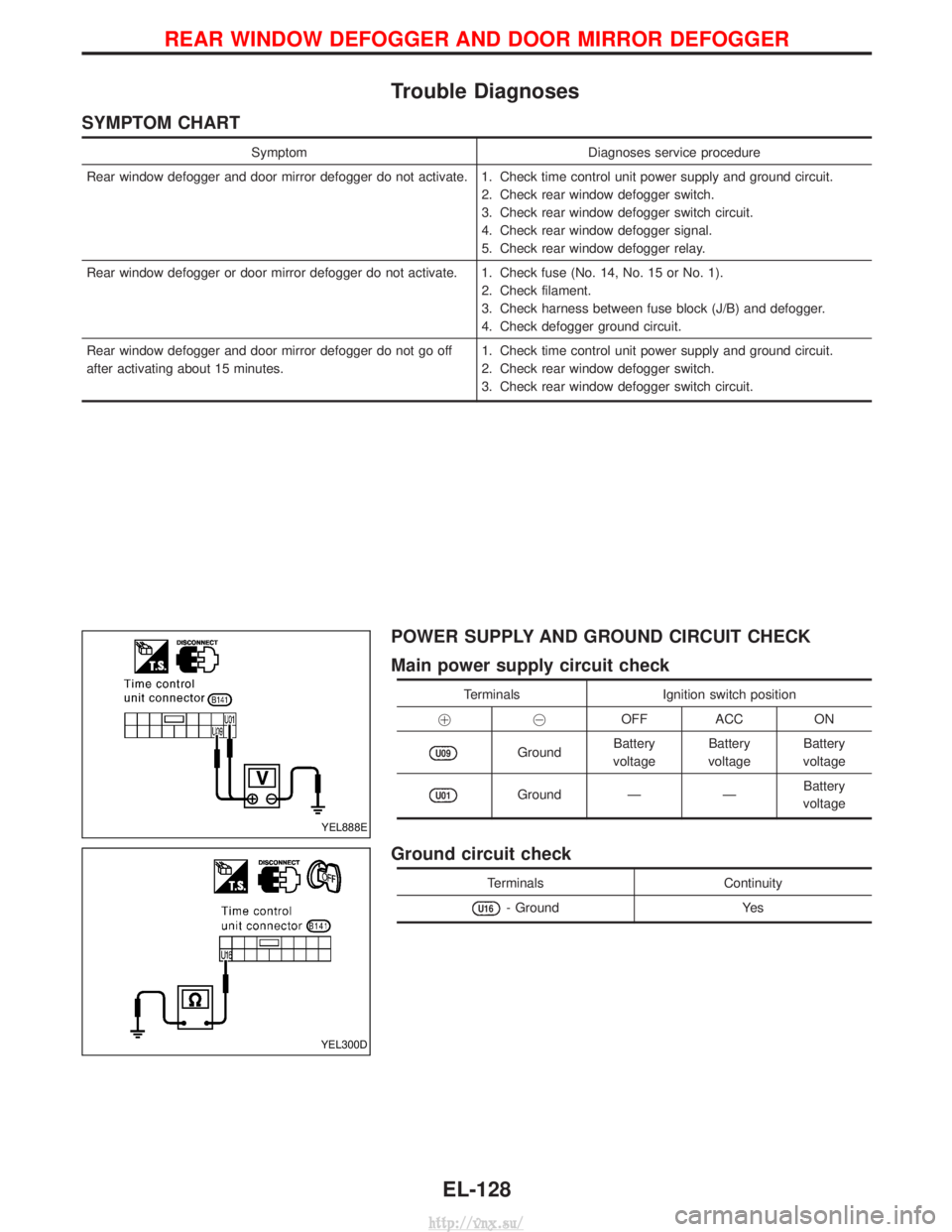

SYMPTOM CHART
SymptomDiagnoses service procedure
Rear window defogger and door mirror defogger do not activate. 1. Check time control unit power supply and ground circuit. 2. Check rear window defogger switch.
3. Check rear window defogger switch circuit.
4. Check rear window defogger signal.
5. Check rear window defogger relay.
Rear window defogger or door mirror defogger do not activate. 1. Check fuse (No. 14, No. 15 or No. 1). 2. Check filament.
3. Check harness between fuse block (J/B) and defogger.
4. Check defogger ground circuit.
Rear window defogger and door mirror defogger do not go off
after activating about 15 minutes. 1. Check time control unit power supply and ground circuit.
2. Check rear window defogger switch.
3. Check rear window defogger switch circuit.
POWER SUPPLY AND GROUND CIRCUIT CHECK
Main power supply circuit check
Terminals
Ignition switch position
!@ OFF ACC ON
U09GroundBattery
voltage Battery
voltage Battery
voltage
U01Ground ÐÐBattery
voltage
Ground circuit check
Terminals Continuity
U16- GroundYes
YEL888E
YEL300D
REAR WINDOW DEFOGGER AND DOOR MIRROR DEFOGGER
EL-128
http://vnx.su/

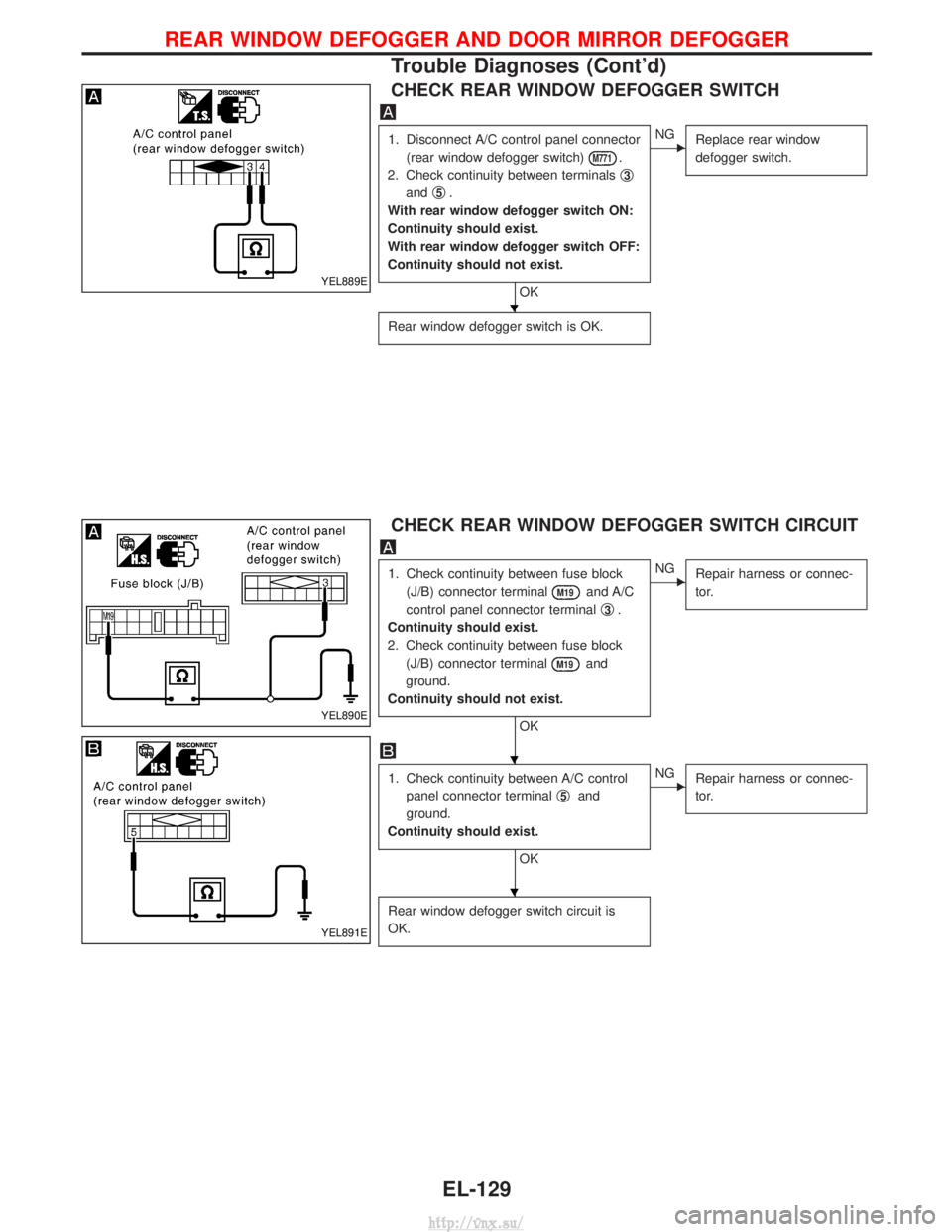

CHECK REAR WINDOW DEFOGGER SWITCH
1. Disconnect A/C control panel connector(rear window defogger switch)
M771.
2. Check continuity between terminals q
3
andq5.
With rear window defogger switch ON:
Continuity should exist.
With rear window defogger switch OFF:
Continuity should not exist.
OK
ENG Replace rear window
defogger switch.
Rear window defogger switch is OK.
CHECK REAR WINDOW DEFOGGER SWITCH CIRCUIT
1. Check continuity between fuse block
(J/B) connector terminal
M19and A/C
control panel connector terminal q
3.
Continuity should exist.
2. Check continuity between fuse block (J/B) connector terminal
M19and
ground.
Continuity should not exist.
OK
ENG Repair harness or connec-
tor.
1. Check continuity between A/C control
panel connector terminal q
5and
ground.
Continuity should exist.
OK
ENG Repair harness or connec-
tor.
Rear window defogger switch circuit is
OK.
YEL889E
YEL890E
YEL891E
H
H
H
REAR WINDOW DEFOGGER AND DOOR MIRROR DEFOGGER
Trouble Diagnoses (Cont'd)
EL-129
http://vnx.su/

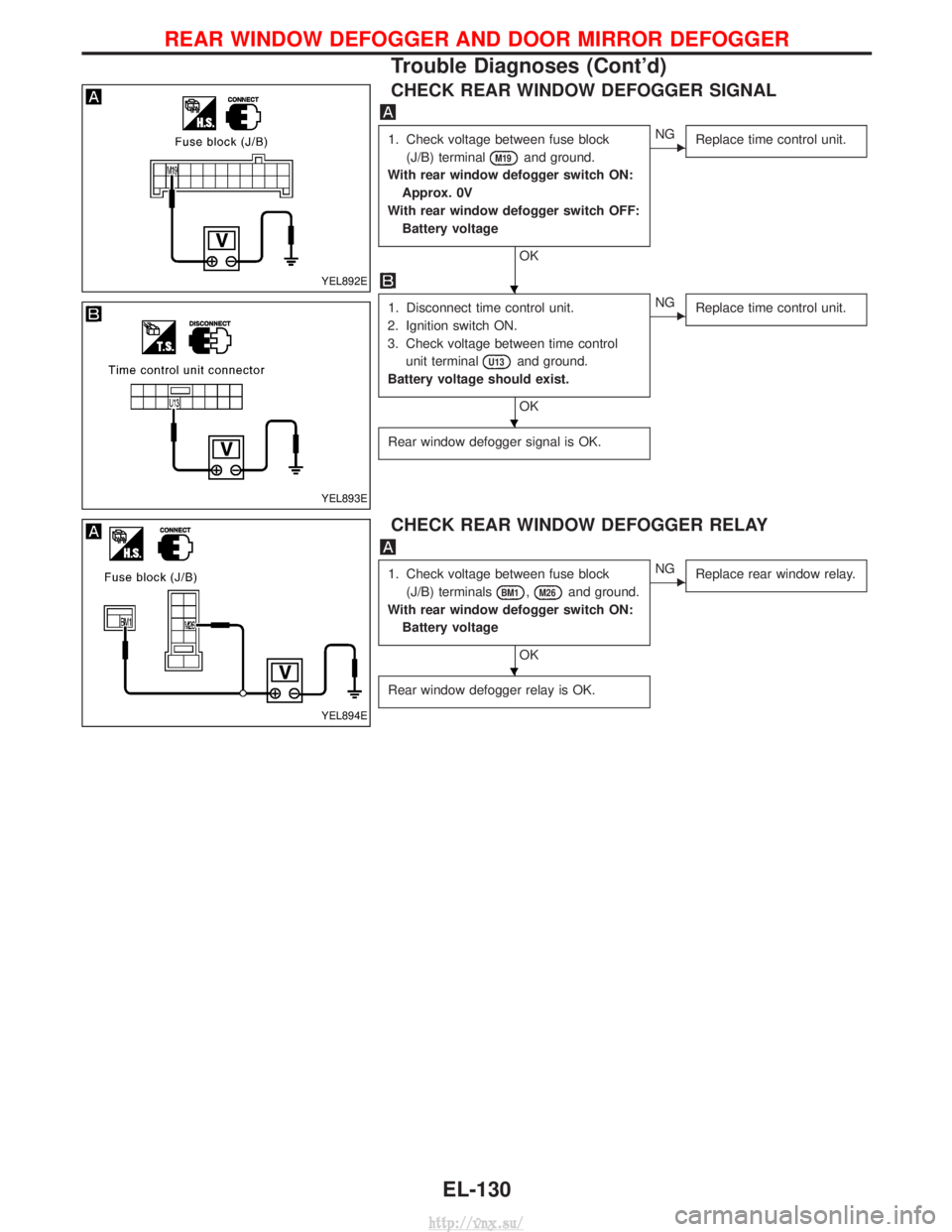

CHECK REAR WINDOW DEFOGGER SIGNAL
1. Check voltage between fuse block(J/B) terminal
M19and ground.
With rear window defogger switch ON: Approx. 0V
With rear window defogger switch OFF: Battery voltage
OK
ENG Replace time control unit.
1. Disconnect time control unit.
2. Ignition switch ON.
3. Check voltage between time control unit terminal
U13and ground.
Battery voltage should exist.
OK
ENG Replace time control unit.
Rear window defogger signal is OK.
CHECK REAR WINDOW DEFOGGER RELAY
1. Check voltage between fuse block
(J/B) terminals
BM1,M26and ground.
With rear window defogger switch ON: Battery voltage
OK
ENG Replace rear window relay.
Rear window defogger relay is OK.
YEL892E
YEL893E
YEL894E
H
H
H
REAR WINDOW DEFOGGER AND DOOR MIRROR DEFOGGER
Trouble Diagnoses (Cont'd)
EL-130
http://vnx.su/

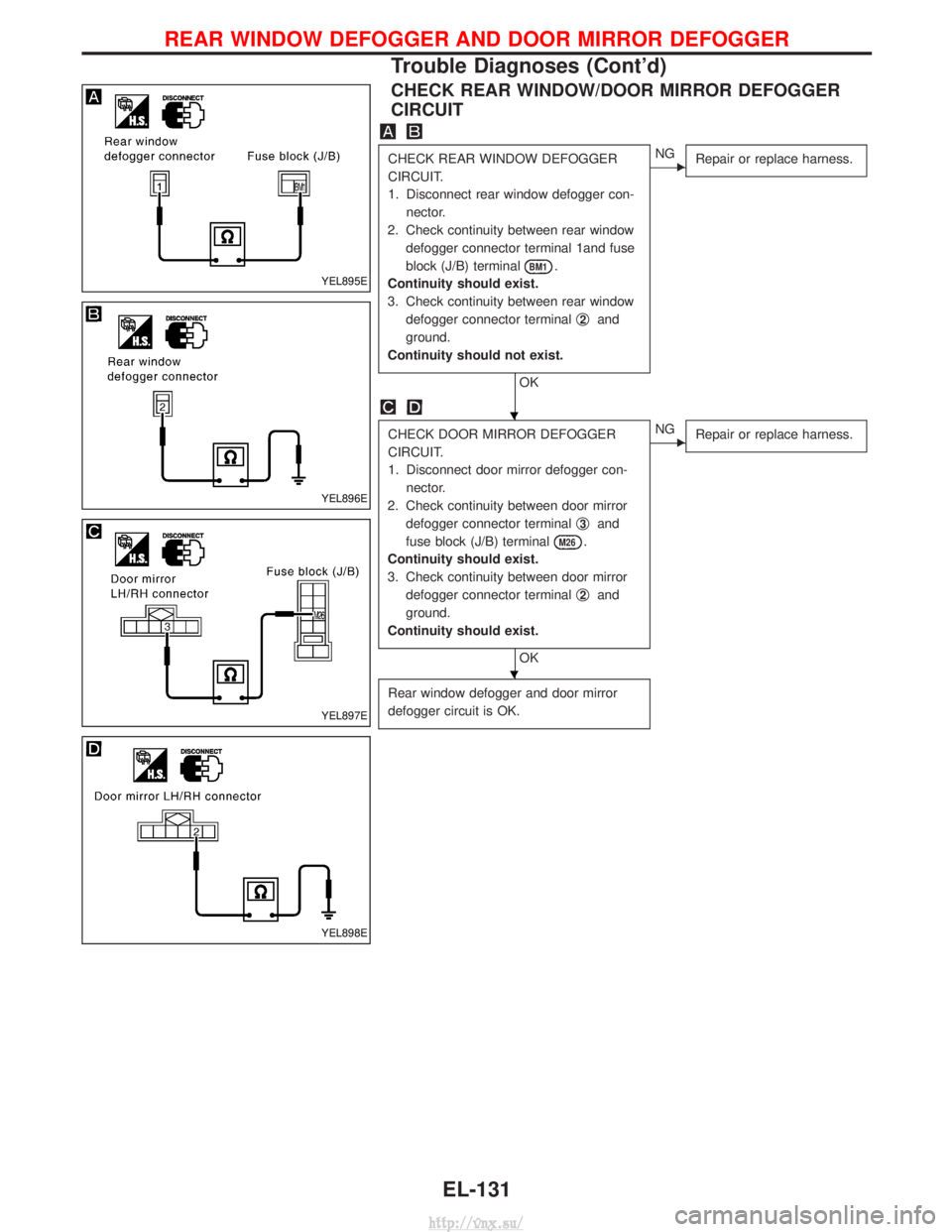

CHECK REAR WINDOW/DOOR MIRROR DEFOGGER
CIRCUIT
CHECK REAR WINDOW DEFOGGER
CIRCUIT.
1. Disconnect rear window defogger con-nector.
2. Check continuity between rear window defogger connector terminal 1and fuse
block (J/B) terminal
BM1.
Continuity should exist.
3. Check continuity between rear window defogger connector terminal q
2and
ground.
Continuity should not exist.
OK
ENG Repair or replace harness.
CHECK DOOR MIRROR DEFOGGER
CIRCUIT.
1. Disconnect door mirror defogger con-
nector.
2. Check continuity between door mirror defogger connector terminal q
3and
fuse block (J/B) terminal
M26.
Continuity should exist.
3. Check continuity between door mirror defogger connector terminal q
2and
ground.
Continuity should exist.
OK
ENG Repair or replace harness.
Rear window defogger and door mirror
defogger circuit is OK.
YEL895E
YEL896E
YEL897E
YEL898E
H
H
REAR WINDOW DEFOGGER AND DOOR MIRROR DEFOGGER
Trouble Diagnoses (Cont'd)
EL-131
http://vnx.su/

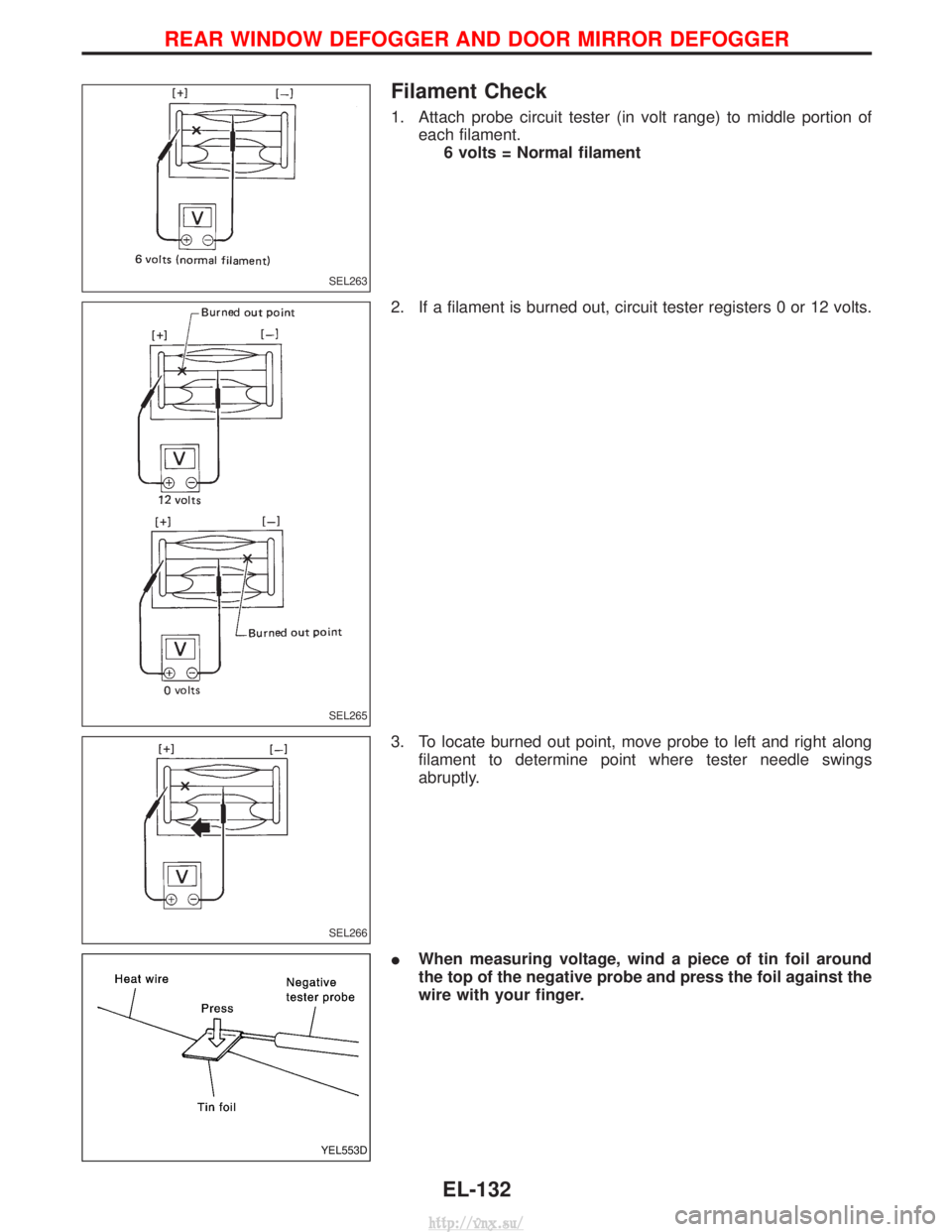

Filament Check
1. Attach probe circuit tester (in volt range) to middle portion ofeach filament.6 volts = Normal filament
2. If a filament is burned out, circuit tester registers 0 or 12 volts.
3. To locate burned out point, move probe to left and right along filament to determine point where tester needle swings
abruptly.
I When measuring voltage, wind a piece of tin foil around
the top of the negative probe and press the foil against the
wire with your finger.
SEL263
SEL265
SEL266
YEL553D
REAR WINDOW DEFOGGER AND DOOR MIRROR DEFOGGER
EL-132
http://vnx.su/

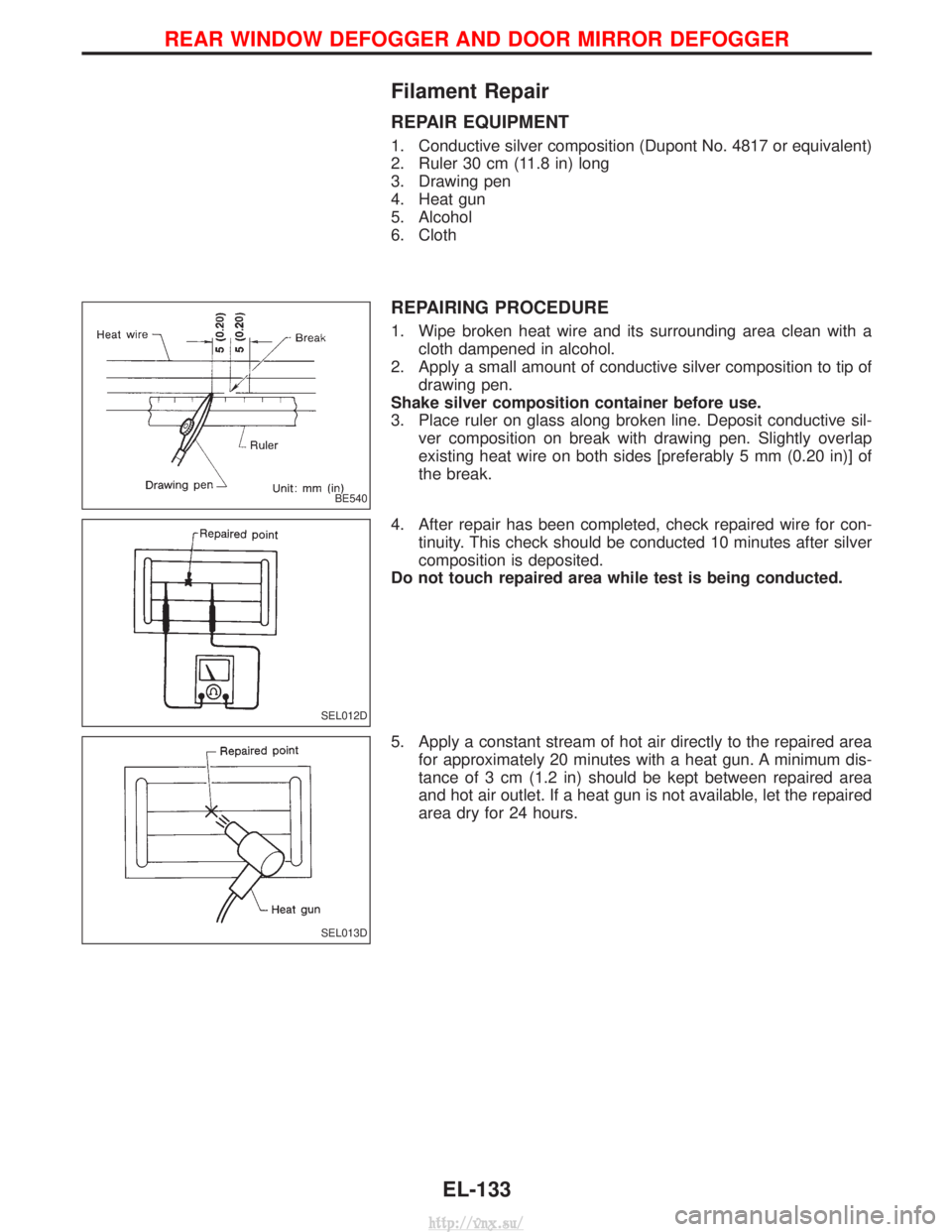

Filament Repair
REPAIR EQUIPMENT
1. Conductive silver composition (Dupont No. 4817 or equivalent)
2. Ruler 30 cm (11.8 in) long
3. Drawing pen
4. Heat gun
5. Alcohol
6. Cloth
REPAIRING PROCEDURE
1. Wipe broken heat wire and its surrounding area clean with acloth dampened in alcohol.
2. Apply a small amount of conductive silver composition to tip of drawing pen.
Shake silver composition container before use.
3. Place ruler on glass along broken line. Deposit conductive sil- ver composition on break with drawing pen. Slightly overlap
existing heat wire on both sides [preferably 5 mm (0.20 in)] of
the break.
4. After repair has been completed, check repaired wire for con- tinuity. This check should be conducted 10 minutes after silver
composition is deposited.
Do not touch repaired area while test is being conducted.
5. Apply a constant stream of hot air directly to the repaired area for approximately 20 minutes with a heat gun. A minimum dis-
tance of 3 cm (1.2 in) should be kept between repaired area
and hot air outlet. If a heat gun is not available, let the repaired
area dry for 24 hours.
BE540
SEL012D
SEL013D
REAR WINDOW DEFOGGER AND DOOR MIRROR DEFOGGER
EL-133
http://vnx.su/

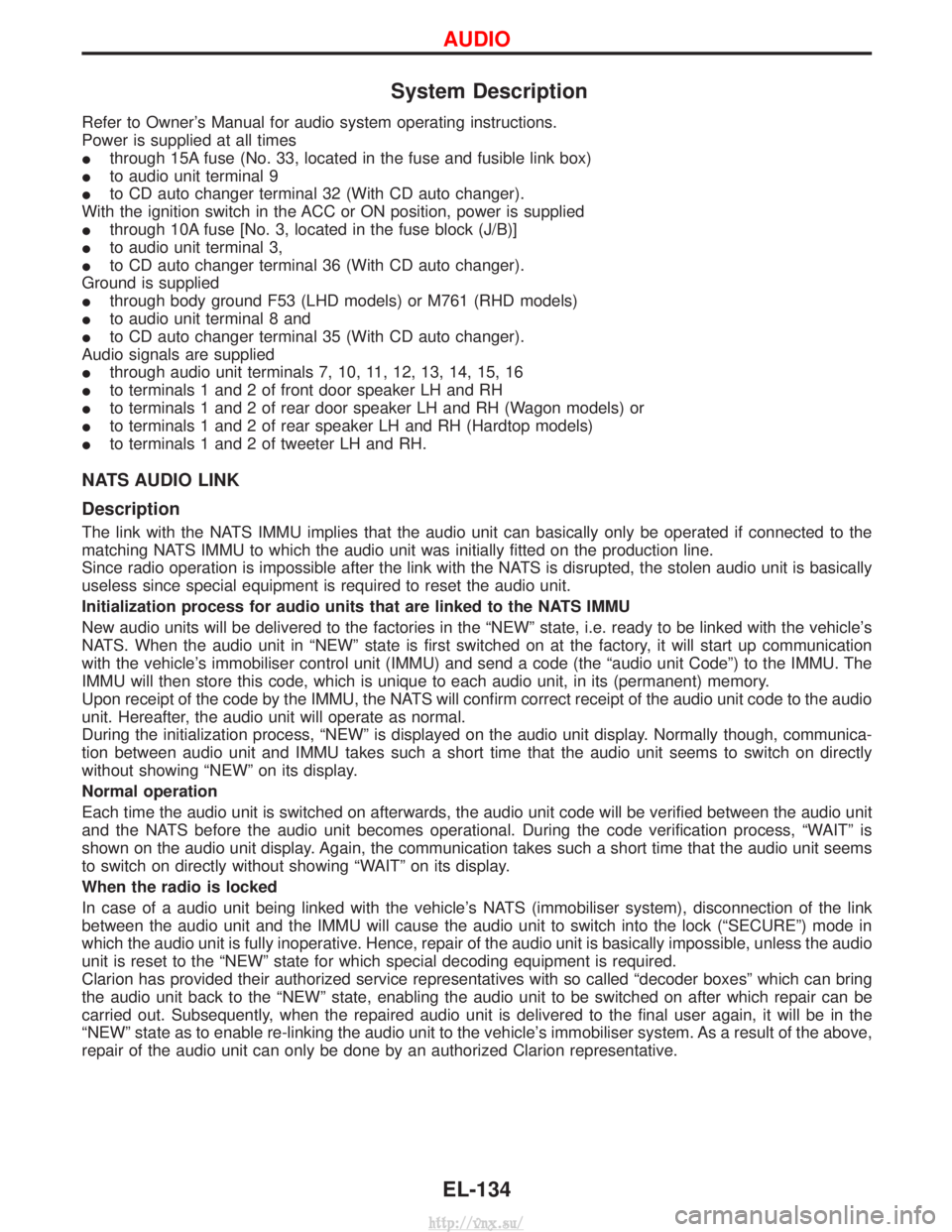

System Description
Refer to Owner's Manual for audio system operating instructions.
Power is supplied at all times
Ithrough 15A fuse (No. 33, located in the fuse and fusible link box)
I to audio unit terminal 9
I to CD auto changer terminal 32 (With CD auto changer).
With the ignition switch in the ACC or ON position, power is supplied
I through 10A fuse [No. 3, located in the fuse block (J/B)]
I to audio unit terminal 3,
I to CD auto changer terminal 36 (With CD auto changer).
Ground is supplied
I through body ground F53 (LHD models) or M761 (RHD models)
I to audio unit terminal 8 and
I to CD auto changer terminal 35 (With CD auto changer).
Audio signals are supplied
I through audio unit terminals 7, 10, 11, 12, 13, 14, 15, 16
I to terminals 1 and 2 of front door speaker LH and RH
I to terminals 1 and 2 of rear door speaker LH and RH (Wagon models) or
I to terminals 1 and 2 of rear speaker LH and RH (Hardtop models)
I to terminals 1 and 2 of tweeter LH and RH.
NATS AUDIO LINK
Description
The link with the NATS IMMU implies that the audio unit can basically only be operated if connected to the
matching NATS IMMU to which the audio unit was initially fitted on the production line.
Since radio operation is impossible after the link with the NATS is disrupted, the stolen audio unit is basically
useless since special equipment is required to reset the audio unit.
Initialization process for audio units that are linked to the NATS IMMU
New audio units will be delivered to the factories in the ªNEWº state, i.e. ready to be linked with the vehicle's
NATS. When the audio unit in ªNEWº state is first switched on at the factory, it will start up communication
with the vehicle's immobiliser control unit (IMMU) and send a code (the ªaudio unit Codeº) to the IMMU. The
IMMU will then store this code, which is unique to each audio unit, in its (permanent) memory.
Upon receipt of the code by the IMMU, the NATS will confirm correct receipt of the audio unit code to the audio
unit. Hereafter, the audio unit will operate as normal.
During the initialization process, ªNEWº is displayed on the audio unit display. Normally though, communica-
tion between audio unit and IMMU takes such a short time that the audio unit seems to switch on directly
without showing ªNEWº on its display.
Normal operation
Each time the audio unit is switched on afterwards, the audio unit code will be verified between the audio unit
and the NATS before the audio unit becomes operational. During the code verification process, ªWAITº is
shown on the audio unit display. Again, the communication takes such a short time that the audio unit seems
to switch on directly without showing ªWAITº on its display.
When the radio is locked
In case of a audio unit being linked with the vehicle's NATS (immobiliser system), disconnection of the link
between the audio unit and the IMMU will cause the audio unit to switch into the lock (ªSECUREº) mode in
which the audio unit is fully inoperative. Hence, repair of the audio unit is basically impossible, unless the audio
unit is reset to the ªNEWº state for which special decoding equipment is required.
Clarion has provided their authorized service representatives with so called ªdecoder boxesº which can bring
the audio unit back to the ªNEWº state, enabling the audio unit to be switched on after which repair can be
carried out. Subsequently, when the repaired audio unit is delivered to the final user again, it will be in the
ªNEWº state as to enable re-linking the audio unit to the vehicle's immobiliser system. As a result of the above,
repair of the audio unit can only be done by an authorized Clarion representative.
AUDIO
EL-134
http://vnx.su/

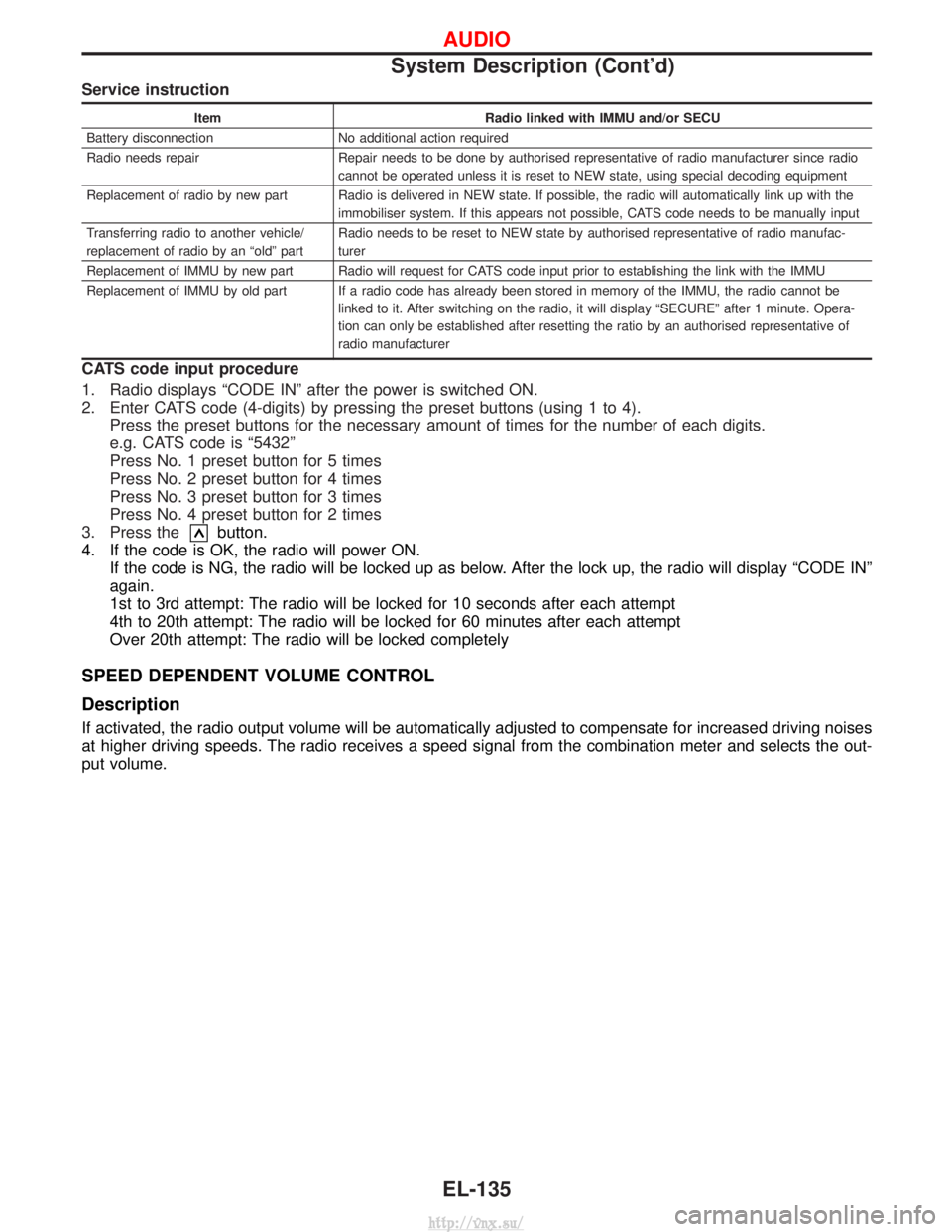

Service instruction
ItemRadio linked with IMMU and/or SECU
Battery disconnection No additional action required
Radio needs repair Repair needs to be done by authorised representative of radio manufacturer since radio cannot be operated unless it is reset to NEW state, using special decoding equipment
Replacement of radio by new part Radio is delivered in NEW state. If possible, the radio will automatically link up with the immobiliser system. If this appears not possible, CATS code needs to be manually input
Transferring radio to another vehicle/
replacement of radio by an ªoldº part Radio needs to be reset to NEW state by authorised representative of radio manufac-
turer
Replacement of IMMU by new part Radio will request for CATS code input prior to establishing the link with the IMMU
Replacement of IMMU by old part If a radio code has already been stored in memory of the IMMU, the radio cannot be linked to it. After switching on the radio, it will display ªSECUREº after 1 minute. Opera-
tion can only be established after resetting the ratio by an authorised representative of
radio manufacturer
CATS code input procedure
1. Radio displays ªCODE INº after the power is switched ON.
2. Enter CATS code (4-digits) by pressing the preset buttons (using 1 to 4).Press the preset buttons for the necessary amount of times for the number of each digits.
e.g. CATS code is ª5432º
Press No. 1 preset button for 5 times
Press No. 2 preset button for 4 times
Press No. 3 preset button for 3 times
Press No. 4 preset button for 2 times
3. Press the
button.
4. If the code is OK, the radio will power ON. If the code is NG, the radio will be locked up as below. After the lock up, the radio will display ªCODE INº
again.
1st to 3rd attempt: The radio will be locked for 10 seconds after each attempt
4th to 20th attempt: The radio will be locked for 60 minutes after each attempt
Over 20th attempt: The radio will be locked completely
SPEED DEPENDENT VOLUME CONTROL
Description
If activated, the radio output volume will be automatically adjusted to compensate for increased driving noises
at higher driving speeds. The radio receives a speed signal from the combination meter and selects the out-
put volume.
AUDIO
System Description (Cont'd)
EL-135
http://vnx.su/

Schematic
TYPE 1 (WITHOUT CD AUTO-CHANGER)
YEL780E
AUDIO
EL-136
http://vnx.su/

TYPE 2 (WITH CD AUTO-CHANGER)
YEL781E
AUDIO
Schematic (Cont'd)EL-137
