NISSAN TERRANO 2004  Service Repair Manual Wiring Diagram Ð HLC Ð
LHD MODELS
YEL114D
WIPER AND WASHER
EL-118
http://vnx.su/

Page 1612 of 1833

NISSAN TERRANO 2004  Service Repair Manual LHD MODELS
YEL115D
WIPER AND WASHER
Wiring Diagram Ð HLC Ð (Contd)EL-119
http://vnx.su/

Page 1613 of 1833

NISSAN TERRANO 2004  Service Repair Manual RHD MODELS
YEL776E
WIPER AND WASHER
Wiring Diagram Ð HLC Ð (Contd)EL-120
http://vnx.su/

Page 1614 of 1833

NISSAN TERRANO 2004  Service Repair Manual RHD MODELS
YEL117D
WIPER AND WASHER
Wiring Diagram Ð HLC Ð (Contd)EL-121
http://vnx.su/

Page 1615 of 1833

NISSAN TERRANO 2004  Service Repair Manual Wiring Diagram Ð HORN Ð
YEL777E
HORN, CIGARETTE LIGHTER AND CLOCK
EL-122
http://vnx.su/

Page 1616 of 1833

NISSAN TERRANO 2004  Service Repair Manual Wiring Diagram Ð CIGAR Ð
YEL778E
HORN, CIGARETTE LIGHTER AND CLOCK
EL-123
http://vnx.su/

Page 1617 of 1833

NISSAN TERRANO 2004  Service Repair Manual Wiring Diagram Ð CLOCK Ð
YEL198D
HORN, CIGARETTE LIGHTER AND CLOCK
EL-124
http://vnx.su/

Page 1618 of 1833

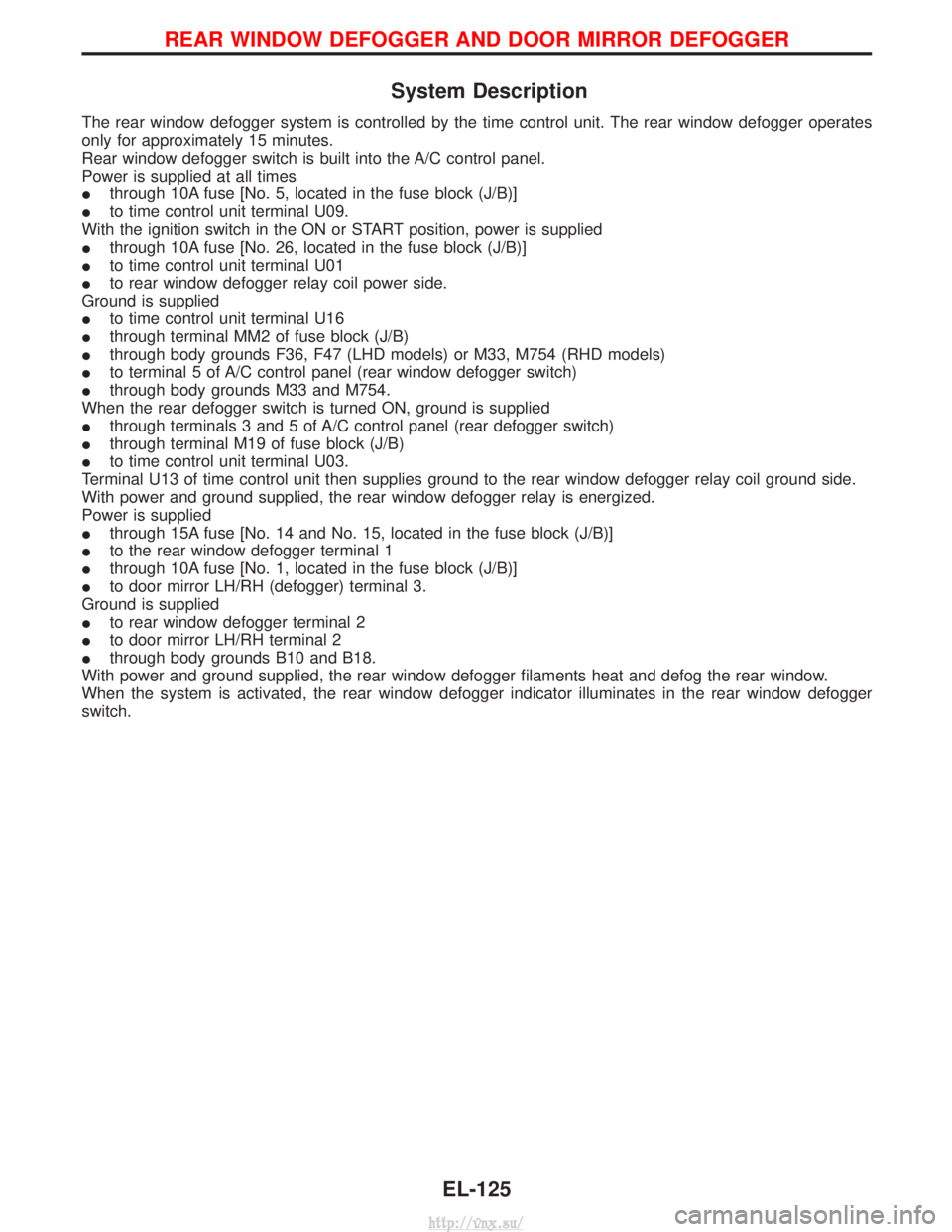

NISSAN TERRANO 2004  Service Repair Manual System Description
The rear window defogger system is controlled by the time control unit. The rear window defogger operates
only for approximately 15 minutes.
Rear window defogger switch is built int

Page 1619 of 1833

NISSAN TERRANO 2004  Service Repair Manual Wiring Diagram Ð DEF Ð
YEL779E
REAR WINDOW DEFOGGER AND DOOR MIRROR DEFOGGER
EL-126
http://vnx.su/

Page 1620 of 1833

NISSAN TERRANO 2004  Service Repair Manual YEL121D
REAR WINDOW DEFOGGER AND DOOR MIRROR DEFOGGER
Wiring Diagram Ð DEF Ð (Contd)EL-127
http://vnx.su/
