NISSAN TIIDA 2007 Service Repair Manual

DLK-662
< COMPONENT DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
TRUNK LID UNLOCK SWITCH
NO >> Replace trunk lamp switch and trunk release solenoid.

BACK DOOR OPENER SWITCH
DLK-663
< COMPONENT DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
BACK DOOR OPENER SWITCH
DescriptionINFOID:0000000001530789
Sends the back door opening signal to BCM.
Component Function CheckINFOID:0000000001530790
1.CHECK FUNCTION
With CONSULT-III
Check “TR/BD OPNR SW” in “Data Monitor” mode with CONSULT-III.
Is the inspection result normal?
YES >> Back door opener switch is OK.
NO >> Refer to XX-XX, "*****"
.
Diagnosis ProcedureINFOID:0000000001530791
1.CHECK BACK DOOR OPENER SWITCH INPUT SIGNAL
Check voltage between BCM connector and ground.
Is the inspection result normal?
YES >> GO TO 5
NO >> GO TO 2
2.CHECK BACK DOOR OPENER SWITCH CIRCUIT
1. Disconnect BCM and back door opener switch connectors.
Monitor item Condition
TR/BD OPNR SWBack door opener switch is pressed :ON
Back door opener switch is released :OFF
ALKIA0741ZZ
Te r m i n a l s
Condition of back door opener switchVoltage (V)
(Approx.) (+)
(–)
BCM
connectorTe r m i n a l
M18 5 GroundON (press and hold) 0
OFF (release) Battery voltage

DLK-664
< COMPONENT DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
BACK DOOR OPENER SWITCH
2. Check continuity between BCM connector (A) M18 terminal 5
and back door opener switch connector (B) D408 terminal 1.
3. Check continuity between BCM connector (A) M18 terminal 5 and ground.
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair harness or connector.
3.CHECK BACK DOOR OPENER SWITCH GROUND CIRCUIT
Check continuity between back door opener switch connector and
ground.
Is the inspection result normal?
YES >> GO TO 4
NO >> Repair or replace harness.
4.CHECK BACK DOOR OPENER SWITCH
Refer to DLK-665, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 5
NO >> Replace back door opener switch.
5.CHECK INTERMITTENT INCIDENT
Refer to XX-XX, "*****"
.
>> INSPECTION END.
ALKIA0761ZZ
BCM connector Terminal back door opener switch connector Terminal Continuity
M18 5 D408 1 Yes
BCM connector Terminal
GroundContinuity
M18 5 No
WIIA1187E
back door opener switch Terminal
GroundContinuity
D408 2 Yes

BACK DOOR OPENER SWITCH
DLK-665
< COMPONENT DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
Component InspectionINFOID:0000000001530792
1.CHECK BACK DOOR OPENER SWITCH
1. Turn ignition switch OFF.
2. Check continuity between back door opener switch terminals.
Is the inspection result normal?
YES >> INSPECTION END.
NO >> Replace back door opener switch.
WIIA1186E
Te r m i n a l
Condition Continuity
Back door opener switch
12ON (press and hold) Yes
OFF (release) No

DLK-666
< COMPONENT DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
TRUNK LID OPENER SWITCH
TRUNK LID OPENER SWITCH
DescriptionINFOID:0000000001530793
Transmits trunk lid open signal to BCM.
Component Function CheckINFOID:0000000001530794
1.CHECK FUNCTION
With CONSULT-III
Check trunk lid opener switch TR/BD OPEN SW in “Data Monitor mode with CONSULT-III.
 When trunk lid opener switch is pressed.
Is the inspection result normal?
YES >> Trunk lid opener switch is OK.
NO >> Refer to DLK-666, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001530795
1.CHECK TRUNK LID OPEN INPUT SIGNAL
Check voltage between BCM connector and ground.
Is the inspection result normal?
YES >> GO TO 5
NO >> GO TO 2
2.CHECK TRUNK LID OPENER SWITCH CIRCUIT
1. Disconnect BCM and trunk lid opener switch connectors.
Monitor item Condition
TR/BD OPEN SWTrunk lid opener switch is pressed: ON
Trunk lid opener switch is released: OFF
ALKIA0741ZZ
Te r m i n a l s
Condition of trunk lid opener switchVoltage (V)
(Approx.) (+)
(–)
BCM
connectorTe r m i n a l
M18 5 GroundON (press and hold) 0
OFF (release) Battery voltage

TRUNK LID OPENER SWITCH
DLK-667
< COMPONENT DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
2. Check continuity between BCM connector (A) M18 terminal 5
and trunk lid opener switch connector (B) B61 terminal 1.
3. Check continuity between BCM connector (A) M18 terminal 5 and ground.
Is the inspection result normal?
YES >> GO TO 3
NO >> Repair harness or connector.
3.CHECK TRUNK LID OPENER SWITCH GROUND CIRCUIT
Check continuity between trunk lid opener switch connector and
ground.
Is the inspection result normal?
YES >> GO TO 4
NO >> Repair or replace harness.
4.CHECK TRUNK LID OPENER SWITCH
Refer to DLK-668, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 5
NO >> Replace trunk lid opener switch.
5.CHECK INTERMITTENT INCIDENT
Refer to XX-XX, "*****"
.
>> INSPECTION END.
ALKIA0761ZZ
BCM connector Terminal Trunk lid opener switch connector Terminal Continuity
M18 5 B61 1 Yes
BCM connector Terminal
GroundContinuity
M18 5 No
WIIA1187E
Trunk lid opener switch Terminal
GroundContinuity
B61 2 Yes

DLK-668
< COMPONENT DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
TRUNK LID OPENER SWITCH
Component Inspection
INFOID:0000000001530796
1.CHECK TRUNK LID OPENER SWITCH
1. Turn ignition switch OFF.
2. Check continuity between trunk lid opener switch terminals.
Is the inspection result normal?
YES >> INSPECTION END.
NO >> Replace trunk lid opener switch.
WIIA1186E
Te r m i n a l
Condition Continuity
Trunk lid opener switch
12ON (press and hold) Yes
OFF (release) No

DOOR LOCK ACTUATOR
DLK-669
< COMPONENT DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
DOOR LOCK ACTUATOR
DRIVER SIDE
DRIVER SIDE : DescriptionINFOID:0000000001530797
Locks/unlocks the door with the signal from BCM.
DRIVER SIDE : Component Function CheckINFOID:0000000001530798
1.CHECK FUNCTION
1. Use CONSULT-III to perform Active Test "DOOR LOCK".
2. Touch “ALL LOCK” or “ALL UNLOCK” to check that it works normally.
Is the inspection result normal?
YES >> Door lock actuator is OK.
NO >> Refer to DLK-669, "
DRIVER SIDE : Diagnosis Procedure".
DRIVER SIDE : Diagnosis ProcedureINFOID:0000000001530799

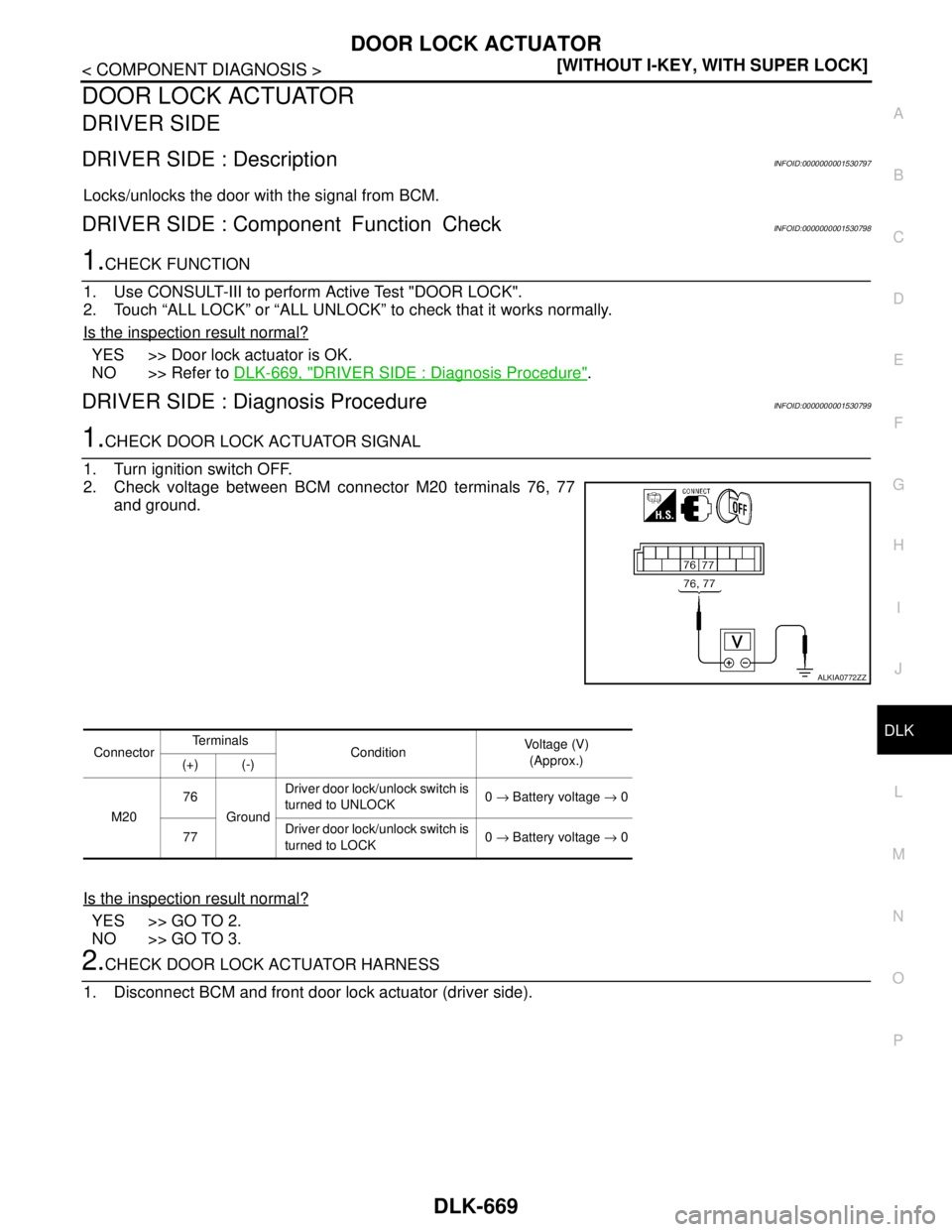

1.CHECK DOOR LOCK ACTUATOR SIGNAL
1. Turn ignition switch OFF.
2. Check voltage between BCM connector M20 terminals 76, 77
and ground.
Is the inspection result normal?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK DOOR LOCK ACTUATOR HARNESS
1. Disconnect BCM and front door lock actuator (driver side).
ALKIA0772ZZ
ConnectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
M2076
GroundDriver door lock/unlock switch is
turned to UNLOCK0 → Battery voltage → 0
77Driver door lock/unlock switch is
turned to LOCK0 → Battery voltage → 0

DLK-670
< COMPONENT DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
DOOR LOCK ACTUATOR

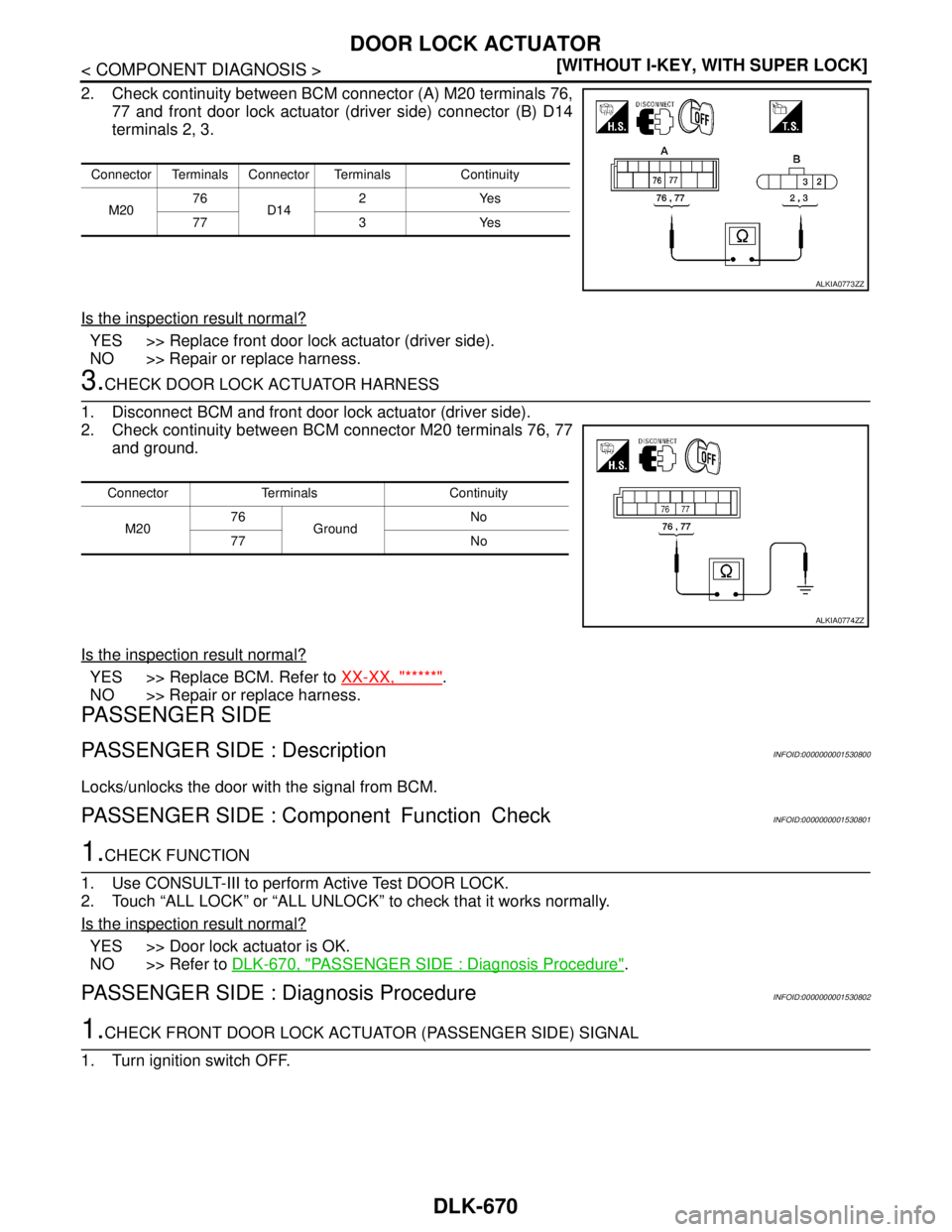

2. Check continuity between BCM connector (A) M20 terminals 76,
77 and front door lock actuator (driver side) connector (B) D14
terminals 2, 3.
Is the inspection result normal?
YES >> Replace front door lock actuator (driver side).
NO >> Repair or replace harness.
3.CHECK DOOR LOCK ACTUATOR HARNESS
1. Disconnect BCM and front door lock actuator (driver side).
2. Check continuity between BCM connector M20 terminals 76, 77
and ground.
Is the inspection result normal?
YES >> Replace BCM. Refer to XX-XX, "*****".
NO >> Repair or replace harness.
PASSENGER SIDE
PASSENGER SIDE : DescriptionINFOID:0000000001530800
Locks/unlocks the door with the signal from BCM.
PASSENGER SIDE : Component Function CheckINFOID:0000000001530801
1.CHECK FUNCTION
1. Use CONSULT-III to perform Active Test DOOR LOCK.
2. Touch “ALL LOCK” or “ALL UNLOCK” to check that it works normally.
Is the inspection result normal?
YES >> Door lock actuator is OK.
NO >> Refer to DLK-670, "
PASSENGER SIDE : Diagnosis Procedure".
PASSENGER SIDE : Diagnosis ProcedureINFOID:0000000001530802
1.CHECK FRONT DOOR LOCK ACTUATOR (PASSENGER SIDE) SIGNAL
1. Turn ignition switch OFF.
Connector Terminals Connector Terminals Continuity
M2076
D142Yes
77 3 Yes
ALKIA0773ZZ
Connector Terminals Continuity
M2076
GroundNo
77 No
ALKIA0774ZZ

DOOR LOCK ACTUATOR
DLK-671
< COMPONENT DIAGNOSIS >[WITHOUT I-KEY, WITH SUPER LOCK]
C
D
E
F
G
H
I
J
L
MA
B
DLK
N
O
P
2. Check voltage between BCM connector M20 terminals 67, 77
and ground.
Is the inspection result normal?
YES >> GO TO 2.
NO >> GO TO 3.
2.CHECK DOOR LOCK ACTUATOR HARNESS
1. Disconnect BCM and front door lock actuator (passenger side).
2. Check continuity between BCM connector (A) M20 terminals 67,
77 and front door lock actuator (passenger side) (B) D114 termi-
nals 2, 3.
Is the inspection result normal?
YES >> Replace front door lock actuator (passenger side). Refer to XX-XX, "*****".
NO >> Repair or replace harness.
3.CHECK DOOR LOCK ACTUATOR HARNESS
1. Disconnect BCM and front door lock actuator (passenger side).
ALKIA0775ZZ
ConnectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (-)
M2077
GroundDoor lock/unlock switch is turned to LOCK 0 → Battery voltage → 0
67 Door lock/unlock switch is turned to UNLOCK 0 → Battery voltage → 0
ALKIA0776ZZ
BCM connector TerminalFront door lock actuator
(passenger side) connectorTerminal Continuity
M2067
D1142
Ye s
77 3
