EC-102
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
How to Switch Diagnostic Test Mode
NOTE:
It is better to count the time accurately with a clock.
It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has
a malfunction.
Always ECM returns to Diagnostic Test Mode I after ignition switch is turned OFF.
HOW TO SET DIAGNOSTIC TEST MODE II (SELF-DIAGNOSTIC RESULTS)
1. Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.
2. Repeat the following procedure quickly five times within 5 seconds.
- Fully depress the accelerator pedal.
- Fully release the accelerator pedal.
3. Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 10 seconds until the MI starts
blinking.
NOTE:
Do not release the accelerator pedal for 10 seconds if MI may start blinking on the halfway of this
10 seconds. This blinking is displaying SRT status and is continued for another 10 seconds.
4. Fully release the accelerator pedal.
ECM has entered to Diagnostic Test Mode II (Self-diagnostic results).
NOTE:
Wait until the same DTC (or 1st trip DTC) appears to confirm all DTCs certainly.
HOW TO SET DIAGNOSTIC TEST MODE II (HEATE OXYGEN SENSOR 1 MONITOR)
1. Set ECM in Diagnostic Test Mode II (Self-diagnostic results).
Refer to “How to Set Diagnostic Test Mode II (Self-diagnostic Results)”.
2. Start Engine.
ECM has entered to Diagnostic Test Mode II (Heated oxygen sensor 1 monitor).
HOW TO ERASE DIAGNOSTIC TEST MODE II (SELF-DIAGNOSTIC RESULTS)
1. Set ECM in Diagnostic Test Mode II (Self-diagnostic results). Refer to “How to Set Diagnostic Test Mode II
(Self-diagnostic Results)”.
2. Fully depress the accelerator pedal and keep it for more than 10 seconds.
The emission-related diagnostic information has been erased from the backup memory in the ECM.
3. Fully release the accelerator pedal, and confirm the DTC 0000 is displayed.
How to Erase Diagnostic Test Mode II (Self-diagnostic Results)
The DTC can be erased from the back up memory in the ECM by depressing accelerator pedal. Refer to “How
to Erase Diagnostic Test Mode II (Self-diagnostic Results)”.
If the battery is disconnected, the DTC will be lost from the backup memory within 24 hours.
Be careful not to erase the stored memory before starting trouble diagnoses.
OBD System Operation Chart
Relationship Between MI, 1st Trip DTC, DTC and Detectable Items
 When a malfunction is detected for the first time, the 1st trip DTC and the 1st trip freeze frame data are
stored in the ECM memory.
 When the same malfunction is detected in two consecutive trips, the DTC and the freeze frame data are
stored in the ECM memory, and the MI will come on.
 The MI will go off after the vehicle is driven 3 times (pattern B) with no malfunction. The drive is counted only
when the recorded driving pattern is met (as stored in the ECM). If another malfunction occurs while count-
ing, the counter will reset.
 The DTC and the freeze frame data will be stored until the vehicle is driven 40 times (pattern A) without the
same malfunction recurring (except for Misfire and Fuel Injection System). For Misfire and Fuel Injection
System, the DTC and freeze frame data will be stored until the vehicle is driven 80 times (pattern C) without
PBIB0092E

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-103
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
the same malfunction recurring. The “TIME” in “SELF-DIAGNOSTIC RESULTS” mode of CONSULT-III will
count the number of times the vehicle is driven.
 The 1st trip DTC is not displayed when the self-diagnosis results in OK for the 2nd trip.
Summary Chart
For details about patterns B and C under “Fuel Injection System” and “Misfire”, see “EXPLANATION FOR DRIVING PATTERNS FOR
“MISFIRE ”, “FUEL INJECTION SYSTEM”.
For details about patterns A and B under Other, see “EXPLANATION FOR DRIVING PATTERNS FOR “MISFIRE DETERIORATION>”, “FUEL INJECTION SYSTEM”.
*1: Clear timing is at the moment OK is detected.
*2: Clear timing is when the same malfunction is detected in the 2nd trip.
Relationship Between MI, DTC, 1st Trip DTC and Driving Patterns for “Misfire ”, “Fu-
el Injection System”
Items Fuel Injection System Misfire Other
MI (goes off) 3 (pattern B)3 (pattern B) 3 (pattern B)
DTC, Freeze Frame Data (no
display)80 (pattern C) 80 (pattern C) 40 (pattern A)
1st Trip DTC (clear)
1 (pattern C), *
11 (pattern C), *11 (pattern B)
1st Trip Freeze Frame Data
(clear)*1, *2 *1, *2 1 (pattern B)

EC-104
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
Explanation for Driving Patterns for “Misfire ”, “Fuel Injection System”

Driving pattern B means the vehicle operation as follows:
All components and systems should be monitored at least once by the OBD system.
*1: When the same malfunction is de-
tected in two consecutive trips, MI will
light up.*2: MI will go off after vehicle is driven 3
times (pattern B) without any mal-
functions.*3: When the same malfunction is de-
tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.
*4: The DTC and the freeze frame data
will not be displayed any longer after
vehicle is driven 80 times (pattern C)
without the same malfunction. (The
DTC and the freeze frame data still
remain in ECM.)*5: When a malfunction is detected for
the first time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM.*6: The 1st trip DTC and the 1st trip
freeze frame data will be cleared at
the moment OK is detected.
*7: When the same malfunction is de-
tected in the 2nd trip, the 1st trip
freeze frame data will be cleared.*8: 1st trip DTC will be cleared when ve-
hicle is driven once (pattern C) with-
out the same malfunction after DTC
is stored in ECM.
SEF392S

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-105
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
 The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.
 The B counter will be counted up when driving pattern B is satisfied without any malfunction.
 The MI will go off when the B counter reaches 3. (*2 in “OBD SYSTEM OPERATION CHART”)

Driving pattern C means the vehicle operation as follows:
The following conditions should be satisfied at the same time:
Engine speed: (Engine speed in the freeze frame data) ±375 rpm
Calculated load value: (Calculated load value in the freeze frame data) x (1±0.1) [%]
Engine coolant temperature (T) condition:
 When the freeze frame data shows lower than 70°C (158°F), T should be lower than 70°C (158°F).
 When the freeze frame data shows higher than or equal to 70°C (158°F), T should be higher than or equal to
70°C (158°F).
Example:
If the stored freeze frame data is as follows:
Engine speed: 850 rpm, Calculated load value: 30%, Engine coolant temperature: 80°C (176°F)
To be satisfied with driving pattern C, the vehicle should run under the following conditions:
Engine speed: 475 - 1,225 rpm, Calculated load value: 27 - 33%, Engine coolant temperature: more than 70°C
(158°F)
 The C counter will be cleared when the malfunction is detected regardless of vehicle conditions above.
 The C counter will be counted up when vehicle conditions above is satisfied without the same malfunction.
 The DTC will not be displayed after C counter reaches 80.
 The 1st trip DTC will be cleared when C counter is counted once without the same malfunction after DTC is
stored in ECM.
Relationship Between MI, DTC, 1st Trip DTC and Driving Patterns Except For “Misfire tion>”, “Fuel Injection System”

EC-106
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM

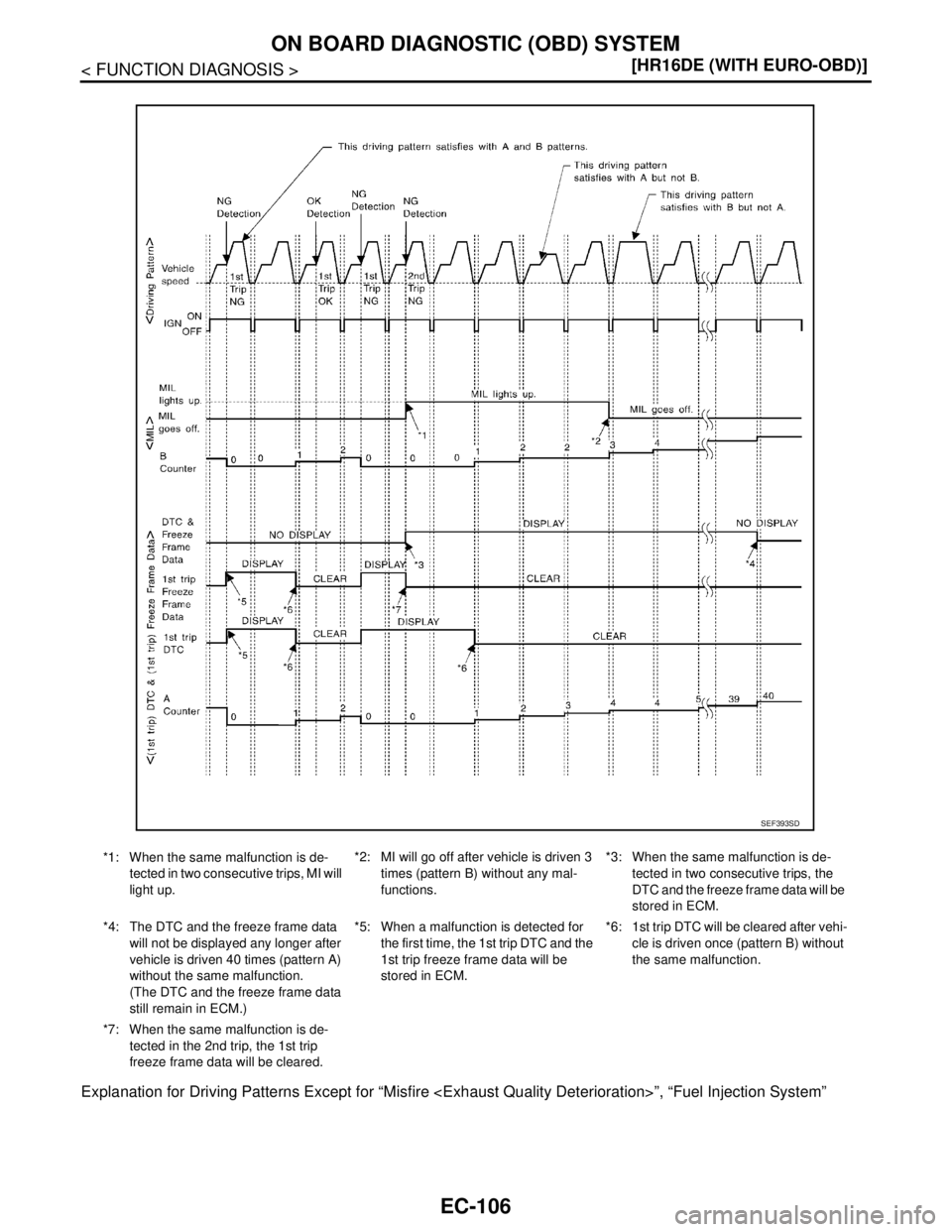

Explanation for Driving Patterns Except for “Misfire ”, “Fuel Injection System”
*1: When the same malfunction is de-
tected in two consecutive trips, MI will
light up.*2: MI will go off after vehicle is driven 3
times (pattern B) without any mal-
functions.*3: When the same malfunction is de-
tected in two consecutive trips, the
DTC and the freeze frame data will be
stored in ECM.
*4: The DTC and the freeze frame data
will not be displayed any longer after
vehicle is driven 40 times (pattern A)
without the same malfunction.
(The DTC and the freeze frame data
still remain in ECM.)*5: When a malfunction is detected for
the first time, the 1st trip DTC and the
1st trip freeze frame data will be
stored in ECM.*6: 1st trip DTC will be cleared after vehi-
cle is driven once (pattern B) without
the same malfunction.
*7: When the same malfunction is de-
tected in the 2nd trip, the 1st trip
freeze frame data will be cleared.
SEF393SD

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-107
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

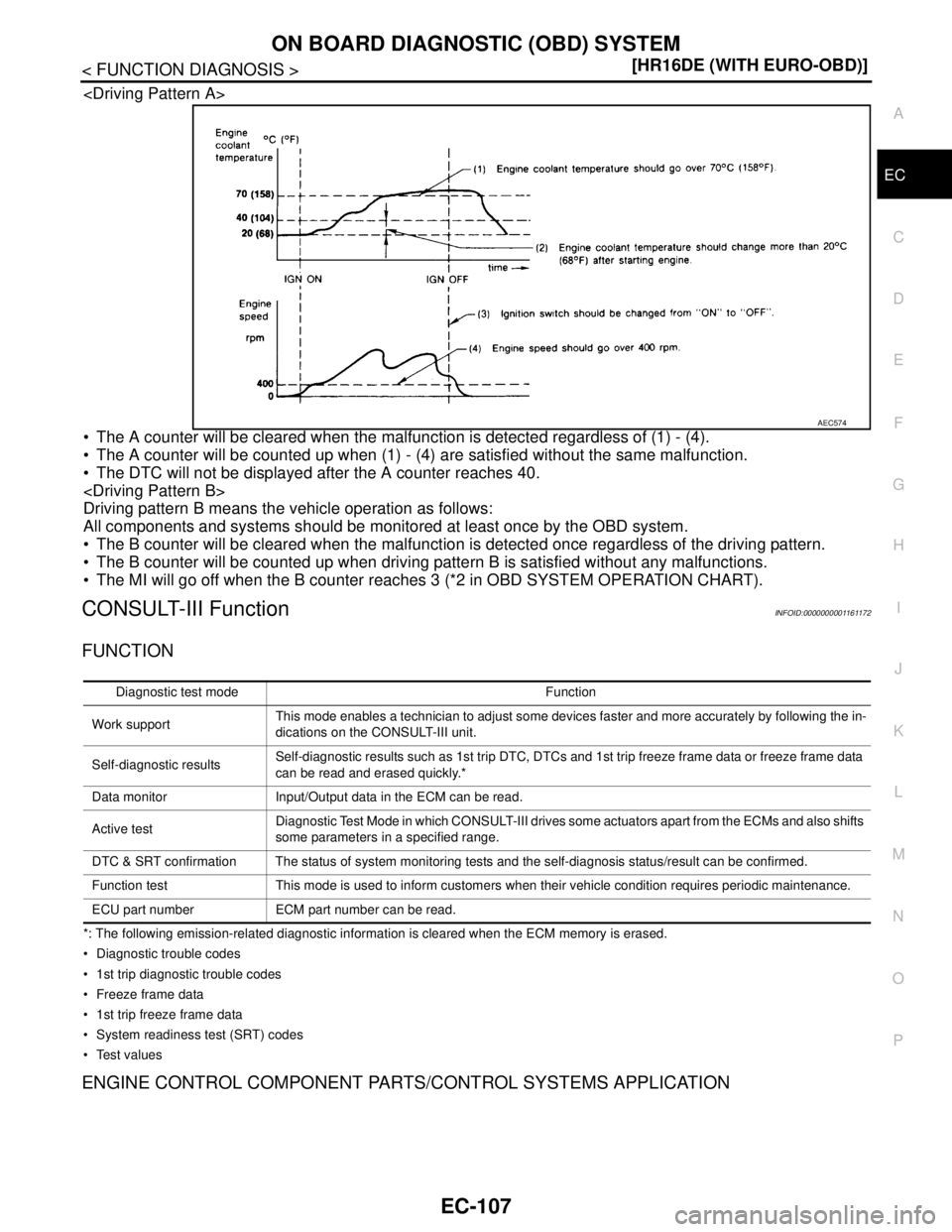

 The A counter will be cleared when the malfunction is detected regardless of (1) - (4).
 The A counter will be counted up when (1) - (4) are satisfied without the same malfunction.
 The DTC will not be displayed after the A counter reaches 40.

Driving pattern B means the vehicle operation as follows:
All components and systems should be monitored at least once by the OBD system.
 The B counter will be cleared when the malfunction is detected once regardless of the driving pattern.
 The B counter will be counted up when driving pattern B is satisfied without any malfunctions.
 The MI will go off when the B counter reaches 3 (*2 in OBD SYSTEM OPERATION CHART).
CONSULT-III FunctionINFOID:0000000001161172
FUNCTION
*: The following emission-related diagnostic information is cleared when the ECM memory is erased.
 Diagnostic trouble codes
 1st trip diagnostic trouble codes
 Freeze frame data
 1st trip freeze frame data
 System readiness test (SRT) codes
Test values
ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
AEC574
Diagnostic test mode Function
Work supportThis mode enables a technician to adjust some devices faster and more accurately by following the in-
dications on the CONSULT-III unit.
Self-diagnostic resultsSelf-diagnostic results such as 1st trip DTC, DTCs and 1st trip freeze frame data or freeze frame data
can be read and erased quickly.*
Data monitor Input/Output data in the ECM can be read.
Active testDiagnostic Test Mode in which CONSULT-III drives some actuators apart from the ECMs and also shifts
some parameters in a specified range.
DTC & SRT confirmation The status of system monitoring tests and the self-diagnosis status/result can be confirmed.
Function test This mode is used to inform customers when their vehicle condition requires periodic maintenance.
ECU part number ECM part number can be read.

EC-108
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
X: Applicable
*1: This item includes 1st trip DTCs.
*2: This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-III screen in freeze frame data
mode only if a 1st trip DTC or DTC is detected. For details, refer to EC-94, "
Diagnosis Description". ItemDIAGNOSTIC TEST MODE
WORK
SUPPORTSELF-DIAGNOSTIC
RESULTS
DATA
MONI-
TORACTIVE
TESTDTC & SRT
CONFIRMATION
DTC*1FREEZE
FRAME
DATA*2SRT STA-
TUSDTC
WORK
SUP-
PORT
ENGINE CONTROL COMPONENT PARTS
INPUT
Crankshaft position sensor (POS)×××
Camshaft position sensor (PHASE)×××
Mass air flow sensor××
Engine coolant temperature sensor××××
Heated oxygen sensor 1××××
Heated oxygen sensor 2××××
Vehicle speed sensor×××
Accelerator pedal position sensor××
Throttle position sensor×××
Intake air temperature sensor×××
Knock sensor×
Refrigerant pressure sensor×
Closed throttle position switch (accel-
erator pedal position sensor signal)×
Air conditioner switch×
Park/neutral position (PNP) switch××
Stop lamp switch××
EPS control unit×
Battery voltage×
Load signal×
ASCD steering switch××
ASCD brake switch××
ASCD clutch switch××
ENGINE COTNROL COMPONENT PARTS
OUTPUT
Fuel injector××
Power transistor (Ignition timing)××
Throttle control motor relay××
Throttle control motor×
EVAP canister purge volume control
solenoid valve××××
Air conditioner relay×
Fuel pump relay×××
Cooling fan relay×××
Heated oxygen sensor 1 heater×××
Heated oxygen sensor 2 heater×××
Intake valve timing control solenoid
valve×××
Calculated load value××

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-109
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
WORK SUPPORT MODE
Work Item
*: This function is not necessary in the usual service procedure.
SELF-DIAG RESULTS MODE
Self Diagnostic Item
Regarding items of DTC and 1st trip DTC, refer to EC-361, "DTCIndex".)
Freeze Frame Data and 1st Trip Freeze Frame Data
*: The items are the same as those of 1st trip freeze frame data.WORK ITEM CONDITION USAGE
FUEL PRESSURE RELEASE  FUEL PUMP WILL STOP BY TOUCHING “START” DUR-
ING IDLING.
CRANK A FEW TIMES AFTER ENGINE STALLS.When releasing fuel pressure from
fuel line
IDLE AIR VOL LEARN  THE IDLE AIR VOLUME THAT KEEPS THE ENGINE
WITHIN THE SPECIFIED RANGE IS MEMORIZED IN
ECM.When learning the idle air volume
SELF-LEARNING CONT  THE COEFFICIENT OF SELF-LEARNING CONTROL
MIXTURE RATIO RETURNS TO THE ORIGINAL COEF-
FICIENT.When clearing mixture ratio self-
learning value
TARGET IDLE RPM ADJ*  IDLE CONDITIONWhen setting target idle speed
TARGET IGN TIM ADJ*  IDLE CONDITION When adjusting target ignition tim-
ing
Freeze frame data
item*Description
DIAG TROUBLE
CODE
[PXXXX] The engine control component part/control system has a trouble code, it is displayed as PXXXX. (Refer to
EC-361, "
DTCIndex".)
FUEL SYS-B1 “Fuel injection system status” at the moment a malfunction is detected is displayed.
 One mode in the following is displayed.
Mode2: Open loop due to detected system malfunction
Mode3: Open loop due to driving conditions (power enrichment, deceleration enleanment)
Mode4: Closed loop - using oxygen sensor(s) as feedback for fuel control
Mode5: Open loop - has not yet satisfied condition to go to closed loop
CAL/LD VALUE [%]  The calculated load value at the moment a malfunction is detected is displayed.
COOLANT TEMP [°C]
or [°F] The engine coolant temperature at the moment a malfunction is detected is displayed.
L-FUEL TRM-B1 [%] “Long-term fuel trim” at the moment a malfunction is detected is displayed.
 The long-term fuel trim indicates much more gradual feedback compensation to the base fuel schedule than
short-term fuel trim.
S-FUEL TRM-B1 [%] “Short-term fuel trim” at the moment a malfunction is detected is displayed.
 The short-term fuel trim indicates dynamic or instantaneous feedback compensation to the base fuel sched-
ule.
ENGINE SPEED [rpm]  The engine speed at the moment a malfunction is detected is displayed.
VEHICL SPEED
[km/h] or [mph] The vehicle speed at the moment a malfunction is detected is displayed.
ABSOL TH·P/S [%]  The throttle valve opening angle at the moment a malfunction is detected is displayed.
B/FUEL SCHDL
[msec] The base fuel schedule at the moment a malfunction is detected is displayed.
INT/A TEMP SE [°C]
or [°F] The intake air temperature at the moment a malfunction is detected is displayed.
INT MANI PRES [kPa]  Always a certain value is displayed.
 This item is not efficient for C11 models.

EC-110
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
ON BOARD DIAGNOSTIC (OBD) SYSTEM
DATA MONITOR MODE
Monitored Item
×: Applicable
Monitored item Unit Description Remarks
ENG SPEED rpm Indicates the engine speed computed from the
signal of the crankshaft position sensor (POS)
and camshaft position sensor (PHASE). Accuracy becomes poor if engine
speed drops below the idle rpm.
 If the signal is interrupted while the
engine is running, an abnormal value
may be indicated.
MAS A/F SE-B1 V The signal voltage of the mass air flow sensor is
displayed. When the engine is stopped, a certain
value is indicated.
 When engine is running specification
range is indicated in “SPEC”.
B/FUEL SCHDL msec “Base fuel schedule” indicates the fuel injection
pulse width programmed into ECM, prior to any
learned on board correction. When engine is running specification
range is indicated in “SPEC”.
A/F ALPHA-B1 % The mean value of the air-fuel ratio feedback cor-
rection factor per cycle is indicated. When the engine is stopped, a certain
value is indicated.
 When engine is running specification
range is indicated in “SPEC”.
 This data also includes the data for
the air-fuel ratio learning control.
COOLAN TEMP/S°C or °F The engine coolant temperature (determined by
the signal voltage of the engine coolant tempera-
ture sensor) is displayed. When the engine coolant temperature
sensor is open or short-circuited,
ECM enters fail-safe mode. The en-
gine coolant temperature determined
by the ECM is displayed.
HO2S1 (B1) V The signal of the heated oxygen sensor 1 is dis-
played.
HO2S2 (B1) V The signal voltage of the heated oxygen sensor 2
is displayed.
HO2S1 MNTR(B1) RICH/LEAN Display of heated oxygen sensor 1 signal during
air-fuel ratio feedback control:
RICH: means the mixture became ″rich″, and
control is being affected toward a leaner mixture.
LEAN: means the mixture became ″lean″, and
control is being affected toward a rich mixture. After turning ON the ignition switch,
″RICH″ is displayed until air-fuel mix-
ture ratio feedback control begins.
 When the air-fuel ratio feedback is
clamped, the value just before the
clamping is displayed continuously.
HO2S2 MNTR(B1) RICH/LEAN Display of heated oxygen sensor 2 signal:
RICH: means the amount of oxygen after three
way catalyst is relatively small.
LEAN: means the amount of oxygen after three
way catalyst is relatively large. When the engine is stopped, a certain
value is indicated.
VHCL SPEED SE km/h or mph The vehicle speed computed from the vehicle
speed signal sent from combination meter is dis-
played.
BATTERY VOLT V  The power supply voltage of ECM is displayed.
ACCEL SEN 1
V The accelerator pedal position sensor signal volt-
age is displayed. ACCEL SEN 2 signal is converted by
ECM internally. Thus, it differs from
ECM terminal voltage signal. ACCEL SEN 2
TP SEN 1-B1
V The throttle position sensor signal voltage is dis-
played. TP SEN 2-B1 signal is converted by
ECM internally. Thus, it differs from
ECM terminal voltage signal. TP SEN 2-B1
INT/A TEMP SE°
C or °F The intake air temperature (determined by the
signal voltage of the intake air temperature sen-
sor) is indicated.
START SIGNAL ON/OFF Indicates start signal status [ON/OFF] computed
by the ECM according to the signals of engine
speed and battery voltage. After starting the engine, [OFF] is dis-
played regardless of the starter sig-
nal.

ON BOARD DIAGNOSTIC (OBD) SYSTEM
EC-111
< FUNCTION DIAGNOSIS >[HR16DE (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
CLSD THL POS ON/OFF Indicates idle position [ON/OFF] computed by
ECM according to the accelerator pedal position
sensor signal.
AIR COND SIG ON/OFF Indicates [ON/OFF] condition of the air condition-
er switch as determined by the air conditioner sig-
nal.
P/N POSI SW ON/OFF Indicates [ON/OFF] condition from the park/neu-
tral position (PNP) switch signal.
PW/ST SIGNAL ON/OFF [ON/OFF] condition of the power steering system
(determined by the signal sent from EPS control
unit) is indicated.
LOAD SIGNAL ON/OFF Indicates [ON/OFF] condition from the electrical
load signal.
ON: Rear window defogger switch is ON and/or
lighting switch is in 2nd position.
OFF: Both rear window defogger switch and light-
ing switch are OFF.
IGNITION SW ON/OFF Indicates [ON/OFF] condition from ignition switch
signal.
CLUTCH P/P SW ON/OFF Indicates [ON/OFF] condition from the clutch
switch signal.
HEATER FAN SW ON/OFF Indicates [ON/OFF] condition from the heater fan
switch signal.
BRAKE SW ON/OFF Indicates [ON/OFF] condition from the stop lamp
switch signal.
INJ PULSE-B1 msec Indicates the actual fuel injection pulse width
compensated by ECM according to the input sig-
nals. When the engine is stopped, a certain
computed value is indicated.
IGN TIMING BTDC Indicates the ignition timing computed by ECM
according to the input signals. When the engine is stopped, a certain
value is indicated.
CAL/LD VALUE % “Calculated load value” indicates the value of the
current air flow divided by peak air flow.
MASS AIRFLOW g·m/s Indicates the mass air flow computed by ECM ac-
cording to the signal voltage of the mass air flow
sensor.
PURG VOL C/V % Indicates the EVAP canister purge volume con-
trol solenoid valve control value computed by the
ECM according to the input signals.
 The opening becomes larger as the value in-
creases.
INT/V TIM (B1)°CA Indicates [°CA] of intake camshaft advance an-
gle.
INT/V SOL-B1
% The control value of the intake valve timing con-
trol solenoid valve (determined by ECM accord-
ing to the input signals) is indicated.
 The advance angle becomes larger as the value
increases.
AIR COND RLY ON/OFF The air conditioner relay control condition (deter-
mined by ECM according to the input signals) is
indicated.
FUEL PUMP RLY ON/OFF Indicates the fuel pump relay control condition
determined by ECM according to the input sig-
nals.
THRTL RELAY ON/OFF Indicates the throttle control motor relay control
condition determined by the ECM according to
the input signals. Monitored item Unit Description Remarks
