EC-392
< BASIC INSPECTION >[HR16DE (WITHOUT EURO-OBD)]
INSPECTION AND ADJUSTMENT
5.DETECT MALFUNCTIONING PART
Check the following
 Check that throttle valve is fully closed.
 Check PCV valve operation.
 Check that downstream of throttle valve is free from air leakage.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair or replace malfunctioning part.
6.DETECT MALFUNCTIONING PART
Engine component parts and their installation condition are questionable. Check and eliminate the cause of
the incident.
It is useful to perform “TROUBLE DIAGNOSIS - SPECIFICATION VALUE”. Refer to EC-469, "
Description".
If any of the following conditions occur after the engine has started, eliminate the cause of the incident and
perform Idle Air Volume Learning all over again:
 Engine stalls.
 Erroneous idle.
>> INSPECTION END
MIXTURE RATIO SELF-LEARNING VALUE CLEAR
MIXTURE RATIO SELF-LEARNING VALUE CLEAR : DescriptionINFOID:0000000001161442
This describes how to erase the mixture ratio self-learning value. For the actual procedure, follow the instruc-
tions in “Diagnosis Procedure”.
MIXTURE RATIO SELF-LEARNING VALUE CLEAR : Special Repair Requirement
INFOID:0000000001161443
1.START
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Select “SELF-LEARNING CONT” in “WORK SUPPORT” mode with CONSULT-III.
3. Clear mixture ratio self-learning value by touching “CLEAR”.
Without CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF.
3. Disconnect mass air flow sensor harness connector, and restart and run engine for at least 5 seconds at
idle speed.
4. Stop engine and reconnect mass air flow sensor harness connector.
5. Make sure that DTC P0102 is displayed.
6. Erase the DTC memory. Refer to EC-457, "
Diagnosis Description".
7. Make sure that DTC P0000 is displayed.
>> END

ENGINE CONTROL SYSTEM
EC-393
< FUNCTION DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
FUNCTION DIAGNOSIS
ENGINE CONTROL SYSTEM

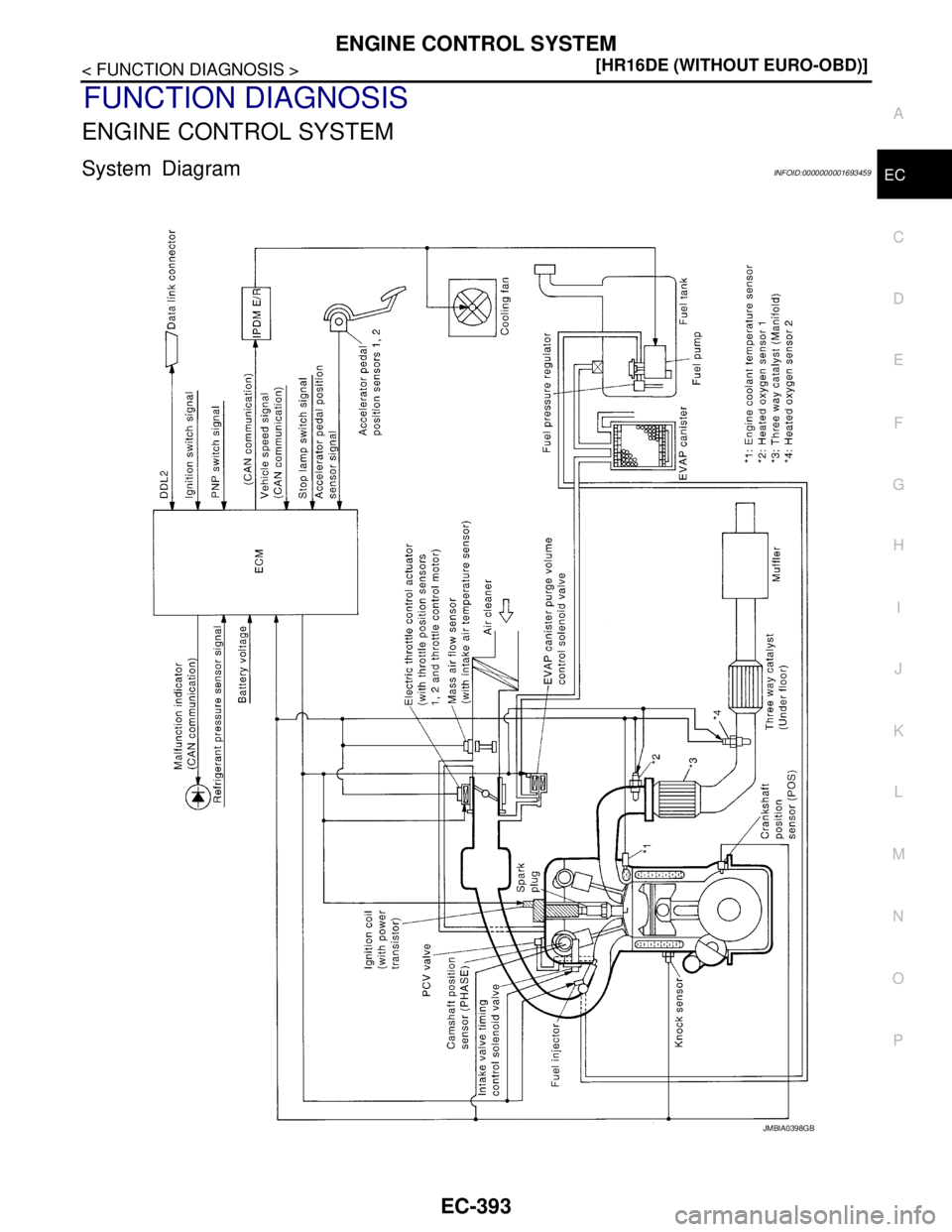

System DiagramINFOID:0000000001693459
JMBIA0398GB

EC-394
< FUNCTION DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
ENGINE CONTROL SYSTEM
System Description
INFOID:0000000001693460
ECM performs various controls such as fuel injection control and ignition timing control.

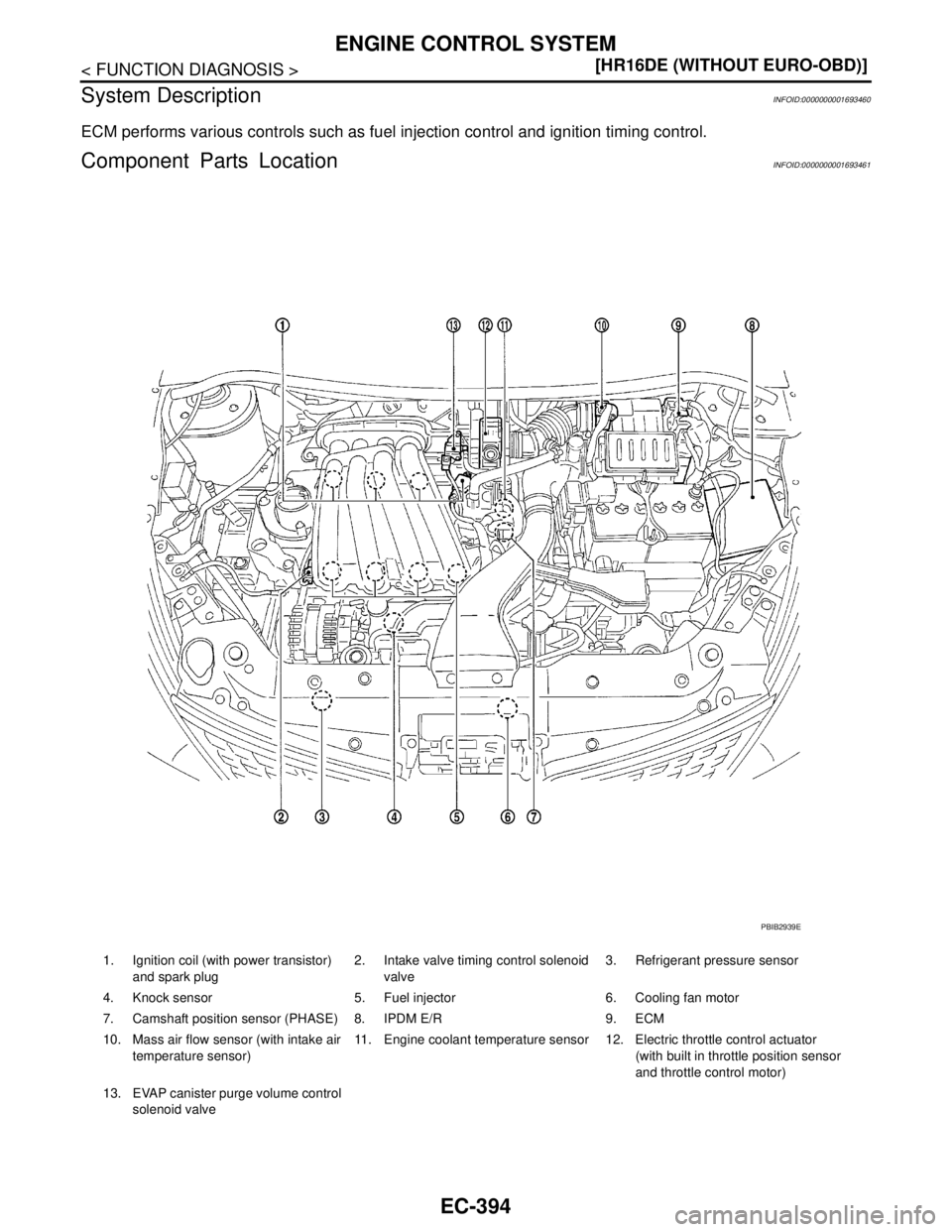

Component Parts LocationINFOID:0000000001693461
1. Ignition coil (with power transistor)
and spark plug2. Intake valve timing control solenoid
valve3. Refrigerant pressure sensor
4. Knock sensor 5. Fuel injector 6. Cooling fan motor
7. Camshaft position sensor (PHASE) 8. IPDM E/R 9. ECM
10. Mass air flow sensor (with intake air
temperature sensor)11. Engine coolant temperature sensor 12. Electric throttle control actuator
(with built in throttle position sensor
and throttle control motor)
13. EVAP canister purge volume control
solenoid valve
PBIB2939E

ENGINE CONTROL SYSTEM
EC-395
< FUNCTION DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O

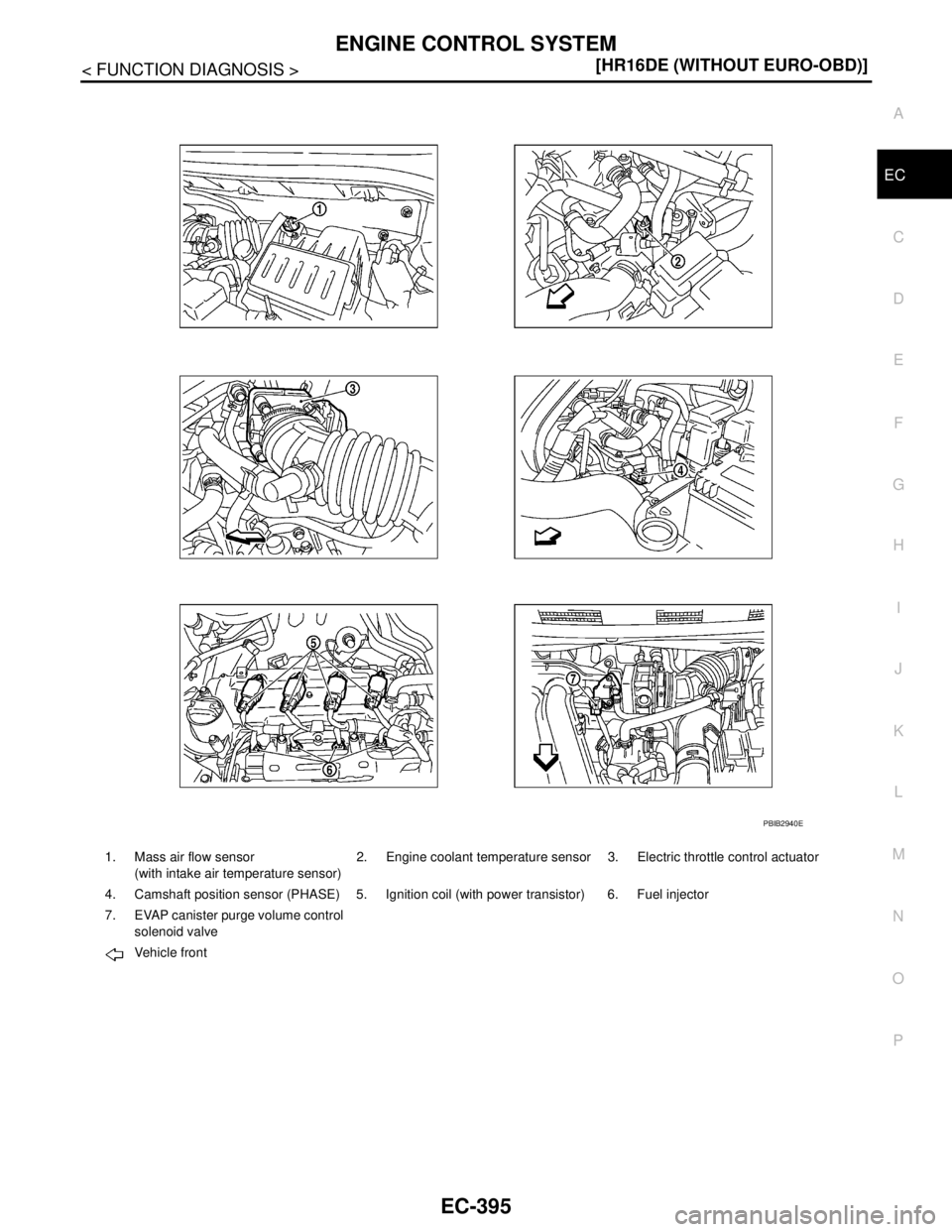

1. Mass air flow sensor
(with intake air temperature sensor)2. Engine coolant temperature sensor 3. Electric throttle control actuator
4. Camshaft position sensor (PHASE) 5. Ignition coil (with power transistor) 6. Fuel injector
7. EVAP canister purge volume control
solenoid valve
Vehicle front
PBIB2940E

EC-396
< FUNCTION DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
ENGINE CONTROL SYSTEM
1. ECM harness connectors 2. ECM 3. IPDM E/R
4. Fuel pump fuse (15A) 5. Intake valve timing control solenoid
valve6. Knock sensor
7. Refrigerant pressure sensor 8. PCV valve
Vehicle front
PBIB2941E

ENGINE CONTROL SYSTEM
EC-397
< FUNCTION DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
1. Exhaust manifold 2. Heated oxygen sensor 1 3. Heated oxygen sensor 2
4. Heated oxygen sensor 2 harness
connector
Vehicle front
PBIB2942E
PBIB2943E

EC-398
< FUNCTION DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
ENGINE CONTROL SYSTEM
1. Cooling fan motor harness connec-
tor2. Crankshaft position sensor 3. Stop lamp switch
4. Brake pedal 5. Accelerator pedal position sensor
harness connector6. Accelerator pedal position sensor
7. Accelerator pedal 8. Fuel level sensor unit and fuel pump
harness connector (view with in-
spection hole cover removed)9. Fuel pressure regulator
10. Fuel pump
AWBIA0044ZZ

ENGINE CONTROL SYSTEM
EC-399
< FUNCTION DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Component DescriptionINFOID:0000000001693462
1. ASCD steering switch 2. MAIN switch 3. CANCEL switch
4. SET/COAST switch 5. RESUME/ACCELERATE switch 6. ASCD brake switch
7. Stop lamp switch 8. ASCD clutch switch 9. Clutch pedal
ALBIA0273ZZ
Component Reference
Accelerator pedal position sensorEC-572, "
Description"
ASCD brake switchEC-556, "Description"
ASCD steering switchEC-553, "Description"
ASCD vehicle speed sensorEC-564, "Description"
Camshaft position sensor (PHASE)EC-520, "Description"
Crankshaft position sensor (POS)EC-516, "Description"
Cooling fan motorEC-593, "Description"
Electric throttle control actuatorEC-531, "Description"
Engine coolant temperature sensorEC-492, "Description"
Fuel injectorEC-602, "Description"
Fuel pumpEC-605, "Description"
Heated oxygen sensor 1EC-498, "Description"
Heated oxygen sensor 1 heaterEC-613, "Description"
Heated oxygen sensor 2EC-507, "Description"
Heated oxygen sensor 2 heaterEC-620, "Description"
Ignition signalEC-625, "Description"
Intake air temperature sensorEC-623, "Description"
Intake valve timing control solenoid valveEC-528, "Description"

EC-400
< FUNCTION DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
ENGINE CONTROL SYSTEM
Knock sensorEC-514, "Description"
Mass air flow sensorEC-487, "Description"
Park/neutral position switchEC-566, "Description"
PCV valveEC-631, "Description"
Refrigerant pressure sensorEC-632, "Description"
Stop lamp switchEC-569, "Description"
Throttle control motorEC-540, "Description"
Throttle control motor relayEC-533, "Description"
Throttle position sensorEC-495, "Description"
Vehicle speed sensorEC-634, "Description"
Component Reference

MULTIPORT FUEL INJECTION SYSTEM
EC-401
< FUNCTION DIAGNOSIS >[HR16DE (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
MULTIPORT FUEL INJECTION SYSTEM
System DiagramINFOID:0000000001693463
System DescriptionINFOID:0000000001693464
INPUT/OUTPUT SIGNAL CHART
*1: This sensor is not used to control the engine system under normal conditions.
*2: This signal is sent to the ECM through CAN communication line.
*3: ECM determines the start signal status by the signals of engine speed and battery voltage.
JMBIA0408GB
Sensor Input Signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Engine speed*
3
Piston position
Fuel injection
& mixture ratio
controlFuel injector Camshaft position sensor (PHASE)
Mass air flow sensor Amount of intake air
Intake air temperature sensor Intake air temperature
Engine coolant temperature sensor Engine coolant temperature
Heated oxygen sensor 1 Density of oxygen in exhaust gas
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Park/neutral position (PNP) switch Gear position
Battery
Battery voltage*
3
Knock sensor Engine knocking condition
EPS control unit Power steering operation
Heated oxygen sensor 2*
1Density of oxygen in exhaust gas
BCM
Air conditioner operation*
2
Combination meter
Vehicle speed*2
