NISSAN TIIDA 2007 Service Repair Manual

EC-892
< COMPONENT DIAGNOSIS >[MR18DE]
P1124, P1126 THROTTLE CONTROL MOTOR RELAY
Is the inspection result normal?
YES >> GO TO 5.
NO >> GO TO 2.
2.CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector.
3. Check the continuity between ECM harness connector and IPDM E/R harness connector.
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors E8, F8
 Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness connectors.
4.CHECK FUSE
1. Disconnect 15A fuse (No. 52) from IPDM E/R.
2. Check 15A fuse for blown.
Is the inspection result normal?
YES >> GO TO 8.
NO >> Replace 15A fuse.
5.CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-I
1. Check the voltage between ECM harness connector terminals as follows.
Is the inspection result normal?
YES >> GO TO 8.
NO >> GO TO 6.
6.CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT-II
1. Check the continuity between ECM harness connector and IPDM E/R harness connector.
2. Also check harness for short to ground and short to power.
(+) (–)
Voltag e
Connector Terminal Connector Terminal
F10 15 E16 108 Battery voltage
IPDM E/R ECM
Continuity
Connector Terminal Connector Terminal
E43 8 F10 15 Existed
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
F10 2 E16 108Ignition switch OFF Approx. 0V
Ignition switch ON Battery voltage
IPDM E/R ECM
Continuity
Connector Terminal Connector Terminal
E46 32 F10 2 Existed

P1124, P1126 THROTTLE CONTROL MOTOR RELAY
EC-893
< COMPONENT DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Is the inspection result normal?
YES >> GO TO 8.
NO >> GO TO 7.
7.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors E8, F8
 Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness connectors.
8.CHECK INTERMITTENT INCIDENT
Refer to GI-55, "
Intermittent Incident".
Is the inspection result normal?
YES >> Replace IPDM E/R.
NO >> Repair or replace harness or connectors.

EC-894
< COMPONENT DIAGNOSIS >[MR18DE]
P1128 THROTTLE CONTROL MOTOR
P1128 THROTTLE CONTROL MOTOR
DescriptionINFOID:0000000001161867
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-
back to the ECM to control the throttle control motor to make the throttle valve opening angle properly in
response to driving condition.
DTC LogicINFOID:0000000001161868
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON and wait at least 2 seconds.
2. Start engine and let it idle for 5 seconds.
3. Check DTC.
Is DTC detected?
YES >> Go to EC-894, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001161869
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connection E15. Refer to Ground Inspection in GI-58, "
Circuit Inspection".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect electric throttle control actuator harness connector.
2. Disconnect ECM harness connector.
3. Check the continuity between electric throttle control actuator harness connector and ECM harness con-
nector.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1128Throttle control motor
circuit shortECM detects short in both circuits between
ECM and throttle control motor. Harness or connectors
(Throttle control motor circuit is shorted.)
 Electric throttle control actuator
(Throttle control motor)
Electric throttle control actuator ECM
Continuity
Connector Terminal Connector Terminal
F75
F101Not existed
4 Existed
61 Existed
4Not existed

P1128 THROTTLE CONTROL MOTOR
EC-895
< COMPONENT DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
4. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace.
3.CHECK THROTTLE CONTROL MOTOR
Refer to EC-895, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 4.
NO >> GO TO 5.
4.CHECK INTERMITTENT INCIDENT
Refer to GI-55, "
Intermittent Incident".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Repair or replace harness or connectors.
5.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace electric throttle control actuator.
2. Go to EC-895, "
Special Repair Requirement".
>> INSPECTION END
Component InspectionINFOID:0000000001161870
1.CHECK THROTTLE CONTROL MOTOR
1. Disconnect electric throttle control actuator harness connector.
2. Check resistance between electric throttle control actuator terminals as follows.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 2.
2.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace electric throttle control actuator.
2. Go to EC-895, "
Special Repair Requirement".
>> INSPECTION END
Special Repair RequirementINFOID:0000000001161871
1.PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Refer to EC-694, "
THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"
>> GO TO 2
2.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-694, "
IDLE AIR VOLUME LEARNING : Special Repair Requirement"
>> END
Terminals Resistance
5 and 6 Approx. 1 - 15 Ω [at 25 °C (77°F)]

EC-896
< COMPONENT DIAGNOSIS >[MR18DE]
P1143 HO2S1
P1143 HO2S1
DescriptionINFOID:0000000001161872
The heated oxygen sensor 1 is placed into the exhaust manifold. It
detects the amount of oxygen in the exhaust gas compared to the
outside air. The heated oxygen sensor 1 has a closed-end tube
made of ceramic zirconia. The zirconia generates voltage from
approximately 1V in richer conditions to 0V in leaner conditions. The
heated oxygen sensor 1 signal is sent to the ECM. The ECM adjusts
the injection pulse duration to achieve the ideal air-fuel ratio. The
ideal air-fuel ratio occurs near the radical change from 1V to 0V.
DTC LogicINFOID:0000000001161873
DTC DETECTION LOGIC
To judge the malfunction, the output from the heated oxygen sensor
1 is monitored to determine whether the “rich” output is sufficiently
high and whether the “lean” output is sufficiently low. When both the
outputs are shifting to the lean side, the malfunction will be detected.
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Always perform at a temperature above -10°C (14°F)
SEF463R
SEF288D
SEF300U
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1143Heated oxygen sensor 1
lean shift monitoringThe maximum and minimum voltage from the
sensor are not reached to the specified voltages. Heated oxygen sensor 1
 Heated oxygen sensor 1 heater
 Fuel pressure
 Fuel injector
 Intake air leaks

P1143 HO2S1
EC-897
< COMPONENT DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
Do you have CONSULT-III?
YES >> GO TO 2.
NO >> GO TO 3.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and warm it up to normal operating temperature.
2. Stop engine and wait at least 10 seconds.
3. Turn ignition switch ON and select “HO2S1 (B1) P1143” of “HO2S1” in “DTC WORK SUPPORT” mode
with CONSULT-III.
4. Touch “START”.
5. Start engine and let it idle for at least 3 minutes.
NOTE:
Never raise engine speed above 3,600 rpm after this step. If the engine speed limit is exceeded,
return to step 5.
6. When the following conditions are met, “TESTING” will be displayed on the CONSULT-III screen. Maintain
the conditions continuously until “TESTING” changes to “COMPLETED”. (It will take approximately 50
seconds or more.)
CAUTION:
Always drive vehicle at a safe speed.
If “TESTING” is not displayed after 5 minutes, retry from step 2.
7. Touch “SELF-DIAG RESULT”
Which is displayed on CONSULT-III screen?
OK >> INSPECTION END
NG >> Go to EC-897, "
Diagnosis Procedure".
3.PERFORM COMPONENT FUNCTION CHECK
With GST
1. Start engine and warm it up to normal operating temperature.
2. Set voltmeter probes between ECM harness connector terminals as follows under the following condition.
NOTE:
Use component function check to check the overall function of the heated oxygen sensor 1 circuit. During this
check, a 1st trip DTC might not be confirmed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-897, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001161874
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connection E15. Refer to Ground Inspection in GI-58, "
Circuit Inspection".
Is the inspection result normal?
ENG SPEED 1,375 - 2,600 rpm
VHCL SPEED SE Less than 100 km/h (62 MPH)
B/FUEL SCHDL 3.7 - 10.0 msec
Shift lever Suitable position
ECM Ground
Condition Voltage
Connector Terminal Connector Terminal
F1149
(HO2S1 signal)F11 56Engine speed held at
2,000 rpm constant under
no load The maximum voltage is over 0.6 at least 1
time.
 The minimum voltage is over 0.1 at least 1
time.

EC-898
< COMPONENT DIAGNOSIS >[MR18DE]
P1143 HO2S1
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.RETIGHTEN HEATED OXYGEN SENSOR 1
Loosen and retighten heated oxygen sensor 1. Refer to EM-159, "
Removal and Installation".
>> GO TO 3.
3.CLEAR THE SELF-LEARNING DATA
1. Clear mixture ratio self-learning value, refer to EC-696, "
MIXTURE RATIO SELF-LEARNING VALUE
CLEAR : Special Repair Requirement".
2. Run engine for at least 10 minutes at idle speed.
Is the 1st trip DTC P0171 detected or difficult to start engine?
Yes >> Perform trouble diagnosis for DTC P0171. Refer to EC-844, "DTC Logic".
No >> GO TO 4.
4.CHECK HEATED OXYGEN SENSOR 1 HEATER
Refer to EC-829, "
Component Inspection".
Is inspection result normal?
YES >> GO TO 5.
NO >> Replace heated oxygen sensor 1.
5.CHECK INTERMITTENT INCIDENT
Perform GI-55, "
Intermittent Incident".
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair or replace.
6.REPLACE HEATED OXYGEN SENSOR 1
Replace heated oxygen sensor 1.
>> INSPECTION END
Component InspectionINFOID:0000000001161875
1.INSPECTION START
Do you have CONSULT-III?
Do you have CONSULT-III?
YES >> GO TO 2.
NO >> GO TO 3.

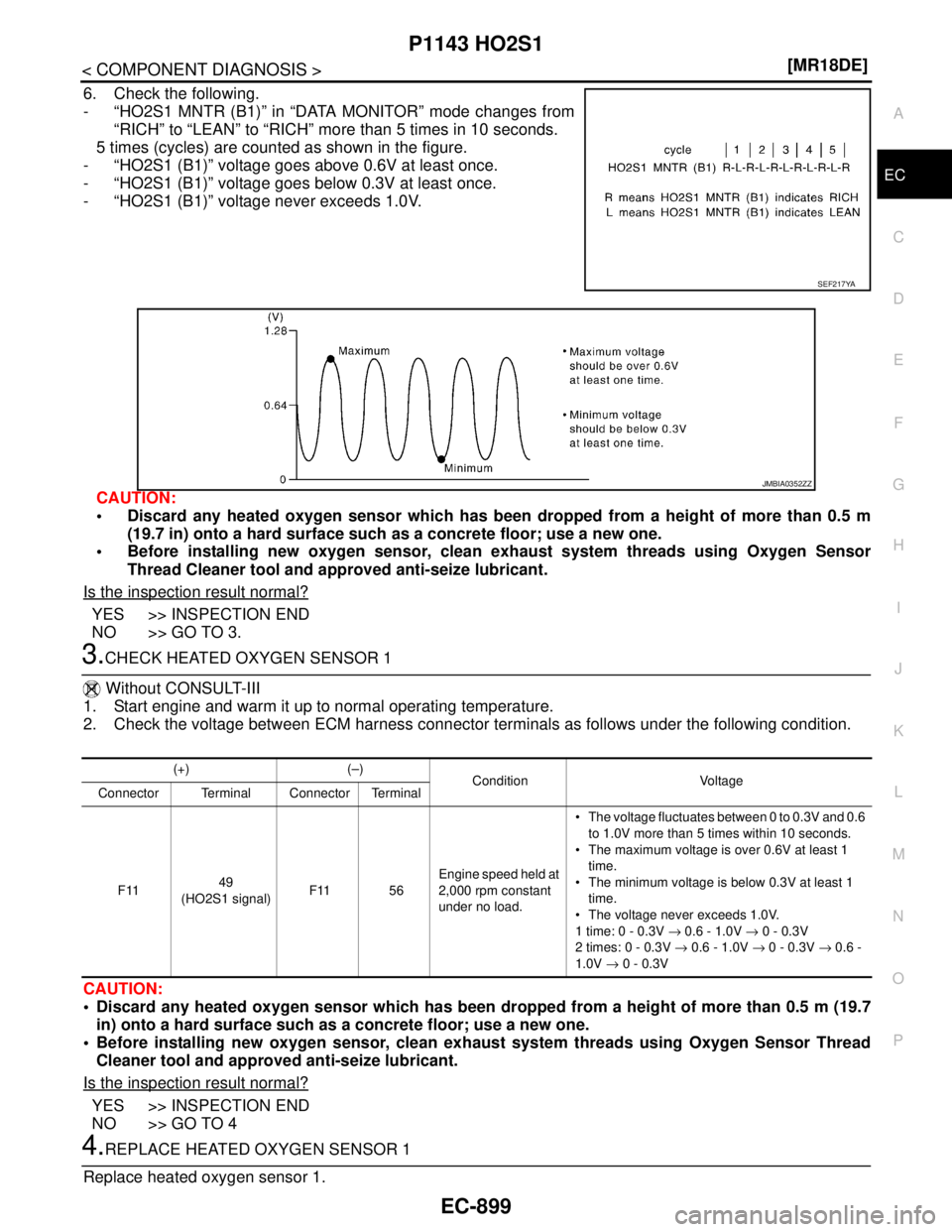

2.CHECK HEATED OXYGEN SENSOR 1
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Set “POST TRIGGER” to 100% in “DATA MONITOR” mode with CONSULT-III.
3. Select “HO2S1 (B1)” and “HO2S1 MNTR (B1)”.
4. Hold engine speed at 2,000 rpm under no load during the following steps.
5. Touch “RECORD” on CONSULT-III screen.

P1143 HO2S1
EC-899
< COMPONENT DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
6. Check the following.
- “HO2S1 MNTR (B1)” in “DATA MONITOR” mode changes from
“RICH” to “LEAN” to “RICH” more than 5 times in 10 seconds.
5 times (cycles) are counted as shown in the figure.
- “HO2S1 (B1)” voltage goes above 0.6V at least once.
- “HO2S1 (B1)” voltage goes below 0.3V at least once.
- “HO2S1 (B1)” voltage never exceeds 1.0V.
CAUTION:
 Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m
(19.7 in) onto a hard surface such as a concrete floor; use a new one.
 Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor
Thread Cleaner tool and approved anti-seize lubricant.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 3.
3.CHECK HEATED OXYGEN SENSOR 1
Without CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Check the voltage between ECM harness connector terminals as follows under the following condition.
CAUTION:
 Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
 Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool and approved anti-seize lubricant.
Is the inspection result normal?
YES >> INSPECTION END
NO >> GO TO 4
4.REPLACE HEATED OXYGEN SENSOR 1
Replace heated oxygen sensor 1.
SEF217YA
JMBIA0352ZZ
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
F1149
(HO2S1 signal)F11 56Engine speed held at
2,000 rpm constant
under no load. The voltage fluctuates between 0 to 0.3V and 0.6
to 1.0V more than 5 times within 10 seconds.
 The maximum voltage is over 0.6V at least 1
time.
 The minimum voltage is below 0.3V at least 1
time.
 The voltage never exceeds 1.0V.
1 time: 0 - 0.3V → 0.6 - 1.0V → 0 - 0.3V
2 times: 0 - 0.3V → 0.6 - 1.0V → 0 - 0.3V → 0.6 -
1.0V → 0 - 0.3V

EC-900
< COMPONENT DIAGNOSIS >[MR18DE]
P1143 HO2S1
CAUTION:
 Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7
in) onto a hard surface such as a concrete floor; use a new one.
 Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread
Cleaner tool and approved anti-seize lubricant.
>> INSPECTION END

P1144 HO2S1
EC-901
< COMPONENT DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
P1144 HO2S1
DescriptionINFOID:0000000001161876
The heated oxygen sensor 1 is placed into the exhaust manifold. It
detects the amount of oxygen in the exhaust gas compared to the
outside air. The heated oxygen sensor 1 has a closed-end tube
made of ceramic zirconia. The zirconia generates voltage from
approximately 1V in richer conditions to 0V in leaner conditions. The
heated oxygen sensor 1 signal is sent to the ECM. The ECM adjusts
the injection pulse duration to achieve the ideal air-fuel ratio. The
ideal air-fuel ratio occurs near the radical change from 1V to 0V.
DTC LogicINFOID:0000000001161877
DTC DETECTION LOGIC
To judge the malfunction, the output from the heated oxygen sensor
1 is monitored to determine whether the “rich” output is sufficiently
high and “lean” output is sufficiently low. When both the outputs are
shifting to the rich side, the malfunction will be detected.
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Always perform at a temperature above -10°C (14°F).
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
SEF463R
SEF288D
SEF299U
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1144Heated oxygen sensor 1
rich shift monitoringThe maximum and minimum voltages from the
sensor are beyond the specified voltages. Heated oxygen sensor 1
 Heated oxygen sensor 1 heater
 Fuel pressure
 Fuel injector
