NISSAN TIIDA 2007 Service Repair Manual

EC-922
< COMPONENT DIAGNOSIS >[MR18DE]
P1217 ENGINE OVER TEMPERATURE
4.CHECK COOLING FAN LOW SPEED OPERATION
Without CONSULT-III
1. Start engine and let it idle.
2. Turn air conditioner switch ON.
3. Turn blower fan switch ON.
4. Make sure that cooling fan operates at low speed.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Check cooling fan speed control circuit. Refer to EC-969, "
Diagnosis Procedure".
5.CHECK COOLING FAN LOW SPEED OPERATION
Without CONSULT-III
1. Perfom IPDM E/R auto active test and check cooling fan motor operation. Refer to PCS-10, "
Diagnosis
Description".
2. Make sure that cooling fan operates at low speed.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Check cooling fan speed control circuit. Refer to EC-969, "
Diagnosis Procedure"
6.CHECK COOLING FAN HIGH SPEED OPERATION.
Without CONSULT-III
1. Turn ignition switch OFF.
2. Turn air conditioner switch and blower fan switch OFF.
3. Disconnect engine coolant temperature sensor harness connector.
4. Connect 150Ω resistor to engine coolant temperature sensor harness connector.
5. Restart engine and make sure that cooling fan operates at higher speed than low speed.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Check cooling fan speed control circuit. Refer to EC-969, "
Diagnosis Procedure".
7.CHECK COOLING SYSTEM FOR LEAK
Check cooling system for leak. Refer to CO-35, "
Inspection".
Is leakage detected?
YES >> GO TO 9.
NO >> GO TO 8.
8.DETECT MALFUNCTIONING PART
Check the following for leak. Refer to CO-35, "
Inspection".
Hose
 Radiator
 Water pump (Refer to CO-44, "
Component")
 Reservoir tank
>> Repair or replace.
9.CHECK RESERVOIR TANK CAP
Check radiator cap. Refer to CO-38, "
Checking Radiator Cap".
Is the inspection result normal?
YES >> GO TO 10.
NO >> Replace radiator cap.
10.CHECK THERMOSTAT
Check thermostat. Refer to CO-45, "
Component")
Is the inspection result normal?
YES >> GO TO 11.
NO >> Replace thermostat.

P1217 ENGINE OVER TEMPERATURE
EC-923
< COMPONENT DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
11 .CHECK ENGINE COOLANT TEMPERATURE SENSOR
Check engine coolant temperature sensor. Refer to EC-808, "
Component Inspection".
Is the inspection result normal?
OK >> GO TO 12.
NG >> Replace engine coolant temperature sensor.
12.CHECK MAIN 13 CAUSES
If the cause cannot be isolated, check the following.
*1: Turn the ignition switch ON.
*2: Engine running at 3,000 rpm for 10 minutes.
*3: Drive at 90 km/h (55 MPH) for 30 minutes and then let idle for 10 minutes.
*4: After 60 minutes of cool down time.
For more information, refer to CO-30, "
Troubleshooting Chart".
>> INSPECTION END
Engine Step Inspection item Equipment Standard Reference page
OFF 1  Blocked radiator
 Blocked condenser
 Blocked radiator grille
 Blocked bumper Visual No blocking —
2  Coolant mixture  Coolant tester 50 - 50% coolant mixtureMA-20, "
SAE Viscosity
Number"
3  Coolant level  Visual Coolant up to MAX level in
reservoir tank and radiator
filler neckCO-35, "Inspection"
4  Reservoir tank cap  Pressure tester 59 - 98 kPa
(0.6 - 1.0 bar, 0.6 - 1.0 kg/
cm
2, 9 - 14 psi) (Limit)CO-40, "
Removal and In-
stallation"
ON*25  Coolant leaks  Visual No leaksCO-35, "Inspection"
ON*26  Thermostat  Touch the upper and
lower radiator hosesBoth hoses should be hotCO-45, "Removal and In-
stallation"
ON*17  Cooling fan motor CONSULT-III OperatingEC-971, "Component In-
spection"
OFF 8  Combustion gas leak  Color checker chemical
tester 4 Gas analyzerNegative —
ON*
39  Coolant temperature
gauge Visual Gauge less than 3/4 when
driving—
 Coolant overflow to res-
ervoir tank Visual No overflow during driving
and idlingCO-35, "
Inspection"
OFF*410  Coolant return from res-
ervoir tank to radiator Visual Should be initial level in
reservoir tankCO-35, "Inspection"
OFF 11  Water control valve Remove and inspect
the valveWithin the specified valueCO-47, "Removal and In-
stallation"
OFF 12  Cylinder head  Straight gauge feeler
gauge0.1 mm (0.004 in) Maxi-
mum distortion (warping)EM-198, "Removal and
Installation"
13  Cylinder block and pis-
tons Visual No scuffing on cylinder
walls or pistonEM-202, "Inspection After
Disassembly"

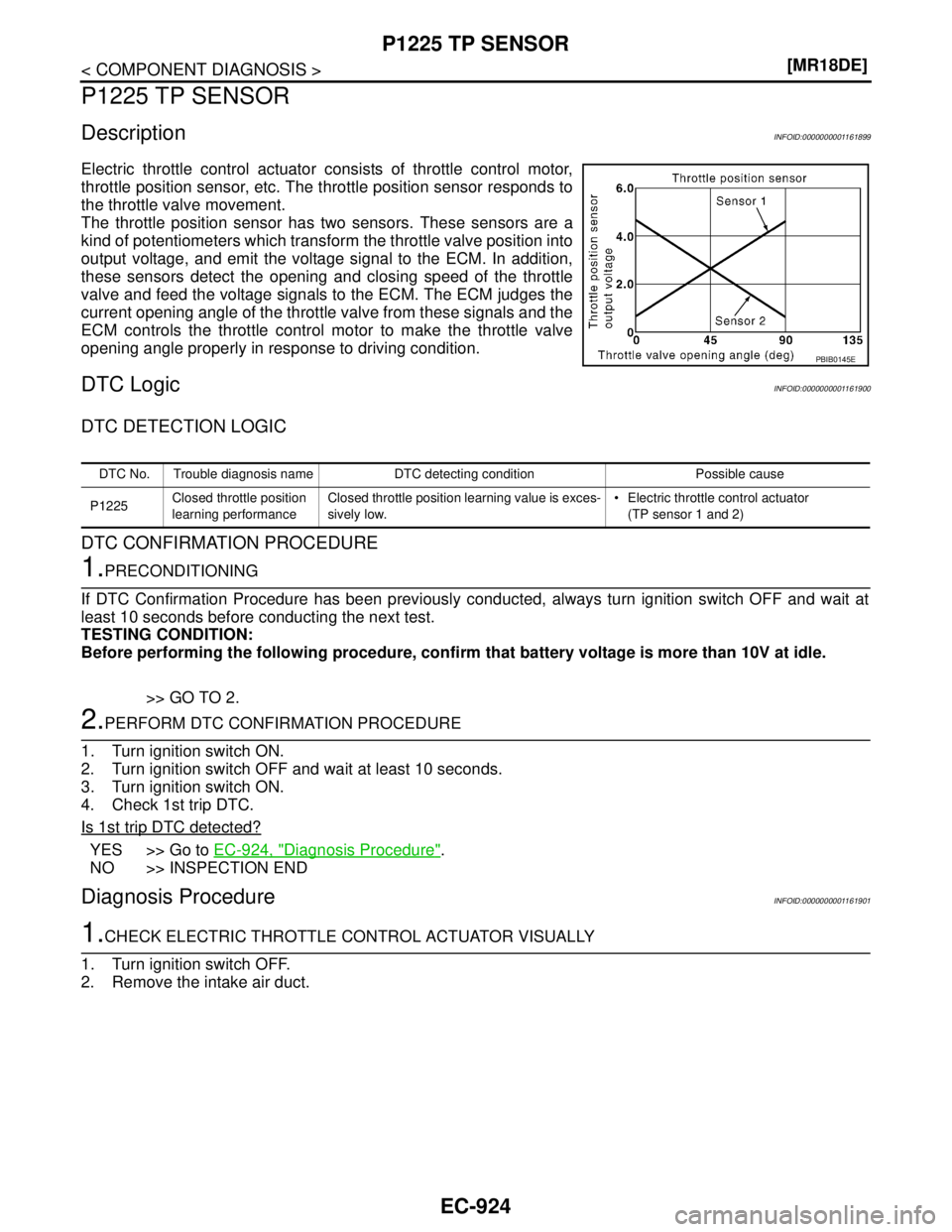

EC-924
< COMPONENT DIAGNOSIS >[MR18DE]
P1225 TP SENSOR
P1225 TP SENSOR
DescriptionINFOID:0000000001161899
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometers which transform the throttle valve position into
output voltage, and emit the voltage signal to the ECM. In addition,
these sensors detect the opening and closing speed of the throttle
valve and feed the voltage signals to the ECM. The ECM judges the
current opening angle of the throttle valve from these signals and the
ECM controls the throttle control motor to make the throttle valve
opening angle properly in response to driving condition.
DTC LogicINFOID:0000000001161900
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-924, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001161901
1.CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1225Closed throttle position
learning performanceClosed throttle position learning value is exces-
sively low. Electric throttle control actuator
(TP sensor 1 and 2)

P1225 TP SENSOR
EC-925
< COMPONENT DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
3. Check if foreign matter is caught between the throttle valve (1)
and the housing.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Remove the foreign matter and clean the electric throttle
control actuator inside.
2.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace electric throttle control actuator.
2. Go to EC-925, "
Special Repair Requirement".
>> INSPECTION END
Special Repair RequirementINFOID:0000000001161902
1.PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Refer to EC-694, "
THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"
>> GO TO 2.
2.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-694, "
IDLE AIR VOLUME LEARNING : Special Repair Requirement"
>> END
2. Electric throttle control actuator
JMBIA0447ZZ

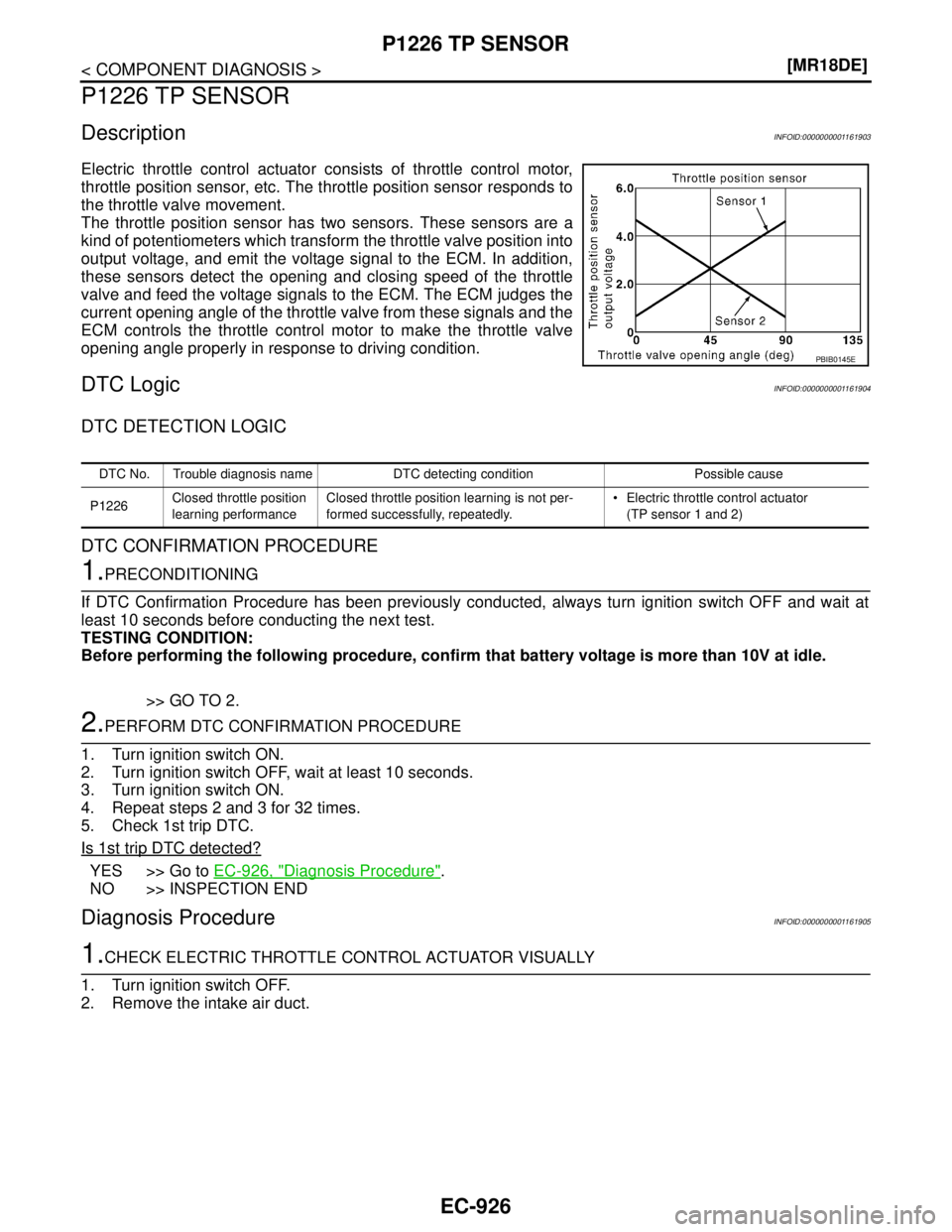

EC-926
< COMPONENT DIAGNOSIS >[MR18DE]
P1226 TP SENSOR
P1226 TP SENSOR
DescriptionINFOID:0000000001161903
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometers which transform the throttle valve position into
output voltage, and emit the voltage signal to the ECM. In addition,
these sensors detect the opening and closing speed of the throttle
valve and feed the voltage signals to the ECM. The ECM judges the
current opening angle of the throttle valve from these signals and the
ECM controls the throttle control motor to make the throttle valve
opening angle properly in response to driving condition.
DTC LogicINFOID:0000000001161904
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Turn ignition switch OFF, wait at least 10 seconds.
3. Turn ignition switch ON.
4. Repeat steps 2 and 3 for 32 times.
5. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-926, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001161905
1.CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1226Closed throttle position
learning performanceClosed throttle position learning is not per-
formed successfully, repeatedly. Electric throttle control actuator
(TP sensor 1 and 2)

P1226 TP SENSOR

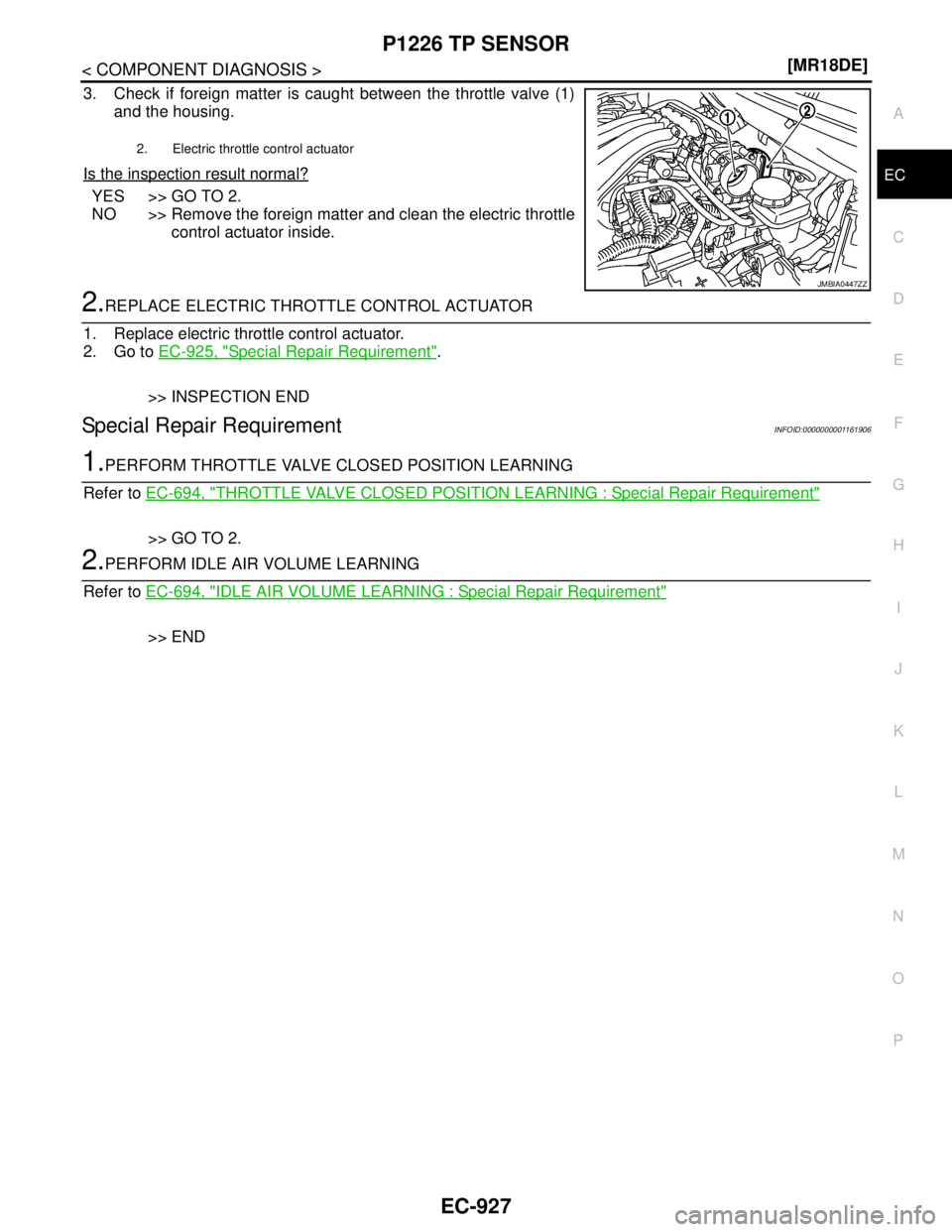

EC-927
< COMPONENT DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
3. Check if foreign matter is caught between the throttle valve (1)
and the housing.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Remove the foreign matter and clean the electric throttle
control actuator inside.
2.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace electric throttle control actuator.
2. Go to EC-925, "
Special Repair Requirement".
>> INSPECTION END
Special Repair RequirementINFOID:0000000001161906
1.PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Refer to EC-694, "
THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"
>> GO TO 2.
2.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-694, "
IDLE AIR VOLUME LEARNING : Special Repair Requirement"
>> END
2. Electric throttle control actuator
JMBIA0447ZZ

EC-928
< COMPONENT DIAGNOSIS >[MR18DE]
P1229 SENSOR POWER SUPPLY
P1229 SENSOR POWER SUPPLY
DTC LogicINFOID:0000000001161907
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and let it idle for 1 second.
2. Check DTC.
Is DTC detected?
YES >> Go to EC-928, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001161908
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connection E15. Refer to Ground Inspection in GI-58, "
Circuit Inspection".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK ACCELERATOR PEDAL POSITION SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness connector.
2. Turn ignition switch ON.
3. Check the voltage between APP sensor harness connector and ground.
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 3.
3.CHECK SENSOR POWER SUPPLY CIRCUITS
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P1229Sensor power supply
circuit shortECM detects a voltage of power source for
sensor is excessively low or high. Harness or connectors
(APP sensor 1 circuit is shorted.)
(TP sensor circuit is shorted.)
[Camshaft position sensor (PHASE) circuit is
shorted.]
 Accelerator pedal position sensor 1 (APPS 1)
 Throttle position sensor
 Camshaft position sensor (PHASE)
APP sensor
Ground Voltage
Connector Terminal
E12 (LHD models)
M204 (RHD models)4 Ground Approx. 5V

P1229 SENSOR POWER SUPPLY
EC-929
< COMPONENT DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
Check harness for short to power and short to ground, between the following terminals.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Repair short to ground or short to power in harness or connectors.
4.CHECK COMSHAFT PSITION SENSOR
Refer to EC-868, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Replace malfunctioning component.
5.CHECK TP SENSOR
Refer to EC-958, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 8.
6.REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace electric throttle control actuator.
2. Go to EC-958, "
Component Inspection".
>> INSPECTION END
7.CHECK APP SENSOR
Refer to EC-950, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 9.
NO >> GO TO 8.
8.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Go to EC-693, "
ACCELERATOR PEDAL RELEASED POSITION LEARNING : Special Repair Require-
ment".
>> INSPECTION END
9.CHECK INTERMITTENT INCIDENT
Refer to GI-55, "
Intermittent Incident".
>> INSPECTION END
ECM Sensor
Connector Terminal Item Connector Terminal
F1172 Electric throttle control actuator F7 2
78 CMP sensor (PHASE) F21 1
E16 106 APP sensorE12 (LHD models)
M204 (RHD models)4

EC-930
< COMPONENT DIAGNOSIS >[MR18DE]
P1564 ASCD STEERING SWITCH
P1564 ASCD STEERING SWITCH
DescriptionINFOID:0000000001161909
ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation
of switch, and determines which button is operated.
Refer to EC-728, "
System Description" for the ASCD function.
DTC LogicINFOID:0000000001161910
DTC DETECTION LOGIC
NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to
EC-880, "
DTC Logic".
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Wait at least 10 seconds.
3. Press MAIN switch for at least 10 seconds, then release it and wait at least 10 seconds.
4. Press CANCEL switch for at least 10 seconds, then release it and wait at least 10 seconds.
5. Press RESUME/ACCELERATE switch for at least 10 seconds, then release it and wait at least 10 sec-
onds.
6. Press SET/COAST switch for at least 10 seconds, then release it and wait at least 10 seconds.
7. Check DTC.
Is DTC detected?
YES >> Go to EC-930, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000001161911
1.CHECK GROUND CONNECTION
1. Turn ignition switch OFF.
2. Check ground connection E15. Refer to Ground Inspection in GI-58, "
Circuit Inspection".
Is the inspection result normal?
YS >> GO TO 2.
NO >> Repair or replace ground connection.
2.CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-III
1. Turn ignition switch ON.
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P1564 ASCD steering switch An excessively high voltage signal from the
ASCD steering switch is sent to ECM.
 ECM detects that input signal from the
ASCD steering switch is out of the specified
range.
 ECM detects that the ASCD steering switch
is stuck ON. Harness or connectors
(The switch circuit is open or shorted.)
ASCD steering switch
ECM

P1564 ASCD STEERING SWITCH
EC-931
< COMPONENT DIAGNOSIS >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
N
P O
2. Select “MAIN SW”, “CANCEL SW”, “RESUME/ACC SW” and “SET SW” in “DATA MONITOR” mode with
CONSULT-III.
3. Check each item indication under the following conditions.
Without CONSULT-III
1. Turn ignition switch ON.
2. Check the voltage between ECM harness connector terminals as follows.
Is the inspection result normal?
YES >> GO TO 8.
NO >> GO TO 3.
3.CHECK ASCD STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect combination switch harness connector M30.
4. Check the continuity between combination switch and ECM harness connector.
5. Also check harness for short to ground and short to power.
Is the inspection result normal?
YES >> GO TO 5.
NO >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors M69, E7
 Combination switch (spiral cable)
 Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK ASCD STEERING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
Monitor item Condition Indication
MAIN SW MAIN switchPressed ON
Released OFF
CANCEL SW CANCEL switchPressed ON
Released OFF
RESUME/ACC SW RESUME/ACCELERATE switchPressed ON
Released OFF
SET SW SET/COAST switchPressed ON
Released OFF
(+) (–)
Condition Voltage
Connector Terminal Connector Terminal
E1694
(ASCD steering switch signal)E16 95MAIN switch: Pressed Approx. 0V
CANSEL switch: Pressed Approx. 1V
SET/COAST switch: Pressed Approx. 2V
RESUME/ACCELERATE switch: Pressed Approx. 3V
All ASCD steering switches: Released Approx. 4V
Combination switch ECM
Continuity
Terminal Connector Terminal
15 E16 95 Existed
