NISSAN TIIDA 2007 Service Repair Manual

EM-144
< ON-VEHICLE MAINTENANCE >[MR18DE]
AIR CLEANER FILTER
AIR CLEANER FILTER
Removal and InstallationINFOID:0000000001528960
REMOVAL

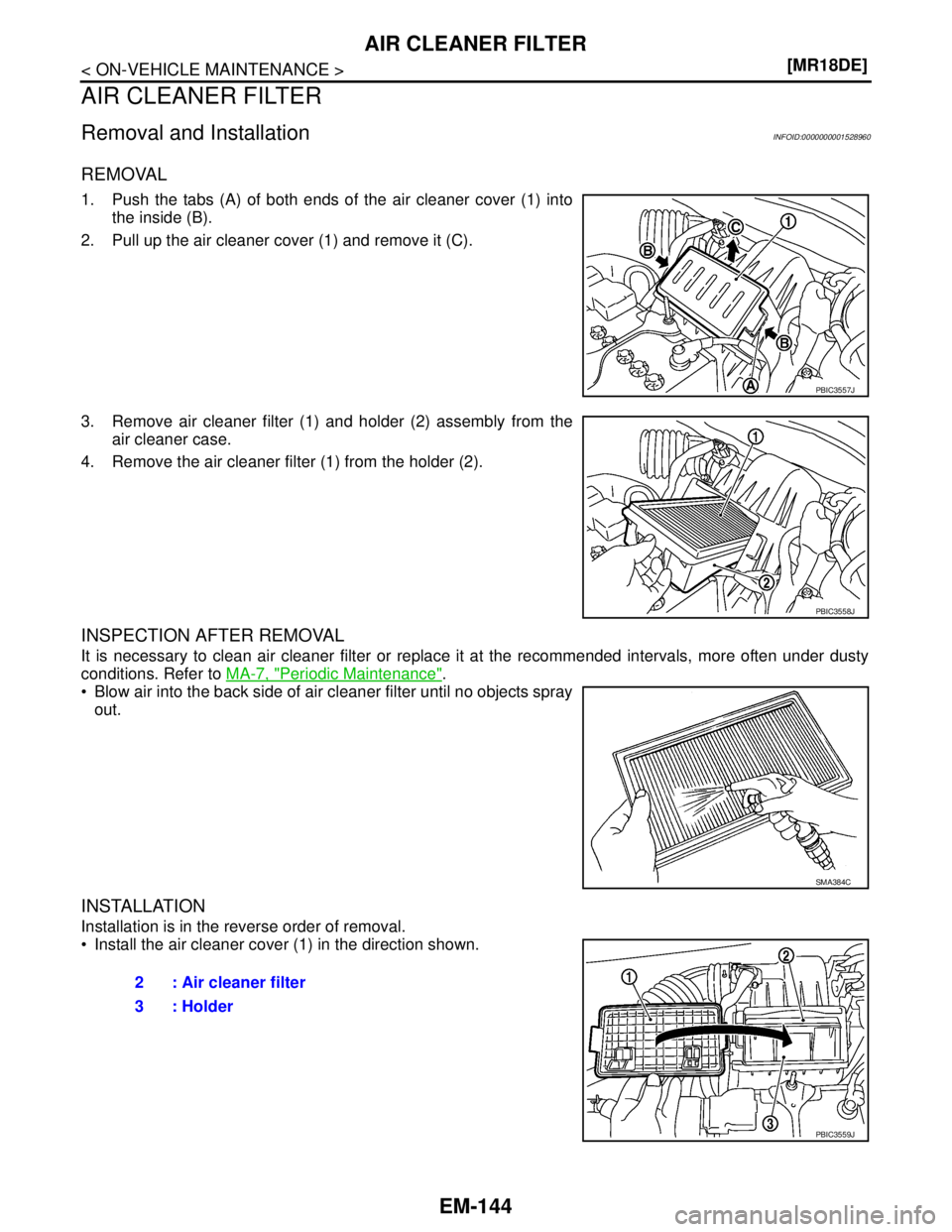

1. Push the tabs (A) of both ends of the air cleaner cover (1) into
the inside (B).
2. Pull up the air cleaner cover (1) and remove it (C).
3. Remove air cleaner filter (1) and holder (2) assembly from the
air cleaner case.
4. Remove the air cleaner filter (1) from the holder (2).
INSPECTION AFTER REMOVAL
It is necessary to clean air cleaner filter or replace it at the recommended intervals, more often under dusty
conditions. Refer to MA-7, "
Periodic Maintenance".
 Blow air into the back side of air cleaner filter until no objects spray
out.
INSTALLATION
Installation is in the reverse order of removal.
 Install the air cleaner cover (1) in the direction shown.
PBIC3557J
PBIC3558J
SMA384C
2 : Air cleaner filter
3 : Holder
PBIC3559J

SPARK PLUG
EM-145
< ON-VEHICLE MAINTENANCE >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
SPARK PLUG
ComponentINFOID:0000000001346458
Removal and InstallationINFOID:0000000001346459
REMOVAL
1. Remove intake manifold. Refer to EM-156, "Removal and Installation".
2. Remove ignition coil.
CAUTION:
 Handle it carefully and avoid impacts.
 Never disassemble.

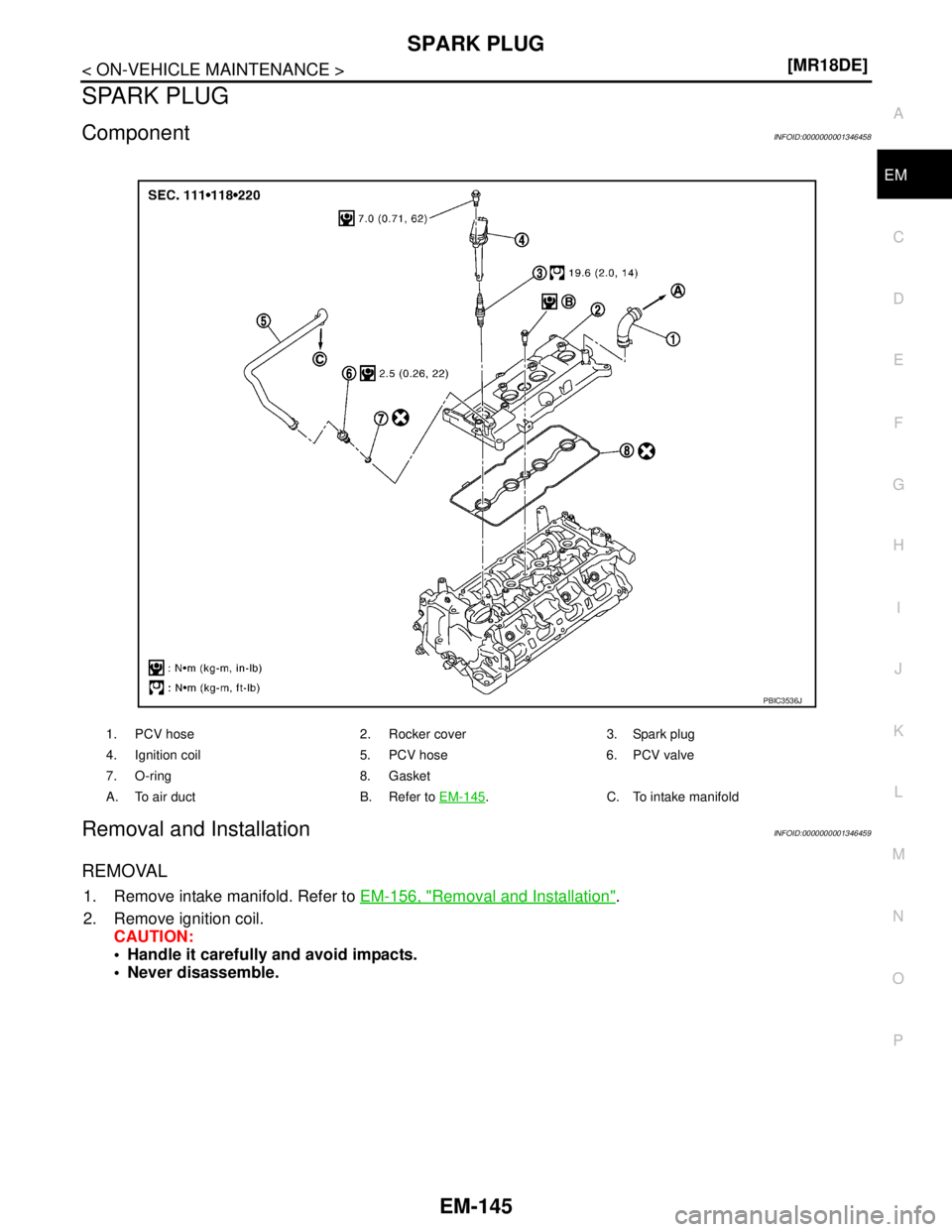

1. PCV hose 2. Rocker cover 3. Spark plug
4. Ignition coil 5. PCV hose 6. PCV valve
7. O-ring 8. Gasket
A. To air duct B. Refer to EM-145
. C. To intake manifold
PBIC3536J

EM-146
< ON-VEHICLE MAINTENANCE >[MR18DE]
SPARK PLUG

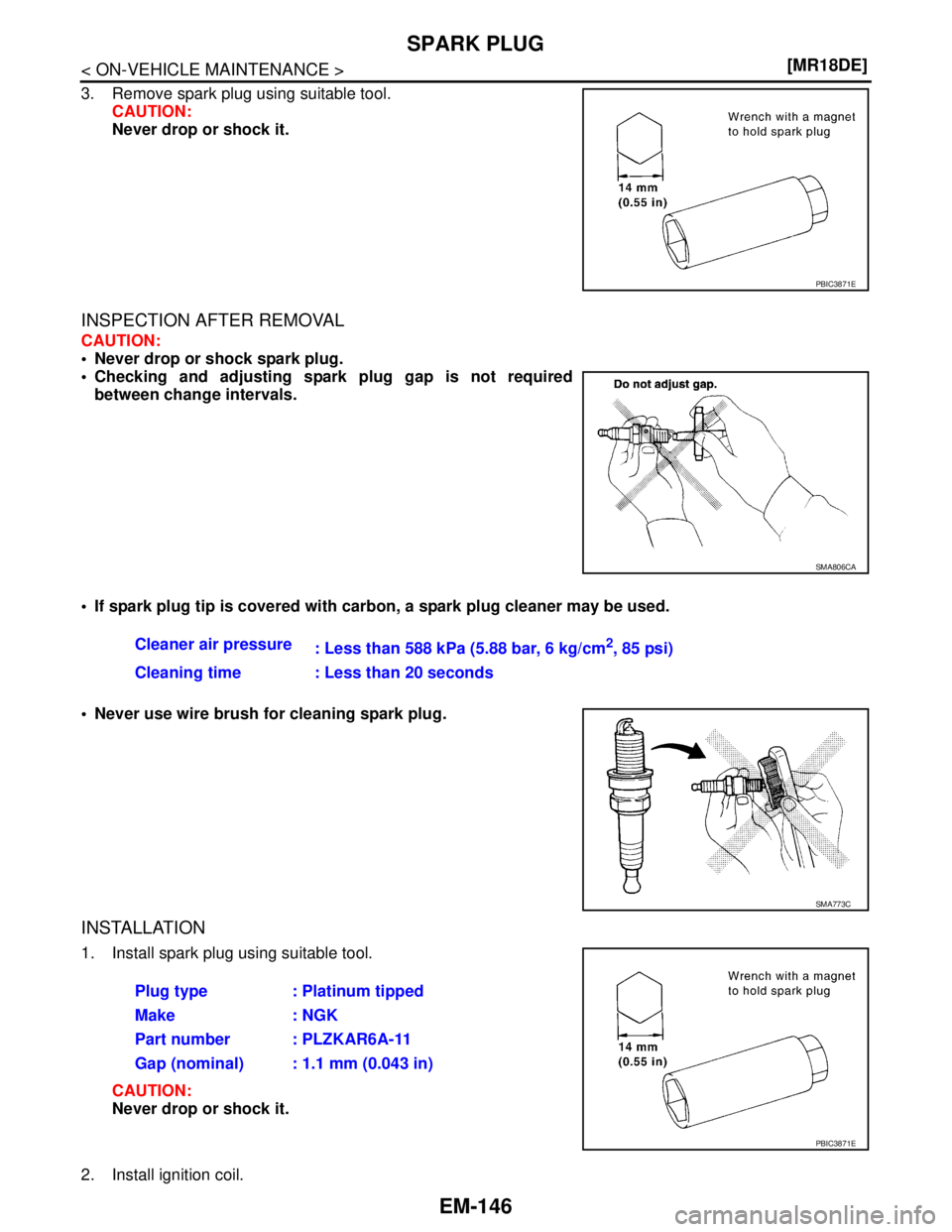

3. Remove spark plug using suitable tool.
CAUTION:
Never drop or shock it.
INSPECTION AFTER REMOVAL
CAUTION:
 Never drop or shock spark plug.
 Checking and adjusting spark plug gap is not required
between change intervals.
 If spark plug tip is covered with carbon, a spark plug cleaner may be used.
 Never use wire brush for cleaning spark plug.
INSTALLATION
1. Install spark plug using suitable tool.
CAUTION:
Never drop or shock it.
2. Install ignition coil.
PBIC3871E
SMA806CA
Cleaner air pressure
: Less than 588 kPa (5.88 bar, 6 kg/cm2, 85 psi)
Cleaning time : Less than 20 seconds
SMA773C
Plug type : Platinum tipped
Make : NGK
Part number : PLZKAR6A-11
Gap (nominal) : 1.1 mm (0.043 in)
PBIC3871E

SPARK PLUG
EM-147
< ON-VEHICLE MAINTENANCE >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
CAUTION:
 Handle it carefully and avoid impacts.
 Never disassemble.
3. Install intake manifold. Refer to EM-156, "
Removal and Installation".

EM-148
< ON-VEHICLE MAINTENANCE >[MR18DE]
CAMSHAFT VALVE CLEARANCE
CAMSHAFT VALVE CLEARANCE
Valve ClearanceINFOID:0000000001337799
INSPECTION
Perform inspection as follows after removal, installation or replacement of camshaft or valve-related parts, or if
there is unusual engine conditions regarding valve clearance.
1. Remove rocker cover. Refer to EM-173, "
Removal and Installation".
2. Measure the valve clearance with the following procedure:
a. Set No. 1 cylinder at TDC of its compression stroke.

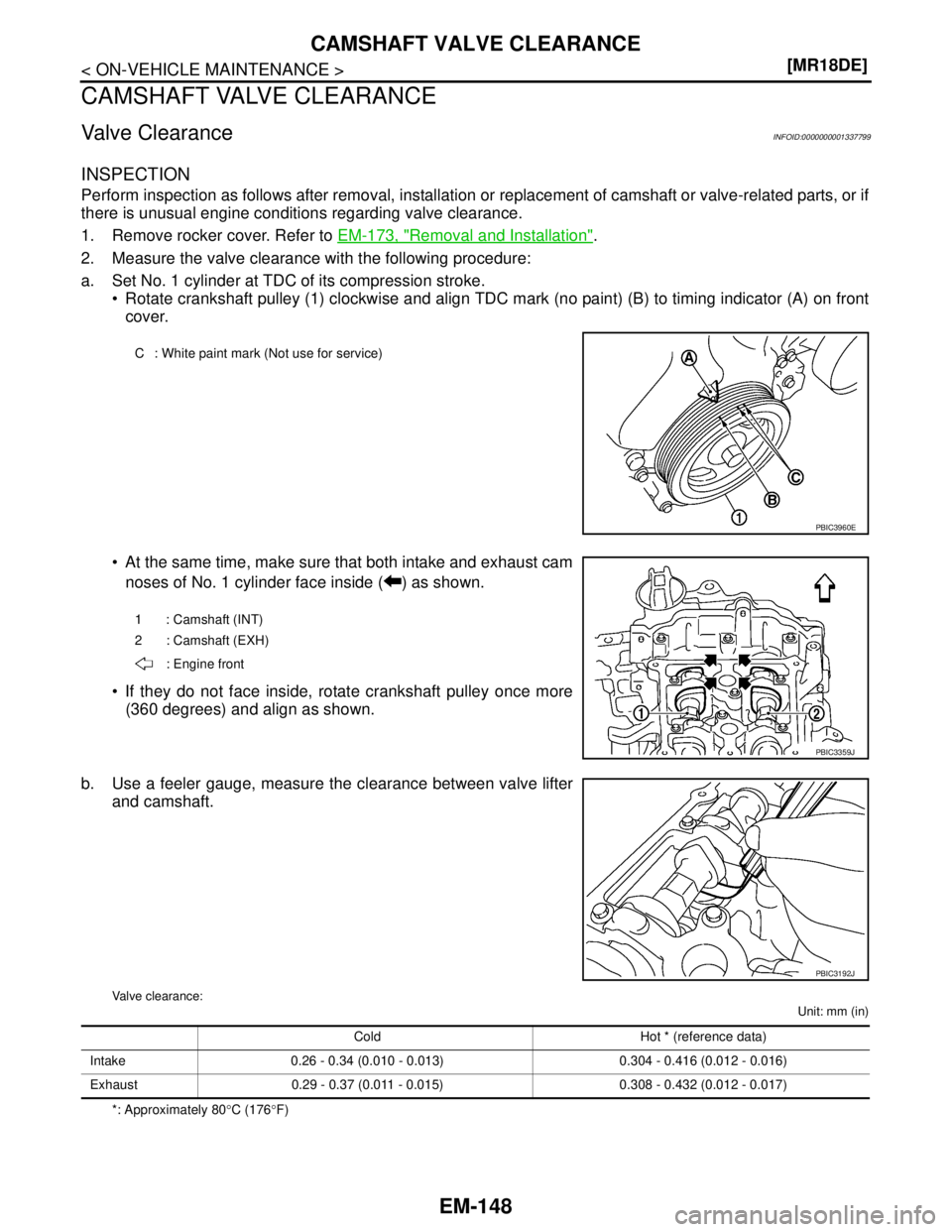

 Rotate crankshaft pulley (1) clockwise and align TDC mark (no paint) (B) to timing indicator (A) on front
cover.
 At the same time, make sure that both intake and exhaust cam
noses of No. 1 cylinder face inside ( ) as shown.
 If they do not face inside, rotate crankshaft pulley once more
(360 degrees) and align as shown.
b. Use a feeler gauge, measure the clearance between valve lifter
and camshaft.
Valve clearance:
Unit: mm (in)
*: Approximately 80°C (176°F) C : White paint mark (Not use for service)
PBIC3960E
1 : Camshaft (INT)
2 : Camshaft (EXH)
: Engine front
PBIC3359J
PBIC3192J
Cold Hot * (reference data)
Intake 0.26 - 0.34 (0.010 - 0.013) 0.304 - 0.416 (0.012 - 0.016)
Exhaust 0.29 - 0.37 (0.011 - 0.015) 0.308 - 0.432 (0.012 - 0.017)

CAMSHAFT VALVE CLEARANCE
EM-149
< ON-VEHICLE MAINTENANCE >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O

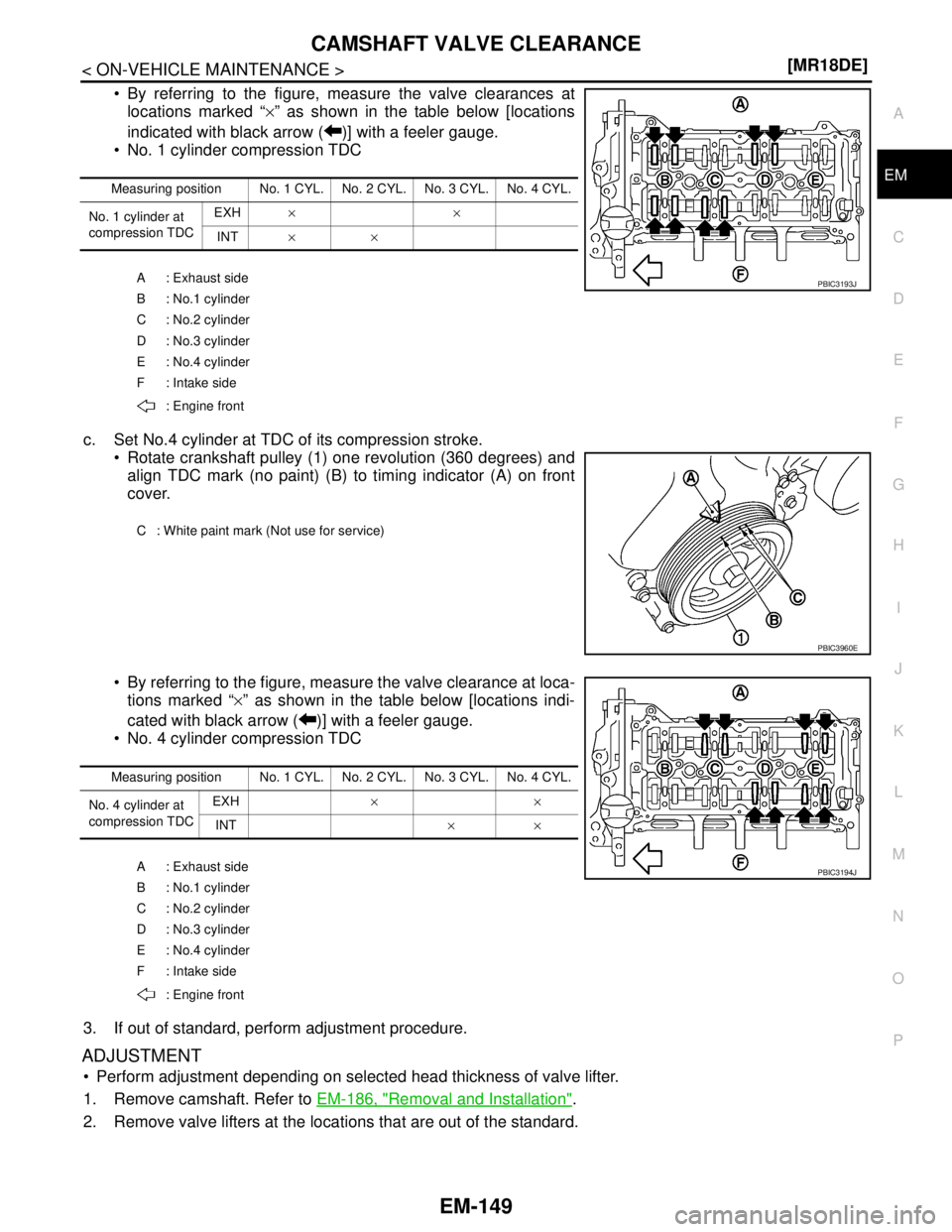

 By referring to the figure, measure the valve clearances at
locations marked “×” as shown in the table below [locations
indicated with black arrow ( )] with a feeler gauge.
 No. 1 cylinder compression TDC
c. Set No.4 cylinder at TDC of its compression stroke.
 Rotate crankshaft pulley (1) one revolution (360 degrees) and
align TDC mark (no paint) (B) to timing indicator (A) on front
cover.
 By referring to the figure, measure the valve clearance at loca-
tions marked “×” as shown in the table below [locations indi-
cated with black arrow ( )] with a feeler gauge.
 No. 4 cylinder compression TDC
3. If out of standard, perform adjustment procedure.
ADJUSTMENT
 Perform adjustment depending on selected head thickness of valve lifter.
1. Remove camshaft. Refer to EM-186, "
Removal and Installation".
2. Remove valve lifters at the locations that are out of the standard.
Measuring position No. 1 CYL. No. 2 CYL. No. 3 CYL. No. 4 CYL.
No. 1 cylinder at
compression TDCEXH× ×
INT× ×
A : Exhaust side
B : No.1 cylinder
C : No.2 cylinder
D : No.3 cylinder
E : No.4 cylinder
F : Intake side
: Engine front
PBIC3193J
C : White paint mark (Not use for service)
PBIC3960E
Measuring position No. 1 CYL. No. 2 CYL. No. 3 CYL. No. 4 CYL.
No. 4 cylinder at
compression TDCEXH × ×
INT × ×
A : Exhaust side
B : No.1 cylinder
C : No.2 cylinder
D : No.3 cylinder
E : No.4 cylinder
F : Intake side
: Engine front
PBIC3194J

EM-150
< ON-VEHICLE MAINTENANCE >[MR18DE]
CAMSHAFT VALVE CLEARANCE

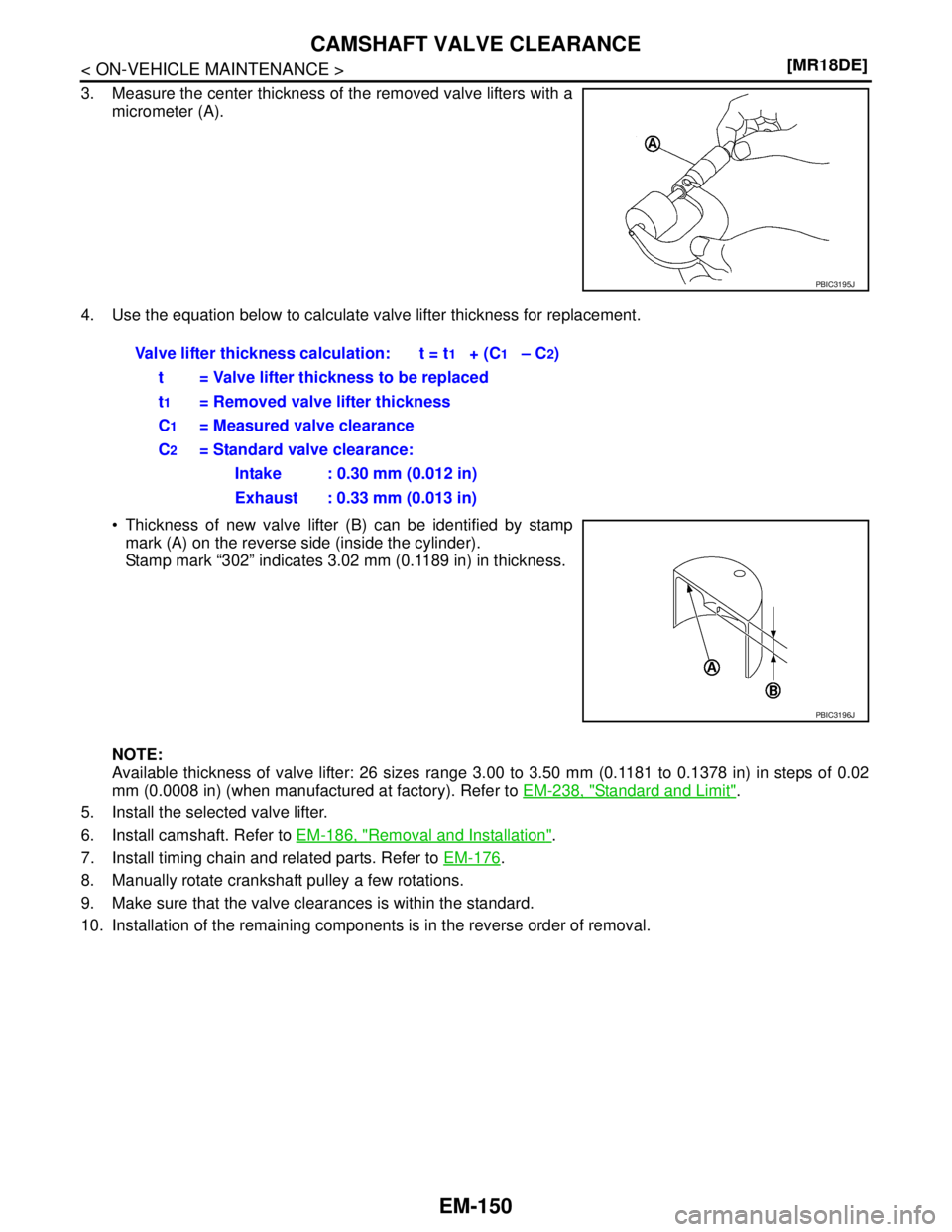

3. Measure the center thickness of the removed valve lifters with a
micrometer (A).
4. Use the equation below to calculate valve lifter thickness for replacement.
 Thickness of new valve lifter (B) can be identified by stamp
mark (A) on the reverse side (inside the cylinder).
Stamp mark “302” indicates 3.02 mm (0.1189 in) in thickness.
NOTE:
Available thickness of valve lifter: 26 sizes range 3.00 to 3.50 mm (0.1181 to 0.1378 in) in steps of 0.02
mm (0.0008 in) (when manufactured at factory). Refer to EM-238, "
Standard and Limit".
5. Install the selected valve lifter.
6. Install camshaft. Refer to EM-186, "
Removal and Installation".
7. Install timing chain and related parts. Refer to EM-176
.
8. Manually rotate crankshaft pulley a few rotations.
9. Make sure that the valve clearances is within the standard.
10. Installation of the remaining components is in the reverse order of removal.
PBIC3195J
Valve lifter thickness calculation: t = t1 + (C1 – C2)
t = Valve lifter thickness to be replaced
t
1 = Removed valve lifter thickness
C
1= Measured valve clearance
C
2= Standard valve clearance:
Intake : 0.30 mm (0.012 in)
Exhaust : 0.33 mm (0.013 in)
PBIC3196J

COMPRESSION PRESSURE
EM-151
< ON-VEHICLE MAINTENANCE >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
COMPRESSION PRESSURE
Checking Compression PressureINFOID:0000000001346452
1. Warm up engine thoroughly. Then, stop it.
2. Release fuel pressure. Refer to EC-1035, "
Inspection".

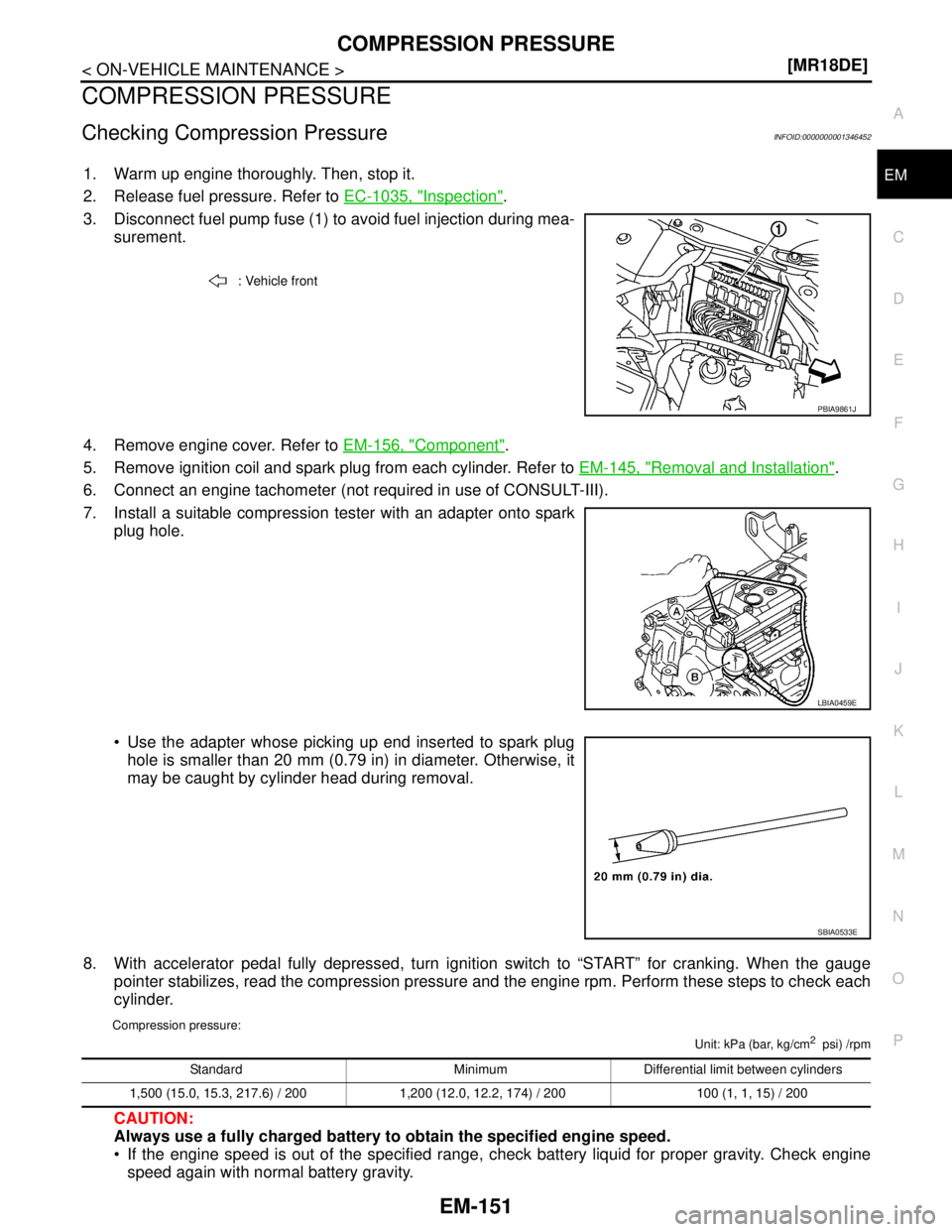

3. Disconnect fuel pump fuse (1) to avoid fuel injection during mea-
surement.
4. Remove engine cover. Refer to EM-156, "
Component".
5. Remove ignition coil and spark plug from each cylinder. Refer to EM-145, "
Removal and Installation".
6. Connect an engine tachometer (not required in use of CONSULT-III).
7. Install a suitable compression tester with an adapter onto spark
plug hole.
 Use the adapter whose picking up end inserted to spark plug
hole is smaller than 20 mm (0.79 in) in diameter. Otherwise, it
may be caught by cylinder head during removal.
8. With accelerator pedal fully depressed, turn ignition switch to “START” for cranking. When the gauge
pointer stabilizes, read the compression pressure and the engine rpm. Perform these steps to check each
cylinder.
Compression pressure:
Unit: kPa (bar, kg/cm2 psi) /rpm
CAUTION:
Always use a fully charged battery to obtain the specified engine speed.
 If the engine speed is out of the specified range, check battery liquid for proper gravity. Check engine
speed again with normal battery gravity.
: Vehicle front
PBIA9861J
LBIA0459E
SBIA0533E
Standard Minimum Differential limit between cylinders
1,500 (15.0, 15.3, 217.6) / 200 1,200 (12.0, 12.2, 174) / 200 100 (1, 1, 15) / 200

EM-152
< ON-VEHICLE MAINTENANCE >[MR18DE]
COMPRESSION PRESSURE
 If compression pressure is below minimum value, check valve clearances and parts associated with
combustion chamber (Valve, valve seat, piston, piston ring, cylinder bore, cylinder head, cylinder head
gasket). After the checking, measure the compression pressure again.
 If some cylinder has low compression pressure, pour small amount of engine oil into the spark plug hole
of the cylinder to re-check it for compression.
- If the added engine oil improves the compression, piston rings may be worn out or damaged. Check pis-
ton rings and replace if necessary.
- If the compression pressure remains at low level despite the addition of engine oil, valves may be mal-
functioning. Check valves for damage. Replace valve or valve seat accordingly.
 If two adjacent cylinders have respectively low compression pressure and their compression remains
low even after the addition of engine oil, cylinder head gasket is leaking. In such a case, replace cylinder
head gasket.
9. After inspection is completed, install removed parts.
10. Start the engine, and confirm that the engine runs smoothly.
11. Perform trouble diagnosis. If DTC appears, erase it. Refer to EC-781, "
Description".

DRIVE BELT AUTO TENSIONER
EM-153
< ON-VEHICLE REPAIR >[MR18DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
N
P O
ON-VEHICLE REPAIR
DRIVE BELT AUTO TENSIONER
ComponentINFOID:0000000001337780
Removal and Installation of Drive Belt Auto TensionerINFOID:0000000001337781
REMOVAL
1. Remove drive belt. Refer to EM-142, "Removal and Installation".
2. Release the fixed drive belt auto-tensioner pulley.
3. Loosen bolt and remove drive belt auto-tensioner.
NOTE:
Use TORX socket (size T50).
4. Remove idler pulley and bracket (models without A/C).
INSTALLATION
Installation is the reverse order of removal.
CAUTION:
 When installing drive belt auto-tensioner, be careful not to interfere with water pump pulley.
 If there is damage greater than peeled paint, replace drive belt auto-tensioner and/or idler pulley.

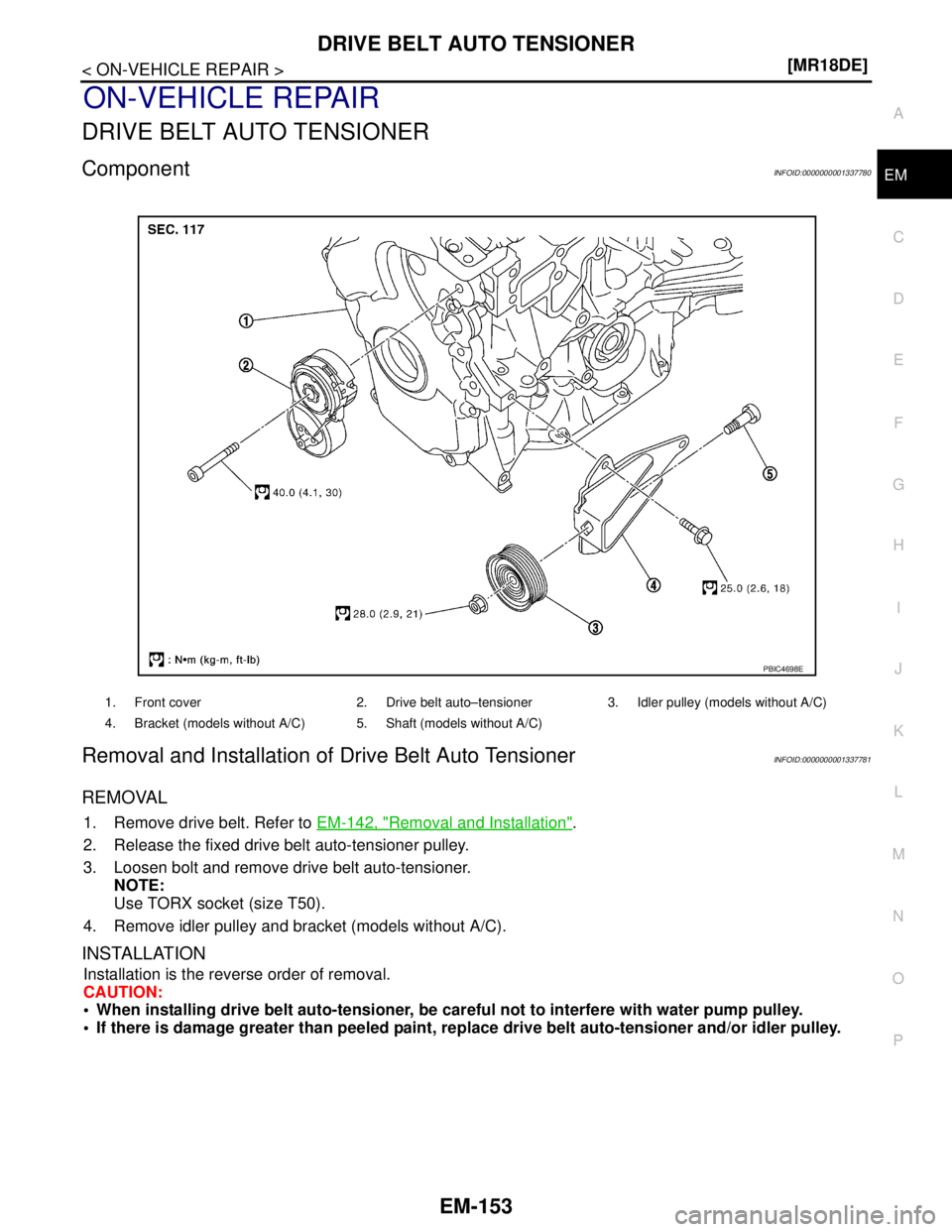

1. Front cover 2. Drive belt auto–tensioner 3. Idler pulley (models without A/C)
4. Bracket (models without A/C) 5. Shaft (models without A/C)
PBIC4698E
