NISSAN TIIDA 2007 Service Repair Manual

PERIODIC MAINTENANCE
MA-11
< ON-VEHICLE MAINTENANCE >
C
D
E
F
G
H
I
J
K
L
MB
MAN
OA
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace, L = Lubricate.
NOTE:
(1) Inspect once per year.
 Maintenance items with “ ” should be performed more frequently according to “Maintenance Under Severe Driving Con-
ditions”.
MAINTENANCE UNDER SEVERE DRIVING CONDITIONS
(Annual Mileage <30,000 Km/year)
The maintenance intervals shown on the preceding pages are for normal operating conditions. If the vehicle is
mainly operated under severe driving conditions as shown below, more frequent maintenance must be per-
formed on the following items as shown in the table.
Severe driving conditions
A — Driving in dusty conditions
B — Driving repeatedly short distances or door to door driving
C — Towing a trailer or caravan
D — Extensive idling or urban driving
E — Driving in extremely adverse weather conditions or in areas where ambient temperatures are either
extremely low or extremely high
F — Driving in high humidity areas or in mountainous areas
G — Driving in areas using salt or other corrosive materials
H — Driving on rough and/or muddy roads or in the desert
I — Driving with frequent use of braking or in mountainous areas
J — Frequent off road use or driving in water
K —Sustained high speed driving
L — For models without Euro-OBD system (For petrol engine models)
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page Perform on a kilometer basis, but on an annu-
al basis when driving less than 20,000 km
(12,000 miles) per yearkm x 1,000
(Miles x
1,000)
Months20
(12)
1240
(24)
2460
(36)
3680
(48)
48100
(60)
60120
(72)
72
Underhood and under vehicle
Headlamp aiming IIIIIIEXL-81
,
Brake & clutch, systems and fluid (For level &
leaks)IIIIIIMA-54
,
MA-50
Brake fluidRRRMA-54
Brake booster vacuum hoses, connections &
check valveIIIBR-22,
BR-17
Manual transaxle gear oil (For leaks) IIIIIIMA-50
Automatic transaxle fluid (For level & leaks)See
NOTE
(1)IIIIIIMA-51(RE4F03B)
MA-52
(RS9F94B)
Steering gear & linkage, axle & suspension
parts, drive shafts & exhaust systemIIIMA-56
,
Wheel alignment (If necessary, rotate & bal-
ance wheels)IIIIIIFSU-6
,
RSU-5
,
Brake pads, rotors & other brake compo-
nentsIIIIIIMA-55
,
Foot brake, parking brake & clutch (For free
play, stroke & operation)IIIIIIBR-6
,
PB-4
,
CL-5
,
Air conditioner filterRRRRRRVTL-33
,
VTL-6
Body corrosionSee
NOTE (1)

MA-12
< ON-VEHICLE MAINTENANCE >
PERIODIC MAINTENANCE
L — Repeated short journeys, cold engine at low temperature (For K9K diesel engine models)
Maintenance operation: Check = Check and correct or replace as necessary.
ENGINE AND EMISSION CONTROL MAINTENANCE (MR ENGINE)
(Annual Mileage >30,000 Km/year)
Driving condition Maintenance itemMainte-
nance
operationMaintenance intervalReference
page
A...........Air cleaner filterHR engine
models
ReplaceEvery 30,000 km
(18,000 miles) or 24
monthsMA-26
MR engine
modelsMA-35
K9K engine
modelsMA-46
ABCD
........Engine oil & engine
oil filter HR engine
models
ReplaceEvery 15,000 km
(9,000 miles) or 12
monthsMA-27
,
MA-27
MR engine
modelsMA-37,
MA-38
K9K engine
modelsEvery 10,000 km
(6,000 miles) or 6
monthsMA-47,
MA-48
...........LHeated oxgen sen-
sor 1MR engine
models
InspectEvery 30,000 km
(18,000 miles) or 24
monthsEC-615EC-903HR engine
models
A B . D . . . H . . . L Timing belt K9K Replace More frequentlyEM-291
.....F......Brake fluidK9K engine
models
ReplaceEvery 20,000 km
(12,000 miles) or 12
monthsMA-54MR and HR en-
gine modelsEvery 15,000 km
(9,000 miles) or 12
monthsMA-54
..C
....H
....Automatic transax-
le fluidHR engine
modelsReplaceEvery 30,000 km
(18,000 miles) or 24
monthsMA-51
(RE4F03B)
MA-52
(RS9F94B)
..C....H....Fuel filter K9K engine
modelsCheck &
drain wa-
terEvery 15,000 km
(9,000 miles) or 12
monthsFL-13
ReplaceEvery 30,000 km
(18,000 miles) or 24
monthsFL-13
......GH....Steering gear &
linkage, axle &
suspension parts,
front drive shafts &
exhaust systemMR and HR en-
gine models
InspectEvery 15,000km
(9,000miles) or 12
monthsST-12
MA-56
K9K engine
modelsST-12
MA-56
A.C...GHI...Brake pads, rotors
& other brake com-
ponentsMR and HR en-
gine models
InspectEvery 15,000km
(9,000miles) or 12
monthsBR-10BR-11
K9K engine
modelsBR-10
BR-11
A
...........Air conditioner fil-
terMR and HR en-
gine models
ReplaceEvery 15,000 km
(9,000 miles) or 12
monthsMA-50,
K9K engine
models

PERIODIC MAINTENANCE
MA-13
< ON-VEHICLE MAINTENANCE >
C
D
E
F
G
H
I
J
K
L
MB
MAN
OA
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace,.
NOTE:
 Maintenance items with “ ” should be performed more frequently according to “Maintenance Under Severe Driving Con-
ditions”.
(1)Periodic maintenance is not required. However, if valve noise increases, check valve clearance.
(2) Replace the drive belt if found damaged.
(3) First replace at 90,000 Km (54,000 miles), then every 60,000 km (36,000 miles). Perform "I" (Checking the mixture ratio and
correcting the mixture ratio if necessary) at the middle of replacement interval.
(4) Fuel filter is maintenance-free. For service procedures, refer to FL section.
(5) Perform only according to “Maintenance Under Severe Driving conditions” for models without Euro-OBD system. For
models with Euro-OBD system, periodic maintenance is not required.
CHASSIS AND BODY MAINTENANCE (MR ENGINE)
(Annual Mileage >30,000 Km/year)
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace, L = Lubricate.
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Refer-
ence page
Perform at number of kilometers (miles) basis only.km x 1,000
(Miles x 1,000)30
(18)60
(36)90
(54)120
(72)
Engine compartment and under vehicle
Intake and exhaust valve clearance See NOTE (1)EM-238
Drive belts See NOTE (2) I I I IMA-31
Engine oil (Use recommended oil.)RRRRMA-36
Engine oil filter (Use genuine NISSAN part or equivalent)RRRRMA-39
Engine coolant (Use genuine NISSAN Engine Coolant or equiv-
alent in its quality.)See NOTE (3) I I R IMA-31
Cooling system I I I ICO-35
Fuel linesI IIIMA-35
Air cleaner filterRRMA-35
Fuel filter (In-tank type) See NOTE (4) —
Spark plugs [Platinum-tipped type] [R]MA-40
EVAP vapor lines (With carbon canister) I I I IMA-41
Heated oxygen sensor 1 See NOTE (5)EC-164
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference page
Perform at number of kilometers (miles) basis only.km x 1,000
(Miles x 1,000)30
(18)60
(36)90
(54)120
(72)
Underhood and under vehicle
Headlamp aiming I I I IEXL-81
,
Brake & clutch, systems and fluid (For level & leaks) I I I IMA-54
,
MA-50
Brake fluidRRRRMA-54
Brake booster vacuum hoses, connections & check
valveIIIIBR-22,
BR-17
Manual transaxle gear oil (For level & leaks) I I I IMA-50
Automatic transaxle fluid (For level & leaks)See
NOTE
(1)IIIIMA-51(RE4F03B)
MA-52
(RS9F94B)
Steering gear & linkage, axle & suspension parts,
front drive shafts & exhaust systemIIIIMA-56
,
Wheel alignment (If necessary, rotate & balance
wheels)IIIIFSU-6
,
RSU-5
,

MA-14
< ON-VEHICLE MAINTENANCE >
PERIODIC MAINTENANCE
NOTE:
(1) Inspect once per year.
 Maintenance items with “ ” should be performed more frequently according to “Maintenance Under Severe Driving Con-
ditions”.
ENGINE AND EMISSION CONTROL MAINTENANCE (HR ENGINE)
(Annual Mileage >30,000 Km/year)
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace,.
NOTE:
 Maintenance items with “ ” should be performed more frequently according to “Maintenance Under Severe Driving Con-
ditions”.
(1)Periodic maintenance is not required. However, if valve noise increases, check valve clearance.
(2) Replace the drive belt if found damaged.
(3) First replace at 90,000 Km (54,000 miles), then every 60,000 km (36,000 miles). Perform "I" (Checking the mixture ratio and
correcting the mixture ratio if necessary) at the middle of replacement interval.
(4) Fuel filter is maintenance-free. For service procedures, refer to FL section.
(5) Perform only according to “Maintenance Under Severe Driving conditions” for models without Euro-OBD system. For
models with Euro-OBD system, periodic maintenance is not required.
CHASSIS AND BODY MAINTENANCE (HR ENGINE)
(Annual Mileage <30,000 Km/year)
Brake pads & other brake componentsIIIIMA-55,
Foot brake, parking brake & clutch (For free play,
stroke & operation)IIIIBR-6
,
PB-4
,
CL-5
,
Air conditioner filterRRRRVTL-33
,
VTL-6
Body corrosionSee
NOTE (1) MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference page
Perform at number of kilometers (miles) basis only.km x 1,000
(Miles x 1,000)30
(18)60
(36)90
(54)120
(72)
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference page
Perform on a kilometer (miles)basis only.km x 1,000
(Miles x 1,000)
Months30
(18)
2460
(36)
4890
(54)
72120
(72)
96
Underhood and under vehicle
Intake and exhaust valve clearance See NOTE (1)EM-125
Drive belt See NOTE (2)IIIIMA-22
Engine oil (Use recommended oil.)RRRRMA-27
Engine oil filter (Use genuine NISSAN part or equiv-
alent)RRRRMA-28
Engine coolant (Use genuine NISSAN Engine Cool-
ant or equivalent in its quality.)See NOTE (3) I I R IMA-23
Cooling system IIIICO-11
Fuel lines IIIIMA-25
Air cleaner filterRRMA-26
Fuel filter (In-tank type) See NOTE (4) —
Spark plugs [Platinum-tipped type] [R]MA-29
EVAP vapor lines (With carbon canister) IIIIMA-30
Heated oxygen sensor 1 See NOTE (5)EC-829

PERIODIC MAINTENANCE
MA-15
< ON-VEHICLE MAINTENANCE >
C
D
E
F
G
H
I
J
K
L
MB
MAN
OA
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace.
NOTE:
 Maintenance items with “ ” should be performed more frequently according to “Maintenance Under Severe Driving Con-
ditions”.
(1) Inspect once per year.
ENGINE AND EMISSION CONTROL MAINTENANCE (K9K ENGINE)
(Annual Mileage >30,000 Km/year)
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace, D = Check filter and drain water
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference page
Perform on a kilometer (miles) basis only.km x 1,000
(Miles x 1,000)
Months30
(18)
2460
(36)
4890
(54)
72120
(72)
96
Underhood and under vehicle
Headlamp aiming IIIIEXL-81
,
Brake & clutch, systems and fluid (For level & leaks) IIIIMA-54
,
MA-50
Brake fluidRRRRMA-54
Brake booster vacuum hoses, connections & check
valveIIIIBR-22,
BR-17
Manual transaxle gear oil (For level & leaks) IIIIMA-50
Automatic transaxle fluid (For level & leaks)See
NOTE
(1)IIIIMA-51(RE4F03B)
MA-52
(RS9F94B)
Steering gear & linkage, axle & suspension parts,
front drive shafts & exhaust systemIIIIMA-56
,
Wheel alignment (If necessary, rotate & balance
wheels)IIIIFSU-6
,
RSU-5
,
Brake pads & other brake componentsIIIIMA-55
,
Foot brake, parking brake & clutch (For free play,
stroke & operation)IIIIBR-6
,
PB-4
,
CL-5
,
Air conditioner filterRRRRVTL-33
,
VTL-6
Body corrosionSee
NOTE (1)
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Refer-
ence page
Perform at number of kilometers (miles) basis only.km x 1,000
(Miles x
1,000)20
(12)40
(24)60
(36)80
(48)100
(60)120
(72)
Engine compartment and under vehicle
Engine oil (Use recommended oil.)RRRRRRMA-47
Engine oil filter (Use recommended oil filter)RRRRRRMA-48
Timing beltSee
NOTE (1)Replace every 120,000 km/60 monthsEM-291
Drive beltSee NOTE
(2)IIIIIRMA-42
Cooling system IIIIIICO-58
Engine coolant (Use genuine Nissan Engine Coolant
or equivalent in its quality.)See
NOTE (3)IRMA-42

MA-16
< ON-VEHICLE MAINTENANCE >
PERIODIC MAINTENANCE
NOTE:
 Maintenance items with “ ” should be performed more frequently according to “Maintenance Under Severe Driving Con-
ditions”.
(1) The replacement interval for the timing belt is the maximum lifespan which should not be exceeded. Replace the timing
belt if it comes into contact with fuel. The frequency of replacement should be adapted depending on vehicle usage. See
“Maintenance Under Severe Driving Conditions”.
(2) Replace every 120,000 km. Replace drive belt if it comes into contact with fuel or damage is found during inspection.
(3) First replace at 100,000 Km (60,000 miles), then every 60,000Km (36,000 miles). After first replacement, perform "I"
(checking the mixture ratio and correcting the mixture ratio if necessary) at the middle of replacement interval.
(4) If valve noise increases, check valve clearance.
CHASSIS AND BODY MAINTENANCE (K9K ENGINE)
(Annual Mileage >30,000 Km/year)
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace, L = Lubricate.
Air cleaner filter RRRMA-46
Intake & exhaust valve clearanceSee
NOTE (4)Inspect every 100,000 kmEM-335
Fuel lines IIIIIIMA-45
Fuel filterDRDRDRFL-13
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Refer-
ence page
Perform at number of kilometers (miles) basis only.km x 1,000
(Miles x
1,000)20
(12)40
(24)60
(36)80
(48)100
(60)120
(72)
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page
Perform at number of kilometers (miles) basis only.km x 1,000
(Miles x
1,000)20
(12)40
(24)60
(36)80
(48)100
(60)120
(72)
Underhood and under vehicle
Headlamp aiming IIIIIIEXL-81
,
Brake & clutch, systems and fluid (For level & leaks) I I I I I IMA-54
,
MA-50
Brake fluidRRRMA-54
Brake booster vacuum hoses, connections & check
valveIIIBR-22,
BR-17
Manual transaxle gear oil (For leaks) I I I I I IMA-50
Automatic transaxle fluid (For level & leaks)See
NOTE
(1)IIIIIIMA-51
(RE4F03B
)
MA-52
(RS9F94B
)
Steering gear & linkage, axle & suspension parts,
drive shafts & exhaust systemIIIMA-56
,
Wheel alignment (If necessary, rotate & balance
wheels)IIIIIIFSU-6
,
RSU-5
,
Brake pads, rotors & other brake componentsIIIIIIMA-55
,
Foot brake, parking brake & clutch (For free play,
stroke & operation)IIIIIIBR-6
,
PB-4
,
CL-5
,
Air conditioner filterRRRRRRVTL-33
,
VTL-6
Body corrosionSee
NOTE (1)

PERIODIC MAINTENANCE
MA-17
< ON-VEHICLE MAINTENANCE >
C
D
E
F
G
H
I
J
K
L
MB
MAN
OA
NOTE:
(1) Inspect once per year.
 Maintenance items with “ ” should be performed more frequently according to “Maintenance Under Severe Driving Con-
ditions”.
MAINTENANCE UNDER SEVERE DRIVING CONDITIONS
(Annual Mileage >30,000 Km/year)
The maintenance intervals shown on the preceding pages are for normal operating conditions. If the vehicle is
mainly operated under severe driving conditions as shown below, more frequent maintenance must be per-
formed on the following items as shown in the table.
Severe driving conditions
A — Driving in dusty conditions
B — Driving repeatedly short distances or door to door driving
C — Towing a trailer or caravan
D — Extensive idling or urban driving
E — Driving in extremely adverse weather conditions or in areas where ambient temperatures are either
extremely low or extremely high
F — Driving in high humidity areas or in mountainous areas
G — Driving in areas using salt or other corrosive materials
H — Driving on rough and/or muddy roads or in the desert
I — Driving with frequent use of braking or in mountainous areas
J — Frequent off road use or driving in water
K —Sustained high speed driving
L — For models without Euro-OBD system (For petrol engine models)
L — Repeated short journeys, cold engine at low temperature (for K9K diesel engine models)
Maintenance operation: Check = Check and correct or replace as necessary.
Driving condition Maintenance itemMainte-
nance
operationMaintenance intervalReference
page
A...........Air cleaner filterHR engine
models
ReplaceEvery 30,000 km
(18,000 miles) MA-26
MR engine
modelsMA-35
K9K engine
modelsMA-46
ABCD
........Engine oil & engine
oil filter HR engine
models
ReplaceEvery 15,000 km
(9,000 miles) MA-27
,
MA-27
MR engine
modelsMA-37,
MA-38
K9K engine
modelsEvery 10,000 km
(6,000 miles) MA-47,
MA-48
...........LHeated oxgen sen-
sor 1MR engine
models
InspectEvery 60,000 km
(36,000 miles) EC-615EC-903HR engine
models
A B . D . . . H . . . L Timing belt K9K Replace More frequentlyEM-291
.....F......Brake fluidK9K engine
models
ReplaceEvery 20,000 km
(12,000 miles) MA-54MR and HR en-
gine modelsEvery 15,000 km
(9,000 miles) MA-54
..C
....H
....Automatic transax-
le fluidHR engine
modelsReplaceEvery 60,000 km
(36,000 miles) MA-51
(RE4F03B)
MA-52
(RS9F94B)

MA-18
< ON-VEHICLE MAINTENANCE >
PERIODIC MAINTENANCE
..C....H....Fuel filter K9K engine
modelsCheck &
drain wa-
terEvery 15,000 km
(9,000 miles) FL-13
ReplaceEvery 30,000 km
(18,000 miles)FL-13
......GH....Steering gear &
linkage, axle &
suspension parts,
front drive shafts &
exhaust systemMR and HR en-
gine models
InspectEvery 30,000km
(18,000miles)ST-12
MA-56
K9K engine
modelsST-12
MA-56
A.C...GHI...Brake pads, rotors
& other brake com-
ponentsMR and HR en-
gine models
InspectEvery 15,000km
(9,000miles) BR-10BR-11
K9K engine
modelsBR-10
BR-11
A
...........Air conditioner fil-
terMR and HR en-
gine models
ReplaceEvery 15,000 km
(9,000 miles)MA-50,
K9K engine
models Driving condition Maintenance itemMainte-
nance
operationMaintenance intervalReference
page

RECOMMENDED FLUIDS AND LUBRICANTS
MA-19
< ON-VEHICLE MAINTENANCE >
C
D
E
F
G
H
I
J
K
L
MB
MAN
OA
RECOMMENDED FLUIDS AND LUBRICANTS
Fluids and LubricantsINFOID:0000000001277599
*1: For further details, see “SAE Viscosity Number”.
*2: Use Genuine NISSAN Engine Coolant or equivalent in its quality, in order to avoid possible aluminum corrosion within the engine
cooling system caused by the use of non-genuine engine coolant.
Note that any repairs for the incidents within the engine cooling system while using non-genuine engine coolant may not be
covered by the warranty even if such incidents occurred during the warranty period.
*3: Contact a NISSAN dealership for more information regarding suitable fluids, including recommended brand(s) of DEXTRON™™
Automatic Transaxle Fluid.
*4: Never mix different types of fluid (DOT 3 and DOT 4).Capacity (Approximate)
Recommended Fluids/Lubricants
LiterImp mea-
sure
Engine oil
Drain and
refillWith oil filter
changeHR engine 4.6 4 qt
 HR and MR engines
Genuine NISSAN engine oil*1
API SL or SM*1
ILSAC grade GF-3 or GF-4*1
ACEA A1/B1, A3/B3, A3/B4, A5/B5,
C2 or C3
*1
 K9K engine
Genuine NISSAN engine oil *1
ACEA A1-B1*1 MR engine 3.4 3 qt
K9K engine 4.4 3-7/8 qt
Without oil
filter changeHR engine 4.4 3-7/8 qt
MR engine 3.2 2-7/8 qt
K9K engine 4.24 3-3/4 qt
Dry engine (engine over-
haul)HR engine 4.8 4-1/4 qt
MR engine 3.9 3-3/8 qt
K9K engine 4.56 4 qt
Cooling system (with res-
ervoir)HR engineM/T models
without A/C5.6 4-7/8 qt
Genuine NISSAN Engine Coolant or
equivalent in its quality*2 M/T models
with A/C6.0 5-1/4 qt
A/T models 5.4 4-3/4 qt
MR engineWithout A/C 4.9 4-5/8 qt
With A/C 5.3 4-3/8 qt
K9K engine 6.0 5-1/4 qt
Reservoir tankHR engineM/T models
without A/C0.7 5/8 qt
M/T models
with A/C1.2 1-1/8 qt
A/T models 0.7 5/8 qt
MR engineWithout A/C 1.2 1-1/8 qt
With A/C 0.7 5/8 qt
K9K engine 1.2 1-1/8 qt
Manual transaxle gear oilJH3 2.6 4-5/8 pt
Genuine NISSAN gear oil Passenger
Car or API GL-4, Viscosity SAE 75W-80
JR5 2.5 4-3/8 pt
Automatic transaxle fluid 7.7 6-3/4 qtGenuine NISSAN ATF Matic D or equiv-
alent*3
Brake and clutch fluid — —Genuine NISSAN brake fluid or equiva-
lent DOT 4 (US FMVSS No. 116)*4
Multi-purpose grease — — NLGI No. 2 (Lithium soap base)

MA-20
< ON-VEHICLE MAINTENANCE >
RECOMMENDED FLUIDS AND LUBRICANTS

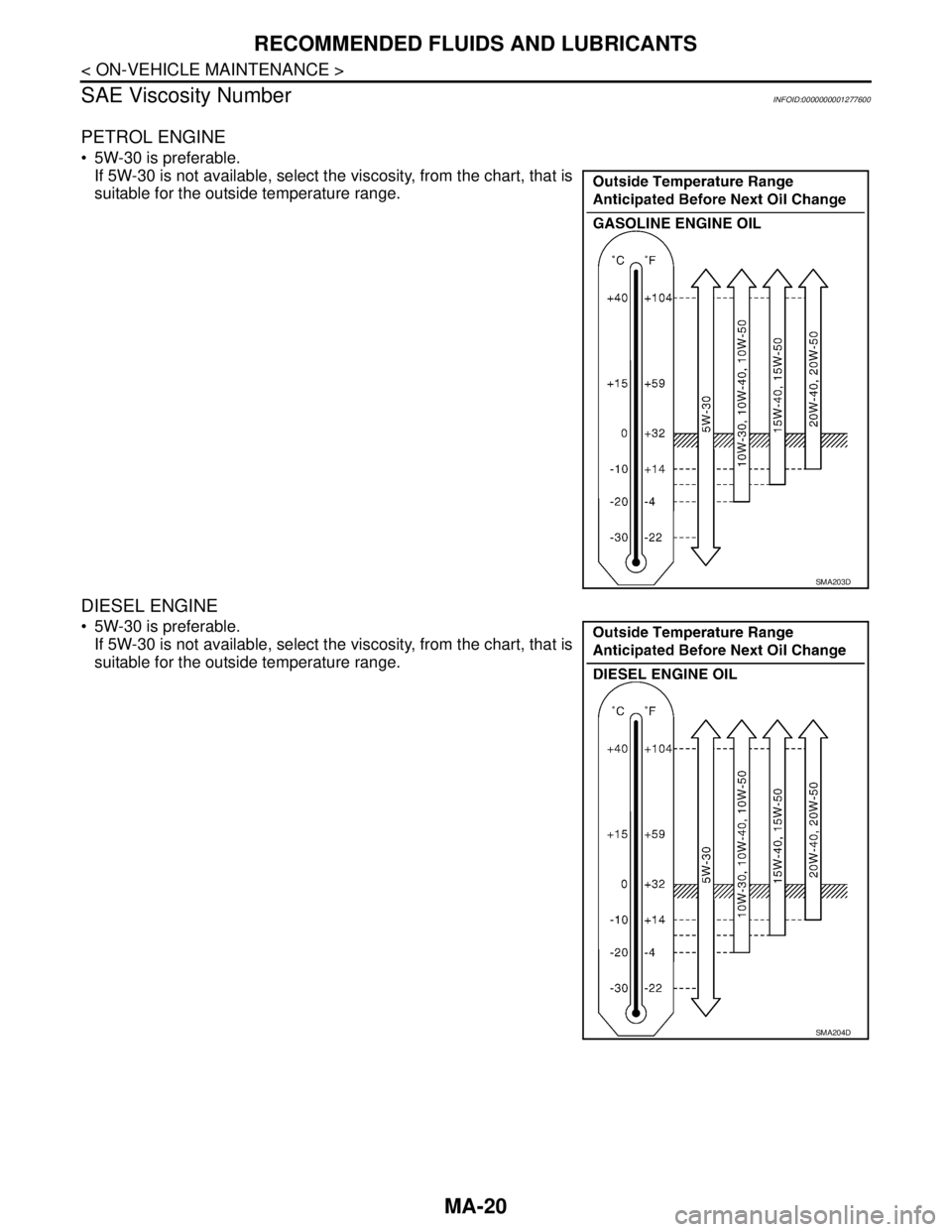

SAE Viscosity Number
INFOID:0000000001277600
PETROL ENGINE
 5W-30 is preferable.
If 5W-30 is not available, select the viscosity, from the chart, that is
suitable for the outside temperature range.
DIESEL ENGINE
 5W-30 is preferable.
If 5W-30 is not available, select the viscosity, from the chart, that is
suitable for the outside temperature range.
SMA203D
SMA204D
