NISSAN TIIDA 2007 Service Repair Manual

LU-24
< PRECAUTION >[K9K]
PRECAUTIONS
4. Apply the gasket without breaks to the specified location with the
specified dimensions.
 If there is a groove for the liquid gasket application, apply the
gasket to the groove.
 As for the bolt holes, normally apply the gasket inside the
holes. If specified, it should be applied outside the holes. Make
sure to read the instruction in this manual.
 Within five minutes of gasket application, install the mating
component.
 If the liquid gasket protrudes, wipe it off immediately.
 Do not retighten after the installation.
 After 30 minutes or more have passed from the installation, fill
the engine oil and coolant.
CAUTION:
If there are instructions in this manual, observe them.
EMA0622D
SEM159F

PREPARATION
LU-25
< PREPARATION >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
LU
N
P O
PREPARATION
PREPARATION
Special Service ToolsINFOID:0000000001381535
Commercial Service ToolsINFOID:0000000001381536
NISSAN tool number
(RENAULT tool number)
Tool nameDescription
KV113C0010
(Mot.1329)
Oil filter wrenchRemoving and installing oil filter
KV113E0020
(Mot.836-05)
Oil pressure gauge setMeasuring oil pressure
Use C, E, F.
MBIB0369E
MBIB0663E
NISSAN tool number
Tool nameDescription
WS39930000
Tube presserPressing the tube of liquid gasket
S-NT052

LU-26
< ON-VEHICLE MAINTENANCE >[K9K]
ENGINE OIL
ON-VEHICLE MAINTENANCE
ENGINE OIL
InspectionINFOID:0000000001381537
OIL LEVEL AND MUDDINESS
 Before starting the engine, check the oil level placing the vehicle
on a level surface. If the engine is already started, stop it and allow
10 minutes before checking.
 Make sure the oil level is within the range shown.
 If it is out of range, adjust it.
 Check the oil for white turbidity or remarkable contamination.
 If the oil becomes turbid and white, it is highly probable that it is
contaminated with coolant. Find the cause and repair.
OIL LEAKAGE
Check for oil leakage around the following area.
Oil pan
 Oil pan drain plug
 Oil pressure switch
 Oil filter bracket
 Vacuum pump
 Oil pump housing
 Mating surface between cylinder block and cylinder head
 Mating surface between cylinder head and rocker cover
 Oil cooler
 Crankshaft oil seals
OIL PRESSURE CHECK
WARNING:
 Be careful not to burn yourself, as the engine oil is hot.
 Oil pressure check should be done in Neutral “N” position.
1. Check the engine oil level.
2. Remove engine undercover using power tool.
3. Disconnect the electrical connector (A) and remove the oil pres-
sure switch (1) to connect the oil pressure gauge [SST:
KV113E0020 (Mot. 836-05)].
4. After warming up the engine, make sure oil pressure corre-
sponding to the engine speed is produced.
5. After checking, install the oil pressure switch (1) as follows.
a. Remove old sealant adhering to the oil pressure switch (1) and
engine.
b. Apply thread sealant.
Use Genuine Liquid Gasket or equivalent.
6. Start engine and check for oil leakage.
MBIB0548E
Idle speed : Refer to LU-33, "EngineOilPressure".
3000 rpm : Refer to LU-33, "
EngineOilPressure".
Oil pressure switch:
: 25 N·m (2.55 kg-m, 18.4 ft-lb)
ALBIA0418ZZ

ENGINE OIL
LU-27
< ON-VEHICLE MAINTENANCE >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
LU
N
P O

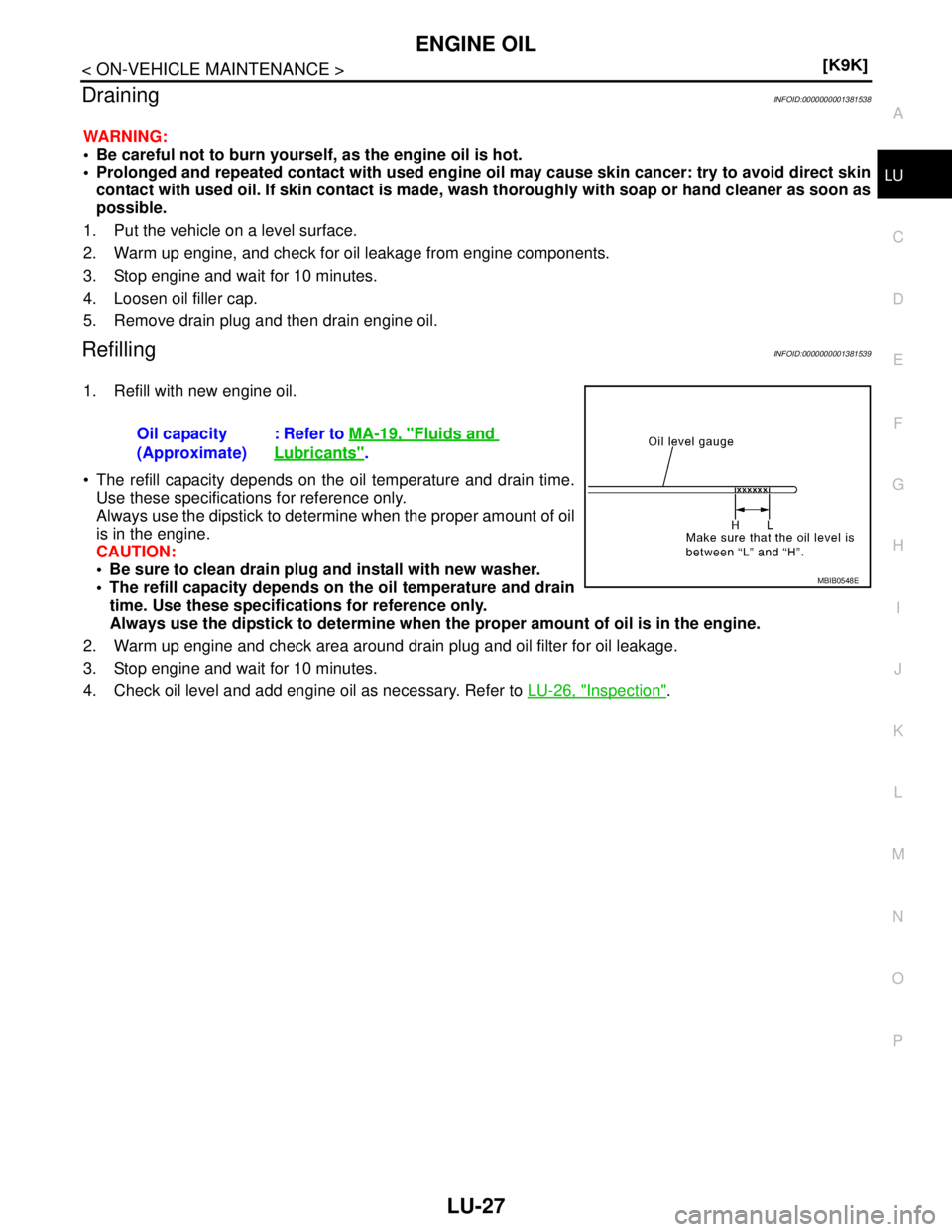

DrainingINFOID:0000000001381538
WARNING:
 Be careful not to burn yourself, as the engine oil is hot.
 Prolonged and repeated contact with used engine oil may cause skin cancer: try to avoid direct skin
contact with used oil. If skin contact is made, wash thoroughly with soap or hand cleaner as soon as
possible.
1. Put the vehicle on a level surface.
2. Warm up engine, and check for oil leakage from engine components.
3. Stop engine and wait for 10 minutes.
4. Loosen oil filler cap.
5. Remove drain plug and then drain engine oil.
RefillingINFOID:0000000001381539
1. Refill with new engine oil.
 The refill capacity depends on the oil temperature and drain time.
Use these specifications for reference only.
Always use the dipstick to determine when the proper amount of oil
is in the engine.
CAUTION:
 Be sure to clean drain plug and install with new washer.
 The refill capacity depends on the oil temperature and drain
time. Use these specifications for reference only.
Always use the dipstick to determine when the proper amount of oil is in the engine.
2. Warm up engine and check area around drain plug and oil filter for oil leakage.
3. Stop engine and wait for 10 minutes.
4. Check oil level and add engine oil as necessary. Refer to LU-26, "
Inspection". Oil capacity
(Approximate): Refer to MA-19, "
Fluids and
Lubricants".
MBIB0548E

LU-28
< ON-VEHICLE MAINTENANCE >[K9K]
OIL FILTER
OIL FILTER
ReplacementINFOID:0000000001381540
1. Remove engine undercover using power tool.
2. Using an oil filter wrench [SST: KV113C0010 (Mot. 1329)],
remove oil filter.
CAUTION:
 Be careful not to get burned when the engine and engine
oil are hot.
 When removing, prepare a shop cloth to absorb any oil
leakage or spillage.
 Do not allow engine oil to adhere to the drive belts.
 Completely wipe off any oil that adhere to the engine and
the vehicle.
3. Remove foreign materials adhering to the oil filter installation
surface.
4. Install oil filter bracket to oil cooler.
CAUTION:
Install oil filter bracket, positioning lug in the hole of oil cooler.
5. Apply engine oil to the oil seal contact surface of the new oil fil-
ter.
6. Install the oil filter until it comes into contact with the oil seal on
the engine bracket.
7. Using an oil filter wrench [SST: KV113C0010 (Mot. 1329)],
tighten oil filter.
8. After warming up the engine, check for engine oil leakage.
9. Check oil level and add engine oil as necessary. Refer to LU-26,
"Inspection". Oil filter : 14 N·m (1.4 kg-m, 10 ft-lb)
MBIB0551E
SMA010

OIL FILTER BRACKET
LU-29
< ON-VEHICLE REPAIR >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
LU
N
P O

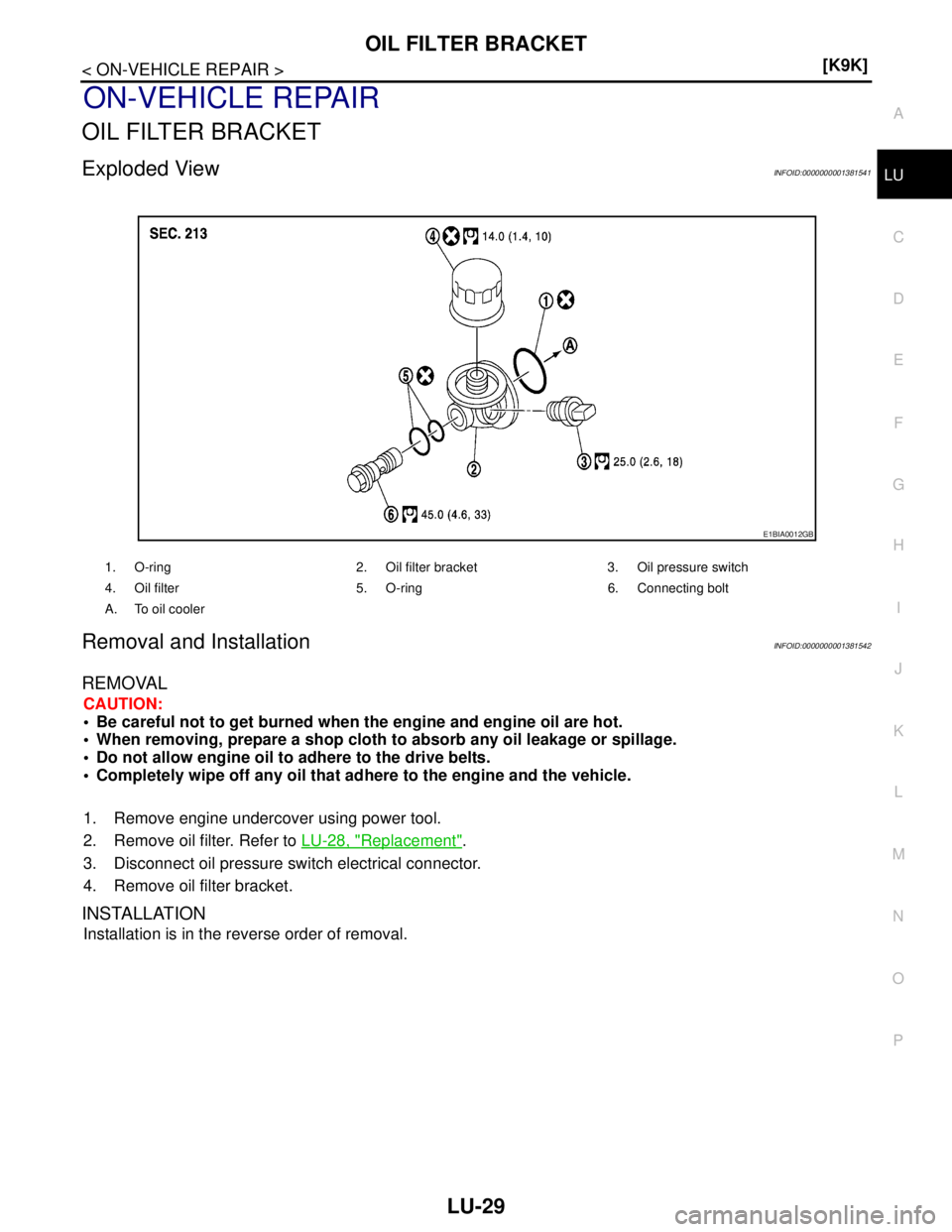

ON-VEHICLE REPAIR
OIL FILTER BRACKET
Exploded ViewINFOID:0000000001381541
Removal and InstallationINFOID:0000000001381542
REMOVAL
CAUTION:
 Be careful not to get burned when the engine and engine oil are hot.
 When removing, prepare a shop cloth to absorb any oil leakage or spillage.
 Do not allow engine oil to adhere to the drive belts.
 Completely wipe off any oil that adhere to the engine and the vehicle.
1. Remove engine undercover using power tool.
2. Remove oil filter. Refer to LU-28, "
Replacement".
3. Disconnect oil pressure switch electrical connector.
4. Remove oil filter bracket.
INSTALLATION
Installation is in the reverse order of removal.
1. O-ring 2. Oil filter bracket 3. Oil pressure switch
4. Oil filter 5. O-ring 6. Connecting bolt
A. To oil cooler
E1BIA0012GB

LU-30
< ON-VEHICLE REPAIR >[K9K]
OIL COOLER
OIL COOLER
Exploded ViewINFOID:0000000001381543
Removal and InstallationINFOID:0000000001381544
CAUTION:
 Be careful not to get burned when the engine and engine oil are hot.
 When removing, prepare a shop cloth to absorb any oil leakage or spillage.
 Completely wipe off any oil that adhere to the engine and the vehicle.
REMOVAL
1. Remove engine undercover using power tool.
2. Drain engine coolant. Refer to CO-58, "
Draining".
CAUTION:
Perform when engine is cold.
3. Remove RH front wheel. Refer to WT-6, "
Rotation".
4. Remove RH fender protector. Refer to EXT-22, "
Removal and Installation".
5. Remove drive belt. Refer to EM-263, "
Removal and Installation".
6. Remove generator and position aside. Refer to CHG-43, "
Removal and Installation".
7. Remove A/C compressor and position aside. Refer to HA-35, "
Removal and Installation of Compressor -
K9K".
8. Remove oil filter and oil filter bracket. Refer to LU-28, "
Replacement".
1. Cylinder block 2. Water pipe 3. O-ring
4. O-ring 5. O-ring 6. Oil cooler
7. Connecting stud 8. O-ring 9. Oil filter bracket
10. Oil pressure switch 11. Oil filter 12. O-ring
13. Connecting bolt
A. To radiator lower hose B. To water pump
E1BIA0011GB

OIL COOLER
LU-31
< ON-VEHICLE REPAIR >[K9K]
C
D
E
F
G
H
I
J
K
L
MA
LU
N
P O
9. Disconnect oil pressure switch electrical connector.
10. Remove the oil cooler connecting stud.
11. Remove oil cooler.
INSTALLATION
Installation is in the reverse order of removal.
 Replace the O-ring of the oil cooler, positioning the lip of the seal behind the lug of the oil cooler.
 Confirm that no foreign objects are adhering to the seal contact areas of the oil cooler and cylinder block.
InspectionINFOID:0000000001381545
INSPECTION AFTER REMOVAL
Check oil cooler for cracks and clogging by blowing through coolant inlet. If necessary, replace oil cooler
assembly.

LU-32
< ON-VEHICLE REPAIR >[K9K]
OIL PUMP
OIL PUMP
Exploded ViewINFOID:0000000001381546
Removal and InstallationINFOID:0000000001381547
REMOVAL
1. Remove the battery negative cable.
2. Remove the engine undercover.
3. Remove the RH front wheel and tire. Refer to WT-6, "
Rotation".
4. Remove RH fender protector. Refer to EXT-22, "
Removal and Installation".
5. Remove front driveshaft assembly RH. Refer to FA X - 11 , "
Removal and Installation (Right Side)".
6. Remove driveshaft center bearing bracket.
7. Remove lower torque rod. Refer to EM-302, "
Exploded View".
8. Remove oil pan. Refer to EM-284, "
Removal and Installation".
9. Remove oil pump drive chain.
10. Remove oil pump assembly.
INSTALLATION
Installation is in the reverse order of removal.
1. Oil pump drive chain 2. Crankshaft sprocket (oil pump drive
chain)3. Oil pump
E1BIA0028GB

SERVICE DATA AND SPECIFICATIONS (SDS)
LU-33
< SERVICE DATA AND SPECIFICATIONS (SDS) [K9K]
C
D
E
F
G
H
I
J
K
L
MA
LU
N
P O
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Periodical Maintenance SpecificationINFOID:0000000001381548
ENGINE OIL CAPACITY (APPROXIMATE)
Unit: ·(Imp qt)
Engine Oil PressureINFOID:0000000001381549
kPa (bar, kg/cm2, psi)
With oil filter change4.55 (4)
Without oil filter change 4.39 (3-7/8)
Dry engine (overhaul)4.71 (4-1/8)
Engine speed Approximate discharge pressure
Idle speed 120 (1.2, 1.22, 17.4)
3,000 rpm 350 (3.5, 5.57, 50.8)
