NISSAN TIIDA 2007 Service Repair Manual

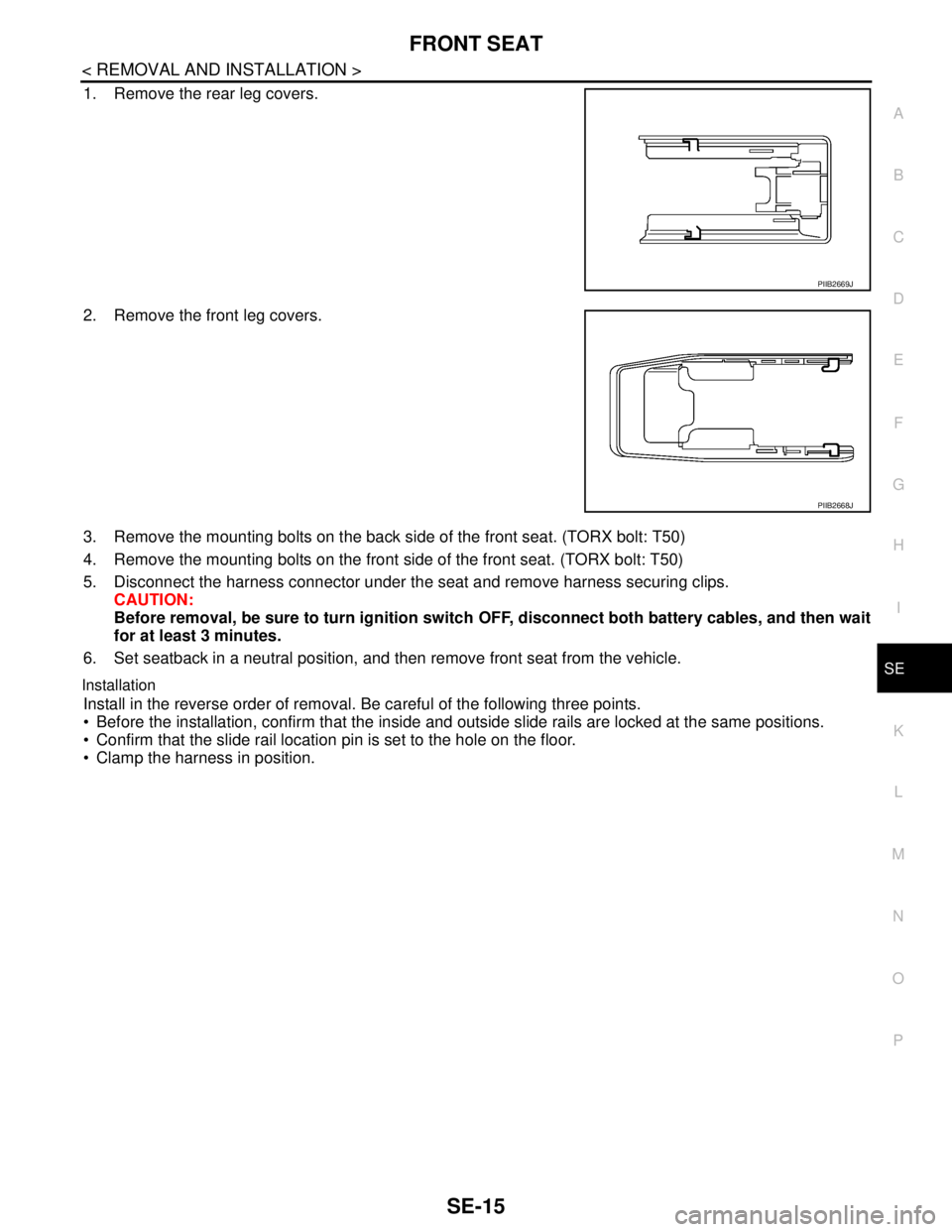

FRONT SEAT
SE-15
< REMOVAL AND INSTALLATION >
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
1. Remove the rear leg covers.
2. Remove the front leg covers.
3. Remove the mounting bolts on the back side of the front seat. (TORX bolt: T50)
4. Remove the mounting bolts on the front side of the front seat. (TORX bolt: T50)
5. Disconnect the harness connector under the seat and remove harness securing clips.
CAUTION:
Before removal, be sure to turn ignition switch OFF, disconnect both battery cables, and then wait
for at least 3 minutes.
6. Set seatback in a neutral position, and then remove front seat from the vehicle.
Installation
Install in the reverse order of removal. Be careful of the following three points.
 Before the installation, confirm that the inside and outside slide rails are locked at the same positions.
 Confirm that the slide rail location pin is set to the hole on the floor.
 Clamp the harness in position.
PIIB2669J
PIIB2668J

SE-16
< REMOVAL AND INSTALLATION >
REAR SEAT
REAR SEAT
Exploded ViewINFOID:0000000001710932
60:40 SPLIT FOLD DOWN SLIDING SEAT
WIIA1305E
1. Headrest 2. Headrest holder (locked) 3. Headrest holder (free)
4. Right seatback frame 5. Right seatback pad and trim 6. Seatback side

REAR SEAT
SE-17
< REMOVAL AND INSTALLATION >
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
60:40 SPLIT FOLD DOWN FIXED SEAT
7. Armrest 8. Armrest insert 9. Outer hinge cover
10. Seatback hinge 11. Inner hinge cover 12. Seatback hinge assembly
13. Seat cushion trim and pad 14. Rear leg base cover 15. Sliding seat frame rail
16. Front leg base cover 17. Seat cushion frame 18. Left seatback frame
19. Left seatback pad and trim
WBIA0849E

SE-18
< REMOVAL AND INSTALLATION >
REAR SEAT
Removal and Installation
INFOID:0000000001710908
CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
60:40 SPLIT FOLD DOWN FIXED SEAT
Removal
1. Pull seat cushion up, and then remove the seat cushion from the
seat cushion hook. Slide the seat cushion forward.
2. Remove the center seatbelt anchor bolt (A) from under the seat
and slide the seatbelt through the seat cushion trim cover.
3. Fold the right seatback and remove the seatback mounting bolts
(A) from the left rear seat back brackets. Remove the seatback
from the vehicle.
1. Seat cushion trim 2. Seat cushion pad 3. Seatback side
4. Armrest 5. Rear seat bushing 6. Armrest hinge cover
7. Headrest 8. Headrest holder (free) 9. Headrest holder (locked)
10. Striker cover 11. Seatback trim 12. Seatback pad
13. Rear seatback lock knob 14. Rear seat lock assembly 15. Seatback frame
16. Rear seatback center bracket 17. Rear seatback side bracket 18. Rear seat striker
19. Seat cushion hook 20. Seatbelt guide
PIIB4085J
WIIA1380E
WIIA1382E

REAR SEAT
SE-19
< REMOVAL AND INSTALLATION >
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
4. Fold the left seatback and remove the seatback mounting bolts
(A) from the left rear seat back brackets. Remove the seatback
from the vehicle.
5. Remove the kicking plate rear inner. Refer to INT-20, "
Removal and Installation" .
6. Remove the bolt under the seatback side.
7. Pull seatback side up, and then remove seatback side.
8. Remove the bolts, and then remove rear seatback center bracket.
9. Remove the bolt, and then remove rear seatback side bracket
from the vehicle.
10. Remove the rear seatback finisher. Refer to INT-20, "
Removal and Installation" .
11. Remove the bolts, and then remove the rear seat striker.
Installation
Installation is the reverse order of removal. Be careful of the following point.
 Seatback assembly and rear seatback side bracket installation procedure.
WIIA1383E
PIIB2482J
PIIB2483J
PIIB2484J

SE-20
< REMOVAL AND INSTALLATION >
REAR SEAT
1. Install the rear seatback side bracket in the vehicle.
2. Temporarily tighten the seatback assembly and rear seatback side bracket.
3. Lift to fold up seatback assembly. Be sure to lock seatback assembly to rear seat striker.
4. Tighten the bolt.
NOTE:
Confirm that side hinge bracket location pin is set to the hole on the seatback backside.
Removal and InstallationINFOID:0000000001710910
CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
60:40 SPLIT FOLD DOWN SLIDING SEAT
Removal
1. Remove the front leg covers. Remove the front anchor bolts.
2. Remove the rear leg covers. Remove the front anchor bolts.
3. Remove the seat assembly.
Installation
Installation is the reverse order of removal.
PIIB2484J
WIIA1307E
WIIA1380E

FRONT SEAT
SE-21
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
ON-VEHICLE REPAIR
FRONT SEAT
Exploded ViewINFOID:0000000001710933
Driver Seat
Passenger Seat

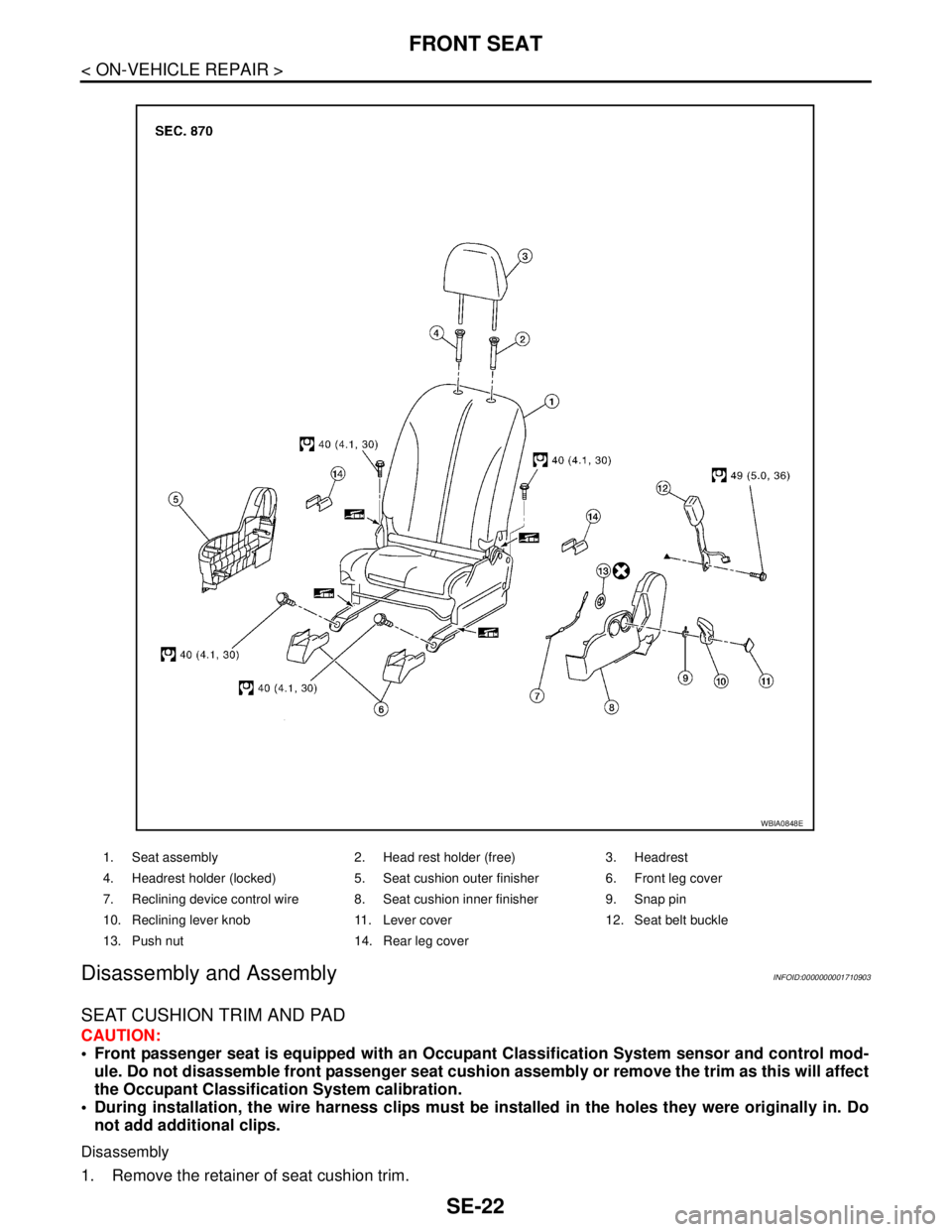

1. Headrest 2. Headrest holder (free) 3. Headrest holder (locked)
4. Seat assembly 5. Seat belt buckle 6. Rear leg cover
7. Push nut 8. Seat cushion inner finisher 9. Snap pin
10. Reclining lever 11. Lever cover 12. Lifter lever
13. Seat cushion finisher B 14. Reclining device control wire 15. Front leg cover
16. Seat cushion lower finisher 17. Seat cushion outer finisher 18. Seat cushion pad
19. Seat cushion trim
WIIA1285E

SE-22
< ON-VEHICLE REPAIR >
FRONT SEAT
Disassembly and Assembly
INFOID:0000000001710903
SEAT CUSHION TRIM AND PAD
CAUTION:
 Front passenger seat is equipped with an Occupant Classification System sensor and control mod-
ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect
the Occupant Classification System calibration.
 During installation, the wire harness clips must be installed in the holes they were originally in. Do
not add additional clips.
Disassembly
1. Remove the retainer of seat cushion trim.
1. Seat assembly 2. Head rest holder (free) 3. Headrest
4. Headrest holder (locked) 5. Seat cushion outer finisher 6. Front leg cover
7. Reclining device control wire 8. Seat cushion inner finisher 9. Snap pin
10. Reclining lever knob 11. Lever cover 12. Seat belt buckle
13. Push nut 14. Rear leg cover
WBIA0848E

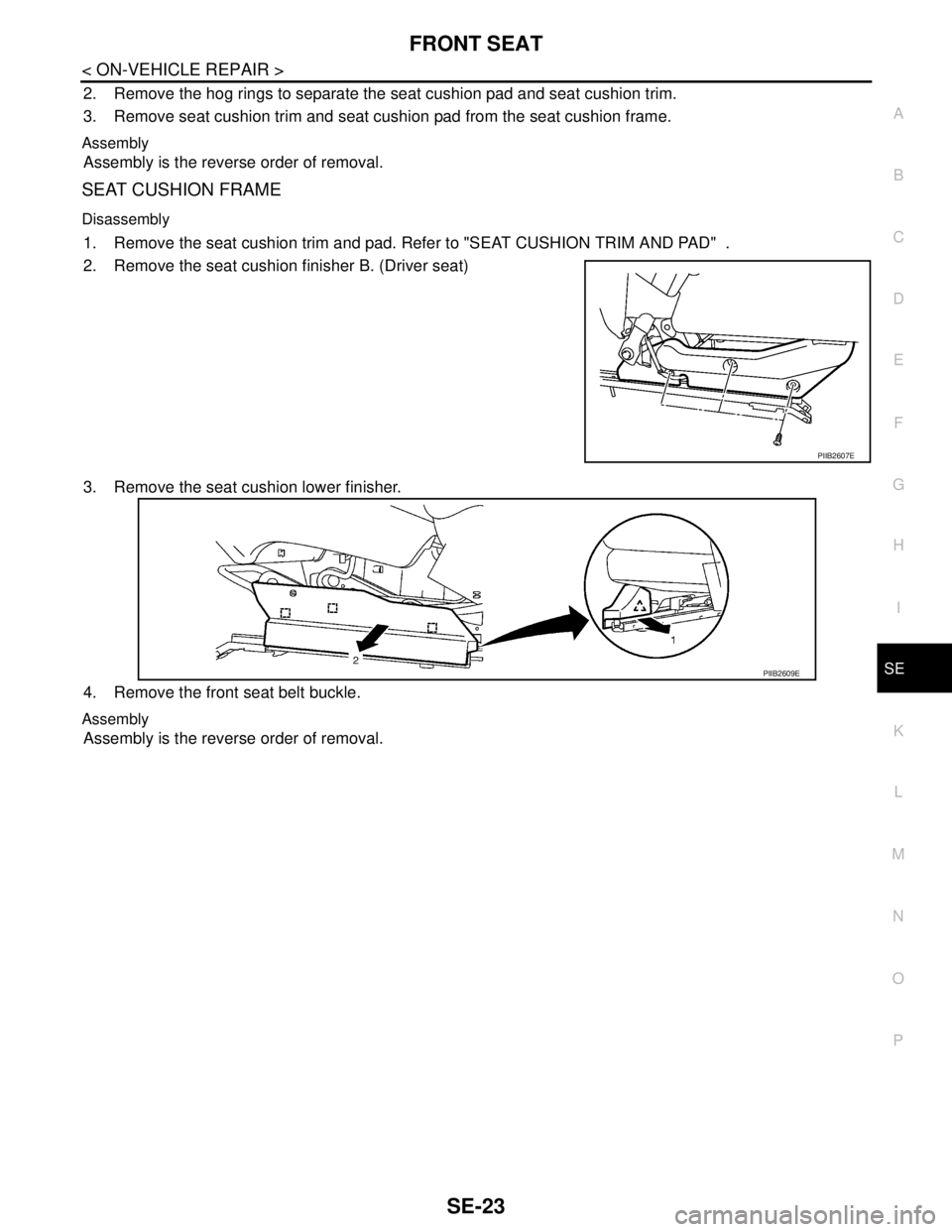

FRONT SEAT
SE-23
< ON-VEHICLE REPAIR >
C
D
E
F
G
H
I
K
L
MA
B
SE
N
O
P
2. Remove the hog rings to separate the seat cushion pad and seat cushion trim.
3. Remove seat cushion trim and seat cushion pad from the seat cushion frame.
Assembly
Assembly is the reverse order of removal.
SEAT CUSHION FRAME
Disassembly
1. Remove the seat cushion trim and pad. Refer to "SEAT CUSHION TRIM AND PAD" .
2. Remove the seat cushion finisher B. (Driver seat)
3. Remove the seat cushion lower finisher.
4. Remove the front seat belt buckle.
Assembly
Assembly is the reverse order of removal.
PIIB2607E
PIIB2609E

SE-24
< ON-VEHICLE REPAIR >
REAR SEAT
REAR SEAT
Exploded ViewINFOID:0000000001710934

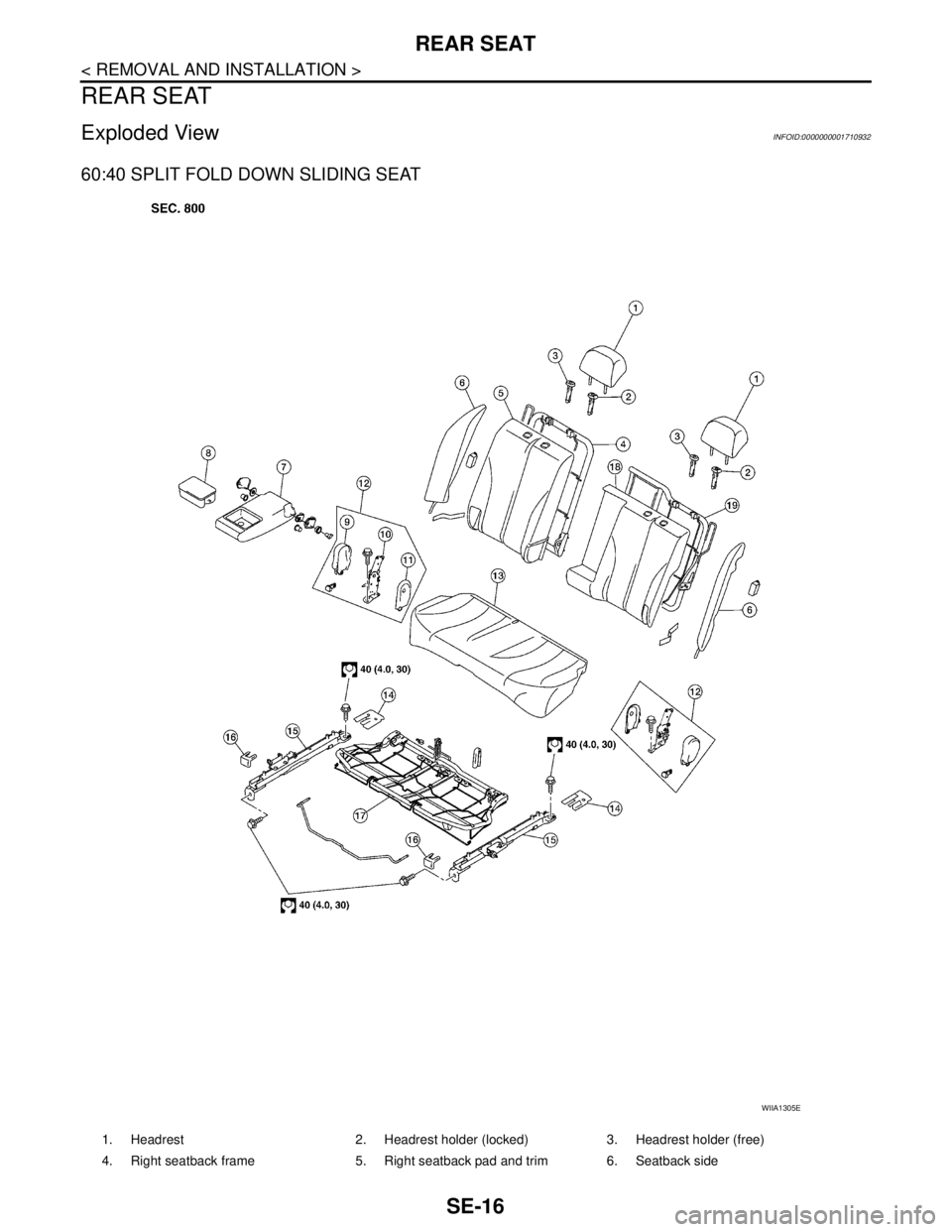

60:40 SPLIT FOLD DOWN SLIDING SEAT
WIIA1305E
1. Headrest 2. Headrest holder (locked) 3. Headrest holder (free)
4. Right seatback frame 5. Right seatback pad and trim 6. Seatback side
