NISSAN TIIDA 2007 Service Repair Manual

VTL-20
< ON-VEHICLE REPAIR >[AUTOMATIC AIR CONDITIONER]
INTAKE DOOR MOTOR
INTAKE DOOR MOTOR
Removal and InstallationINFOID:0000000001696288
REMOVAL
1. Remove the instrument lower finisher and instrument lower cover (LH) for LHD only. Refer to IP-11,
"Removal and Installation".
2. Remove the glove box assembly and instrument lower cover (RH) for RHD only. Refer to IP-11, "
Removal
and Installation".
3. Disconnect the intake door motor connector (A).
4. Remove the intake door motor screws (B), and then remove the
intake door motor (1).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
After installing door motor, perform door motor starting position reset by following self-diagnosis
STEP-3. Refer to HAC-213, "
Front Air Control Self-Diagnosis".
SJIA0692E

AIR MIX DOOR MOTOR
VTL-21
< ON-VEHICLE REPAIR >[AUTOMATIC AIR CONDITIONER]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
AIR MIX DOOR MOTOR
Removal and InstallationINFOID:0000000001696289
REMOVAL
1. Remove the instrument lower finisher and instrument lower cover (LH) for LHD only. Refer to IP-11,
"Removal and Installation".
2. Remove the glove box assembly and instrument lower cover (RH) for RHD only. Refer to IP-11, "
Removal
and Installation".
3. Remove the console box assembly. Refer to IP-11, "
Removal and Installation".
4. Remove the instrument stay nuts (A) and harness clamps (B),
and then remove instrument stay (1).
5. Remove the air mix door motor screws (A), and then pull out the
air mix door motor (1).
6. Disconnect the air mix door motor connector and remove the air
mix door motor (1).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
After installing door motor, perform door motor starting position reset by following self-diagnosis
STEP-3. Refer to HAC-213, "
Front Air Control Self-Diagnosis".
SJIA0646E
SJIA0695E

VTL-22
< ON-VEHICLE REPAIR >[AUTOMATIC AIR CONDITIONER]
MODE DOOR MOTOR
MODE DOOR MOTOR
Removal and InstallationINFOID:0000000001696290
REMOVAL
1. Remove the glove box assembly and instrument lower cover (RH) for LHD only. Refer to IP-11, "Removal
and Installation".
2. Remove the instrument lower finisher and instrument lower cover (LH) for RHD only. Refer to IP-11,
"Removal and Installation".
3. Remove the mode door motor screws (A), and then pull out the
mode door motor (1).
4. Disconnect mode door motor connector and remove the mode
door motor (1).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
After installing door motor, perform door motor starting position reset by following self-diagnosis
STEP-3. Refer to HAC-213, "
Front Air Control Self-Diagnosis".
SJIA0694E

DUCTS AND GRILLES
VTL-23
< ON-VEHICLE REPAIR >[AUTOMATIC AIR CONDITIONER]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P

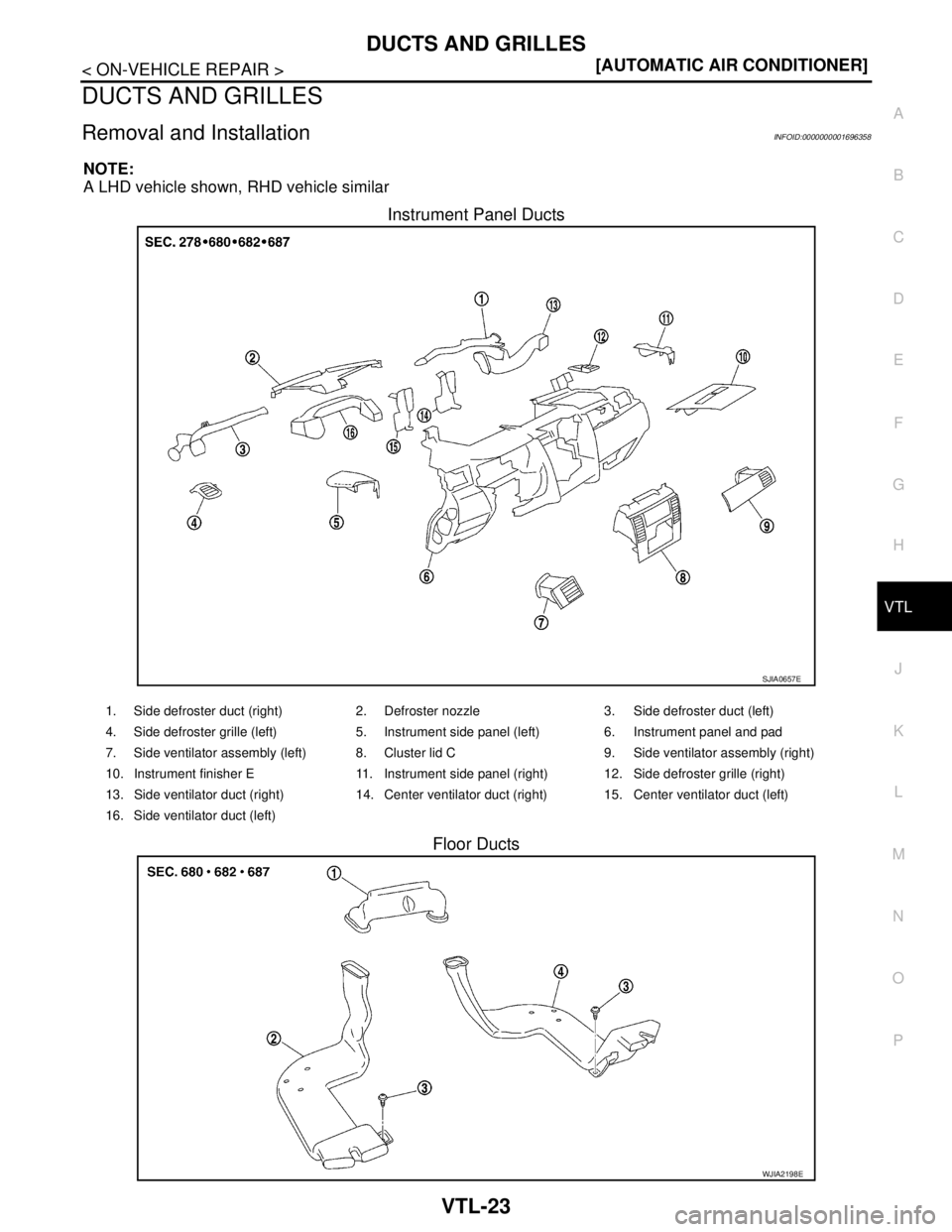

DUCTS AND GRILLES
Removal and InstallationINFOID:0000000001696358
NOTE:
A LHD vehicle shown, RHD vehicle similar
Instrument Panel Ducts
Floor Ducts
SJIA0657E
1. Side defroster duct (right) 2. Defroster nozzle 3. Side defroster duct (left)
4. Side defroster grille (left) 5. Instrument side panel (left) 6. Instrument panel and pad
7. Side ventilator assembly (left) 8. Cluster lid C 9. Side ventilator assembly (right)
10. Instrument finisher E 11. Instrument side panel (right) 12. Side defroster grille (right)
13. Side ventilator duct (right) 14. Center ventilator duct (right) 15. Center ventilator duct (left)
16. Side ventilator duct (left)
WJIA2198E

VTL-24
< ON-VEHICLE REPAIR >[AUTOMATIC AIR CONDITIONER]
DUCTS AND GRILLES

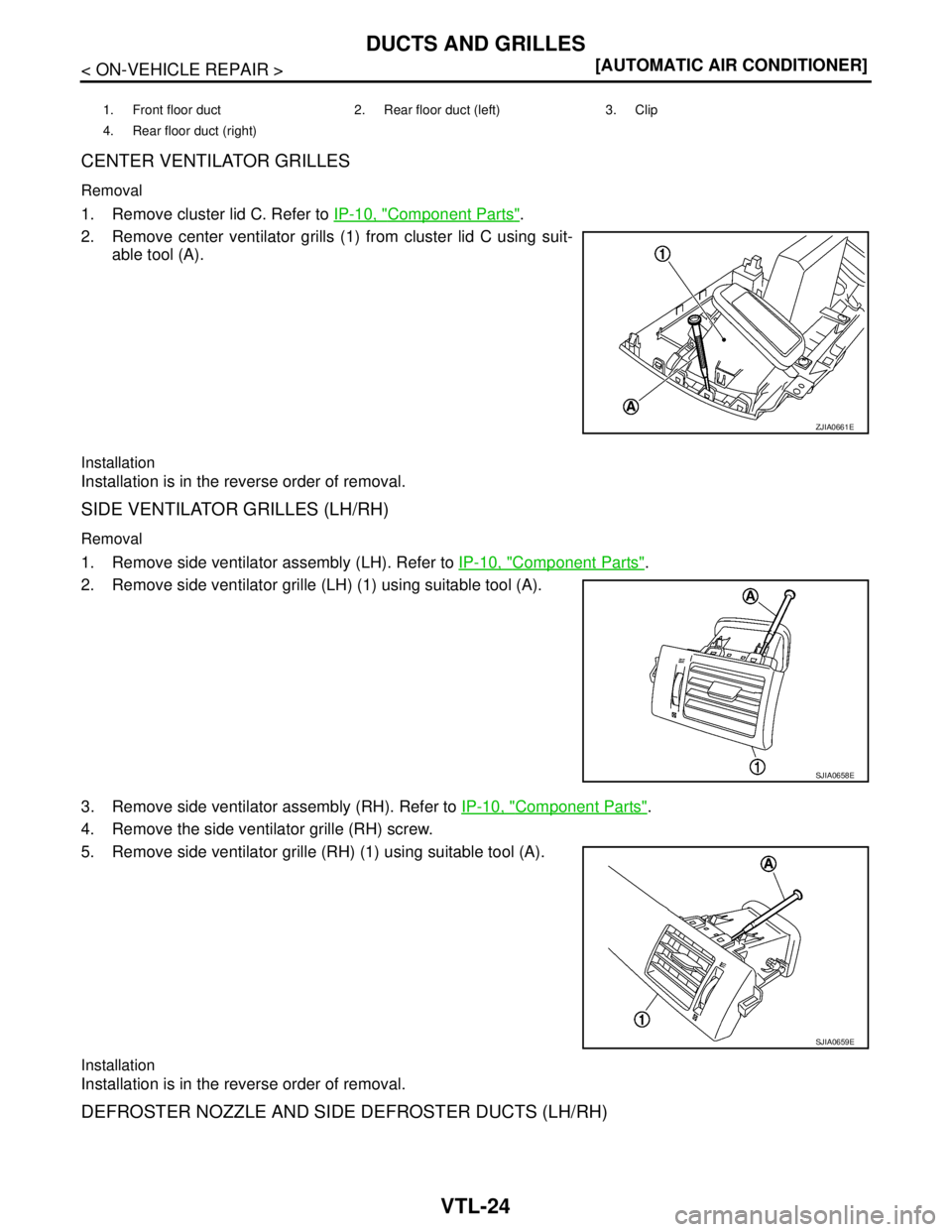

CENTER VENTILATOR GRILLES
Removal
1. Remove cluster lid C. Refer to IP-10, "Component Parts".
2. Remove center ventilator grills (1) from cluster lid C using suit-
able tool (A).
Installation
Installation is in the reverse order of removal.
SIDE VENTILATOR GRILLES (LH/RH)
Removal
1. Remove side ventilator assembly (LH). Refer to IP-10, "Component Parts".
2. Remove side ventilator grille (LH) (1) using suitable tool (A).
3. Remove side ventilator assembly (RH). Refer to IP-10, "
Component Parts".
4. Remove the side ventilator grille (RH) screw.
5. Remove side ventilator grille (RH) (1) using suitable tool (A).
Installation
Installation is in the reverse order of removal.

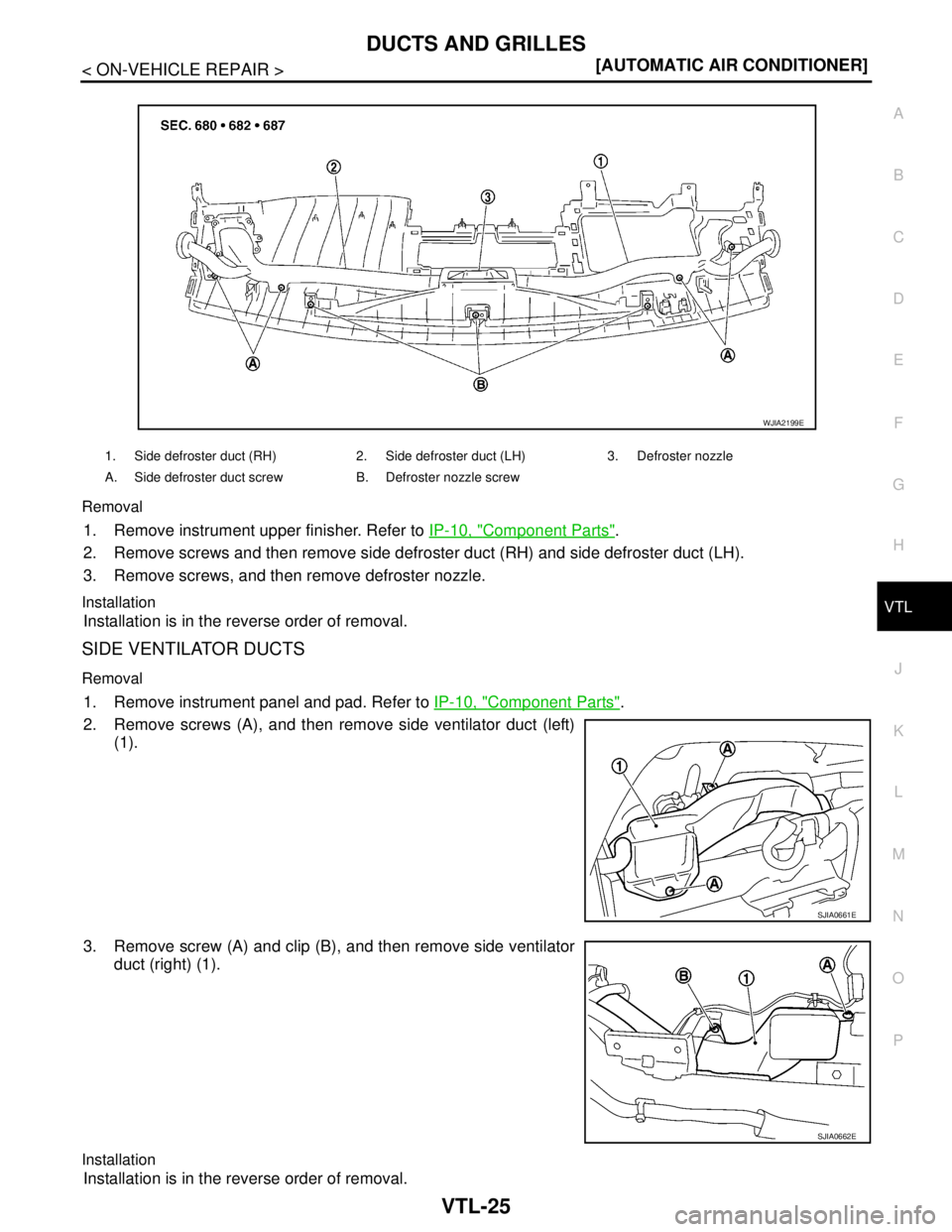

DEFROSTER NOZZLE AND SIDE DEFROSTER DUCTS (LH/RH)
1. Front floor duct 2. Rear floor duct (left) 3. Clip
4. Rear floor duct (right)
ZJIA0661E
SJIA0658E
SJIA0659E

DUCTS AND GRILLES
VTL-25
< ON-VEHICLE REPAIR >[AUTOMATIC AIR CONDITIONER]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P Removal
1. Remove instrument upper finisher. Refer to IP-10, "Component Parts".
2. Remove screws and then remove side defroster duct (RH) and side defroster duct (LH).
3. Remove screws, and then remove defroster nozzle.
Installation
Installation is in the reverse order of removal.
SIDE VENTILATOR DUCTS
Removal
1. Remove instrument panel and pad. Refer to IP-10, "Component Parts".
2. Remove screws (A), and then remove side ventilator duct (left)
(1).
3. Remove screw (A) and clip (B), and then remove side ventilator
duct (right) (1).
Installation
Installation is in the reverse order of removal.
1. Side defroster duct (RH) 2. Side defroster duct (LH) 3. Defroster nozzle
A. Side defroster duct screw B. Defroster nozzle screw
WJIA2199E
SJIA0661E
SJIA0662E

VTL-26
< ON-VEHICLE REPAIR >[AUTOMATIC AIR CONDITIONER]
DUCTS AND GRILLES

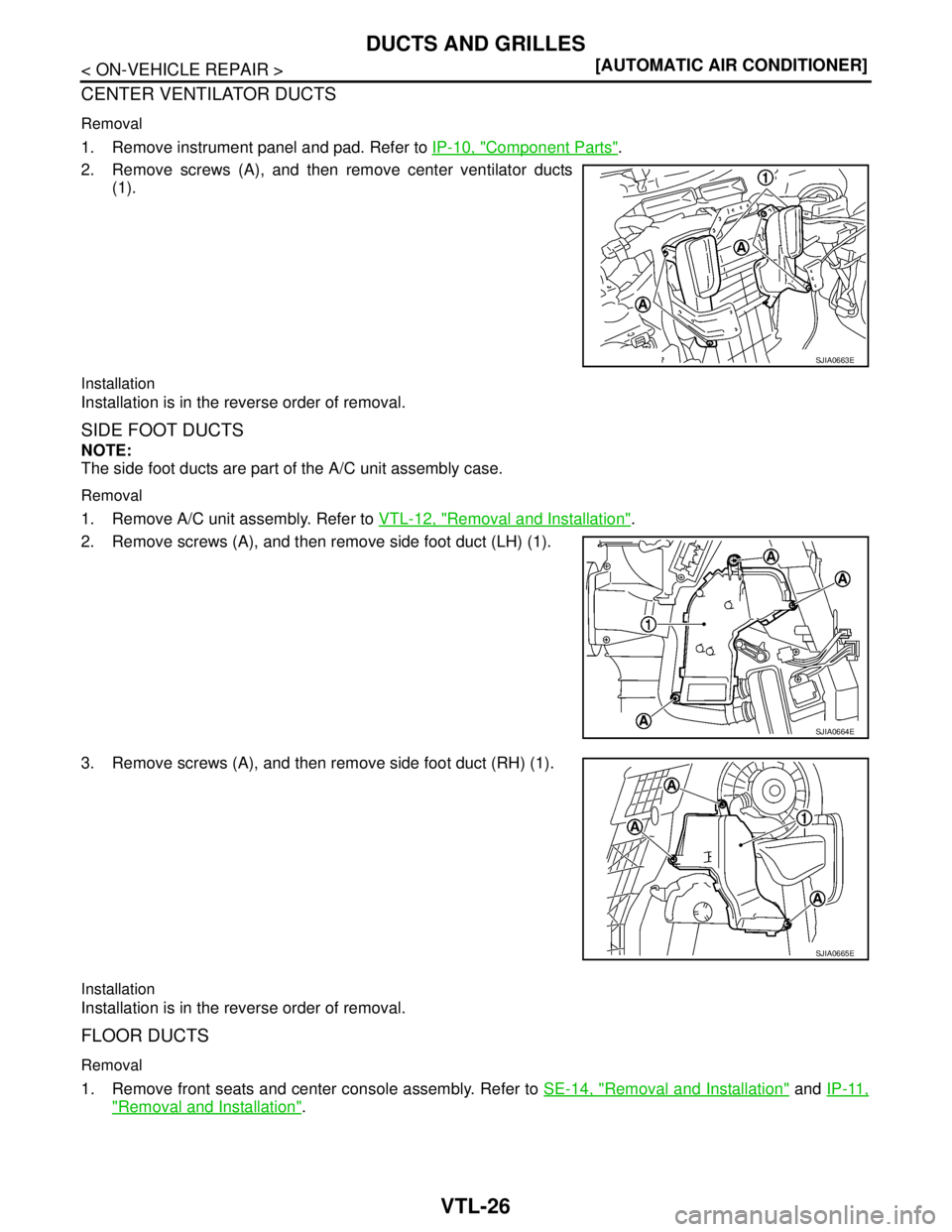

CENTER VENTILATOR DUCTS
Removal
1. Remove instrument panel and pad. Refer to IP-10, "Component Parts".
2. Remove screws (A), and then remove center ventilator ducts
(1).
Installation
Installation is in the reverse order of removal.
SIDE FOOT DUCTS
NOTE:
The side foot ducts are part of the A/C unit assembly case.
Removal
1. Remove A/C unit assembly. Refer to VTL-12, "Removal and Installation".
2. Remove screws (A), and then remove side foot duct (LH) (1).
3. Remove screws (A), and then remove side foot duct (RH) (1).
Installation
Installation is in the reverse order of removal.
FLOOR DUCTS
Removal
1. Remove front seats and center console assembly. Refer to SE-14, "Removal and Installation" and IP-11,
"Removal and Installation".
SJIA0663E
SJIA0664E
SJIA0665E

DUCTS AND GRILLES
VTL-27
< ON-VEHICLE REPAIR >[AUTOMATIC AIR CONDITIONER]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P

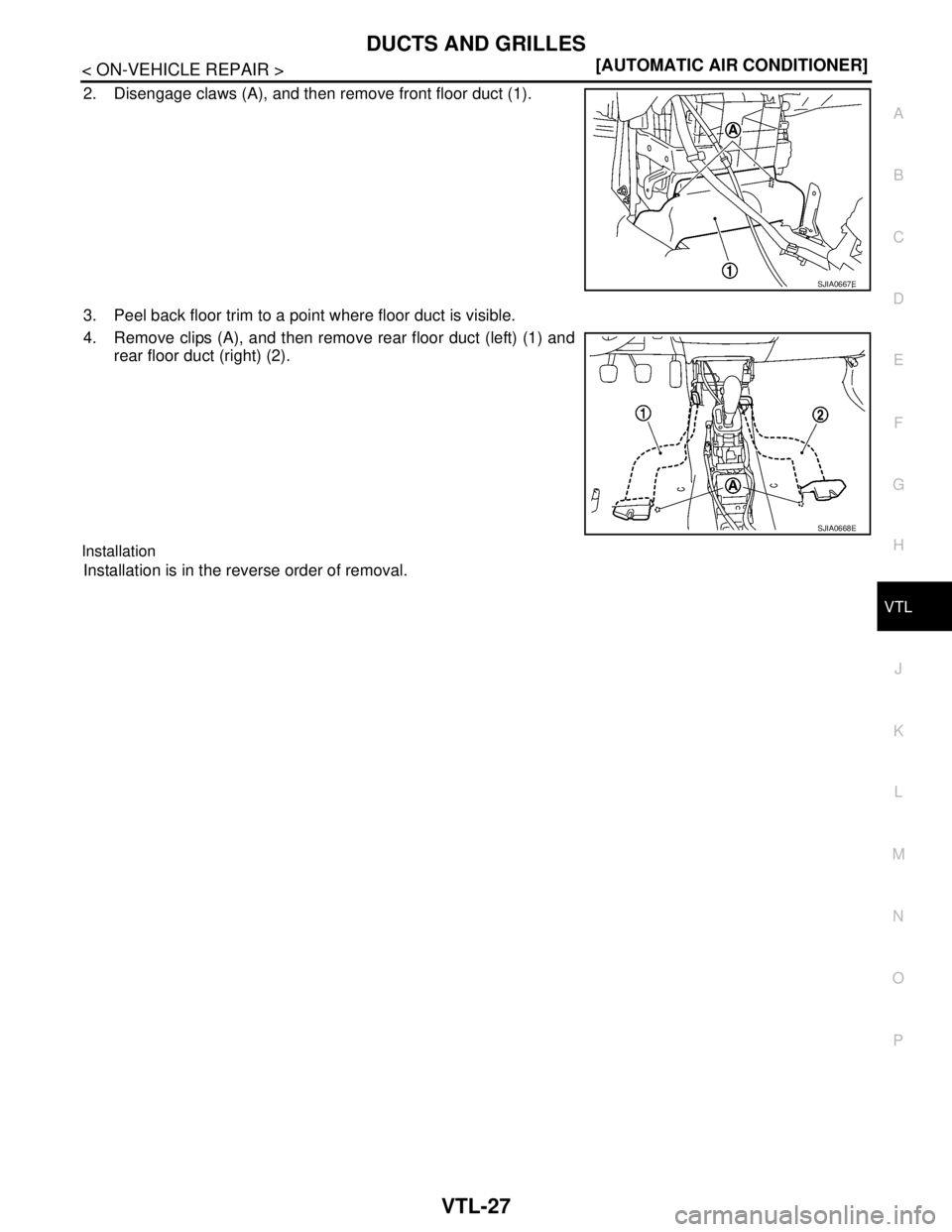

2. Disengage claws (A), and then remove front floor duct (1).
3. Peel back floor trim to a point where floor duct is visible.
4. Remove clips (A), and then remove rear floor duct (left) (1) and
rear floor duct (right) (2).
Installation
Installation is in the reverse order of removal.
SJIA0667E
SJIA0668E

VTL-28
< ON-VEHICLE REPAIR >[AUTOMATIC AIR CONDITIONER]

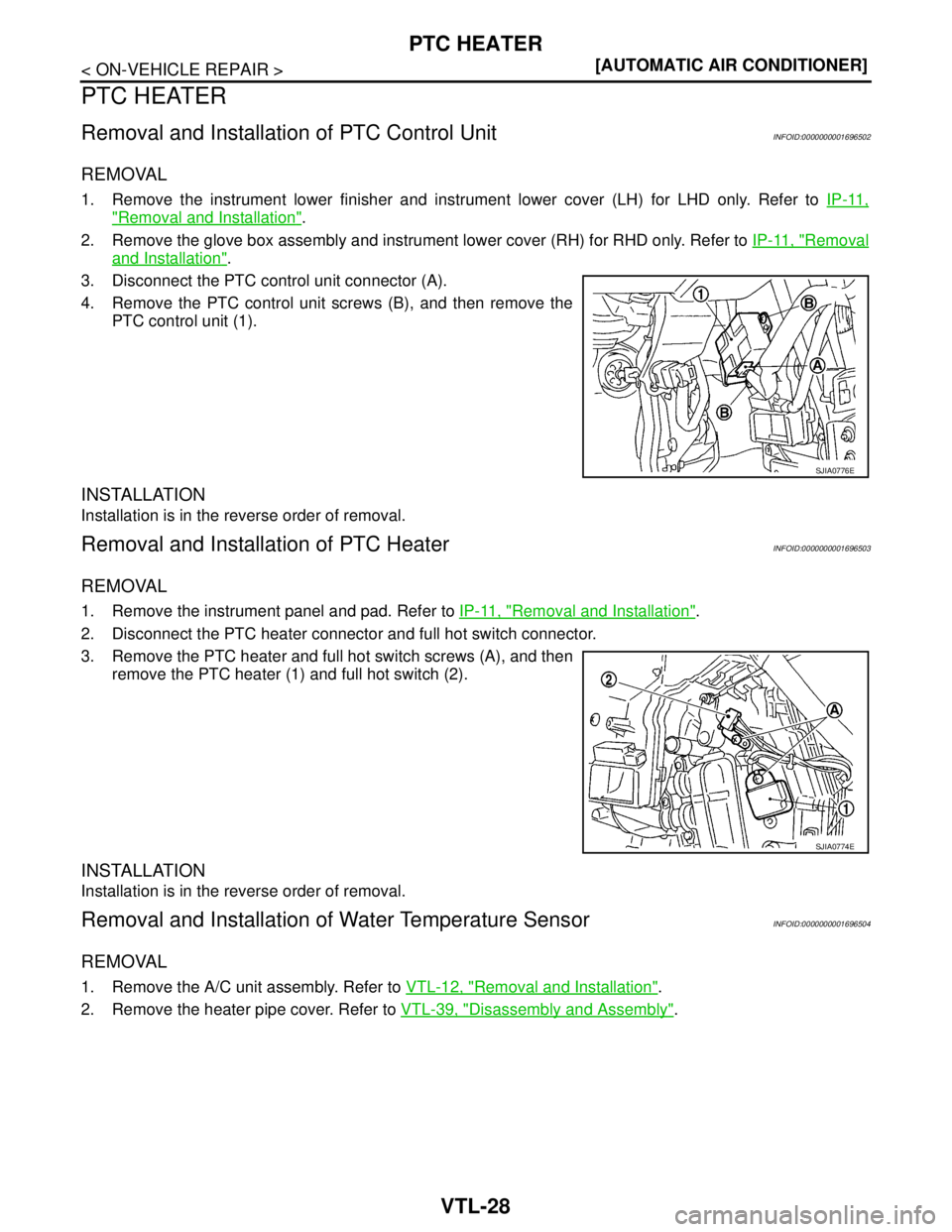

PTC HEATER
PTC HEATER
Removal and Installation of PTC Control UnitINFOID:0000000001696502
REMOVAL
1. Remove the instrument lower finisher and instrument lower cover (LH) for LHD only. Refer to IP-11,
"Removal and Installation".
2. Remove the glove box assembly and instrument lower cover (RH) for RHD only. Refer to IP-11, "
Removal
and Installation".
3. Disconnect the PTC control unit connector (A).
4. Remove the PTC control unit screws (B), and then remove the
PTC control unit (1).
INSTALLATION
Installation is in the reverse order of removal.
Removal and Installation of PTC HeaterINFOID:0000000001696503
REMOVAL
1. Remove the instrument panel and pad. Refer to IP-11, "Removal and Installation".
2. Disconnect the PTC heater connector and full hot switch connector.
3. Remove the PTC heater and full hot switch screws (A), and then
remove the PTC heater (1) and full hot switch (2).
INSTALLATION
Installation is in the reverse order of removal.
Removal and Installation of Water Temperature SensorINFOID:0000000001696504
REMOVAL
1. Remove the A/C unit assembly. Refer to VTL-12, "Removal and Installation".
2. Remove the heater pipe cover. Refer to VTL-39, "
Disassembly and Assembly".
SJIA0776E
SJIA0774E

PTC HEATER
VTL-29
< ON-VEHICLE REPAIR >[AUTOMATIC AIR CONDITIONER]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
3. Remove the water temperature sensor screw (A), and then
remove the water temperature sensor (1).
INSTALLATION
Installation is in the reverse order of removal.
SJIA0934E
