NISSAN TIIDA 2007 Service Repair Manual

VTL-30
< PRECAUTION >[MANUAL AIR CONDITIONER]
PRECAUTIONS
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000001696378
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
 To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
 Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
 Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.
Precaution for Working with HFC-134a (R-134a)INFOID:0000000001696379
WARNING:
 Use only specified oil for the HFC-134a (R-134a) A/C system and HFC-134a (R-134a) components. If
oil other than that specified is used, compressor malfunction is likely to occur.
 The specified HFC-134a (R-134a) oil rapidly absorbs moisture from the atmosphere. The following
handling precautions must be observed:
- When removing refrigerant components from a vehicle, immediately cap (seal) the component to
minimize the entry of moisture from the atmosphere.
- When installing refrigerant components to a vehicle, do not remove the caps (unseal) until just
before connecting the components. Connect all refrigerant loop components as quickly as possible
to minimize the entry of moisture into system.
- Only use the specified oil from a sealed container. Immediately reseal containers of oil. Without
proper sealing, oil will become moisture saturated and should not be used.
- Avoid breathing A/C refrigerant and oil vapor or mist. Exposure may irritate eyes, nose and throat.
Use only approved recovery/recycling equipment to discharge HFC-134a (R-134a) refrigerant. If acci-
dental system discharge occurs, ventilate work area before resuming service. Additional health and
safety information may be obtained from refrigerant and oil manufacturers.
- Do not allow A/C oil to come in contact with styrofoam parts. Damage may result.

PREPARATION
VTL-31
< PREPARATION >[MANUAL AIR CONDITIONER]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
PREPARATION
PREPARATION
Commercial Service ToolINFOID:0000000001696380
Tool nameDescription
(J-41810-NI)
Refrigerant identifier equipment (R-
134a)For checking refrigerant purity and
system contamination
Power toolLoosening bolts and nuts
RJIA0197E
PBIC0190E

VTL-32
< FUNCTION DIAGNOSIS >[MANUAL AIR CONDITIONER]
AIR CONDITIONER FILTER
FUNCTION DIAGNOSIS
AIR CONDITIONER FILTER
DescriptionINFOID:0000000001710935
FUNCTION
The fresh air (A) and the recirculated air (B) drawn inside the pas-
senger compartment by the front blower motor (1) is kept clean (C)
on either mode by the air conditioner filter (2), located before the
evaporator (3), in the A/C unit assembly.
WJIA2253E

AIR CONDITIONER FILTER
VTL-33
< ON-VEHICLE MAINTENANCE >[MANUAL AIR CONDITIONER]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
ON-VEHICLE MAINTENANCE
AIR CONDITIONER FILTER
Removal and InstallationINFOID:0000000001710936
REPLACEMENT TIMING
Replace the air conditioner filter according to the maintenance schedules. Refer to MA-7, "Periodic Mainte-
nance".
NOTE:
The air conditioner filter caution label is located inside the glove box door.
REPLACEMENT PROCEDURES
1. Remove the instrument lower finisher and instrument lower cover (LH) for LHD only. Refer to IP-11,
"Removal and Installation".
2. Remove the glove box assembly and instrument lower cover (RH) for RHD only. Refer to IP-11, "
Removal
and Installation".
3. Compress the air conditioner filter (1) downward while sliding it
to the RH side of the vehicle to release the upper pawl.
4. Move the bottom of air conditioner filter (1) upward as shown to
release the bottom tab, then remove it.
5. Replace the air conditioner filter with new one and install the new filter in the A/C unit assembly.
CAUTION:
Make sure that the air conditioner filter lower tab is fully seated, and that the air conditioner upper
pawl is locked into place securing the new filter into the A/C unit assembly.
6. Install the glove box assembly and instrument lower cover (RH) for RHD only. Refer to IP-11, "
Removal
and Installation".
7. Install the instrument lower finisher and instrument lower cover (LH) for LHD only. Refer to IP-11,
"Removal and Installation".
SJIA0652E

VTL-34
< ON-VEHICLE REPAIR >[MANUAL AIR CONDITIONER]
CONTROLLER
ON-VEHICLE REPAIR
CONTROLLER
Removal and InstallationINFOID:0000000001696528
REMOVAL
1. Remove cluster lid C and instrument finisher D. Refer to IP-11, "Removal and Installation".
2. Remove intake door lever knob. Refer to VTL-35, "
Disassembly
and Assembly".
3. Remove mounting screws and clips, and then remove controller
finisher.
4. Remove mounting screws, and then pull out controller.
5. Remove instrument panel and pad. Refer to IP-11, "
Removal and Installation".
6. Remove air mix door cable, mode door cable and intake door cable from A/C unit assembly.
7. Disconnect connector, and then remove controller.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Adjust the door cables during installation. Refer to VTL-45, "
Intake Door Cable Adjustment", VTL-47,
"Mode Door Cable Adjustment" and VTL-46, "Air Mix Door Cable Adjustment".
ZJIA0697E
ZJIA0698E

CONTROLLER
VTL-35
< ON-VEHICLE REPAIR >[MANUAL AIR CONDITIONER]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
Disassembly and AssemblyINFOID:0000000001696529
CAUTION:
Install inner cable of each door cable to the corresponding
lever, as shown in the figure. Press outer cable until it hooks on
the tabs and becomes secure.
1. Air mix door cable 2. Intake door cable 3. Mode door cable
4. A/C controller assembly 5. Mode control dial 6. Rear DEF button
7. A/C button 8. Temperature control dial 9. Illumination bulb
10. Intake door lever knob 11. Fan control dial
ZJIA0106J
MJIA0038E

VTL-36
< ON-VEHICLE REPAIR >[MANUAL AIR CONDITIONER]
INTAKE SENSOR
INTAKE SENSOR
Removal and InstallationINFOID:0000000001700349
REMOVAL
1. Remove the evaporator. Refer to VTL-41, "Removal and Installation of Evaporator".
CAUTION:
Cap or wrap the joint of the pipe with suitable material such as vinyl tape to avoid the entry of air.
2. Remove the intake sensor (1) from the evaporator (2).
CAUTION:
Mark the position of intake sensor on the evaporator for
installation.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
 Replace O-rings for A/C piping with new ones, and then apply compressor oil to it when installing it.
 Install the intake sensor in the same position as the original intake sensor.
 When recharging refrigerant, check for leaks.
ZJIA0798J

A/C UNIT ASSEMBLY
VTL-37
< ON-VEHICLE REPAIR >[MANUAL AIR CONDITIONER]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
A/C UNIT ASSEMBLY
Removal and InstallationINFOID:0000000001696531
NOTE:
A LHD model shown, RHD model similar.
REMOVAL
1. Use a recovery/recycling equipment (for HFC-134a) to discharge refrigerant. Refer to HA-29, "HFC-134a
(R-134a) Service Procedure".
2. Drain coolant from cooling system. Refer to CO-11, "
Changing Engine Coolant" (HR16DE), CO-35,
"Changing Engine Coolant" (MR18DE), CO-58, "Draining" (K9K).
3. Remove cowl top cover. Refer to EXT-20, "
Removal and Installation".
4. Remove lower dash insulator.

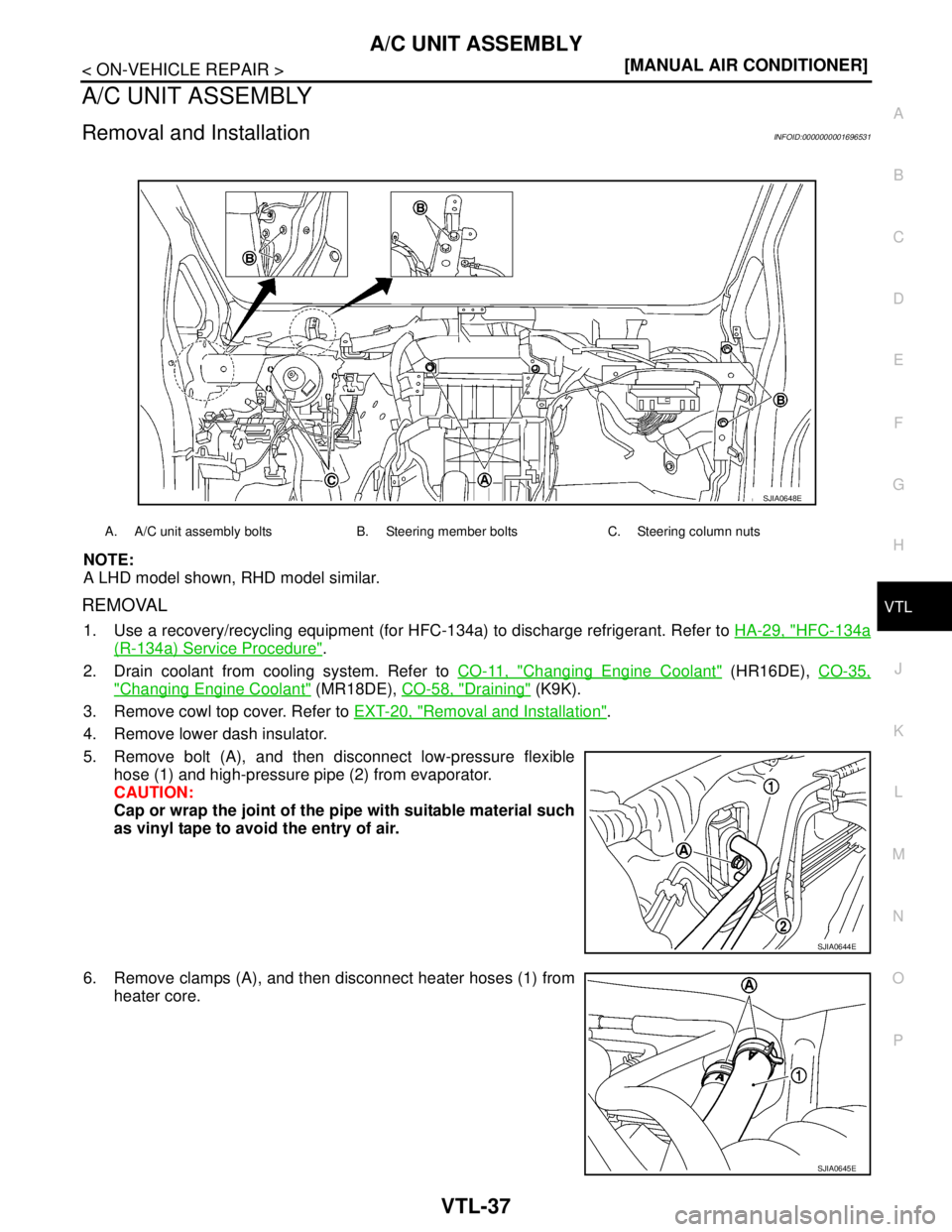

5. Remove bolt (A), and then disconnect low-pressure flexible
hose (1) and high-pressure pipe (2) from evaporator.
CAUTION:
Cap or wrap the joint of the pipe with suitable material such
as vinyl tape to avoid the entry of air.
6. Remove clamps (A), and then disconnect heater hoses (1) from
heater core.
A. A/C unit assembly bolts B. Steering member bolts C. Steering column nuts
SJIA0648E
SJIA0644E
SJIA0645E

VTL-38
< ON-VEHICLE REPAIR >[MANUAL AIR CONDITIONER]
A/C UNIT ASSEMBLY
7. Remove console box assembly. Refer to IP-11, "Removal and Installation" .
8. Remove instrument stay nuts (A) and harness clamps (B), and
then remove instrument stay (1).
9. Disconnect thermo control amp. connector (1).
10. Remove instrument panel and pad. Refer to IP-11, "
Removal and Installation".
11. Remove side ventilator ducts. Refer to VTL-48, "
Removal and Installation".
12. Remove center ventilator ducts. Refer to VTL-48, "
Removal and Installation".
13. Remove side kicking plates. Refer to INT-20, "
Removal and Installation".
14. Disconnect the fuel filler door cable and the rear hatch door cable.
15. Remove A/C unit assembly bolts, steering member bolts, steering column nuts and harness clips.
16. Remove steering member, and then remove A/C unit assembly.
INSTALLATION
Installation is in the reverse order of removal.
 Fill the cooling system. Refer to CO-11, "
Changing Engine Coolant" (HR16DE), CO-35, "Changing Engine
Coolant" (MR18DE), CO-58, "Refilling" (K9K).
 Recharge the refrigerant.
CAUTION:
 Replace O-rings for A/C piping with new ones, and apply compressor oil when installing.
 When recharging refrigerant, check for leaks.
SJIA0646E
SJIA0647E
A/C unit assembly bolt : 6.9 N·m (0.7 kg-m, 61 in-lb)
Steering member bolt : 12 N·m (1.25 kg-m, 9 ft-lb)
Steering column nut : Refer to ST-9, "
Removal and Installation".

A/C UNIT ASSEMBLY
VTL-39
< ON-VEHICLE REPAIR >[MANUAL AIR CONDITIONER]
C
D
E
F
G
H
J
K
L
MA
B
VTL
N
O
P
Disassembly and AssemblyINFOID:0000000001696532

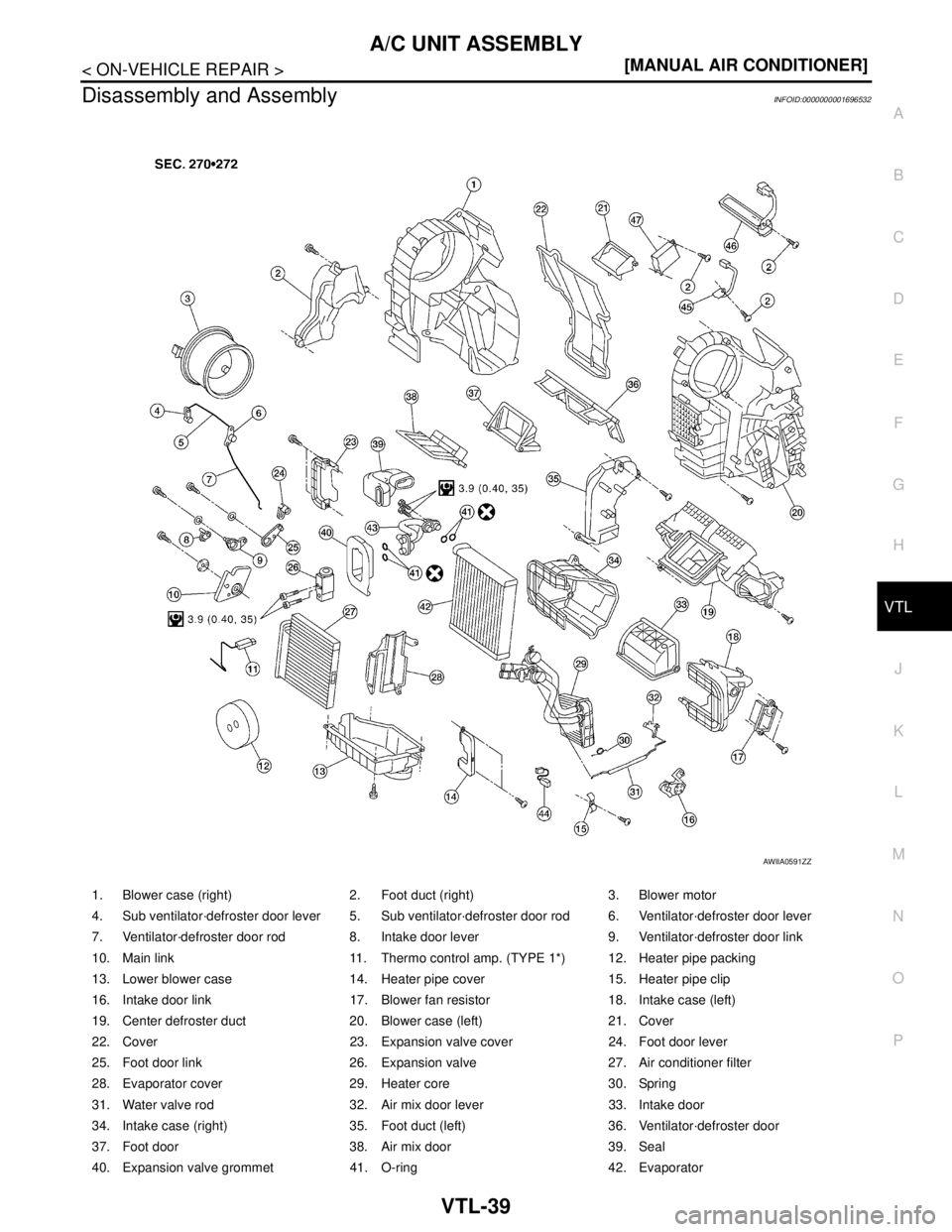

1. Blower case (right) 2. Foot duct (right) 3. Blower motor
4. Sub ventilator·defroster door lever 5. Sub ventilator·defroster door rod 6. Ventilator·defroster door lever
7. Ventilator·defroster door rod 8. Intake door lever 9. Ventilator·defroster door link
10. Main link 11. Thermo control amp. (TYPE 1*) 12. Heater pipe packing
13. Lower blower case 14. Heater pipe cover 15. Heater pipe clip
16. Intake door link 17. Blower fan resistor 18. Intake case (left)
19. Center defroster duct 20. Blower case (left) 21. Cover
22. Cover 23. Expansion valve cover 24. Foot door lever
25. Foot door link 26. Expansion valve 27. Air conditioner filter
28. Evaporator cover 29. Heater core 30. Spring
31. Water valve rod 32. Air mix door lever 33. Intake door
34. Intake case (right) 35. Foot duct (left) 36. Ventilator·defroster door
37. Foot door 38. Air mix door 39. Seal
40. Expansion valve grommet 41. O-ring 42. Evaporator
AWIIA0591ZZ
